Isuzu WW
▶
TRUCKS
▶
FSS
▶
11146 - FSS(LHD)
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#69010) — 42 parça
◀
[828A] FRONT SIDE (10 parça)
[828A] FRAME SIDE (8 parça)
[828A] MAGNETIC VALVE;PTO (9 parça)
[828A] MAGNETIC VALVE;TRANSFER,LOW TO HIGH (11 parça)
[828A] RELAY;FRAME HARNESS (2 parça)
[828A] RELAY;CAB HARNESS (2 parça)
▶

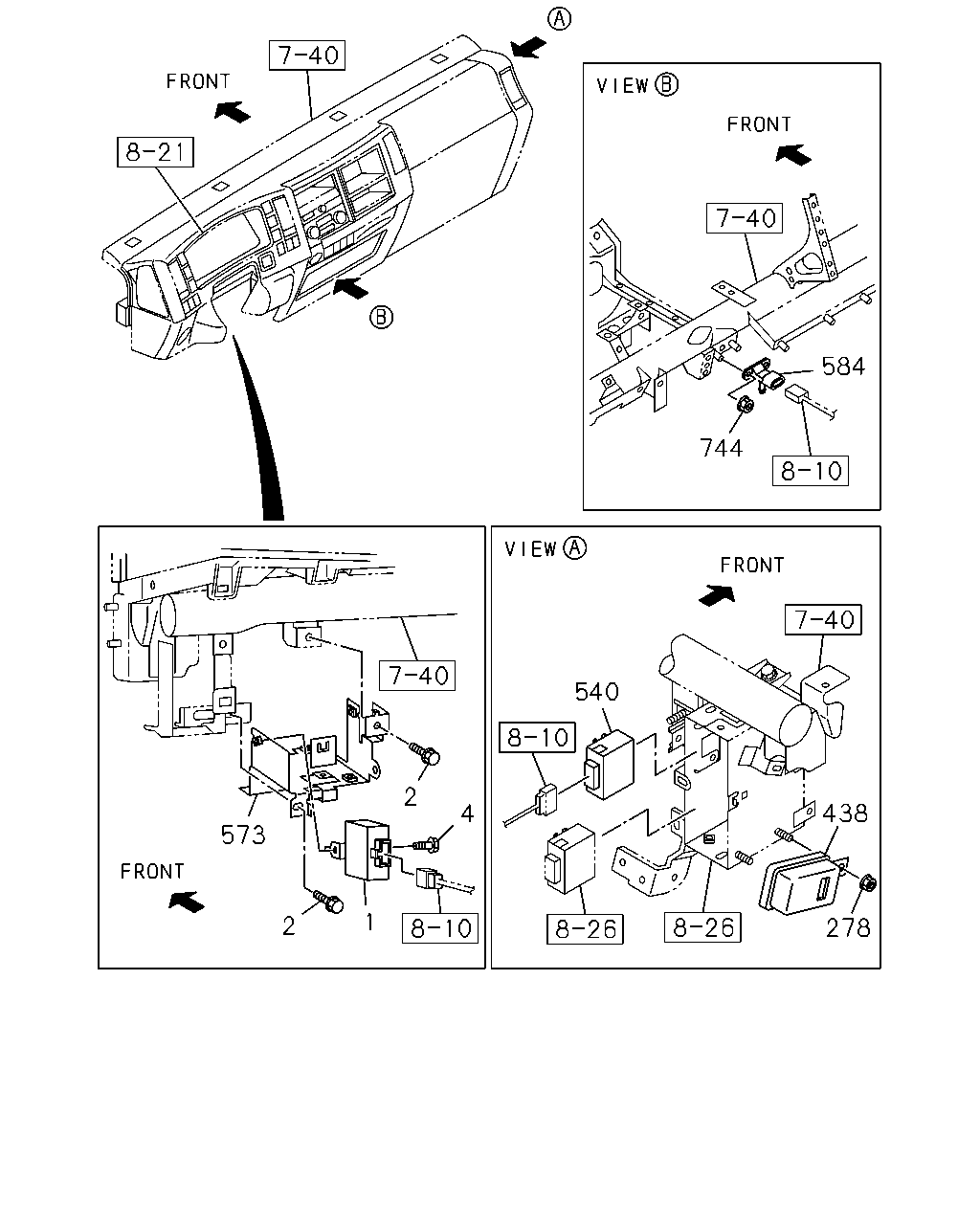

584
744
540
2
438
4
573
1
2
278
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
UNIT; FLASHER
8-98025-533-1
01
1
0812-
2
BOLT; FLASHER UNIT
M6X16 FLANGE
0-28650-616-0
02
1
0812-
4
SCREW; FLASHER UNIT
BOLT M6X16 FLANGE
0-28650-616-0
01
1
0812-
278
NUT; CONT UNIT
M6 FLANGE
0-91180-106-0
01
1
0812-
438
UNIT; SPD CONTROL
1-82550-271-0
01
1
0812-
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98060-388-0
01
1
0812-1308
540
RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13>
8-98233-976-0
01
1
1309-
573
BRACKET; FLASHER UNIT
8-97616-351-3
01
1
0812-
584
SENSOR; PRESSURE
8-98020-514-0
01
1
0812-
744
NUT; SENSOR
M6 FLANGE
0-91180-106-0
02
1
0812-

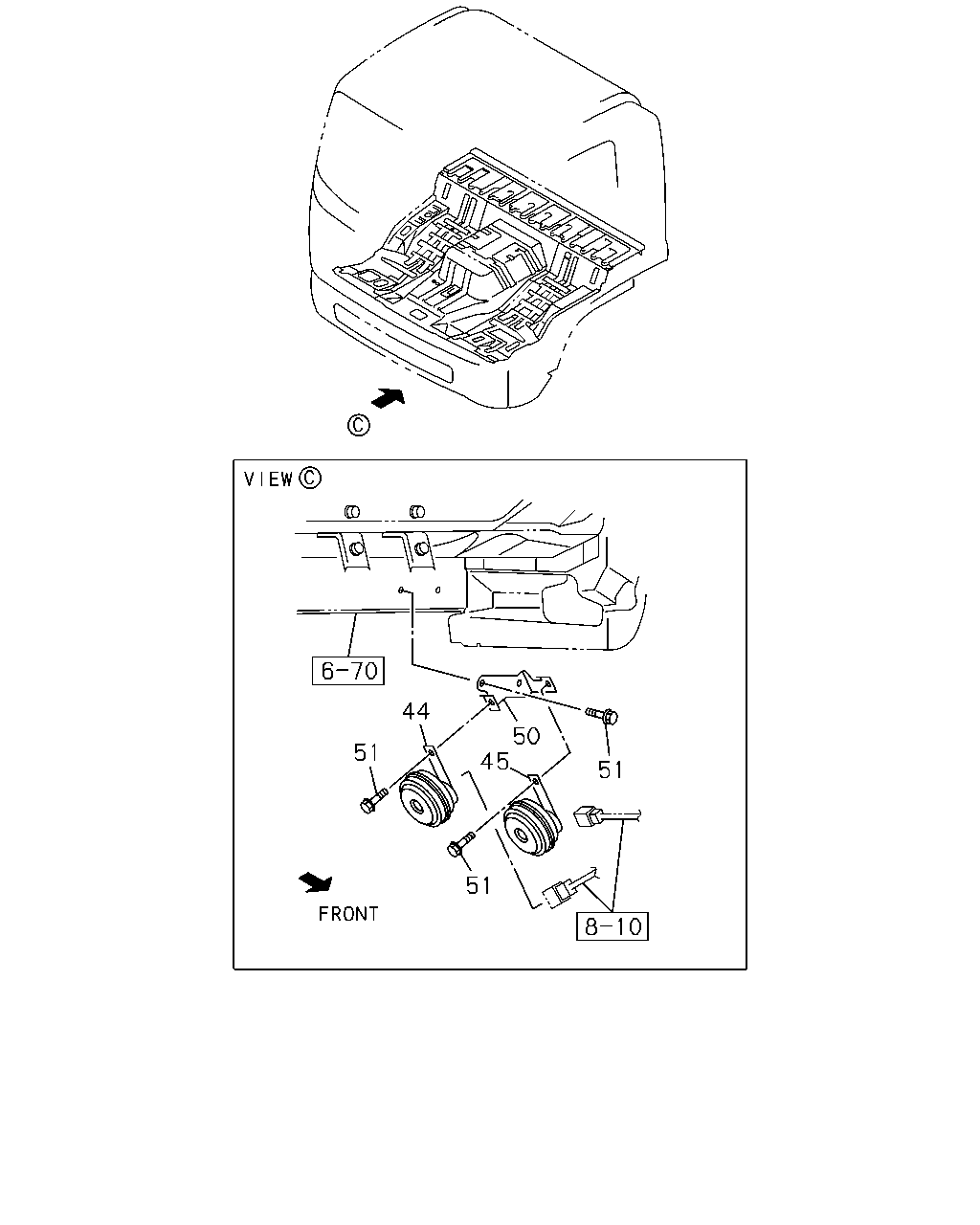

44
50
45
51
51
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
HORN; HIGH NOTE
8-98022-022-0
01
1
0812-1001
44
HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK)
8-98022-022-0
01
1
1002-
45
HORN; LOW NOTE
8-98022-023-0
01
1
0812-
50
BRACKET; HORN
8-97616-529-2
01
1
0812-
51
BOLT; HORN TO BRKT
EXC. DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
1002-
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
04
1
0812-1001
51
BOLT; HORN TO BRKT
M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1002-
51
BOLT; HORN TO BRKT
DUAL HEAVY DUTY HORN(6KK) M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
1002-
39
36
34
33
35
34
34
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
VALVE; MAG,PTO CONT
PTO CONTROL<SV6>
1-82563-871-2
01
1
0812-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0812-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0812-
34
CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 ELBOW
1-09650-430-0
04
1
0812-
35
BRACKET; MAG VLV,PTO CONT
PTO CONTROL<SV6>
8-98034-702-0
01
1
0812-
36
BOLT; MAG VLV,PTO CONT
PTO CONTROL<SV6> M8X20 FLANGE
0-28650-820-0
02
1
0812-
39
BOLT; BRKT,MAG VLV
PTO CONTROL<SV6> M10X30 FLANGE
0-28651-030-0
02
1
0812-
261
PLUG; MAG VLV
PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4
9-99204-513-0
01
1
0812-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0812-
284
714
210
284
714
714
602
34
210
34
285
34
261
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> (B) M12 & PT1/4 ELBOW
1-09650-430-0
02
1
0812-
34
CONNECTOR; MAG VLV,INL PORT
PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> (A) M12 & PT1/4 STRAIGHT
1-09650-074-1
01
1
0812-
34
CONNECTOR; MAG VLV,INL PORT
(B) M12 & PT1/4 ELBOW
1-09650-430-0
04
1
0812-
210
WASHER; PL,BRKT
1-82569-266-0
04
1
0812-
261
PLUG; MAG VLV
PTO CONTROL<SV6> RIGID SEAT WO/ARM REST<TAZ> PT1/4
9-99204-513-0
01
1
0812-
261
PLUG; MAG VLV
PT1/4
9-99204-513-0
01
1
0812-
284
BOLT; MAG VLV
(A) M6X50 FLANGE
0-28050-650-0
02
1
0812-
284
BOLT; MAG VLV
(B) M8X25 FLANGE
0-28650-825-0
03
1
0812-
285
NUT; MAG VLV
M6 FLANGE
0-91180-106-0
02
1
0812-
602
GASKET; MAG VLV
ID=16.8
9-09565-117-0
02
1
0812-
714
VALVE; MAG,TRANS,LOW TO HIGH
1-82563-871-2
03
1
0812-
531
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
531
RELAY; MAIN
24V 30A MITSUBA
8-97238-540-0
01
1
0812-1402
531
RELAY; MAIN
24V 30A MITSUBA
8-98259-779-0
01
1
1403-

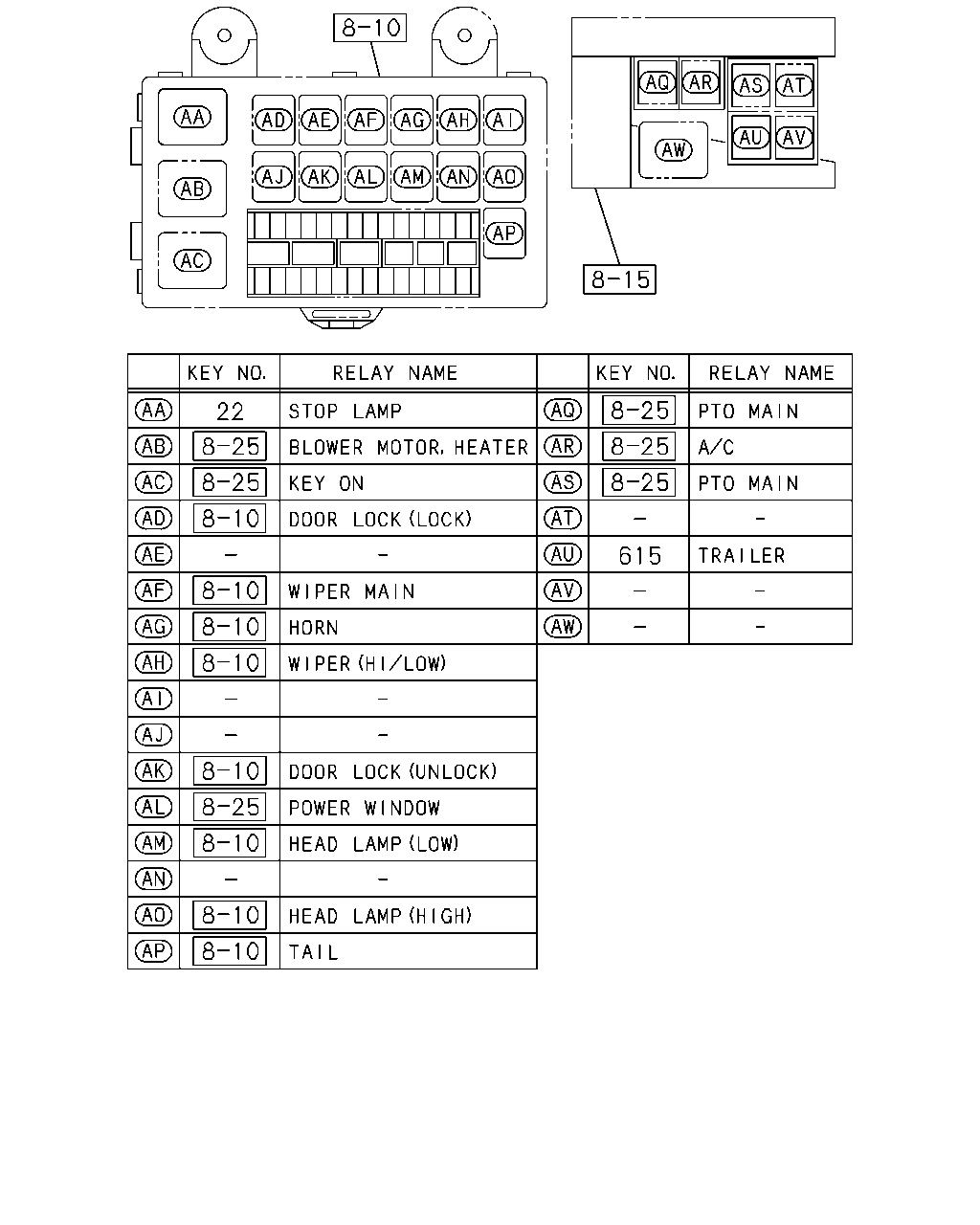

22
615
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
RELAY; STOP LAMP
24V 12.5A PANASONIC
8-97262-933-0
01
1
0812-
615
RELAY; TRAILER
24V 10A PANASONIC
8-97173-035-1
01
1
0812-
