Sayfa 8-20 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-20 - METER CABLE ▶

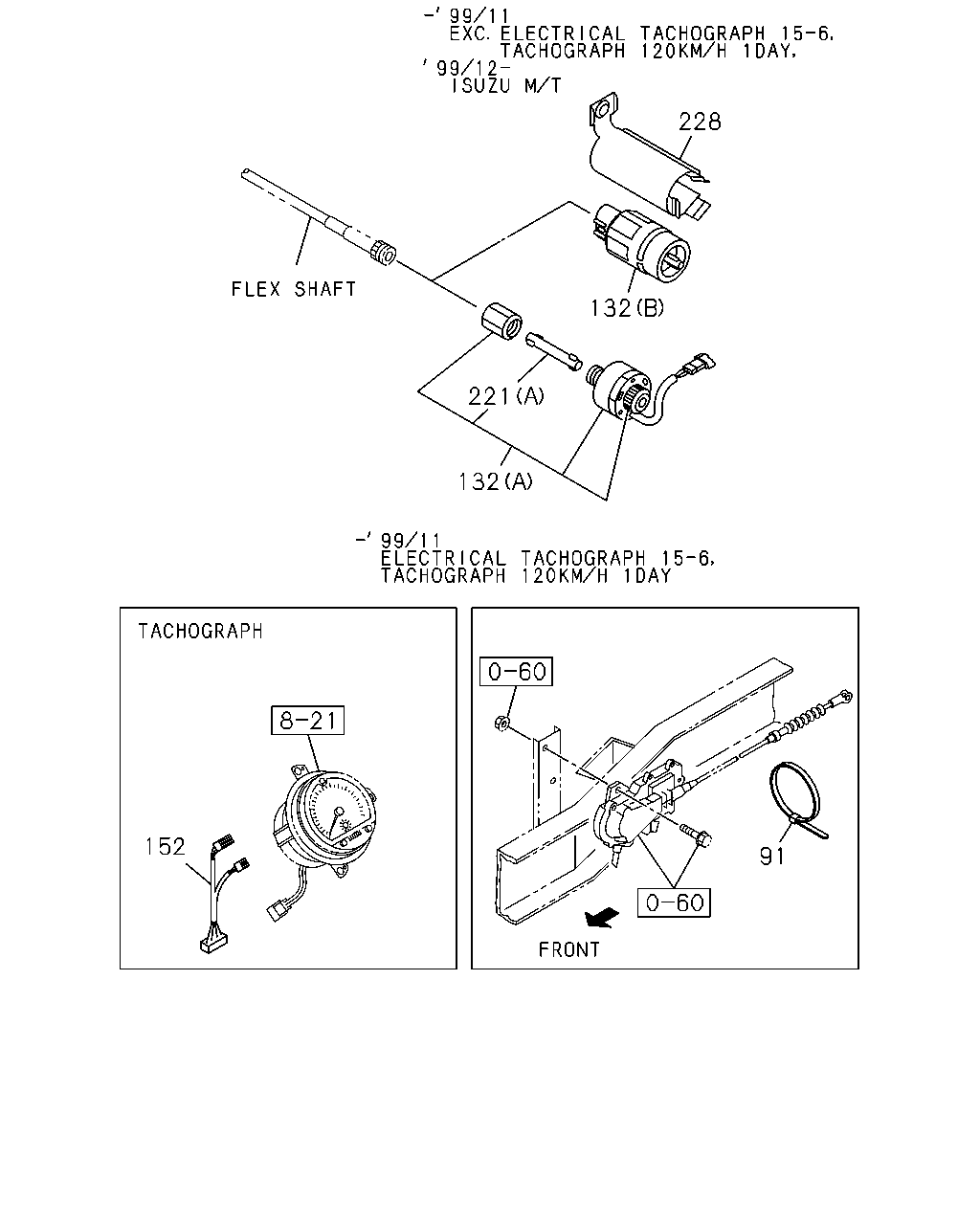

8-20 — METER CABLE (#6901) — 32 parça

228 132 221 132 152 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
91	CLIP; BAND L=140	5-09707-031-1	01	1	9806-9911
132	SENSOR; SPD,SPEEDOMETER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (C)	1-83127-441-2	01	1	9912-9912
132	SENSOR; SPD,SPEEDOMETER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (C)	1-83127-441-2	01	1	0001-
132	SENSOR; SPD,SPEEDOMETER (A)	1-83127-241-3	01	1	9806-9904
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A)	1-83127-241-3	01	1	9905-9911
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> (B)	1-80240-001-1	01	1	9912-0202
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> (B) 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-
132	SENSOR; SPD,SPEEDOMETER EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (B)	1-80240-022-0	01	1	9905-9911
152	HARNESS; TACHOGRAPH ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8>	1-82624-665-1	01	1	9806-9911
152	HARNESS; TACHOGRAPH	8-97530-240-0	01	1	9912-9912
152	HARNESS; TACHOGRAPH EXC. WARNING BUZZER-SPEED<RF8>	8-97530-240-0	01	1	0001-
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (C)	1-83129-072-1	01	1	9912-9912
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (C)	1-83129-072-1	01	1	0001-
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (B)	1-83129-125-0	01	1	9912-9912
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (B)	1-83129-125-0	01	1	0001-
221	KEY; SPEED SENSOR (A)	1-83129-126-0	01	1	9806-9904
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A)	1-83129-126-0	01	1	9905-9911
228	PROTECTOR; SENSOR EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8>	8-97168-308-0	01	1	9905-9911
228	PROTECTOR; SENSOR ISUZU M/T<X9A>	8-97168-308-0	01	1	9912-

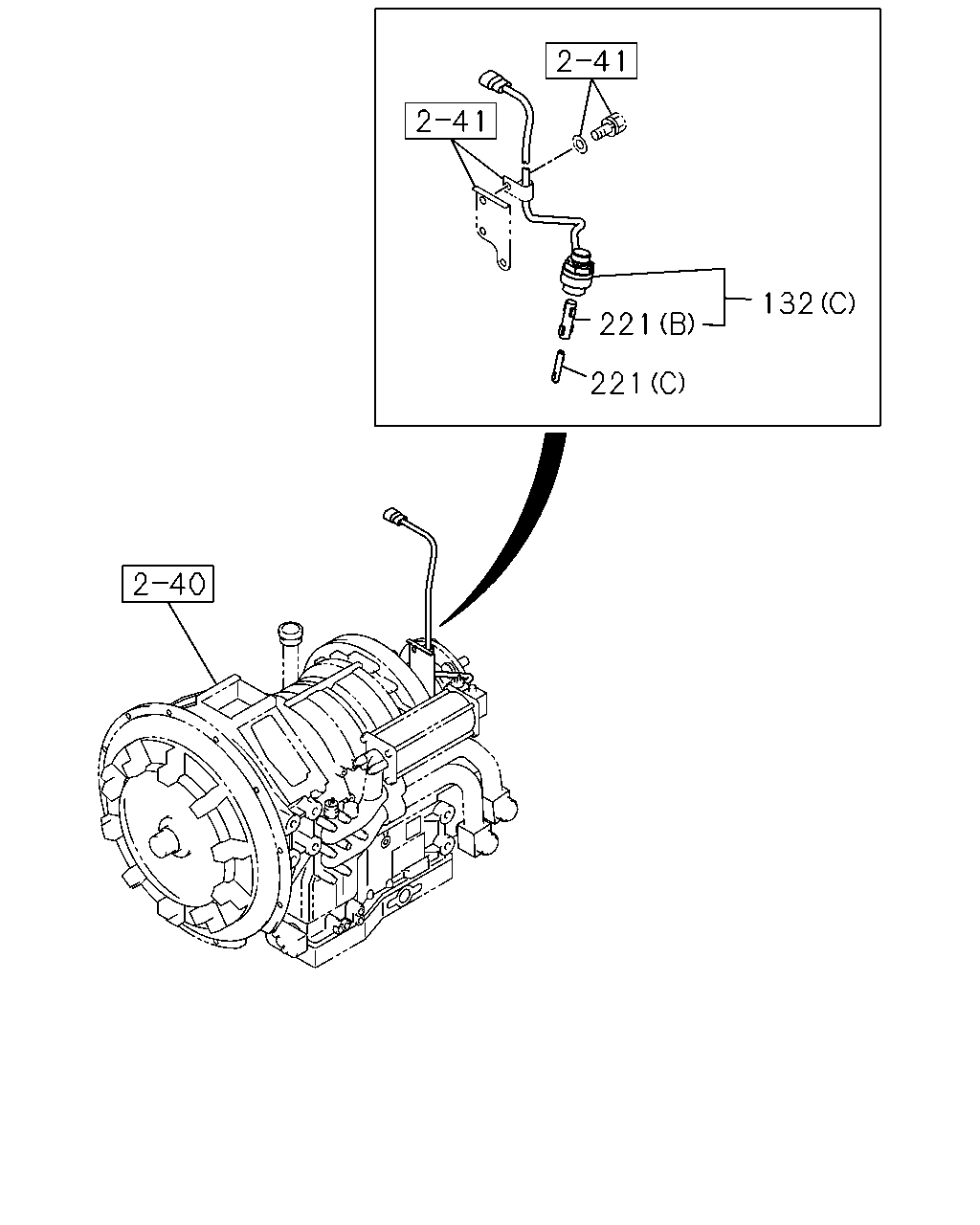

132 221 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
132	SENSOR; SPD,SPEEDOMETER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (C)	1-83127-441-2	01	1	9912-9912
132	SENSOR; SPD,SPEEDOMETER A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (C)	1-83127-441-2	01	1	0001-
132	SENSOR; SPD,SPEEDOMETER (A)	1-83127-241-3	01	1	9806-9904
132	SENSOR; SPD,SPEEDOMETER ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A)	1-83127-241-3	01	1	9905-9911
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> (B)	1-80240-001-1	01	1	9912-0202
132	SENSOR; SPD,SPEEDOMETER ISUZU M/T<X9A> (B) 25 PULSE ALUMINUM	8-97328-058-1	01	1	0203-
132	SENSOR; SPD,SPEEDOMETER EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (B)	1-80240-022-0	01	1	9905-9911
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (C)	1-83129-072-1	01	1	9912-9912
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (C)	1-83129-072-1	01	1	0001-
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) (B)	1-83129-125-0	01	1	9912-9912
221	KEY; SPEED SENSOR A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 4 HP500 WO/HYD RETARDER(Y3X),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (B)	1-83129-125-0	01	1	0001-
221	KEY; SPEED SENSOR (A)	1-83129-126-0	01	1	9806-9904
221	KEY; SPEED SENSOR ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A)	1-83129-126-0	01	1	9905-9911

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
