Sayfa 8-26 - Isuzu EPC

8-26 — ELECTRICAL CONTROL AND OTHER PARTS (#69009) — 22 parça

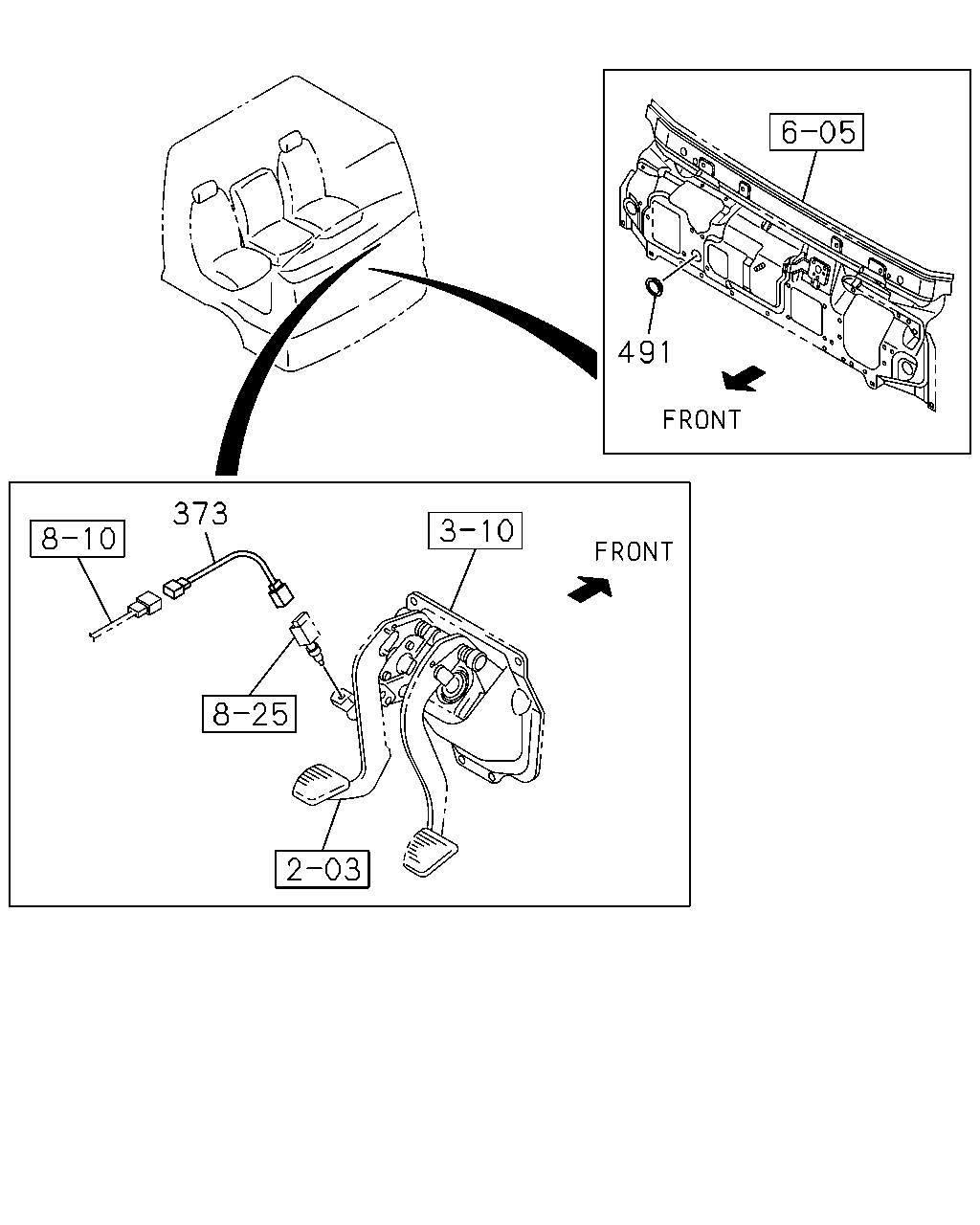

491 373

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	373	HARNESS; CLU SWITCH	8-98110-722-0	01	1	0812-
	491	PLUG; HOLE,CONT UNIT OD=60	8-98054-651-0	01	1	0812-

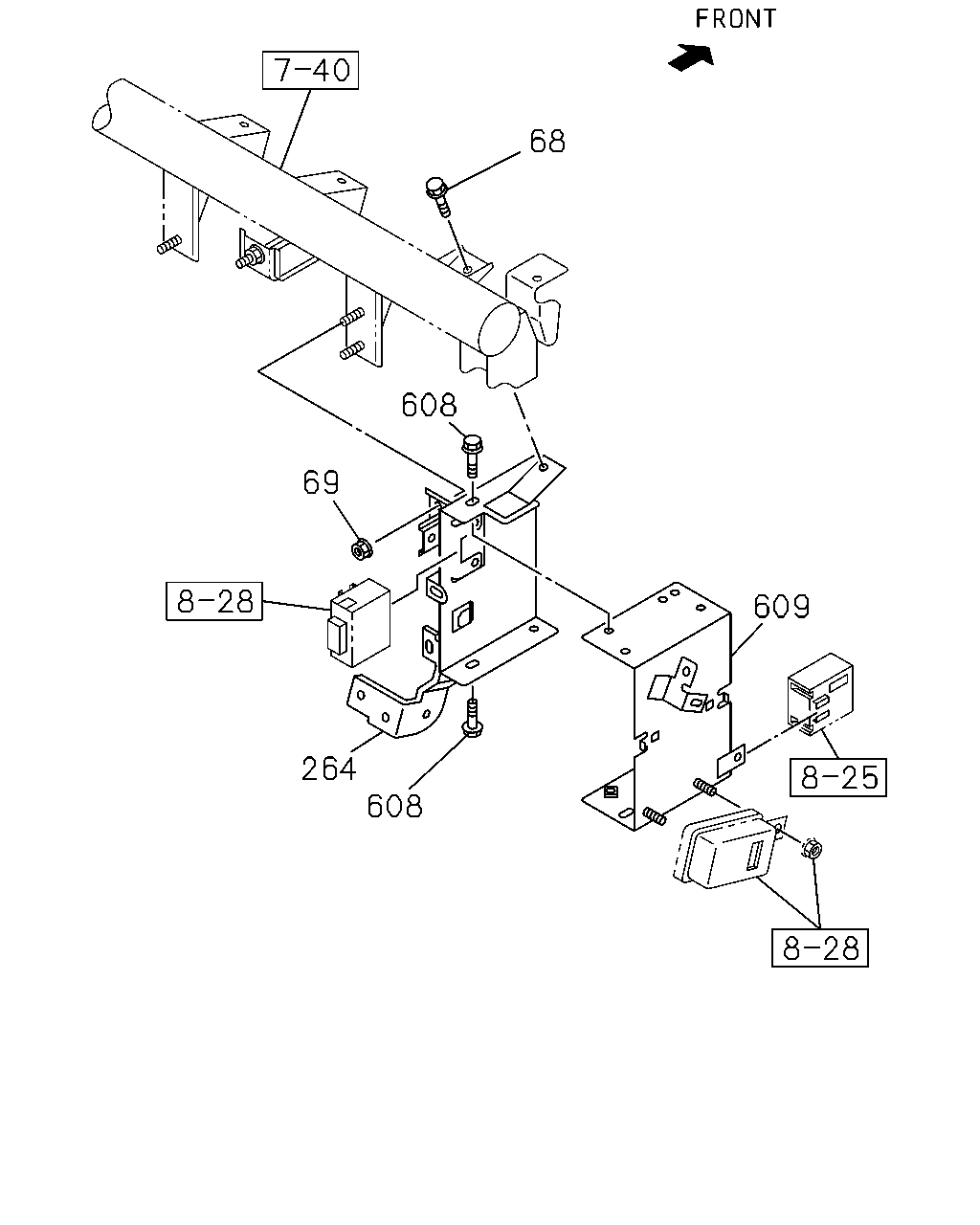

68 608 69 609 264 608

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
68	BOLT; BRKT M6X16 FLANGE	0-28650-616-0	01	1	0812-
69	NUT; BRKT M6 FLANGE	0-91180-106-0	01	1	0812-
264	BRACKET; CONT UNIT	8-97616-354-5	01	1	0812-
608	BOLT; CONT UNIT,AIR SUS M6X16 FLANGE	0-28650-616-0	05	1	0812-
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98095-336-0	01	1	0812-1308
609	BRACKET ASM; ELEC UNIT,AIR SUS	8-98226-231-1	01	1	1309-

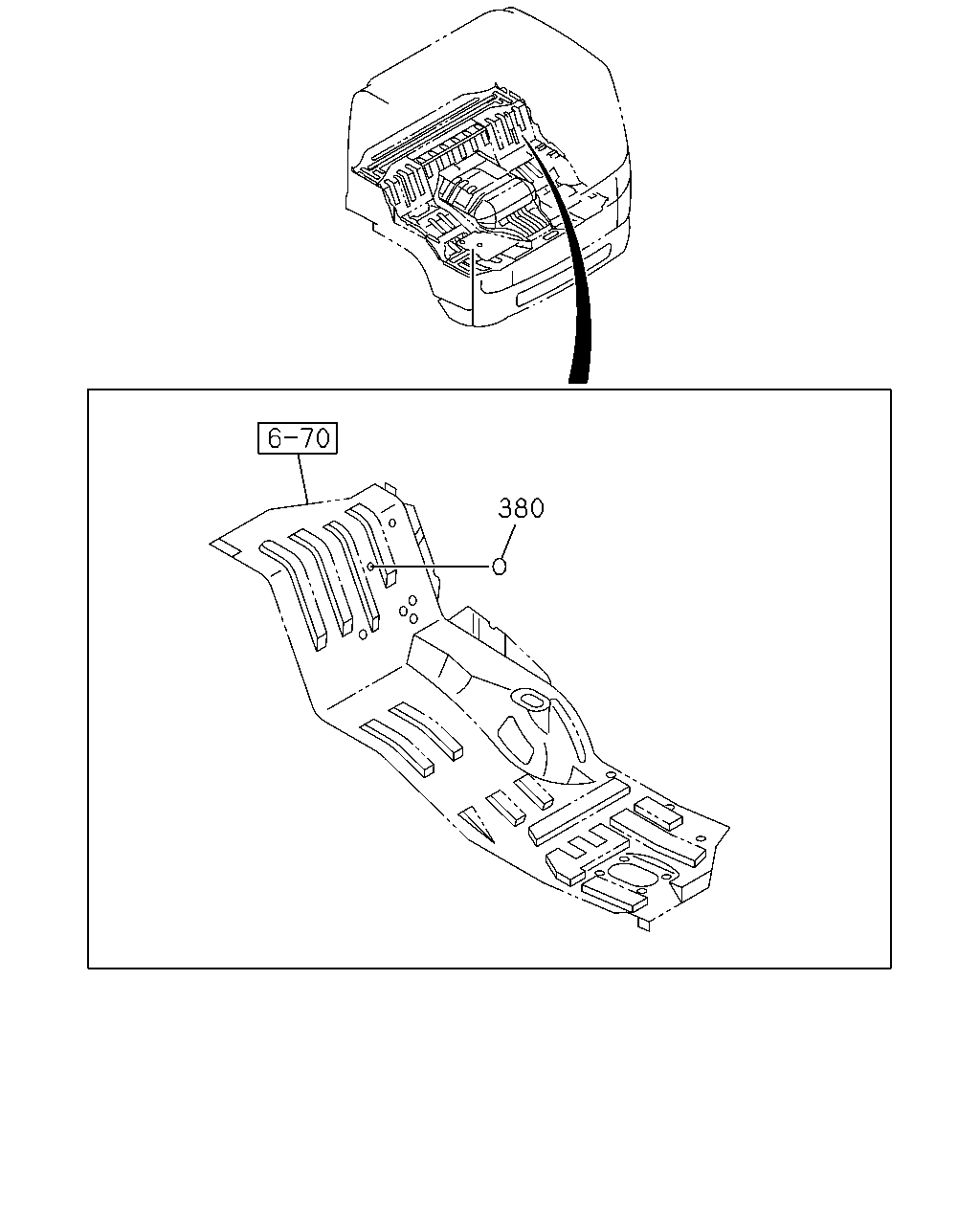

380

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	380	SEAL OD=25 BLACK	1-76798-019-0	01	1	0812-

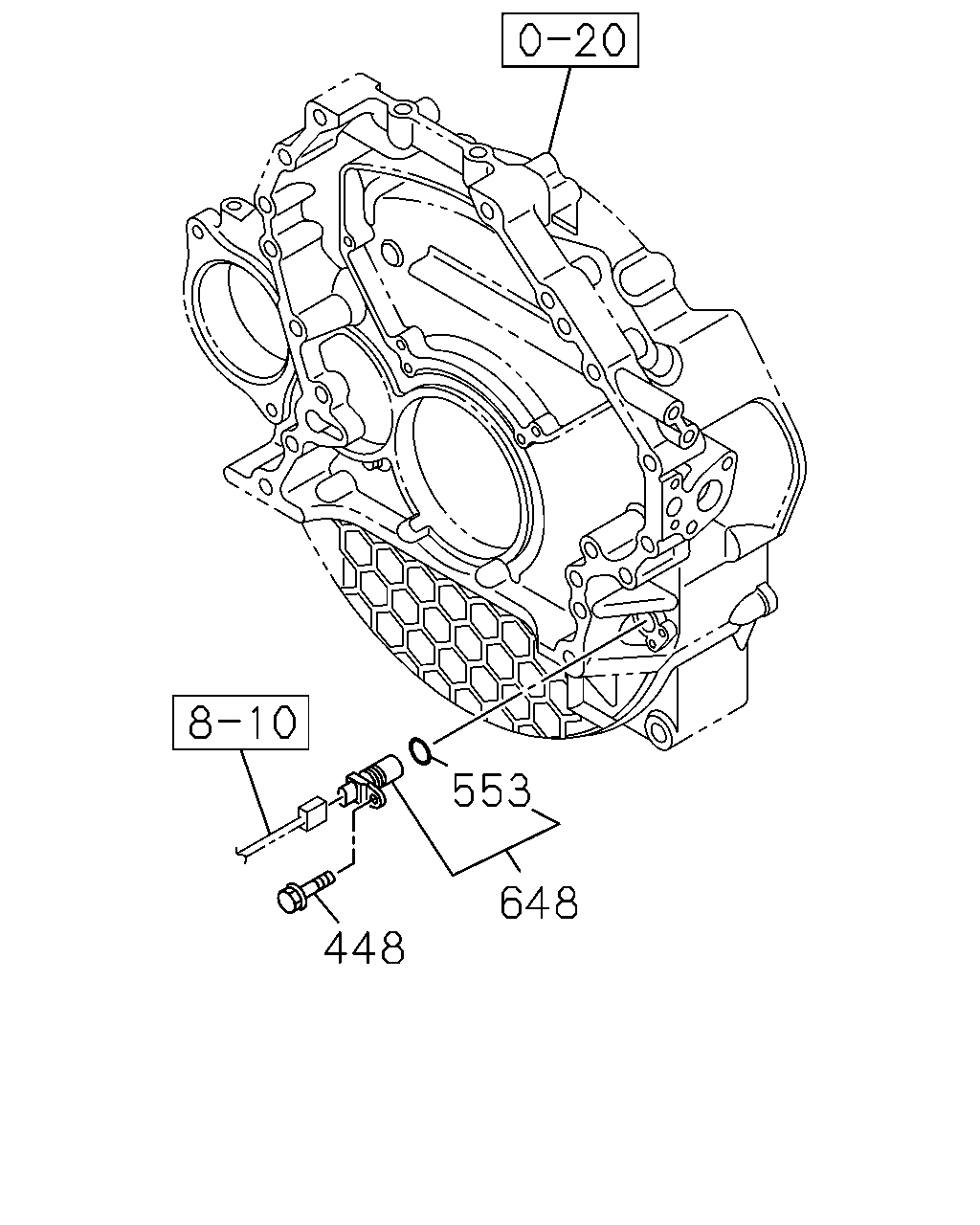

553 648 448

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
448	BOLT; SENSOR M6X16 FLANGE	0-28050-616-0	01	1	0812-
553	GASKET ID=14.2 OD=18.8	8-97369-404-0	01	1	0812-
648	SENSOR; CRANK ANGLE	8-97606-943-0	01	1	0812-

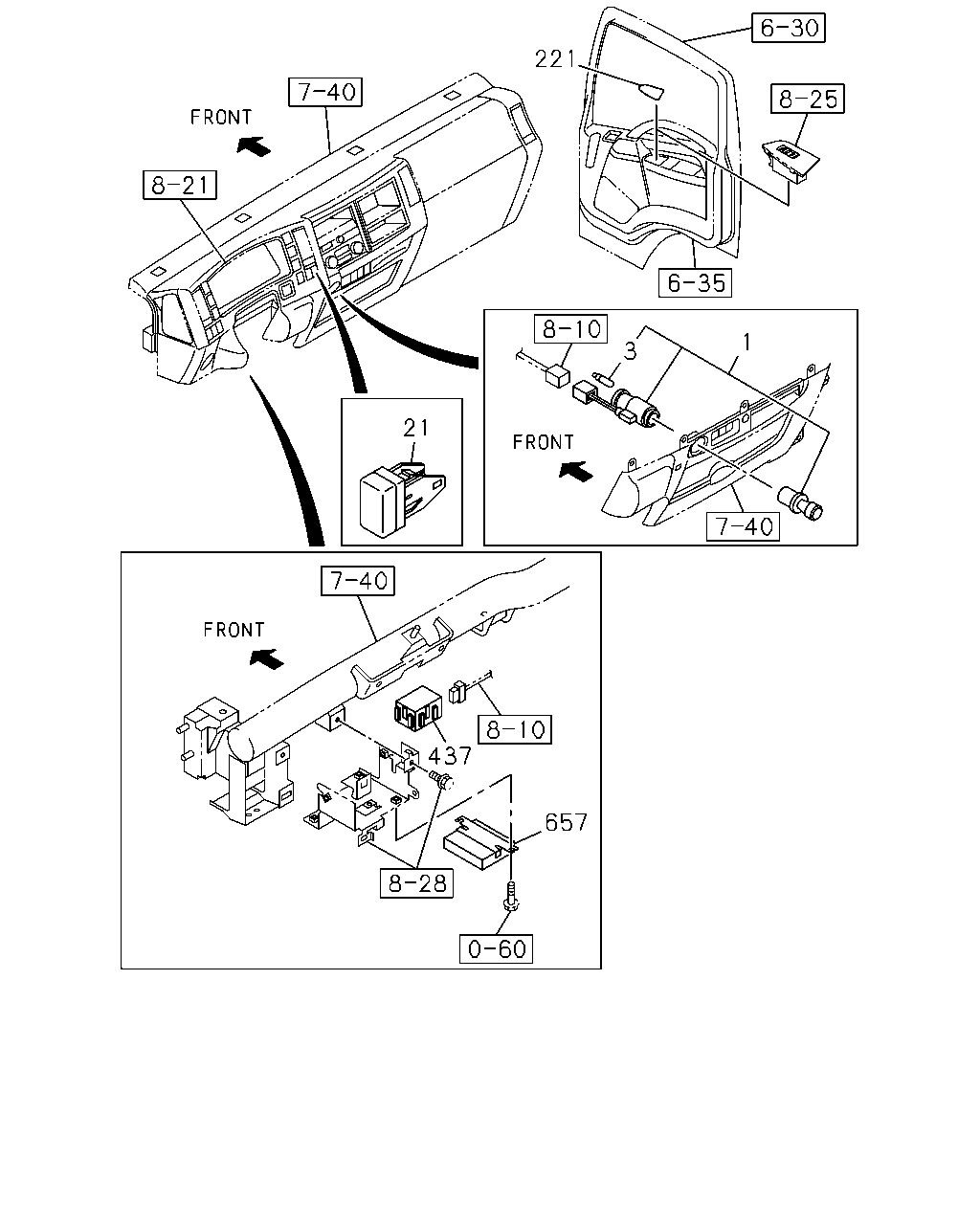

3 1 21 437 657 221

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LIGHTER; CIGAR	8-98076-255-0	01	1	0812-0908
1	LIGHTER; CIGAR	8-98142-962-0	01	1	0909-
3	BULB; CIGAR LIGHTER 28V 1.8W	8-97173-159-0	01	1	0812-0908
21	COVER; HOLE	8-98025-954-1	01	1	0812-
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-915-2	01	1	0812-
221	COVER; HOLE,DOOR LOCK SW EXC. POWER WINDOW FRT DOOR<A32>	8-98029-916-2	01	1	0812-
437	CONVERTER; DC HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> KOITO	8-97359-129-0	01	1	0812-
657	CONTROL UNIT; MIMAMORI	8-98013-144-8	01	1	0812-1401
657	CONTROL UNIT; MIMAMORI	8-98260-912-1	01	1	1402-

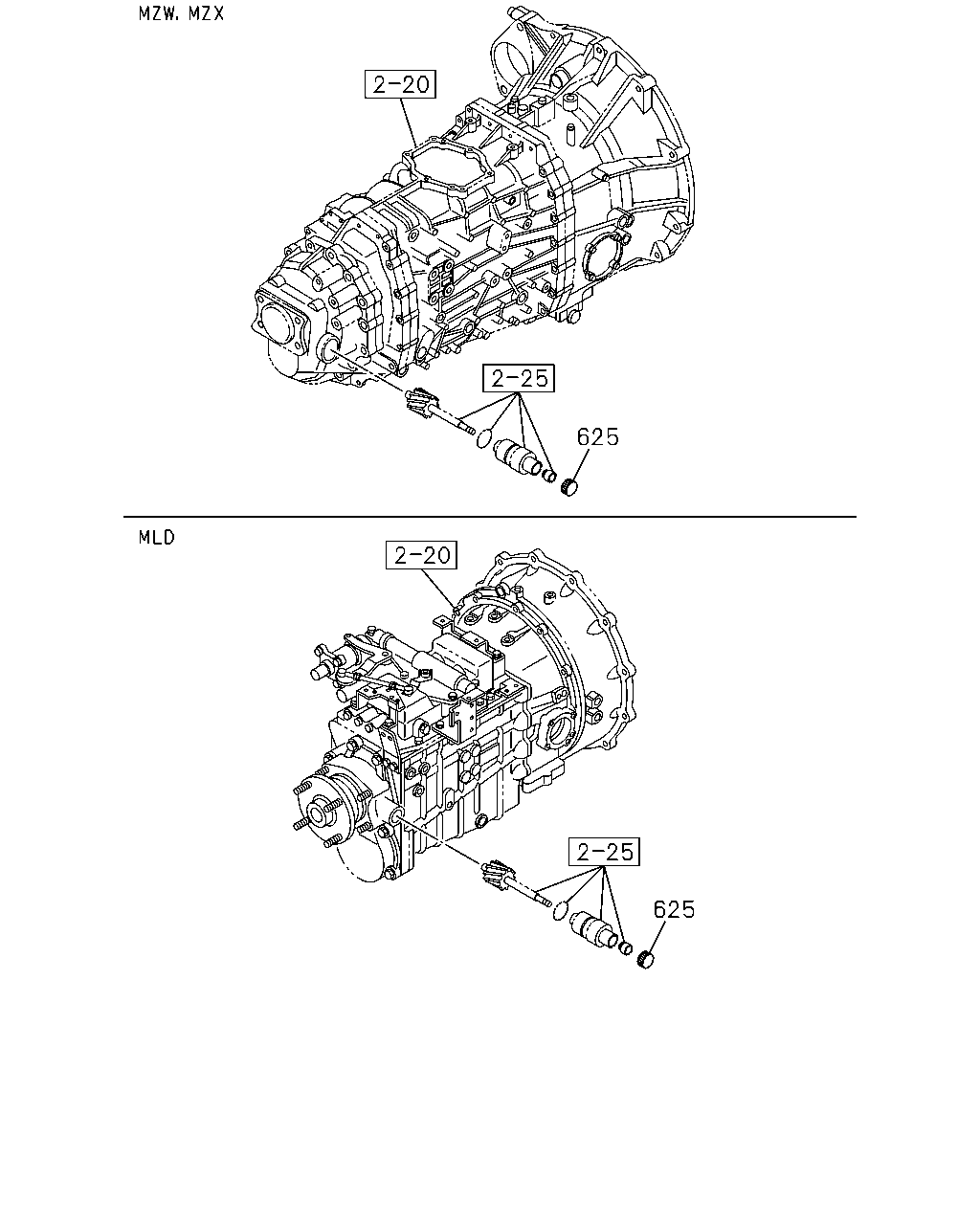

625 625

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	625	CAP; SPEED SENSOR	1-83129-133-0	01	1	0812-
