Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#69006) — 258 parça

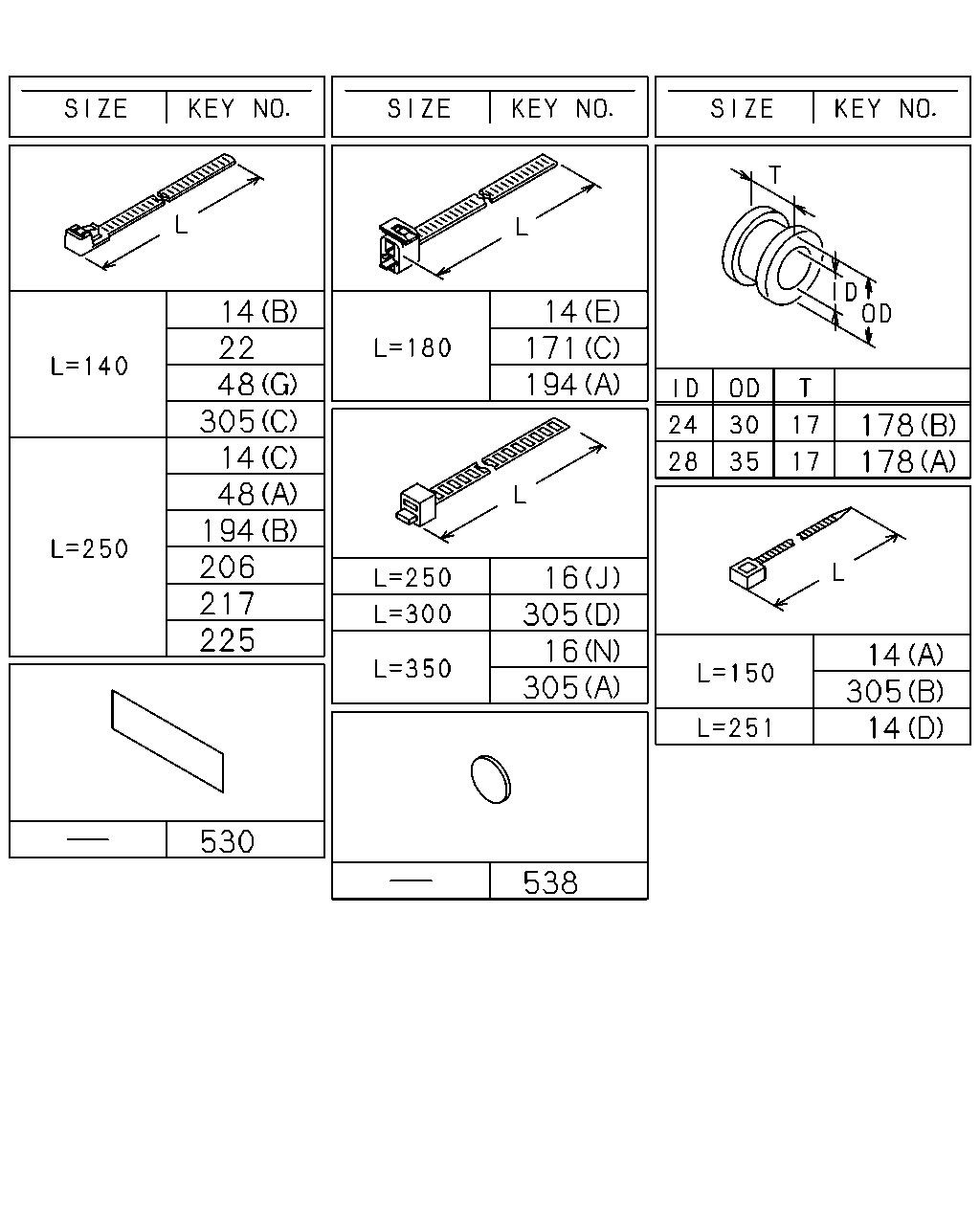

14 22 48 305 14 48 194 206 217 225 14 171 194 178 178 16 305 16 305 14 305 14 530 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS GLOW SYSTEM DELETE<7RK> (B) L=140	5-09707-031-1	01	1	1312-
14	CLIP; BAND,HARNESS MLD6Q M/T(X5J) (E) L=180	1-09707-162-1	01	1	0906-
14	CLIP; BAND,HARNESS AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140	5-09707-031-1	02	1	0812-1107
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	02	1	1108-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	02	1	0812-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	04	1	0812-
14	CLIP; BAND,HARNESS (A) L=150	8-97355-273-0	01	1	0812-
14	CLIP; BAND,HARNESS (B) L=140	5-09707-031-1	01	1	0812-0908
14	CLIP; BAND,HARNESS (D) L=251	8-97619-917-0	01	1	0812-
16	CLIP; HARNESS (N) L=350	1-09707-183-0	02	1	0812-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	06	1	0812-0905
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	05	1	0906-1004
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	06	1	1005-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	0812-
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09700-947-0	01	1	0812-
16	CLIP; HARNESS (L) ID=24 L=24	1-09701-001-1	02	1	0812-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0812-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	02	1	0812-0905
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0812-0902
16	CLIP; HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	0812-
16	CLIP; HARNESS (G) ID=5-12 L=18	1-09709-287-0	02	1	0812-0902
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0812-
22	CLIP; ENG HARNESS L=140	5-09707-031-1	02	1	0812-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	09	1	1008-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	0812-0905
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	12	1	0812-0902
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	11	1	0903-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0812-
48	CLIP; FRAME HARNESS (E) ID=32 L=50	1-09701-055-1	01	1	0812-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0812-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0812-0902
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0812-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0812-0906
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (C) L=180	1-09707-162-1	01	1	0812-0905
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (D) OD=9 H=6	1-09709-178-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (E) L=36	8-94224-891-1	01	1	0812-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0812-
178	GROMMET; HARNESS (B) ID=24 OD=30 T=17	9-09956-092-1	01	1	0812-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	03	1	0812-0905
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0901-0905
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	0906-
194	CLIP; BAND (A) L=180	1-09707-162-1	01	1	0812-
194	CLIP; BAND (B) L=250	5-09707-030-1	01	1	0812-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	01	1	0812-
206	CLIP; FUEL TANK HARNESS L=250	5-09707-030-1	02	1	0812-
217	CLIP; RR BODY HARNESS L=250	5-09707-030-1	02	1	0812-
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	02	1	0812-0910
225	CLIP; AIR TANK HARNESS L=250	5-09707-030-1	03	1	0812-
305	CLIP; ENG HARNESS (A) L=350	8-94152-256-1	01	1	0812-0905
305	CLIP; ENG HARNESS (D) L=300	1-09707-001-1	01	1	0906-
305	CLIP; ENG HARNESS (B) L=150	8-97355-273-0	01	1	0812-0905
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	0906-
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	0812-0905
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	01	1	0812-0905
305	CLIP; ENG HARNESS (C) L=140	5-09707-031-1	02	1	0906-
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	0812-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	01	1	1306-
530	SEAL; HARNESS 100X40	1-72498-022-1	06	1	0812-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
538	SEAL; HOLE OD=25 BLACK	1-76798-019-0	01	1	0812-

38 386 127 184 524 219 294 525 219 294 524 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-0905
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	05	1	0906-1004
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	06	1	1005-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	07	1	0812-0905
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0812-1201
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER	8-94279-050-0	01	1	1409-
127	SCREW; FACIA HARNESS CLIP M5X7 HEXALOBULAR SOCKET	8-98063-767-0	01	1	0812-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	0812-
219	NUT (A) M8 FLANGE	0-91180-108-0	04	1	0906-1004
219	NUT (A) M8 FLANGE	0-91180-108-0	05	1	1005-
219	NUT MLD6Q M/T(X5J) (B) M10 FLANGE	0-91180-210-0	01	1	0812-
219	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0812-0905
219	NUT (A) M8 FLANGE	0-91180-108-0	01	1	0906-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0812-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	03	1	0903-
294	NUT (A) M8 FLANGE	0-91180-108-0	06	1	0812-0902
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0903-
294	NUT (A) M8 FLANGE	0-91180-108-0	02	1	0903-
294	NUT (B) M10 FLANGE	0-91180-210-0	01	1	0812-
294	NUT (B) M10 FLANGE	0-91180-210-0	02	1	0812-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0812-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
524	NUT; HARNESS (A) M6 FLANGE	0-91180-106-0	04	1	0812-
524	NUT; HARNESS (B) M10 FLANGE	0-91180-110-0	01	1	0812-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0812-

48 48 213 171 483 483 171 16 16 16 483 16 16 16 483 48 483 49 48 16 16 223 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (N) L=350	1-09707-183-0	02	1	0812-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	06	1	0812-0905
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	05	1	0906-1004
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	06	1	1005-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	0812-
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09700-947-0	01	1	0812-
16	CLIP; HARNESS (L) ID=24 L=24	1-09701-001-1	02	1	0812-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0812-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	02	1	0812-0905
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0812-0902
16	CLIP; HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	0812-
16	CLIP; HARNESS (G) ID=5-12 L=18	1-09709-287-0	02	1	0812-0902
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0812-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	09	1	1008-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	0812-0905
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	12	1	0812-0902
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	11	1	0903-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0812-
48	CLIP; FRAME HARNESS (E) ID=32 L=50	1-09701-055-1	01	1	0812-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0812-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0812-0902
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0812-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
49	CLIP; GEN HARNESS ID=19 L=39 H=21	1-09700-972-1	01	1	0812-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0812-0906
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (C) L=180	1-09707-162-1	01	1	0812-0905
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (D) OD=9 H=6	1-09709-178-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (E) L=36	8-94224-891-1	01	1	0812-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0812-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	0812-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	0812-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0903-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0903-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-0902
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-0902
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-
483	CLIP; ENG HARNESS (E) ID=21 L=24	8-98019-191-0	01	1	1211-
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	0812-1112
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	02	1	1201-1210
483	CLIP; ENG HARNESS (B) ID=18 H=23 L=28	1-09700-860-0	01	1	1211-
483	CLIP; ENG HARNESS (C) ID=24 L=24	1-09701-001-1	01	1	0812-
483	CLIP; ENG HARNESS (D) ID=12 B=13 ID=6.5	5-09700-348-0	01	1	0812-
483	CLIP; ENG HARNESS (A) L=36	8-94224-891-1	03	1	0812-

150 150 139 150 139 377 386 38 38 139 139 313 139 139 313 139 38 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0812-0905
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	05	1	0906-1004
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	06	1	1005-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	07	1	0812-0905
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE	0-28650-825-0	01	1	0906-
38	BOLT; CLIP,HARNESS (C) M8X20 W/LK&PL WASHER	8-97086-825-0	03	1	0812-1201
38	BOLT; CLIP,HARNESS (D) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	0812-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0812-0902
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0903-
139	BOLT; BRKT (D) M8X20 FLANGE	0-28650-820-0	01	1	0903-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0812-0902
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0903-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	0812-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0812-
139	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	0812-
139	BOLT; BRKT (G) M10X30 FLANGE	0-28651-030-0	01	1	0812-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (F) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	0812-
139	BOLT; BRKT EXC. AIR CONDITIONER MANUAL CONTROL(C60) (H) M8X65 FLANGE	1-09044-072-1	01	1	0812-
150	BOLT; CLIP (C) M6X20 FLANGE	0-28050-620-0	01	1	0812-
150	BOLT; CLIP (A) M8X12 FLANGE	0-28050-812-0	01	1	0812-
150	BOLT; CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	0812-
313	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	02	1	0812-
313	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	01	1	0812-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	0812-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	0812-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-

16 171 16 171 223 470 48 116 48 223 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (N) L=350	1-09707-183-0	02	1	0812-
16	CLIP; HARNESS (H) ID=10 & 10	1-09709-277-1	01	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	18	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (F) L=40.6	8-97229-357-0	02	1	0812-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	0812-
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	06	1	0812-0905
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	05	1	0906-1004
16	CLIP; HARNESS (I) ID=11 L=16	0-95235-025-0	06	1	1005-
16	CLIP; HARNESS (M) ID=35 L=33	1-09700-945-0	01	1	0812-
16	CLIP; HARNESS (D) ID=35 H=45 L=33	1-09700-947-0	01	1	0812-
16	CLIP; HARNESS (L) ID=24 L=24	1-09701-001-1	02	1	0812-
16	CLIP; HARNESS (J) L=250	1-09707-126-0	02	1	0812-
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	02	1	0812-0905
16	CLIP; HARNESS (K) OD=9 H=6	1-09709-178-0	01	1	0906-
16	CLIP; HARNESS (E) ID=10 & 12	1-09709-278-1	02	1	0812-0902
16	CLIP; HARNESS (G) ID=5-12 L=18	1-09709-287-0	01	1	0812-
16	CLIP; HARNESS (G) ID=5-12 L=18	1-09709-287-0	02	1	0812-0902
16	CLIP; HARNESS (A) ID=10 & 16	8-94413-325-0	01	1	0812-
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	09	1	1008-
48	CLIP; FRAME HARNESS (G) L=140	5-09707-031-1	02	1	0812-0905
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	12	1	0812-0902
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	11	1	0903-1007
48	CLIP; FRAME HARNESS (D) ID=20 L=50	9-09917-430-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (H) ID=14 L=44	9-09917-427-0	02	1	1202-
48	CLIP; FRAME HARNESS (B) ID=31.5 H=23 L=25	1-09701-017-0	01	1	0812-
48	CLIP; FRAME HARNESS (E) ID=32 L=50	1-09701-055-1	01	1	0812-
48	CLIP; FRAME HARNESS (C) OD=9 H=9.5	1-09709-179-0	01	1	0812-
48	CLIP; FRAME HARNESS (F) ID=5-12 L=14.5	1-09987-221-0	02	1	0812-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0812-0902
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	04	1	0812-0905
48	CLIP; FRAME HARNESS (A) L=250	5-09707-030-1	02	1	0906-
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	04	1	0812-1201
116	CLIP; ROOF HARNESS L=20 SET=10 PIECE	1-09987-246-2	03	1	1202-
171	CLIP; STARTER HARNESS MZX6P M/T(RSW) (B) OD=8 H=3.8	1-09709-309-0	01	1	0812-0906
171	CLIP; STARTER HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) OD=8 H=3.8	1-09709-309-0	01	1	0907-
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (C) L=180	1-09707-162-1	01	1	0812-0905
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (D) OD=9 H=6	1-09709-178-0	01	1	0812-
171	CLIP; STARTER HARNESS MLD6Q M/T(X5J) (E) L=36	8-94224-891-1	01	1	0812-
171	CLIP; STARTER HARNESS (A)	8-97101-436-0	01	1	0812-
223	CLIP; AIR TANK HARNESS (B) ID=10 & 10	1-09709-277-1	02	1	0812-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	02	1	0812-0902
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0903-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=6	1-09709-178-0	01	1	0903-
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-0902
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0812-0902
223	CLIP; AIR TANK HARNESS (C) ID=5-12 L=14.5	1-09987-221-0	01	1	0903-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	0812-

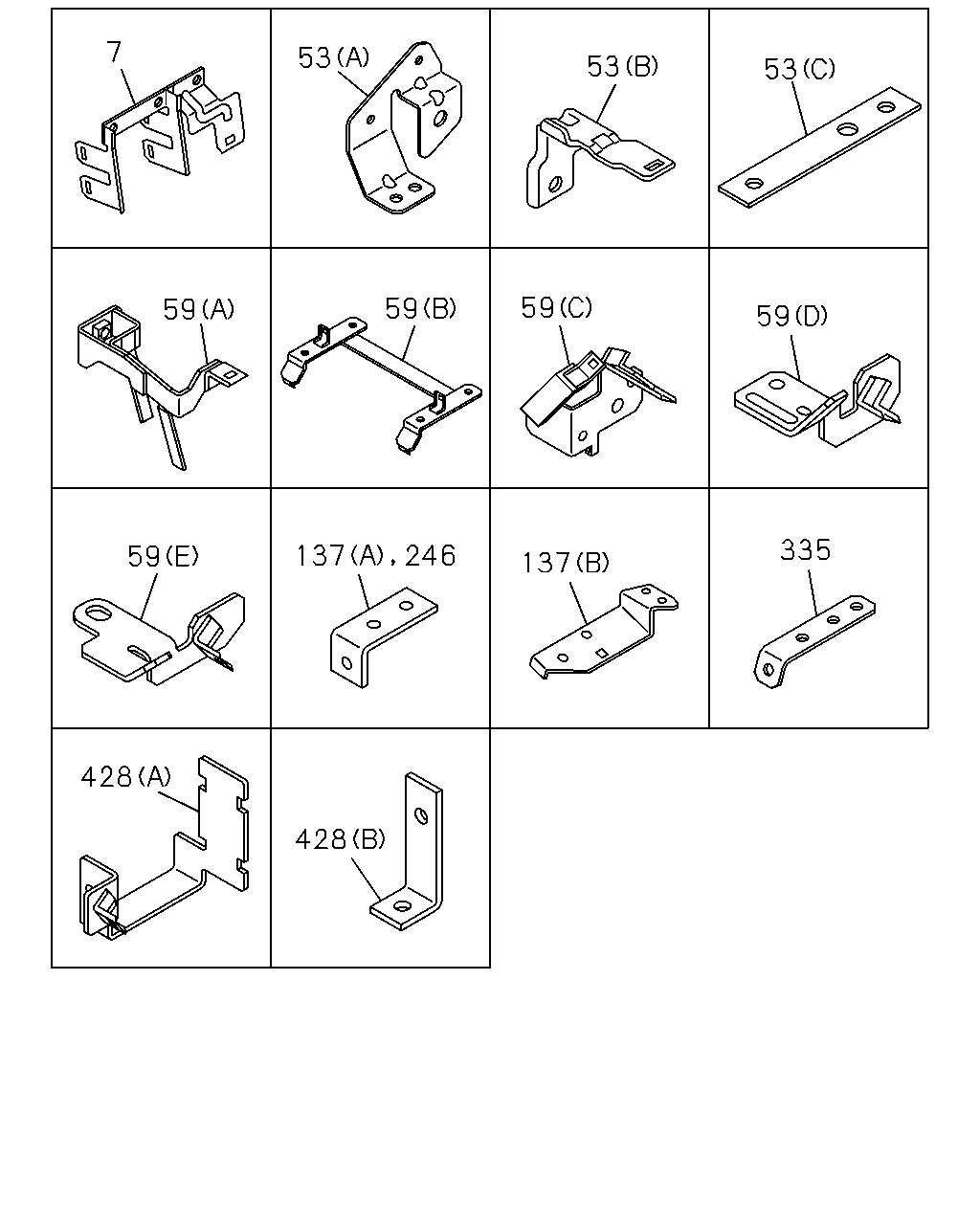

7 53 53 53 59 59 59 59 59 137 246 137 335 428 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98090-846-0	01	1	0812-
53	BRACKET; HARNESS (C) L=170	1-47479-380-0	01	1	0812-
53	BRACKET; HARNESS (B)	8-98052-458-0	01	1	0812-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A)	8-98084-699-0	01	1	0812-
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW) (A)	8-97609-264-2	01	1	0812-0906
59	BRACKET; FRAME HARNESS MZX6P M/T(RSW),MZW6P M/T(RSZ) (A)	8-97609-264-2	01	1	0907-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	0812-1502
59	BRACKET; FRAME HARNESS (E)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (C)	8-97622-828-0	01	1	0812-
59	BRACKET; FRAME HARNESS (B)	8-98047-276-1	01	1	0812-
59	BRACKET; FRAME HARNESS MLD6Q M/T(X5J) (A)	8-98099-963-0	01	1	0812-
137	BRACKET; HARNESS CLAMP (A) L=62	1-21464-170-2	01	1	0812-
137	BRACKET; HARNESS CLAMP (B)	8-97616-565-1	01	1	0812-
246	BRACKET; CLIP,SPD SENSOR L=62	1-21464-170-2	01	1	0812-
335	BRACKET; CONNECTOR	1-82698-167-0	01	1	0812-
428	BRACKET (B)	1-47475-519-0	01	1	0812-
428	BRACKET (A)	8-98116-461-0	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
