◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#6900) — 558 parça
çizim 26045
16 470 95 16 171 95 305 305 305 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 0503-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 01 1 0503-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0503-
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 01 1 9806-9911
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 9912-
16 CLIP; HARNESS
(M) L=300 		1-09707-001-1 01 1 9806-0401
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 0402-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 02 1 9806-9911
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=250 		5-09707-030-1 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (D) L=250 		5-09707-030-1 02 1 9912-
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 9806-
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (H) OD=9 H=9.5 		1-09709-179-0 02 1 9806-9911
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 02 1 9912-0207
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) ID=14.5 L=20 		1-09701-012-0 01 1 0208-0210
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 02 1 0211-
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (P) ID=11 L=20 		9-09525-035-0 02 1 9806-9911
16 CLIP; HARNESS
(P) ID=11 L=20 		9-09525-035-0 02 1 9912-0606
16 CLIP; HARNESS
(P) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) ID=11 L=41 		1-09700-403-0 03 1 9806-9911
16 CLIP; HARNESS
(H) OD=9 H=9.5 		1-09709-179-0 03 1 9912-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=180 		1-09707-162-0 01 1 9806-9806
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (I) L=180 		1-09707-162-0 01 1 9806-9806
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=180 		1-09707-162-1 01 1 9807-9911
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 9912-
16 CLIP; HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 08 1 9806-9911
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 9912-
16 CLIP; HARNESS
CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 09 1 9806-9911
16 CLIP; HARNESS
(E) L=500 		1-09707-082-1 08 1 9912-
16 CLIP; HARNESS
EXC. CTR SPLIT FRAME<TLW> (K) ID=22 L=52 		9-09917-431-0 04 1 9806-9911
16 CLIP; HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (K) ID=22 L=52 		9-09917-431-0 04 1 9806-9911
16 CLIP; HARNESS
ELEC SW BOX ENG ROOM<TEK> (E) L=500 		1-09707-082-0 08 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (S) ID=9 L=20 		9-09524-835-0 01 1 9912-0606
16 CLIP; HARNESS
A/T<X9D> (S) ID=9 L=20 		0-95234-835-0 01 1 0607-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) L=140 		5-09707-031-0 01 1 9806-9806
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (F) L=140 		5-09707-031-0 01 1 9806-9806
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) L=140 		5-09707-031-1 01 1 9807-9911
16 CLIP; HARNESS
(A) ID=28 L=40 		1-09700-995-1 01 1 9912-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (B) ID=24 L=27 		1-09700-809-0 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 9912-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (C) ID=25 L=50 		1-09701-019-0 01 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0207
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 03 1 0208-0210
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 01 1 0211-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (D) L=250 		5-09707-030-1 01 1 9806-9903
16 CLIP; HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> (A) ID=28 L=40 		1-09700-995-1 01 1 9806-9911
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9912-0207
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0208-0210
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=250 		5-09707-030-1 01 1 0208-0210
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0211-0302
16 CLIP; HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (O) ID=21 L=24 		8-94176-807-1 01 1 9806-9911
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 9806-9911
16 CLIP; HARNESS
SIDE TURN SIGNAL LAMP<TEL> (F) L=140 		5-09707-031-1 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (R) ID=19 H=21 L=50 		1-09700-910-1 01 1 9912-
16 CLIP; HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 06 1 9806-9911
16 CLIP; HARNESS
WB 5700MM(57W) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (J) ID=28 L=78 		1-09700-858-0 04 1 9806-9911
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 04 1 9912-
95 CLIP; CABLE
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9912-
95 CLIP; CABLE
ISUZU M/T<X9A> (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9912-
95 CLIP; CABLE
(D) 		1-09701-238-0 02 1 9912-
95 CLIP; CABLE
(F) L=500 		1-09707-082-1 04 1 9912-
95 CLIP; CABLE
(G) ID=6-10 & 6-10 		1-09709-192-1 01 1 9912-
95 CLIP; CABLE
A/T<X9D> (E) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 9912-
95 CLIP; CABLE
EMIS REGULATION W/CONV<TCA> (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9806-9911
95 CLIP; CABLE
A/T<X9D> (B) ID=20 H=23 L=27 		1-09700-861-0 02 1 9912-
95 CLIP; CABLE
ISUZU M/T<X9A> (H) ID=11 H=20 L=20 		5-09700-351-0 03 1 9912-
171 CLIP; STARTER HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9806-
171 CLIP; STARTER HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 02 1 9806-9911
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (A) OD=9 H=6 		1-09709-178-0 02 1 9912-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9806-9907
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (A) OD=9 H=6 		1-09709-178-0 01 1 9806-9907
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (A) OD=9 H=6 		1-09709-178-0 01 1 9908-9911
171 CLIP; STARTER HARNESS
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A) OD=9 H=6 		1-09709-178-0 01 1 9908-9911
171 CLIP; STARTER HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0305
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (E) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0305
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (E) ID=14.5 L=20 		1-09701-012-0 02 1 0306-
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (B) L=300 		1-09707-001-0 01 1 9806-9911
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (C) L=180 		1-09707-162-1 01 1 9806-9911
305 CLIP; ENG HARNESS
(F) ID=11 L=30 		1-09700-511-0 02 1 9912-
305 CLIP; ENG HARNESS
(G) 		8-97101-436-0 01 1 9912-
305 CLIP; ENG HARNESS
(C) ID=11 L=24 		9-09525-045-0 01 1 9912-0606
305 CLIP; ENG HARNESS
(C) ID=11 L=24 		0-95235-045-0 01 1 0607-
305 CLIP; ENG HARNESS
EMIS REGULATION W/CONV<TCA> (A) L=140 		5-09707-031-1 03 1 9806-9911
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 02 1 9912-
305 CLIP; ENG HARNESS
EXC. EMIS REGULATION W/CONV<TCA> (B) L=180 		1-09707-162-1 01 1 9806-9911
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 02 1 9912-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 9806-
çizim 26258
178 178 178 178 178 185 185 71
BalonParca AdiParca NoAdetTipApplied Date
71 SPACER; HARNESS CLAMP
OD=22 T=7 		9-53319-024-0 01 1 9912-
178 GROMMET; HARNESS
(E) ID=32 OD=40 T=18 		1-09891-003-0 01 1 0503-
178 GROMMET; HARNESS
(A) ID=24 OD=30 T=12 		9-09956-093-1 01 1 9806-
178 GROMMET; HARNESS
A/T<X9D> (D) ID=28 H=45 L=30 		1-09333-061-0 01 1 9912-
178 GROMMET; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (B) ID=15 OD=20 T=17.5 		1-09332-130-0 02 1 9806-9911
178 GROMMET; HARNESS
(B) ID=15 OD=20 T=17.5 		1-09332-130-0 03 1 9912-
178 GROMMET; HARNESS
ISUZU M/T<X9A> (C) 		1-82699-891-0 01 1 9912-
185 SLEEVE; RUBBER
(A) ID=15 OD=19 L=50 		1-09337-014-0 01 1 9806-9911
185 SLEEVE; RUBBER
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=15 OD=19 L=50 		1-09337-014-0 01 1 9806-9911
185 SLEEVE; RUBBER
AIR HORN(WB8) (B) ID=10 OD=14 L=30 		9-09956-682-0 01 1 9806-9911
185 SLEEVE; RUBBER
(A) ID=15 OD=19 L=50 		1-09337-014-0 03 1 9912-
185 SLEEVE; RUBBER
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=15 OD=19 L=50 		1-09337-014-0 02 1 9806-9911
çizim 99350
312 312 335 312 312 334 279 312 137 211 53
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS 1-82698-382-0 01 1 0503-
137 BRACKET; HARNESS CLAMP
L=145 		1-47475-655-0 01 1 9912-
211 BRACKET; AXLE HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> W/NUT 		1-47476-393-0 02 1 9806-9911
211 BRACKET; AXLE HARNESS
W/NUT 		1-47476-393-0 02 1 9912-
279 STAY; HARNESS
L=132 		1-82699-873-0 02 1 9806-9911
279 STAY; HARNESS
L=132 		8-97530-242-0 02 1 9912-
312 BRACKET; CLIP HARNESS
(C) L=55 		1-47475-304-0 02 1 9806-0005
312 BRACKET; CLIP HARNESS
A/T<X9D> (D) 		1-82699-104-0 01 1 9912-
312 BRACKET; CLIP HARNESS
CTR SPLIT FRAME<TLW> (B) L=120 		1-82699-465-0 02 1 9806-9911
312 BRACKET; CLIP HARNESS
A/T<X9D> (B) L=120 		1-82699-465-0 01 1 9912-
312 BRACKET; CLIP HARNESS
EMIS REGULATION W/CONV<TCA> (A) L=60 		1-47476-217-0 01 1 9806-9911
312 BRACKET; CLIP HARNESS
(A) L=60 		1-47476-217-0 01 1 9912-0304
312 BRACKET; CLIP HARNESS
(E) L=60 		1-47475-455-0 01 1 0305-
334 BRACKET
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> L=95 		1-82699-085-0 01 1 9806-9911
335 BRACKET; CONNECTOR
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=60 		1-82699-875-0 01 1 9806-9911

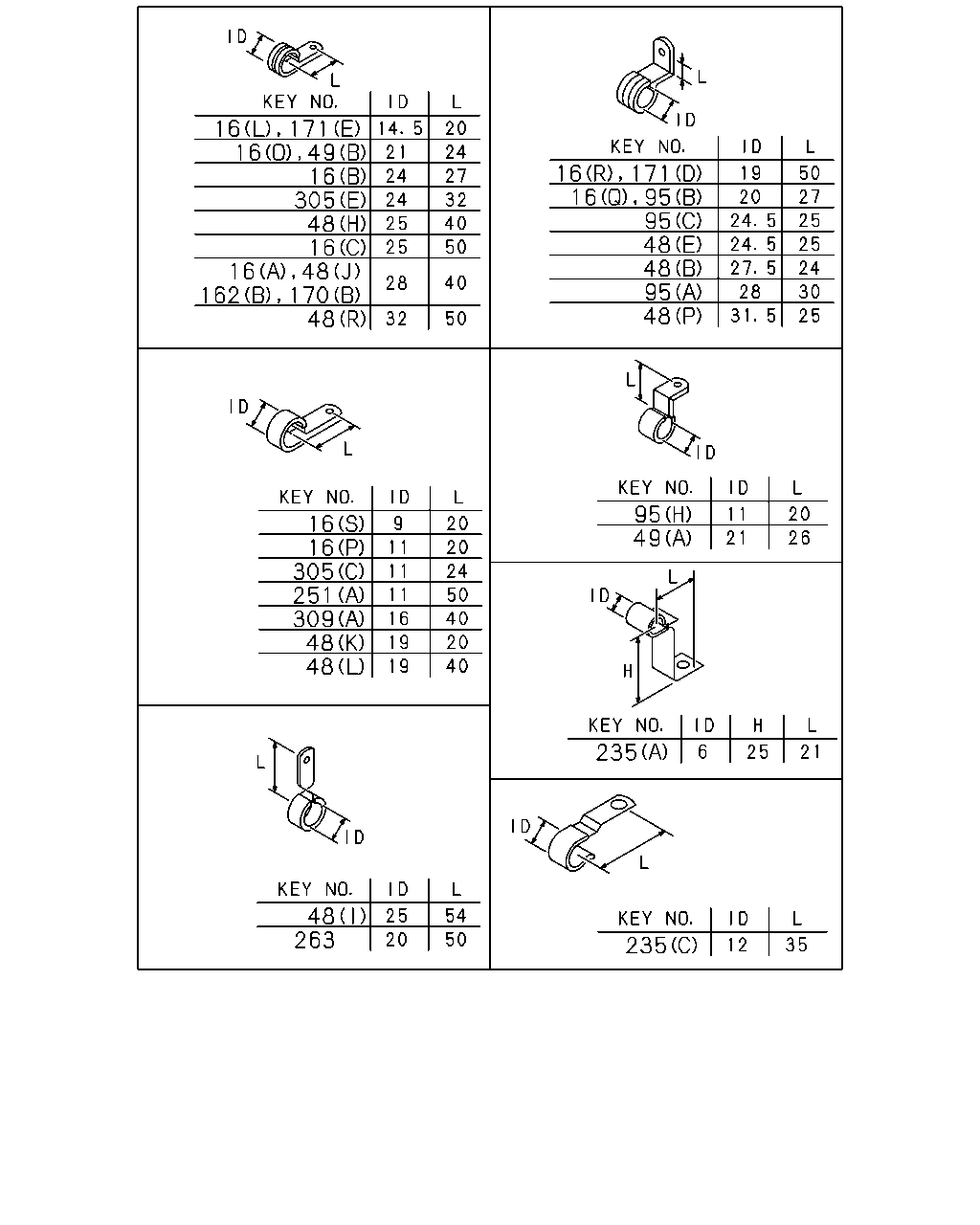

çizim 99351
16 171 16 305 48 16 162 170 48 16 171 95 48 48 95 48 95 49 16 16 305 251 309 48 48 235 48 263 235 16 49 48 16 16 95
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 0503-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 01 1 0503-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0503-
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 01 1 9806-9911
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 9912-
16 CLIP; HARNESS
(M) L=300 		1-09707-001-1 01 1 9806-0401
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 0402-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 02 1 9806-9911
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=250 		5-09707-030-1 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (D) L=250 		5-09707-030-1 02 1 9912-
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 9806-
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (H) OD=9 H=9.5 		1-09709-179-0 02 1 9806-9911
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 02 1 9912-0207
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) ID=14.5 L=20 		1-09701-012-0 01 1 0208-0210
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 02 1 0211-
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (P) ID=11 L=20 		9-09525-035-0 02 1 9806-9911
16 CLIP; HARNESS
(P) ID=11 L=20 		9-09525-035-0 02 1 9912-0606
16 CLIP; HARNESS
(P) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) ID=11 L=41 		1-09700-403-0 03 1 9806-9911
16 CLIP; HARNESS
(H) OD=9 H=9.5 		1-09709-179-0 03 1 9912-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=180 		1-09707-162-0 01 1 9806-9806
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (I) L=180 		1-09707-162-0 01 1 9806-9806
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=180 		1-09707-162-1 01 1 9807-9911
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 9912-
16 CLIP; HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 08 1 9806-9911
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 9912-
16 CLIP; HARNESS
CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 09 1 9806-9911
16 CLIP; HARNESS
(E) L=500 		1-09707-082-1 08 1 9912-
16 CLIP; HARNESS
EXC. CTR SPLIT FRAME<TLW> (K) ID=22 L=52 		9-09917-431-0 04 1 9806-9911
16 CLIP; HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (K) ID=22 L=52 		9-09917-431-0 04 1 9806-9911
16 CLIP; HARNESS
ELEC SW BOX ENG ROOM<TEK> (E) L=500 		1-09707-082-0 08 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (S) ID=9 L=20 		9-09524-835-0 01 1 9912-0606
16 CLIP; HARNESS
A/T<X9D> (S) ID=9 L=20 		0-95234-835-0 01 1 0607-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) L=140 		5-09707-031-0 01 1 9806-9806
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (F) L=140 		5-09707-031-0 01 1 9806-9806
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) L=140 		5-09707-031-1 01 1 9807-9911
16 CLIP; HARNESS
(A) ID=28 L=40 		1-09700-995-1 01 1 9912-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (B) ID=24 L=27 		1-09700-809-0 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 9912-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (C) ID=25 L=50 		1-09701-019-0 01 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0207
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 03 1 0208-0210
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 01 1 0211-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (D) L=250 		5-09707-030-1 01 1 9806-9903
16 CLIP; HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> (A) ID=28 L=40 		1-09700-995-1 01 1 9806-9911
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9912-0207
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0208-0210
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=250 		5-09707-030-1 01 1 0208-0210
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0211-0302
16 CLIP; HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (O) ID=21 L=24 		8-94176-807-1 01 1 9806-9911
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 9806-9911
16 CLIP; HARNESS
SIDE TURN SIGNAL LAMP<TEL> (F) L=140 		5-09707-031-1 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (R) ID=19 H=21 L=50 		1-09700-910-1 01 1 9912-
16 CLIP; HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 06 1 9806-9911
16 CLIP; HARNESS
WB 5700MM(57W) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (J) ID=28 L=78 		1-09700-858-0 04 1 9806-9911
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 04 1 9912-
48 CLIP; FRAME HARNESS
(Q) L=140 		5-09707-031-1 01 1 0208-
48 CLIP; FRAME HARNESS
(H) ID=25 L=40 		1-09700-215-1 02 1 9806-9911
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 9912-
48 CLIP; FRAME HARNESS
(I) ID=25 L=54 		1-09700-392-0 01 1 9806-9911
48 CLIP; FRAME HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9912-
48 CLIP; FRAME HARNESS
(J) ID=28 L=40 		1-09700-995-1 04 1 9806-0002
48 CLIP; FRAME HARNESS
(R) ID=32 L=50 		1-09701-055-1 04 1 0003-
48 CLIP; FRAME HARNESS
(K) ID=19 L=20 		9-09525-836-0 01 1 9806-0606
48 CLIP; FRAME HARNESS
(K) ID=19 L=20 		0-95235-836-0 01 1 0607-
48 CLIP; FRAME HARNESS
(L) ID=19 L=40 		9-09525-875-0 01 1 9806-0302
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 9806-0302
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 05 1 9806-
48 CLIP; FRAME HARNESS
CTR SPLIT FRAME<TLW> (C) ID=11 L=41 		1-09700-403-0 02 1 9806-9911
48 CLIP; FRAME HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (C) ID=11 L=41 		1-09700-403-0 02 1 9806-9911
48 CLIP; FRAME HARNESS
CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (E) ID=24.5 H=35 L=25 		1-09700-990-0 06 1 9806-9911
48 CLIP; FRAME HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9912-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (D) ID=18 L=48 		9-09917-429-0 02 1 9806-9911
48 CLIP; FRAME HARNESS
EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (B) ID=27.5 H=23 L=24 		1-09700-863-0 06 1 9806-9911
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 03 1 9912-
48 CLIP; FRAME HARNESS
EMIS REGULATION W/CONV<TCA> EXC. ELEC SW BOX ENG ROOM<TEK> (C) ID=11 L=41 		1-09700-403-0 01 1 9806-9903
48 CLIP; FRAME HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=33 L=63 		1-09700-807-0 03 1 9806-9911
48 CLIP; FRAME HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (F) ID=25 L=55 		9-09917-573-0 03 1 9806-9911
48 CLIP; FRAME HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (N) L=300 		1-09707-001-0 01 1 9806-9911
48 CLIP; FRAME HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (O) ID=20 L=50 		9-09917-430-0 01 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (F) ID=25 L=55 		9-09917-573-0 21 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (G) ID=28 L=78 		1-09700-858-0 20 1 9912-
48 CLIP; FRAME HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (F) ID=25 L=55 		9-09917-573-0 20 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (F) ID=25 L=55 		9-09917-573-0 23 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (G) ID=28 L=78 		1-09700-858-0 20 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5700MM(57W) (G) ID=28 L=78 		1-09700-858-0 22 1 9912-
48 CLIP; FRAME HARNESS
WB 6300MM(63W) (F) ID=25 L=55 		9-09917-573-0 24 1 9806-9911
49 CLIP; GEN HARNESS
(B) ID=21 L=24 		8-94176-807-1 02 1 9806-9911
49 CLIP; GEN HARNESS
(B) ID=21 L=24 		8-94176-807-1 01 1 9912-
49 CLIP; GEN HARNESS
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9806-9911
49 CLIP; GEN HARNESS
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) ID=20.1 L=34.5 		5-09700-284-0 01 1 9806-9911
49 CLIP; GEN HARNESS
(C) ID=20.1 L=34.5 		5-09700-284-0 01 1 9912-
95 CLIP; CABLE
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9912-
95 CLIP; CABLE
ISUZU M/T<X9A> (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9912-
95 CLIP; CABLE
(D) 		1-09701-238-0 02 1 9912-
95 CLIP; CABLE
(F) L=500 		1-09707-082-1 04 1 9912-
95 CLIP; CABLE
(G) ID=6-10 & 6-10 		1-09709-192-1 01 1 9912-
95 CLIP; CABLE
A/T<X9D> (E) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 9912-
95 CLIP; CABLE
EMIS REGULATION W/CONV<TCA> (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9806-9911
95 CLIP; CABLE
A/T<X9D> (B) ID=20 H=23 L=27 		1-09700-861-0 02 1 9912-
95 CLIP; CABLE
ISUZU M/T<X9A> (H) ID=11 H=20 L=20 		5-09700-351-0 03 1 9912-
162 CLIP; SW HARNESS
(A) ID=15 L=65 		1-09700-466-0 04 1 9806-
162 CLIP; SW HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 9806-
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9806-0402
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 02 1 9806-
170 CLIP; ELEC HARNESS
(C) L=500 		1-09707-082-1 02 1 9806-
170 CLIP; ELEC HARNESS
(D) ID=18 L=48 		9-09917-429-0 03 1 9806-
171 CLIP; STARTER HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9806-
171 CLIP; STARTER HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 02 1 9806-9911
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (A) OD=9 H=6 		1-09709-178-0 02 1 9912-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9806-9907
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (A) OD=9 H=6 		1-09709-178-0 01 1 9806-9907
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (A) OD=9 H=6 		1-09709-178-0 01 1 9908-9911
171 CLIP; STARTER HARNESS
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A) OD=9 H=6 		1-09709-178-0 01 1 9908-9911
171 CLIP; STARTER HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0305
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (E) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0305
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (E) ID=14.5 L=20 		1-09701-012-0 02 1 0306-
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (B) L=300 		1-09707-001-0 01 1 9806-9911
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (C) L=180 		1-09707-162-1 01 1 9806-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9806-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9908-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 9806-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (C) ID=12 L=35 		5-09700-206-0 01 1 9908-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (C) ID=12 L=35 		5-09700-206-0 01 1 9912-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		9-09525-085-0 03 1 9806-0606
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 03 1 0607-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9912-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> ID=20 L=50 		1-09700-679-1 01 1 9806-9911
305 CLIP; ENG HARNESS
(F) ID=11 L=30 		1-09700-511-0 02 1 9912-
305 CLIP; ENG HARNESS
(G) 		8-97101-436-0 01 1 9912-
305 CLIP; ENG HARNESS
(C) ID=11 L=24 		9-09525-045-0 01 1 9912-0606
305 CLIP; ENG HARNESS
(C) ID=11 L=24 		0-95235-045-0 01 1 0607-
305 CLIP; ENG HARNESS
EMIS REGULATION W/CONV<TCA> (A) L=140 		5-09707-031-1 03 1 9806-9911
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 02 1 9912-
305 CLIP; ENG HARNESS
EXC. EMIS REGULATION W/CONV<TCA> (B) L=180 		1-09707-162-1 01 1 9806-9911
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 02 1 9912-
309 CLIP; HARNESS,HAND BRAKE CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=16 L=40 		9-09525-576-0 01 1 9806-9911
309 CLIP; HARNESS,HAND BRAKE CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=14 L=44 		9-09917-427-0 03 1 9806-9911

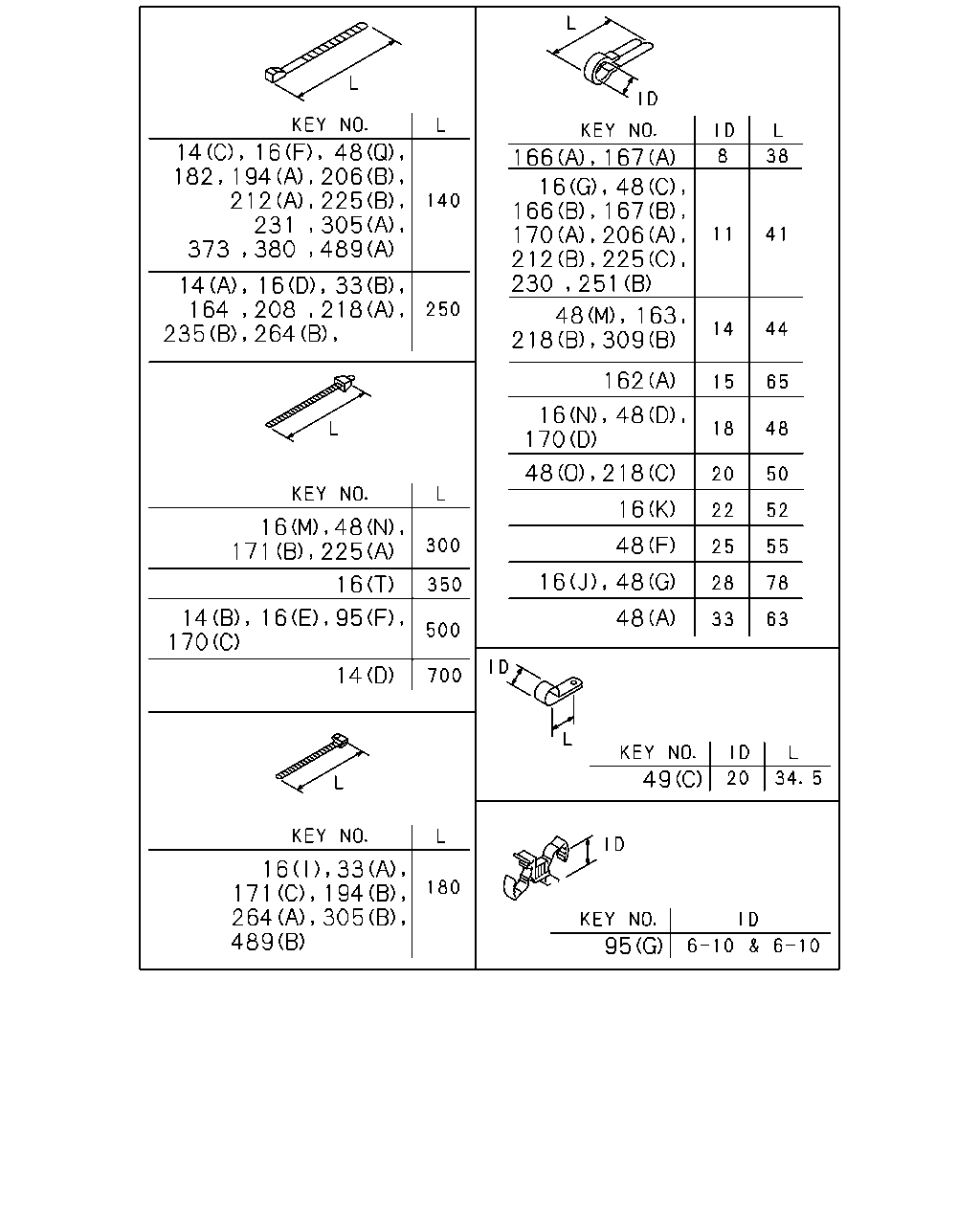

çizim 99352
14 231 305 166 167 166 167 373 14 48 163 162 170 16 48 16 14 170 48 14 49 171 194 489 95 16 48 182 194 206 212 225 380 489 16 33 164 208 218 235 16 48 171 225 16 95 16 33 264 305 16 48 170 206 212 225 230 251 218 309 16 48 48 218 16 48 264
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
(B) L=500 		1-09707-082-1 02 1 9912-0205
14 CLIP; BAND,HARNESS
(D) L=700 		1-09707-190-0 02 1 0206-
14 CLIP; BAND,HARNESS
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) (C) L=140 		5-09707-031-1 01 1 9912-9912
14 CLIP; BAND,HARNESS
A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (C) L=140 		5-09707-031-1 01 1 0001-
14 CLIP; BAND,HARNESS
A/T<X9D> (A) L=250 		5-09707-030-1 03 1 9912-
16 CLIP; HARNESS
(U) ID=5-12 L=18 		1-09709-287-0 01 1 0503-
16 CLIP; HARNESS
(V) ID=5-12 L=14.5 		1-09987-221-0 01 1 0503-
16 CLIP; HARNESS
(W) OD=9 H=6 		8-97368-793-0 01 1 0503-
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 01 1 9806-9911
16 CLIP; HARNESS
(G) ID=11 L=41 		1-09700-403-0 08 1 9912-
16 CLIP; HARNESS
(M) L=300 		1-09707-001-1 01 1 9806-0401
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 01 1 0402-
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 02 1 9806-9911
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) L=250 		5-09707-030-1 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (D) L=250 		5-09707-030-1 02 1 9912-
16 CLIP; HARNESS
(N) ID=18 L=48 		9-09917-429-0 04 1 9806-
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (H) OD=9 H=9.5 		1-09709-179-0 02 1 9806-9911
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 02 1 9912-0207
16 CLIP; HARNESS
ISUZU M/T<X9A> (L) ID=14.5 L=20 		1-09701-012-0 01 1 0208-0210
16 CLIP; HARNESS
(L) ID=14.5 L=20 		1-09701-012-0 02 1 0211-
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (P) ID=11 L=20 		9-09525-035-0 02 1 9806-9911
16 CLIP; HARNESS
(P) ID=11 L=20 		9-09525-035-0 02 1 9912-0606
16 CLIP; HARNESS
(P) ID=11 L=20 		0-95235-035-0 02 1 0607-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (G) ID=11 L=41 		1-09700-403-0 03 1 9806-9911
16 CLIP; HARNESS
(H) OD=9 H=9.5 		1-09709-179-0 03 1 9912-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=180 		1-09707-162-0 01 1 9806-9806
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (I) L=180 		1-09707-162-0 01 1 9806-9806
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (I) L=180 		1-09707-162-1 01 1 9807-9911
16 CLIP; HARNESS
(I) L=180 		1-09707-162-1 01 1 9912-
16 CLIP; HARNESS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 08 1 9806-9911
16 CLIP; HARNESS
(F) L=140 		5-09707-031-1 01 1 9912-
16 CLIP; HARNESS
CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 09 1 9806-9911
16 CLIP; HARNESS
(E) L=500 		1-09707-082-1 08 1 9912-
16 CLIP; HARNESS
EXC. CTR SPLIT FRAME<TLW> (K) ID=22 L=52 		9-09917-431-0 04 1 9806-9911
16 CLIP; HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (K) ID=22 L=52 		9-09917-431-0 04 1 9806-9911
16 CLIP; HARNESS
ELEC SW BOX ENG ROOM<TEK> (E) L=500 		1-09707-082-0 08 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (S) ID=9 L=20 		9-09524-835-0 01 1 9912-0606
16 CLIP; HARNESS
A/T<X9D> (S) ID=9 L=20 		0-95234-835-0 01 1 0607-
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) L=140 		5-09707-031-0 01 1 9806-9806
16 CLIP; HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (F) L=140 		5-09707-031-0 01 1 9806-9806
16 CLIP; HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (F) L=140 		5-09707-031-1 01 1 9807-9911
16 CLIP; HARNESS
(A) ID=28 L=40 		1-09700-995-1 01 1 9912-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (B) ID=24 L=27 		1-09700-809-0 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (Q) ID=20 H=23 L=27 		1-09700-861-0 01 1 9912-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (C) ID=25 L=50 		1-09701-019-0 01 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0207
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 03 1 0208-0210
16 CLIP; HARNESS
A/T<X9D> (L) ID=14.5 L=20 		1-09701-012-0 01 1 0211-
16 CLIP; HARNESS
EMIS REGULATION W/CONV<TCA> (D) L=250 		5-09707-030-1 01 1 9806-9903
16 CLIP; HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> (A) ID=28 L=40 		1-09700-995-1 01 1 9806-9911
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 9912-0207
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0208-0210
16 CLIP; HARNESS
ISUZU M/T<X9A> (D) L=250 		5-09707-030-1 01 1 0208-0210
16 CLIP; HARNESS
(D) L=250 		5-09707-030-1 01 1 0211-0302
16 CLIP; HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (O) ID=21 L=24 		8-94176-807-1 01 1 9806-9911
16 CLIP; HARNESS
REVERSING WARNING BUZZER<YM9> (H) OD=9 H=9.5 		1-09709-179-0 01 1 9806-9911
16 CLIP; HARNESS
SIDE TURN SIGNAL LAMP<TEL> (F) L=140 		5-09707-031-1 02 1 9806-9911
16 CLIP; HARNESS
A/T<X9D> (R) ID=19 H=21 L=50 		1-09700-910-1 01 1 9912-
16 CLIP; HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> (G) ID=11 L=41 		1-09700-403-0 06 1 9806-9911
16 CLIP; HARNESS
WB 5700MM(57W) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (J) ID=28 L=78 		1-09700-858-0 04 1 9806-9911
16 CLIP; HARNESS
(J) ID=28 L=78 		1-09700-858-0 04 1 9912-
33 CLIP; HARNESS,VLV
EMIS REGULATION W/CONV<TCA> MLD6 M/T<X9Y> (A) L=180 		1-09707-162-1 01 1 9811-9911
33 CLIP; HARNESS,VLV
EMIS REGULATION W/CONV<TCA> MLD6 M/T<X9Y> (B) L=250 		5-09707-030-1 02 1 9811-9911
48 CLIP; FRAME HARNESS
(Q) L=140 		5-09707-031-1 01 1 0208-
48 CLIP; FRAME HARNESS
(H) ID=25 L=40 		1-09700-215-1 02 1 9806-9911
48 CLIP; FRAME HARNESS
(C) ID=11 L=41 		1-09700-403-0 02 1 9912-
48 CLIP; FRAME HARNESS
(I) ID=25 L=54 		1-09700-392-0 01 1 9806-9911
48 CLIP; FRAME HARNESS
(P) ID=31.5 H=23 L=25 		1-09701-017-0 02 1 9912-
48 CLIP; FRAME HARNESS
(J) ID=28 L=40 		1-09700-995-1 04 1 9806-0002
48 CLIP; FRAME HARNESS
(R) ID=32 L=50 		1-09701-055-1 04 1 0003-
48 CLIP; FRAME HARNESS
(K) ID=19 L=20 		9-09525-836-0 01 1 9806-0606
48 CLIP; FRAME HARNESS
(K) ID=19 L=20 		0-95235-836-0 01 1 0607-
48 CLIP; FRAME HARNESS
(L) ID=19 L=40 		9-09525-875-0 01 1 9806-0302
48 CLIP; FRAME HARNESS
(M) ID=14 L=44 		9-09917-427-0 01 1 9806-0302
48 CLIP; FRAME HARNESS
(G) ID=28 L=78 		1-09700-858-0 05 1 9806-
48 CLIP; FRAME HARNESS
CTR SPLIT FRAME<TLW> (C) ID=11 L=41 		1-09700-403-0 02 1 9806-9911
48 CLIP; FRAME HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (C) ID=11 L=41 		1-09700-403-0 02 1 9806-9911
48 CLIP; FRAME HARNESS
CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (E) ID=24.5 H=35 L=25 		1-09700-990-0 06 1 9806-9911
48 CLIP; FRAME HARNESS
(D) ID=18 L=48 		9-09917-429-0 02 1 9912-
48 CLIP; FRAME HARNESS
ELEC SW BOX ENG ROOM<TEK> (D) ID=18 L=48 		9-09917-429-0 02 1 9806-9911
48 CLIP; FRAME HARNESS
EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (B) ID=27.5 H=23 L=24 		1-09700-863-0 06 1 9806-9911
48 CLIP; FRAME HARNESS
(A) ID=33 L=63 		1-09700-807-0 03 1 9912-
48 CLIP; FRAME HARNESS
EMIS REGULATION W/CONV<TCA> EXC. ELEC SW BOX ENG ROOM<TEK> (C) ID=11 L=41 		1-09700-403-0 01 1 9806-9903
48 CLIP; FRAME HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=33 L=63 		1-09700-807-0 03 1 9806-9911
48 CLIP; FRAME HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (F) ID=25 L=55 		9-09917-573-0 03 1 9806-9911
48 CLIP; FRAME HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (N) L=300 		1-09707-001-0 01 1 9806-9911
48 CLIP; FRAME HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),ELEC SW BOX ENG ROOM<TEK> (O) ID=20 L=50 		9-09917-430-0 01 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (F) ID=25 L=55 		9-09917-573-0 21 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5000MM(50W) (G) ID=28 L=78 		1-09700-858-0 20 1 9912-
48 CLIP; FRAME HARNESS
WB 5700MM(57W) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> (F) ID=25 L=55 		9-09917-573-0 20 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EXC. CTR SPLIT FRAME<TLW> (F) ID=25 L=55 		9-09917-573-0 23 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5700MM(57W) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> (G) ID=28 L=78 		1-09700-858-0 20 1 9806-9911
48 CLIP; FRAME HARNESS
WB 5700MM(57W) (G) ID=28 L=78 		1-09700-858-0 22 1 9912-
48 CLIP; FRAME HARNESS
WB 6300MM(63W) (F) ID=25 L=55 		9-09917-573-0 24 1 9806-9911
49 CLIP; GEN HARNESS
(B) ID=21 L=24 		8-94176-807-1 02 1 9806-9911
49 CLIP; GEN HARNESS
(B) ID=21 L=24 		8-94176-807-1 01 1 9912-
49 CLIP; GEN HARNESS
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) ID=21 H=25.5 L=26 		8-94176-806-0 01 1 9806-9911
49 CLIP; GEN HARNESS
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) ID=20.1 L=34.5 		5-09700-284-0 01 1 9806-9911
49 CLIP; GEN HARNESS
(C) ID=20.1 L=34.5 		5-09700-284-0 01 1 9912-
95 CLIP; CABLE
(C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9912-
95 CLIP; CABLE
ISUZU M/T<X9A> (C) ID=24.5 H=23 L=25 		1-09700-862-0 01 1 9912-
95 CLIP; CABLE
(D) 		1-09701-238-0 02 1 9912-
95 CLIP; CABLE
(F) L=500 		1-09707-082-1 04 1 9912-
95 CLIP; CABLE
(G) ID=6-10 & 6-10 		1-09709-192-1 01 1 9912-
95 CLIP; CABLE
A/T<X9D> (E) ID=20X2 H=25 L=45 		1-09701-252-0 01 1 9912-
95 CLIP; CABLE
EMIS REGULATION W/CONV<TCA> (A) ID=28 H=45 L=30 		1-09700-948-0 01 1 9806-9911
95 CLIP; CABLE
A/T<X9D> (B) ID=20 H=23 L=27 		1-09700-861-0 02 1 9912-
95 CLIP; CABLE
ISUZU M/T<X9A> (H) ID=11 H=20 L=20 		5-09700-351-0 03 1 9912-
162 CLIP; SW HARNESS
(A) ID=15 L=65 		1-09700-466-0 04 1 9806-
162 CLIP; SW HARNESS
(B) ID=28 L=40 		1-09700-995-1 01 1 9806-
163 CLIP; METER HARNESS
ID=14 L=44 		9-09917-427-0 02 1 9806-
164 CLIP; BAND METER HARNESS
EXC. WARNING BUZZER-SPEED<RF8> L=250 		5-09707-030-1 01 1 0209-
166 CLIP; HARNESS CLU SW
(A) ID=8 L=38 		9-09917-424-0 04 1 9806-9911
166 CLIP; HARNESS CLU SW
(B) ID=11 L=41 		1-09700-403-0 04 1 9912-
167 CLIP; HARNESS ACCEL & STOP
(A) ID=8 L=38 		9-09917-424-0 02 1 9806-9911
167 CLIP; HARNESS ACCEL & STOP
(B) ID=11 L=41 		1-09700-403-0 02 1 9912-
170 CLIP; ELEC HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9806-0402
170 CLIP; ELEC HARNESS
(B) ID=28 L=40 		1-09700-995-1 02 1 9806-
170 CLIP; ELEC HARNESS
(C) L=500 		1-09707-082-1 02 1 9806-
170 CLIP; ELEC HARNESS
(D) ID=18 L=48 		9-09917-429-0 03 1 9806-
171 CLIP; STARTER HARNESS
(D) ID=19 H=21 L=50 		1-09700-910-1 01 1 9806-
171 CLIP; STARTER HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 02 1 9806-9911
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (A) OD=9 H=6 		1-09709-178-0 02 1 9912-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 9806-9907
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (A) OD=9 H=6 		1-09709-178-0 01 1 9806-9907
171 CLIP; STARTER HARNESS
MLD6 M/T<X9Y> (A) OD=9 H=6 		1-09709-178-0 01 1 9908-9911
171 CLIP; STARTER HARNESS
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A) OD=9 H=6 		1-09709-178-0 01 1 9908-9911
171 CLIP; STARTER HARNESS
(E) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0305
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (E) ID=14.5 L=20 		1-09701-012-0 01 1 9912-0305
171 CLIP; STARTER HARNESS
ISUZU M/T<X9A> (E) ID=14.5 L=20 		1-09701-012-0 02 1 0306-
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (B) L=300 		1-09707-001-0 01 1 9806-9911
171 CLIP; STARTER HARNESS
MLD7 M/T<X9Z> (C) L=180 		1-09707-162-1 01 1 9806-9911
182 CLIP; HARNESS,OIL FILTER
L=140 		5-09707-031-1 01 1 9806-
194 CLIP; BAND
(B) L=180 		1-09707-162-1 05 1 9806-9911
194 CLIP; BAND
(B) L=180 		1-09707-162-1 05 1 9912-
194 CLIP; BAND
EXC. ELEC SW BOX ENG ROOM<TEK> (B) L=180 		1-09707-162-1 01 1 9806-9911
194 CLIP; BAND
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) L=140 		5-09707-031-1 01 1 9806-9911
194 CLIP; BAND
BRK SYSTEM RETARDER<RE2>,FOOT BRK W/EXH BRK<SJB> (A) L=140 		5-09707-031-1 01 1 9806-9911
194 CLIP; BAND
(A) L=140 		5-09707-031-1 01 1 9912-
206 CLIP; FUEL TANK HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 9806-
206 CLIP; FUEL TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9806-
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 9806-9911
208 CLIP; HARNESS,MAG VLV
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> L=250 		5-09707-030-1 01 1 9806-9911
208 CLIP; HARNESS,MAG VLV
BRK SYSTEM RETARDER<RE2> L=250 		5-09707-030-1 01 1 9806-9911
208 CLIP; HARNESS,MAG VLV
L=250 		5-09707-030-1 01 1 9912-
212 CLIP; HORN HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9806-
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) L=140 		5-09707-031-1 01 1 9806-9911
212 CLIP; HORN HARNESS
AIR HORN(WB8) (A) L=140 		5-09707-031-1 03 1 9806-9911
218 CLIP; BAND,RR COMB
EMIS REGULATION W/CONV<TCA> (A) L=250 		5-09707-030-1 03 1 9806-9911
218 CLIP; BAND,RR COMB
(A) L=250 		5-09707-030-1 03 1 9912-
218 CLIP; BAND,RR COMB
EMIS REGULATION W/CONV<TCA> (B) ID=14 L=44 		9-09917-427-0 04 1 9806-9911
218 CLIP; BAND,RR COMB
(B) ID=14 L=44 		9-09917-427-0 04 1 9912-0005
218 CLIP; BAND,RR COMB
EMIS REGULATION W/CONV<TCA> (C) ID=20 L=50 		9-09917-430-0 03 1 9806-9911
218 CLIP; BAND,RR COMB
(C) ID=20 L=50 		9-09917-430-0 03 1 9912-
218 CLIP; BAND,RR COMB
EXC. EMIS REGULATION W/CONV<TCA> (A) L=250 		5-09707-030-1 04 1 9806-9911
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EMIS REGULATION W/CONV<TCA> (A) L=300 		1-09707-001-0 01 1 9806-9911
225 CLIP; AIR TANK HARNESS
(A) L=300 		1-09707-001-1 01 1 9912-0302
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EMIS REGULATION W/CONV<TCA> (B) L=140 		5-09707-031-1 02 1 9806-9911
225 CLIP; AIR TANK HARNESS
(B) L=140 		5-09707-031-1 02 1 9912-0302
225 CLIP; AIR TANK HARNESS
AIR DRYER<PS7> EXC. EMIS REGULATION W/CONV<TCA> (C) ID=11 L=41 		1-09700-403-0 02 1 9806-9911
230 CLIP; C/MBR HARNESS
EXC. CTR SPLIT FRAME<TLW> ID=11 L=41 		1-09700-403-0 04 1 9806-9911
230 CLIP; C/MBR HARNESS
ID=11 L=41 		1-09700-403-0 04 1 9912-
231 CLIP; BAND,OIL PRESS
L=140 		5-09707-031-1 01 1 9806-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9806-9907
235 CLIP; HARNESS,SPD SENSOR,SSPS
ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (A) ID=6 H=25 L=21 		1-09700-432-0 01 1 9908-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 9806-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> (C) ID=12 L=35 		5-09700-206-0 01 1 9908-9911
235 CLIP; HARNESS,SPD SENSOR,SSPS
ISUZU M/T<X9A> (C) ID=12 L=35 		5-09700-206-0 01 1 9912-
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		9-09525-085-0 03 1 9806-0606
251 CLIP; WATER LEVEL HARNESS
(A) ID=11 L=50 		0-95235-085-0 03 1 0607-
251 CLIP; WATER LEVEL HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 9912-
264 CLIP; HARNESS,HEADLAMP
(A) L=180 		1-09707-162-1 02 1 9806-
264 CLIP; HARNESS,HEADLAMP
(B) L=250 		5-09707-030-1 02 1 9806-9911
305 CLIP; ENG HARNESS
(F) ID=11 L=30 		1-09700-511-0 02 1 9912-
305 CLIP; ENG HARNESS
(G) 		8-97101-436-0 01 1 9912-
305 CLIP; ENG HARNESS
(C) ID=11 L=24 		9-09525-045-0 01 1 9912-0606
305 CLIP; ENG HARNESS
(C) ID=11 L=24 		0-95235-045-0 01 1 0607-
305 CLIP; ENG HARNESS
EMIS REGULATION W/CONV<TCA> (A) L=140 		5-09707-031-1 03 1 9806-9911
305 CLIP; ENG HARNESS
(D) ID=18 L=44 		8-94225-185-0 02 1 9912-
305 CLIP; ENG HARNESS
EXC. EMIS REGULATION W/CONV<TCA> (B) L=180 		1-09707-162-1 01 1 9806-9911
305 CLIP; ENG HARNESS
(E) ID=24 L=32 		1-09700-766-1 02 1 9912-
309 CLIP; HARNESS,HAND BRAKE CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) ID=16 L=40 		9-09525-576-0 01 1 9806-9911
309 CLIP; HARNESS,HAND BRAKE CABLE
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (B) ID=14 L=44 		9-09917-427-0 03 1 9806-9911
373 CLIP; BAND,GEN HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=140 		5-09707-031-1 03 1 9806-9911
373 CLIP; BAND,GEN HARNESS
L=140 		5-09707-031-1 03 1 9912-
373 CLIP; BAND,GEN HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) L=140 		5-09707-031-1 01 1 9806-9911
380 CLIP; EARTH HARNESS
L=140 		5-09707-031-1 01 1 9912-
489 CLIP; HARNESS,OIL PRESS SW
(A) L=140 		5-09707-031-1 01 1 9806-9911
489 CLIP; HARNESS,OIL PRESS SW
(B) L=180 		1-09707-162-1 01 1 9912-
çizim 99353
173 38 38 38 169 480 38 139 480 371 38 313 423 525 219 239 239 38 386 38 304 38 304 313 371 150 313 38 139 150 242 294 525 340 515 297 294 54 219
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
A/T<X9D> (E) M8X12 FLANGE 		0-28080-812-0 02 1 0208-0210
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28080-812-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28080-812-0 02 1 9912-0207
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (E) M8X12 FLANGE 		0-28080-812-0 01 1 0208-0210
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28080-812-0 02 1 0211-0512
38 BOLT; CLIP,HARNESS
(E) M8X12 FLANGE 		0-28050-812-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 03 1 9806-9911
38 BOLT; CLIP,HARNESS
EMIS REGULATION W/CONV<TCA> (C) M8X16 FLANGE 		0-28080-816-0 03 1 9806-9911
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (C) M8X16 FLANGE 		0-28080-816-0 01 1 9912-0305
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A>,A/T<X9D> (C) M8X16 FLANGE 		0-28080-816-0 02 1 0306-0512
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A>,A/T<X9D> (C) M8X16 FLANGE 		0-28050-816-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 04 1 9806-9911
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 08 1 9912-0207
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0208-0302
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 05 1 0303-0305
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28080-816-0 04 1 0306-0512
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(F) M10X16 FLANGE 		0-28181-016-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 04 1 9912-0512
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(G) M6X20 FLANGE 		0-28680-620-0 02 1 9806-0512
38 BOLT; CLIP,HARNESS
(G) M6X20 FLANGE 		0-28650-620-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
A/T<X9D> (I) M8X20 W/LK WASHER 		0-50040-820-0 01 1 9912-
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28680-825-0 09 1 9806-9911
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28680-825-0 07 1 9912-0512
38 BOLT; CLIP,HARNESS
(H) M8X25 FLANGE 		0-28650-825-0 07 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 02 1 9806-9911
38 BOLT; CLIP,HARNESS
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 03 1 9912-
38 BOLT; CLIP,HARNESS
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (A) M8X20 FLANGE 		0-28680-820-0 02 1 9806-9911
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (F) M10X16 FLANGE 		0-28181-016-0 01 1 9912-0512
38 BOLT; CLIP,HARNESS
ISUZU M/T<X9A> (F) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (D) M8X30 FLANGE 		0-28680-830-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
A/T<X9D> (H) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0512
38 BOLT; CLIP,HARNESS
A/T<X9D> (H) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
CTR SPLIT FRAME<TLW> (D) M8X30 FLANGE 		0-28680-830-0 06 1 9806-9911
38 BOLT; CLIP,HARNESS
A/T<X9D> (C) M8X16 FLANGE 		0-28080-816-0 02 1 9912-0305
38 BOLT; CLIP,HARNESS
EMIS REGULATION W/CONV<TCA> (B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9806-9911
38 BOLT; CLIP,HARNESS
A/T<X9D> (A) M8X20 FLANGE 		0-28680-820-0 01 1 9912-0512
38 BOLT; CLIP,HARNESS
A/T<X9D> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0601-
54 NUT
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8 FLANGE 		0-91150-108-0 01 1 9806-9911
139 BOLT; BRKT
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (B) M8X25 FLANGE 		0-28680-825-0 02 1 9806-9911
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 03 1 9912-0512
139 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 03 1 0601-
139 BOLT; BRKT
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) M8X30 FLANGE 		0-28680-830-0 01 1 9806-9911
150 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0002-0512
150 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
150 BOLT; CLIP
EMIS REGULATION W/CONV<TCA> (A) M8X25 FLANGE 		0-28680-825-0 01 1 9806-9911
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 07 1 9912-0001
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28680-825-0 06 1 0002-0512
150 BOLT; CLIP
(A) M8X25 FLANGE 		0-28650-825-0 06 1 0601-
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28680-820-0 02 1 9806-0512
169 BOLT; ELEC HARNESS
M8X20 FLANGE 		0-28650-820-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 9806-
219 NUT
EXC. A/T<X9D> (A) M8 FLANGE 		0-91150-108-0 01 1 0401-0602
219 NUT
EXC. A/T<X9D> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
219 NUT
(B) M6 FLANGE 		0-91150-106-0 02 1 9806-0602
219 NUT
(B) M6 FLANGE 		0-91180-106-0 02 1 0603-
219 NUT
(A) M8 FLANGE 		0-91150-108-0 10 1 9806-0602
219 NUT
(A) M8 FLANGE 		0-91180-108-0 10 1 0603-
219 NUT
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) (A) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
219 NUT
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> (A) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
219 NUT
CTR SPLIT FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 06 1 9806-9911
219 NUT
A/T<X9D> (A) M8 FLANGE 		0-91150-108-0 03 1 9912-0304
219 NUT
A/T<X9D> (A) M8 FLANGE 		0-91150-108-0 04 1 0305-0602
219 NUT
A/T<X9D> (A) M8 FLANGE 		0-91180-108-0 04 1 0603-
239 BOLT; GRAND
GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) M8X12 		0-20800-812-0 01 1 9806-9911
239 BOLT; GRAND
(A) M8X12 		0-20800-812-0 01 1 9912-0009
239 BOLT; GRAND
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) M5X8 		0-20800-508-0 01 1 9806-9911
242 BOLT; BRKT,HARNESS
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> M8X30 FLANGE 		0-28680-830-0 01 1 9806-9911
294 NUT
A/T<X9D> (B) M10 FLANGE 		0-91150-110-0 01 1 9912-0602
294 NUT
A/T<X9D> (B) M10 FLANGE 		0-91180-110-0 01 1 0603-
294 NUT
BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (A) M8 FLANGE 		0-91150-108-0 02 1 9806-9911
294 NUT
A/T<X9D> (A) M8 FLANGE 		0-91150-108-0 01 1 9912-0602
294 NUT
A/T<X9D> (A) M8 FLANGE 		0-91180-108-0 01 1 0603-
294 NUT
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
294 NUT
EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A) M8 FLANGE 		0-91150-108-0 01 1 9806-9911
294 NUT
(A) M8 FLANGE 		0-91150-108-0 03 1 9912-0602
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0603-
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91150-108-0 02 1 9806-0602
297 NUT; HARNESS ELEC PANEL
M8 FLANGE 		0-91180-108-0 02 1 0603-
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28080-812-0 04 1 9912-0512
304 BOLT; ENG HARNESS CLIP
(A) M8X12 FLANGE 		0-28050-812-0 04 1 0601-
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28080-816-0 03 1 9912-0512
304 BOLT; ENG HARNESS CLIP
(B) M8X16 FLANGE 		0-28050-816-0 03 1 0601-
313 BOLT; BRKT
A/T<X9D> (B) M8X25 FLANGE 		0-28680-825-0 01 1 9912-0502
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0503-0512
313 BOLT; BRKT
A/T<X9D> (B) M8X25 FLANGE 		0-28680-825-0 01 1 0503-0512
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
313 BOLT; BRKT
A/T<X9D> (B) M8X25 FLANGE 		0-28650-825-0 01 1 0601-
313 BOLT; BRKT
A/T<X9D> (C) M10X20 FLANGE 		0-28681-020-0 01 1 9912-0512
313 BOLT; BRKT
A/T<X9D> (C) M10X20 FLANGE 		0-28651-020-0 01 1 0601-
313 BOLT; BRKT
EMIS REGULATION W/CONV<TCA> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9911
313 BOLT; BRKT
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9912-0512
313 BOLT; BRKT
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91150-108-0 01 1 9806-0602
340 NUT; HARNESS CAB TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 0603-
371 BOLT; GEN HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9806-9911
371 BOLT; GEN HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 01 1 9912-0512
371 BOLT; GEN HARNESS
(A) M8X16 FLANGE 		0-28050-816-0 01 1 0601-
371 BOLT; GEN HARNESS
OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) M8X16 FLANGE 		0-28080-816-0 01 1 9806-9911
371 BOLT; GEN HARNESS
EXC. OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) M10X12 FLANGE 		0-28181-012-0 01 1 9806-9911
371 BOLT; GEN HARNESS
(B) M10X12 FLANGE 		0-28181-012-0 01 1 9912-0512
371 BOLT; GEN HARNESS
(B) M10X12 FLANGE 		0-28151-012-0 01 1 0601-
386 BOLT; GRAND HARNESS
M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 9806-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 03 1 9912-
480 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 02 1 9806-0005
480 BOLT; BRKT
CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE 		0-28680-830-0 02 1 9806-9911
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9806-9911
515 NUT; BRKT
CTR SPLIT FRAME<TLW> M8 FLANGE 		0-91150-108-0 02 1 9806-9911
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 9912-0005
525 NUT; CLIP
(B) M10 FLANGE 		0-91150-110-0 01 1 9912-0602
525 NUT; CLIP
(B) M10 FLANGE 		0-91180-110-0 01 1 0603-
525 NUT; CLIP
(A) M8 FLANGE 		0-91150-108-0 01 1 9808-9911
525 NUT; CLIP
(A) M8 FLANGE 		0-91150-108-0 07 1 9912-0602
525 NUT; CLIP
(A) M8 FLANGE 		0-91180-108-0 07 1 0603-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
