6-03 — RADIATOR GRILLE (#69) — 120 parça

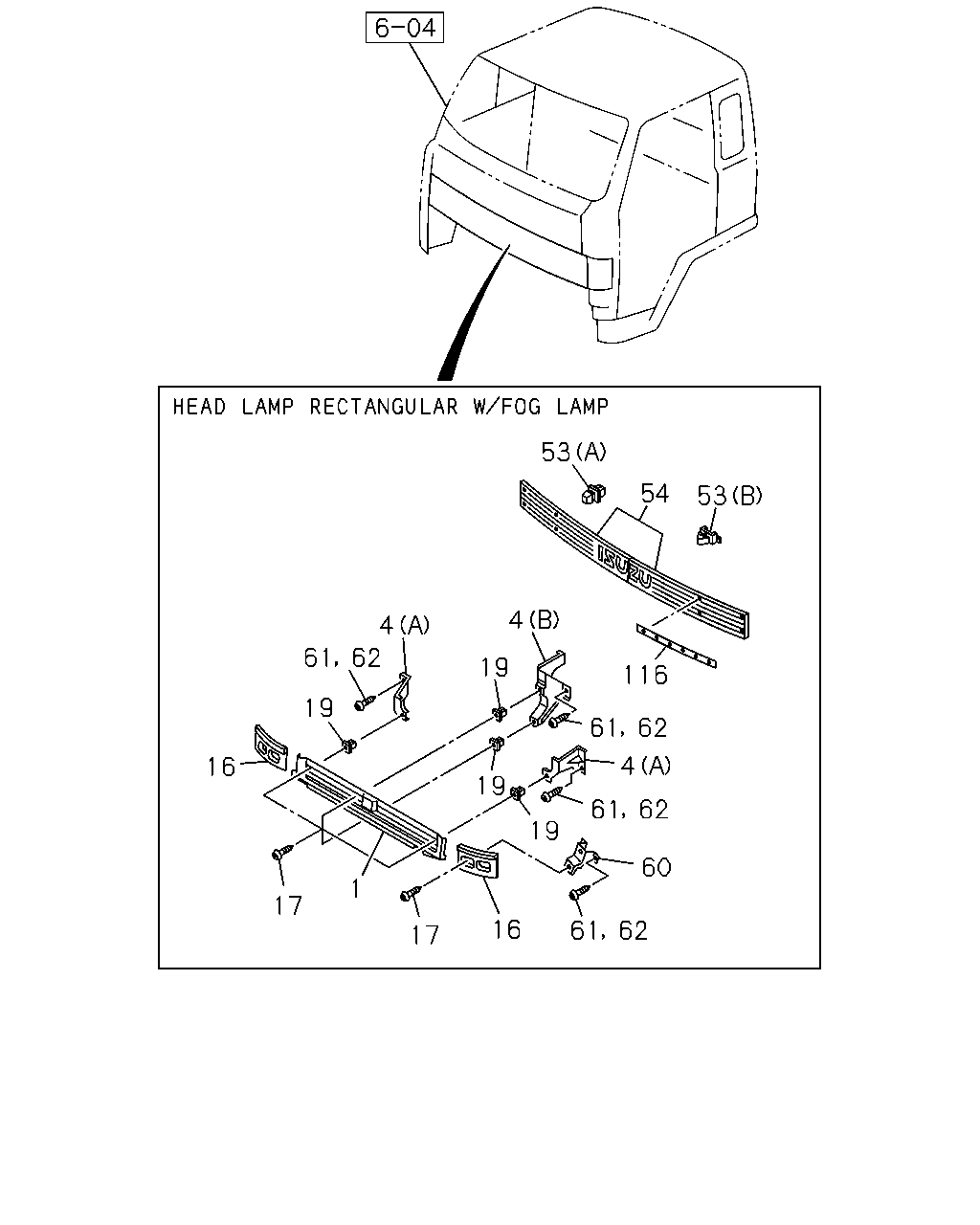

53 54 53 4 61 62 19 16 17 1 17 16 61 62 60 19 19 19 4 116 61 62 4 61 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-535-4	01	1	9308-	●
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71118-677-1	01	1	9202-	●	●
1	GRILLE; RAD EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> WHITE	1-71118-437-1	01	1	9202-	●	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (B) CENTER	1-71118-512-2	01	1	9310-	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-554-1	01	1	9310-	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-553-1	01	1	9310-	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9202-9309	●	●
4	BRACKET; RAD GRILLE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71118-421-2	01	1	9310-	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9310-		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> (A)	1-71118-586-0	01	1	9202-	●	●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> (A)	1-71118-585-0	01	1	9202-	●	●
16	GRILLE; RAD,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-538-0	01	1	9308-	●
16	GRILLE; RAD,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-537-0	01	1	9308-	●
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-199-3	01	1	9202-	●	●
17	SCREW; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	05	1	9202-	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	04	1	9202-	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/PL WASHER	1-09981-376-0	04	1	9202-	●	●
19	GROMMET; SCREW,RAD GRILLE BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9202-	●	●
19	GROMMET; SCREW,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9202-	●	●
53	CLIP; ORNAMENT GRILLE (A)	1-09987-056-1	14	1	9202-9309	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	12	1	9310-	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	8-94385-563-3	01	1	9310-	●	●
53	CLIP; ORNAMENT GRILLE EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	1-09987-056-1	14	1	9310-	●	●
54	GRILLE; ORNAMENT	1-76218-017-2	01	1	9202-9309	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-017-2	01	1	9310-	●	●
54	GRILLE; ORNAMENT	1-76218-016-2	01	1	9202-9309	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-016-2	01	1	9310-	●	●
54	GRILLE; ORNAMENT EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-068-1	01	1	9310-	●	●
60	BRACKET; RAD GRILLE SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-526-2	01	1	9310-	●
60	BRACKET; RAD GRILLE SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-525-2	01	1	9310-	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-672-3	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-671-3	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-577-2	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-576-2	01	1	9202-	●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9310-	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9310-		●
61	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	12	1	9303-	●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9303-9309	●	●
61	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	10	1	9310-	●
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9202-9302	●	●
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9202-9302	●	●
116	MOLDING; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-049-3	04	1	9310-	●	●

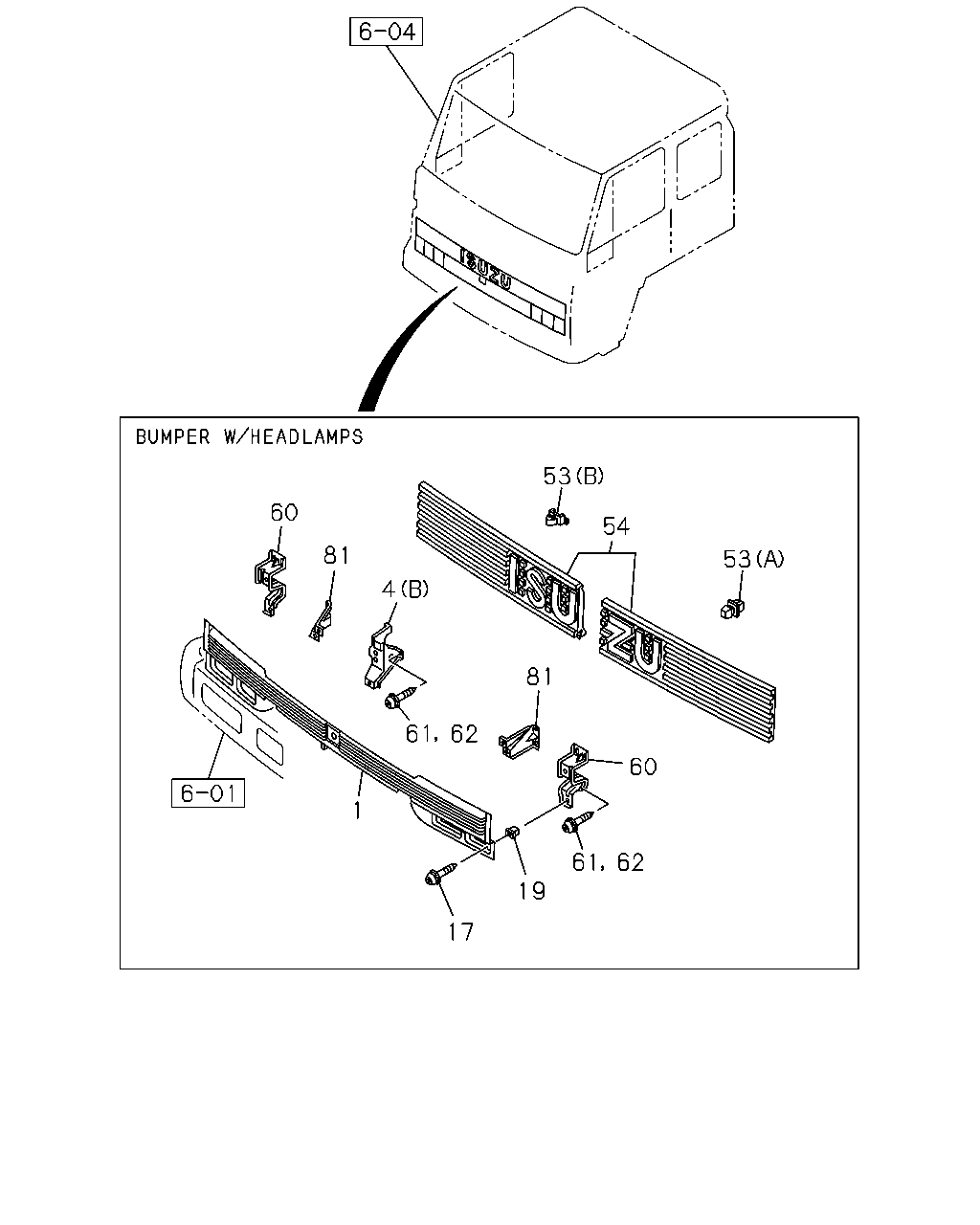

53 54 53 60 81 4 61 62 81 60 62 61 19 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (B) CENTER	1-71118-512-2	01	1	9310-	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-554-1	01	1	9310-	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-553-1	01	1	9310-	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9202-9309	●	●
4	BRACKET; RAD GRILLE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71118-421-2	01	1	9310-	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9310-		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> (A)	1-71118-586-0	01	1	9202-	●	●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> (A)	1-71118-585-0	01	1	9202-	●	●
17	SCREW; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	05	1	9202-	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	04	1	9202-	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/PL WASHER	1-09981-376-0	04	1	9202-	●	●
19	GROMMET; SCREW,RAD GRILLE BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9202-	●	●
19	GROMMET; SCREW,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9202-	●	●
53	CLIP; ORNAMENT GRILLE (A)	1-09987-056-1	14	1	9202-9309	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	12	1	9310-	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	8-94385-563-3	01	1	9310-	●	●
53	CLIP; ORNAMENT GRILLE EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	1-09987-056-1	14	1	9310-	●	●
54	GRILLE; ORNAMENT	1-76218-017-2	01	1	9202-9309	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-017-2	01	1	9310-	●	●
54	GRILLE; ORNAMENT	1-76218-016-2	01	1	9202-9309	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-016-2	01	1	9310-	●	●
54	GRILLE; ORNAMENT EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-068-1	01	1	9310-	●	●
60	BRACKET; RAD GRILLE SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-526-2	01	1	9310-	●
60	BRACKET; RAD GRILLE SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-525-2	01	1	9310-	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-672-3	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-671-3	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-577-2	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-576-2	01	1	9202-	●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9310-	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9310-		●
61	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	12	1	9303-	●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9303-9309	●	●
61	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	10	1	9310-	●
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9202-9302	●	●
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9202-9302	●	●
81	BRACKET; RAD GRILLE,CENTER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-684-0	01	1	9202-	●	●
81	BRACKET; RAD GRILLE,CENTER BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-683-0	01	1	9202-	●	●

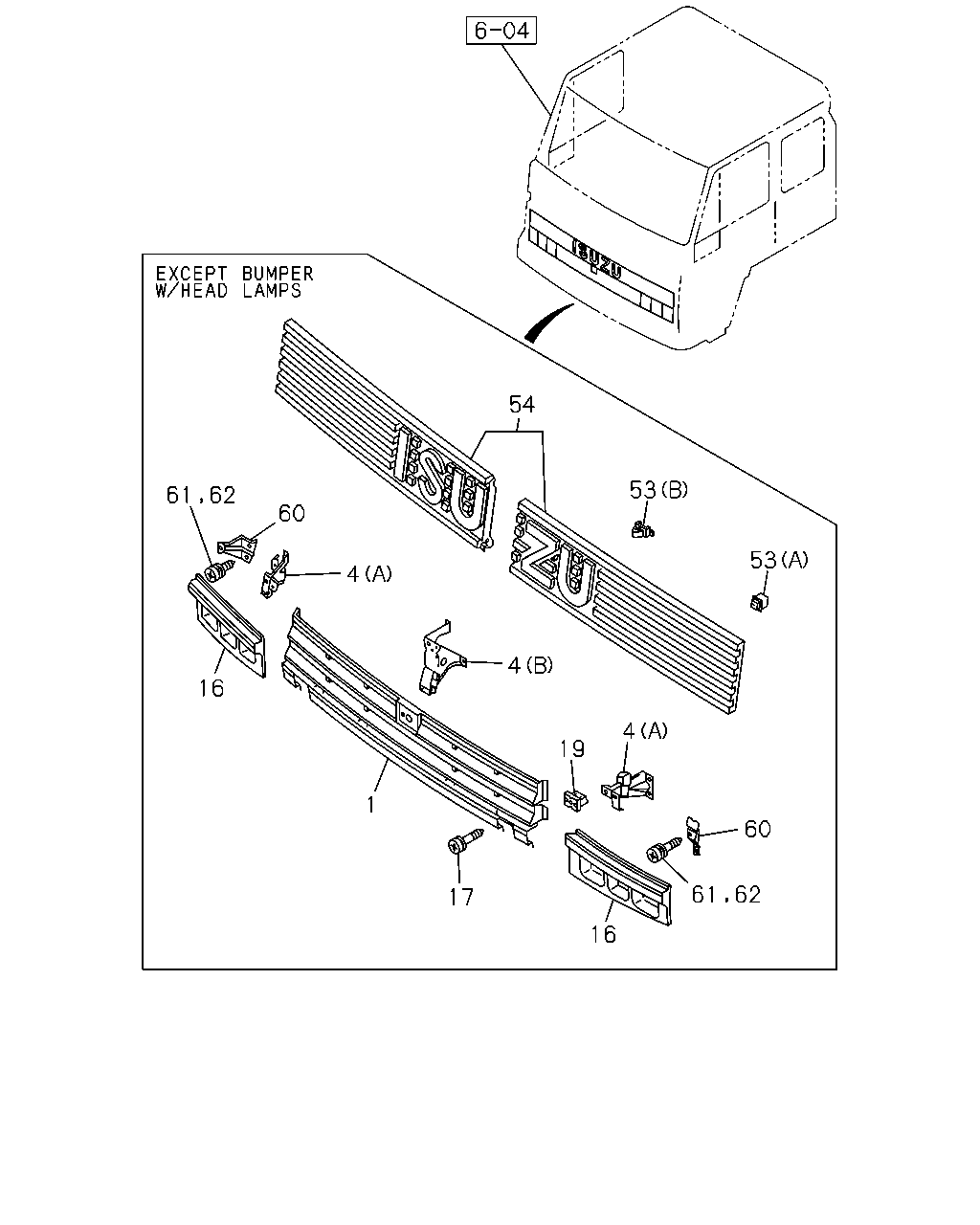

54 53 53 61 62 60 4 16 4 1 17 19 4 60 62 61 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-535-4	01	1	9308-	●
1	GRILLE; RAD BUMPER W/HEADLAMPS<SLB>	1-71118-677-1	01	1	9202-	●	●
1	GRILLE; RAD EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> WHITE	1-71118-437-1	01	1	9202-	●	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (B) CENTER	1-71118-512-2	01	1	9310-	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-554-1	01	1	9310-	●
4	BRACKET; RAD GRILLE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> (A)	1-71118-553-1	01	1	9310-	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9202-9309	●	●
4	BRACKET; RAD GRILLE EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> (B)	1-71118-421-2	01	1	9310-	●
4	BRACKET; RAD GRILLE (B)	1-71118-421-2	01	1	9310-		●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> (A)	1-71118-586-0	01	1	9202-	●	●
4	BRACKET; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> (A)	1-71118-585-0	01	1	9202-	●	●
16	GRILLE; RAD,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-538-0	01	1	9308-	●
16	GRILLE; RAD,SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-537-0	01	1	9308-	●
16	GRILLE; RAD,SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-199-3	01	1	9202-	●	●
17	SCREW; RAD GRILLE BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	05	1	9202-	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M5X20 TAPPING W/PL WASHER	0-74315-520-0	04	1	9202-	●	●
17	SCREW; RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/PL WASHER	1-09981-376-0	04	1	9202-	●	●
19	GROMMET; SCREW,RAD GRILLE BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	05	1	9202-	●	●
19	GROMMET; SCREW,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> D=10X10 L=10 M5 BLACK	1-09983-102-0	04	1	9202-	●	●
53	CLIP; ORNAMENT GRILLE (A)	1-09987-056-1	14	1	9202-9309	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (A)	1-09987-056-1	12	1	9310-	●	●
53	CLIP; ORNAMENT GRILLE EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	8-94385-563-3	01	1	9310-	●	●
53	CLIP; ORNAMENT GRILLE EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9> (B)	1-09987-056-1	14	1	9310-	●	●
54	GRILLE; ORNAMENT	1-76218-017-2	01	1	9202-9309	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-017-2	01	1	9310-	●	●
54	GRILLE; ORNAMENT	1-76218-016-2	01	1	9202-9309	●	●
54	GRILLE; ORNAMENT EXC. EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-016-2	01	1	9310-	●	●
54	GRILLE; ORNAMENT EXTERIOR ORNAMENTATION FRONT END PLATE<BX9>	1-76218-068-1	01	1	9310-	●	●
60	BRACKET; RAD GRILLE SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-526-2	01	1	9310-	●
60	BRACKET; RAD GRILLE SIDE HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB>	1-71118-525-2	01	1	9310-	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-672-3	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN>	1-71118-671-3	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-577-2	01	1	9202-	●	●
60	BRACKET; RAD GRILLE SIDE EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN>	1-71118-576-2	01	1	9202-	●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB>,HEAD LAMP RECTANGULARW/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9310-	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9310-		●
61	BOLT; BRKT BUMPER W/HEADLAMPS<SLB> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> M6X20 W/LK&PL WASHER	1-09980-493-0	12	1	9303-	●	●
61	BOLT; BRKT EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	08	1	9303-9309	●	●
61	BOLT; BRKT HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	1-09980-493-0	10	1	9310-	●
62	SCREW; BRKT,RAD GRILLE BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	12	1	9202-9302	●	●
62	SCREW; BRKT,RAD GRILLE EXC. BUMPER W/HEADLAMPS<SLB> M6X20 W/LK&PL WASHER	8-94279-347-0	08	1	9202-9302	●	●
