◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11146 - FSS(LHD) ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-45 - CONSOLE BOX ▶
7-45 — CONSOLE BOX (#68998) — 32 parça

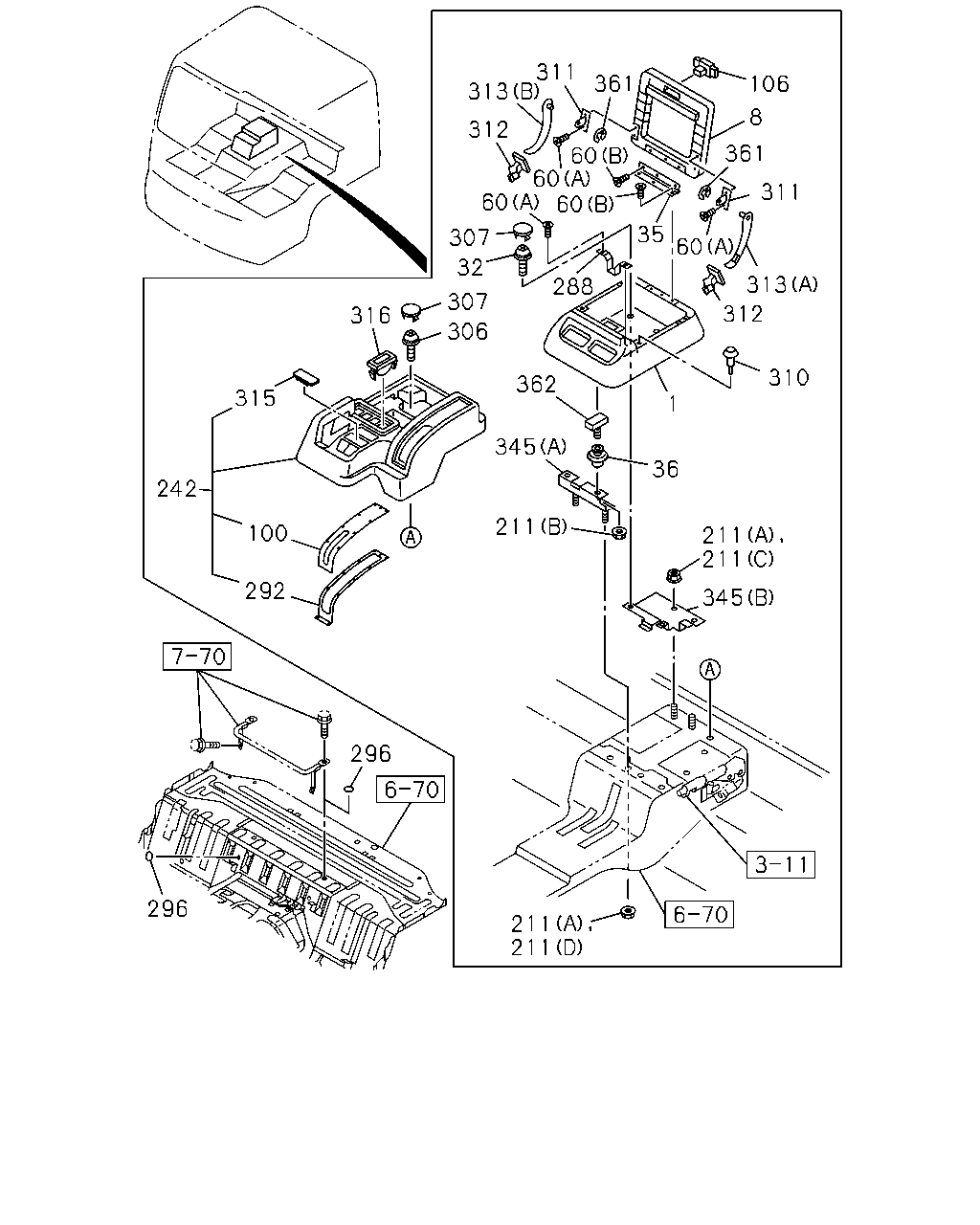

çizim 187610
311 313 361 106 8 312 60 361 60 60 60 307 311 35 32 288 60 307 313 312 306 316 315 362 1 310 36 345 242 100 292 211 296 211 211 345 211 211 296
BalonParca AdiParca NoAdetTipApplied Date
1 BOX; PARCEL
CENTER SEAT DELETE<SP9> GRAY 		8-97408-710-0 01 1 0812-
8 LID; CENTER CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97408-712-0 01 1 0812-
32 SCREW; PARCEL BOX
CENTER SEAT DELETE<SP9> M6X16 		0-38050-616-0 02 1 0812-
35 HINGE; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-182-1 01 1 0812-
36 FASTENER; CENTER CONSOLE
CENTER SEAT DELETE<SP9> 		1-09984-190-0 02 1 0812-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (A) M5X14 TAPPING CK-HEAD 		0-70040-514-0 06 1 0812-
60 SCREW; BOX
CENTER SEAT DELETE<SP9> (B) M5X14 		8-94279-325-0 04 1 0812-
100 RUBBER; CONSOLE,FRT 8-97535-034-0 01 1 0812-1107
100 RUBBER; CONSOLE,FRT 1-72538-161-3 01 1 1108-
106 LOCK; CONSOLE LID
CENTER SEAT DELETE<SP9> 		1-72538-312-0 01 1 0812-
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (C) M8 FLANGE 		0-91180-108-0 04 1 0812-
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (A) M8 FLANGE 		1-75538-207-0 08 1 0812-0812
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (D) M8 FLANGE 		1-75538-207-0 04 1 0812-1112
211 NUT; CENTER CONSOLE
CENTER SEAT DELETE<SP9> (B) M8 FLANGE 		8-94279-518-0 02 1 0812-
242 TRAY ASM; CTR CONSOLE
GRAY 		8-97409-818-1 01 1 0812-
288 STOPPER; LID,CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-190-0 01 1 0812-
292 RETAINER; COVER 1-72538-162-1 01 1 1108-
296 SEAL
EXC. MATTRESS SLEEPER CAB<E40> OD=25 BLACK 		1-76798-019-0 04 1 1010-
306 SCREW; TRAY
M6X16 		0-38050-616-0 03 1 0812-
307 COVER; HOLE,CTR CONSOLE
CENTER SEAT DELETE<SP9> GRAY 		8-97407-951-0 02 1 0812-
307 COVER; HOLE,CTR CONSOLE
GRAY 		8-97407-951-0 02 1 0812-
310 CUSHION; CTR CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-187-0 02 1 0812-
311 HOLDER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-188-2 02 1 0812-
312 STOPPER; CONSOLE
CENTER SEAT DELETE<SP9> 		1-72538-186-1 02 1 0812-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-184-3 01 1 0812-
313 ARM; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-185-3 01 1 0812-
315 COVER; HOLE,SW
GRAY 		8-97409-339-0 01 1 1108-
316 BOX; COIN 8-94482-280-2 02 1 0812-1004
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (A) 		1-72538-232-1 01 1 0812-
345 BRACKET; CTR CONSOLE
CENTER SEAT DELETE<SP9> (B) 		1-72538-233-0 01 1 0812-
361 RING; SNAP
CENTER SEAT DELETE<SP9> ID=5 		9-09185-405-0 02 1 0812-
362 STUD; CONSOLE BOX
CENTER SEAT DELETE<SP9> 		1-72538-308-0 02 1 0812-
