Sayfa 8-10 - Isuzu EPC

8-10 — WIRING HARNESS AND FUSE (#6899) — 353 parça

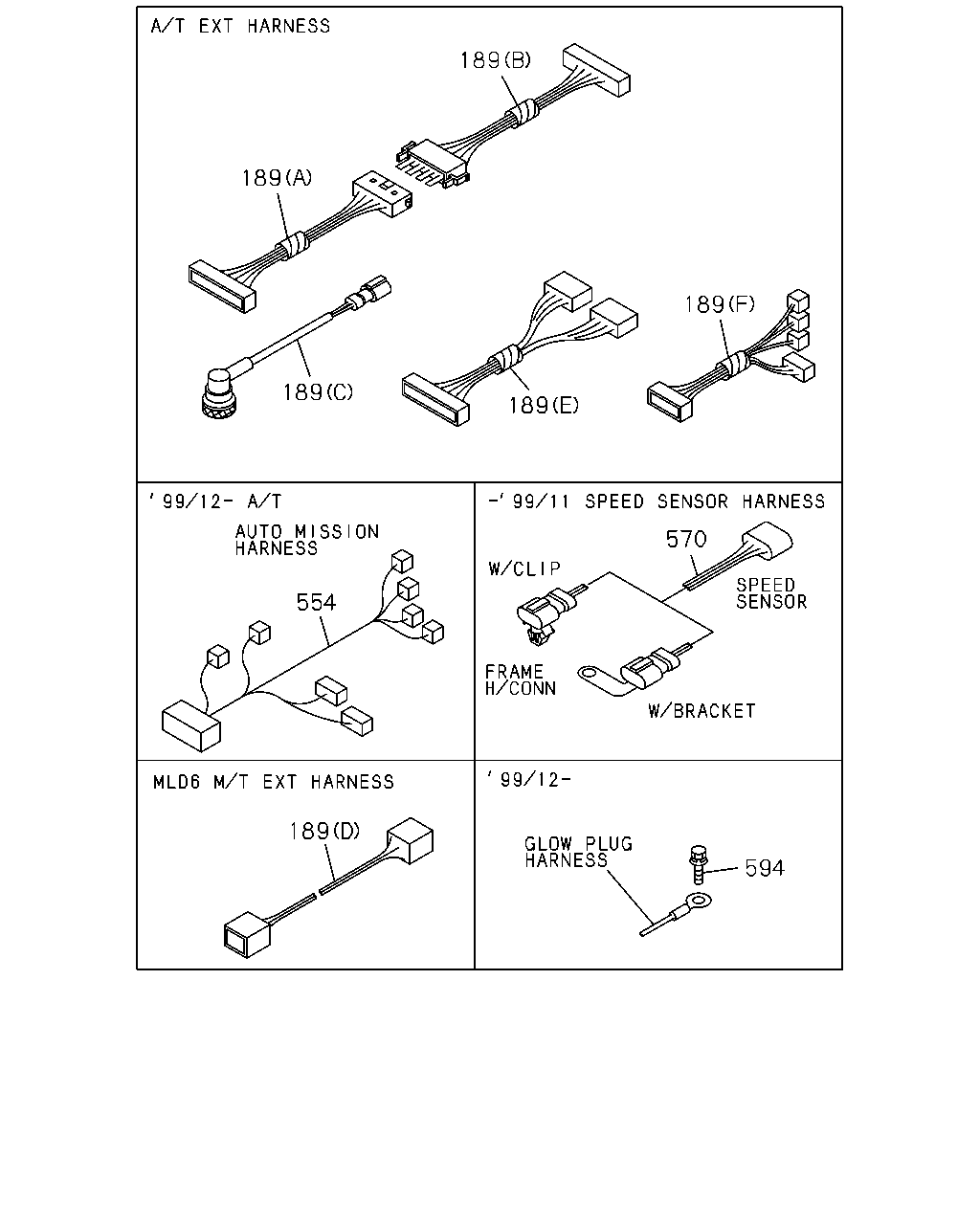

189 189 189 189 189 570 554 189 594

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
189	HARNESS; EXT A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) (C) L=250	1-82659-134-1	02	1	9912-9912
189	HARNESS; EXT A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) (C) L=250	1-82659-134-1	02	1	0001-
189	HARNESS; EXT A/T<X9D> (E)	1-82671-987-0	01	1	9912-
189	HARNESS; EXT A/T<X9D> (F)	1-82671-988-0	01	1	9912-
189	HARNESS; EXT A/T<X9D> (A)	1-82672-258-0	01	1	9912-
189	HARNESS; EXT A/T<X9D> (B)	1-82672-259-0	01	1	9912-
189	HARNESS; EXT EMIS REGULATION W/CONV<TCA> MLD6 M/T<X9Y> (D)	1-82672-122-0	01	1	9811-9911
189	HARNESS; EXT A/T<X9D> (C) L=250	1-82659-134-1	01	1	9912-
554	HARNESS; AUTO MISSION A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	1-82672-261-0	01	1	9912-9912
554	HARNESS; AUTO MISSION A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M)	1-82672-261-0	01	1	0001-
554	HARNESS; AUTO MISSION A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	1-82672-260-0	01	1	9912-
570	HARNESS; SPEED SENSOR EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> W/CLIP	1-82670-566-0	01	1	9905-9907
570	HARNESS; SPEED SENSOR EXC. ELECTRICAL TACHOGRAPH 15-6<PN3>,TACHOGRAPH 120KM/H 1DAY<WC8> W/CLIP	1-82670-012-0	01	1	9908-9911
594	BOLT; GLOW PLUG HARNESS M4X10 W/LK&PL WASHER	9-03920-410-0	01	1	9912-0604
594	BOLT; GLOW PLUG HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	0605-

489 490 489 490

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
489	BOX; BASE ELEC SW BOX ENG ROOM<TEK> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A)	1-82698-163-0	01	1	9905-9907
489	BOX; BASE ELEC SW BOX ENG ROOM<TEK> EXC. NIKKO<Y70> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> (A)	1-82698-163-0	01	1	9908-9911
489	BOX; BASE GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (B)	1-82698-164-0	01	1	9905-9907
489	BOX; BASE ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (B)	1-82698-164-0	01	1	9905-9907
489	BOX; BASE GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. NIKKO<Y70> EXC. CTR SPLIT FRAME<TLW> (B)	1-82698-164-0	01	1	9908-9911
489	BOX; BASE ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> EXC. NIKKO<Y70> (B)	1-82698-164-0	01	1	9908-9911
489	BOX; BASE (B)	8-97531-098-0	01	1	9912-0212
490	HARNESS; BOX ELEC SW BOX ENG ROOM<TEK>	1-82672-515-0	01	1	9905-9907
490	HARNESS; BOX ELEC SW BOX ENG ROOM<TEK> EXC. NIKKO<Y70>	1-82672-515-0	01	1	9908-9911
490	HARNESS; BOX	8-97531-097-0	01	1	9912-0212

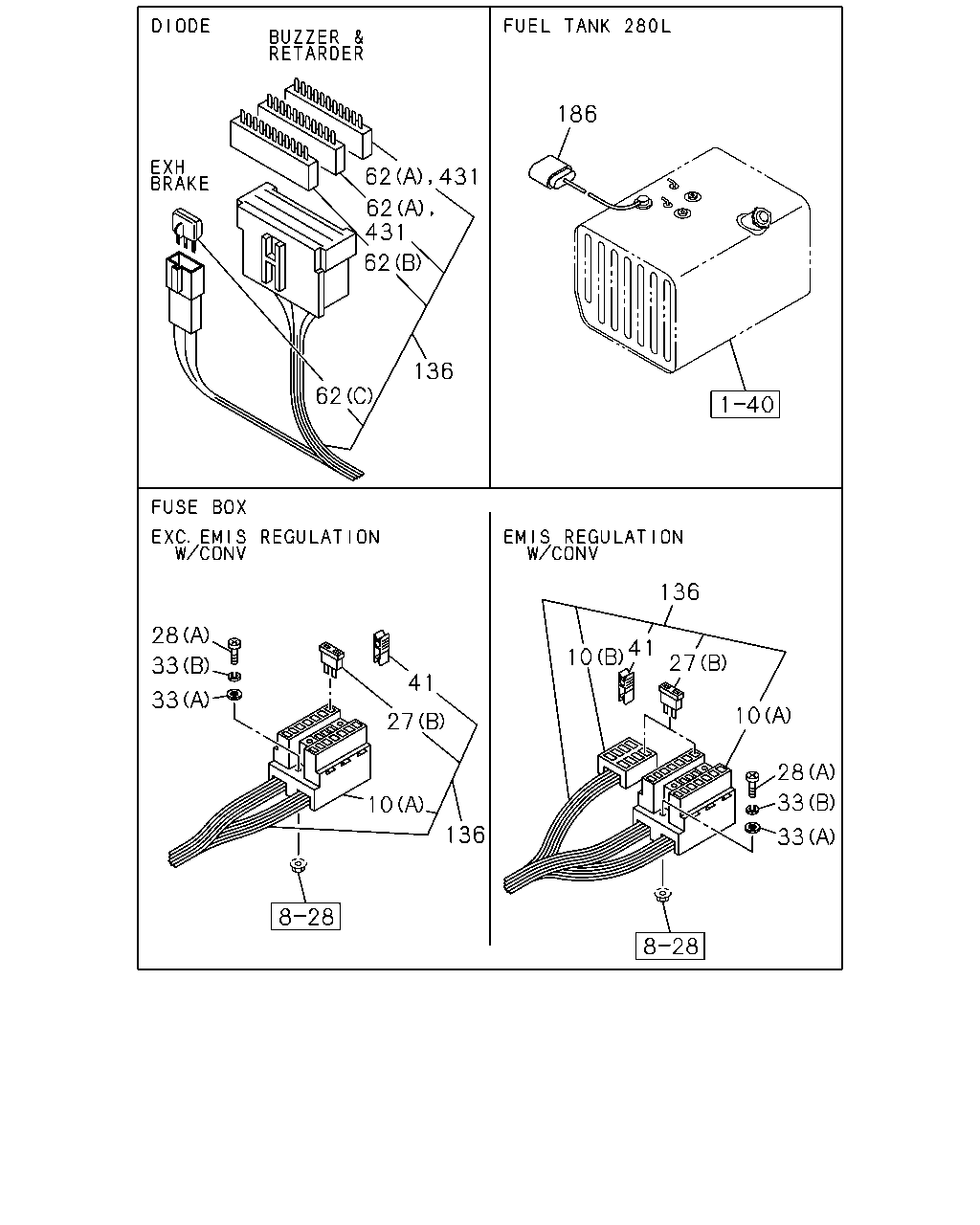

186 62 431 62 431 62 136 62 136 28 41 10 27 33 41 33 10 27 28 33 10 136 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOX; FUSE,HARNESS (A) 10AX14 15AX5 20AX1 30AX1	1-82510-427-0	01	1	9806-9911
10	BOX; FUSE,HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> (B) 10AX1 20AX1	1-82510-380-0	01	1	9806-9911
10	BOX; FUSE,HARNESS GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (D) 125A	1-82510-234-2	01	1	9806-9911
10	BOX; FUSE,HARNESS (D) 125A	1-82510-234-2	01	1	9912-
10	BOX; FUSE,HARNESS OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) 100A	1-82510-235-2	01	1	9806-9808
10	BOX; FUSE,HARNESS GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (C) 100A	1-82510-235-2	01	1	9809-9911
10	BOX; FUSE,HARNESS OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) 100A	1-82510-235-2	01	1	9809-9911
10	BOX; FUSE,HARNESS (C) 100A	1-82510-235-2	01	1	9912-
10	BOX; FUSE,HARNESS (A) 10AX15 15AX5 20AX1 30AX2	1-82510-550-0	01	1	9912-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	9806-9911
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	9806-9911
27	FUSE UNIT (B) 20A YELLOW	5-82516-004-0	AR	1	9806-9911
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	9806-9911
27	FUSE UNIT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> (B) 7.5A BROWN	8-94159-007-0	AR	1	9806-9911
27	FUSE UNIT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) 125A	9-82941-130-1	02	1	9806-9911
27	FUSE UNIT (A) 125A	9-82941-130-1	02	1	9912-
27	FUSE UNIT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 100A	9-82941-126-0	02	1	9806-9808
27	FUSE UNIT GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (A) 100A	9-82941-126-0	02	1	9809-9911
27	FUSE UNIT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 100A	9-82941-126-0	02	1	9809-9911
27	FUSE UNIT (A) 100A	9-82941-126-0	02	1	9912-
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	9912-
27	FUSE UNIT (B) 20A YELLOW	5-82516-004-0	AR	1	9912-
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	9912-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	9912-
28	SCREW; FUSE BOX (A) M6X42	8-97811-324-0	02	1	9806-
28	SCREW; FUSE BOX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9806-9808
28	SCREW; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9806-9808
28	SCREW; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9809-9911
28	SCREW; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9809-9911
28	SCREW; FUSE BOX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9809-9911
28	SCREW; FUSE BOX (B) M6X25 W/LK WASHER	9-03910-625-0	04	1	9912-0604
28	SCREW; FUSE BOX (B) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) ID=6.1	9-09150-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1	9-09150-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	06	1	9912-0603
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	0-91510-506-0	06	1	0604-
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) ID=6.4	9-09160-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4	9-09160-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	06	1	9912-
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	9806-9911
41	PULLER; FUSE L=31.0 B=10.0	8-94369-144-0	01	1	9912-
62	DIODE; HARNESS (A) BROWN 10P	1-82699-601-0	02	1	9806-9911
62	DIODE; HARNESS (B) BLACK 10P	1-82699-703-0	01	1	9806-9911
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94422-640-1	01	1	9806-9911
62	DIODE; HARNESS (B) BLACK 10P	1-82699-703-0	02	1	9912-
62	DIODE; HARNESS (C) BLACK 3P-1.5A	8-94422-640-1	01	1	9912-
136	HARNESS; DASH A/T ZF 5 HP500 W/HYD RETARDER(Y4M) WARNING BUZZER-SPEED<RF8>	8-97531-222-0	01	1	0001-0502
136	HARNESS; DASH A/T ZF 5 HP500 W/HYD RETARDER(Y4M) WARNING BUZZER-SPEED<RF8>	8-97531-306-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82626-584-0	01	1	9806-9911
136	HARNESS; DASH MLD6Q M/T(X5J)	8-97530-938-2	01	1	9912-0502
136	HARNESS; DASH MLD6Q M/T(X5J)	8-97531-304-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82628-973-0	01	1	9905-9907
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. NIKKO<Y70> EXC. EMIS REGULATION W/CONV<TCA>	1-82628-973-0	01	1	9908-9911
136	HARNESS; DASH MLD6Q M/T(X5J) EXC. NIKKO<Y70>	8-97531-100-1	01	1	9912-
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>	1-82626-583-0	01	1	9806-9911
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	8-97530-939-2	01	1	9912-0502
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	8-97531-305-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2)	1-82626-949-1	01	1	9806-9911
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82626-586-0	01	1	9806-9911
136	HARNESS; DASH A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	8-97530-937-2	01	1	9912-0502
136	HARNESS; DASH A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	8-97531-303-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82628-974-0	01	1	9905-9907
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. NIKKO<Y70> EXC. EMIS REGULATION W/CONV<TCA>	1-82628-974-0	01	1	9908-9911
136	HARNESS; DASH A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) EXC. NIKKO<Y70>	8-97531-099-1	01	1	9912-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA>	1-82628-977-0	01	1	9905-9907
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. NIKKO<Y70>	1-82628-977-0	01	1	9908-9911
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) EXC. NIKKO<Y70>	8-97531-101-1	01	1	9912-9912
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) EXC. NIKKO<Y70>	8-97531-101-1	01	1	0001-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>	1-82626-585-0	01	1	9806-9911
186	HARNESS; FUEL TANK FUEL TANK 280L<RF4>	1-82639-049-0	01	1	9809-9911
431	CONNECTOR; JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) BROWN 10P	1-82699-601-0	02	1	9806-9904
431	CONNECTOR; JOINT EXC. EMIS REGULATION W/CONV<TCA> BROWN 10P	1-82699-601-0	02	1	9806-9904
431	CONNECTOR; JOINT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA> BROWN 10P	1-82699-601-0	04	1	9905-9907
431	CONNECTOR; JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) BROWN 10P	1-82699-601-0	02	1	9908-9911
431	CONNECTOR; JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. NIKKO<Y70> BROWN 10P	1-82699-601-0	02	1	9908-9911
431	CONNECTOR; JOINT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. NIKKO<Y70> EXC. EMIS REGULATION W/CONV<TCA> BROWN 10P	1-82699-601-0	02	1	9908-9911
431	CONNECTOR; JOINT EXC. EMIS REGULATION W/CONV<TCA> BROWN 10P	1-82699-601-0	02	1	9908-9911
431	CONNECTOR; JOINT BROWN 10P	1-82699-601-0	03	1	9912-
431	CONNECTOR; JOINT EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA> BROWN 10P	1-82699-601-0	02	1	9905-9907
431	CONNECTOR; JOINT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> BROWN 10P	1-82699-601-0	02	1	9905-9907

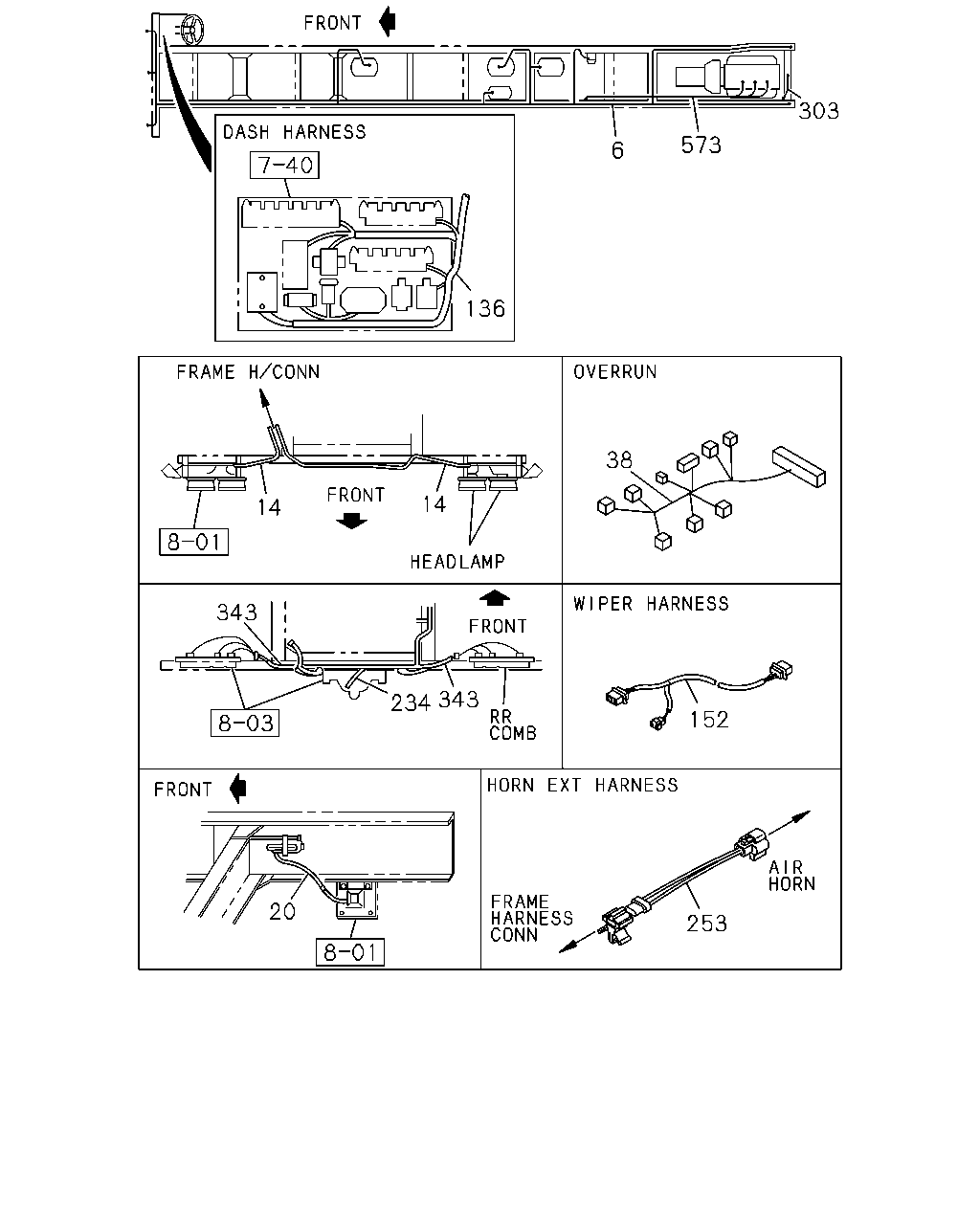

303 573 6 136 38 14 14 343 234 343 152 20 253

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-054-2	01	1	9806-9911
6	HARNESS; FRAME WB 5000MM(50W) ISUZU M/T<X9A>	8-97531-169-2	01	1	9912-0502
6	HARNESS; FRAME WB 5000MM(50W) ISUZU M/T<X9A>	8-97531-309-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-053-3	01	1	9806-9911
6	HARNESS; FRAME WB 5000MM(50W) A/T<X9D>	8-97531-167-2	01	1	9912-0502
6	HARNESS; FRAME WB 5000MM(50W) A/T<X9D>	8-97531-307-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-210-4	01	1	9806-9807
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. CTR SPLIT FRAME<TLW>	1-82671-911-0	01	1	9808-9911
6	HARNESS; FRAME WB 5700MM(57W) ISUZU M/T<X9A>	8-97531-170-2	01	1	9912-0502
6	HARNESS; FRAME WB 5700MM(57W) ISUZU M/T<X9A>	8-97531-310-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-210-4	01	1	9808-9911
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-060-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) A/T<X9D>	8-97531-168-2	01	1	9912-0502
6	HARNESS; FRAME WB 5700MM(57W) A/T<X9D>	8-97531-308-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-059-3	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-056-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-055-3	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>	1-82670-506-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-211-4	01	1	9806-9807
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. CTR SPLIT FRAME<TLW>	1-82671-912-0	01	1	9808-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2)	1-82670-505-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-211-4	01	1	9808-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-062-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA>	1-82670-507-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-061-3	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-058-2	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-057-3	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-064-2	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-063-3	01	1	9806-9911
14	HARNESS; HEADLAMP HALOGEN HEADLAMPS<TT5>	1-82639-072-1	02	1	9806-9911
14	HARNESS; HEADLAMP	8-97530-238-0	02	1	9912-
14	HARNESS; HEADLAMP EXC. HALOGEN HEADLAMPS<TT5>	1-82639-071-1	02	1	9806-9911
20	HARNESS; SIDE FLASHER SIDE TURN SIGNAL LAMP<TEL>	1-82638-388-1	02	1	9806-9911
38	HARNESS; CHAS ENG OVERRUN BUZZER<SK4>	1-82625-451-0	01	1	9806-9911
38	HARNESS; CHAS	8-97530-239-0	01	1	9912-
136	HARNESS; DASH A/T ZF 5 HP500 W/HYD RETARDER(Y4M) WARNING BUZZER-SPEED<RF8>	8-97531-222-0	01	1	0001-0502
136	HARNESS; DASH A/T ZF 5 HP500 W/HYD RETARDER(Y4M) WARNING BUZZER-SPEED<RF8>	8-97531-306-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82626-584-0	01	1	9806-9911
136	HARNESS; DASH MLD6Q M/T(X5J)	8-97530-938-2	01	1	9912-0502
136	HARNESS; DASH MLD6Q M/T(X5J)	8-97531-304-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82628-973-0	01	1	9905-9907
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. NIKKO<Y70> EXC. EMIS REGULATION W/CONV<TCA>	1-82628-973-0	01	1	9908-9911
136	HARNESS; DASH MLD6Q M/T(X5J) EXC. NIKKO<Y70>	8-97531-100-1	01	1	9912-
136	HARNESS; DASH BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>	1-82626-583-0	01	1	9806-9911
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	8-97530-939-2	01	1	9912-0502
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E)	8-97531-305-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2)	1-82626-949-1	01	1	9806-9911
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82626-586-0	01	1	9806-9911
136	HARNESS; DASH A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	8-97530-937-2	01	1	9912-0502
136	HARNESS; DASH A/T ZF 4 HP500 WO/HYD RETARDER(Y3X)	8-97531-303-0	01	1	0503-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>	1-82628-974-0	01	1	9905-9907
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. NIKKO<Y70> EXC. EMIS REGULATION W/CONV<TCA>	1-82628-974-0	01	1	9908-9911
136	HARNESS; DASH A/T ZF 4 HP500 WO/HYD RETARDER(Y3X) EXC. NIKKO<Y70>	8-97531-099-1	01	1	9912-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA>	1-82628-977-0	01	1	9905-9907
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. NIKKO<Y70>	1-82628-977-0	01	1	9908-9911
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E) EXC. NIKKO<Y70>	8-97531-101-1	01	1	9912-9912
136	HARNESS; DASH A/T ZF 4 HP500 DD-2 W/HYD RETARDER(Y2E),A/T ZF 5 HP500 W/HYD RETARDER(Y4M) EXC. NIKKO<Y70>	8-97531-101-1	01	1	0001-
136	HARNESS; DASH BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>	1-82626-585-0	01	1	9806-9911
152	HARNESS; WIPER PARL WIPER<SBT> WIPER MTR KIT<ST7>	1-82625-630-0	01	1	9806-9911
152	HARNESS; WIPER	8-97530-248-0	01	1	9912-
234	HARNESS; LICENSE LAMP TAIL & STOP LAMPS DLX<T81>	1-82639-372-0	01	1	9806-9911
253	HARNESS; EXT,HORN AIR HORN(WB8)	1-82639-083-1	01	1	9806-9911
303	HARNESS; WATER LEVEL	1-82670-567-0	01	1	9806-9911
303	HARNESS; WATER LEVEL	8-97530-237-0	01	1	9912-
343	HARNESS; EXT,RR COMB LAMP TAIL & STOP LAMPS DLX<T81>	1-82638-900-0	02	1	9806-9911
573	HARNESS; CONTROL UNIT	1-82641-022-4	01	1	9912-

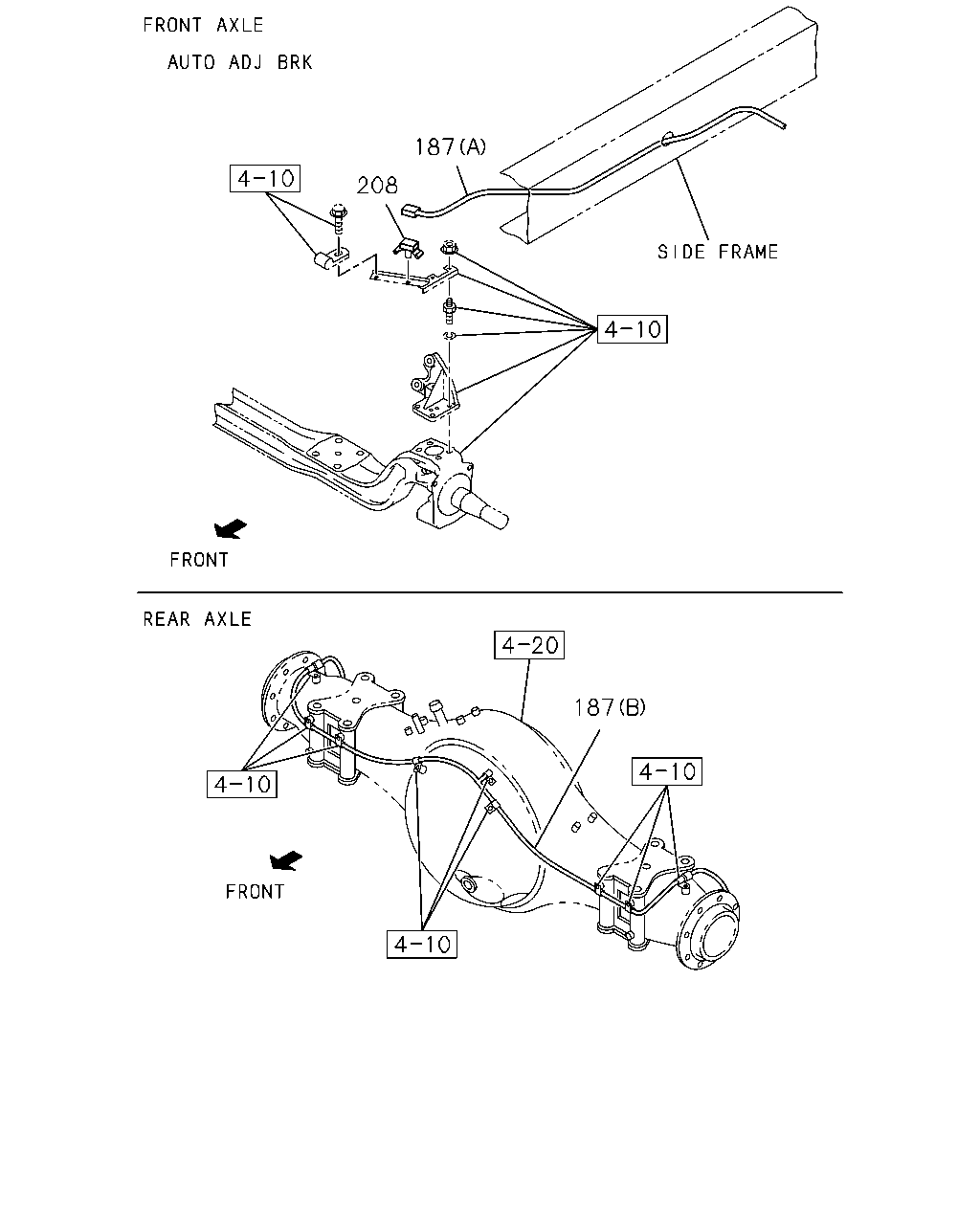

187 208 187

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
187	HARNESS; AXLE BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (C) L=350	1-82657-064-0	01	1	9806-9806
187	HARNESS; AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (A) FRONT	1-82671-436-0	02	1	9806-9911
187	HARNESS; AXLE (A) FRONT	1-82671-436-0	02	1	9912-
187	HARNESS; AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJ BRK<BCU> (B) REAR	1-82671-435-1	01	1	9806-9911
187	HARNESS; AXLE (B) REAR	1-82671-435-1	01	1	9912-0504
187	HARNESS; AXLE (B) REAR	1-82671-435-1	01	1	0505-
208	HOLDER; CONNECTOR BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU>	8-94377-313-1	02	1	9806-9911
208	HOLDER; CONNECTOR	8-94377-313-1	02	1	9912-

164 297 560 296 298 164 560 10 560 33 33 28 538 534 27 10 10 10 164 280 277 277 560 280 280 277 279 279 277 280 277 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
10	BOX; FUSE,HARNESS (A) 10AX14 15AX5 20AX1 30AX1	1-82510-427-0	01	1	9806-9911
10	BOX; FUSE,HARNESS BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> (B) 10AX1 20AX1	1-82510-380-0	01	1	9806-9911
10	BOX; FUSE,HARNESS GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (D) 125A	1-82510-234-2	01	1	9806-9911
10	BOX; FUSE,HARNESS (D) 125A	1-82510-234-2	01	1	9912-
10	BOX; FUSE,HARNESS OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) 100A	1-82510-235-2	01	1	9806-9808
10	BOX; FUSE,HARNESS GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (C) 100A	1-82510-235-2	01	1	9809-9911
10	BOX; FUSE,HARNESS OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (C) 100A	1-82510-235-2	01	1	9809-9911
10	BOX; FUSE,HARNESS (C) 100A	1-82510-235-2	01	1	9912-
10	BOX; FUSE,HARNESS (A) 10AX15 15AX5 20AX1 30AX2	1-82510-550-0	01	1	9912-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	9806-9911
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	9806-9911
27	FUSE UNIT (B) 20A YELLOW	5-82516-004-0	AR	1	9806-9911
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	9806-9911
27	FUSE UNIT BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> (B) 7.5A BROWN	8-94159-007-0	AR	1	9806-9911
27	FUSE UNIT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) 125A	9-82941-130-1	02	1	9806-9911
27	FUSE UNIT (A) 125A	9-82941-130-1	02	1	9912-
27	FUSE UNIT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 100A	9-82941-126-0	02	1	9806-9808
27	FUSE UNIT GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (A) 100A	9-82941-126-0	02	1	9809-9911
27	FUSE UNIT OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) 100A	9-82941-126-0	02	1	9809-9911
27	FUSE UNIT (A) 100A	9-82941-126-0	02	1	9912-
27	FUSE UNIT (B) 30A GREEN	8-94159-008-0	AR	1	9912-
27	FUSE UNIT (B) 20A YELLOW	5-82516-004-0	AR	1	9912-
27	FUSE UNIT (B) 15A BLUE	5-82516-003-0	AR	1	9912-
27	FUSE UNIT (B) 10A RED	5-82516-002-0	AR	1	9912-
28	SCREW; FUSE BOX (A) M6X42	8-97811-324-0	02	1	9806-
28	SCREW; FUSE BOX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9806-9808
28	SCREW; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9806-9808
28	SCREW; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9809-9911
28	SCREW; FUSE BOX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9809-9911
28	SCREW; FUSE BOX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) M6X25 W/LK WASHER	9-03910-625-0	02	1	9809-9911
28	SCREW; FUSE BOX (B) M6X25 W/LK WASHER	9-03910-625-0	04	1	9912-0604
28	SCREW; FUSE BOX (B) M6X25 W/LK WASHER	0-36220-625-0	04	1	0605-
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) ID=6.1	9-09150-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1	9-09150-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (A) ID=6.1	9-09150-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	9-09150-506-0	06	1	9912-0603
33	WASHER; LK,FUSE BOX FIX (A) ID=6.1	0-91510-506-0	06	1	0604-
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) ID=6.4	9-09160-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4	9-09160-506-0	02	1	9806-9808
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX GEN NIKKO 24V-110A 3KW(PU1) EMIS REGULATION W/CONV<TCA> (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX OVERHEAD COOLING SYSTEM W/O SUB ENG<YS9> (B) ID=6.4	9-09160-506-0	02	1	9809-9911
33	WASHER; LK,FUSE BOX FIX (B) ID=6.4	9-09160-506-0	06	1	9912-
164	HARNESS; ELEC ELEC SW BOX ENG ROOM<TEK> (A)	1-82638-398-2	01	1	9806-9911
164	HARNESS; ELEC (A)	8-97530-945-0	01	1	9912-0212
164	HARNESS; ELEC (A)	8-97531-097-0	01	1	0301-
164	HARNESS; ELEC ELEC SW BOX ENG ROOM<TEK> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) (B)	1-82639-082-1	01	1	9806-9911
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (C) M8X20 FLANGE	0-28680-820-0	04	1	9806-9911
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (A) M8X30 FLANGE	0-28680-830-0	04	1	9806-9911
277	BOLT; BOX ASM FIX (A) M8X30 FLANGE	0-28680-830-0	04	1	9912-0512
277	BOLT; BOX ASM FIX (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (B) WING NUT	1-09064-006-0	02	1	9806-9911
277	BOLT; BOX ASM FIX (B) WING NUT	1-09064-006-0	02	1	9912-
277	BOLT; BOX ASM FIX EMIS REGULATION W/CONV<TCA> (D) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9806-9911
277	BOLT; BOX ASM FIX (C) M8X20 FLANGE	0-28680-820-0	06	1	9912-0302
277	BOLT; BOX ASM FIX (C) M8X20 FLANGE	0-28680-820-0	04	1	0303-0512
277	BOLT; BOX ASM FIX (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-
277	BOLT; BOX ASM FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9806-9911
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9806-9911
279	BRACKET; CONNECTOR BOX 6HE1-TC ENG(57L) ELEC SW BOX ENG ROOM<TEK>	1-48495-200-1	02	1	9806-9911
279	BRACKET; CONNECTOR BOX	1-48495-200-2	02	1	9912-
279	BRACKET; CONNECTOR BOX 6HH1-S ENG(65L) ELEC SW BOX ENG ROOM<TEK>	1-48495-100-0	02	1	9806-9911
280	NUT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (A) M8 FLANGE	0-91150-108-0	08	1	9806-9911
280	NUT; BOX ASM FIX EMIS REGULATION W/CONV<TCA> (B) M8	9-09110-408-0	02	1	9806-9911
280	NUT; BOX ASM FIX (A) M8 FLANGE	0-91150-108-0	08	1	9912-0602
280	NUT; BOX ASM FIX (A) M8 FLANGE	0-91180-108-0	08	1	0603-
296	BRACKET; HARNESS BOX EMIS REGULATION W/CONV<TCA> (B)	1-82699-962-0	01	1	9806-9911
296	BRACKET; HARNESS BOX (A) L=105 B=25	1-47476-161-0	01	1	9912-
296	BRACKET; HARNESS BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (A) L=105 B=25	1-47476-161-0	01	1	9806-9911
296	BRACKET; HARNESS BOX ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (A) L=105 B=25	1-47476-161-0	01	1	9806-9911
297	BOLT; BOX BRKT EMIS REGULATION W/CONV<TCA> (B) M8X20 FLANGE	0-28680-820-0	02	1	9806-9911
297	BOLT; BOX BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	9912-0512
297	BOLT; BOX BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
297	BOLT; BOX BRKT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
297	BOLT; BOX BRKT ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
298	NUT; BOX BRKT EMIS REGULATION W/CONV<TCA> (B) M8 FLANGE	0-91150-108-0	02	1	9806-9911
298	NUT; BOX BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9912-0602
298	NUT; BOX BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
298	NUT; BOX BRKT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (A) M8 FLANGE	0-91150-108-0	01	1	9806-9911
298	NUT; BOX BRKT ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (A) M8 FLANGE	0-91150-108-0	01	1	9806-9911
534	BOLT M5X20	9-93490-520-0	01	1	9912-
538	NUT M5 FLANGE	8-94153-039-0	01	1	9912-
560	BOX; ELECTRIC ELEC SW BOX ENG ROOM<TEK> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82699-729-1	01	1	9806-9911
560	BOX; ELECTRIC GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW>	1-82699-730-2	01	1	9806-9911
560	BOX; ELECTRIC ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW>	1-82699-730-2	01	1	9806-9911
560	BOX; ELECTRIC	8-97530-241-0	01	1	9912-0212
560	BOX; ELECTRIC	8-97531-098-0	01	1	0301-

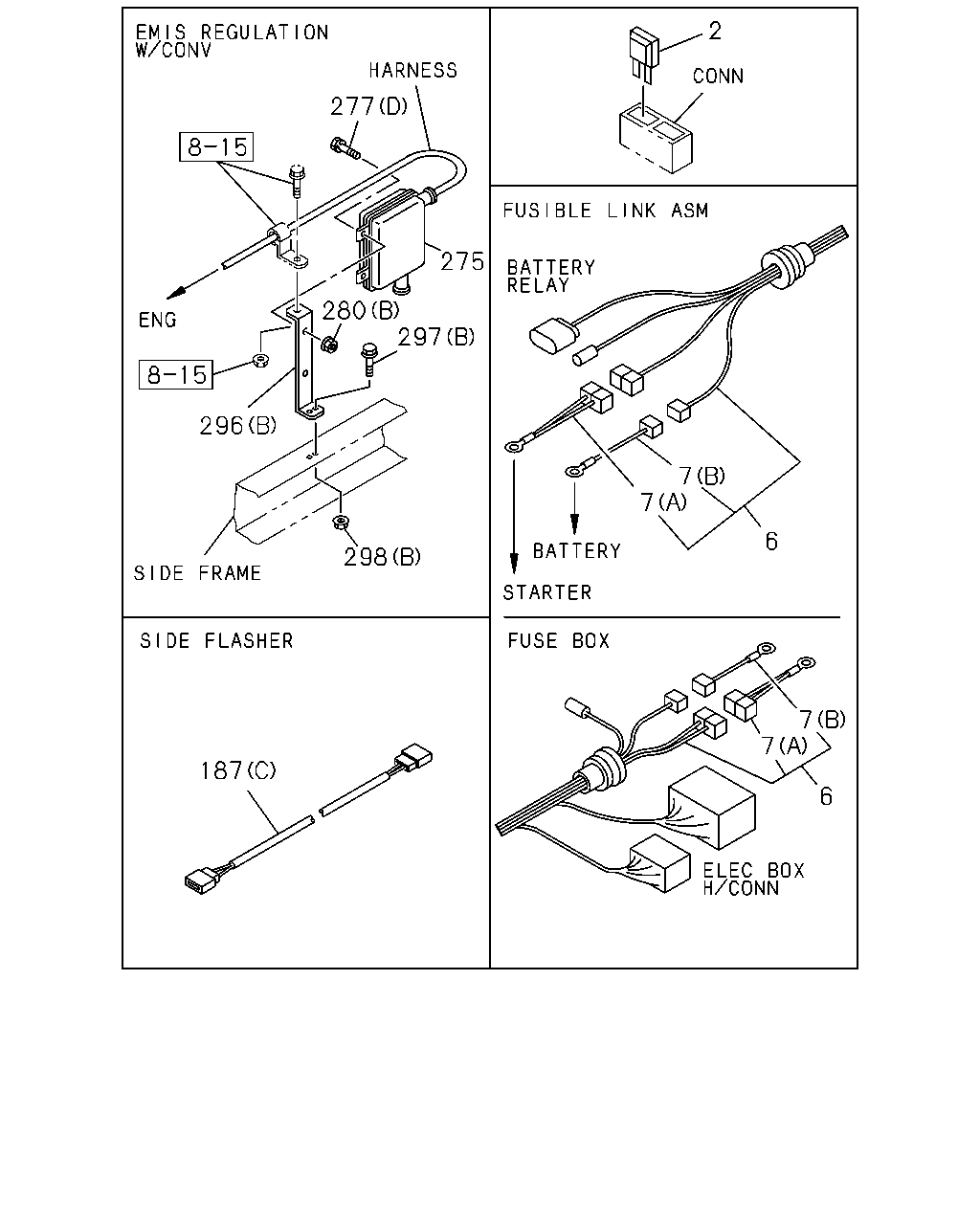

2 277 275 280 297 296 7 7 6 298 7 7 187 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	DIODE; CABLE HARNESS WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1) GEN NIKKO 24V-90A 2.5KW(SD2) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA> BLACK 2P-1.5A	8-94422-639-1	01	1	9806-
2	DIODE; CABLE HARNESS WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) BLACK 2P-1.5A	8-94422-639-1	01	1	9806-
2	DIODE; CABLE HARNESS WB 5000MM(50W),WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW> BLACK 2P-1.5A	8-94422-639-1	01	1	9806-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-054-2	01	1	9806-9911
6	HARNESS; FRAME WB 5000MM(50W) ISUZU M/T<X9A>	8-97531-169-2	01	1	9912-0502
6	HARNESS; FRAME WB 5000MM(50W) ISUZU M/T<X9A>	8-97531-309-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-053-3	01	1	9806-9911
6	HARNESS; FRAME WB 5000MM(50W) A/T<X9D>	8-97531-167-2	01	1	9912-0502
6	HARNESS; FRAME WB 5000MM(50W) A/T<X9D>	8-97531-307-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-210-4	01	1	9806-9807
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. CTR SPLIT FRAME<TLW>	1-82671-911-0	01	1	9808-9911
6	HARNESS; FRAME WB 5700MM(57W) ISUZU M/T<X9A>	8-97531-170-2	01	1	9912-0502
6	HARNESS; FRAME WB 5700MM(57W) ISUZU M/T<X9A>	8-97531-310-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-210-4	01	1	9808-9911
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-060-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) A/T<X9D>	8-97531-168-2	01	1	9912-0502
6	HARNESS; FRAME WB 5700MM(57W) A/T<X9D>	8-97531-308-0	01	1	0503-
6	HARNESS; FRAME WB 5000MM(50W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-059-3	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-056-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-055-3	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>	1-82670-506-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-211-4	01	1	9806-9807
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EMIS REGULATION W/CONV<TCA> EXC. CTR SPLIT FRAME<TLW>	1-82671-912-0	01	1	9808-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> CTR SPLIT FRAME<TLW> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2)	1-82670-505-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EMIS REGULATION W/CONV<TCA> EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),CTR SPLIT FRAME<TLW>	1-82670-211-4	01	1	9808-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-062-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) CTR SPLIT FRAME<TLW> EXC. EMIS REGULATION W/CONV<TCA>	1-82670-507-2	01	1	9806-9911
6	HARNESS; FRAME WB 5700MM(57W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-061-3	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-058-2	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-057-3	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) EXC. EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-064-2	01	1	9806-9911
6	HARNESS; FRAME WB 6300MM(63W) BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2),EMIS REGULATION W/CONV<TCA>,CTR SPLIT FRAME<TLW>	1-82639-063-3	01	1	9806-9911
7	LINK ASM; FUSIBLE (B)	1-82659-101-0	02	1	9806-
7	LINK ASM; FUSIBLE (A) BLUE & BLACK	1-82659-112-0	02	1	9806-
187	HARNESS; AXLE BRK PAD & LINING ELEC WEAR INDICATOR<BAD> (C) L=350	1-82657-064-0	01	1	9806-9806
187	HARNESS; AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) AUTO ADJ BRK<BCU> (A) FRONT	1-82671-436-0	02	1	9806-9911
187	HARNESS; AXLE (A) FRONT	1-82671-436-0	02	1	9912-
187	HARNESS; AXLE BRK SYSTEM FULL AIR DUAL CIRC(Z06) BRK LINING D2129 NON ASBESTOS<BCL> AUTO ADJ BRK<BCU> (B) REAR	1-82671-435-1	01	1	9806-9911
187	HARNESS; AXLE (B) REAR	1-82671-435-1	01	1	9912-0504
187	HARNESS; AXLE (B) REAR	1-82671-435-1	01	1	0505-
275	BOX ASM; FRAME HARNESS EMIS REGULATION W/CONV<TCA>	1-82699-378-0	01	1	9806-9911
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (C) M8X20 FLANGE	0-28680-820-0	04	1	9806-9911
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (A) M8X30 FLANGE	0-28680-830-0	04	1	9806-9911
277	BOLT; BOX ASM FIX (A) M8X30 FLANGE	0-28680-830-0	04	1	9912-0512
277	BOLT; BOX ASM FIX (A) M8X30 FLANGE	0-28650-830-0	04	1	0601-
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (B) WING NUT	1-09064-006-0	02	1	9806-9911
277	BOLT; BOX ASM FIX (B) WING NUT	1-09064-006-0	02	1	9912-
277	BOLT; BOX ASM FIX EMIS REGULATION W/CONV<TCA> (D) M8X25 W/LK&PL WASHER	0-50140-825-0	02	1	9806-9911
277	BOLT; BOX ASM FIX (C) M8X20 FLANGE	0-28680-820-0	06	1	9912-0302
277	BOLT; BOX ASM FIX (C) M8X20 FLANGE	0-28680-820-0	04	1	0303-0512
277	BOLT; BOX ASM FIX (C) M8X20 FLANGE	0-28650-820-0	04	1	0601-
277	BOLT; BOX ASM FIX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9806-9911
277	BOLT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (C) M8X20 FLANGE	0-28680-820-0	02	1	9806-9911
280	NUT; BOX ASM FIX ELEC SW BOX ENG ROOM<TEK> (A) M8 FLANGE	0-91150-108-0	08	1	9806-9911
280	NUT; BOX ASM FIX EMIS REGULATION W/CONV<TCA> (B) M8	9-09110-408-0	02	1	9806-9911
280	NUT; BOX ASM FIX (A) M8 FLANGE	0-91150-108-0	08	1	9912-0602
280	NUT; BOX ASM FIX (A) M8 FLANGE	0-91180-108-0	08	1	0603-
296	BRACKET; HARNESS BOX EMIS REGULATION W/CONV<TCA> (B)	1-82699-962-0	01	1	9806-9911
296	BRACKET; HARNESS BOX (A) L=105 B=25	1-47476-161-0	01	1	9912-
296	BRACKET; HARNESS BOX GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (A) L=105 B=25	1-47476-161-0	01	1	9806-9911
296	BRACKET; HARNESS BOX ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (A) L=105 B=25	1-47476-161-0	01	1	9806-9911
297	BOLT; BOX BRKT EMIS REGULATION W/CONV<TCA> (B) M8X20 FLANGE	0-28680-820-0	02	1	9806-9911
297	BOLT; BOX BRKT (A) M8X30 FLANGE	0-28680-830-0	01	1	9912-0512
297	BOLT; BOX BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	0601-
297	BOLT; BOX BRKT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
297	BOLT; BOX BRKT ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (A) M8X30 FLANGE	0-28680-830-0	01	1	9806-9911
298	NUT; BOX BRKT EMIS REGULATION W/CONV<TCA> (B) M8 FLANGE	0-91150-108-0	02	1	9806-9911
298	NUT; BOX BRKT (A) M8 FLANGE	0-91150-108-0	01	1	9912-0602
298	NUT; BOX BRKT (A) M8 FLANGE	0-91180-108-0	01	1	0603-
298	NUT; BOX BRKT GEN NIKKO 24V-110A 3KW(PU1),GEN NIKKO 24V-90A 2.5KW(SD2) ELEC SW BOX ENG ROOM<TEK> EXC. CTR SPLIT FRAME<TLW> (A) M8 FLANGE	0-91150-108-0	01	1	9806-9911
298	NUT; BOX BRKT ELEC SW BOX ENG ROOM<TEK> CTR SPLIT FRAME<TLW> (A) M8 FLANGE	0-91150-108-0	01	1	9806-9911

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
