◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-03 - LAMP; REAR AND REAR SIDE ▶
8-03 — LAMP; REAR AND REAR SIDE (#6898) — 71 parça

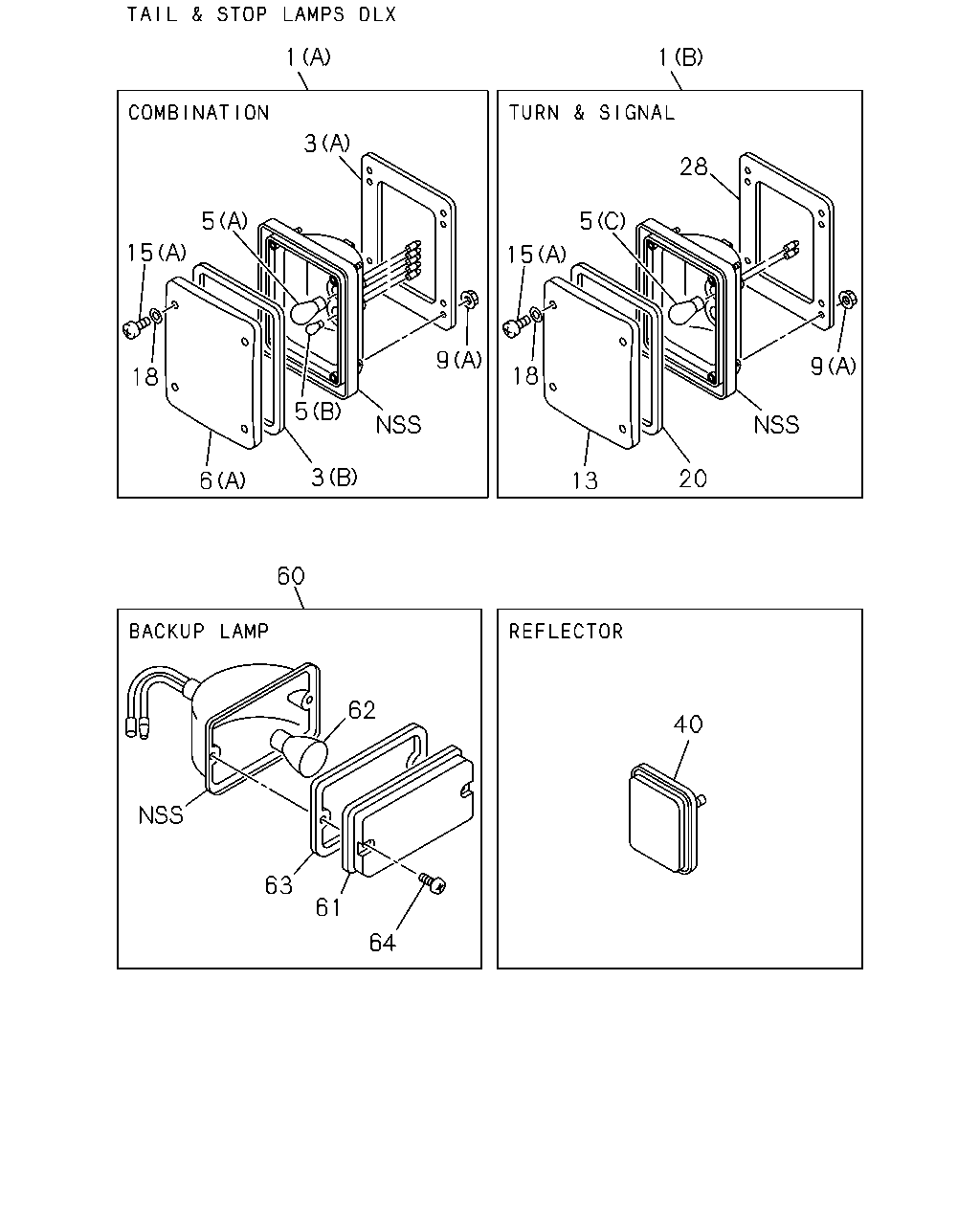

çizim 26558
1 1 3 28 5 5 15 15 9 9 18 18 5 3 20 6 13 60 62 40 63 61 64
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
(C) 		5-82230-021-3 01 1 9806-
1 LAMP ASM; RR COMB
(C) 		5-82230-020-3 01 1 9806-
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS DLX<T81> (B) 		1-82230-179-0 02 1 9806-9911
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS DLX<T81> (A) 		1-82230-181-0 02 1 9806-9911
3 GASKET; RR COMB LAMP
(C) 		5-82236-002-0 01 1 9806-
3 GASKET; RR COMB LAMP
(C) 		5-82236-001-0 01 1 9806-
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) 		1-82239-044-0 02 1 9806-9911
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (B) 		1-82239-045-0 02 1 9806-9911
5 BULB; RR COMB LAMP
(E) 24V 25/10W 		9-82691-335-0 02 1 9806-
5 BULB; RR COMB LAMP
(F) 24V 25W 		9-82691-347-0 04 1 9806-
5 BULB; RR COMB LAMP
(D) 24V 3W 		9-82691-603-0 02 1 9806-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) 24V 25/10W 		1-82194-028-0 02 1 9806-9911
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (C) 24V 25W 		1-82194-029-0 02 1 9806-9911
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (B) 24V 6W 		9-82691-398-0 02 1 9806-9911
6 LENS; RR COMB LAMP
(B) 		5-82235-002-0 01 1 9806-
6 LENS; RR COMB LAMP
(B) 		5-82235-001-0 01 1 9806-
6 LENS; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) 		1-82235-027-0 02 1 9806-9911
9 NUT; LAMP,RR COMB
(B) M5 FLANGE 		1-09984-170-0 08 1 9806-
9 NUT; LAMP,RR COMB
TAIL & STOP LAMPS DLX<T81> (A) M5 FLANGE 		1-82239-046-0 16 1 9806-9911
13 LENS; TURN SIGNAL
TAIL & STOP LAMPS DLX<T81> 		1-82235-026-0 02 1 9806-9911
15 SCREW; RR COMB LAMP
(B) 		5-82239-005-0 16 1 9806-
15 SCREW; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) M4X16 		9-03494-416-0 16 1 9806-9911
18 WASHER; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> 		1-82239-043-0 16 1 9806-9911
20 GASKET; HSG TO LENS
TAIL & STOP LAMPS DLX<T81> 		1-82239-045-0 02 1 9806-9911
28 GASKET; TURN,LAMP
TAIL & STOP LAMPS DLX<T81> 		1-82239-044-0 02 1 9806-9911
40 REFLECTOR; REFLEX
TAIL & STOP LAMPS DLX<T81> 		1-82290-028-1 02 1 9806-9911
60 LAMP; BACKUP
TAIL & STOP LAMPS DLX<T81> 		1-82130-014-3 02 1 9806-9911
61 LENS; BACKUP LAMP
TAIL & STOP LAMPS DLX<T81> 		1-82135-004-0 02 1 9806-9911
62 BULB; BACKUP LAMP
TAIL & STOP LAMPS DLX<T81> 24V 35W 		1-82194-047-0 02 1 9806-9911
63 GASKET; BACKUP LAMP
TAIL & STOP LAMPS DLX<T81> 		1-82216-013-0 02 1 9806-9911
64 SCREW; BACKUP LAMP
TAIL & STOP LAMPS DLX<T81> 		1-82139-003-0 04 1 9806-9911
çizim 26604
29 1 30 36 9 3 5 6 5 5 5 15 55 49 52 49 51 53 51 58 50 57 54 54 58 50 153
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; RR COMB
(C) 		5-82230-021-3 01 1 9806-
1 LAMP ASM; RR COMB
(C) 		5-82230-020-3 01 1 9806-
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS DLX<T81> (B) 		1-82230-179-0 02 1 9806-9911
1 LAMP ASM; RR COMB
TAIL & STOP LAMPS DLX<T81> (A) 		1-82230-181-0 02 1 9806-9911
3 GASKET; RR COMB LAMP
(C) 		5-82236-002-0 01 1 9806-
3 GASKET; RR COMB LAMP
(C) 		5-82236-001-0 01 1 9806-
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) 		1-82239-044-0 02 1 9806-9911
3 GASKET; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (B) 		1-82239-045-0 02 1 9806-9911
5 BULB; RR COMB LAMP
(E) 24V 25/10W 		9-82691-335-0 02 1 9806-
5 BULB; RR COMB LAMP
(F) 24V 25W 		9-82691-347-0 04 1 9806-
5 BULB; RR COMB LAMP
(D) 24V 3W 		9-82691-603-0 02 1 9806-
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) 24V 25/10W 		1-82194-028-0 02 1 9806-9911
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (C) 24V 25W 		1-82194-029-0 02 1 9806-9911
5 BULB; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (B) 24V 6W 		9-82691-398-0 02 1 9806-9911
6 LENS; RR COMB LAMP
(B) 		5-82235-002-0 01 1 9806-
6 LENS; RR COMB LAMP
(B) 		5-82235-001-0 01 1 9806-
6 LENS; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) 		1-82235-027-0 02 1 9806-9911
9 NUT; LAMP,RR COMB
(B) M5 FLANGE 		1-09984-170-0 08 1 9806-
9 NUT; LAMP,RR COMB
TAIL & STOP LAMPS DLX<T81> (A) M5 FLANGE 		1-82239-046-0 16 1 9806-9911
15 SCREW; RR COMB LAMP
(B) 		5-82239-005-0 16 1 9806-
15 SCREW; RR COMB LAMP
TAIL & STOP LAMPS DLX<T81> (A) M4X16 		9-03494-416-0 16 1 9806-9911
29 BRACKET; LAMP,RR COMB 1-82237-023-1 02 1 9806-
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91150-210-0 04 1 9806-0602
30 NUT; BRKT,RR COMB
M10 FLANGE 		0-91180-210-0 04 1 0603-
36 BOLT; BRKT,RR COMB
M10X25 FLANGE 		0-28081-025-0 04 1 9806-0512
36 BOLT; BRKT,RR COMB
M10X25 FLANGE 		0-28051-025-0 04 1 0601-
49 LAMP; LICENSE PLATE
24V 10W 		1-82120-024-0 01 1 9806-9911
49 LAMP; LICENSE PLATE 8-97530-333-0 01 1 9912-
50 LENS; LICENSE PLATE LAMP 1-82235-006-0 01 1 9806-9911
50 LENS; LICENSE PLATE LAMP 5-82125-004-0 01 1 9912-
51 BULB; LICENSE PLATE LAMP
24V 10W 		1-82194-037-0 01 1 9806-
52 GROMMET; SCREW,LICENSE PLATE LAMP
D=7.8X7.8 L=18 M5 BLACK 		8-94275-946-0 02 1 9806-9911
53 GASKET; LICENSE LAMP 1-82126-005-0 01 1 9806-9911
54 SCREW; LICENSE PLATE LAMP
M5X20 		1-82129-007-0 02 1 9806-9911
54 SCREW; LICENSE PLATE LAMP
M4X8 		8-94419-312-0 01 1 9912-
55 NUT; LICENSE PLATE LAMP
M5 FLANGE 		8-94153-039-0 02 1 9912-
57 WASHER; PL,LICENSE PLATE LAMP 1-82129-008-0 02 1 9806-9911
58 COVER; LICENSE PLATE LAMP 1-82129-005-0 01 1 9806-9911
58 COVER; LICENSE PLATE LAMP 8-97048-582-0 01 1 9912-
153 BOLT; LICENSE PLATE LAMP
M5X20 		9-93490-520-0 02 1 9912-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
