6-05 — FRONT PANEL (#68972) — 389 parça

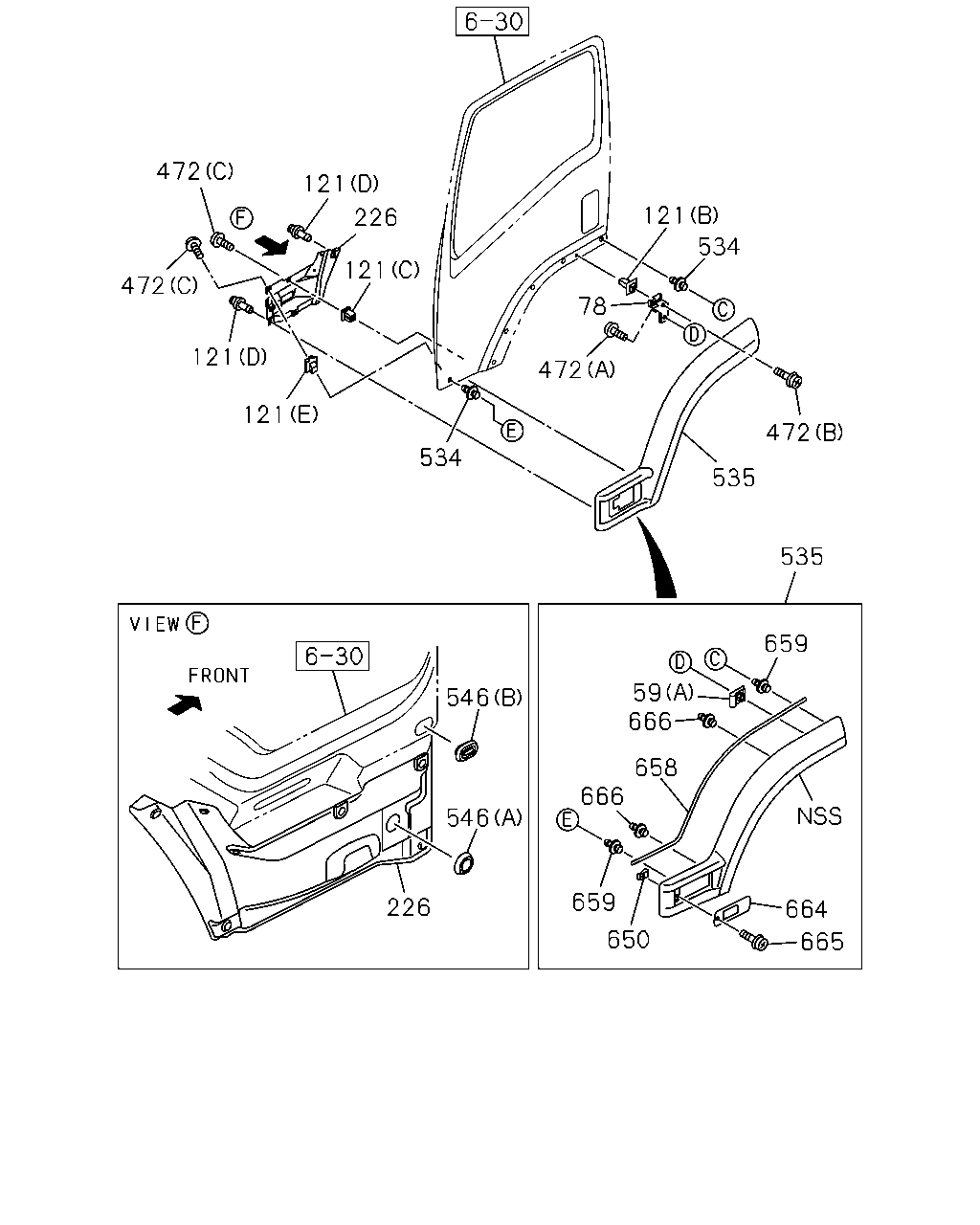

çizim 126416
472 121 121 226 534 472 121 78 121 472 121 472 534 535 535 659 59 666 546 658 666 546 659 226 664 650 665
BalonParca AdiParca NoAdetTipApplied Date
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0812-0905
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 0906-1007
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 0906-1007
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1008-
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1008-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0812-
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0812-0905
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0906-
78 BRACKET; FENDER 8-98041-165-1 01 1 0812-
78 BRACKET; FENDER 8-98041-166-1 01 1 0812-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 0812-0905
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRERED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0812-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 08 1 0812-0901
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0902-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0812-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0812-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0812-
226 PROTECTOR; FRT 8-98037-712-2 01 1 0812-
226 PROTECTOR; FRT 8-98037-713-2 01 1 0812-
472 SCREW; FENDER TO CAB
(A) M6X18 TAPPING 		8-98059-505-0 02 1 0812-
472 SCREW; FENDER TO CAB
(C) M5X16 		8-98090-737-0 08 1 0812-
472 SCREW; FENDER TO CAB
(B) M5X12 		8-98093-669-0 04 1 0812-
534 FASTENER
ID=5.4 OD=6.8 		1-09989-021-0 12 1 0812-1302
534 FASTENER
ID=5.4 OD=6.8 		8-98241-984-0 12 1 1303-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-320-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97415-340-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-313-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97415-333-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-321-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97415-341-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-314-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97415-334-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-319-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97415-339-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-330-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97415-350-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-332-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97415-352-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-329-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97415-349-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-742-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-743-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-317-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97415-337-1 01 1 0906-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-325-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97415-345-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-322-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97415-342-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-331-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97415-351-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-328-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97415-348-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-323-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97415-343-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-315-1 01 1 0812-
535 FENDER; BLISTER
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97415-335-1 01 1 0812-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-498-0 01 1 0812-
535 FENDER; BLISTER
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98106-499-0 01 1 0812-
546 PLUG; DUMMY HOLE
(A) OD=38 		8-94159-507-0 02 1 0812-
546 PLUG; DUMMY HOLE
(B) 		8-94430-184-1 02 1 0812-
650 NUT; SPIRE 8-94279-501-0 02 1 0812-0905
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 0906-1007
650 NUT; SPIRE
CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 0906-1007
650 NUT; SPIRE
EXC. CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1008-
650 NUT; SPIRE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-94279-501-0 02 1 1008-
658 FINISHER; BLISTER FENDER 8-98041-168-3 01 1 0812-0905
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 0906-1007
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 0906-1007
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1008-
658 FINISHER; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-168-3 01 1 1008-
658 FINISHER; BLISTER FENDER 8-98041-169-3 01 1 0812-0905
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 0906-1007
658 FINISHER; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 0906-1007
658 FINISHER; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1008-
658 FINISHER; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-169-3 01 1 1008-
659 CLIP; FENDER
D5.4X8 		1-09983-154-0 08 1 0812-0905
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 0906-1007
659 CLIP; FENDER
CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 0906-1007
659 CLIP; FENDER
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1008-
659 CLIP; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 08 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-878-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-521-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-898-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97421-549-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-879-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-509-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-899-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97421-537-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-880-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-523-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-900-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97421-551-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-881-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-511-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-901-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97421-539-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-882-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-519-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-902-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97421-547-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-883-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-533-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-903-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97421-596-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-884-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-535-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-904-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97421-563-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-885-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-531-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-905-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97421-559-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-936-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-607-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-943-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97421-605-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-887-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-515-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-907-1 01 1 0906-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97421-543-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-218-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-485-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97409-219-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97421-497-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-448-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-487-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-454-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97421-499-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-449-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-489-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-455-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97421-501-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-452-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-493-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-458-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97421-505-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-451-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-491-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-457-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97421-503-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-453-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-495-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-459-1 01 1 0812-1007
664 BASE; DOOR,SIDE TURN
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97421-507-0 01 1 1008-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-145-1 01 1 0812-
664 BASE; DOOR,SIDE TURN
EXC. CAB ALL PAINTING<TFD> 		8-98053-146-1 01 1 0812-
665 SCREW; FENDER
M6X20 W/PL WASHER 		0-36210-620-0 02 1 0812-0905
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 0906-1007
665 SCREW; FENDER
CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 0906-1007
665 SCREW; FENDER
EXC. CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1008-
665 SCREW; FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> M6X20 W/PL WASHER 		0-36210-620-0 02 1 1008-
666 CLIP; BLISTER FENDER 8-98071-178-0 04 1 0812-0905
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 0906-1007
666 CLIP; BLISTER FENDER
CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 0906-1007
666 CLIP; BLISTER FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1008-
666 CLIP; BLISTER FENDER
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98071-178-0 04 1 1008-

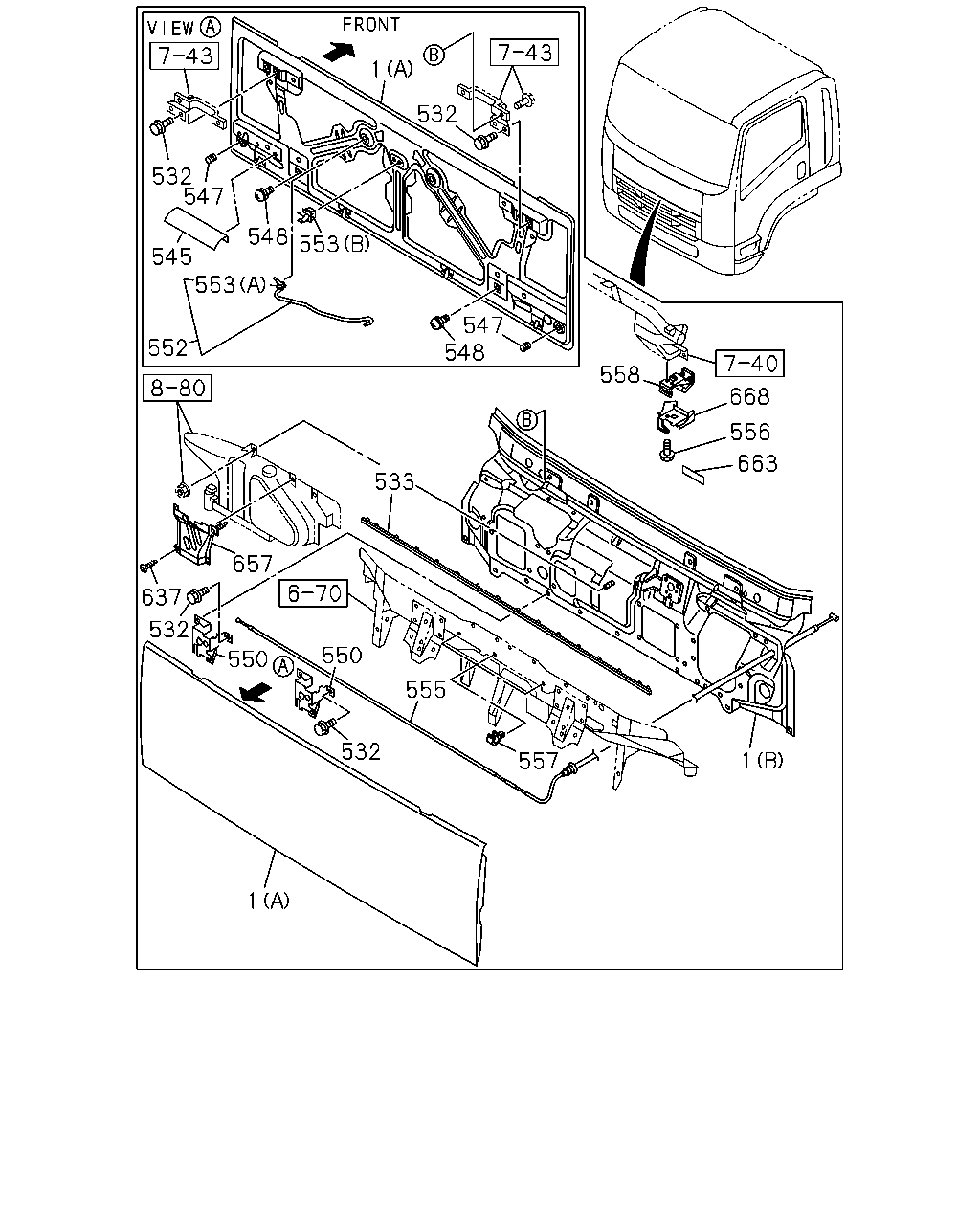

çizim 126436
1 532 532 547 548 553 545 553 547 548 552 558 668 556 663 533 657 637 532 550 550 555 532 1 557 1
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 0812-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0812-
532 BOLT; FRT PANEL
M8X20 FLANGE 		0-28650-820-0 08 1 0812-
533 SEAL; FRT PANEL 8-98096-288-0 01 1 0812-
545 SEAL; FRT LID 8-98036-583-0 01 1 0812-0910
545 SEAL; FRT LID 8-98123-264-0 01 1 0911-
547 RUBBER; CUSHION
OD=22 L=29 		8-94324-556-2 02 1 0812-
548 STRIKER; FRT LID PANEL 8-98068-145-1 02 1 0812-
550 LOCK ASM; FRT LID 8-98036-568-2 02 1 0812-
552 STAY; FRT LID 8-98089-837-1 01 1 0812-
553 CLIP; STAY
(B) 		8-97031-428-0 01 1 0812-
553 CLIP; STAY
(A) 		8-98094-541-0 01 1 0812-
555 CABLE; FRT LID 8-98036-573-1 01 1 0812-
556 BOLT; CABLE
M6X16 FLANGE 		0-28650-616-0 01 1 0812-
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 03 1 0812-
558 LEVER; FRT LID 8-97865-110-0 01 1 0812-
637 CLIP; COVER
OD=16 L=11 		1-76378-155-0 02 1 0812-
657 COVER; WIPER IDLER 8-98060-907-0 01 1 0812-
663 TAPE; PROTECT
275X11 		8-98070-053-1 01 1 0812-0910
668 COVER; LEVER,FRT LID 8-98076-339-1 01 1 0812-
çizim 126543
1 307 307 307 307 307 16 16 20 18 20 19 22 571 19 22 18 299 671 672 20 667 59 22 669 667
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 0812-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97414-259-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR AL GRAY(517) GRAY 		8-97417-796-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-260-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97417-798-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97414-261-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GERANIUM RED(681) RED 		8-97417-799-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97414-262-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR DARK BLUE(695) BLUE 		8-97417-800-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-263-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97417-801-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-264-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97417-802-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-265-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97417-803-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-267-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97417-804-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-795-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-805-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97414-270-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR GREEN(989) GREEN 		8-97417-806-5 01 1 0906-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97409-257-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97412-464-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-465-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR CARDINAL RED(736) RED 		8-97412-490-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-466-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-491-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-467-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-492-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97412-468-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR FIRE RED(915) RED 		8-97412-493-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-469-5 01 1 0812-
16 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-494-5 01 1 0812-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(A) 		8-98038-608-0 02 1 0812-0905
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98038-608-0 02 1 0906-
18 SEAL; A-POST UPR,FRT SIDE PANEL
(B) 		8-98043-511-1 02 1 0812-0905
18 SEAL; A-POST UPR,FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98043-511-1 02 1 0906-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-580-0 01 1 0812-0905
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98036-580-0 01 1 0906-
19 SEAL; FRT SIDE PANEL
(A) 		8-98036-581-0 01 1 0812-0905
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98036-581-0 01 1 0906-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-358-2 01 1 0812-0905
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98041-358-2 01 1 0906-
19 SEAL; FRT SIDE PANEL
(B) 		8-98041-359-2 01 1 0812-0905
19 SEAL; FRT SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98041-359-2 01 1 0906-
20 CLIP; FRT PANEL SIDE
(A) 		8-97410-739-0 04 1 0812-0905
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-97410-739-1 04 1 0906-
20 CLIP; FRT PANEL SIDE
(B) 		8-97410-740-2 02 1 0812-0905
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-97410-740-3 02 1 0906-
20 CLIP; FRT PANEL SIDE
(C) 		8-98046-457-0 08 1 0812-0905
20 CLIP; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (C) 		8-98046-457-0 08 1 0906-
22 SCREW; FRT PANEL SIDE
(B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0812-0905
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 06 1 0906-
22 SCREW; FRT PANEL SIDE
(A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0812-0905
22 SCREW; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) M4X10 TAPPING W/PL WASHER 		0-74360-410-0 06 1 0906-
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98061-108-0 06 1 0812-1505
22 SCREW; FRT PANEL SIDE
(C) BOLT M6X16 FLANGE 		8-98314-627-0 06 1 1506-
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0812-0905
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 0906-1007
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 0906-1007
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1008-
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1008-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0812-
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0812-0905
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0906-
299 COVER; FRT PANEL SIDE 8-98034-813-1 01 1 0812-0905
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-813-1 01 1 0906-
299 COVER; FRT PANEL SIDE 8-98034-814-1 01 1 0812-0905
299 COVER; FRT PANEL SIDE
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) 		8-98034-814-1 01 1 0906-
307 GROMMET; FRT PANEL
(B) 		8-97410-738-0 02 1 0812-
307 GROMMET; FRT PANEL
(C) 		8-98021-300-1 04 1 0812-
307 GROMMET; FRT PANEL
(A) OD=20 		8-98034-363-1 04 1 0812-
571 CLIP; SEAL
NATURAL 		8-98027-457-0 20 1 0812-0905
571 CLIP; SEAL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) NATURAL 		8-98027-457-0 20 1 0906-
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-641-0 01 1 0812-0905
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98088-641-0 01 1 0906-
667 STAY; EXT,SIDE PANEL
(A) 		8-98088-642-0 01 1 0812-0905
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (A) 		8-98088-642-0 01 1 0906-
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-643-1 01 1 0812-0905
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98088-643-1 01 1 0906-
667 STAY; EXT,SIDE PANEL
(B) 		8-98088-644-1 01 1 0812-0905
667 STAY; EXT,SIDE PANEL
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) 		8-98088-644-1 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-473-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR AL GRAY(517) GRAY 		8-97414-489-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-377-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR PURPLISH BLUE(668) BLUE 		8-97414-475-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-380-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR GERANIUM RED(681) RED 		8-97414-477-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-383-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR DARK BLUE(695) BLUE 		8-97414-479-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-386-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR WOODLAND GREEN(807) DARK GREEN 		8-97414-460-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-461-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR WHEATLAND YELLOW(812) YELLOW 		8-97414-490-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-422-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR MARINE BLUE(890) BLUE 		8-97414-462-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-436-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR HIGHWAY ORANGE(944) ORANGE 		8-97414-464-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97417-987-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR POLAR WHITE(982) WHITE 		8-97418-047-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-430-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR GREEN(989) GREEN 		8-97414-471-0 01 1 0906-
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-261-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR ARC WHITE(729) WHITE 		8-97409-265-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-509-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR CARDINAL RED(736) RED 		8-97412-519-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-510-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR SAHARA BEIGE(829) BEIGE 		8-97412-520-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-511-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR GOLDEN YELLOW(904) YELLOW 		8-97412-521-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-512-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR FIRE RED(915) RED 		8-97412-522-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-513-0 01 1 0812-
669 BEZEL; LAMP,FT TURN
BODY COLOR TRANS BLUE(999) BLUE 		8-97412-523-0 01 1 0812-
671 RUBBER; SIDE PANEL 8-98088-646-1 02 1 0812-
672 PLUG; SIDE PANEL
OD=16 L=11 		1-76378-155-0 02 1 0812-

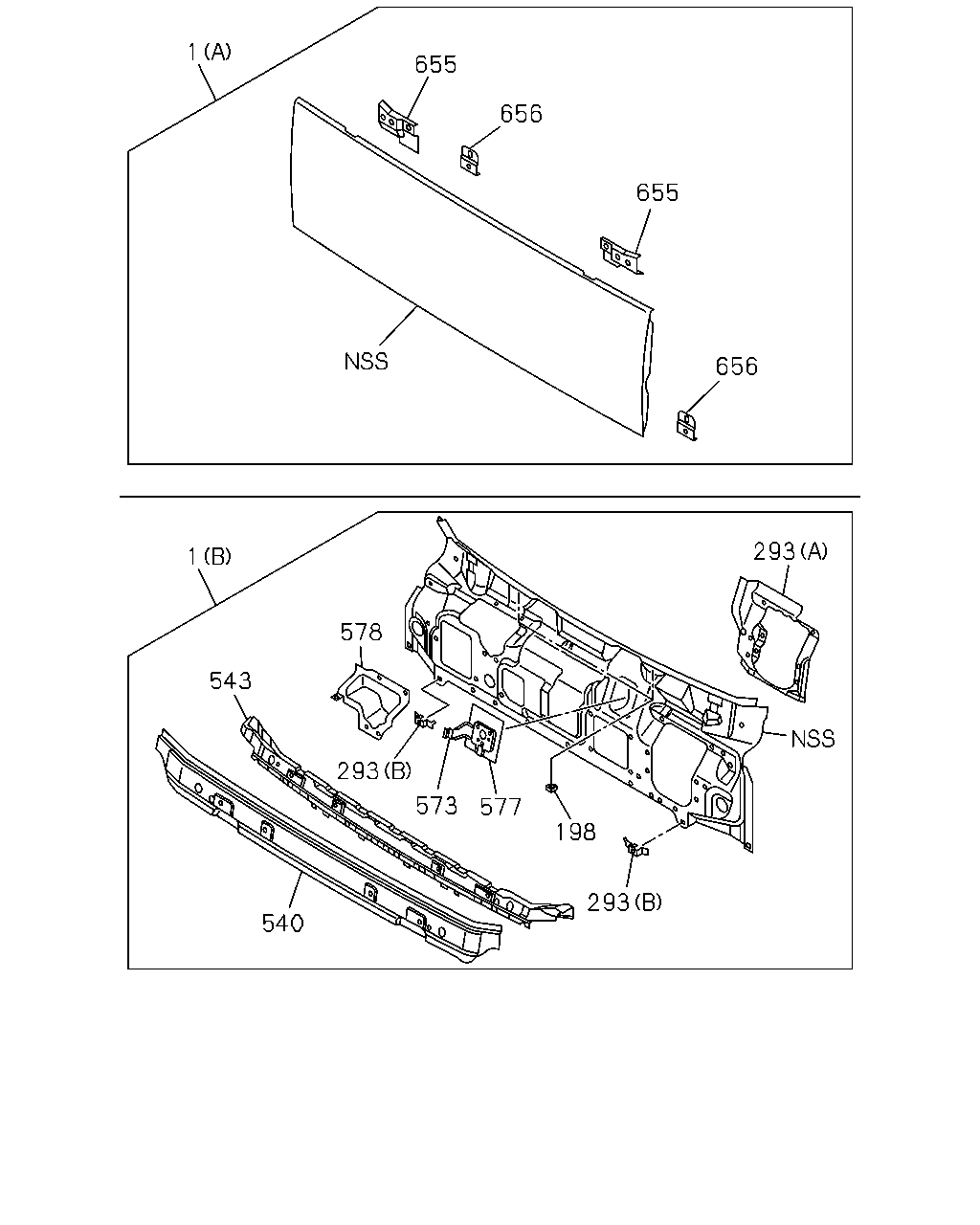

çizim 126712
1 655 656 655 656 293 1 578 543 293 573 577 198 293 540
BalonParca AdiParca NoAdetTipApplied Date
1 PANEL ASM; FRT
(B) 		8-97585-959-7 01 1 0812-
1 PANEL ASM; FRT
(A) 		8-98030-230-3 01 1 0812-
198 NUT; PANEL
M6 		9-09114-086-0 02 1 0812-
293 BRACKET; PANEL
(A) 		8-97586-008-1 01 1 0812-
293 BRACKET; PANEL
(B) 		8-98008-124-1 01 1 0812-
293 BRACKET; PANEL
(B) 		8-98008-126-1 01 1 0812-
540 PANEL; FRONT,OUTER 8-97585-965-2 01 1 0812-
543 CLOSING; FRT MTG RAIL 8-98067-965-2 01 1 0812-
573 BRACKET; SUPPORT 8-98017-700-2 01 1 0812-
577 BRACKET; IDLER 8-97586-019-1 01 1 0812-
578 COVER; WIPER MOTOR 8-98017-702-1 01 1 0812-
655 PATCH; HINGE 8-98031-263-0 01 1 0812-
655 PATCH; HINGE 8-98031-264-0 01 1 0812-
656 PATCH; STRIKER 8-98031-265-0 02 1 0812-

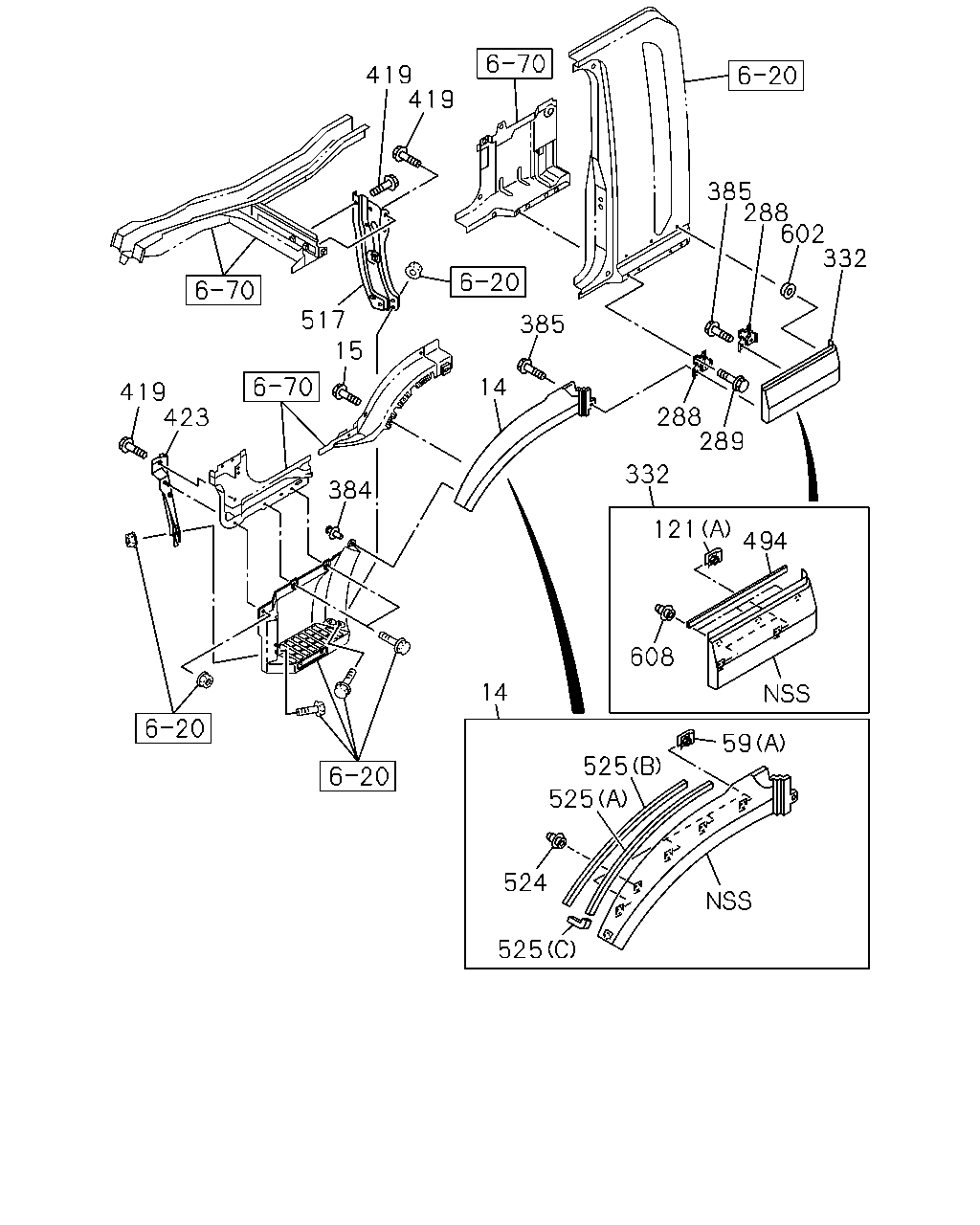

çizim 126797
419 419 385 288 602 332 517 385 15 14 419 423 288 289 332 384 121 494 608 14 59 525 525 524 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0812-
14 FENDER; FRT
CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0812-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-398-3 01 1 0812-
14 FENDER; FRT
EXC. CAB ALL PAINTING<TFD> BLACK 		8-98041-399-3 01 1 0812-
15 BOLT; FENDER
SCREW M6X20 W/PL WASHER 		8-98059-504-0 06 1 0812-
59 GROMMET; SCREW
(A) 		8-94279-723-0 02 1 0812-0905
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 0906-1007
59 GROMMET; SCREW
CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 0906-1007
59 GROMMET; SCREW
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1008-
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR CARDINAL RED(736),BODY COLOR WOODLAND GREEN(807),BODY COLOR GREEN(989),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 02 1 1008-
59 GROMMET; SCREW
(A) 		8-94279-723-0 08 1 0812-
59 GROMMET; SCREW
(B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0812-0905
59 GROMMET; SCREW
BODY COLOR AL GRAY(517),BODY COLOR PURPLISH BLUE(668),BODY COLOR GERANIUM RED(681),BODY COLOR DARK BLUE(695),BODY COLOR ARC WHITE(729),BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLORGOLDEN YELLOW(904),BODY COLOR FIRE RED(915),BODY COLOR TRANS BLUE(999) (B) D=7.5X7.5 L=7 		8-94430-147-0 04 1 0906-
121 GROMMET; FENDER
(A) 		8-94279-723-0 04 1 0812-0905
121 GROMMET; FENDER
EXC. CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRERED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) 		8-94279-723-0 04 1 0906-
121 GROMMET; FENDER
(C) D=8.6X7.7 L=7.5 		8-94279-078-0 06 1 0812-
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 08 1 0812-0901
121 GROMMET; FENDER
(D) OD=8.3 		8-94279-989-0 10 1 0902-
121 GROMMET; FENDER
(B) H=15 		8-94463-268-1 04 1 0812-
121 GROMMET; FENDER
(E) 		8-98073-420-0 01 1 0812-
121 GROMMET; FENDER
(E) 		8-98073-421-0 01 1 0812-
288 BRACKET; FENDER SKIRT 8-98041-162-1 04 1 0812-
289 BOLT; FENDER SKIRT BRKT
M6X16 FLANGE 		0-28650-616-0 08 1 0812-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-596-2 01 1 0906-
332 FENDER; RR
BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> GRAY 		8-97413-606-2 01 1 0906-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-597-2 01 1 0906-
332 FENDER; RR
BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> BLUE 		8-97413-607-2 01 1 0906-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-598-2 01 1 0906-
332 FENDER; RR
BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> RED 		8-97413-608-2 01 1 0906-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-599-2 01 1 0906-
332 FENDER; RR
BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> BLUE 		8-97413-609-2 01 1 0906-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-600-2 01 1 0906-
332 FENDER; RR
BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> DARK GREEN 		8-97413-610-2 01 1 0906-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-601-2 01 1 0906-
332 FENDER; RR
BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> YELLOW 		8-97413-611-2 01 1 0906-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-602-2 01 1 0906-
332 FENDER; RR
BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> BLUE 		8-97413-612-2 01 1 0906-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-603-2 01 1 0906-
332 FENDER; RR
BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> ORANGE 		8-97413-613-2 01 1 0906-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-674-2 01 1 0906-
332 FENDER; RR
BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> WHITE 		8-97417-675-2 01 1 0906-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-605-2 01 1 0906-
332 FENDER; RR
BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> GREEN 		8-97413-615-2 01 1 0906-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-506-2 01 1 0812-
332 FENDER; RR
BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> WHITE 		8-97407-507-2 01 1 0812-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-304-2 01 1 0812-
332 FENDER; RR
BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> RED 		8-97411-310-2 01 1 0812-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-305-2 01 1 0812-
332 FENDER; RR
BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> BEIGE 		8-97411-311-2 01 1 0812-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-308-2 01 1 0812-
332 FENDER; RR
BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> YELLOW 		8-97411-314-2 01 1 0812-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-307-2 01 1 0812-
332 FENDER; RR
BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> RED 		8-97411-313-2 01 1 0812-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-309-2 01 1 0812-
332 FENDER; RR
BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> BLUE 		8-97411-315-2 01 1 0812-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-434-2 01 1 0812-
332 FENDER; RR
EXC. CAB ALL PAINTING<TFD> 		8-98038-435-2 01 1 0812-
384 CLIP; FENDER LWR
D8X13.5 		1-09987-248-1 02 1 0812-
385 SCREW; FENDER LWR
M6X20 W/PL WASHER 		8-98059-504-0 04 1 0812-
419 BOLT; STEP
M8X20 FLANGE 		0-28650-820-0 08 1 0812-
423 SUPPORT ASM; STEP 8-98037-335-1 01 1 0812-
423 SUPPORT ASM; STEP 8-98037-336-1 01 1 0812-
494 FINISHER; FENDER 8-98041-172-1 01 1 0812-0905
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 0906-
494 FINISHER; FENDER
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRERED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98041-172-1 01 1 0906-
494 FINISHER; FENDER 8-98072-723-0 01 1 0812-0905
494 FINISHER; FENDER
EXC. CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 0906-
494 FINISHER; FENDER
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRERED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> 		8-98072-723-0 01 1 0906-
517 SUPPORT; STEP PANEL 8-98037-338-2 01 1 0812-
517 SUPPORT; STEP PANEL 8-98037-339-2 01 1 0812-
524 CLIP; FENDER COVER
OD=7.9 BLACK 		8-94279-974-1 02 1 0812-
525 SEAL; FENDER
(A) UPPER 		8-98061-760-0 02 1 0812-
525 SEAL; FENDER
(B) LOWER 		8-98061-761-0 02 1 0812-
525 SEAL; FENDER
(C) 		8-98061-762-0 02 1 0812-
602 RETAINER; COVER
ID=5.4 OD=6.8 		1-09989-021-0 06 1 0812-1302
602 RETAINER; COVER
ID=5.4 OD=6.8 		8-98241-984-0 06 1 1303-
608 CLIP
D5.4X8 		1-09983-154-0 06 1 0812-0905
608 CLIP
EXC. CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
608 CLIP
BODY COLOR AL GRAY(517),BODY COLOR ARC WHITE(729), BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR FIRERED(915),BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> D5.4X8 		1-09983-154-0 06 1 0906-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
