◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-01 - LAMP; FRONT AND FRONT SIDE ▶
8-01 — LAMP; FRONT AND FRONT SIDE (#6897) — 119 parça
çizim 26294
32 15 41 40 42 99 152 150 151 101 106 102 104 103 104 91
BalonParca AdiParca NoAdetTipApplied Date
15 BULB; FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 24V 35W 		1-82194-012-0 02 1 9806-9911
15 BULB; FOG LAMP
24V 35W 		1-82194-012-0 02 1 9912-9912
15 BULB; FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 24V 35W 		1-82194-012-0 02 1 0001-
32 LAMP ASM; FOG
EXC. FOG LAMPS DELETE<SJE> 		1-82110-146-5 02 1 9806-9911
32 LAMP ASM; FOG 1-82110-146-5 02 1 9912-9912
32 LAMP ASM; FOG
EXC. FOG LAMPS DELETE<SJE> 		1-82110-146-5 02 1 0001-
40 LENS; FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82115-005-0 02 1 9806-9911
40 LENS; FOG LAMP 1-82115-005-0 02 1 9912-9912
40 LENS; FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82115-005-0 02 1 0001-
41 GASKET; LENS,FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82216-013-0 02 1 9806-9911
41 GASKET; LENS,FOG LAMP 1-82216-013-0 02 1 9912-9912
41 GASKET; LENS,FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82216-013-0 02 1 0001-
42 SCREW; LENS,FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82119-009-0 04 1 9806-9911
42 SCREW; LENS,FOG LAMP 1-82119-009-0 04 1 9912-9912
42 SCREW; LENS,FOG LAMP
EXC. FOG LAMPS DELETE<SJE> 		1-82119-009-0 04 1 0001-
91 BULB; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<TEL> 24V 25W 		9-82691-347-0 02 1 9806-9911
99 LAMP; SIDE FLASHER
SIDE TURN SIGNAL LAMP<TEL> 24V 25W 		1-82220-007-0 01 1 9806-9911
99 LAMP; SIDE FLASHER
SIDE TURN SIGNAL LAMP<TEL> 24V 25W 		1-82220-006-0 01 1 9806-9911
101 NUT; LAMP,SIDE FLASHER
SIDE TURN SIGNAL LAMP<TEL> M4 FLANGE 		5-09440-007-0 12 1 9806-9911
102 LENS; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<TEL> 		1-82225-002-0 02 1 9806-9911
103 RIM; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<TEL> 		1-82224-001-0 02 1 9806-9911
104 SCREW; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<TEL> 		1-82229-004-0 12 1 9806-9911
106 GASKET; SIDE TURN SIGNAL
SIDE TURN SIGNAL LAMP<TEL> 		1-82226-002-0 02 1 9806-9911
150 BRACKET; SIDE FLASHER
SIDE TURN SIGNAL LAMP<TEL> 		1-82187-002-0 04 1 9806-9911
151 BOLT; BRKT,SIDE FLASHER
SIDE TURN SIGNAL LAMP<TEL> M8X25 FLANGE 		0-28680-825-0 04 1 9806-9911
152 NUT; BRKT,SIDE FLASHER
SIDE TURN SIGNAL LAMP<TEL> EXC. CTR SPLIT FRAME<TLW> M8 FLANGE 		0-91150-108-0 04 1 9806-9911

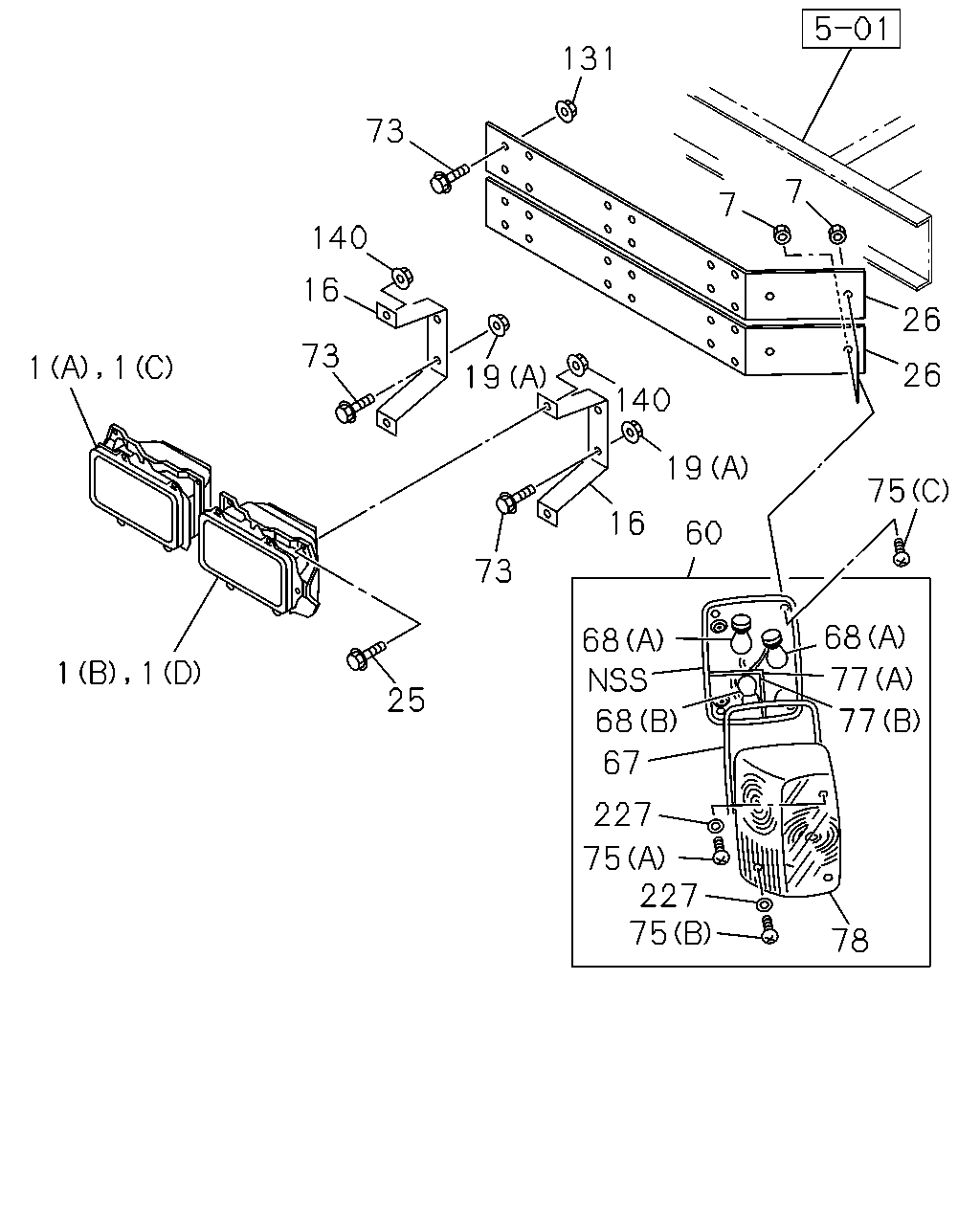

çizim 26815
131 73 7 7 140 16 26 73 1 1 26 19 140 19 75 16 60 73 68 77 68 1 1 25 77 68 67 227 75 227 75 78
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 24V 55/50W 		1-82110-263-2 01 1 9806-9911
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-257-2 01 1 9912-
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (B) 24V 55/50W 		1-82110-265-2 01 1 9806-9911
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-261-2 01 1 9912-
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 24V 55/50W 		1-82110-262-2 01 1 9806-9911
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-256-2 01 1 9912-
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (B) 24V 55/50W 		1-82110-264-2 01 1 9806-9911
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-259-2 01 1 9912-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (A) TYPE 1 24V 70W 		1-82110-257-2 01 1 9806-9911
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (B) TYPE 2 24V 75/70W 		1-82110-261-2 01 1 9806-9911
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (A) TYPE 1 24V 70W 		1-82110-256-2 01 1 9806-9911
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (B) TYPE 2 24V 75/70W 		1-82110-259-2 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (C) TYPE 1 24V 55W 		1-82110-251-3 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (D) TYPE 2 24V 50/65W 		1-82110-255-4 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (C) TYPE 1 24V 55W 		1-82110-250-3 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (D) TYPE 2 24V 50/65W 		1-82110-253-4 01 1 9806-9911
7 NUT; FRT COMB LAMP
M5 		9-99110-405-0 08 1 9806-9911
16 BRACKET; HEADLAMP 9-82615-154-2 04 1 9806-9911
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 08 1 9806-9911
19 NUT; HEADLAMP
AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 08 1 9806-9911
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 9912-
19 NUT; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 04 1 9806-9911
19 NUT; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 04 1 9806-9911
25 SCREW; LAMP
M5X16 W/LK WASHER 		9-03910-516-0 16 1 9806-9911
26 BRACKET ASM; HEADLAMP 1-82117-098-0 04 1 9806-9911
60 LAMP ASM; FRT COMB 1-82210-109-1 01 1 9806-
60 LAMP ASM; FRT COMB 1-82210-108-1 01 1 9806-
67 GASKET; FRT COMB LAMP 1-82216-004-0 01 1 9806-
67 GASKET; FRT COMB LAMP 1-82216-003-0 01 1 9806-
68 BULB; FRT COMB LAMP
(A) 24V 25W 		9-82691-347-0 04 1 9806-
68 BULB; FRT COMB LAMP
(B) 24V 10/4W 		9-82691-607-0 02 1 9806-
73 BOLT; BRKT,HEADLAMP
M6X20 FLANGE 		0-28680-620-0 08 1 9806-9911
73 BOLT; BRKT,HEADLAMP
M10X30 FLANGE 		0-28681-030-0 08 1 9806-9911
75 SCREW; FRT COMB LAMP
(A) M4X50 		1-82219-015-0 04 1 9806-
75 SCREW; FRT COMB LAMP
(B) M4X16 		1-82219-016-0 04 1 9806-
75 SCREW; FRT COMB LAMP
(C) M5X16 W/LK WASHER 		9-03910-516-0 08 1 9806-9911
77 SHADE; FRT TURN SIGNAL LAMP
(A) 		1-82219-020-0 02 1 9806-
77 SHADE; FRT TURN SIGNAL LAMP
(B) 		1-82219-021-0 02 1 9806-
78 LENS ASM; FRT COMB 1-82215-009-0 01 1 9806-
78 LENS ASM; FRT COMB 1-82215-008-0 01 1 9806-
131 NUT; BRKT,HEADLAMP
M10 FLANGE 		0-91150-210-0 08 1 9806-9911
140 NUT
M5 		9-99110-405-0 12 1 9806-9911
227 SEAT; SET SCREW,FRT COMB LAMP 1-82219-017-0 08 1 9806-

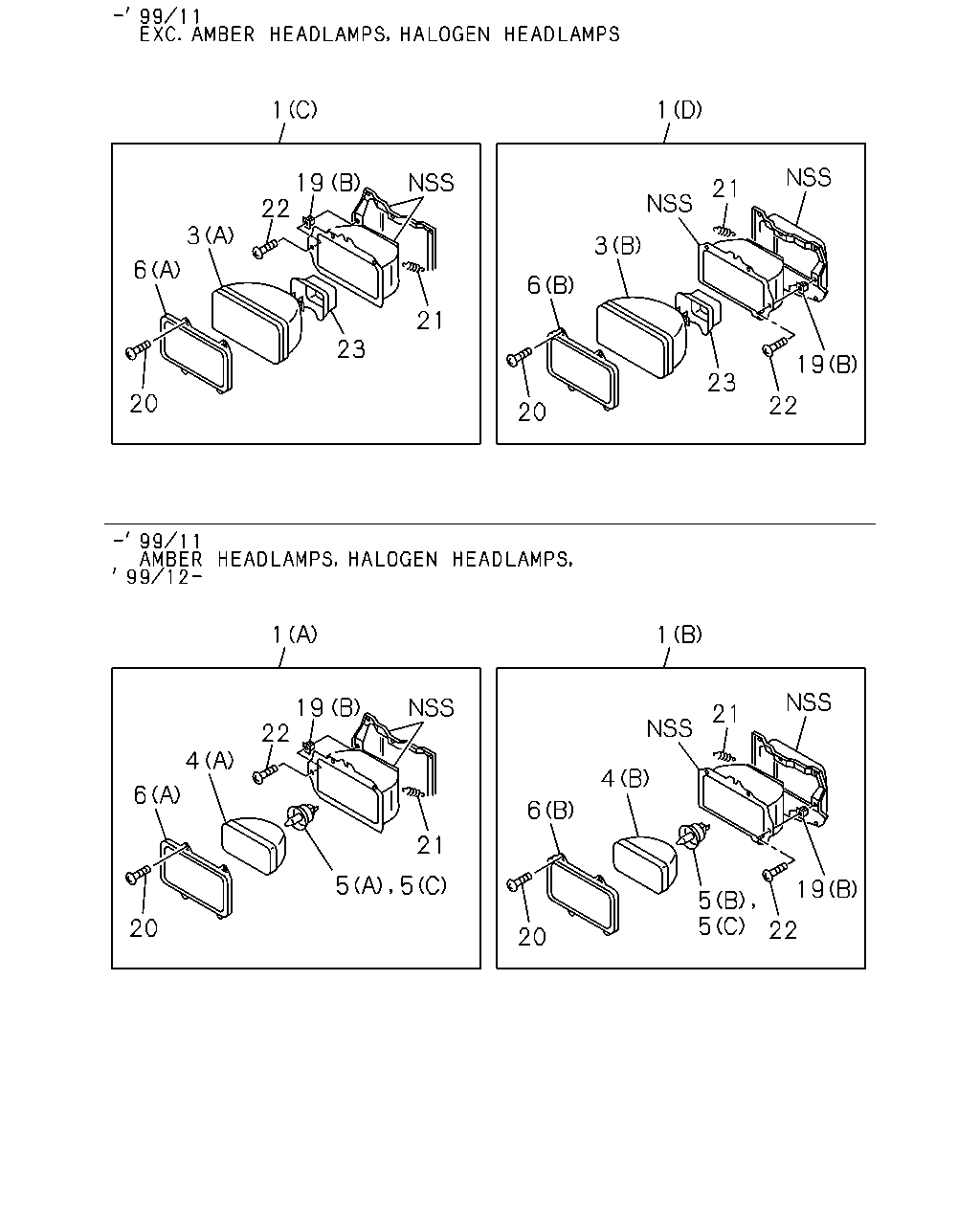

çizim 99301
1 1 19 22 21 3 3 6 6 21 23 19 23 20 22 20 1 1 19 22 21 4 4 6 6 21 5 5 19 5 5 20 22 20
BalonParca AdiParca NoAdetTipApplied Date
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 24V 55/50W 		1-82110-263-2 01 1 9806-9911
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-257-2 01 1 9912-
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (B) 24V 55/50W 		1-82110-265-2 01 1 9806-9911
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-261-2 01 1 9912-
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (A) 24V 55/50W 		1-82110-262-2 01 1 9806-9911
1 LAMP ASM; HEAD
(A) TYPE 1 24V 70W 		1-82110-256-2 01 1 9912-
1 LAMP ASM; HEAD
AMBER HEADLAMPS<T75> (B) 24V 55/50W 		1-82110-264-2 01 1 9806-9911
1 LAMP ASM; HEAD
(B) TYPE 2 24V 75/70W 		1-82110-259-2 01 1 9912-
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (A) TYPE 1 24V 70W 		1-82110-257-2 01 1 9806-9911
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (B) TYPE 2 24V 75/70W 		1-82110-261-2 01 1 9806-9911
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (A) TYPE 1 24V 70W 		1-82110-256-2 01 1 9806-9911
1 LAMP ASM; HEAD
HALOGEN HEADLAMPS<TT5> (B) TYPE 2 24V 75/70W 		1-82110-259-2 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (C) TYPE 1 24V 55W 		1-82110-251-3 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (D) TYPE 2 24V 50/65W 		1-82110-255-4 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (C) TYPE 1 24V 55W 		1-82110-250-3 01 1 9806-9911
1 LAMP ASM; HEAD
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (D) TYPE 2 24V 50/65W 		1-82110-253-4 01 1 9806-9911
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (A) 24V 55W 		1-82191-023-0 02 1 9806-9911
3 SEALED BEAM; HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> (B) 24V 50/65W 		1-82191-024-0 02 1 9806-9911
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> (B) TYPE 2 24V 55/50W 		8-94101-736-0 02 1 9806-9911
4 HEADLAMP UNIT
(A) TYPE 1 24V 70W 		1-82191-032-0 02 1 9912-
4 HEADLAMP UNIT
AMBER HEADLAMPS<T75> (A) TYPE 1 24V 55W 		8-94101-742-0 02 1 9806-9911
4 HEADLAMP UNIT
(B) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 9912-
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> (A) TYPE 1 24V 70W 		1-82191-032-0 02 1 9806-9911
4 HEADLAMP UNIT
HALOGEN HEADLAMPS<TT5> (B) TYPE 2 24V 75/70W 		1-82191-037-0 02 1 9806-9911
5 BULB; HEADLAMP
AMBER HEADLAMPS<T75> (C) 24V 55/50W 		5-82193-004-0 04 1 9806-9911
5 BULB; HEADLAMP
(B) 24V 75/70W 		1-82193-006-0 02 1 9912-
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (B) 24V 75/70W 		1-82193-006-0 02 1 9806-9911
5 BULB; HEADLAMP
HALOGEN HEADLAMPS<TT5> (A) 24V 70W 		1-82193-007-0 02 1 9806-9911
5 BULB; HEADLAMP
(A) 24V 70W 		1-82193-007-0 02 1 9912-
6 RIM; HEADLAMP
(A) 24V 70W 		1-82114-018-0 02 1 9806-
6 RIM; HEADLAMP
(B) 24V 75/70W 		1-82114-019-0 02 1 9806-
19 NUT; HEADLAMP
(A) M6 FLANGE 		0-91150-106-0 08 1 9806-9911
19 NUT; HEADLAMP
AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 08 1 9806-9911
19 NUT; HEADLAMP
(B) 		1-82119-056-0 08 1 9912-
19 NUT; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 04 1 9806-9911
19 NUT; HEADLAMP
EXC. AMBER HEADLAMPS<T75> (B) 		1-82119-056-0 04 1 9806-9911
20 SCREW; HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-023-0 16 1 9806-9911
20 SCREW; HEADLAMP 1-82119-023-0 16 1 9912-
20 SCREW; HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-023-0 08 1 9806-9911
20 SCREW; HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-023-0 08 1 9806-9911
21 SPRING; ADJ HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-105-0 04 1 9806-9911
21 SPRING; ADJ HEADLAMP 1-82119-105-0 04 1 9912-
21 SPRING; ADJ HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-105-0 02 1 9806-9911
21 SPRING; ADJ HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-105-0 02 1 9806-9911
22 SCREW; ADJ,HEADLAMP
AMBER HEADLAMPS<T75> 		1-82119-095-0 08 1 9806-9911
22 SCREW; ADJ,HEADLAMP 1-82119-095-0 08 1 9912-
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-095-0 04 1 9806-9911
22 SCREW; ADJ,HEADLAMP
EXC. AMBER HEADLAMPS<T75> 		1-82119-095-0 04 1 9806-9911
23 COVER; BULB,HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-013-0 02 1 9806-9911
23 COVER; BULB,HEADLAMP
EXC. HALOGEN HEADLAMPS<TT5>,AMBER HEADLAMPS<T75> 		1-82119-013-0 02 1 9806-9911
