◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11146 - FSS(LHD) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#68964) — 83 parça

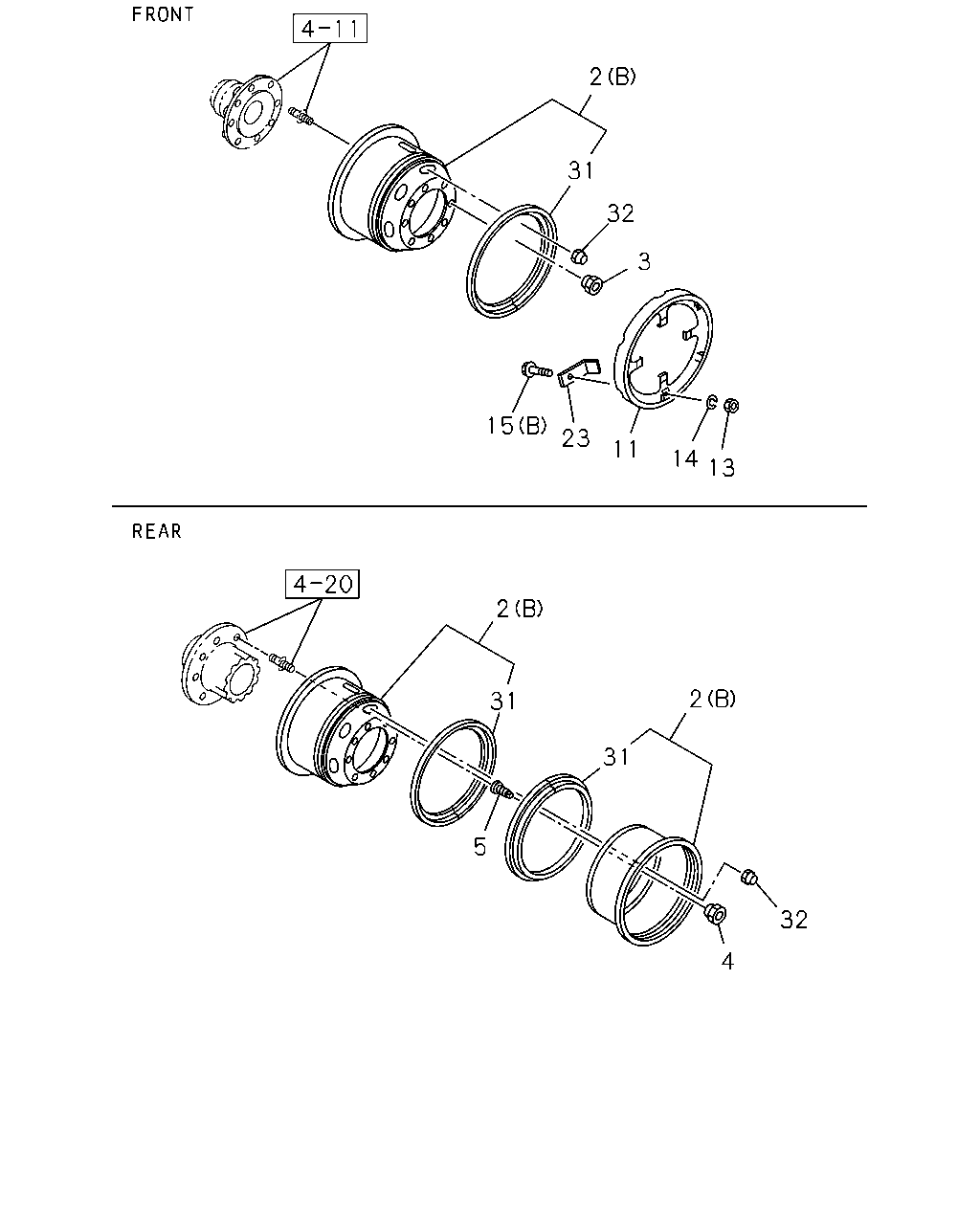

çizim 125431
2 31 32 3 15 23 11 14 13 2 2 31 31 5 32 4
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		1-42350-407-1 01 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-407-1 01 1 0812-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-641-0 01 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-641-0 01 1 0812-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-197-0 01 1 0812-0812
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-197-0 01 1 0812-0812
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT 		1-42350-407-1 02 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) REAR 		1-42350-407-1 04 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT 		1-42350-641-0 02 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (B) REAR 		1-42350-641-0 04 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (B) FRONT 		1-42350-197-0 02 1 0812-0812
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (B) REAR 		1-42350-197-0 04 1 0812-0812
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-2 08 1 0812-0812
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 04 1 0901-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-2 08 1 0812-0812
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 04 1 0901-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0812-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0812-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0812-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0812-
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> 		1-43139-002-2 02 1 0812-0812
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> 		1-43139-002-2 02 1 0901-
13 NUT; STEP DISC
DISC WHEEL STEP<W66> M10 		0-91110-510-0 06 1 0812-
14 WASHER; LK,STEP DISC
DISC WHEEL STEP<W66> ID=10.2 		0-91510-510-0 06 1 0812-
15 BOLT; STEP DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60 		1-43139-016-0 06 1 0812-
15 BOLT; STEP DISC
WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (B) M10X45 FLANGE 		0-28051-045-0 06 1 0812-0812
15 BOLT; STEP DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE 		0-28051-045-0 06 1 0901-
23 PLATE; CLAMP,STEP DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> 		1-43139-013-0 06 1 0812-
23 PLATE; CLAMP,STEP DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> 		1-43139-020-0 06 1 0812-0812
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42355-012-1 01 1 0812-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-012-1 01 1 0812-
31 RING; SIDE,DISC WHEEL
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42355-002-0 01 1 0812-0812
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79> SPARE 		1-42355-002-0 01 1 0812-0812
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.50TX20 145-10(Q47) FRONT 		1-42355-012-1 02 1 0812-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.50TX20 145-10(Q47) REAR 		1-42355-012-1 04 1 0812-
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.00SX20 135-10(SBB) FRONT 		1-42355-002-0 02 1 0812-0812
31 RING; SIDE,DISC WHEEL
WHEEL 8STUD 6.00SX20 135-10(SBB) REAR 		1-42355-002-0 04 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0812-0812
32 CAP; VALVE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0901-
32 CAP; VALVE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0901-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0901-
32 CAP; VALVE
WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0901-

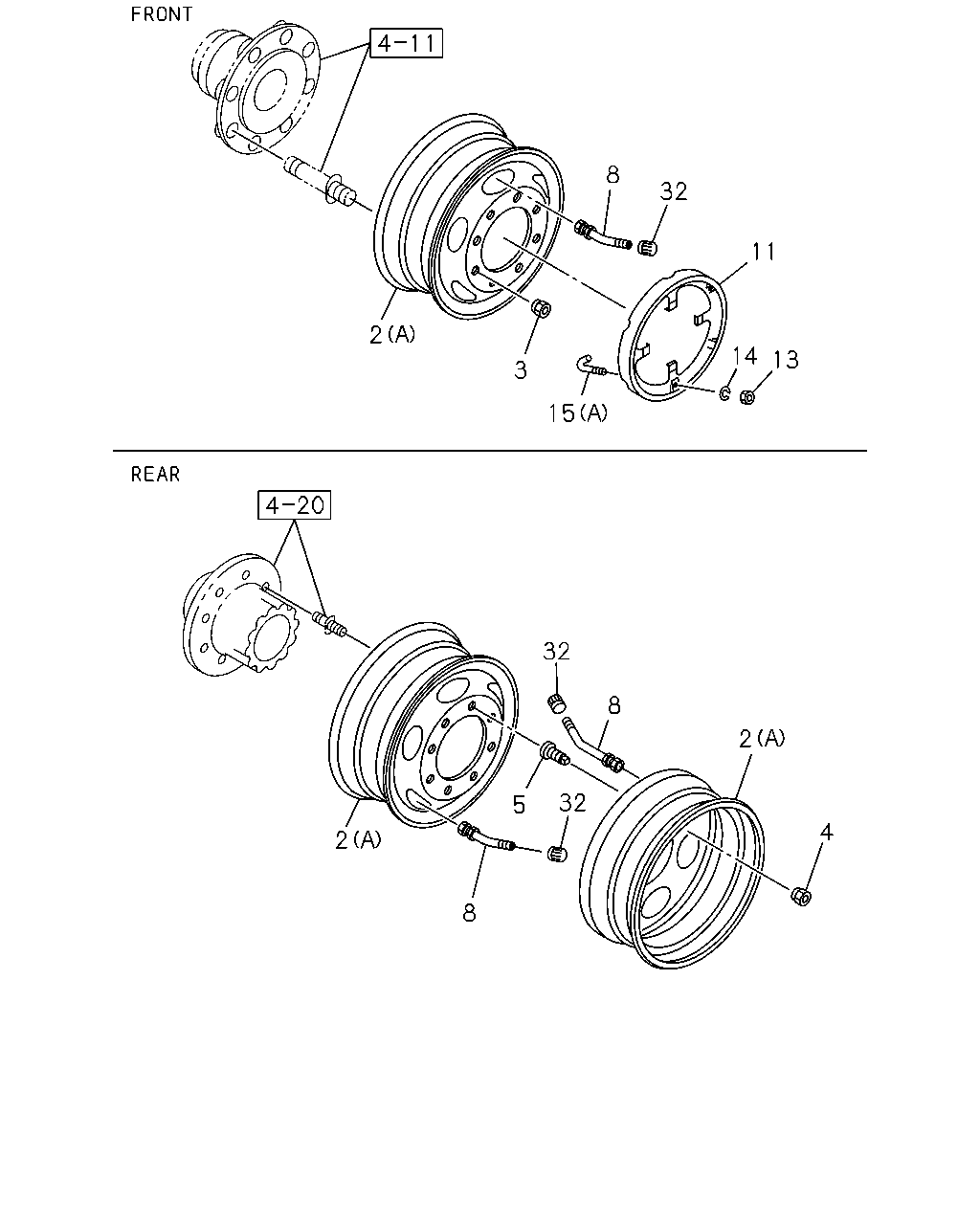

çizim 125500
8 32 11 2 14 13 3 15 32 8 2 32 5 4 2 8
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> (A) SPARE 		1-42350-407-1 01 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (A) SPARE 		1-42350-407-1 01 1 0812-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-641-0 01 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-641-0 01 1 0812-
2 WHEEL; DISC
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. SPARE TIRE & DISC WHEEL RR<R46> (B) SPARE 		1-42350-197-0 01 1 0812-0812
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46> WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79> (B) SPARE 		1-42350-197-0 01 1 0812-0812
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) FRONT 		1-42350-407-1 02 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) (A) REAR 		1-42350-407-1 04 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (B) FRONT 		1-42350-641-0 02 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) (B) REAR 		1-42350-641-0 04 1 0812-
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (B) FRONT 		1-42350-197-0 02 1 0812-0812
2 WHEEL; DISC
WHEEL 8STUD 6.00SX20 135-10(SBB) (B) REAR 		1-42350-197-0 04 1 0812-0812
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-2 08 1 0812-0812
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 04 1 0901-
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-2 08 1 0812-0812
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 04 1 0901-
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0812-
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0812-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0812-
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0812-
8 VALVE; TIRE
WHEEL 8STUD 6.75X22.5 145-11(PT1) FRONT,REAR 		1-42370-020-3 06 1 0812-
8 VALVE; TIRE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> SPARE 		1-42370-020-3 01 1 0812-
8 VALVE; TIRE
WHEEL 8STUD 6.75X22.5 145-11(PT1) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> SPARE 		1-42370-020-3 01 1 0812-
11 STEP; DISC WHEEL SIDE
DISC WHEEL STEP<W66> 		1-43139-002-2 02 1 0812-0812
11 STEP; DISC WHEEL SIDE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> 		1-43139-002-2 02 1 0901-
13 NUT; STEP DISC
DISC WHEEL STEP<W66> M10 		0-91110-510-0 06 1 0812-
14 WASHER; LK,STEP DISC
DISC WHEEL STEP<W66> ID=10.2 		0-91510-510-0 06 1 0812-
15 BOLT; STEP DISC
WHEEL 8STUD 6.75X22.5 145-11(PT1) DISC WHEEL STEP<W66> (A) L=60 		1-43139-016-0 06 1 0812-
15 BOLT; STEP DISC
WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL STEP<W66> (B) M10X45 FLANGE 		0-28051-045-0 06 1 0812-0812
15 BOLT; STEP DISC
WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL STEP<W66> (B) M10X45 FLANGE 		0-28051-045-0 06 1 0901-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0812-0812
32 CAP; VALVE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) SPARE TIRE & DISC WHEEL RR<R46> EXC. DISC WHEEL SPARE<N79> 		1-42374-001-0 07 1 0901-
32 CAP; VALVE
DISC WHEEL SPARE<N79> WHEEL 8STUD 6.75X22.5 145-11(PT1) EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 07 1 0901-
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.50TX20 145-10(Q47),WHEEL 8STUD 6.00SX20 135-10(SBB) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0812-0812
32 CAP; VALVE
WHEEL 8STUD 6.75X22.5 145-11(PT1),WHEEL 8STUD 6.50TX20 145-10(Q47) EXC. DISC WHEEL SPARE<N79>,SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0901-
32 CAP; VALVE
WHEEL 8STUD 6.50TX20 145-10(Q47) DISC WHEEL SPARE<N79> EXC. SPARE TIRE & DISC WHEEL RR<R46> 		1-42374-001-0 06 1 0901-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
