Isuzu WW
▶
TRUCKS
▶
FSS
▶
11146 - FSS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

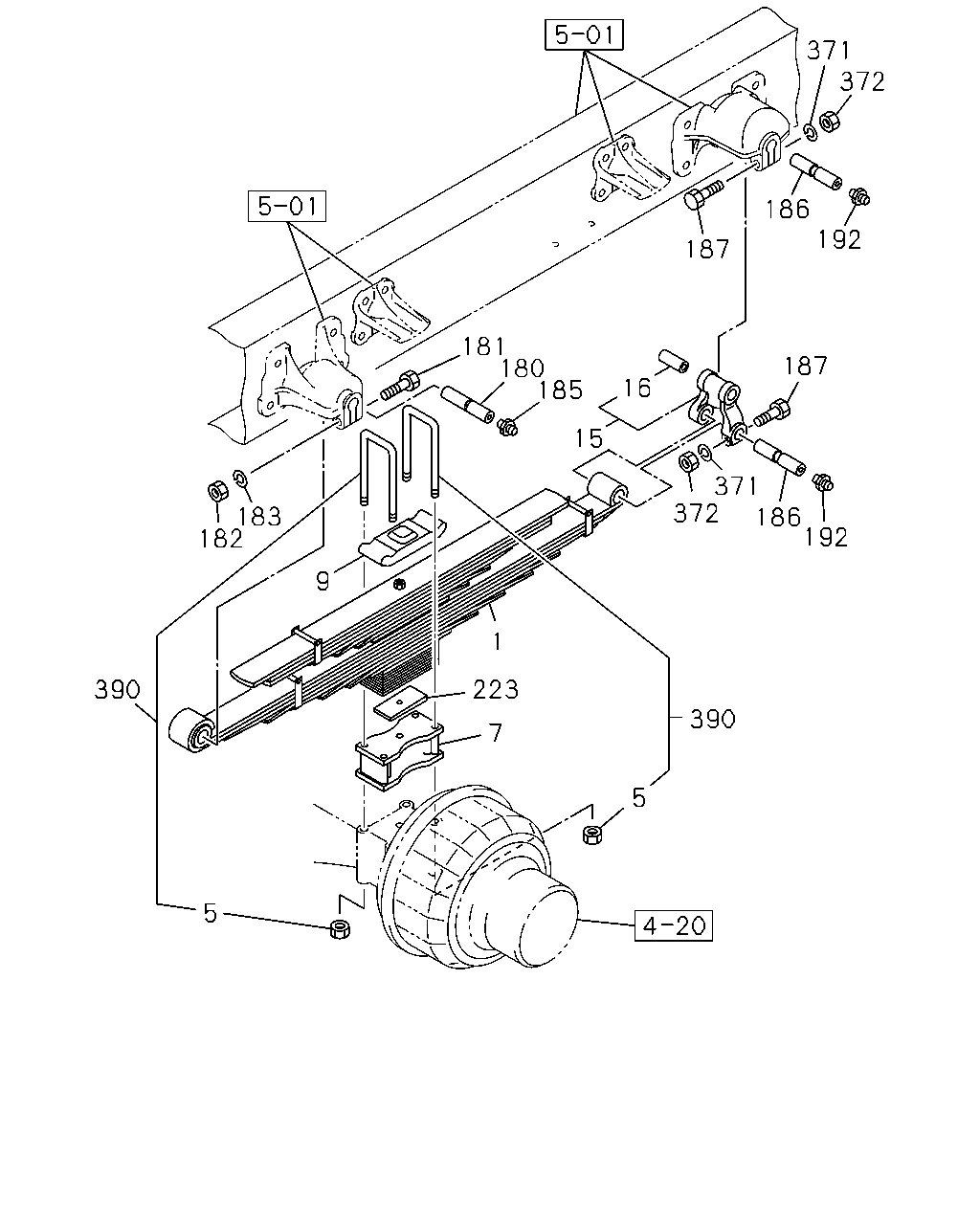

4-60 — REAR SUSPENSION
(#68962) — 20 parça
371
372
186
192
187
181
180
185
187
16
15
371
372
183
182
186
192
9
1
223
390
390
7
5
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 14-LEAF
8-98050-306-0
02
1
0812-
5
NUT; U-BOLT,RR SPR
M18 FLANGE
1-09440-039-1
08
1
0812-
7
SEAT; SPR,LWR
1-51385-090-1
02
1
0812-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
0812-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
0812-
16
BUSHING; SHACKLE,RR SPR
ID=25
9-51151-032-0
02
1
0812-0902
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
0903-
180
PIN; RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
02
1
0812-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
0812-
182
NUT; PIN,RR SPR
M12
0-91110-512-0
02
1
0812-
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
0812-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
02
1
0812-
186
PIN; SHACKLE,RR SPR
DO=25 L=115 PT1/8
1-51361-016-0
04
1
0812-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
0812-
192
NIPPLE; GREASE,SHACKLE PIN
PT1/8 STRAIGHT
0-90301-410-0
04
1
0812-
223
SPACER; U BOLT,RR SPR
1-51377-329-1
02
1
0812-1006
223
SPACER; U BOLT,RR SPR
8-98063-307-0
02
1
1007-1212
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
0812-
372
NUT; SHACKLE
M12
0-91110-512-0
04
1
0812-
390
U-BOLT SET; RR SPRING
L=540
1-87870-429-0
04
1
0812-
