7-50 — FRONT SEAT (#6896) — 90 parça

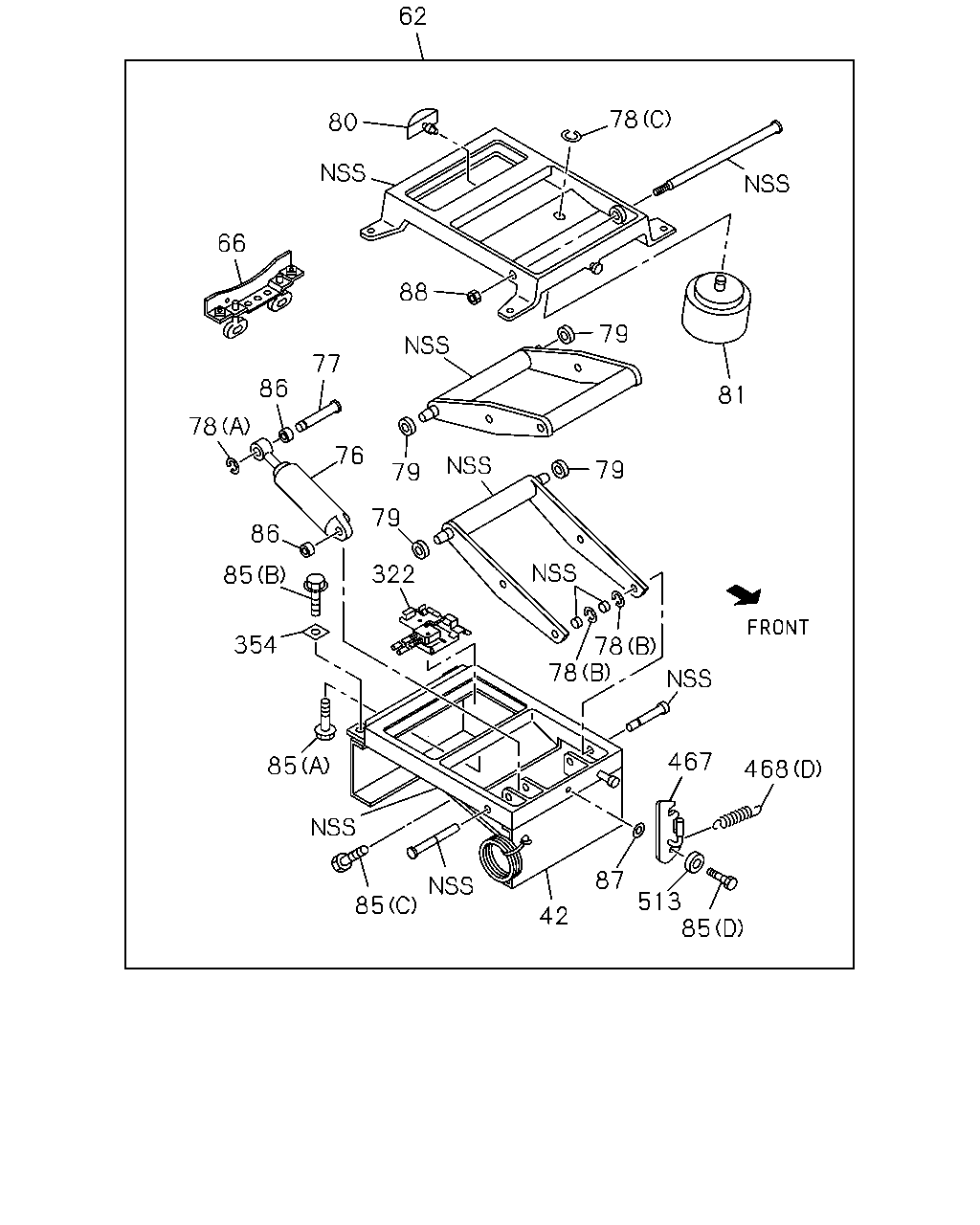

62 78 80 66 88 79 77 86 81 78 76 79 79 79 86 322 85 354 78 78 467 85 468 87 513 85 85 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
42	STAND; DRIVER SEAT AIR SUSP D/SEAT<A56>	1-75590-021-2	02	1	9806-9911
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56>	1-75530-156-1	01	1	9806-9911
66	RUBBER; LWR STOPPER AIR SUSP D/SEAT<A56>	1-75538-145-0	02	1	9806-9911
76	DAMPER; AIR SUSP AIR SUSP D/SEAT<A56>	1-75538-139-0	01	1	9806-9911
77	PIN; DAMPER AIR SUSP D/SEAT<A56>	1-75538-138-2	01	1	9806-9911
78	RING; SNAP AIR SUSP D/SEAT<A56> (A) ID=8	9-09185-408-0	01	1	9806-9911
78	RING; SNAP AIR SUSP D/SEAT<A56> (B) ID=10	9-09185-410-0	02	1	9806-9911
78	RING; SNAP AIR SUSP D/SEAT<A56> (C) ID=15	9-09185-415-0	01	1	9806-9911
79	ROLLER ASM; AIR SUSP AIR SUSP D/SEAT<A56>	1-75538-159-0	04	1	9806-9911
80	RUBBER; STOPPER AIR SUSP D/SEAT<A56>	1-09987-123-0	01	1	9806-9911
81	SPRING; AIR AIR SUSP D/SEAT<A56>	1-75538-151-1	01	1	9806-9911
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> (B) M8X30 FLANGE	0-28080-830-0	04	1	9806-9911
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> (A)	0-50010-612-0	02	1	9806-9911
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> (C) M8X20 W/LK&PL WASHER	0-50140-820-0	03	1	9806-9911
85	BOLT; AIR SUSP AIR SUSP D/SEAT<A56> (D)	1-09980-577-0	01	1	9806-9911
86	BUSHING; GUIDE AIR SUSP D/SEAT<A56> OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	9806-9911
87	WASHER; AIR SUSP AIR SUSP D/SEAT<A56> ID=8.2	9-09150-508-0	01	1	9806-9911
88	NUT; AIR SUSP AIR SUSP D/SEAT<A56>	8-97279-519-0	01	1	9806-9911
322	VALVE; AIR SPRING AIR SUSP D/SEAT<A56>	1-75530-110-0	01	1	9806-9911
354	BRACKET; SUSPENSION DEVICE AIR SUSP D/SEAT<A56>	1-75590-031-0	04	1	9806-9911
467	LEVER; LOCK AIR SUSP D/SEAT<A56>	1-75538-134-0	01	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (A)	1-75518-206-0	01	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (B)	1-75518-207-0	01	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (C)	1-75518-208-0	02	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (D)	1-75538-132-0	01	1	9806-9911
513	SPACER; LEVER AIR SUSP D/SEAT<A56>	1-75538-133-0	01	1	9806-9911

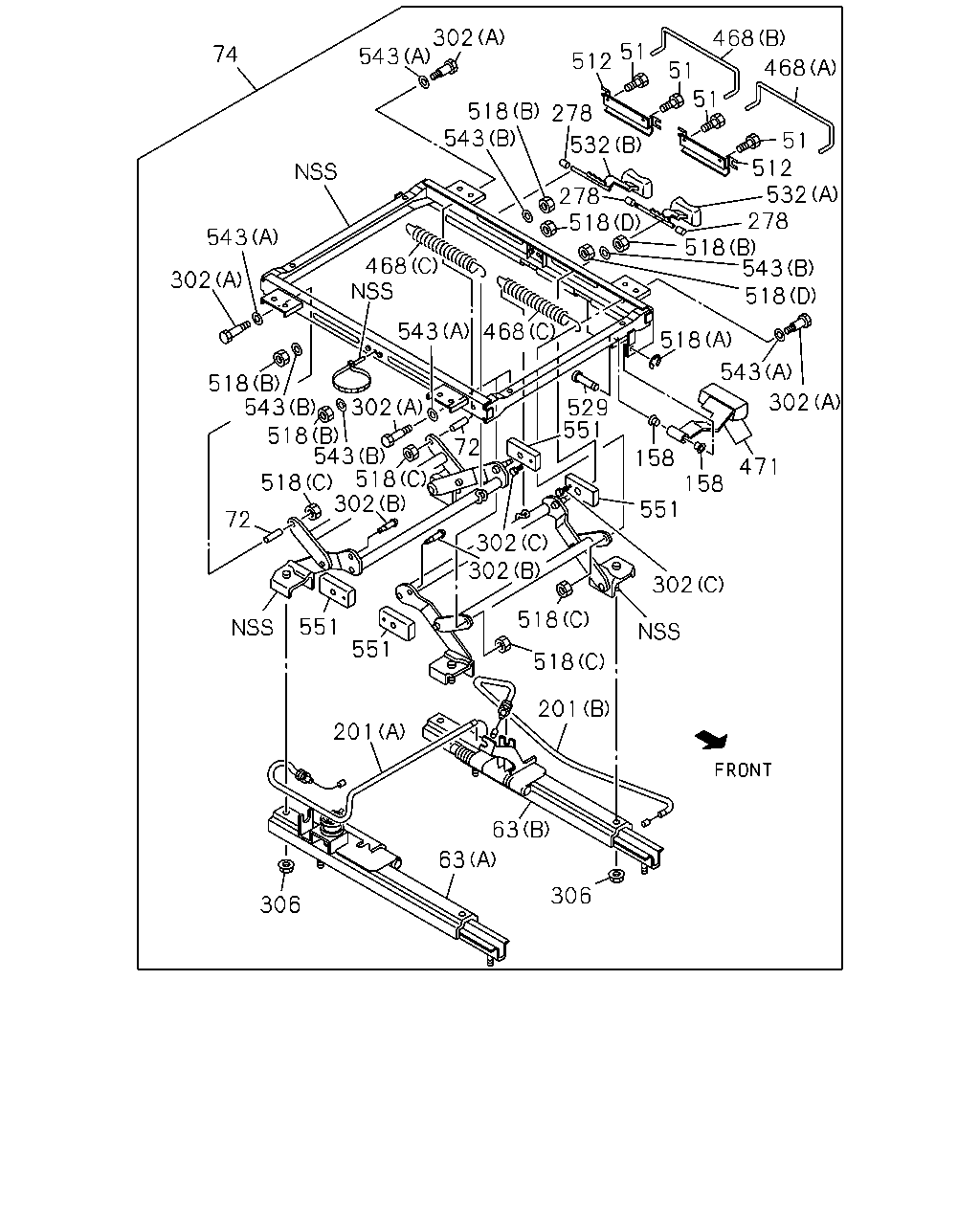

302 468 51 12 74 543 468 51 51 518 543 278 51 512 532 278 518 543 518 532 278 518 468 543 302 468 543 518 518 543 518 543 518 518 302 543 302 302 529 551 158 72 471 158 302 302 551 72 302 518 551 551 518 201 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56>	1-75028-600-1	01	1	9806-9911
51	SCREW; COVER AIR SUSP D/SEAT<A56> M6X12 W/LK WASHER	9-03910-612-0	04	1	9806-9911
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> (A)	1-75518-227-0	01	1	9806-9911
63	ADJUSTER; SEAT SLIDE AIR SUSP D/SEAT<A56> (B)	1-75518-295-0	01	1	9806-9911
72	SPACER; SEAT ADJ AIR SUSP D/SEAT<A56>	1-75518-269-0	02	1	9806-9911
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56>	1-75518-300-0	01	1	9806-9911
158	BUSHING; LINK ARM AIR SUSP D/SEAT<A56>	1-75518-209-0	02	1	9806-9911
201	CABLE; ADJ AIR SUSP D/SEAT<A56> (A) L=667	1-75518-288-0	01	1	9806-9911
201	CABLE; ADJ AIR SUSP D/SEAT<A56> (B) L=605	1-75518-289-0	01	1	9806-9911
278	COLLAR; FRT SEAT AIR SUSP D/SEAT<A56>	1-75518-244-0	03	1	9806-9911
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> (B)	1-75518-266-0	02	1	9806-9911
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> (A)	1-75518-270-0	04	1	9806-9911
302	BOLT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> (C)	1-75518-271-1	02	1	9806-9911
306	NUT; SEAT ADJ AIR SUSP D/SEAT<A56> M8 FLANGE	8-94279-518-0	04	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (A)	1-75518-206-0	01	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (B)	1-75518-207-0	01	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (C)	1-75518-208-0	02	1	9806-9911
468	SPRING; RETURN AIR SUSP D/SEAT<A56> (D)	1-75538-132-0	01	1	9806-9911
471	LEVER; SEAT ADJ AIR SUSP D/SEAT<A56>	1-75518-290-0	01	1	9806-9911
512	COVER; LEVER AIR SUSP D/SEAT<A56>	1-75518-245-0	02	1	9806-9911
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> (A)	1-75518-263-0	01	1	9806-9911
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> (C)	1-75518-264-0	04	1	9806-9911
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> (B)	5-09984-020-0	02	1	9806-9911
518	NUT; TILT ADJ AIR SUSP D/SEAT<A56> (D) M8 FLANGE	8-94152-886-0	04	1	9806-9911
529	PIN; LINK AIR SUSP D/SEAT<A56>	1-75518-262-0	01	1	9806-9911
532	LEVER ASM; TILT AIR SUSP D/SEAT<A56> (A)	1-75518-221-0	01	1	9806-9911
532	LEVER ASM; TILT AIR SUSP D/SEAT<A56> (B)	1-75518-222-1	01	1	9806-9911
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> (B) ID=6.4	9-09160-506-0	04	1	9806-9911
543	WASHER; HEIGHT ADJUSTER AIR SUSP D/SEAT<A56> (A) ID=10.5	9-09164-510-0	02	1	9806-9911
551	SLIDER; HEIGHT ADJ AIR SUSP D/SEAT<A56>	1-75518-265-0	04	1	9806-9911

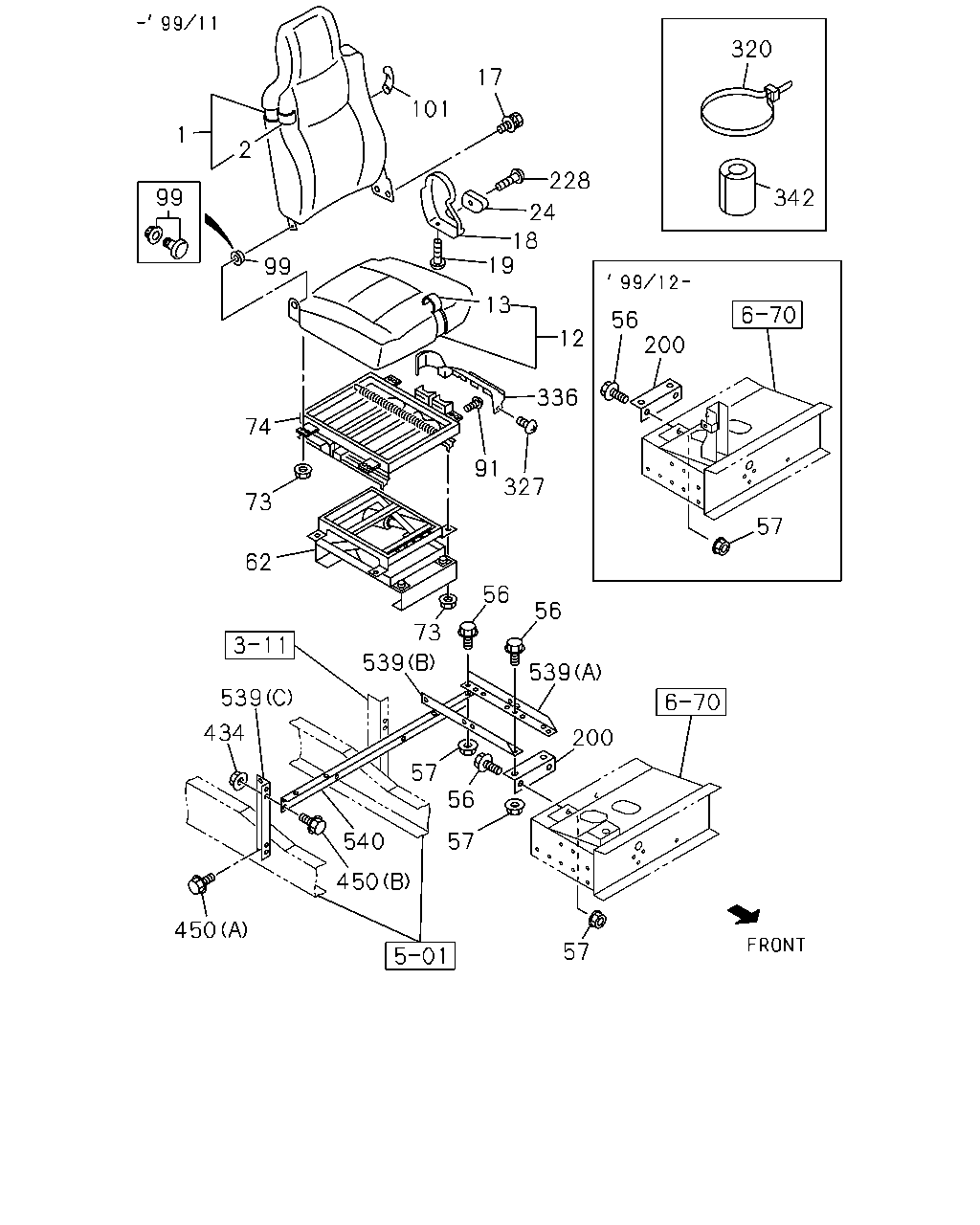

320 17 101 1 2 228 99 342 24 18 19 99 13 56 200 12 336 74 91 327 73 57 62 56 56 73 539 539 539 434 200 57 56 540 57 450 450 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT AIR SUSP D/SEAT<A56>	1-75028-576-1	01	1	9806-9911
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP D/SEAT<A56>	1-75116-253-1	01	1	9806-9911
12	CUSHION; SEAT,FRT AIR SUSP D/SEAT<A56>	1-75028-600-1	01	1	9806-9911
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP D/SEAT<A56>	1-75117-842-0	01	1	9806-9911
17	BOLT; RECLINING AIR SUSP D/SEAT<A56> M8X18	8-94279-109-1	02	1	9806-9911
18	COVER; RECLINING AIR SUSP D/SEAT<A56>	1-75418-052-0	01	1	9806-9911
19	SCREW; COVER AIR SUSP D/SEAT<A56> M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	9806-9911
24	KNOB; RECLINING,FRT,SEAT AIR SUSP D/SEAT<A56>	1-75418-056-0	01	1	9806-9911
56	BOLT; STAY M10X30 FLANGE	0-28681-030-0	06	1	9806-9911
56	BOLT; STAY M10X30 FLANGE	0-28681-030-0	02	1	9912-0512
56	BOLT; STAY M10X30 FLANGE	0-28651-030-0	02	1	0601-
57	NUT; STAY M10 FLANGE	0-91150-210-0	06	1	9806-9911
57	NUT; STAY M10 FLANGE	0-91150-210-0	02	1	9912-0602
57	NUT; STAY M10 FLANGE	0-91180-210-0	02	1	0603-
62	DAMPER ASM; SEAT SUSP AIR SUSP D/SEAT<A56>	1-75530-156-1	01	1	9806-9911
73	NUT; ADJ,HEIGHT CONT AIR SUSP D/SEAT<A56> M8 FLANGE	8-94279-518-0	08	1	9806-9911
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP D/SEAT<A56>	1-75518-300-0	01	1	9806-9911
91	SCREW; SEAT ADJ COVER AIR SUSP D/SEAT<A56> M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	9806-9911
99	BUSHING; SEAT BACK AIR SUSP D/SEAT<A56>	8-97854-087-0	01	1	9806-9911
101	LEVER ASM; LUMBAR AIR SUSP D/SEAT<A56>	5-75190-138-0	01	1	9806-9911
200	BRACKET; SEAT	1-75590-024-2	01	1	9806-9911
200	BRACKET; SEAT	8-97530-034-1	01	1	9912-
228	SCREW; KNOB AIR SUSP D/SEAT<A56> M4X6	8-97042-273-0	01	1	9806-9911
320	CLIP; BAND,SEAT AIR SUSP D/SEAT<A56> L=250	1-09707-126-0	05	1	9806-9911
327	CLIP; COVER AIR SUSP D/SEAT<A56>	1-09987-249-0	01	1	9806-9911
336	COVER; DRIVER SEAT AIR SUSP D/SEAT<A56>	1-75518-194-2	01	1	9806-9911
342	SLEEVE AIR SUSP D/SEAT<A56> ID=17 OD=21 L=40	1-09337-012-0	03	1	9806-9911
434	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9806-9911
450	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911
450	BOLT; BRKT (A) M12X35 FLANGE	0-28681-235-0	02	1	9806-9911
539	STAY; SEAT (B)	1-75590-042-1	01	1	9806-9911
539	STAY; SEAT (A)	1-75590-043-1	01	1	9806-9911
539	STAY; SEAT (C)	1-75590-044-0	01	1	9806-9911
540	OUTRIGGER; STAY	1-75590-029-1	01	1	9806-9911
