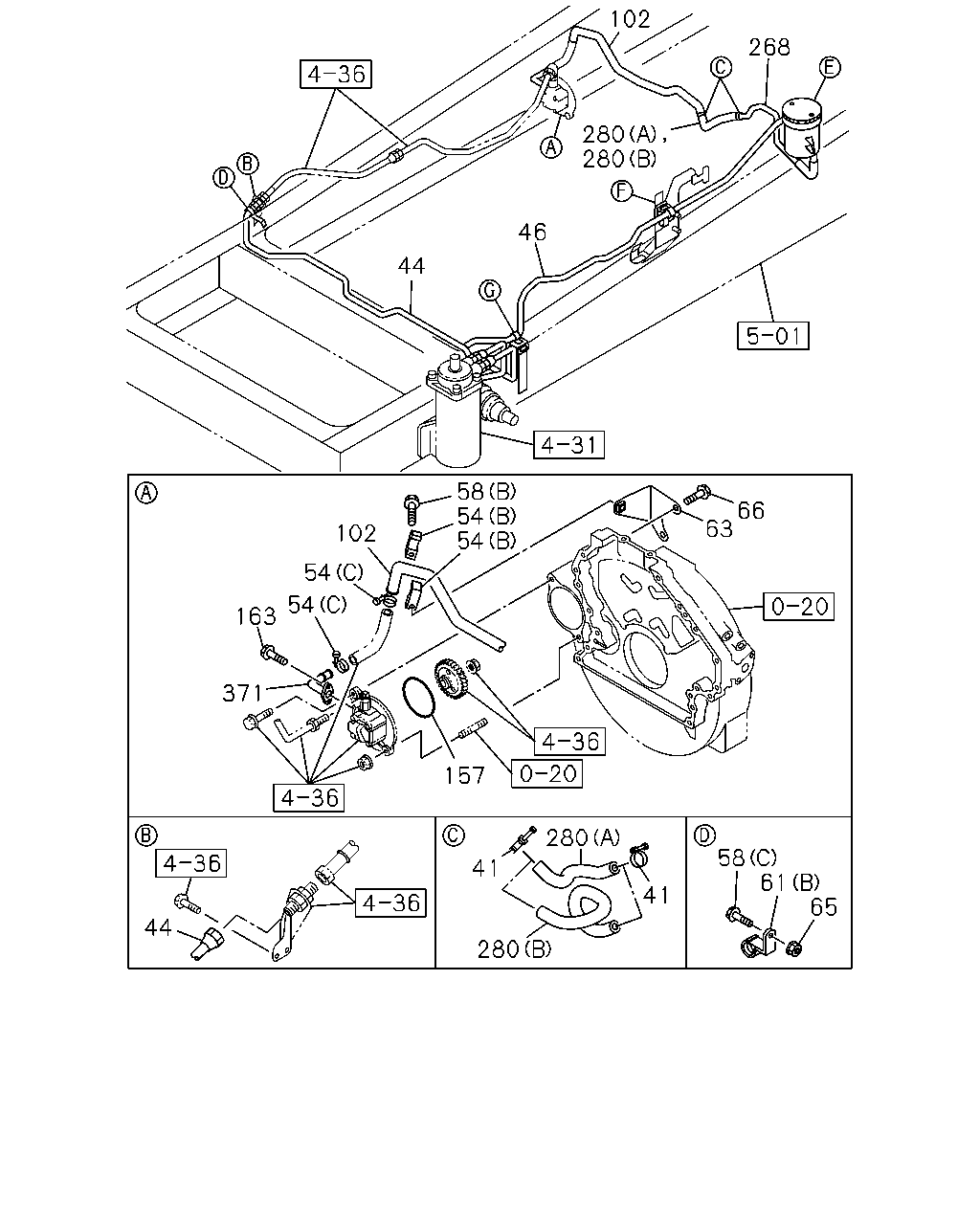

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#68956) — 60 parça

102 268 280 280 46 44 58 54 54 66 63 102 54 54 163 371 157 58 61 65 280 41 41 44 280

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0812-
44	PIPE; OIL,P/S UNIT TO NIPPLE	8-98124-806-0	01	1	0812-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1974	8-98128-709-0	01	1	0812-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	0812-1006
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1007-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0812-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	0812-
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	0812-1006
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	1007-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0812-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0812-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	0812-
63	BRACKET; CLIP,P/S	8-97375-107-0	01	1	0812-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0812-
66	BOLT; BRKT,OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0812-
102	PIPE; SUCTION,P/S	8-98080-186-2	01	1	0812-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	0812-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	0812-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-737-1	01	1	0812-1003
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98165-444-0	01	1	1004-
280	HOSE; P/S OIL PUMP,INL (A)	8-98053-039-1	01	1	0812-1003
280	HOSE; P/S OIL PUMP,INL (B)	8-98165-266-1	01	1	1004-
371	PIPE; OIL,INLET	8-98072-089-1	01	1	0812-

2 67 3 58 1 79 65 5 19 61 59 12 37 46 19 31 37 15 54 1 268 284 26 25 264 37 34 37 54 284 65 59 153 61 65 153 61 65 65 67 79

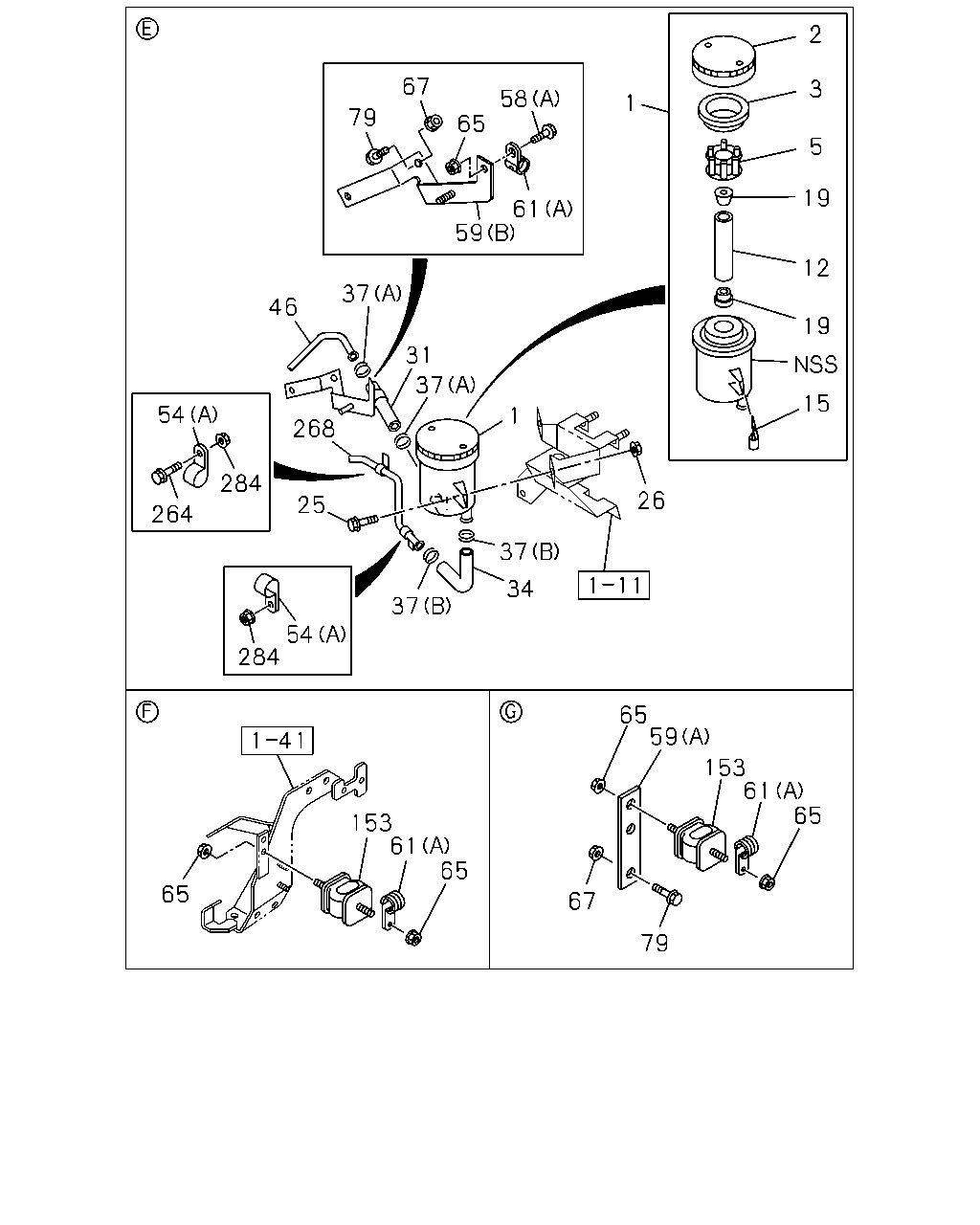

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-238-1	01	1	0812-1006
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0812-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0812-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0812-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	0812-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	0812-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0812-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	0812-
31	HOSE; P/S OIL TANK,INL	0-09814-080-0	01	1	0812-
34	HOSE; P/S OIL TANK,OUTLET	8-98021-827-0	01	1	0812-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	0812-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	0812-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=1974	8-98128-709-0	01	1	0812-
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	02	1	0812-1006
54	CLIP; OIL PIPE (B) ID=17 L=17	1-09701-284-0	04	1	1007-
54	CLIP; OIL PIPE (C) ID=32	1-09704-085-0	02	1	0812-
54	CLIP; OIL PIPE (A) ID=19 L=20	0-95235-836-0	02	1	0812-
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	01	1	0812-1006
58	BOLT; CLIP (B) M8X45 FLANGE	0-28050-845-0	02	1	1007-
58	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	0812-
58	BOLT; CLIP (C) M8X25 FLANGE	0-28650-825-0	01	1	0812-
59	BRACKET; CLIP,OIL PIPE (A) L=105	1-47477-409-0	01	1	0812-
59	BRACKET; CLIP,OIL PIPE (B)	8-98064-809-1	01	1	0812-
61	CLIP; OIL PIPE (A) ID=16 L=20	0-95235-536-0	03	1	0812-
61	CLIP; OIL PIPE (B) ID=13 H=18 L=20	1-09700-813-0	01	1	0812-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	0812-
67	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0812-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0812-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	02	1	0812-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	0812-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98077-737-1	01	1	0812-1003
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98165-444-0	01	1	1004-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	02	1	0812-
