Isuzu WW
▶
TRUCKS
▶
FSS
▶
11146 - FSS(LHD)
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-16 - FREE WHEEL HUB
▶

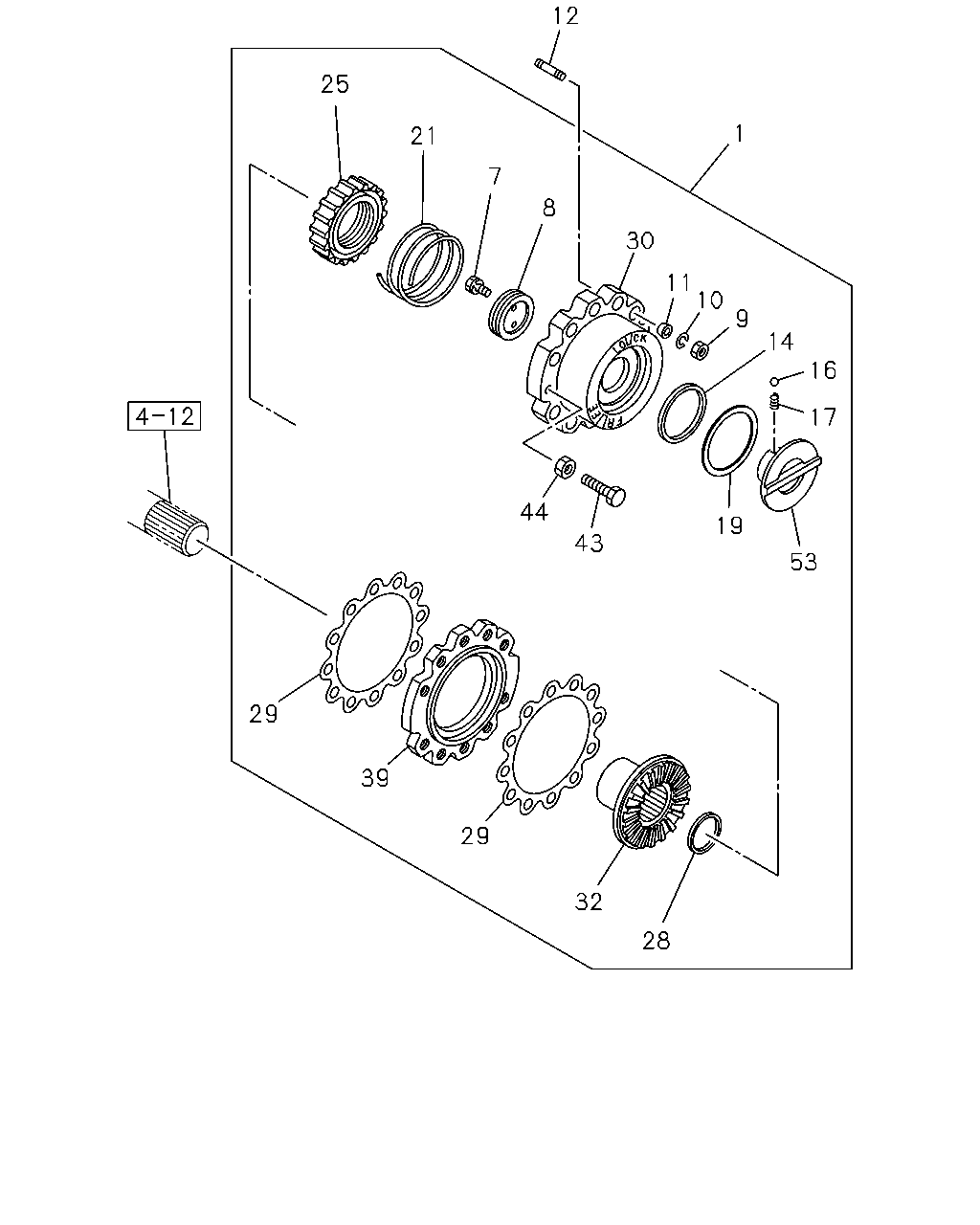

4-16 — FREE WHEEL HUB
(#68950) — 22 parça
12
25
1
21
7
8
30
11
10
9
14
16
17
44
19
43
53
29
39
29
32
28
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HUB ASM; FREE WHEEL
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42310-166-0
02
1
0812-
7
BOLT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M8X20 W/LK WASHER
0-50040-820-0
04
1
0812-0906
7
BOLT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M8X20 W/LK WASHER
0-50540-820-0
04
1
0907-
8
HUB; SCREW,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42319-011-0
02
1
0812-
9
NUT; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M12
0-91110-512-0
20
1
0812-
10
WASHER; LK,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12) ID=12.2
0-91510-612-0
20
1
0812-
11
COLLAR; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
9-42179-016-0
20
1
0812-
12
STUD; FRT HUB
LOCKING HUB FRT WHEEL DRIVE(W12) M12X63 L=85
1-09302-008-0
20
1
0812-
14
SEAL; OIL,KNOB,HUB LOCK
LOCKING HUB FRT WHEEL DRIVE(W12)
9-09924-555-0
02
1
0812-
16
BALL; LOCK,HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
9-00097-509-0
02
1
0812-
17
SPRING; HUB LOCK
LOCKING HUB FRT WHEEL DRIVE(W12)
9-09941-249-0
02
1
0812-
19
WASHER; THRUST,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42319-012-0
02
1
0812-
21
SPRING; CLU GEAR
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42319-013-0
02
1
0812-
25
GEAR; CLU,OUTER,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42312-009-0
02
1
0812-
28
PIECE; DIST,SHAFT
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42319-014-0
02
1
0812-
29
GASKET; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
9-42175-011-0
04
1
0812-
30
HOUSING; FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42312-019-0
02
1
0812-
32
FLANGE; FACE CLU
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42312-018-0
02
1
0812-
39
PLATE; GUIDE,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42312-017-0
02
1
0812-
43
BOLT; HSG PULLER
LOCKING HUB FRT WHEEL DRIVE(W12) M12X30
0-20801-230-0
04
1
0812-
44
NUT; LK,HSG
LOCKING HUB FRT WHEEL DRIVE(W12) M12
0-91111-512-0
04
1
0812-
53
KNOB; HUB LOCK,FREE WHEEL HUB
LOCKING HUB FRT WHEEL DRIVE(W12)
1-42319-015-0
02
1
0812-
