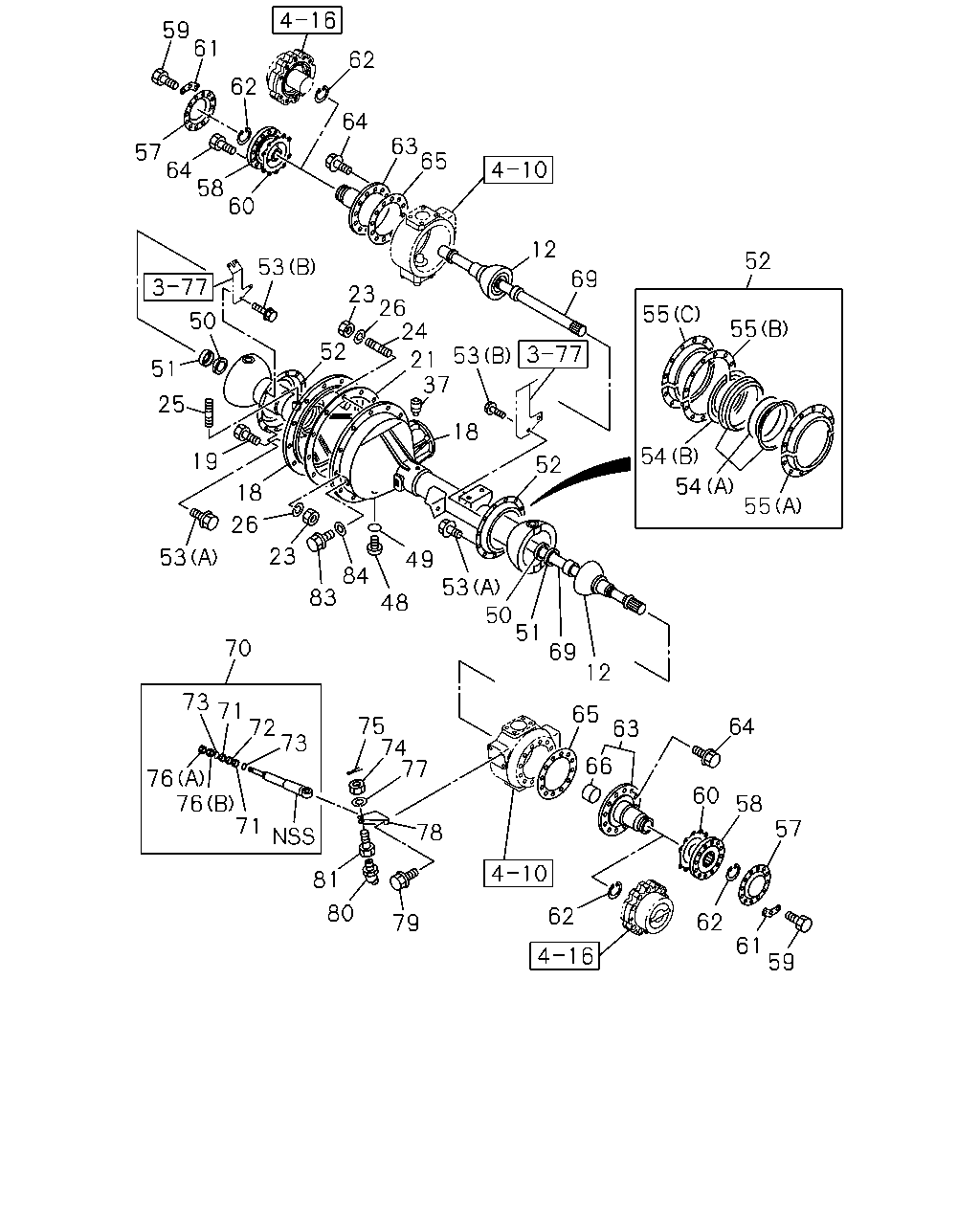

4-12 — FRONT DRIVE SHAFT (#68948) — 57 parça

59 61 62 62 64 63 65 57 64 58 60 12 52 53 69 23 26 24 21 37 55 50 55 52 53 51 25 18 54 19 52 54 18 55 26 23 53 49 53 50 51 84 83 48 70 69 12 73 71 72 73 65 75 74 77 64 63 66 76 76 71 60 58 57 78 81 80 62 62 79 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	JOINT ASM LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-012-0	02	1	0812-
12	JOINT ASM EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43330-018-0	02	1	0812-
18	CASE; FRT AXLE	1-43210-104-0	01	1	0812-
18	CASE; FRT AXLE	1-43210-107-1	01	1	0812-
19	BOLT; FRT AXLE M12X45	8-98036-382-0	12	1	0812-
21	GASKET; CASE,FRT AXLE	1-43213-002-0	01	1	0812-
23	NUT; FRT AXLE M12	0-91110-512-0	13	1	0812-
24	STUD; CASE,FRT AXLE M12X28 L=46	9-94411-228-0	01	1	0812-
25	STUD; AXLE CASE TO SPRING SEAT	8-98061-294-0	04	1	0812-1004
25	STUD; AXLE CASE TO SPRING SEAT	8-98169-740-0	04	1	1005-
26	WASHER; LK,CASE,FRT AXLE ID=12.2	0-91510-612-0	13	1	0812-
37	BREATHER; FRT AXLE CASE	9-36122-001-0	01	1	0812-
48	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	0812-
49	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	0812-
50	SEAL; OIL,SHAFT,FRT AXLE	1-09625-192-0	02	1	0812-
51	GUIDE; OIL,FRT AXLE	9-43339-003-0	02	1	0812-
52	SEAL; OIL,KNUCKLE	1-09625-004-0	02	1	0812-
53	BOLT; OIL SEAL (A) M8X12 FLANGE	0-28050-812-0	20	1	0812-
53	BOLT; OIL SEAL (B) M8X16 FLANGE	0-28050-816-0	04	1	0812-
54	GASKET; OIL SEAL (A)	1-09625-241-0	02	1	0812-
54	GASKET; OIL SEAL (B)	1-09625-242-0	02	1	0812-
55	RING; OIL SEAL (A)	1-09625-243-0	04	1	0812-
55	RING; OIL SEAL (B)	1-09625-244-0	04	1	0812-
55	RING; OIL SEAL (C)	1-09625-245-0	04	1	0812-
57	COVER; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	9-42313-116-0	02	1	0812-
58	FLANGE; AXLE SHAFT,FRT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42312-028-0	02	1	0812-
59	BOLT; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12) M12X45	9-09804-239-1	20	1	0812-
60	GASKET; FLANGE,FRT AXLE SHAFT EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-42175-001-0	02	1	0812-
61	PLATE; LK,FLANGE EXC. LOCKING HUB FRT WHEEL DRIVE(W12)	1-43319-005-0	08	1	0812-
62	RING; SNAP,AXLE SHAFT ID=38.5 T=2.00	9-09952-253-0	02	1	0812-
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-028-1	02	1	0812-0902
63	SPINDLE; KNUCKLE,FRT AXLE SHAFT	1-43241-061-0	02	1	0903-
64	BOLT; SPINDLE M12X30 FLANGE	0-28661-230-0	08	1	0812-0912
64	BOLT; SPINDLE M12X30 FLANGE	0-28061-230-0	08	1	1001-
64	BOLT; SPINDLE M12X50 FLANGE	0-29261-250-0	16	1	0812-0912
64	BOLT; SPINDLE M12X45 FLANGE	0-28061-245-0	16	1	1001-
65	GASKET; KNUCKLE TO SPINDLE	9-43254-005-0	02	1	0812-
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-008-0	02	1	0812-0902
66	BUSHING; SPINDLE,FRT AXLE SHAFT	1-43321-011-0	02	1	0903-
69	SHAFT; AXLE,FRT INNER	1-43311-061-0	01	1	0812-
69	SHAFT; AXLE,FRT INNER	1-43311-062-0	01	1	0812-
70	ABSORBER ASM; SHOCK,SHIMMY	1-51600-176-0	01	1	0812-
71	BUSHING; RUB,LWR,FRT S/ABS OD=25.4	9-51631-602-0	02	1	0812-
72	WASHER; CENTER,LWR,FRT S/ABS ID=15.0 OD=32	9-51631-049-0	01	1	0812-
73	WASHER; LWR,FRT S/ABS ID=10.5 OD=32	9-51631-048-0	02	1	0812-
74	NUT; S/ABS M12	0-91116-512-0	01	1	0812-
75	PIN; SPLIT,S/ABS OD=2.8 L=20	0-81123-020-0	01	1	0812-
76	NUT; LWR,FRT S/ABS (A) M10	9-09110-410-0	01	1	0812-
76	NUT; LWR,FRT S/ABS (B) M10	9-09111-410-0	01	1	0812-
77	WASHER; LK,S/ABS ID=12.2	0-91510-512-0	01	1	0812-
78	BRACKET; SHIMMY DAMPER	1-43219-017-0	01	1	0812-
79	BOLT; BRKT M12X16 FLANGE	0-28051-216-0	02	1	0812-
79	BOLT; BRKT M12X25 FLANGE	0-28051-225-0	02	1	0812-
80	NIPPLE; GREASE,BRKT PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	01	1	0812-
81	PIN; SHIMMY DAMPER	1-43219-018-0	01	1	0812-
83	PLUG; OIL FILLER M24X17 FLANGE	1-09604-022-0	01	1	0812-
84	GASKET; PLUG,OIL FILLER ID=26.8	9-09920-605-0	01	1	0812-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
