3-78 — FIXING PARTS; AIR PIPING
(#68944) — 21 parça
◀

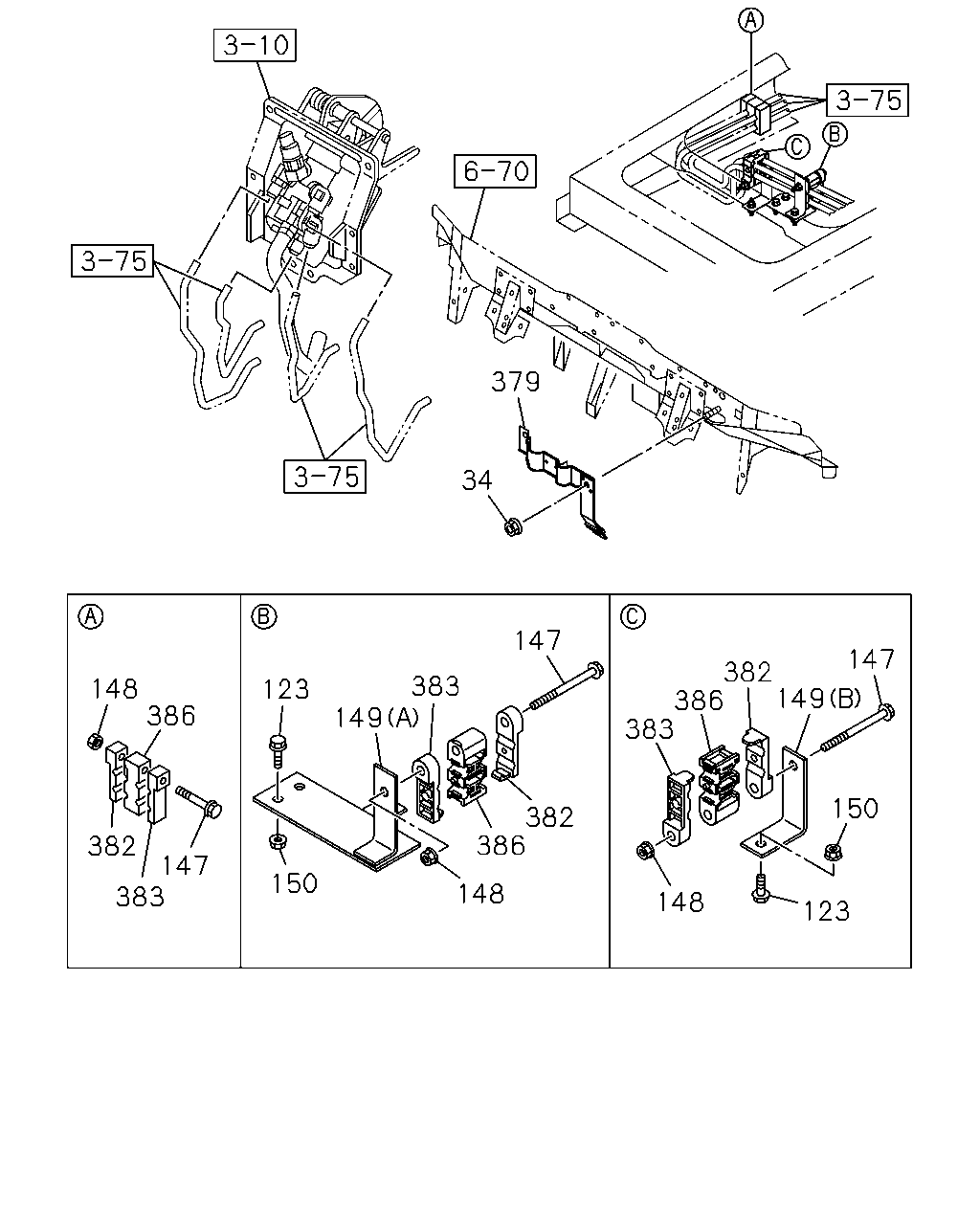

[378A] NO.1 (11 parça)
[378A] NO.2 (10 parça)
▶
379
34
147
147
382
386
149
383
383
148
386
123
149
150
382
386
382
147
383
150
148
148
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
34
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0812-
123
BOLT; PIPE CLIP
M8X20 FLANGE
0-28650-820-0
03
1
0812-
147
BOLT; PIPE CLIP
M8X70 FLANGE
0-28050-870-0
04
1
0812-
148
NUT; PIPE CLIP
M8 FLANGE
0-91180-108-0
04
1
0812-
149
BRACKET; PIPE CLIP
(A)
8-98090-114-0
01
1
0812-
149
BRACKET; PIPE CLIP
(B)
8-98116-193-0
01
1
0812-
150
NUT; CLIP BRKT
M8 FLANGE
0-91180-108-0
03
1
0812-
379
BRACKET; NYLON TUBE
8-98112-515-1
01
1
0812-
382
CLIP; UPR
ID=10 & 10
1-09709-241-0
04
1
0812-
383
CLIP; LWR
ID=10 & 10
1-09709-241-0
04
1
0812-
386
CLIP; CENTER
ID=10
1-09709-242-0
04
1
0812-
314
146
1
4
134
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
01
1
0812-
4
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
04
1
0906-
4
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
0812-
4
CLIP; AIR PIPE
ID=10 & 12
1-09709-278-1
01
1
0812-
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
06
1
0812-0812
4
CLIP; AIR PIPE
ID=6.35 & 10.0
1-09709-274-1
03
1
0812-
71
NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M10 FLANGE
0-91180-210-0
02
1
0812-
134
CLIP; AIR PIPE
L=350
1-09707-183-0
01
1
0812-
146
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
07
1
0812-
314
CLIP; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ>
8-98012-254-1
03
1
0812-
