3-70 — BRAKE PIPING; AIR,AIR MASTER (#68941) — 43 parça

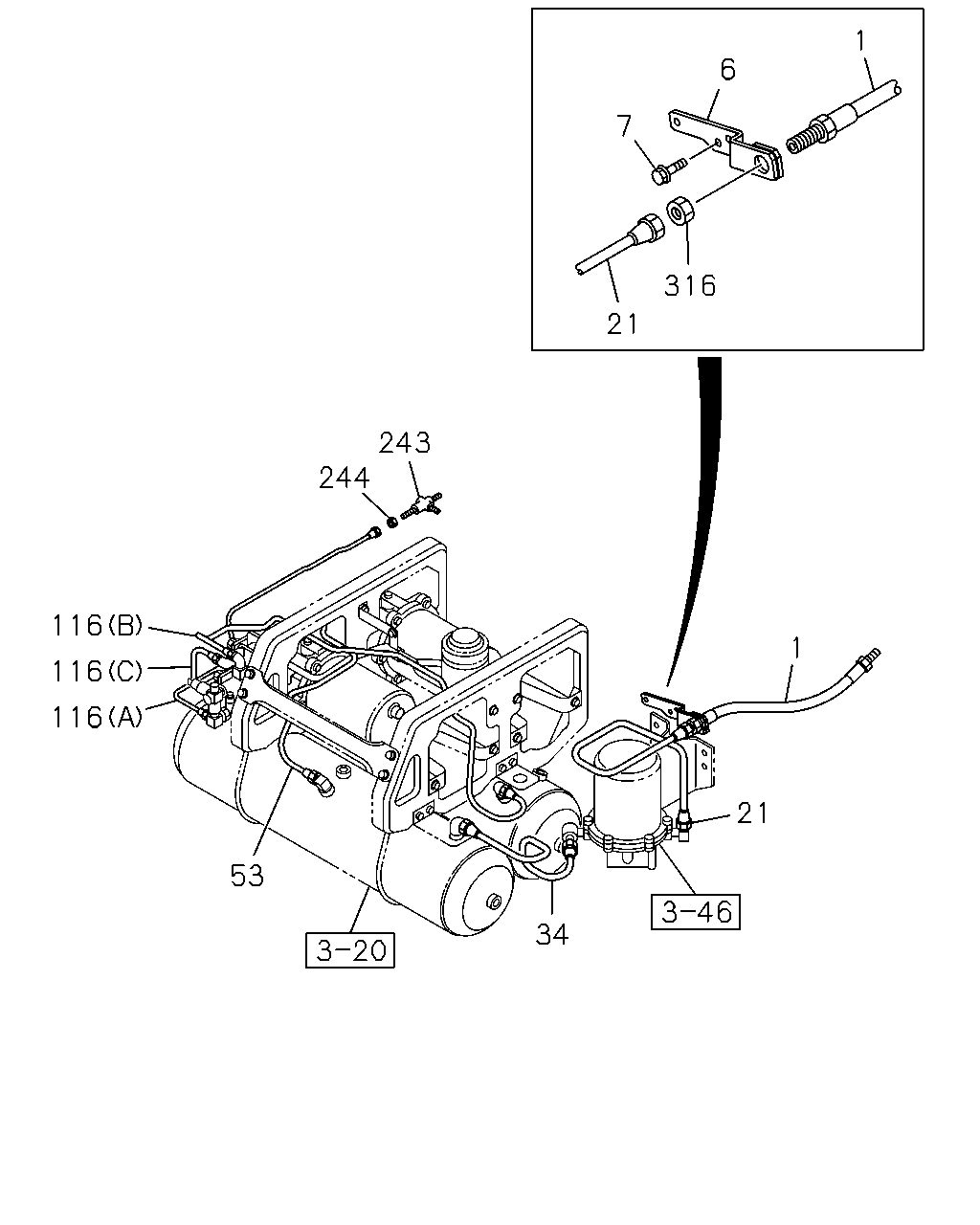

çizim 121320
1 6 7 316 21 243 244 116 1 116 116 21 53 34
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-913-0 01 1 0812-
6 BRACKET; FLEX HOSE,AIR TANK 8-98119-929-0 01 1 0812-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X25 FLANGE 		0-28650-825-0 02 1 0812-
21 PIPE; AIR,UNION TO AIR DRYER
L=824 		8-98083-265-0 01 1 0812-
34 PIPE; AIR
L=526 SERVICED BY L=550 		1-49115-478-0 01 1 0812-
53 PIPE; AIR,AIR TANK TO VALVE
L=732 		8-98108-559-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(C) 		8-98108-561-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(B) 		8-98108-563-0 01 1 0812-
116 PIPE; AIR,PROTECTION VLV
(A) L=759 SERVICED BY L=800 		1-47428-812-0 01 1 0812-
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0812-
244 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0812-
316 NUT; FLEX HOSE
M22 		0-91111-522-0 01 1 0812-

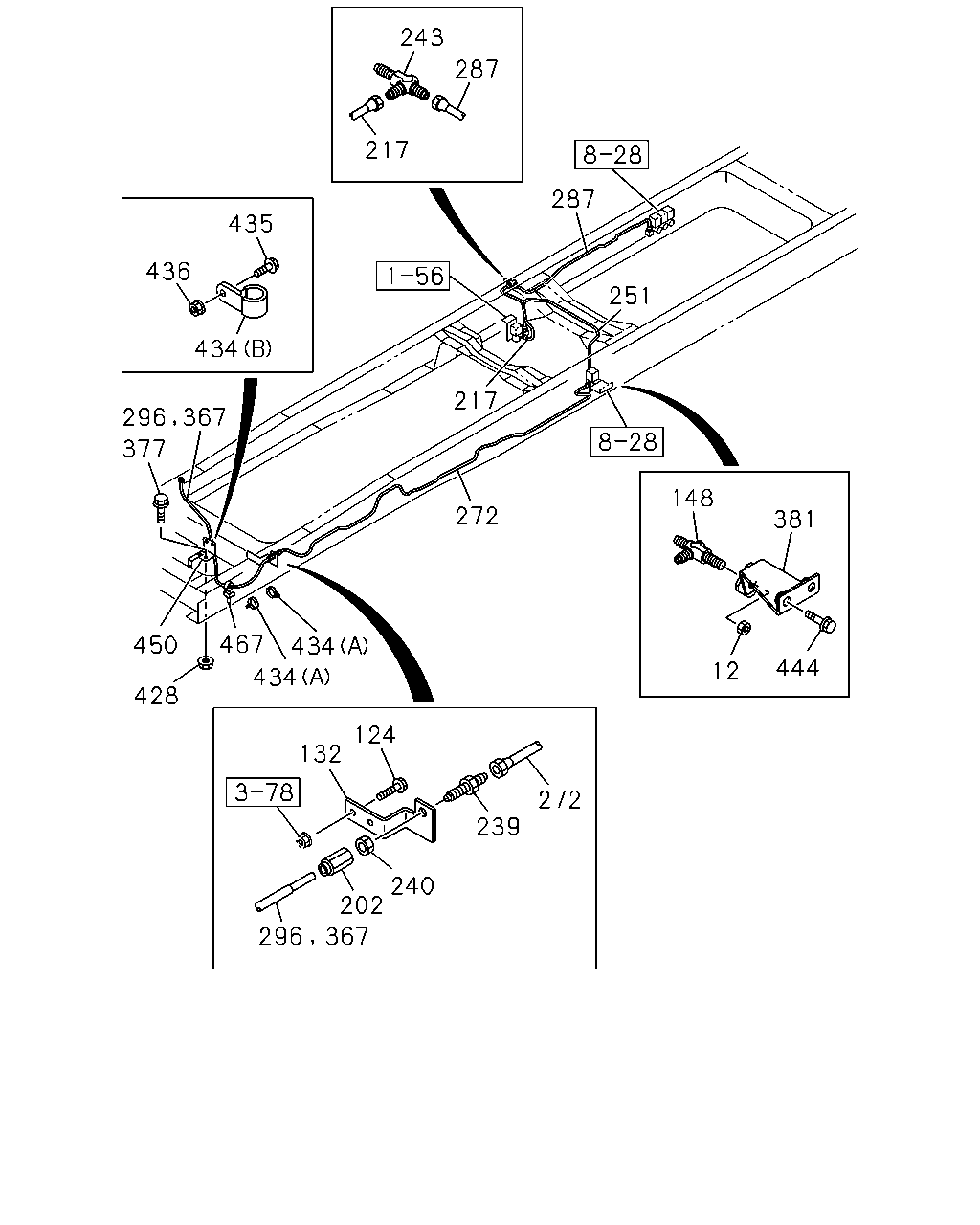

çizim 121630
243 287 217 287 435 436 251 434 217 377 148 272 381 467 450 434 444 12 434 428 124 132 272 239 240 202 296 367 296 367
BalonParca AdiParca NoAdetTipApplied Date
12 NUT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 		0-91111-512-0 01 1 0812-
124 BOLT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M10X25 FLANGE 		0-28651-025-0 02 1 0812-
132 BRACKET; PIPE UNION
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98122-875-0 01 1 0812-
148 CONNECTOR; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M12 2WAY 		1-09654-059-2 01 1 0812-
202 ADAPTER
EXC. RIGID SEAT WO/ARM REST<TAZ> DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0812-
217 PIPE; VAC,UNION TO MAG VLV
L=419 		8-98111-790-0 01 1 0812-
239 UNION; AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 L=56.5 		0-92113-106-0 01 1 0812-
240 NUT; UNION,AIR PIPE
EXC. RIGID SEAT WO/ARM REST<TAZ> M12 		9-09840-280-0 01 1 0812-
243 UNION; AIR PIPE
M12 3WAY 		0-92138-906-0 01 1 0812-
251 PIPE; AIR,UNION TO MAG VLV
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98111-616-0 01 1 0812-
251 PIPE; AIR,UNION TO MAG VLV
PTO CONTROL<SV6> 		8-98111-616-0 01 1 0812-
272 PIPE; AIR,MAG VLV TO UNION
PTO CONTROL<SV6> EXC. RIGID SEAT WO/ARM REST<TAZ> L=2407 		8-98132-312-0 01 1 0812-
272 PIPE; AIR,MAG VLV TO UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> L=2473 		8-98132-313-0 01 1 0812-
287 PIPE; AIR,MAG VLV
L=1069 SERVICED BY L=1100 		1-47428-815-0 01 1 0812-0812
287 PIPE; AIR,MAG VLV
L=1063 		8-98138-240-1 01 1 0812-
296 TUBE; NYLON
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 OD=6 		1-87411-001-0 01 1 0812-
367 TUBE; CORRUGATE
EXC. RIGID SEAT WO/ARM REST<TAZ> SERVICED BY L=2000 ID=7 		1-87411-016-0 01 1 0812-
377 BOLT; BRKT FIX
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X25 FLANGE 		0-28650-825-0 02 1 0812-
381 BRACKET
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> 		8-98131-569-0 01 1 0812-
428 NUT; BRKT
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 02 1 0812-0905
434 CLIP
(A) L=600 		1-09707-107-1 01 1 0906-
434 CLIP
(A) L=250 		5-09707-030-1 02 1 0906-
434 CLIP
(A) L=140 		5-09707-031-1 02 1 0906-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (B) ID=7 L=20 		0-95234-635-0 01 1 0812-
434 CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> (A) L=350 		1-09707-183-0 02 1 0812-
435 BOLT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8X20 FLANGE 		0-28650-820-0 01 1 0812-
436 NUT; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE 		0-91180-108-0 01 1 0812-
444 BOLT; UNION
EXC. PTO CONTROL<SV6>,RIGID SEAT WO/ARM REST<TAZ> M10X30 FLANGE 		0-28651-030-0 02 1 0812-
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98070-479-0 01 1 0812-1107
450 BRACKET; CLIP
EXC. RIGID SEAT WO/ARM REST<TAZ> 		8-98180-947-0 01 1 1108-
467 CLIP; NYLON TUBE
EXC. RIGID SEAT WO/ARM REST<TAZ> L=350 		1-09707-183-0 01 1 0812-
