Isuzu WW
▶
TRUCKS
▶
FSS
▶
11146 - FSS(LHD)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-75 - TRANSFER CONTROL
▶

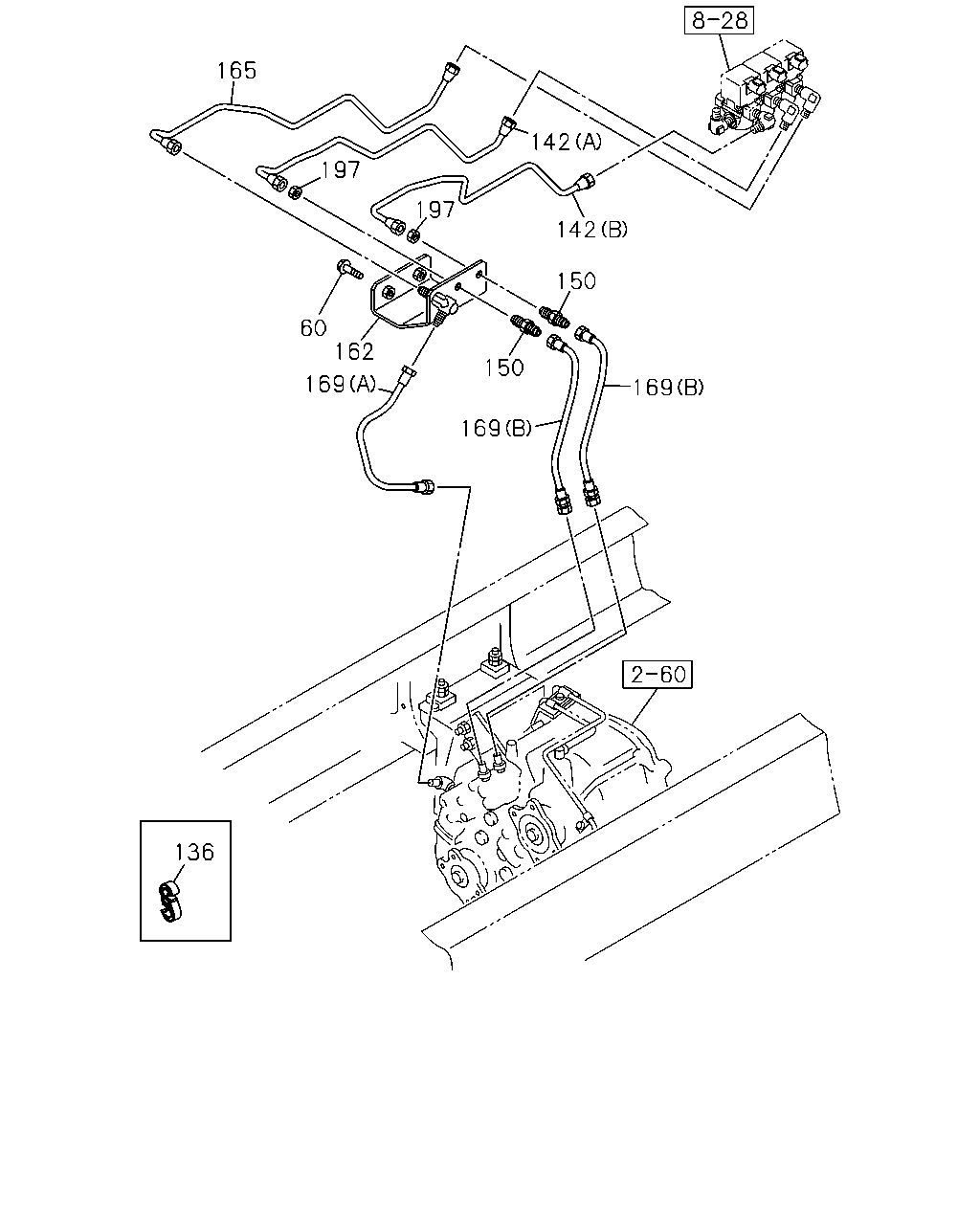

2-75 — TRANSFER CONTROL
(#68924) — 14 parça
165
142
197
197
142
150
60
162
150
169
169
169
136
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
60
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
02
1
0812-
136
CLIP; AIR PIPE
ID=6.35 & 6.35
1-09709-273-1
02
1
0812-
136
CLIP; AIR PIPE
ID=10 & 10
1-09709-277-1
02
1
0812-
142
PIPE; AIR,FLEX HOSE TO TRANSFER
(A) L=668 SERVICED BY L=700
1-47428-811-0
01
1
0812-
142
PIPE; AIR,FLEX HOSE TO TRANSFER
(B) L=552 SERVICED BY L=600
1-47428-809-0
01
1
0812-
150
UNION; AIR PIPE
M12 L=56.5
0-92113-106-0
02
1
0812-
162
BRACKET; FLEX HOSE,TRANSFER
8-98132-421-0
01
1
0812-
165
PIPE; AIR,MAG VLV TO FLEX HOSE
L=769 SERVICED BY L=800
1-47428-812-0
01
1
0812-
169
HOSE; FLEX,TRANSFER CONT
(B) L=340
1-09363-622-0
02
1
0812-0812
169
HOSE; FLEX,TRANSFER CONT
(B) L=290
1-09363-875-0
02
1
0812-
169
HOSE; FLEX,TRANSFER CONT
(A) L=490
1-09363-632-0
01
1
0812-0812
169
HOSE; FLEX,TRANSFER CONT
(A) L=380
1-09363-919-0
01
1
0812-
197
NUT; UNION
M12
9-09840-280-0
03
1
0812-0812
197
NUT; UNION
M12
9-09840-280-0
02
1
0812-
