◀ 🏠 ▶ Isuzu WW ▶ COMPO ▶ LR ▶ 11211 - LR COMPOPARTS TURKEY ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#68916) — 25 parça

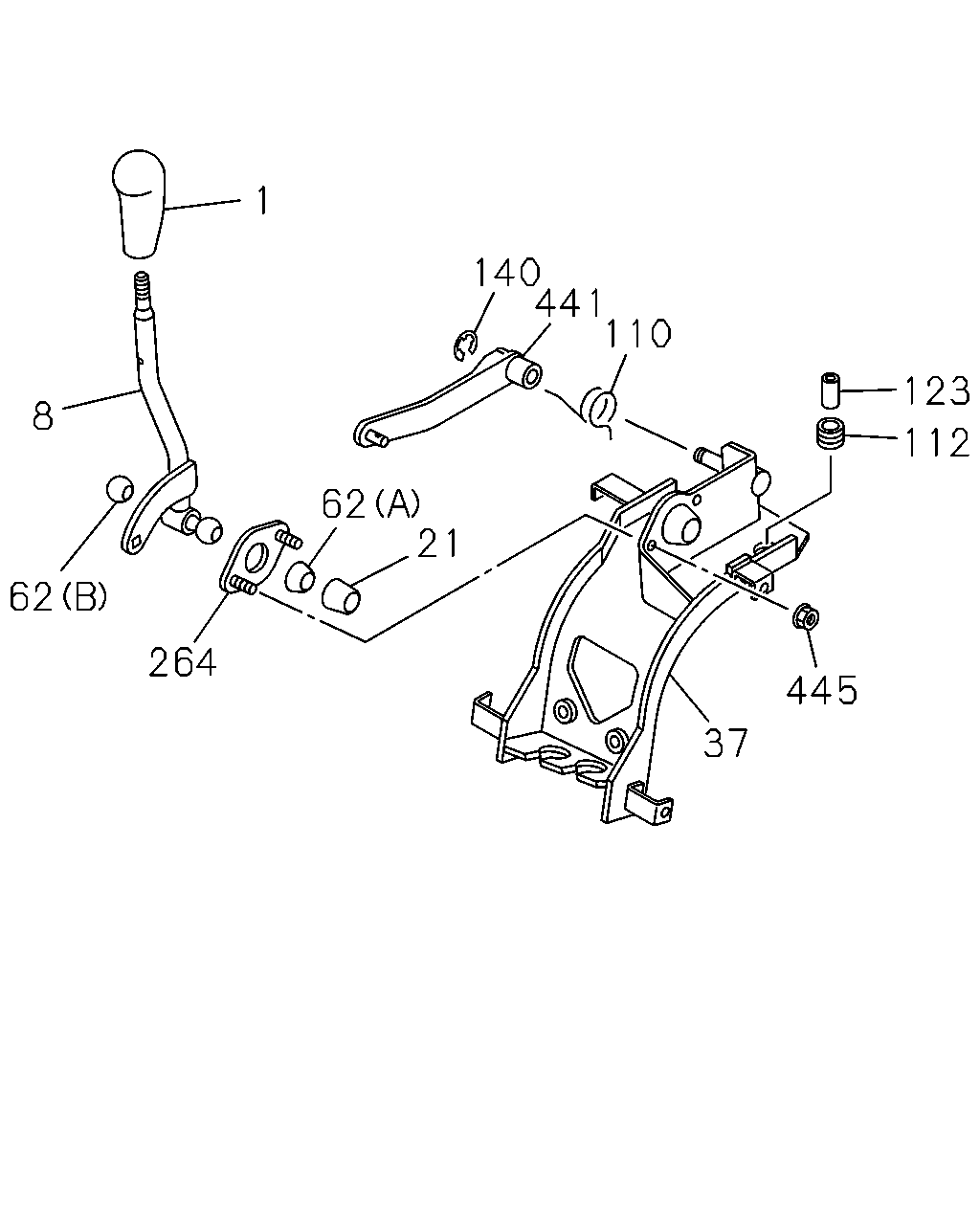

çizim 113784
1 140 441 110 123 8 112 62 21 62 264 445 37
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER 1-33611-070-1 01 1 0908-
8 LEVER; CHANGE 8-98093-452-0 01 1 0908-1009
8 LEVER; CHANGE
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-98093-452-0 01 1 1010-
21 SEAT; CHANGE LEVER 1-33619-429-0 01 1 0908-1009
21 SEAT; CHANGE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-33619-429-0 01 1 1010-
37 BRACKET; CHANGE LEVER SUPPORT 8-98093-441-0 01 1 0908-1009
37 BRACKET; CHANGE LEVER SUPPORT
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-98093-441-0 01 1 1010-
62 SEAT; BALL,CHANGE LEVER
(A) 		1-33619-427-0 01 1 0908-1009
62 SEAT; BALL,CHANGE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> (A) 		1-33619-427-0 01 1 1010-
62 SEAT; BALL,CHANGE LEVER
(B) 		8-97049-147-0 01 1 0908-1009
62 SEAT; BALL,CHANGE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> (B) 		8-97049-147-0 01 1 1010-
110 SPRING; RETURN,CHANGE LEVER 1-33619-586-0 01 1 0908-1009
110 SPRING; RETURN,CHANGE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-33619-586-0 01 1 1010-
112 RUBBER; CUSHION 1-33619-442-0 04 1 0908-1009
112 RUBBER; CUSHION
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-33619-442-0 04 1 1010-
123 COLLAR; DIST,CHANGE LEVER 1-33619-443-0 04 1 0908-1009
123 COLLAR; DIST,CHANGE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-33619-443-0 04 1 1010-
140 RING; SNAP
ID=10 		0-91805-510-0 01 1 0908-1009
140 RING; SNAP
EXC. AUTOMATIC TRANSMISSION<MX1> ID=10 		0-91805-510-0 01 1 1010-
264 PLATE; COVER 1-33619-430-0 01 1 0908-1009
264 PLATE; COVER
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-33619-430-0 01 1 1010-
441 LEVER; SELECT 8-98071-283-0 01 1 0908-1009
441 LEVER; SELECT
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-98071-283-0 01 1 1010-
445 NUT; PLATE
M6 FLANGE 		0-91180-106-0 02 1 0908-1009
445 NUT; PLATE
EXC. AUTOMATIC TRANSMISSION<MX1> M6 FLANGE 		0-91180-106-0 02 1 1010-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
