2-08 — CLUTCH MASTER CYLINDER (#68910) — 20 parça

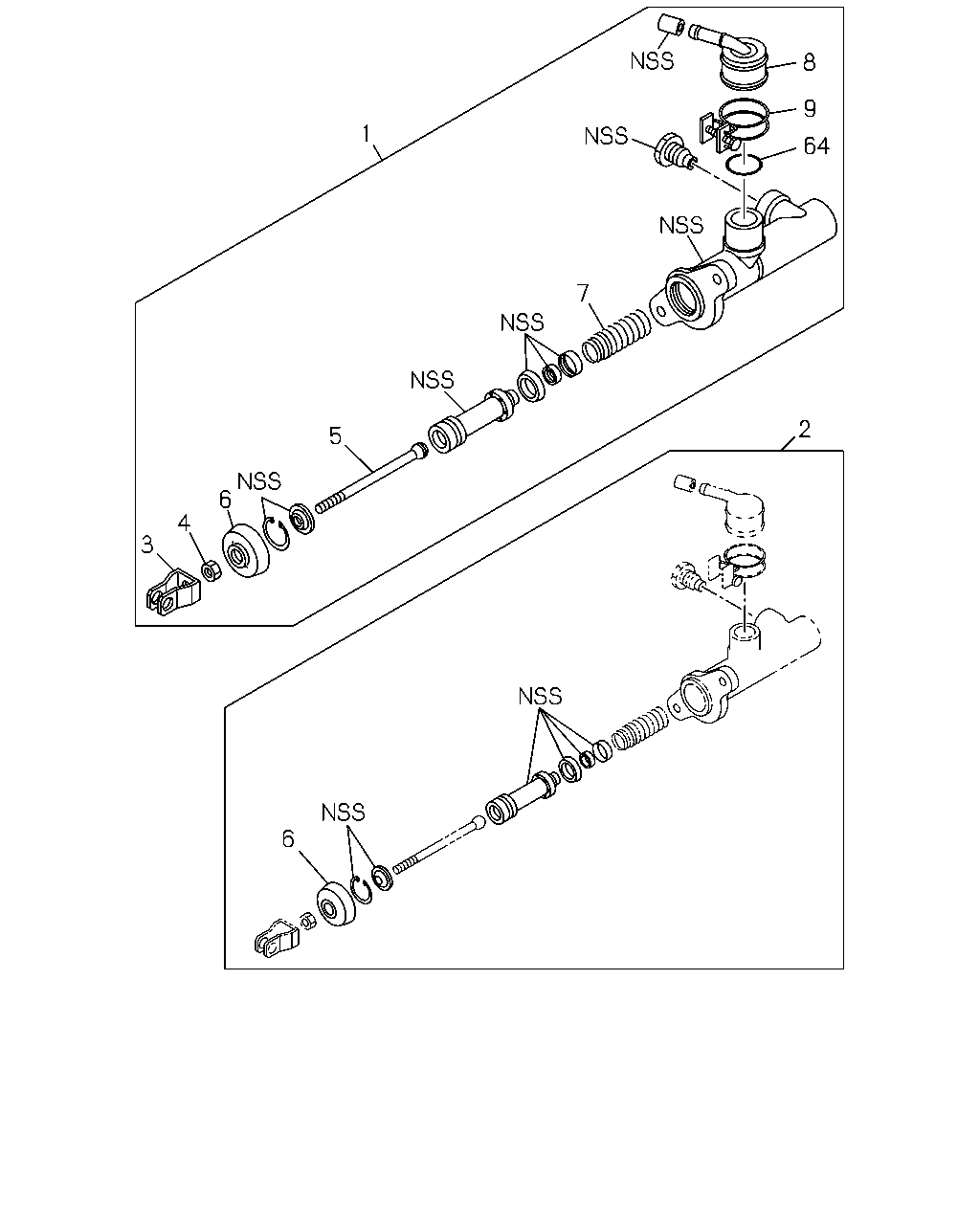

çizim 102741
8 9 1 64 7 2 5 6 4 3 6
BalonParca AdiParca NoAdetTipApplied Date
1 CYLINDER ASM; CLUTCH MASTER 8-98117-642-0 01 1 0908-1009
1 CYLINDER ASM; CLUTCH MASTER
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-98117-642-0 01 1 1010-
2 REPAIR KIT; CLU M/CYL 5-87832-226-0 01 1 0908-1009
2 REPAIR KIT; CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		5-87832-226-0 01 1 1010-
3 JOINT; JAW,CLU M/CYL 8-97167-770-0 01 1 0908-1009
3 JOINT; JAW,CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-97167-770-0 01 1 1010-
4 NUT; JAW JOINT
M8 		0-91111-508-0 01 1 0908-1009
4 NUT; JAW JOINT
EXC. AUTOMATIC TRANSMISSION<MX1> M8 		0-91111-508-0 01 1 1010-
5 ROD; PUSH,CLU M/CYL 8-97167-768-0 01 1 0908-1009
5 ROD; PUSH,CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-97167-768-0 01 1 1010-
6 BOOT; CLU M/CYL 8-94412-200-0 01 1 0908-1009
6 BOOT; CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-94412-200-0 01 1 1010-
7 SPRING ASM; CLU M/CYL 8-97167-780-0 01 1 0908-1009
7 SPRING ASM; CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-97167-780-0 01 1 1010-
8 CONNECTOR; PIPE,CLU M/CYL 8-97167-766-0 01 1 0908-1009
8 CONNECTOR; PIPE,CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-97167-766-0 01 1 1010-
9 CLAMP; PIPE CONNECTOR,CLU M/CYL 8-97167-773-0 01 1 0908-1009
9 CLAMP; PIPE CONNECTOR,CLU M/CYL
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-97167-773-0 01 1 1010-
64 GASKET; CONNECTOR 8-97167-767-0 01 1 0908-1009
64 GASKET; CONNECTOR
EXC. AUTOMATIC TRANSMISSION<MX1> 		8-97167-767-0 01 1 1010-
