2-01 — CLUTCH (#68907) — 63 parça

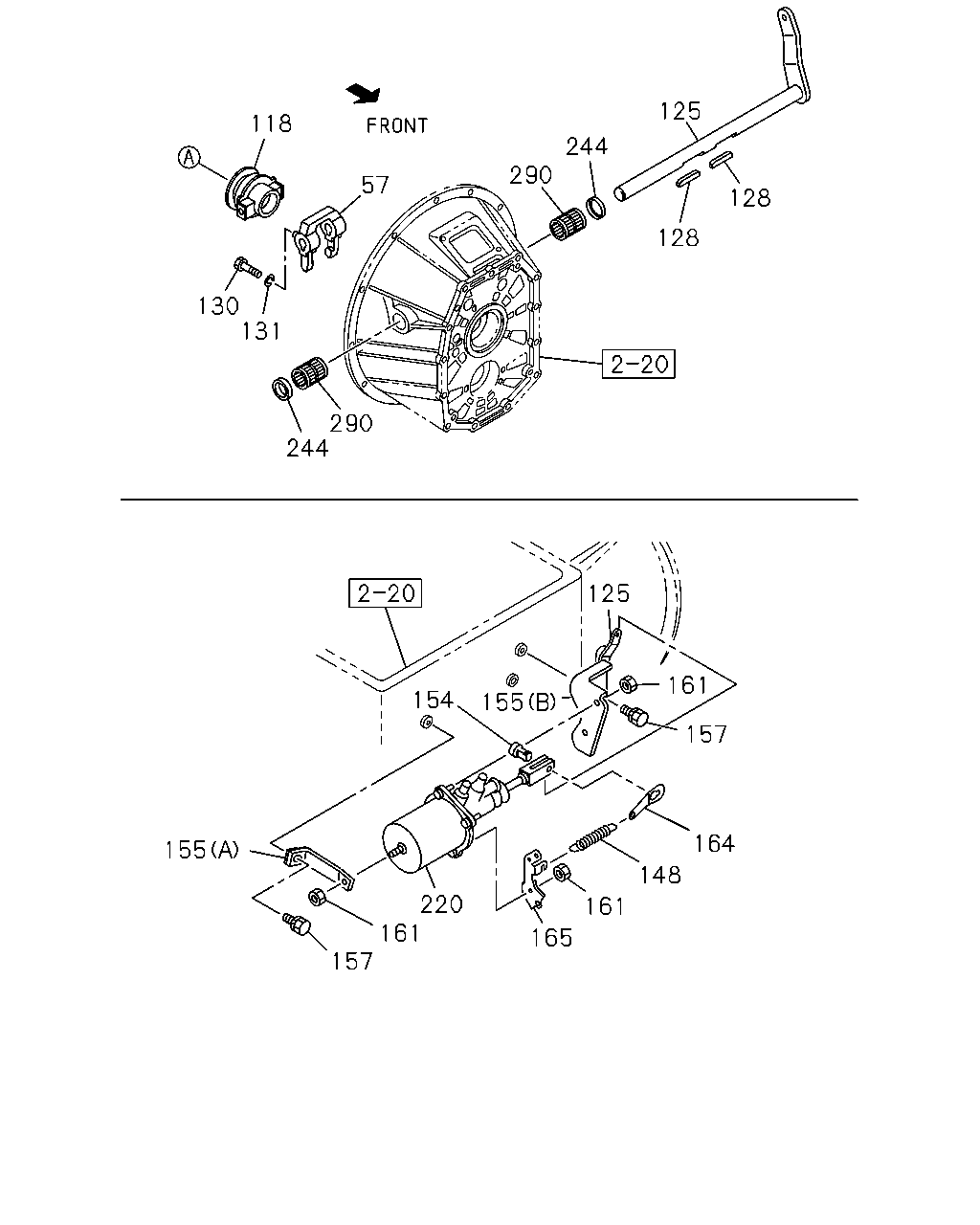

çizim 97760
125 118 244 290 57 128 128 130 131 290 244 125 161 155 154 157 164 155 148 220 161 157 161 165
BalonParca AdiParca NoAdetTipApplied Date
57 FORK; SHIFT,CLU 1-31341-048-2 01 1 0908-
118 BEARING; CLU RELEASE 1-31310-026-0 01 1 0908-
125 SHAFT; CLU 1-31342-335-0 01 1 0908-
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0908-
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0908-
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0908-
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0908-
154 PIN; JAW JOINT 1-31424-009-0 01 1 0908-
155 BRACKET; MINIPACK
(A) 		1-31429-474-1 01 1 0908-
155 BRACKET; MINIPACK
(B) 		1-31429-477-0 01 1 0908-
157 BOLT; BRKT
M10X25 FLANGE 		0-28751-025-0 03 1 0908-
161 NUT; BRKT
M8 FLANGE 		0-91180-208-0 05 1 0908-
164 EYE; SPRING 1-31426-041-0 01 1 0908-
165 BRACKET; SPR EYE,MINIPACK,FLEX TUBE 1-47477-789-0 01 1 0908-
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-510-2 01 1 0908-
244 SEAL; DUST
ALSO INCLUDED IN GASKET SET(M/T). 		1-09625-002-0 02 1 0908-
290 BEARING; NEEDLE
NTN 		1-09811-002-1 02 1 0908-

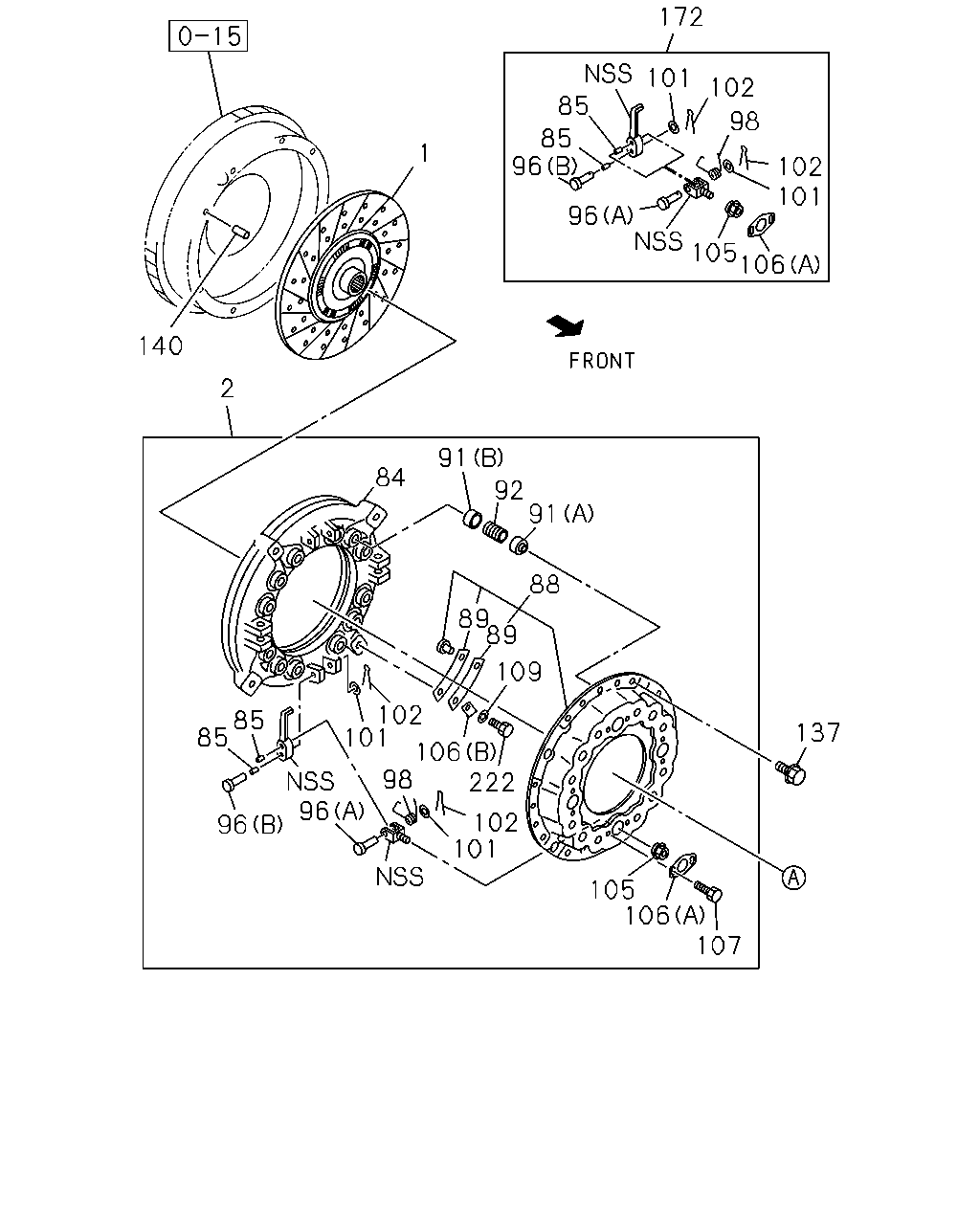

çizim 188390
172 101 102 85 98 85 96 1 102 101 96 105 106 140 2 91 84 92 91 88 89 89 109 102 101 85 85 137 106 98 222 96 102 101 96 105 106 107
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLUTCH
14" 		1-31240-971-0 01 1 0908-1009
1 DISC; CLUTCH
EXC. AUTOMATIC TRANSMISSION<MX1> 14" 		1-31240-971-1 01 1 1010-1401
1 DISC; CLUTCH
EXC. AUTOMATIC TRANSMISSION<MX1> 14" 		1-31260-040-1 01 1 1402-
2 PLATE ASM; PRESSURE,CLU 1-31220-411-0 01 1 0908-1009
2 PLATE ASM; PRESSURE,CLU
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31220-411-0 01 1 1010-
84 PLATE; PRESSURE
14" 		1-31221-136-0 01 1 0908-1009
84 PLATE; PRESSURE
EXC. AUTOMATIC TRANSMISSION<MX1> 14" 		1-31221-136-0 01 1 1010-
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0908-1009
85 BUSHING; RELEASE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> 		9-31239-116-0 08 1 1010-
88 COVER SUB ASM; CLU 1-31211-038-0 01 1 0908-1009
88 COVER SUB ASM; CLU
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31211-038-0 01 1 1010-
89 PLATE; STRAP 1-31229-001-0 08 1 0908-1009
89 PLATE; STRAP
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31229-001-0 08 1 1010-
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 08 1 0908-1009
91 SEAT; SPR
EXC. AUTOMATIC TRANSMISSION<MX1> (A) ID=37 H=25 		1-31219-012-0 08 1 1010-
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 08 1 0908-1009
91 SEAT; SPR
EXC. AUTOMATIC TRANSMISSION<MX1> (B) ID=37 H=15 		1-31219-013-0 08 1 1010-
92 SPRING; CLU 1-31214-095-0 08 1 0908-1009
92 SPRING; CLU
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31214-095-0 08 1 1010-
96 PIN; RELEASE LEVER
(A) L=49.0 		1-31232-005-0 04 1 0908-1009
96 PIN; RELEASE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> (A) L=49.0 		1-31232-005-0 04 1 1010-
96 PIN; RELEASE LEVER
(B) L=57.0 		1-31232-014-0 04 1 0908-1009
96 PIN; RELEASE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> (B) L=57.0 		1-31232-014-0 04 1 1010-
98 SPRING; RETURN 1-31233-003-0 04 1 0908-1009
98 SPRING; RETURN
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31233-003-0 04 1 1010-
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0908-1009
101 WASHER; RELEASE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31239-058-0 08 1 1010-
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 0908-1009
102 PIN; SPLIT,RELEASE LEVER
EXC. AUTOMATIC TRANSMISSION<MX1> OD=2.7 L=22 		9-08113-022-0 08 1 1010-
105 NUT; SUPPORT 1-31235-014-0 04 1 0908-1009
105 NUT; SUPPORT
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31235-014-0 04 1 1010-
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 04 1 0908-1009
106 PLATE; LK,LEVER SUPPORT
EXC. AUTOMATIC TRANSMISSION<MX1> (B) 		1-31235-008-0 04 1 1010-
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0908-1009
106 PLATE; LK,LEVER SUPPORT
EXC. AUTOMATIC TRANSMISSION<MX1> (A) 		1-31239-019-0 04 1 1010-
107 BOLT; LK PLATE 1-31239-061-0 08 1 0908-1009
107 BOLT; LK PLATE
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31239-061-0 08 1 1010-
109 WASHER; LK,STRAP
ID=10.2 		0-91510-510-0 04 1 0908-1009
109 WASHER; LK,STRAP
EXC. AUTOMATIC TRANSMISSION<MX1> ID=10.2 		0-91510-510-0 04 1 1010-
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0908-1009
137 BOLT; CLU COVER
EXC. AUTOMATIC TRANSMISSION<MX1> M10X20 FLANGE 		0-28151-020-0 12 1 1010-
140 PIN; STRAIGHT
L=25 		8-94410-361-0 02 1 0908-
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0908-1009
172 LEVER KIT; RELEASE,CLU
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-87831-170-1 01 1 1010-
222 BOLT; STRAP 1-31239-059-0 04 1 0908-1009
222 BOLT; STRAP
EXC. AUTOMATIC TRANSMISSION<MX1> 		1-31239-059-0 04 1 1010-
