1-50 — EXHAUST PIPE AND SILENCER (#68904) — 105 parça

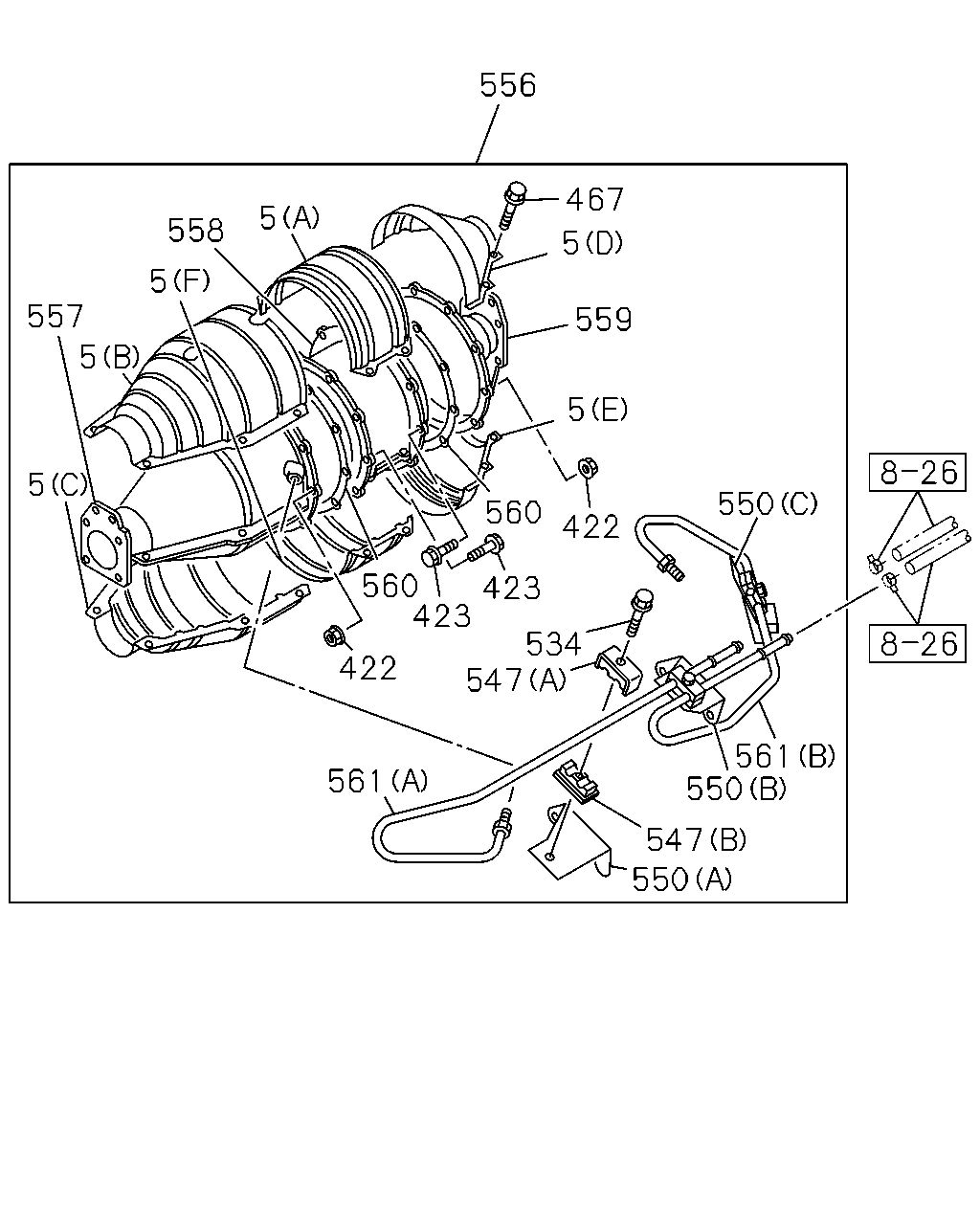

556 467 5 558 5 5 557 559 5 5 5 550 560 422 560 423 423 534 547 422 561 550 561 547 550

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	PROTECTOR; HEAT (A)	8-97605-172-0	01	1	0908-1006
5	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97605-172-0	01	1	1007-
5	PROTECTOR; HEAT (B)	8-97611-086-0	01	1	0908-1006
5	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97611-086-0	01	1	1007-
5	PROTECTOR; HEAT (C)	8-97611-087-0	01	1	0908-1006
5	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-97611-087-0	01	1	1007-
5	PROTECTOR; HEAT (D)	8-97611-088-0	01	1	0908-1006
5	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D)	8-97611-088-0	01	1	1007-
5	PROTECTOR; HEAT (E)	8-97611-089-0	01	1	0908-1006
5	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (E)	8-97611-089-0	01	1	1007-
5	PROTECTOR; HEAT (F)	8-97613-390-0	01	1	0908-1006
5	PROTECTOR; HEAT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (F)	8-97613-390-0	01	1	1007-
422	NUT; PIPE M8 FLANGE	0-91180-108-0	20	1	0908-1006
422	NUT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	20	1	1007-
423	BOLT; PIPE M8X35 FLANGE	0-28650-835-0	20	1	0908-1006
423	BOLT; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X35 FLANGE	0-28650-835-0	20	1	1007-
467	BOLT; PROTECTOR M6X16	8-98019-179-0	14	1	0908-1006
467	BOLT; PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X16	8-98019-179-0	14	1	1007-
534	BOLT; CLIP M6X35 FLANGE	0-28650-635-0	03	1	0908-1006
534	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M6X35 FLANGE	0-28650-635-0	03	1	1007-
547	CLIP; PIPE (A)	8-97381-635-0	03	1	0908-1006
547	CLIP; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97381-635-0	03	1	1007-
547	CLIP; PIPE (B)	8-97381-636-0	03	1	0908-1006
547	CLIP; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97381-636-0	03	1	1007-
550	BRACKET; DPD (A)	8-97611-083-0	01	1	0908-1006
550	BRACKET; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97611-083-0	01	1	1007-
550	BRACKET; DPD (B)	8-97611-084-0	01	1	0908-1006
550	BRACKET; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97611-084-0	01	1	1007-
550	BRACKET; DPD (C)	8-97611-085-0	01	1	0908-1006
550	BRACKET; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C)	8-97611-085-0	01	1	1007-
556	DPD ASM	8-97613-331-6	01	1	0908-1006
556	DPD ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97613-331-6	01	1	1007-1010
556	DPD ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97622-883-4	01	1	1011-
557	CATALYST ASM	8-97608-055-5	01	1	0908-1006
557	CATALYST ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97608-055-8	01	1	1007-
558	FILTER ASM	8-97608-057-3	01	1	0908-1006
558	FILTER ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97608-057-3	01	1	1007-
559	COVER; RR	8-97611-078-0	01	1	0908-1006
559	COVER; RR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97611-078-0	01	1	1007-1010
559	COVER; RR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97622-887-0	01	1	1011-
560	GASKET; DPD	8-97611-080-0	02	1	0908-1006
560	GASKET; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97611-080-0	02	1	1007-
561	PIPE; DPD (A)	8-97611-081-0	01	1	0908-1006
561	PIPE; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97611-081-0	01	1	1007-1010
561	PIPE; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97622-888-0	01	1	1011-
561	PIPE; DPD (B)	8-97611-082-0	01	1	0908-1006
561	PIPE; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97611-082-0	01	1	1007-1010
561	PIPE; DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-97622-889-0	01	1	1011-

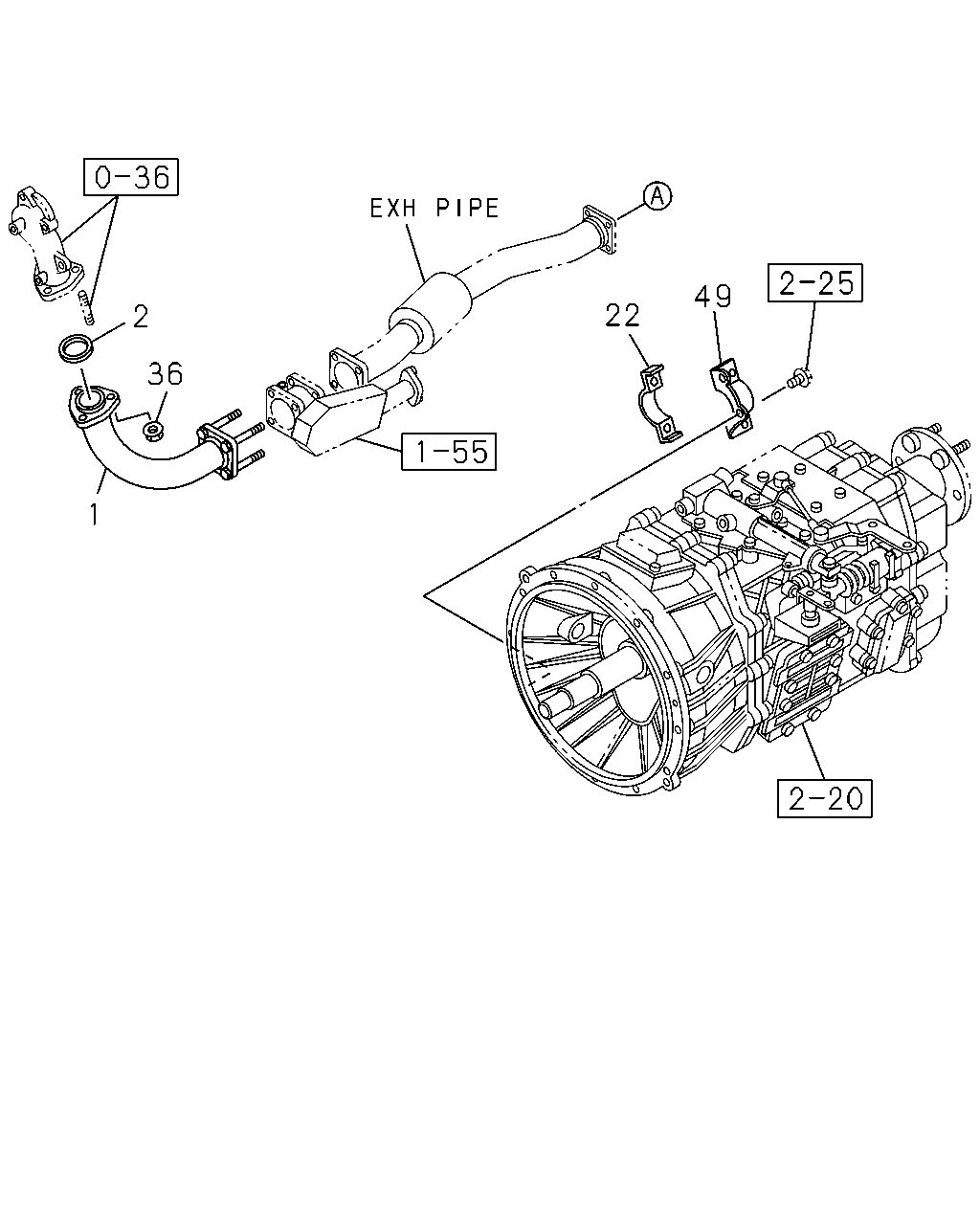

49 22 2 36 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; EXH EURO2 SPECIFICATION<NT2>	8-98082-498-0	01	1	1007-
1	PIPE; EXH	8-98043-016-3	01	1	0908-0912
1	PIPE; EXH EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98043-016-3	01	1	1001-1001
1	PIPE; EXH EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98161-196-0	01	1	1001-1202
1	PIPE; EXH EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98208-160-0	01	1	1203-1303
1	PIPE; EXH EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98243-546-0	01	1	1304-
2	GASKET; PIPE TO MANIF ALSO INCLUDED IN GASKET SET(ENGINE).	8-97381-455-0	01	1	0908-
22	CLAMP; EXH PIPE	1-22133-295-0	01	1	0908-1309
22	CLAMP; EXH PIPE	8-97646-674-0	01	1	1310-
36	NUT; EXH PIPE M10 FLANGE	8-97096-192-1	03	1	0908-
49	BRACKET; EXH PIPE TO TRANS	8-98042-786-0	01	1	0908-1301
49	BRACKET; EXH PIPE TO TRANS	8-98234-530-0	01	1	1302-

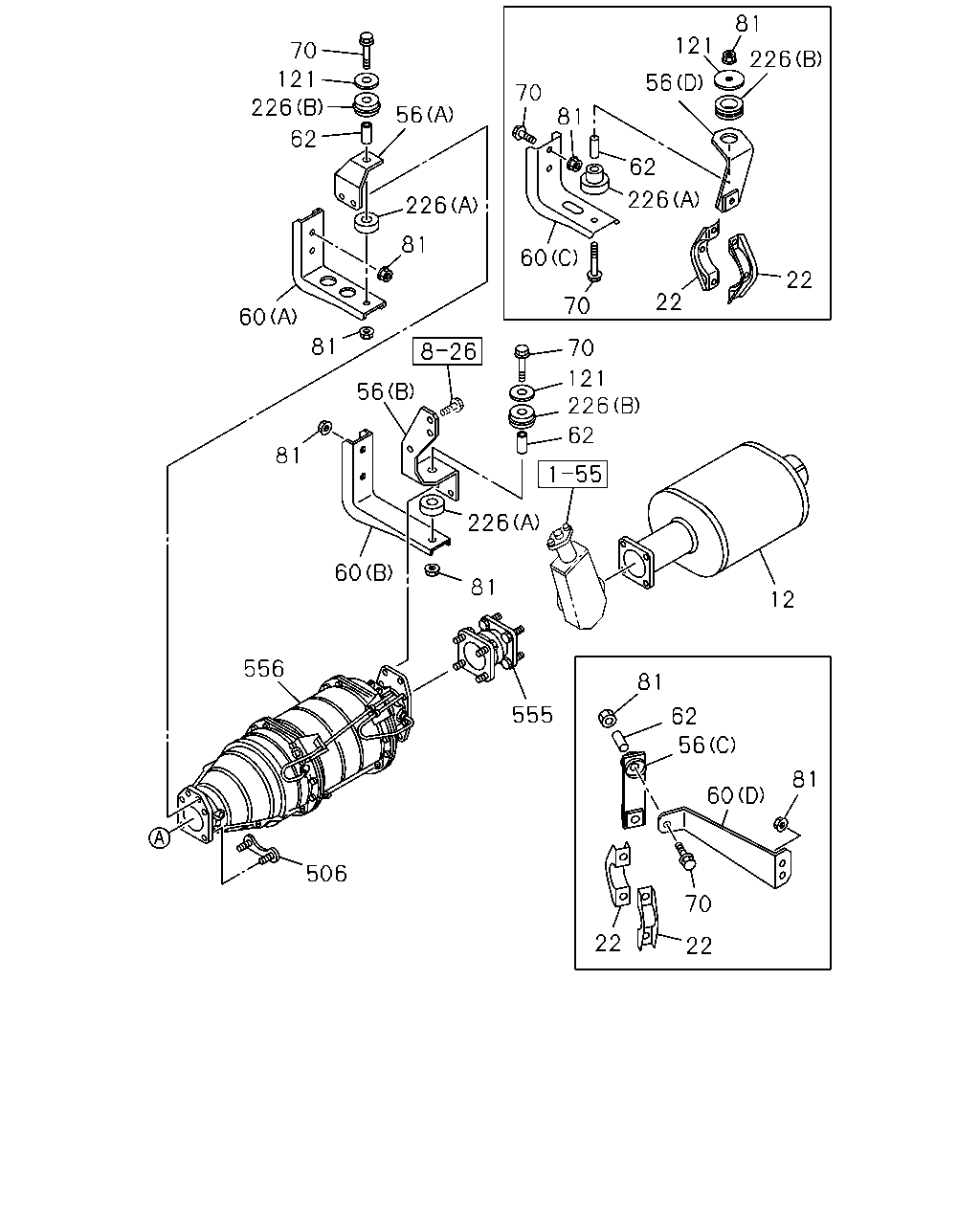

81 121 70 226 121 226 56 70 56 81 62 62 226 226 81 60 22 22 70 60 81 70 121 226 56 62 81 226 60 81 12 556 81 555 62 56 81 60 506 70 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	SILENCER ASM; EXH EURO2 SPECIFICATION<NT2>	8-98090-389-2	01	1	1007-
12	SILENCER ASM; EXH	8-98041-921-0	01	1	0908-0912
12	SILENCER ASM; EXH EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98041-921-0	01	1	1001-
22	CLAMP; EXH PIPE	1-22133-295-0	01	1	0908-1309
22	CLAMP; EXH PIPE	8-97646-674-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (C)	1-22131-584-0	01	1	1007-1309
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (C)	8-98245-522-0	01	1	1310-
56	BRACKET; CLAMP,EXH PIPE EURO2 SPECIFICATION<NT2> (D)	8-98086-352-0	01	1	1007-
56	BRACKET; CLAMP,EXH PIPE (B)	8-98074-825-0	01	1	0908-0912
56	BRACKET; CLAMP,EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98074-825-0	01	1	1001-
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	0908-0912
56	BRACKET; CLAMP,EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98074-824-1	01	1	1001-1006
56	BRACKET; CLAMP,EXH PIPE (A)	8-98074-824-1	01	1	1007-
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98059-753-1	01	1	1007-1309
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (C)	8-98245-530-0	01	1	1310-
60	BRACKET; FRAME TO BRKT EURO2 SPECIFICATION<NT2> (D)	8-98090-167-0	01	1	1007-
60	BRACKET; FRAME TO BRKT (B)	8-98059-712-1	01	1	0908-0912
60	BRACKET; FRAME TO BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98059-712-1	01	1	1001-
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	0908-0912
60	BRACKET; FRAME TO BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	1-22152-274-1	01	1	1001-1006
60	BRACKET; FRAME TO BRKT (A)	1-22152-274-1	01	1	1007-
62	TUBE; DIST,BRKT L=39	8-98060-852-0	01	1	0908-1006
62	TUBE; DIST,BRKT L=39	8-98060-852-0	01	1	0908-1006
62	TUBE; DIST,BRKT L=39	8-98060-852-0	01	1	1007-
62	TUBE; DIST,BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=39	8-98060-852-0	01	1	1007-
70	BOLT; BRKT M10X70 FLANGE	0-28051-070-0	01	1	0908-1006
70	BOLT; BRKT M10X70 FLANGE	0-28051-070-0	01	1	0908-1006
70	BOLT; BRKT M10X70 FLANGE	0-28051-070-0	01	1	1007-
70	BOLT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X70 FLANGE	0-28051-070-0	01	1	1007-
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1006
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0908-1006
81	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1007-
81	NUT; BRKT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10 FLANGE	0-91180-210-0	01	1	1007-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0908-
121	WASHER; PL,BRKT ID=11 OD=54	1-09503-154-2	01	1	0908-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0908-
226	RUBBER; CUSHION (A)	8-94457-277-1	01	1	0908-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0908-
226	RUBBER; CUSHION (B)	8-94457-278-1	01	1	0908-
506	BRACKET; STUD M12X35	1-22131-963-0	02	1	0908-
555	PIPE; EXH,DPD	8-98060-847-0	01	1	0908-0912
555	PIPE; EXH,DPD EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98060-847-0	01	1	1001-
556	DPD ASM	8-97613-331-6	01	1	0908-1006
556	DPD ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97613-331-6	01	1	1007-1010
556	DPD ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97622-883-4	01	1	1011-
