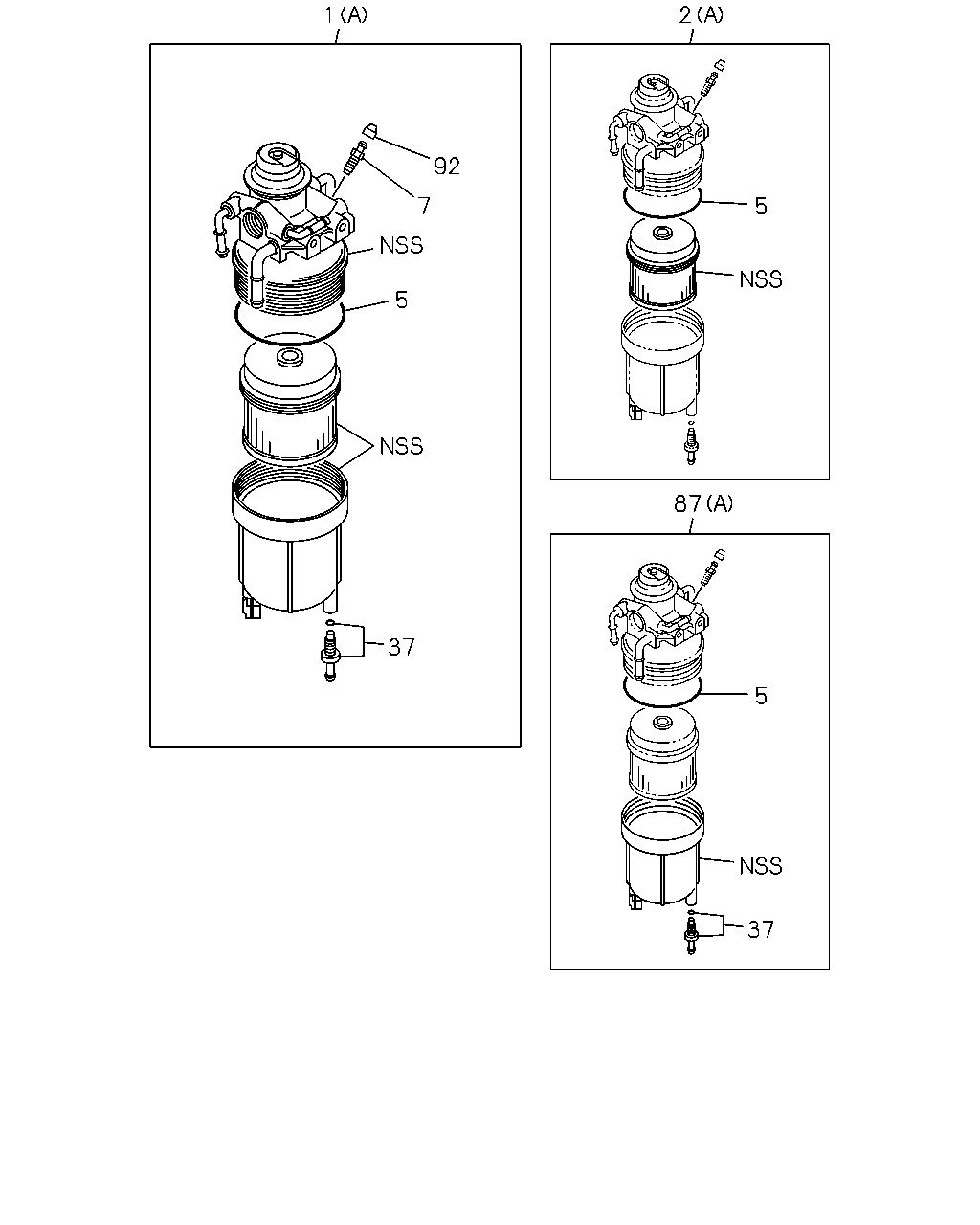

1-45 — WATER SEDIMENTER; FUEL (#68903) — 23 parça

2 1 92 7 5 5 87 37 5 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98086-193-1	01	1	1007-
1	SEDIMENTER; FUEL (A)	8-98023-327-2	01	1	0908-1002
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1003-
2	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<NT2> (B)	8-98092-481-1	01	1	1007-
2	ELEMENT; FUEL FILTER (A)	8-98037-011-0	01	1	0908-1002
2	ELEMENT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1111
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1112-
5	GASKET; UPR COVER,SEDIMENTER	8-98037-015-0	01	1	0908-1111
5	GASKET; UPR COVER,SEDIMENTER	8-98203-600-0	01	1	1112-
7	PLUG; DRAIN,SEDIMENTER M8X10	8-98034-312-0	01	1	0908-
37	PLUG; SENSOR	8-98037-095-0	01	1	0908-
87	CASE ASM; SEDIMENTER EURO2 SPECIFICATION<NT2> (B)	8-98092-482-1	01	1	1007-
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	0908-
92	CAP; DRAIN	8-98034-314-0	01	1	0908-

1 2 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SEDIMENTER; FUEL EURO2 SPECIFICATION<NT2> (B)	8-98086-193-1	01	1	1007-
1	SEDIMENTER; FUEL (A)	8-98023-327-2	01	1	0908-1002
1	SEDIMENTER; FUEL (A)	8-98162-904-4	01	1	1003-
2	ELEMENT; FUEL FILTER EURO2 SPECIFICATION<NT2> (B)	8-98092-481-1	01	1	1007-
2	ELEMENT; FUEL FILTER (A)	8-98037-011-0	01	1	0908-1002
2	ELEMENT; FUEL FILTER (A)	8-98162-897-0	01	1	1003-1111
2	ELEMENT; FUEL FILTER (A)	8-98203-599-0	01	1	1112-
87	CASE ASM; SEDIMENTER EURO2 SPECIFICATION<NT2> (B)	8-98092-482-1	01	1	1007-
87	CASE ASM; SEDIMENTER (A)	8-98039-987-1	01	1	0908-
