◀ 🏠 ▶ Isuzu WW ▶ COMPO ▶ LR ▶ 11211 - LR COMPOPARTS TURKEY ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-01 - ACCELERATOR PEDAL AND CONTROL ▶
1-01 — ACCELERATOR PEDAL AND CONTROL (#68898) — 21 parça

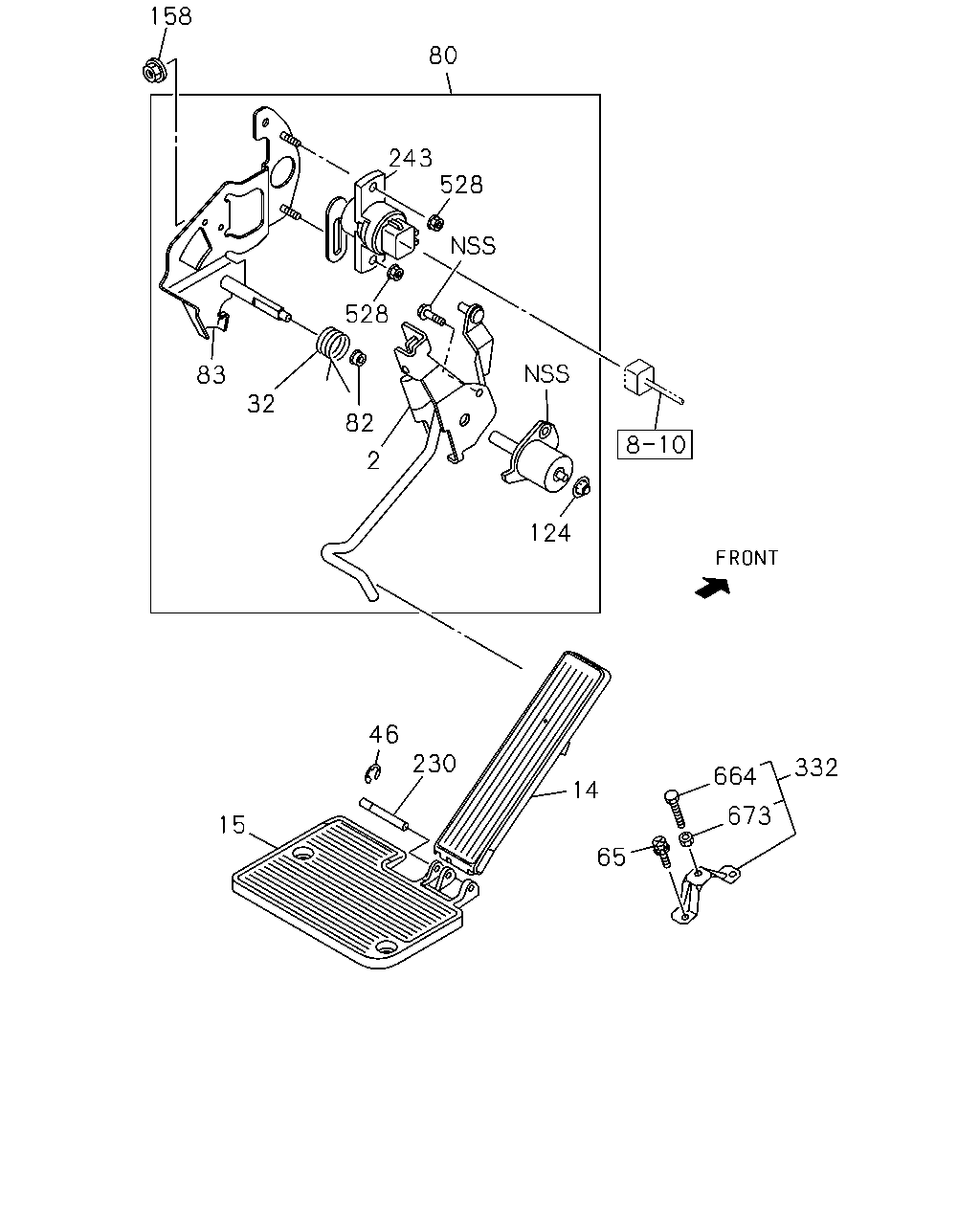

çizim 85166
80 243 528 124 14 664 332 673 65 230 46 15 32 82 2 83 158 528
BalonParca AdiParca NoAdetTipApplied Date
2 LEVER; ENG CONT 8-98118-386-0 01 1 0908-
14 PAD; PEDAL,ACCEL 8-97859-101-0 01 1 0908-
15 STAND; HEEL,ACCEL PEDAL 8-98022-259-2 01 1 0908-
32 SPRING; RETURN,ACCEL PEDAL 8-98031-665-0 01 1 0908-
46 RING; SNAP,ACCEL CONT PEDAL
ID=4 		0-91805-504-0 01 1 0908-
65 BOLT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0908-
80 LINK ASM; ENG CONT 8-98117-200-2 01 1 0908-
82 BUSHING; ENG CONT LVR 8-97581-053-0 01 1 0908-
83 BRACKET; CONT LINK 8-98023-885-2 01 1 0908-
124 NUT; LEVER
ID=7.9 PUSH NUT 		8-94368-617-0 01 1 0908-
158 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908-
230 PIN; JOINT,ACCEL PEDAL TO BRKT 8-98026-806-0 01 1 0908-
243 SENSOR; ACCEL 8-97602-416-0 01 1 0908-0908
243 SENSOR; ACCEL 8-98131-263-0 01 1 0909-
332 BRACKET; ACCEL PEDAL STOPPER 8-98050-879-2 01 1 0908-
528 NUT; ACCEL SENSOR
M5 		8-94169-022-0 02 1 0908-
664 BOLT; STOPPER
M8X40 		0-20850-840-0 01 1 0908-
673 NUT; STOPPER
M8 		0-91110-508-0 01 1 0908-
çizim 188387
262 773 170
BalonParca AdiParca NoAdetTipApplied Date
170 KNOB 8-98013-420-0 01 1 0908-
262 SWITCH; ACCEL,IDLE 8-98013-418-0 01 1 0908-
773 HOLDER; ACCEL PEDAL 8-97352-127-0 01 1 0908-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
