Sayfa 0-57 - Isuzu EPC

0-57 — EMISSION PIPING (#68892) — 174 parça

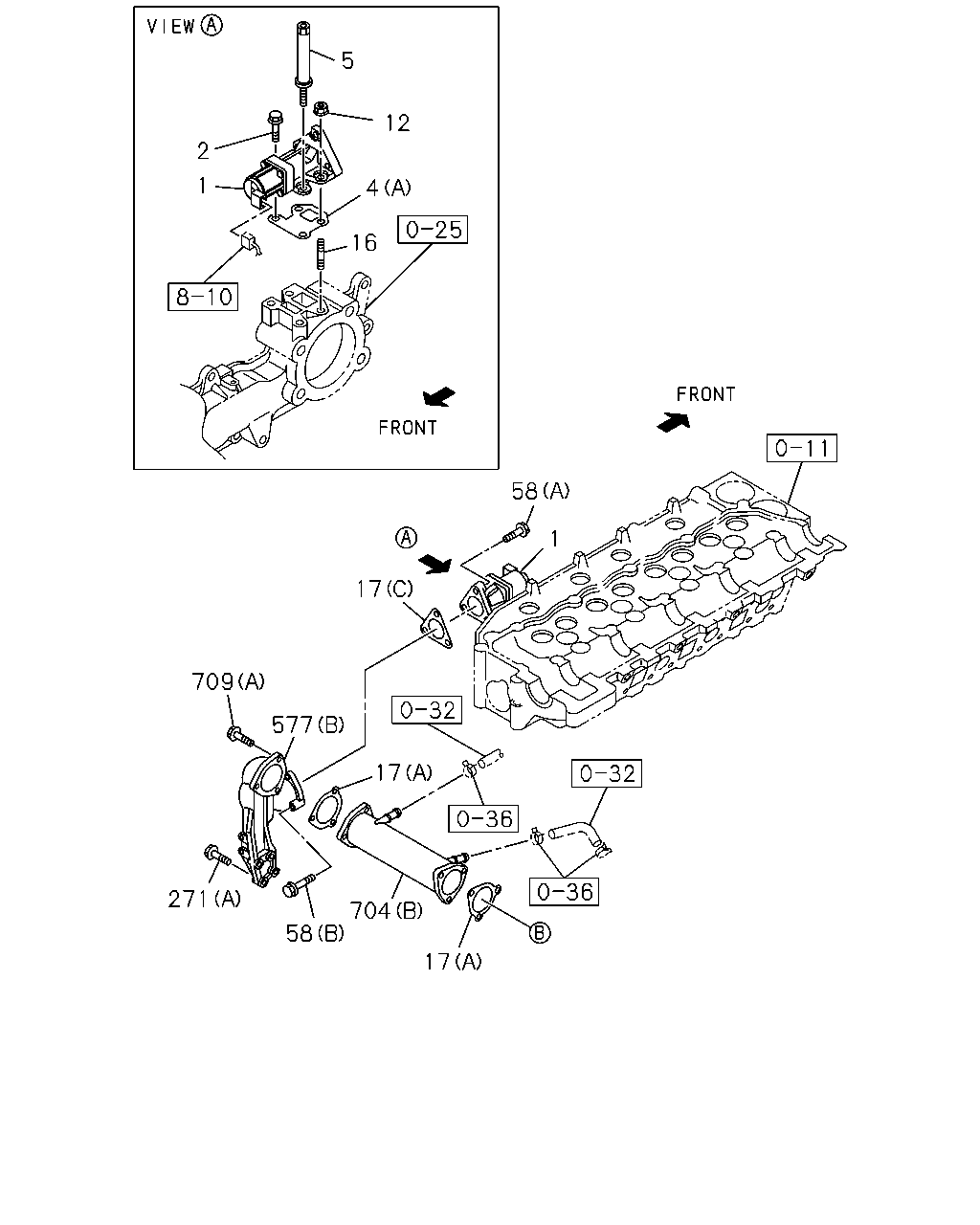

5 12 2 1 4 16 58 1 17 709 577 17 271 704 58 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98098-257-5	01	1	1001-
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98018-264-6	01	1	0908-
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	0908-1006
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	01	1	1007-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	0908-0912
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B)	8-98036-507-0	01	1	1001-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1001-
5	ADAPTER ASM	8-97377-804-0	01	1	0908-
12	NUT; EGR VLV M8 FLANGE	0-91180-108-0	02	1	0908-1006
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1007-
16	STUD; EGR VLV M8X20 L=32	0-41010-820-0	02	1	0908-1006
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 L=32	0-41010-820-0	02	1	1007-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (D) ID=51.5	8-98046-192-1	01	1	1001-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0908-
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (B) M8X45 FLANGE	0-28050-845-0	02	1	0908-
58	BOLT; PIPE EURO4 SPECIFICATION<NT4> (A) M8X30 FLANGE	0-28650-830-0	02	1	0908-
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1007-
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	1007-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0908-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0908-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0908-
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0908-
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-98055-858-2	01	1	0908-
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (C)	8-98025-248-5	01	1	1001-
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (D)	8-98025-249-4	01	1	1001-1204
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (D)	8-98212-718-0	01	1	1205-
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0908-1306
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0908-1204
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	04	1	1111-1111
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	07	1	1111-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (F) M8X45 FLANGE	0-28060-845-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (G) M12X60 FLANGE	0-28151-260-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (C) M8X25 FLANGE	0-28660-825-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (D) M10X40 FLANGE	0-28751-040-0	02	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X28 FLANGE	8-98043-528-0	07	1	1001-1110
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X28 FLANGE	8-98043-528-0	03	1	1111-1111
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0908-
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0908-

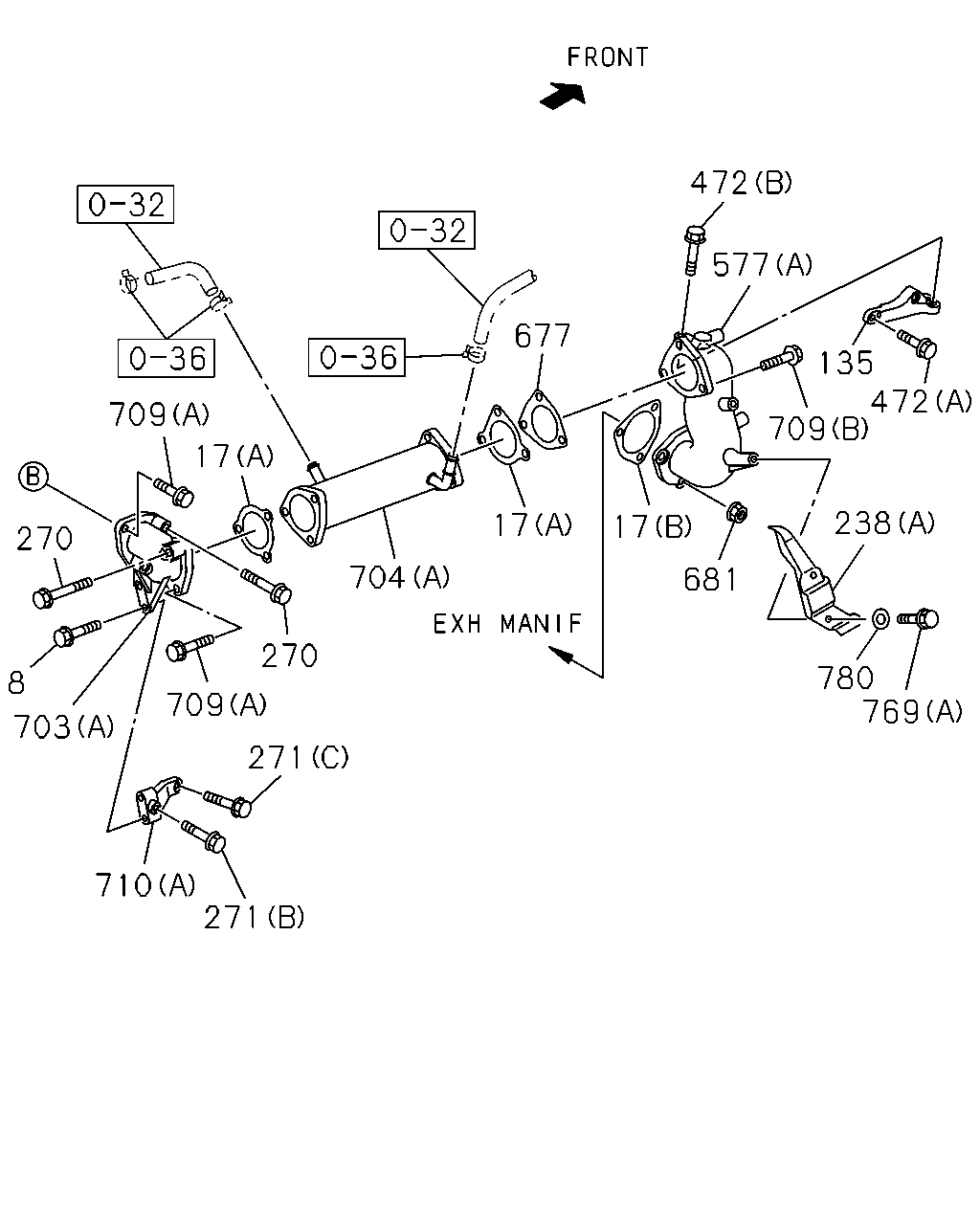

472 577 677 135 472 709 709 17 238 17 17 270 704 681 270 780 769 8 709 703 271 710 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	BOLT; EGR ADAPTER EURO4 SPECIFICATION<NT4> M10X40 FLANGE	0-28751-040-0	02	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (D) ID=51.5	8-98046-192-1	01	1	1001-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0908-
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	1007-
135	BRACKET; EGR EURO4 SPECIFICATION<NT4>	8-98025-253-2	01	1	0908-
238	PROTECTOR; HEAT,EGR EURO5 SPECIFICATION<NT5> (B)	8-98056-572-0	01	1	1001-1204
238	PROTECTOR; HEAT,EGR EURO5 SPECIFICATION<NT5> (B)	8-98176-249-0	01	1	1205-
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4> (A)	8-97386-177-0	01	1	0908-
270	BOLT EURO4 SPECIFICATION<NT4> M10X60 FLANGE	0-28151-060-0	03	1	0908-
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1007-
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	1007-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0908-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0908-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0908-
472	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28660-825-0	02	1	1001-
472	BOLT; BRKT EURO5 SPECIFICATION<NT5> (B) M10X40 FLANGE	0-28751-040-0	02	1	1001-
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	03	1	0908-
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	01	1	0908-
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-113-2	01	1	0908-
577	PIPE; AIR,EGR EURO4 SPECIFICATION<NT4> (B)	8-98055-858-2	01	1	0908-
677	PLATE; DUCT EURO4 SPECIFICATION<NT4>	8-98015-035-0	01	1	0908-
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1007-
681	NUT; EGR PIPE EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0908-
703	DUCT; EGR EURO5 SPECIFICATION<NT5> (B)	8-98115-663-0	01	1	1001-
703	DUCT; EGR EURO5 SPECIFICATION<NT5> (C)	8-98115-665-1	01	1	1001-
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-114-0	01	1	0908-
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (C)	8-98025-248-5	01	1	1001-
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (D)	8-98025-249-4	01	1	1001-1204
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (D)	8-98212-718-0	01	1	1205-
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0908-1306
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0908-1204
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	04	1	1111-1111
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	07	1	1111-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (F) M8X45 FLANGE	0-28060-845-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (G) M12X60 FLANGE	0-28151-260-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (C) M8X25 FLANGE	0-28660-825-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (D) M10X40 FLANGE	0-28751-040-0	02	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X28 FLANGE	8-98043-528-0	07	1	1001-1110
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X28 FLANGE	8-98043-528-0	03	1	1111-1111
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0908-
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0908-
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (D)	8-98079-255-1	01	1	1007-
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (B)	8-98025-253-2	01	1	1001-
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (C)	8-98055-940-1	01	1	1001-
710	BRACKET; EGR COOLER (A)	8-98025-254-1	01	1	0908-1006
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98025-254-1	01	1	1007-
769	BOLT; HEAT PROTECTOR EURO5 SPECIFICATION<NT5> (B) M6X12 W/PL WASHER	8-98054-289-0	04	1	1001-1107
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X12 W/PL WASHER	8-98054-289-0	04	1	1108-
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M6X12 FLANGE	8-97108-669-0	04	1	0908-1107
780	WASHER; PROTECTOR EURO4 SPECIFICATION<NT4> ID=6.4 OD=18	0-91610-706-0	04	1	0908-1107

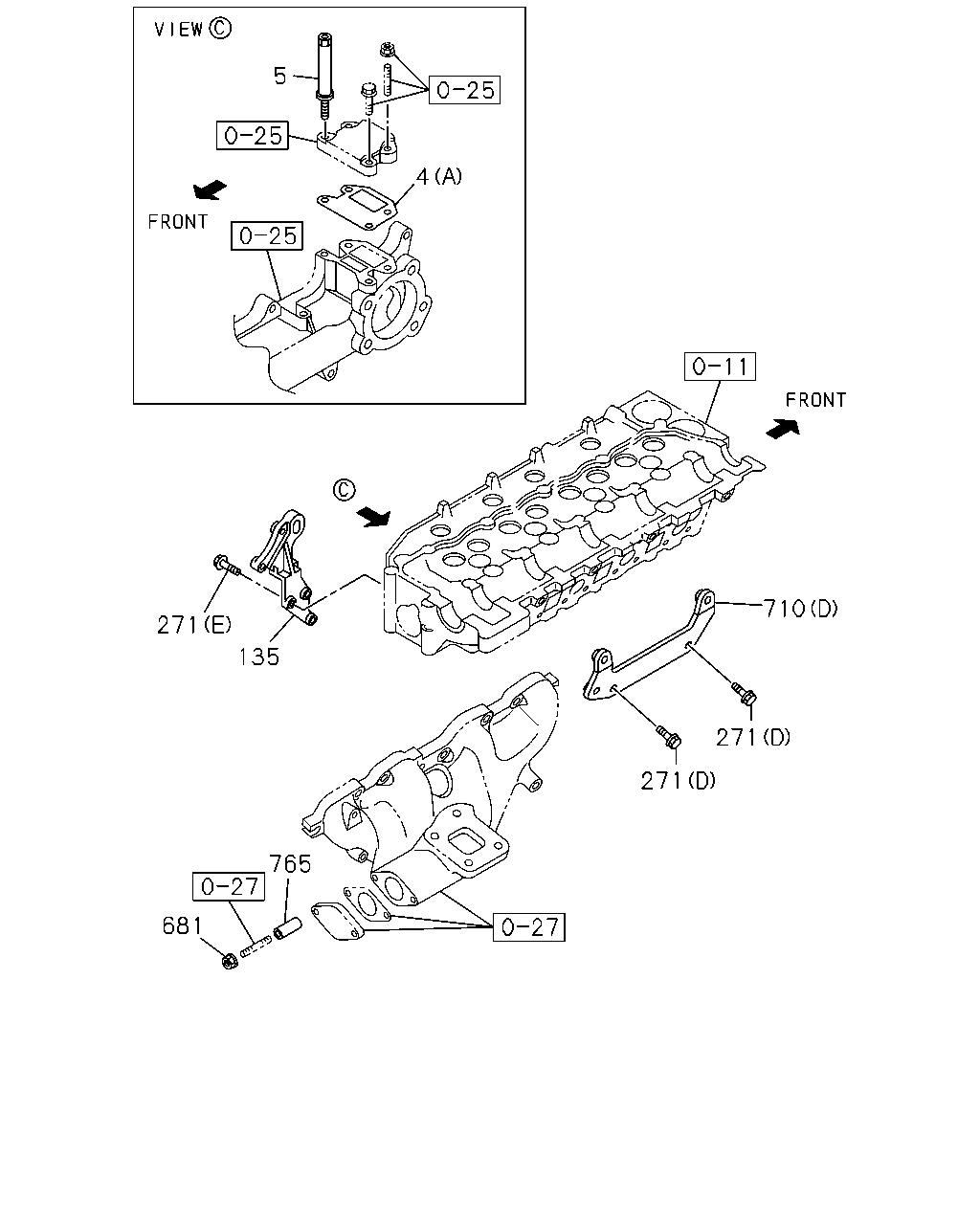

5 4 710 271 135 271 271 765 681

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	0908-0912
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B)	8-98036-507-0	01	1	1001-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1001-
5	ADAPTER ASM	8-97377-804-0	01	1	0908-
135	BRACKET; EGR EURO2 SPECIFICATION<NT2>	8-97310-498-2	01	1	1007-
135	BRACKET; EGR EURO4 SPECIFICATION<NT4>	8-98025-253-2	01	1	0908-
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (D) M8X20 FLANGE	0-28050-820-0	02	1	1007-
271	BOLT; BRKT EURO2 SPECIFICATION<NT2> (E) M12X30 FLANGE	0-28151-230-0	03	1	1007-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M12X50 FLANGE	0-28151-250-0	03	1	0908-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M12X60 FLANGE	0-28151-260-0	01	1	0908-
271	BOLT; BRKT EURO4 SPECIFICATION<NT4> (C) M8X25 FLANGE	0-28660-825-0	02	1	0908-
681	NUT; EGR PIPE EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-208-0	02	1	1007-
681	NUT; EGR PIPE EURO4 SPECIFICATION<NT4> M8 FLANGE	8-97061-401-1	03	1	0908-
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (D)	8-98079-255-1	01	1	1007-
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (B)	8-98025-253-2	01	1	1001-
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (C)	8-98055-940-1	01	1	1001-
710	BRACKET; EGR COOLER (A)	8-98025-254-1	01	1	0908-1006
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98025-254-1	01	1	1007-
765	SPACER; EGR PIPE EURO2 SPECIFICATION<NT2>	8-94225-562-0	02	1	1007-

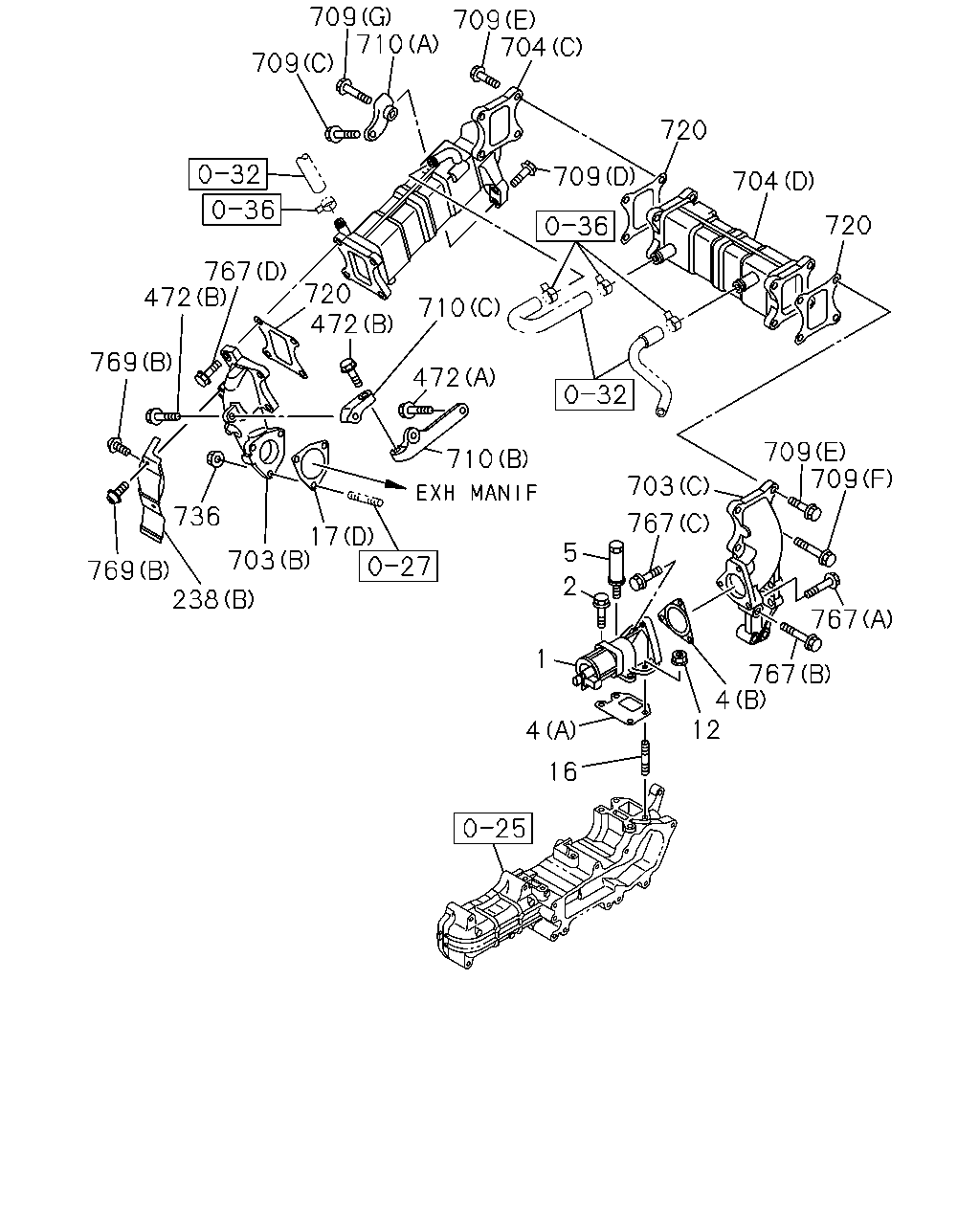

709 710 709 704 709 720 709 704 720 767 472 720 472 710 769 472 709 709 710 703 736 767 17 703 5 769 238 2 767 1 767 4 12 4 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; EGR EURO5 SPECIFICATION<NT5>	8-98098-257-5	01	1	1001-
1	VALVE; EGR EURO4 SPECIFICATION<NT4>	8-98018-264-6	01	1	0908-
2	BOLT; EGR VLV M8X25 FLANGE	0-28650-825-0	01	1	0908-1006
2	BOLT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X25 FLANGE	0-28650-825-0	01	1	1007-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	0908-0912
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B)	8-98036-507-0	01	1	1001-
4	GASKET; EGR VLV ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-97306-040-0	01	1	1001-
5	ADAPTER ASM	8-97377-804-0	01	1	0908-
12	NUT; EGR VLV M8 FLANGE	0-91180-108-0	02	1	0908-1006
12	NUT; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1007-
16	STUD; EGR VLV M8X20 L=32	0-41010-820-0	02	1	0908-1006
16	STUD; EGR VLV EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X20 L=32	0-41010-820-0	02	1	1007-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (D) ID=51.5	8-98046-192-1	01	1	1001-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A)	8-97388-919-0	04	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (B)	8-97601-836-0	01	1	0908-
17	GASKET; EGR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (C)	8-98036-507-0	01	1	0908-
238	PROTECTOR; HEAT,EGR EURO5 SPECIFICATION<NT5> (B)	8-98056-572-0	01	1	1001-1204
238	PROTECTOR; HEAT,EGR EURO5 SPECIFICATION<NT5> (B)	8-98176-249-0	01	1	1205-
238	PROTECTOR; HEAT,EGR EURO4 SPECIFICATION<NT4> (A)	8-97386-177-0	01	1	0908-
472	BOLT; BRKT EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28660-825-0	02	1	1001-
472	BOLT; BRKT EURO5 SPECIFICATION<NT5> (B) M10X40 FLANGE	0-28751-040-0	02	1	1001-
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (A) M8X25 FLANGE	0-28660-825-0	03	1	0908-
472	BOLT; BRKT EURO4 SPECIFICATION<NT4> (B) M10X40 FLANGE	0-28751-040-0	01	1	0908-
703	DUCT; EGR EURO5 SPECIFICATION<NT5> (B)	8-98115-663-0	01	1	1001-
703	DUCT; EGR EURO5 SPECIFICATION<NT5> (C)	8-98115-665-1	01	1	1001-
703	DUCT; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-114-0	01	1	0908-
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (C)	8-98025-248-5	01	1	1001-
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (D)	8-98025-249-4	01	1	1001-1204
704	COOLER ASM; EGR EURO5 SPECIFICATION<NT5> (D)	8-98212-718-0	01	1	1205-
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98028-110-1	01	1	0908-1306
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (A)	8-98244-305-0	01	1	1307-
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98028-112-1	01	1	0908-1204
704	COOLER ASM; EGR EURO4 SPECIFICATION<NT4> (B)	8-98212-715-0	01	1	1205-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	04	1	1111-1111
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X30 FLANGE	0-28660-830-0	07	1	1111-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (F) M8X45 FLANGE	0-28060-845-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (G) M12X60 FLANGE	0-28151-260-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (C) M8X25 FLANGE	0-28660-825-0	01	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (D) M10X40 FLANGE	0-28751-040-0	02	1	1001-
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X28 FLANGE	8-98043-528-0	07	1	1001-1110
709	BOLT; EGR COOLER EURO5 SPECIFICATION<NT5> (E) M8X28 FLANGE	8-98043-528-0	03	1	1111-1111
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (A) M10X35 FLANGE	0-28751-035-0	06	1	0908-
709	BOLT; EGR COOLER EURO4 SPECIFICATION<NT4> (B) M10X30 FLANGE	8-98032-158-0	03	1	0908-
710	BRACKET; EGR COOLER EURO2 SPECIFICATION<NT2> (D)	8-98079-255-1	01	1	1007-
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (B)	8-98025-253-2	01	1	1001-
710	BRACKET; EGR COOLER EURO5 SPECIFICATION<NT5> (C)	8-98055-940-1	01	1	1001-
710	BRACKET; EGR COOLER (A)	8-98025-254-1	01	1	0908-1006
710	BRACKET; EGR COOLER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98025-254-1	01	1	1007-
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-98025-252-0	03	1	1001-1006
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-98149-353-0	03	1	1007-1302
720	GASKET; COOLER ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5>	8-98200-753-0	03	1	1303-
736	NUT; DUCT,EGR VLV EURO5 SPECIFICATION<NT5> M8 FLANGE	8-97061-401-1	03	1	1001-
767	BOLT; DUCT,EGR EURO5 SPECIFICATION<NT5> (A) M8X45 FLANGE	0-28050-845-0	02	1	1001-
767	BOLT; DUCT,EGR EURO5 SPECIFICATION<NT5> (B) M12X50 FLANGE	0-28151-250-0	02	1	1001-
767	BOLT; DUCT,EGR EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28650-830-0	01	1	1001-
767	BOLT; DUCT,EGR EURO5 SPECIFICATION<NT5> (D) M8X28 FLANGE	8-98043-528-0	04	1	1001-
769	BOLT; HEAT PROTECTOR EURO5 SPECIFICATION<NT5> (B) M6X12 W/PL WASHER	8-98054-289-0	04	1	1001-1107
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M6X12 W/PL WASHER	8-98054-289-0	04	1	1108-
769	BOLT; HEAT PROTECTOR EURO4 SPECIFICATION<NT4> (A) M6X12 FLANGE	8-97108-669-0	04	1	0908-1107

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
