Isuzu WW
▶
BUSES
▶
LT
▶
10794 - LT(TAIWAN)
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-70 - FLOOR PANEL
▶

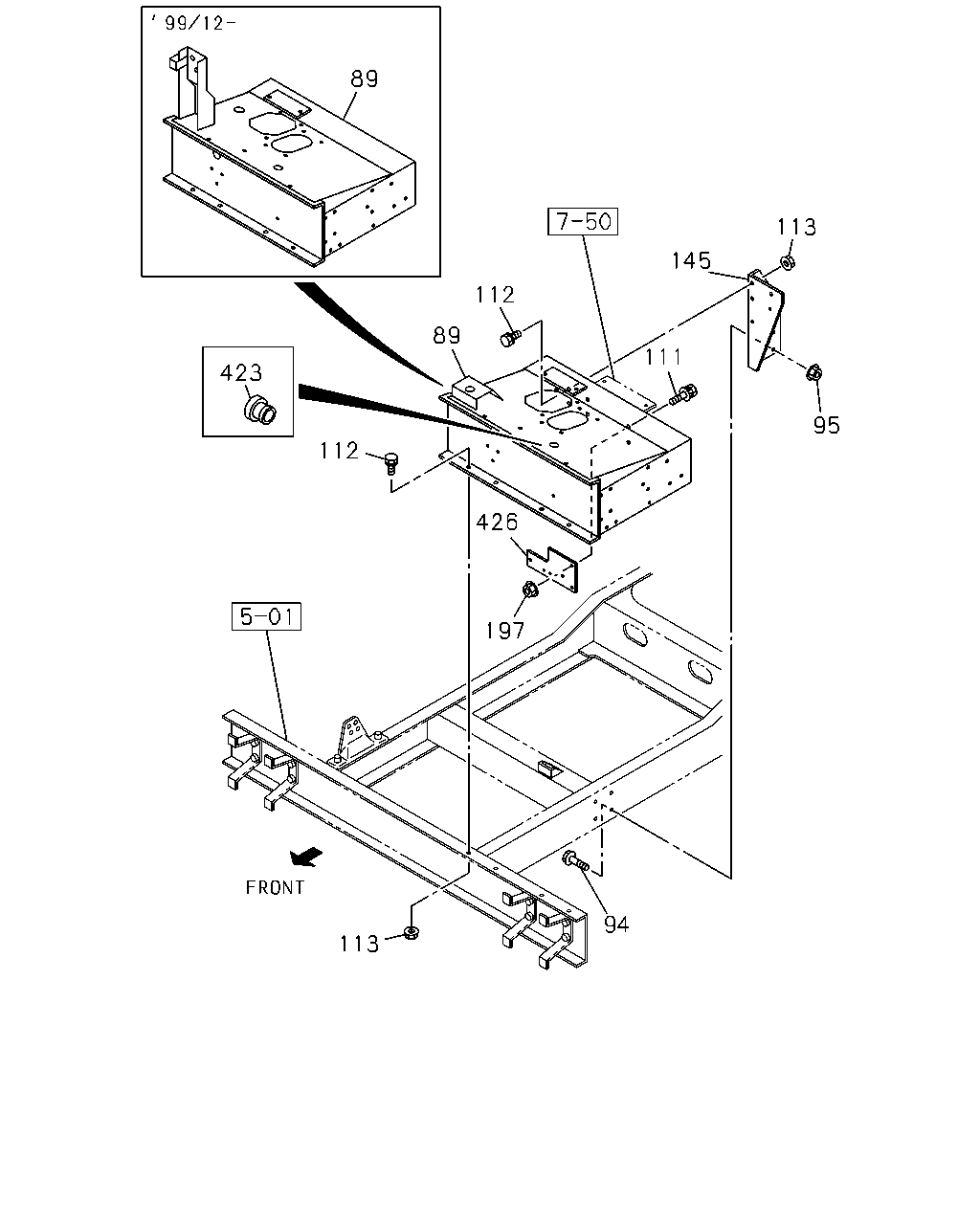

6-70 — FLOOR PANEL
(#6889) — 18 parça
89
113
145
112
89
111
423
95
112
426
197
94
113
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
89
BOARD ASM; PEDAL
1-65600-482-4
01
1
9806-9911
89
BOARD ASM; PEDAL
8-97530-787-4
01
1
9912-
94
BOLT; BRKT,PEDAL BOARD
M12X35 FLANGE
0-28681-235-0
04
1
9806-0512
94
BOLT; BRKT,PEDAL BOARD
M12X35 FLANGE
0-28651-235-0
04
1
0601-
95
NUT; BRKT,PEDAL BOARD
M12 FLANGE
0-91150-212-0
04
1
9806-0602
95
NUT; BRKT,PEDAL BOARD
M12 FLANGE
0-91180-212-0
04
1
0603-
111
BOLT; PANEL
M8X30 FLANGE
0-28680-830-0
03
1
9806-0512
111
BOLT; PANEL
M8X30 FLANGE
0-28650-830-0
03
1
0601-
112
BOLT; PEDAL BOARD
M12X35 FLANGE
0-28681-235-0
07
1
9806-0512
112
BOLT; PEDAL BOARD
M12X35 FLANGE
0-28651-235-0
07
1
0601-
113
NUT; PEDAL BOARD
M12 FLANGE
0-91150-212-0
07
1
9806-0602
113
NUT; PEDAL BOARD
M12 FLANGE
0-91180-212-0
07
1
0603-
145
BRACKET; PEDAL BOARD
1-47477-491-2
01
1
9806-9911
145
BRACKET; PEDAL BOARD
8-97530-022-0
01
1
9912-
197
NUT; EXT PANEL
M8 FLANGE
0-91150-108-0
03
1
9806-0602
197
NUT; EXT PANEL
M8 FLANGE
0-91180-108-0
03
1
0603-
423
BUSHING
1-09330-072-0
01
1
9806-9911
426
PANEL; PEDAL
1-65600-481-0
01
1
9806-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
