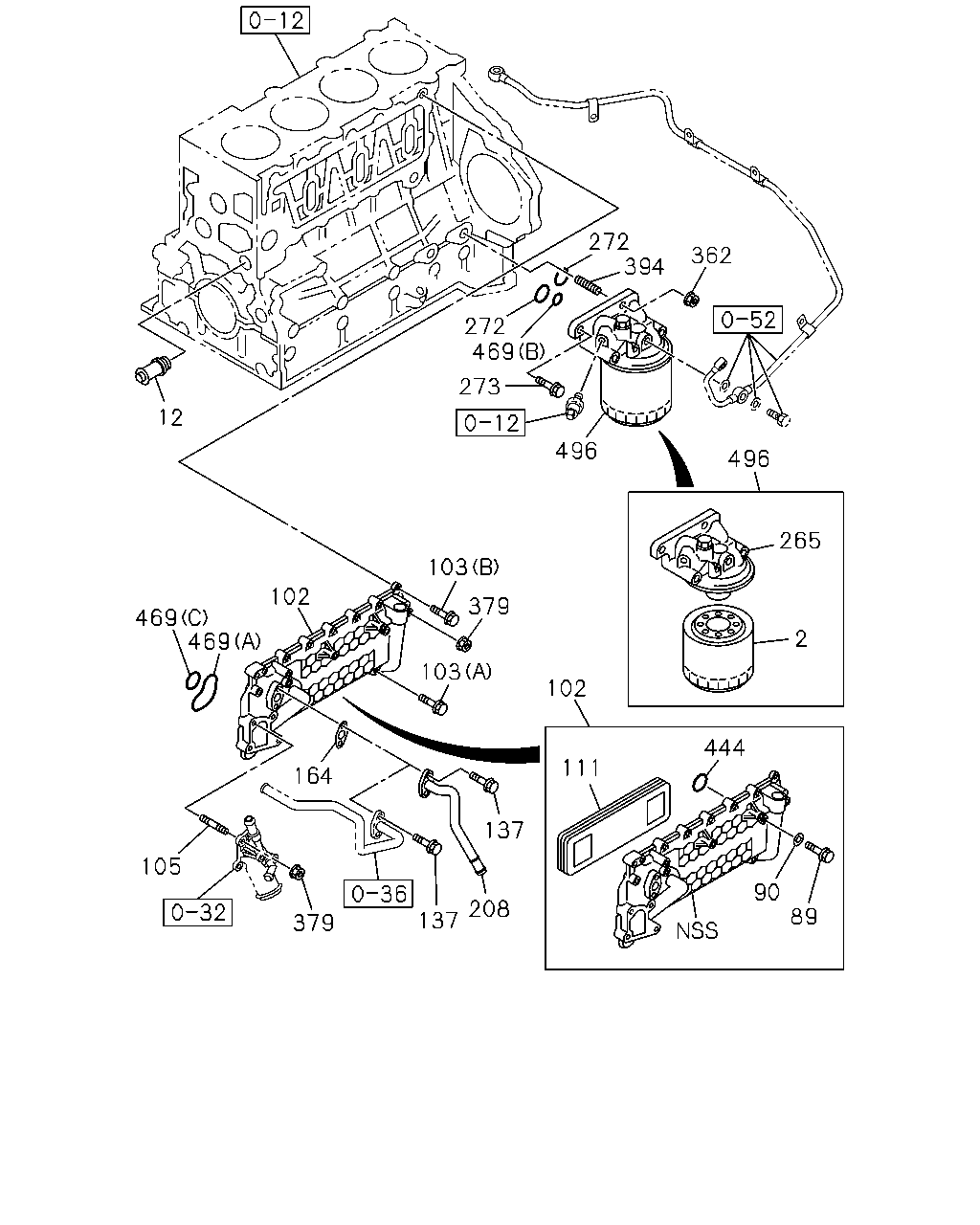

0-50 — OIL COOLER AND OIL FILTER (#68889) — 25 parça

272 394 362 272 469 273 12 496 496 265 103 102 379 469 469 2 103 102 444 111 164 137 105 90 208 89 137 379

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	ELEMENT; OIL FILTER	8-97148-270-1	01	1	0908-
12	VALVE ASM; BYPASS	8-97013-566-2	01	1	0908-
89	BOLT; ELEMENT TO CASE M8X16 FLANGE	0-28050-816-0	04	1	0908-
90	GASKET; BOLT,OIL COOLER	1-21729-043-0	04	1	0908-
102	COOLER ASM; OIL	8-98085-312-5	01	1	0908-
103	BOLT; OIL COOLER (A) M8X20 FLANGE	0-28050-820-0	08	1	0908-
103	BOLT; OIL COOLER (B) M8X35 FLANGE	0-28050-835-0	08	1	0908-
105	STUD; OIL COOLER M8X52 L=63	8-97016-314-0	03	1	0908-
111	CORE; OIL COOLER	8-97334-100-2	01	1	0908-
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	0908-1006
137	BOLT M8X20 FLANGE	0-28650-820-0	02	1	1007-
137	BOLT EURO2 SPECIFICATION<NT2> M8X20 FLANGE	0-28650-820-0	02	1	1007-
164	GASKET; HTR PIPE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97146-684-0	01	1	0908-
208	PIPE; WATER,HTR EURO2 SPECIFICATION<NT2>	8-97146-519-0	01	1	1007-
265	BODY; OIL FILTER	8-97096-677-4	01	1	0908-
272	GASKET; OIL FILTER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.1	8-94399-399-0	02	1	0908-
273	BOLT; OIL FILTER M10X30	0-59331-030-0	03	1	0908-
362	NUT; OIL FILTER M10 FLANGE	0-91180-110-0	01	1	0908-
379	NUT; OIL COOLER M8 FLANGE	0-91180-108-0	03	1	0908-
394	STUD; OIL FILTER M10X25 L=48.5	0-49241-025-0	01	1	0908-
444	GASKET; ELEMENT TO BODY	8-97384-130-0	02	1	0908-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (A)	8-94338-878-1	01	1	0908-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=9.8	8-94399-339-0	01	1	0908-
469	GASKET; OIL COOLER TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). (C) OD=30.2 W/PLATE	8-98045-447-0	01	1	0908-
496	FILTER ASM; OIL	8-97148-268-4	01	1	0908-
