Sayfa 0-40 - Isuzu EPC

0-40 — FUEL INJECTION SYSTEM (#68887) — 257 parça

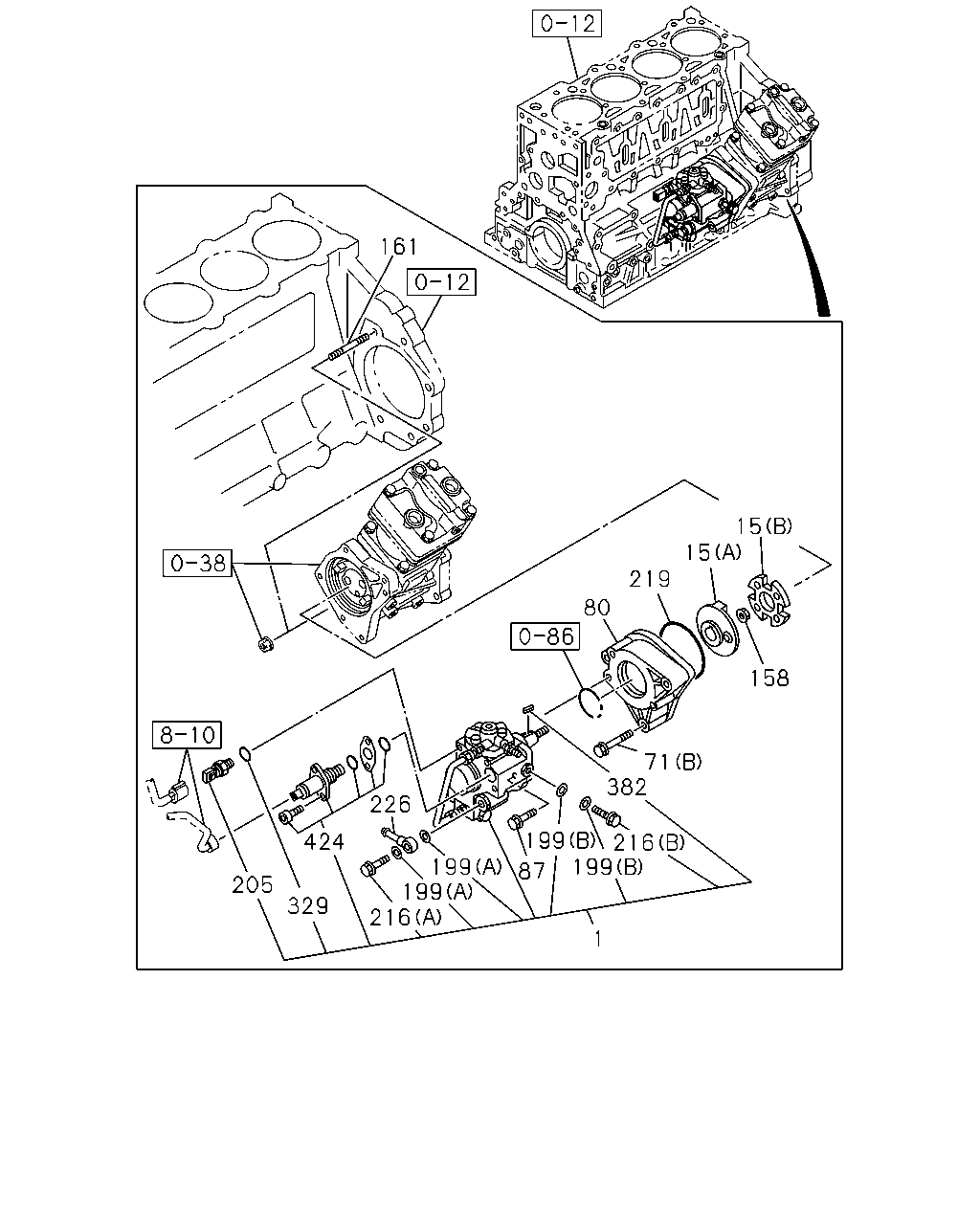

161 15 15 219 80 158 71 382 226 199 216 199 424 199 199 216 87 205 329 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97386-557-5	01	1	0908-
15	COUPLING ASM; INJ PUMP (A)	8-97306-054-0	01	1	0908-
15	COUPLING ASM; INJ PUMP (B) SEE FIG-NO 0-87 FOR COMPONENT.	8-97306-059-1	01	1	0908-
71	BOLT; BRKT EURO5 SPECIFICATION<NT5> (F) M8X60 FLANGE	0-28050-860-0	01	1	1001-
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M6X10 FLANGE	0-28050-610-0	02	1	0908-1006
71	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M6X10 FLANGE	0-28050-610-0	02	1	1007-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0908-
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	0908-
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X50 FLANGE	0-28050-850-0	01	1	0908-1006
71	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) M8X50 FLANGE	0-28050-850-0	01	1	1007-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	03	1	0908-
80	BRACKET; PUMP	8-98061-699-0	01	1	0908-
87	BOLT; PUMP M8X30 FLANGE	0-28650-830-0	03	1	0908-
87	BOLT; PUMP EURO4 SPECIFICATION<NT4> M8X40 FLANGE	0-28650-840-0	02	1	0908-1006
87	BOLT; PUMP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X40 FLANGE	0-28650-840-0	02	1	1007-
158	NUT; INJ PUMP M14 FLANGE	0-91180-114-0	01	1	0908-
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97363-237-0	02	1	0908-0910
161	STUD; INJ PUMP M10X46.5 L=58.5	8-97066-386-1	02	1	0911-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0908-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0908-
205	SENSOR; FUEL TEMP	8-98023-581-0	01	1	0908-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0908-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0908-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0908-
219	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). ID=94.6	1-09623-593-0	01	1	0908-
226	PIPE; FUEL	8-98126-332-0	01	1	0908-
329	GASKET; SENSOR,FUEL TEMP ID=9.8 OD=11.7	9-09566-110-0	01	1	0908-1201
382	KEY; DRIVE SHAFT	8-97375-384-0	01	1	0908-1201
382	KEY; DRIVE SHAFT	8-98161-995-0	01	1	1202-
424	OVERHAUL KIT; SUPPLY PUMP	8-98145-501-1	01	1	0908-

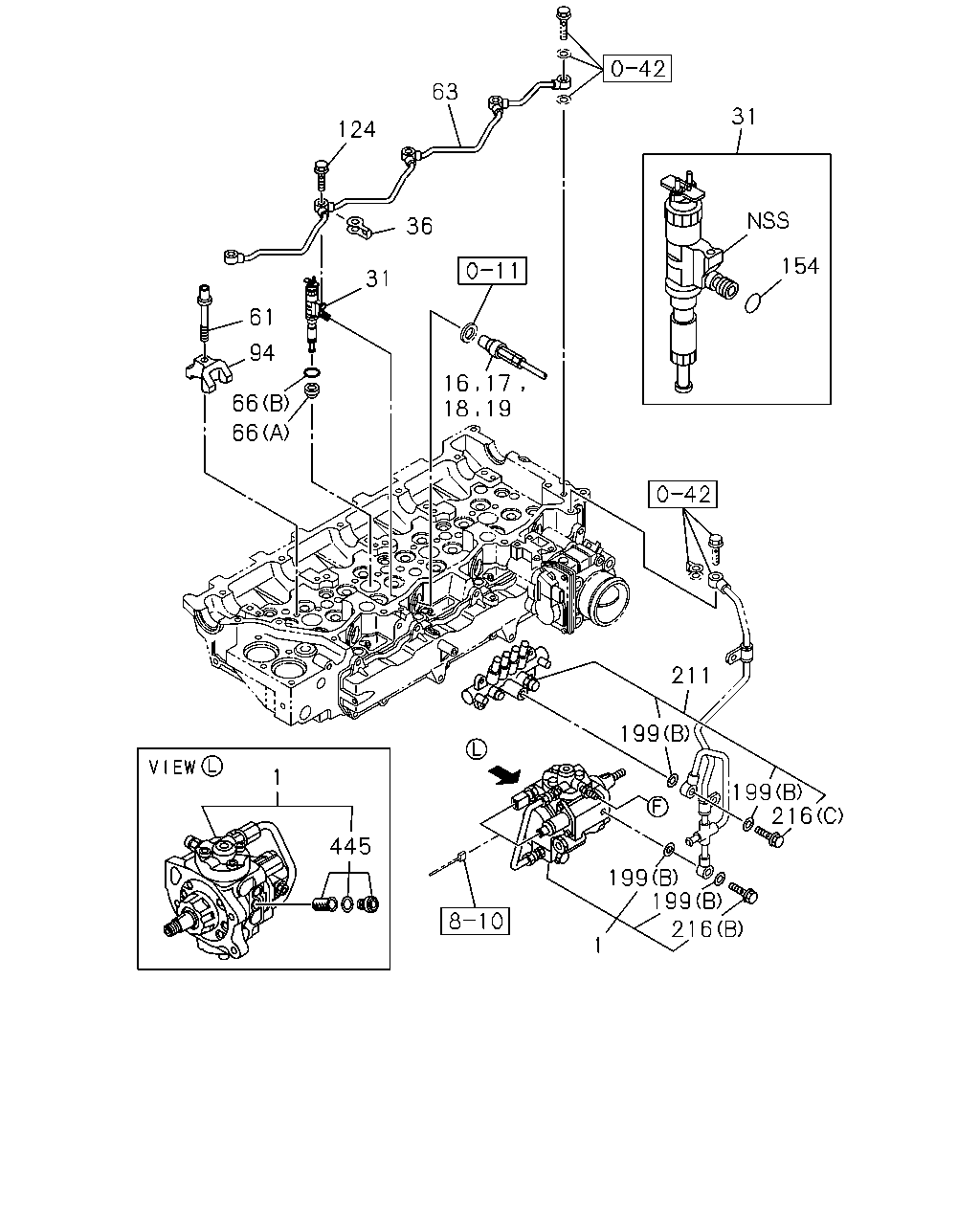

31 154 63 124 36 31 61 66 94 66 16 18 17 19 211 199 1 445 1 199 216 199 216 199

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PUMP ASM; INJ	8-97386-557-5	01	1	0908-
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98086-354-0	01	1	1001-1102
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98185-352-0	01	1	1103-1404
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98271-218-0	01	1	1405-1502
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98298-628-0	01	1	1503-
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98039-934-0	01	1	0908-1006
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-934-0	01	1	1007-1102
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-344-0	01	1	1103-1404
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-202-0	01	1	1405-1501
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-606-0	01	1	1502-
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98086-355-0	01	1	1001-1102
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98185-353-0	01	1	1103-1404
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98271-219-0	01	1	1405-1502
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98298-629-0	01	1	1503-
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98039-935-0	01	1	0908-1006
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-935-0	01	1	1007-1102
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-345-0	01	1	1103-1404
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-203-0	01	1	1405-1501
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-607-0	01	1	1502-
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98086-356-0	01	1	1001-1102
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98185-354-0	01	1	1103-1404
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98271-220-0	01	1	1405-1502
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98298-630-0	01	1	1503-
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98039-936-0	01	1	0908-1006
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-936-0	01	1	1007-1102
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-346-0	01	1	1103-1404
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-204-0	01	1	1405-1501
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-608-0	01	1	1502-
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98086-357-0	01	1	1001-1102
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98185-355-0	01	1	1103-1404
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98271-221-0	01	1	1405-1502
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98298-631-0	01	1	1503-
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98039-937-0	01	1	0908-1006
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-937-0	01	1	1007-1102
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-347-0	01	1	1103-1404
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-205-0	01	1	1405-1501
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-609-0	01	1	1502-
31	NOZZLE ASM; INJ	8-97609-788-6	04	1	0908-
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3	8-97600-925-0	04	1	0908-0908
36	GASKET; RETURN PIPE,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0	8-98065-992-0	04	1	0909-
61	BOLT; CLAMP NOZZLE HOLDER M8X54	8-98008-895-0	04	1	0908-
63	PIPE; FUEL,NOZZLE LEAK OFF	8-97306-081-0	01	1	0908-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3	8-94173-412-0	04	1	0908-
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-97601-447-2	04	1	0908-0909
66	GASKET; INJ NOZZLE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=9.2 T=8.1	8-98079-248-0	04	1	0910-
94	BRACKET; INJ NOZZLE	8-98028-999-1	04	1	0908-
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE-BOLT	1-09675-037-1	04	1	0908-
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	9-09561-111-0	04	1	0908-1106
154	GASKET; CONNECTOR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=11.0	0-95690-111-0	04	1	1107-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0908-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0908-
211	RAIL ASM; COMMON	8-98011-888-2	01	1	0908-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0908-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0908-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0908-
445	SCREW; FILTER,INLET	8-98204-986-0	01	1	0908-

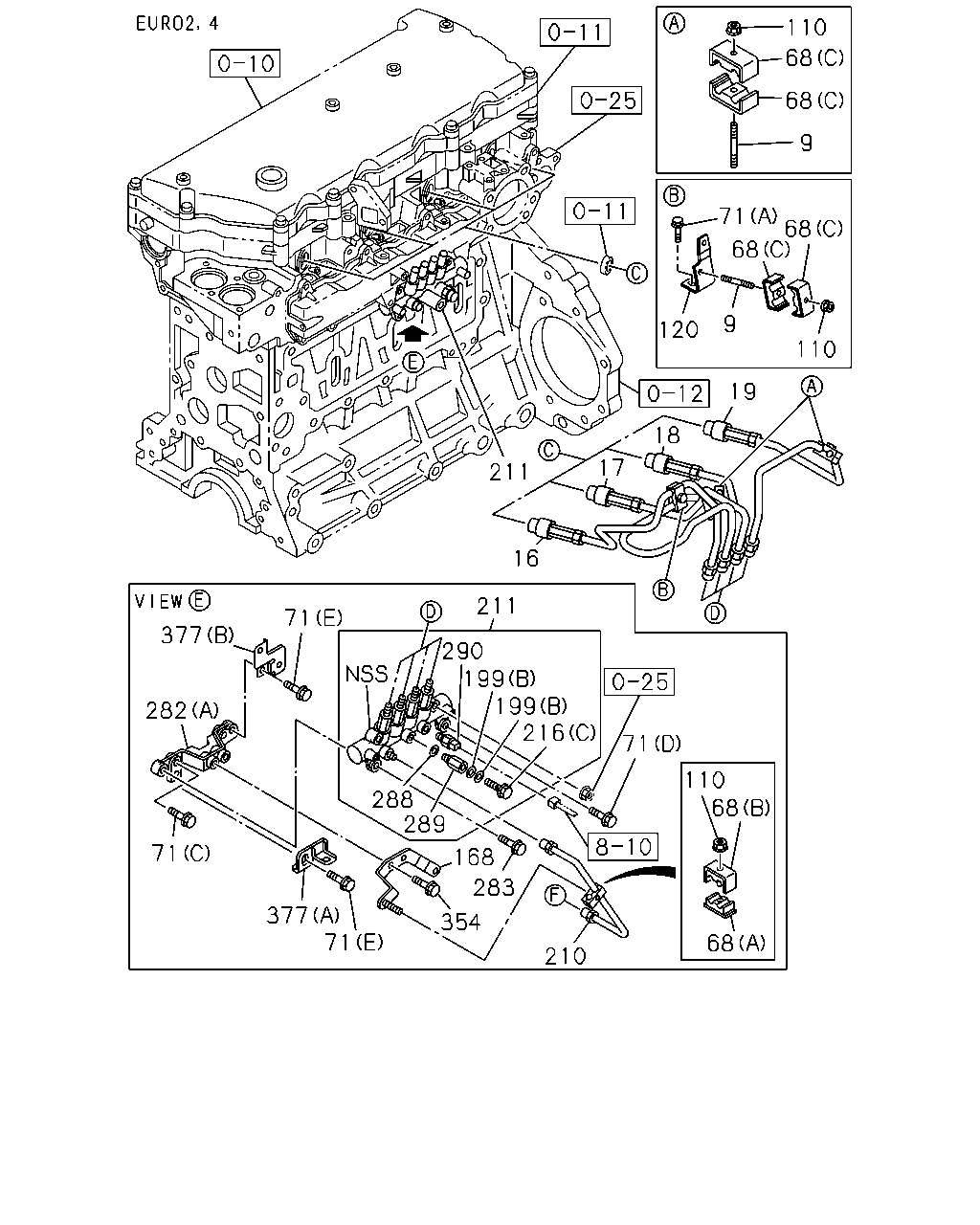

110 68 68 9 71 68 68 9 120 110 19 18 17 211 16 211 71 377 290 199 199 216 282 71 110 68 288 289 71 168 283 377 71 354 68 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1001-
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	02	1	0908-1006
9	STUD; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	02	1	1007-
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	0908-0912
9	STUD; CLIP EURO5 SPECIFICATION<NT5> M6X30 L=38	0-41010-630-0	04	1	1001-
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98086-354-0	01	1	1001-1102
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98185-352-0	01	1	1103-1404
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98271-218-0	01	1	1405-1502
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98298-628-0	01	1	1503-
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98039-934-0	01	1	0908-1006
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-934-0	01	1	1007-1102
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-344-0	01	1	1103-1404
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-202-0	01	1	1405-1501
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-606-0	01	1	1502-
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98086-355-0	01	1	1001-1102
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98185-353-0	01	1	1103-1404
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98271-219-0	01	1	1405-1502
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98298-629-0	01	1	1503-
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98039-935-0	01	1	0908-1006
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-935-0	01	1	1007-1102
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-345-0	01	1	1103-1404
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-203-0	01	1	1405-1501
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-607-0	01	1	1502-
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98086-356-0	01	1	1001-1102
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98185-354-0	01	1	1103-1404
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98271-220-0	01	1	1405-1502
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98298-630-0	01	1	1503-
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98039-936-0	01	1	0908-1006
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-936-0	01	1	1007-1102
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-346-0	01	1	1103-1404
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-204-0	01	1	1405-1501
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-608-0	01	1	1502-
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98086-357-0	01	1	1001-1102
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98185-355-0	01	1	1103-1404
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98271-221-0	01	1	1405-1502
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98298-631-0	01	1	1503-
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98039-937-0	01	1	0908-1006
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-937-0	01	1	1007-1102
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-347-0	01	1	1103-1404
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-205-0	01	1	1405-1501
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-609-0	01	1	1502-
68	CLIP; INJ PIPE EURO5 SPECIFICATION<NT5> (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1001-1405
68	CLIP; INJ PIPE EURO5 SPECIFICATION<NT5> (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=7 & 7 L=22	8-97330-118-1	01	1	0908-1006
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1007-
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (B) ID=7 & 7 L=22	8-97330-119-1	01	1	0908-1006
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1007-
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (C) ID=11 & 11 L=19	8-98039-293-0	06	1	0908-1006
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1007-1405
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-
71	BOLT; BRKT EURO5 SPECIFICATION<NT5> (F) M8X60 FLANGE	0-28050-860-0	01	1	1001-
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M6X10 FLANGE	0-28050-610-0	02	1	0908-1006
71	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M6X10 FLANGE	0-28050-610-0	02	1	1007-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0908-
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	0908-
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X50 FLANGE	0-28050-850-0	01	1	0908-1006
71	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) M8X50 FLANGE	0-28050-850-0	01	1	1007-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	03	1	0908-
110	NUT; CLIP EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	04	1	0908-1006
110	NUT; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	04	1	1007-
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	0908-
168	BRACKET; FUEL PIPE EURO4 SPECIFICATION<NT4>	8-98072-403-0	01	1	0908-1006
168	BRACKET; FUEL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98072-403-0	01	1	1007-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0908-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0908-
210	PIPE; INJ,C/R EURO5 SPECIFICATION<NT5>	8-98087-940-0	01	1	1001-
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-97376-779-0	01	1	0908-1006
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97376-779-0	01	1	1007-
211	RAIL ASM; COMMON	8-98011-888-2	01	1	0908-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0908-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0908-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0908-
282	BRACKET; COMMON RAIL EURO5 SPECIFICATION<NT5> (B)	8-98106-661-1	01	1	1001-
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (A)	8-97324-194-0	01	1	0908-1005
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (A)	8-98157-115-0	01	1	1006-1006
282	BRACKET; COMMON RAIL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98157-115-0	01	1	1007-
283	BOLT; COMMON RAIL EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	02	1	1001-
283	BOLT; COMMON RAIL EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	01	1	0908-1006
283	BOLT; COMMON RAIL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	01	1	1007-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0908-
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	0908-
290	SENSOR; PRESS	8-98119-790-0	01	1	0908-
354	BOLT; FUEL PIPE EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	0908-1006
354	BOLT; FUEL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X16 FLANGE	0-28050-816-0	02	1	1007-
377	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (B)	8-97379-783-1	01	1	0910-1006
377	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B)	8-97379-783-1	01	1	1007-
377	BRACKET; HARNESS EURO4 SPECIFICATION<NT4> (A)	8-97310-438-1	01	1	0908-1006
377	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97310-438-1	01	1	1007-

110 68 68 9 71 68 68 9 120 110 19 18 211 17 16 282 169 388 211 283 290 199 199 216 71 388 169 71 392 288 289 392 283 210

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	1001-
9	STUD; CLIP EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	02	1	0908-1006
9	STUD; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6X30 L=38	0-41010-630-0	02	1	1007-
9	STUD; CLIP M6X35 L=43	8-97203-278-0	01	1	0908-0912
9	STUD; CLIP EURO5 SPECIFICATION<NT5> M6X30 L=38	0-41010-630-0	04	1	1001-
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98086-354-0	01	1	1001-1102
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98185-352-0	01	1	1103-1404
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98271-218-0	01	1	1405-1502
16	PIPE; INJ NO.1 EURO5 SPECIFICATION<NT5>	8-98298-628-0	01	1	1503-
16	PIPE; INJ NO.1 EURO4 SPECIFICATION<NT4>	8-98039-934-0	01	1	0908-1006
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-934-0	01	1	1007-1102
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-344-0	01	1	1103-1404
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-202-0	01	1	1405-1501
16	PIPE; INJ NO.1 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-606-0	01	1	1502-
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98086-355-0	01	1	1001-1102
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98185-353-0	01	1	1103-1404
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98271-219-0	01	1	1405-1502
17	PIPE; INJ NO.2 EURO5 SPECIFICATION<NT5>	8-98298-629-0	01	1	1503-
17	PIPE; INJ NO.2 EURO4 SPECIFICATION<NT4>	8-98039-935-0	01	1	0908-1006
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-935-0	01	1	1007-1102
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-345-0	01	1	1103-1404
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-203-0	01	1	1405-1501
17	PIPE; INJ NO.2 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-607-0	01	1	1502-
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98086-356-0	01	1	1001-1102
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98185-354-0	01	1	1103-1404
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98271-220-0	01	1	1405-1502
18	PIPE; INJ NO.3 EURO5 SPECIFICATION<NT5>	8-98298-630-0	01	1	1503-
18	PIPE; INJ NO.3 EURO4 SPECIFICATION<NT4>	8-98039-936-0	01	1	0908-1006
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-936-0	01	1	1007-1102
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-346-0	01	1	1103-1404
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-204-0	01	1	1405-1501
18	PIPE; INJ NO.3 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-608-0	01	1	1502-
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98086-357-0	01	1	1001-1102
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98185-355-0	01	1	1103-1404
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98271-221-0	01	1	1405-1502
19	PIPE; INJ NO.4 EURO5 SPECIFICATION<NT5>	8-98298-631-0	01	1	1503-
19	PIPE; INJ NO.4 EURO4 SPECIFICATION<NT4>	8-98039-937-0	01	1	0908-1006
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98039-937-0	01	1	1007-1102
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98185-347-0	01	1	1103-1404
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98271-205-0	01	1	1405-1501
19	PIPE; INJ NO.4 EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-98298-609-0	01	1	1502-
68	CLIP; INJ PIPE EURO5 SPECIFICATION<NT5> (C) ID=11 & 11 L=19	8-98039-293-0	10	1	1001-1405
68	CLIP; INJ PIPE EURO5 SPECIFICATION<NT5> (C) ID=11 & 11 L=19	8-98148-996-2	10	1	1406-
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (A) ID=7 & 7 L=22	8-97330-118-1	01	1	0908-1006
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=7 & 7 L=22	8-97330-118-3	01	1	1007-
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (B) ID=7 & 7 L=22	8-97330-119-1	01	1	0908-1006
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=7 & 7 L=22	8-97330-119-3	01	1	1007-
68	CLIP; INJ PIPE EURO4 SPECIFICATION<NT4> (C) ID=11 & 11 L=19	8-98039-293-0	06	1	0908-1006
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) ID=11 & 11 L=19	8-98039-293-0	06	1	1007-1405
68	CLIP; INJ PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) ID=11 & 11 L=19	8-98148-996-2	06	1	1406-
71	BOLT; BRKT EURO5 SPECIFICATION<NT5> (F) M8X60 FLANGE	0-28050-860-0	01	1	1001-
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (E) M6X10 FLANGE	0-28050-610-0	02	1	0908-1006
71	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M6X10 FLANGE	0-28050-610-0	02	1	1007-
71	BOLT; BRKT (A) M8X16 FLANGE	0-28050-816-0	01	1	0908-
71	BOLT; BRKT (C) M8X40 FLANGE	0-28050-840-0	01	1	0908-
71	BOLT; BRKT EURO4 SPECIFICATION<NT4> (D) M8X50 FLANGE	0-28050-850-0	01	1	0908-1006
71	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D) M8X50 FLANGE	0-28050-850-0	01	1	1007-
71	BOLT; BRKT (B) M10X60 FLANGE	0-28051-060-0	03	1	0908-
110	NUT; CLIP EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	04	1	0908-1006
110	NUT; CLIP EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	04	1	1007-
120	BRACKET; INJ PIPE	8-98001-041-0	01	1	0908-
169	NUT; BRKT EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1001-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (A)	1-15619-507-0	02	1	0908-
199	GASKET; EYE BOLT ALSO INCLUDED IN GASKET SET(ENGINE). (B)	8-97602-218-0	04	1	0908-
210	PIPE; INJ,C/R EURO5 SPECIFICATION<NT5>	8-98087-940-0	01	1	1001-
210	PIPE; INJ,C/R EURO4 SPECIFICATION<NT4>	8-97376-779-0	01	1	0908-1006
210	PIPE; INJ,C/R EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97376-779-0	01	1	1007-
211	RAIL ASM; COMMON	8-98011-888-2	01	1	0908-
216	BOLT; EYE (A)	5-15759-003-0	01	1	0908-
216	BOLT; EYE (B)	8-97351-388-0	01	1	0908-
216	BOLT; EYE (C)	8-98043-033-0	01	1	0908-
282	BRACKET; COMMON RAIL EURO5 SPECIFICATION<NT5> (B)	8-98106-661-1	01	1	1001-
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (A)	8-97324-194-0	01	1	0908-1005
282	BRACKET; COMMON RAIL EURO4 SPECIFICATION<NT4> (A)	8-98157-115-0	01	1	1006-1006
282	BRACKET; COMMON RAIL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-98157-115-0	01	1	1007-
283	BOLT; COMMON RAIL EURO5 SPECIFICATION<NT5> M8X20 FLANGE	0-28050-820-0	02	1	1001-
283	BOLT; COMMON RAIL EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	01	1	0908-1006
283	BOLT; COMMON RAIL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X25 FLANGE	0-28050-825-0	01	1	1007-
288	GASKET ID=11 OD=16.3	1-15641-046-0	01	1	0908-
289	LIMITER; FUEL PRESS	8-98032-549-0	01	1	0908-
290	SENSOR; PRESS	8-98119-790-0	01	1	0908-
388	STUD; RAIL EURO5 SPECIFICATION<NT5> M8X35 L=53	0-49140-835-0	02	1	1001-
392	NUT; RAIL ASM EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
