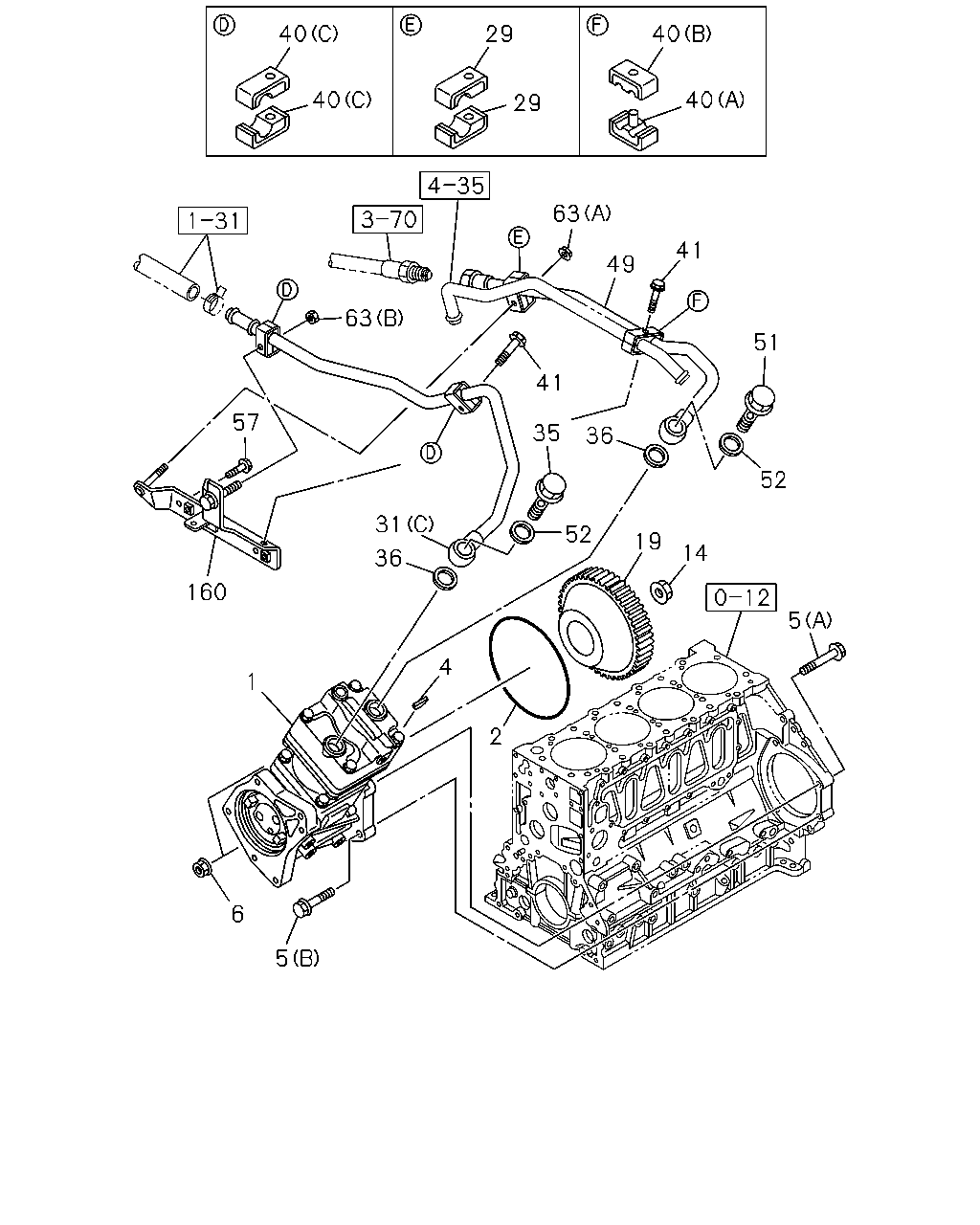

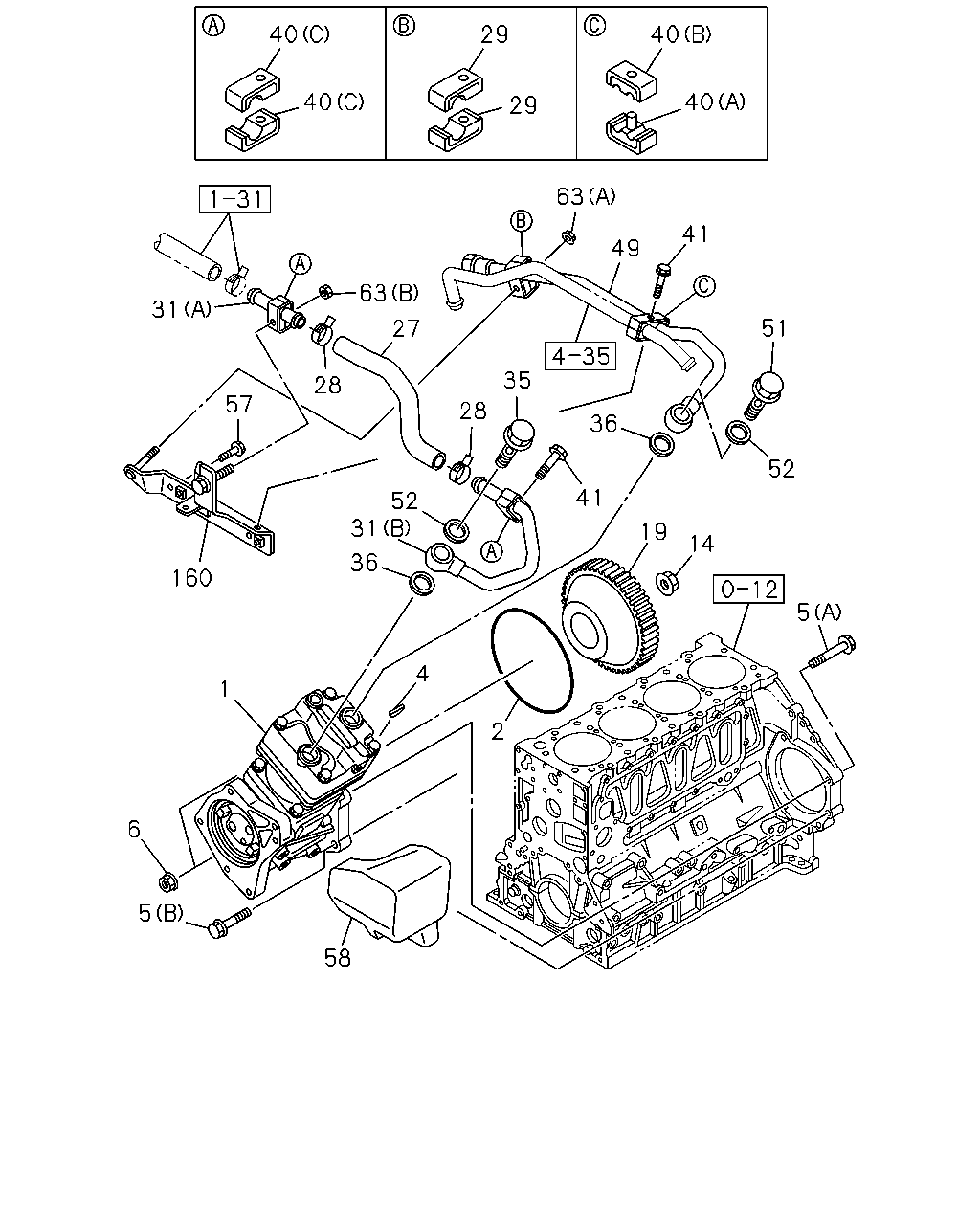

0-38 — AIR COMPRESSOR PIPING; ENGINE SIDE (#68885) — 78 parça

40 29 40 40 40 29 63 41 49 63 31 51 27 35 28 57 28 36 52 41 52 31 19 14 36 160 5 4 1 2 6 5 58

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0908-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0908-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0908-
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0908-
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0908-
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0908-
14	NUT; GEAR M18	8-97141-154-0	01	1	0908-
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0908-
27	HOSE; AIR CMPR,SUCTION	8-98057-031-0	01	1	0908-1006
27	HOSE; AIR CMPR,SUCTION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98057-031-1	01	1	1007-
28	CLIP; HOSE,AIR CMPR ID=24	8-98025-921-0	02	1	0908-1006
28	CLIP; HOSE,AIR CMPR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=24	8-98025-921-0	02	1	1007-
29	CLIP; AIR PIPE	1-09701-282-0	02	1	0908-
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (C)	8-98067-830-1	01	1	1007-
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0908-1006
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98023-170-0	01	1	1007-
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-98076-324-0	01	1	0908-1006
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98076-324-0	01	1	1007-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0908-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0908-
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0908-
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0908-
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0908-
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0908-
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	1007-
49	PIPE; AIR,CHARGE	8-98057-015-0	01	1	0908-1006
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98057-015-0	01	1	1007-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0908-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0908-
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0908-
58	SPACER; AIR CMPR	8-98059-817-0	01	1	0908-1006
58	SPACER; AIR CMPR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98059-817-1	01	1	1007-
63	NUT; CLIP EURO4 SPECIFICATION<NT4> (A) M6 FLANGE	0-91180-106-0	03	1	0908-1004
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	1005-
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0908-0912
63	NUT; CLIP EURO5 SPECIFICATION<NT5> (A) M6 FLANGE	0-91180-106-0	01	1	1001-1004
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1001-
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	0908-

40 29 40 40 40 29 63 41 49 63 51 41 57 35 36 52 31 52 19 14 36 160 5 4 1 2 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-97601-449-5	01	1	0908-1109
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98187-308-0	01	1	1110-1405
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	8-98270-233-0	01	1	1406-
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=139.6	1-09623-464-0	01	1	0908-
4	KEY; INJ PUMP GEAR	9-08055-519-0	01	1	0908-
5	BOLT; AIR CMPR FIX (B) M12X70 FLANGE	0-28151-270-0	01	1	0908-
5	BOLT; AIR CMPR FIX (A) M12X95 FLANGE	8-94396-485-1	01	1	0908-
6	NUT; AIR CMPR M10 FLANGE	0-91180-110-0	02	1	0908-
14	NUT; GEAR M18	8-97141-154-0	01	1	0908-
19	GEAR; INJ PUMP Z=35	8-97600-987-2	01	1	0908-
29	CLIP; AIR PIPE	1-09701-282-0	02	1	0908-
31	PIPE; AIR,AIR CMPR SUCTION EURO2 SPECIFICATION<NT2> (C)	8-98067-830-1	01	1	1007-
31	PIPE; AIR,AIR CMPR SUCTION (B)	8-98023-170-0	01	1	0908-1006
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98023-170-0	01	1	1007-
31	PIPE; AIR,AIR CMPR SUCTION (A)	8-98076-324-0	01	1	0908-1006
31	PIPE; AIR,AIR CMPR SUCTION EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98076-324-0	01	1	1007-
35	BOLT; EYE,AIR PIPE M24X39	1-09675-132-1	01	1	0908-1404
35	BOLT; EYE,AIR PIPE M24X39	1-09675-175-2	01	1	1405-
36	GASKET; AIR PIPE TO AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0908-
40	CLIP; AIR PIPE (C) ID=17 L=17	1-09701-284-0	04	1	0908-
40	CLIP; AIR PIPE (A)	8-97619-417-0	01	1	0908-
40	CLIP; AIR PIPE (B)	8-97619-418-0	01	1	0908-
41	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0908-
49	PIPE; AIR,CHARGE EURO2 SPECIFICATION<NT2>	8-98069-425-0	01	1	1007-
49	PIPE; AIR,CHARGE	8-98057-015-0	01	1	0908-1006
49	PIPE; AIR,CHARGE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98057-015-0	01	1	1007-
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-132-1	01	1	0908-1404
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-2	01	1	1405-
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	0908-
57	BOLT; BRKT,AIR PIPE M8X16 FLANGE	0-28050-816-0	02	1	0908-
63	NUT; CLIP EURO4 SPECIFICATION<NT4> (A) M6 FLANGE	0-91180-106-0	03	1	0908-1004
63	NUT; CLIP (A) M6 FLANGE	0-91180-106-0	03	1	1005-
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	0908-0912
63	NUT; CLIP EURO5 SPECIFICATION<NT5> (A) M6 FLANGE	0-91180-106-0	01	1	1001-1004
63	NUT; CLIP (B) M8 FLANGE	0-91180-108-0	01	1	1001-
160	BRACKET; AIR PIPE	8-98076-098-0	01	1	0908-
