Sayfa 0-36 - Isuzu EPC

0-36 — TURBOCHARGER SYSTEM (#68883) — 191 parça

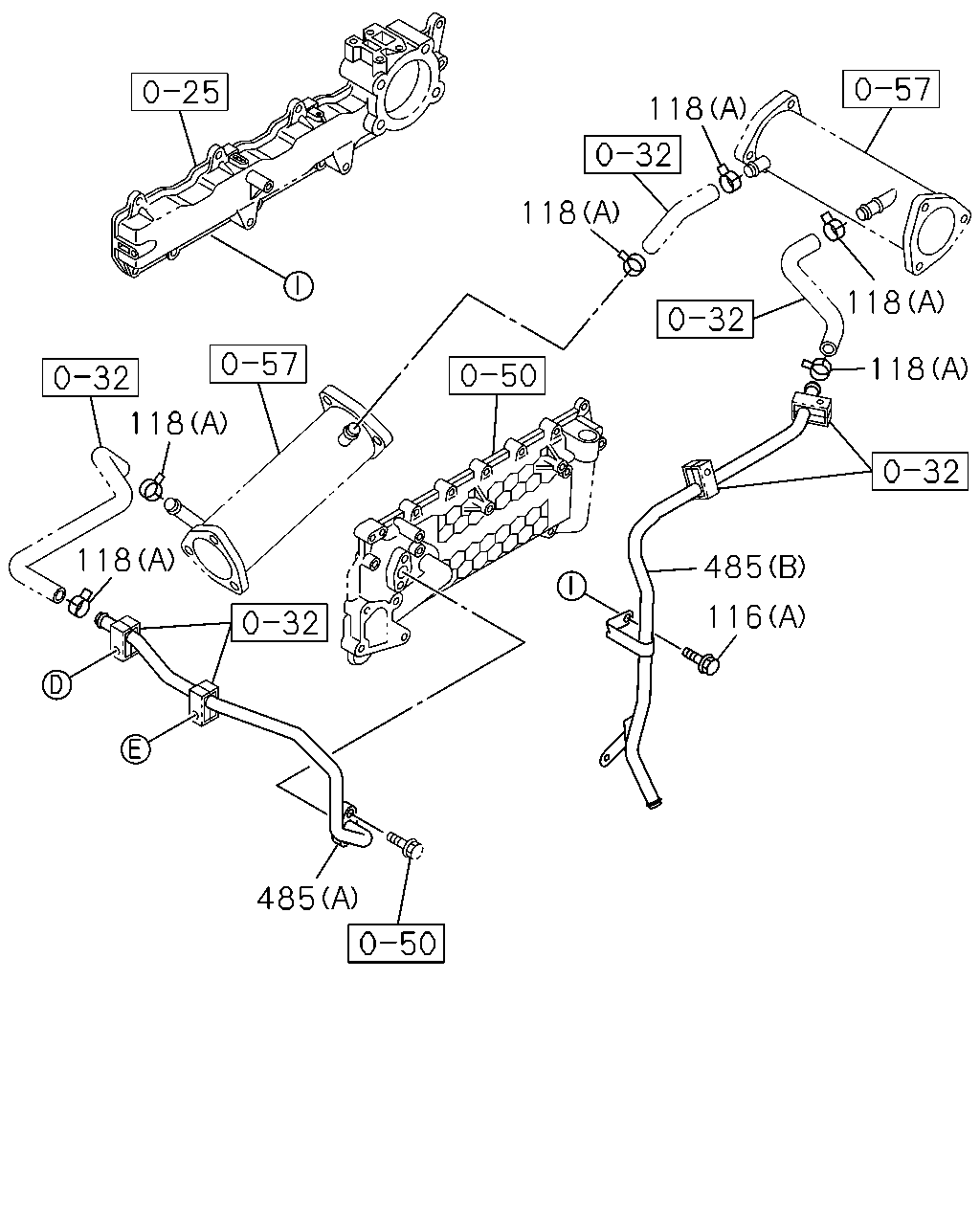

118 118 118 118 118 118 485 116 485 116

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1001-
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	0908-
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT	8-94455-144-0	01	1	0908-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (C) ID=22	8-97359-141-0	02	1	1001-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (D) ID=24	8-98025-921-0	04	1	1001-
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	06	1	0908-
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	0908-
485	PIPE; WATER EGR (A)	8-97376-773-0	01	1	0908-0912
485	PIPE; WATER EGR EURO5 SPECIFICATION<NT5> (B)	8-98036-855-1	01	1	1001-
485	PIPE; WATER EGR (A)	8-97376-773-0	01	1	1001-1006
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97376-773-0	01	1	1007-
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (B)	8-97376-775-2	01	1	0908-

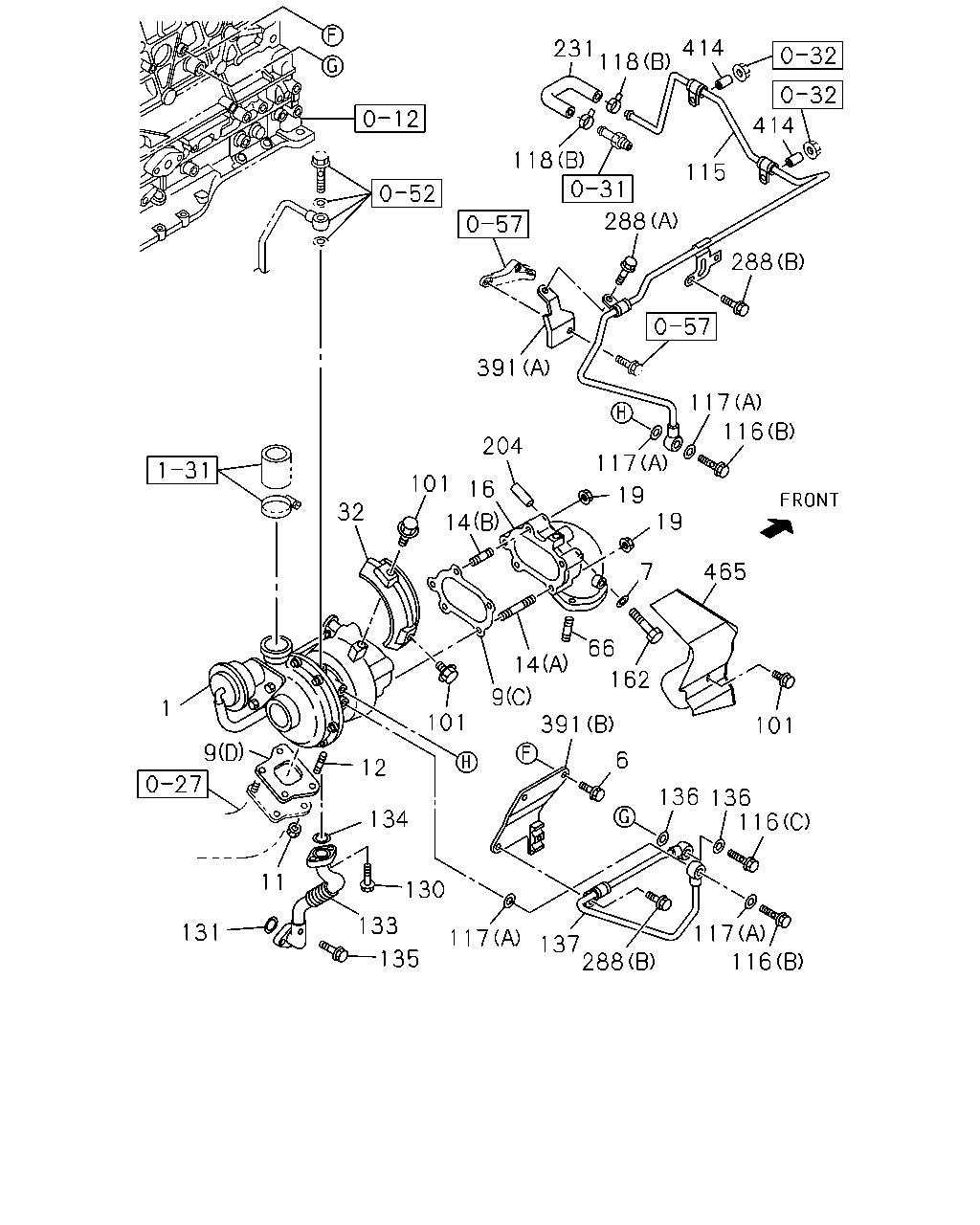

231 118 118 115 288 288 391 117 116 101 117 162 7 204 32 19 14 465 101 16 9 1 66 6 117 136 391 117 136 134 112 137 133 116 9 12 117 130 117 116 135 131 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1007-
1	TURBOCHARGER ASM	8-98027-772-5	01	1	0908-1006
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98027-772-5	01	1	1007-
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	0908-
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0908-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (C)	8-97039-777-1	01	1	1007-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (D)	8-97374-412-0	01	1	1007-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97376-758-0	01	1	0908-1006
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97376-758-0	01	1	1007-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98046-241-0	01	1	0908-1006
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98046-241-0	01	1	1007-
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10 P=1.5 H=8	9-09842-007-0	04	1	1007-
11	NUT; TURBOCHARGER M10 FLANGE	8-97381-617-0	04	1	0908-1006
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10 FLANGE	8-97381-617-0	04	1	1007-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10X28	9-04731-028-0	02	1	1007-
12	STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0908-1006
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1007-
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1007-
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0908-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-97039-749-2	01	1	1007-
16	ADAPTER; EXH PIPE	8-98030-080-2	01	1	0908-1006
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98030-080-3	01	1	1007-
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	8-94170-486-0	03	1	1007-
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	03	1	0908-1006
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1007-
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-97351-168-0	01	1	1007-
32	PROTECTOR; HEAT,TURBOCHARGER	8-98031-888-3	01	1	0908-1006
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98031-888-3	01	1	1007-
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0908-
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0908-
112	BOLT; CLIP M8X12 FLANGE	0-28050-812-0	01	1	0908-1006
112	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X12 FLANGE	0-28050-812-0	01	1	1007-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>	8-98063-841-0	01	1	1007-
115	PIPE; WATER,TURBOCHARGER OUT	8-97387-270-2	01	1	0908-1006
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-270-2	01	1	1007-
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1001-
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	0908-
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT	8-94455-144-0	01	1	0908-
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	9-09571-412-0	04	1	1001-
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	9-09571-412-0	04	1	0908-0912
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1001-1312
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (C) ID=22	8-97359-141-0	02	1	1001-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (D) ID=24	8-98025-921-0	04	1	1001-
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	06	1	0908-
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	0908-
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0908-
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0908-1006
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1007-
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98062-762-1	01	1	1007-1007
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98172-662-0	01	1	1007-
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0908-1006
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97386-642-1	01	1	1007-1007
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98172-661-0	01	1	1007-
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0908-
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	0908-
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1006
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	1-09630-085-0	02	1	1007-1312
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>	8-98063-007-0	01	1	1007-
137	PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0908-1006
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-271-0	01	1	1007-
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0908-
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0908-
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0908-
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1007-
288	BOLT; WATER PIPE CLIP (A) M8X10 FLANGE	0-28050-810-0	01	1	0908-1006
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X10 FLANGE	0-28050-810-0	01	1	1007-
288	BOLT; WATER PIPE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0908-1006
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1007-
391	BRACKET; WATER PIPE (A)	8-98013-958-0	01	1	0908-1303
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98013-958-0	01	1	1304-
391	BRACKET; WATER PIPE (B)	8-98057-168-2	01	1	0908-
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-97351-167-0	01	1	1007-1204
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-98176-248-0	01	1	1205-
465	PROTECTOR; HEAT,EXH ADAPTER	8-98052-394-0	01	1	0908-1006
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98052-394-0	01	1	1007-

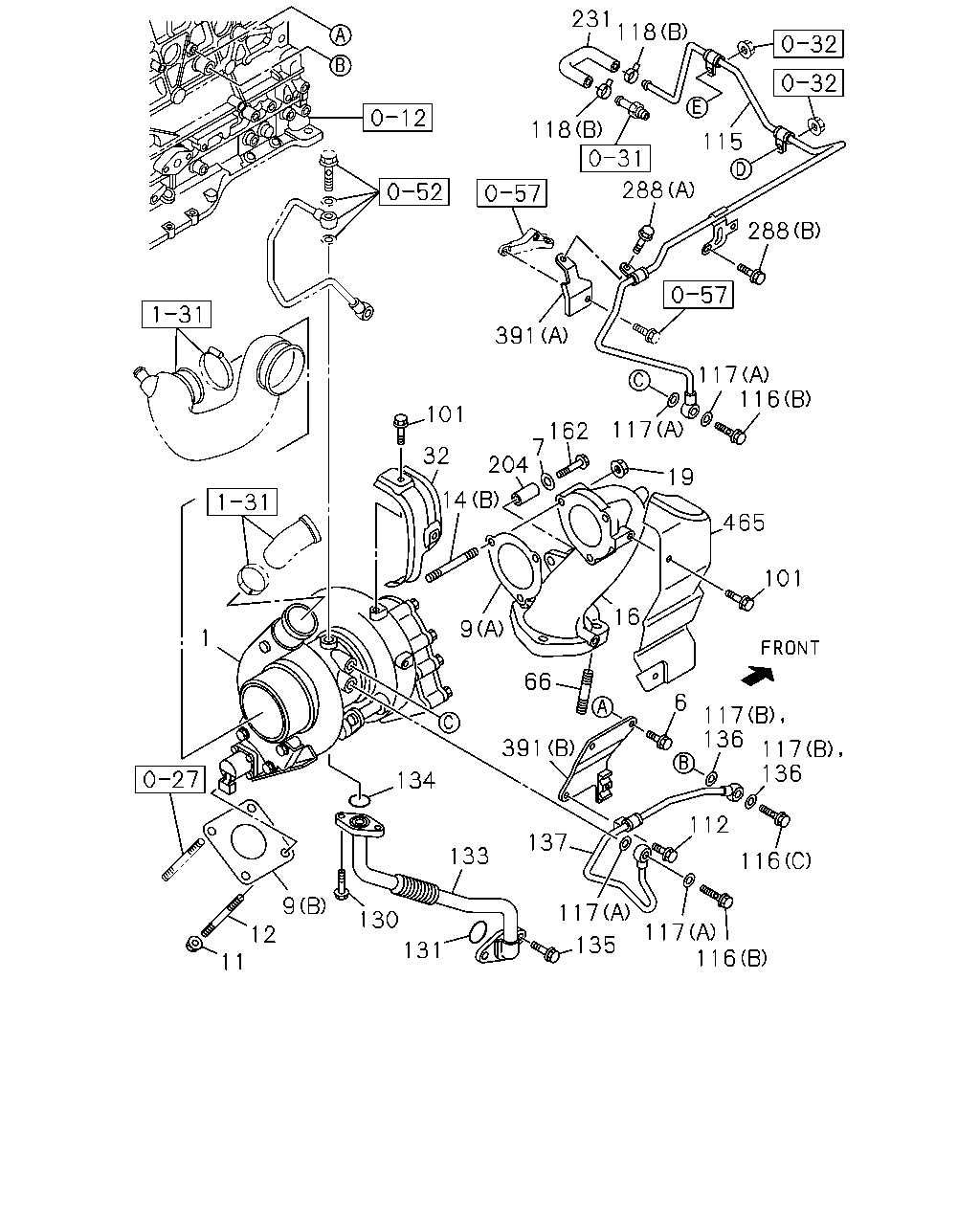

414 231 118 414 118 115 288 288 391 117 116 204 117 101 16 19 32 19 14 465 7 66 14 162 9 1 101 391 101 9 6 12 136 136 116 134 11 130 133 131 117 116 117 137 288 135

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TURBOCHARGER ASM EURO2 SPECIFICATION<NT2> SEE FIG-NO 0-37 FOR COMPONENT.	8-98070-143-2	01	1	1007-
1	TURBOCHARGER ASM	8-98027-772-5	01	1	0908-1006
1	TURBOCHARGER ASM EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98027-772-5	01	1	1007-
6	BOLT; BRKT TO C/BL M8X16 FLANGE	0-28050-816-0	02	1	0908-
7	WASHER; PL,BRKT ID=8 OD=18 T=3	8-94174-537-0	01	1	0908-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (C)	8-97039-777-1	01	1	1007-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO2 SPECIFICATION<NT2> (D)	8-97374-412-0	01	1	1007-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A)	8-97376-758-0	01	1	0908-1006
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97376-758-0	01	1	1007-
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B)	8-98046-241-0	01	1	0908-1006
9	GASKET; TURBOCHARGER TO EXH DUCT ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B)	8-98046-241-0	01	1	1007-
11	NUT; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10 P=1.5 H=8	9-09842-007-0	04	1	1007-
11	NUT; TURBOCHARGER M10 FLANGE	8-97381-617-0	04	1	0908-1006
11	NUT; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10 FLANGE	8-97381-617-0	04	1	1007-
12	STUD; TURBOCHARGER EURO2 SPECIFICATION<NT2> M10X28	9-04731-028-0	02	1	1007-
12	STUD; TURBOCHARGER M10X30 L=45	1-09302-106-0	02	1	0908-1006
12	STUD; TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M10X30 L=45	1-09302-106-0	02	1	1007-
14	STUD; TURBOCHARGER TO EXH PIPE EURO2 SPECIFICATION<NT2> (A) M8X94 L=108	8-97019-477-0	02	1	1007-
14	STUD; TURBOCHARGER TO EXH PIPE (B) M8X49 L=63	8-97019-478-0	03	1	0908-
16	ADAPTER; EXH PIPE EURO2 SPECIFICATION<NT2>	8-97039-749-2	01	1	1007-
16	ADAPTER; EXH PIPE	8-98030-080-2	01	1	0908-1006
16	ADAPTER; EXH PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98030-080-3	01	1	1007-
19	NUT; EXH PIPE,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8 FLANGE	8-94170-486-0	03	1	1007-
19	NUT; EXH PIPE,TURBOCHARGER M8 FLANGE	8-94170-486-0	03	1	0908-1006
19	NUT; EXH PIPE,TURBOCHARGER EURO2 SPECIFICATION<NT2> M8 FLANGE	8-94170-486-0	05	1	1007-
32	PROTECTOR; HEAT,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-97351-168-0	01	1	1007-
32	PROTECTOR; HEAT,TURBOCHARGER	8-98031-888-3	01	1	0908-1006
32	PROTECTOR; HEAT,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98031-888-3	01	1	1007-
66	STUD; EXH PIPE M10X25 L=40	0-44011-025-0	03	1	0908-
101	BOLT; HEAT PROTECTOR M6X12 W/PL WASHER	8-98054-289-0	06	1	0908-
115	PIPE; WATER,TURBOCHARGER OUT EURO2 SPECIFICATION<NT2>	8-98063-841-0	01	1	1007-
115	PIPE; WATER,TURBOCHARGER OUT	8-97387-270-2	01	1	0908-1006
115	PIPE; WATER,TURBOCHARGER OUT EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-270-2	01	1	1007-
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1001-
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	0908-
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT	8-94455-144-0	01	1	0908-
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	9-09571-412-0	04	1	1001-
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2	9-09571-412-0	04	1	0908-0912
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	1001-1312
117	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (C) ID=22	8-97359-141-0	02	1	1001-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (D) ID=24	8-98025-921-0	04	1	1001-
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	06	1	0908-
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	0908-
130	BOLT; OIL PIPE TO TURBOCHARGER DRAIN M6X20 W/LK WASHER	0-50540-620-0	02	1	0908-
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=27.7	9-09566-228-0	01	1	0908-1006
131	GASKET; OIL PIPE,C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	1007-
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98062-762-1	01	1	1007-1007
133	PIPE; OIL DRAIN,TURBOCHARGER EURO2 SPECIFICATION<NT2>	8-98172-662-0	01	1	1007-
133	PIPE; OIL DRAIN,TURBOCHARGER	8-97386-642-1	01	1	0908-1006
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97386-642-1	01	1	1007-1007
133	PIPE; OIL DRAIN,TURBOCHARGER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98172-661-0	01	1	1007-
134	GASKET; OIL PIPE,TURBOCHARGER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8	1-09623-462-0	01	1	0908-
135	BOLT; OIL PIPE TO C/BL M8X20 FLANGE	0-28050-820-0	02	1	0908-
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	1-09630-085-0	02	1	0908-1006
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	1-09630-085-0	02	1	1007-1312
136	GASKET; WATER PIPE ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
137	PIPE; WATER,TURBOCHARGER IN EURO2 SPECIFICATION<NT2>	8-98063-007-0	01	1	1007-
137	PIPE; WATER,TURBOCHARGER IN	8-97387-271-0	01	1	0908-1006
137	PIPE; WATER,TURBOCHARGER IN EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-97387-271-0	01	1	1007-
162	BOLT; ADAPTER M8X57	5-09000-275-0	01	1	0908-
204	COLLAR; PIPE ADAPTER	8-97214-384-1	01	1	0908-
231	HOSE; RUBBER,TURBOCHARGER OUT	8-97209-950-0	01	1	0908-
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X16 FLANGE	0-28050-816-0	01	1	1007-
288	BOLT; WATER PIPE CLIP (A) M8X10 FLANGE	0-28050-810-0	01	1	0908-1006
288	BOLT; WATER PIPE CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) M8X10 FLANGE	0-28050-810-0	01	1	1007-
288	BOLT; WATER PIPE CLIP (B) M8X16 FLANGE	0-28050-816-0	01	1	0908-1006
288	BOLT; WATER PIPE CLIP EURO2 SPECIFICATION<NT2> (B) M8X16 FLANGE	0-28050-816-0	02	1	1007-
391	BRACKET; WATER PIPE (A)	8-98013-958-0	01	1	0908-1303
391	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-98013-958-0	01	1	1304-
391	BRACKET; WATER PIPE (B)	8-98057-168-2	01	1	0908-
414	SPACER EURO2 SPECIFICATION<NT2> M8X10	1-11369-081-0	02	1	1007-
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-97351-167-0	01	1	1007-1204
465	PROTECTOR; HEAT,EXH ADAPTER EURO2 SPECIFICATION<NT2>	8-98176-248-0	01	1	1205-
465	PROTECTOR; HEAT,EXH ADAPTER	8-98052-394-0	01	1	0908-1006
465	PROTECTOR; HEAT,EXH ADAPTER EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5>	8-98052-394-0	01	1	1007-

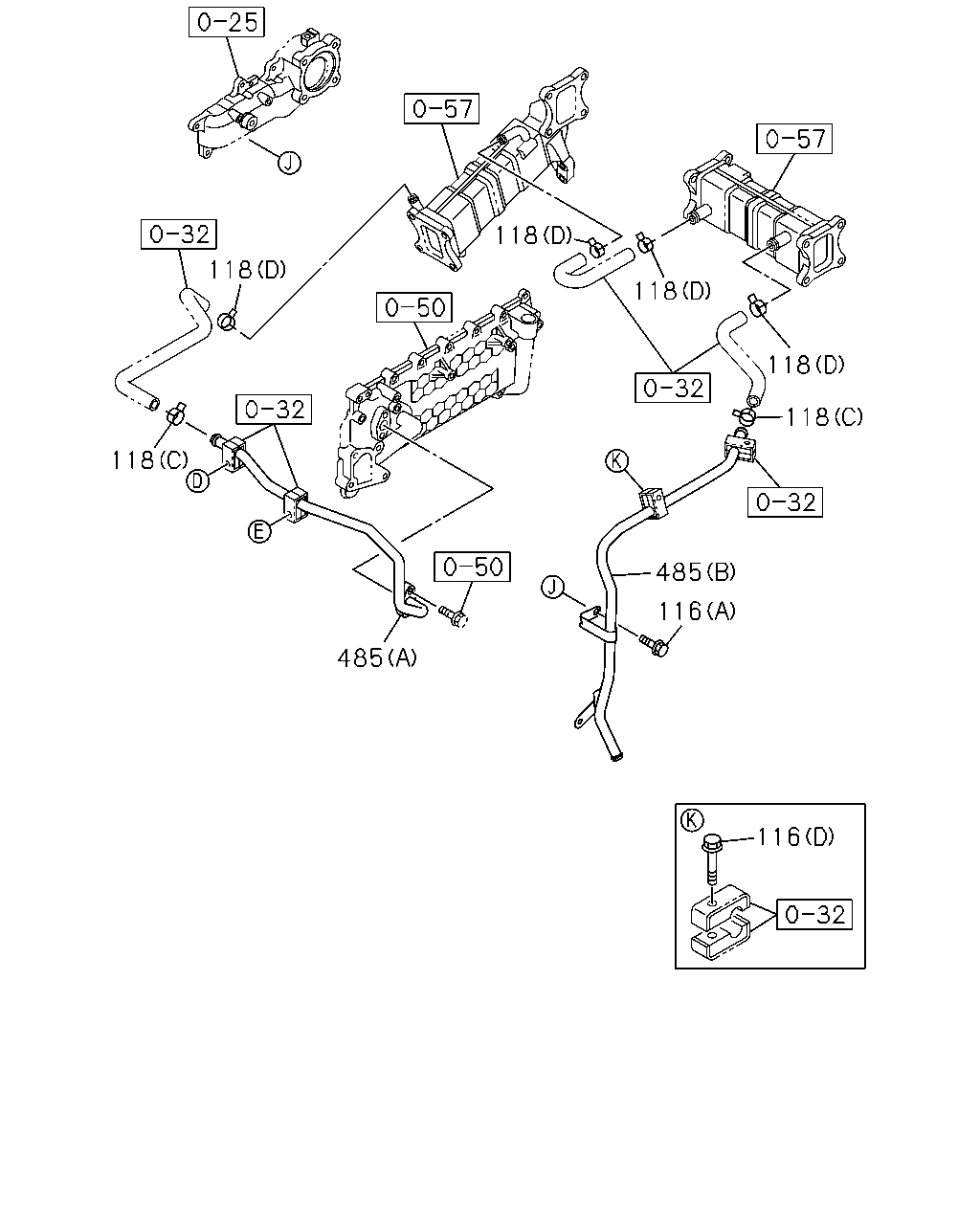

118 118 118 118 118 118 485 116 485

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (D) M8X16 FLANGE	0-28050-816-0	01	1	1001-
116	BOLT; WATER PIPE EURO5 SPECIFICATION<NT5> (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
116	BOLT; WATER PIPE EURO4 SPECIFICATION<NT4> (A) M8X20 FLANGE	0-28650-820-0	02	1	0908-
116	BOLT; WATER PIPE (B) M12X24 EYE-BOLT	1-09675-081-0	02	1	0908-
116	BOLT; WATER PIPE (C) M14X30 EYE-BOLT	8-94455-144-0	01	1	0908-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (C) ID=22	8-97359-141-0	02	1	1001-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (D) ID=24	8-98025-921-0	04	1	1001-
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	06	1	0908-
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	0908-
485	PIPE; WATER EGR (A)	8-97376-773-0	01	1	0908-0912
485	PIPE; WATER EGR EURO5 SPECIFICATION<NT5> (B)	8-98036-855-1	01	1	1001-
485	PIPE; WATER EGR (A)	8-97376-773-0	01	1	1001-1006
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A)	8-97376-773-0	01	1	1007-
485	PIPE; WATER EGR EURO4 SPECIFICATION<NT4> (B)	8-97376-775-2	01	1	0908-

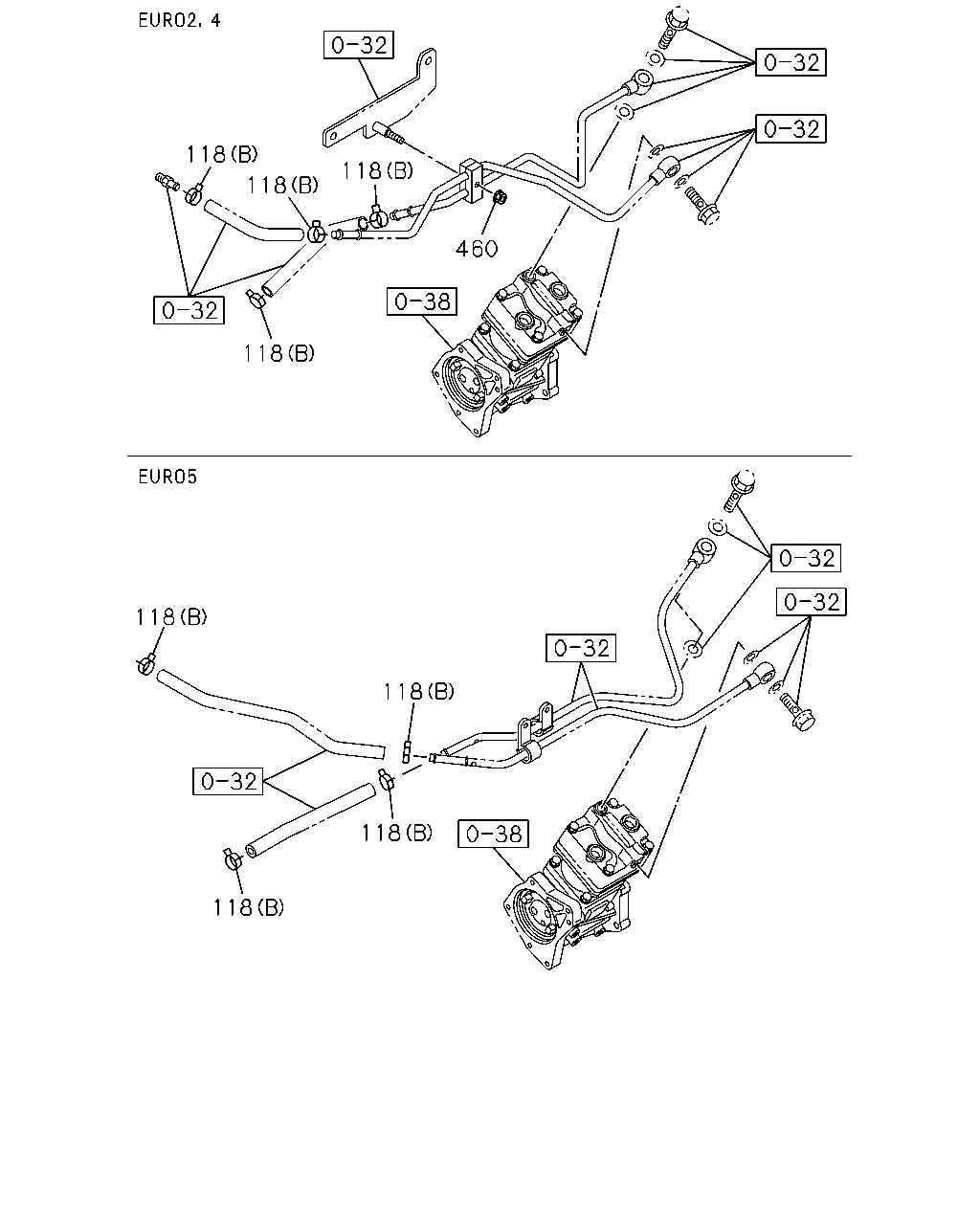

118 118 118 118 460 118 118 118 118

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (C) ID=22	8-97359-141-0	02	1	1001-
118	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> (D) ID=24	8-98025-921-0	04	1	1001-
118	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4> (A) ID=20	1-09707-084-1	06	1	0908-
118	CLIP; WATER HOSE (B) ID=15.5	8-94221-519-0	06	1	0908-
460	NUT; PIPE EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	0908-1006
460	NUT; PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6 FLANGE	0-91180-106-0	01	1	1007-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
