0-32 — WATER PIPING; ENGINE (#68880) — 92 parça

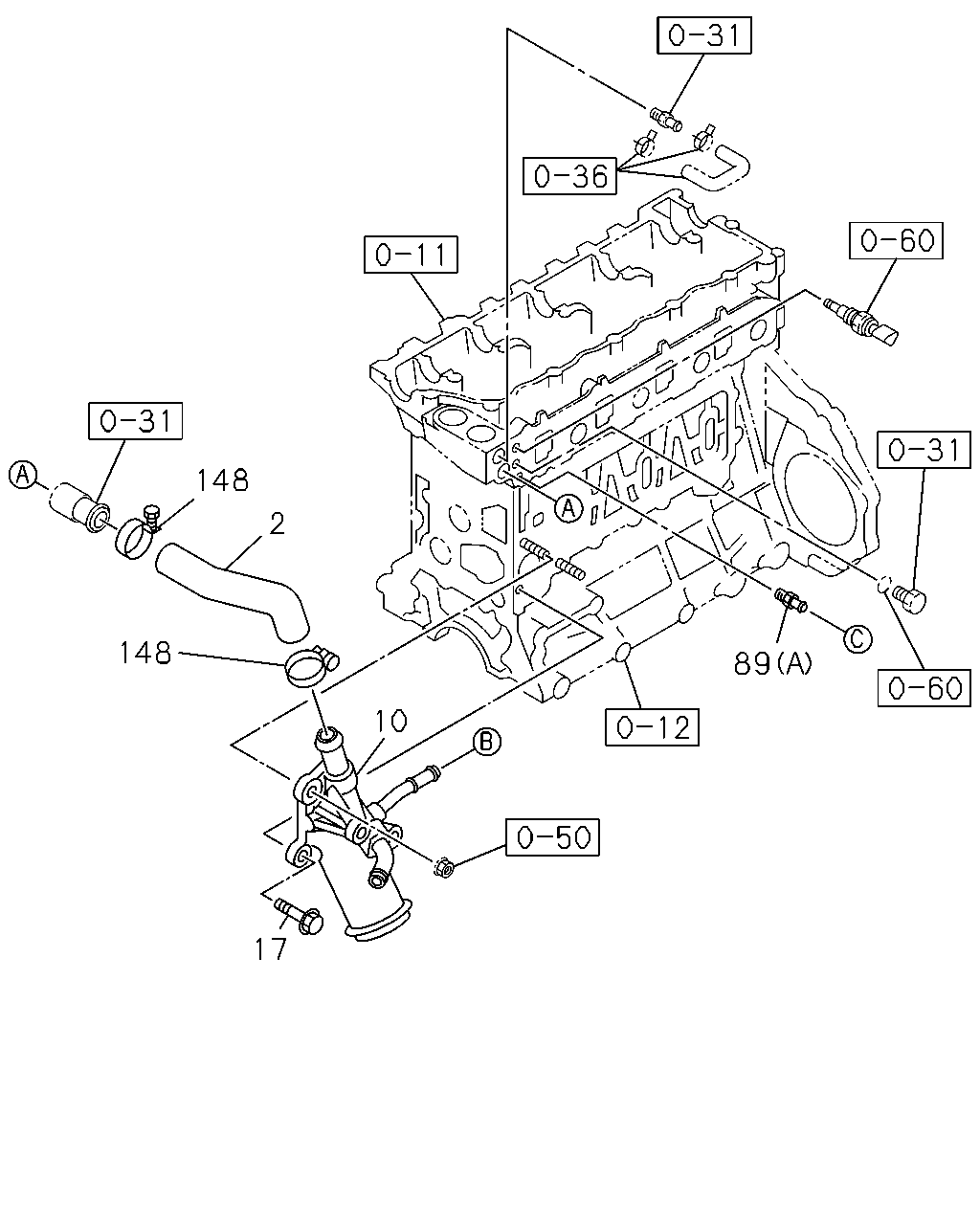

148 2 148 89 10 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; WATER,BY-PASS	8-97379-228-1	01	1	0908-
10	PIPE; SUCTION	8-98084-562-0	01	1	0908-1010
10	PIPE; SUCTION	8-98166-995-0	01	1	1011-
17	BOLT; SUCTION PIPE M8X48 FLANGE	8-94458-473-1	01	1	0908-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	0908-0912
89	PIPE; WATER,AIR CMPR,IN EURO5 SPECIFICATION<NT5> (C)	8-98095-668-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-97376-783-1	01	1	0908-1006
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B)	8-97376-783-1	01	1	1007-
148	CLIP; BYPASS HOSE ID=30	9-09915-315-1	02	1	0908-

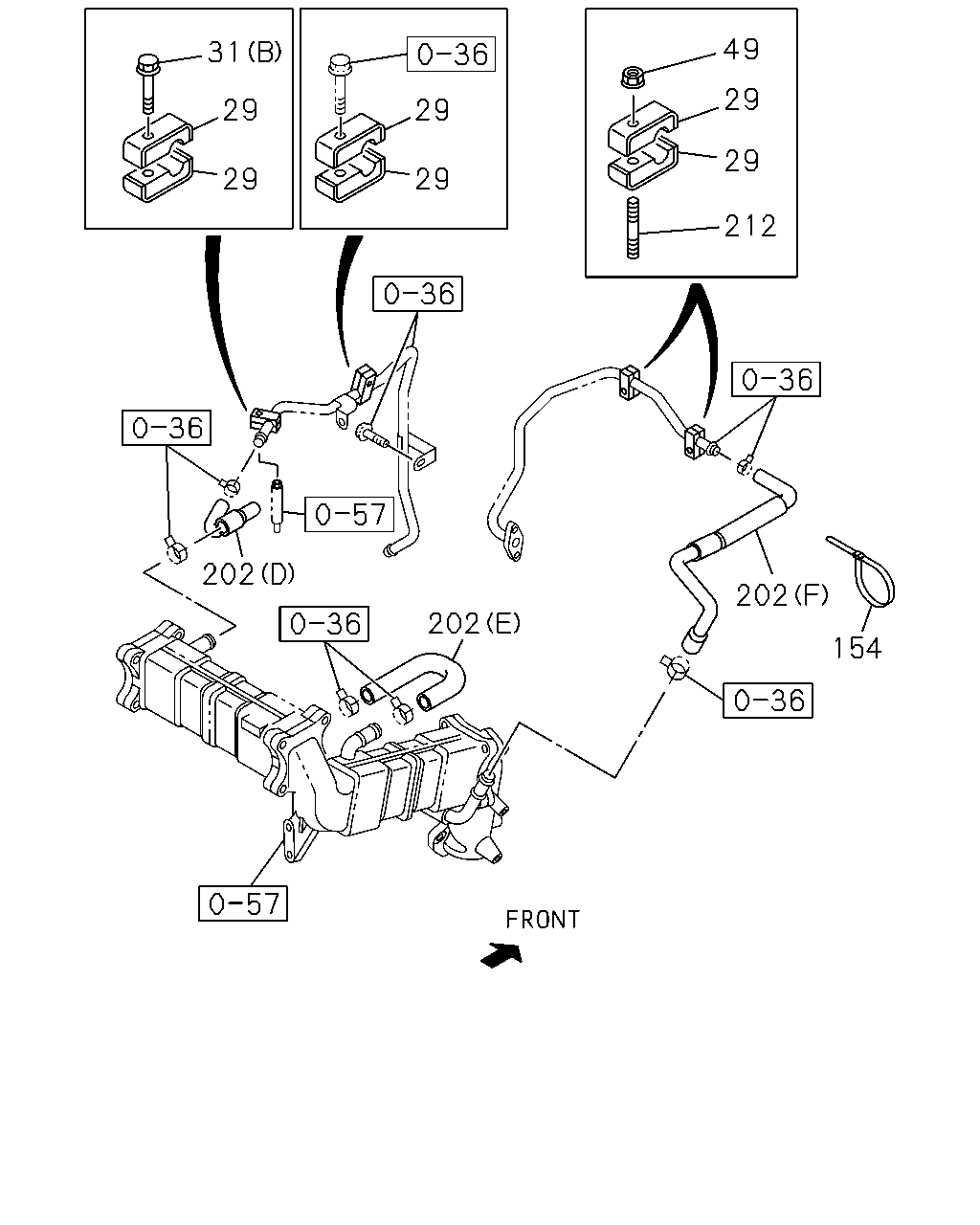

49 29 29 31 212 29 29 154 202 202 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	0908-1006
29	CLIP; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=17 L=17	1-09701-284-0	08	1	1007-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	1001-1006
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X40 FLANGE	0-28050-840-0	02	1	1007-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0908-0912
31	BOLT; CLIP EURO5 SPECIFICATION<NT5> (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	0908-
154	CLIP; WATER HOSE L=170.3	1-09987-182-0	01	1	0908-1006
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=170.3	1-09987-182-0	01	1	1007-
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (D)	8-98028-170-0	01	1	1001-
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (E)	8-98028-171-0	01	1	1001-
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (F)	8-98097-717-0	01	1	1001-
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97386-585-0	01	1	0908-
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-97386-586-1	01	1	0908-
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-97386-587-1	01	1	0908-
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	0908-

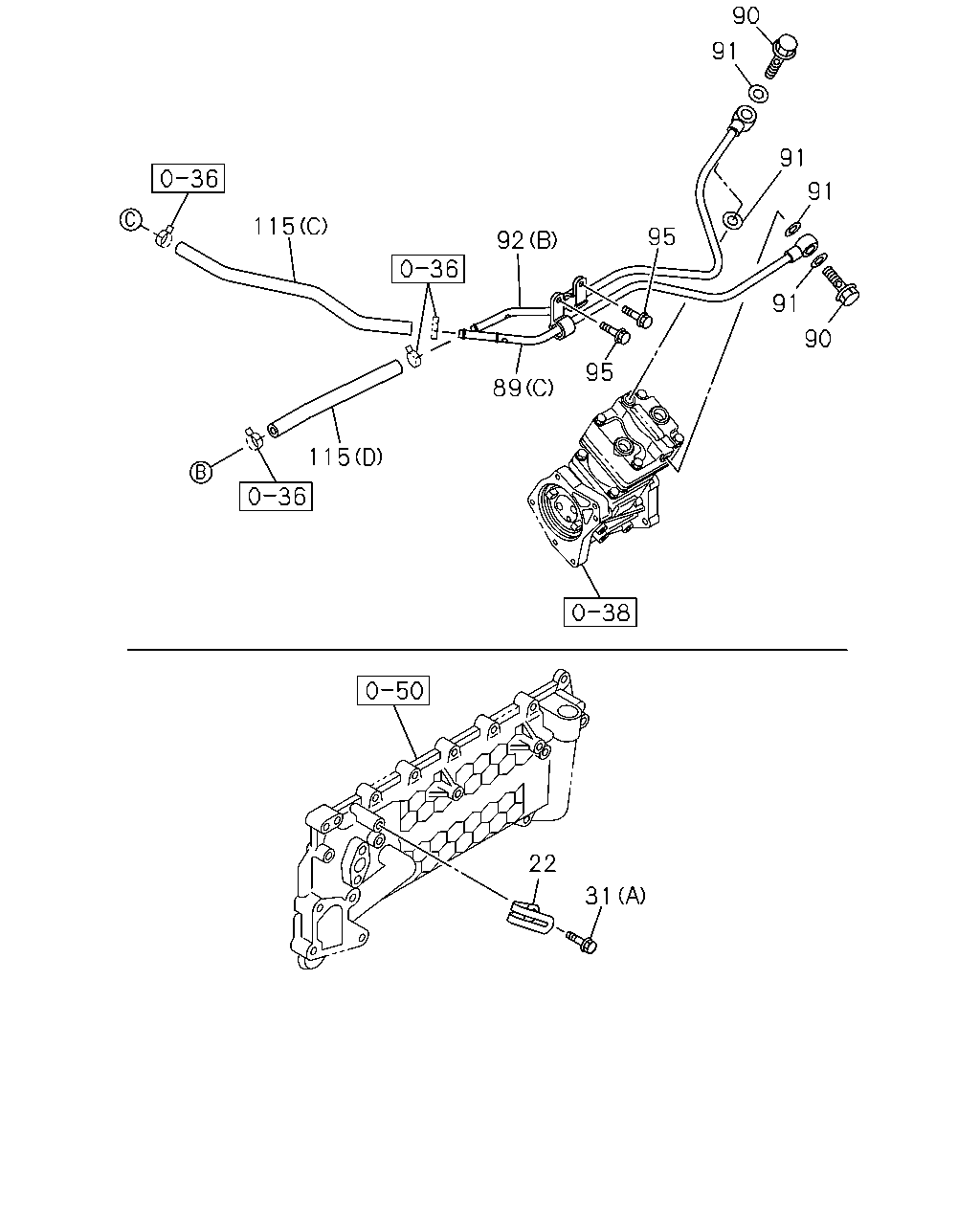

115 115 89 92 95 95 91 90 91 91 91 90 22 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
22	CLIP; WATER HOSE EURO5 SPECIFICATION<NT5> L=36	8-94224-891-1	01	1	1001-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	1001-1006
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X40 FLANGE	0-28050-840-0	02	1	1007-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0908-0912
31	BOLT; CLIP EURO5 SPECIFICATION<NT5> (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	0908-0912
89	PIPE; WATER,AIR CMPR,IN EURO5 SPECIFICATION<NT5> (C)	8-98095-668-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-97376-783-1	01	1	0908-1006
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B)	8-97376-783-1	01	1	1007-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0908-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0908-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
92	PIPE; WATER,AIR CMPR,OUT EURO5 SPECIFICATION<NT5> (B)	8-98132-662-0	01	1	1001-
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4> (A)	8-97376-784-0	01	1	0908-1006
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97376-784-0	01	1	1007-
95	BOLT; CLIP EURO5 SPECIFICATION<NT5> M8X16 FLANGE	0-28050-816-0	02	1	1001-
115	HOSE; RUBBER EURO5 SPECIFICATION<NT5> (C)	8-98095-678-3	01	1	1001-
115	HOSE; RUBBER EURO5 SPECIFICATION<NT5> (D) L=130	8-98136-884-0	01	1	1001-1010
115	HOSE; RUBBER (D) L=130	8-98136-884-0	01	1	1011-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0908-1006
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	1007-1010
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98009-361-0	01	1	0908-1006
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B)	8-98009-361-0	01	1	1007-

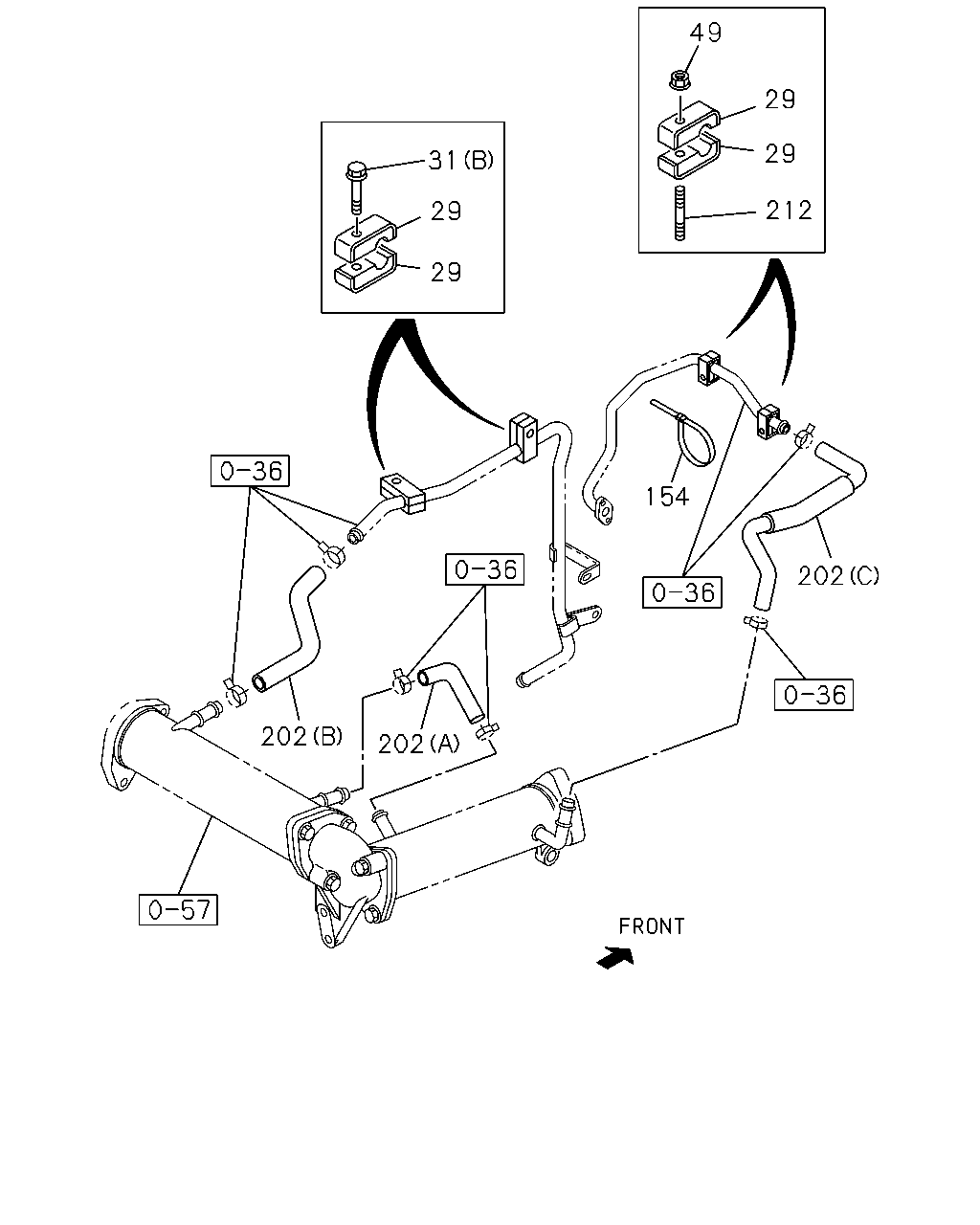

49 31 29 29 29 29 29 29 212 202 202 202 154

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	CLIP; PIPE ID=17 L=17	1-09701-284-0	08	1	0908-1006
29	CLIP; PIPE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=17 L=17	1-09701-284-0	08	1	1007-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	1001-1006
31	BOLT; CLIP EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) M8X40 FLANGE	0-28050-840-0	02	1	1007-
31	BOLT; CLIP (B) M8X40 FLANGE	0-28050-840-0	02	1	0908-0912
31	BOLT; CLIP EURO5 SPECIFICATION<NT5> (A) M8X12 FLANGE	0-28050-812-0	01	1	1001-
49	NUT; WATER PIPE M8 FLANGE	0-91180-108-0	02	1	0908-
154	CLIP; WATER HOSE L=170.3	1-09987-182-0	01	1	0908-1006
154	CLIP; WATER HOSE EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> L=170.3	1-09987-182-0	01	1	1007-
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (D)	8-98028-170-0	01	1	1001-
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (E)	8-98028-171-0	01	1	1001-
202	HOSE; RUBBER,EGR COOLER EURO5 SPECIFICATION<NT5> (F)	8-98097-717-0	01	1	1001-
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (A)	8-97386-585-0	01	1	0908-
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (B)	8-97386-586-1	01	1	0908-
202	HOSE; RUBBER,EGR COOLER EURO4 SPECIFICATION<NT4> (C)	8-97386-587-1	01	1	0908-
212	STUD; PIPE M8X45 L=55	8-94217-227-0	02	1	0908-

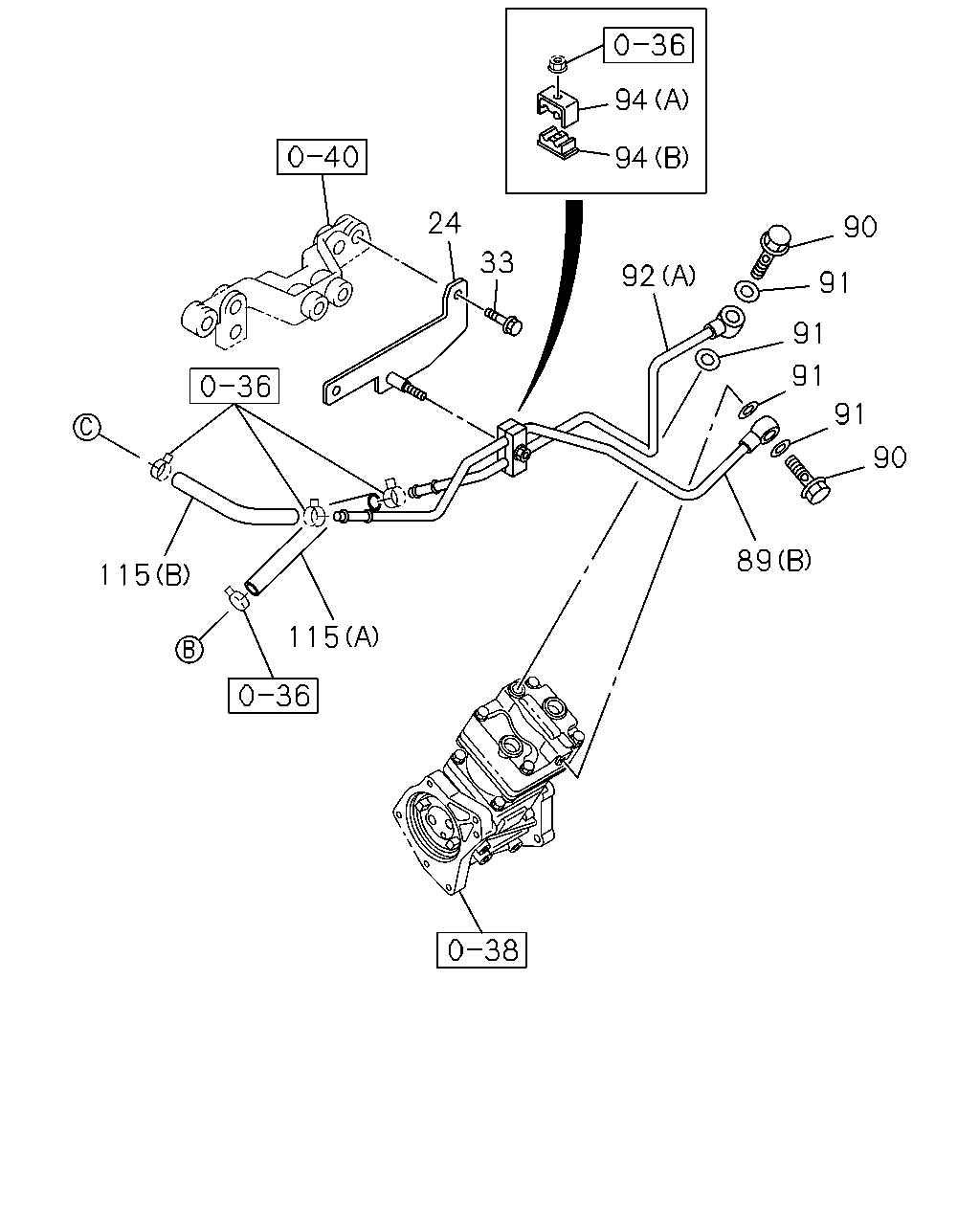

24 33 115 115 92 94 94 90 90 89 91 91 91 91

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	BRACKET; WATER PIPE EURO4 SPECIFICATION<NT4>	8-97379-140-0	01	1	0908-1006
24	BRACKET; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97379-140-0	01	1	1007-
33	BOLT; BRKT EURO4 SPECIFICATION<NT4> M6X10 FLANGE	0-28050-610-0	02	1	0908-1006
33	BOLT; BRKT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6X10 FLANGE	0-28050-610-0	02	1	1007-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	0908-0912
89	PIPE; WATER,AIR CMPR,IN EURO5 SPECIFICATION<NT5> (C)	8-98095-668-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN (A)	8-97358-699-0	01	1	1001-
89	PIPE; WATER,AIR CMPR,IN EURO4 SPECIFICATION<NT4> (B)	8-97376-783-1	01	1	0908-1006
89	PIPE; WATER,AIR CMPR,IN EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B)	8-97376-783-1	01	1	1007-
90	BOLT; EYE,WATER PIPE,AIR CMPR M14X27 EYE-BOLT	1-09675-193-0	02	1	0908-
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	04	1	0908-1312
91	GASKET; WATER PIPE,AIR CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	8-98251-345-0	04	1	1401-
92	PIPE; WATER,AIR CMPR,OUT EURO5 SPECIFICATION<NT5> (B)	8-98132-662-0	01	1	1001-
92	PIPE; WATER,AIR CMPR,OUT EURO4 SPECIFICATION<NT4> (A)	8-97376-784-0	01	1	0908-1006
92	PIPE; WATER,AIR CMPR,OUT EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97376-784-0	01	1	1007-
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (B) ID=9 & 9 L=25	1-09701-180-0	01	1	0908-1006
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) ID=9 & 9 L=25	1-09701-180-0	01	1	1007-
94	CLIP; WATER PIPE EURO4 SPECIFICATION<NT4> (A) ID=9 & 9 L=25	8-94393-280-3	01	1	0908-1006
94	CLIP; WATER PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) ID=9 & 9 L=25	8-94393-280-3	01	1	1007-
115	HOSE; RUBBER EURO5 SPECIFICATION<NT5> (C)	8-98095-678-3	01	1	1001-
115	HOSE; RUBBER EURO5 SPECIFICATION<NT5> (D) L=130	8-98136-884-0	01	1	1001-1010
115	HOSE; RUBBER (D) L=130	8-98136-884-0	01	1	1011-
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (A) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	0908-1006
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A) L=130 SERVICED BY L=3000	0-03559-300-0	01	1	1007-1010
115	HOSE; RUBBER EURO4 SPECIFICATION<NT4> (B)	8-98009-361-0	01	1	0908-1006
115	HOSE; RUBBER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B)	8-98009-361-0	01	1	1007-
