Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#6888) — 324 parça

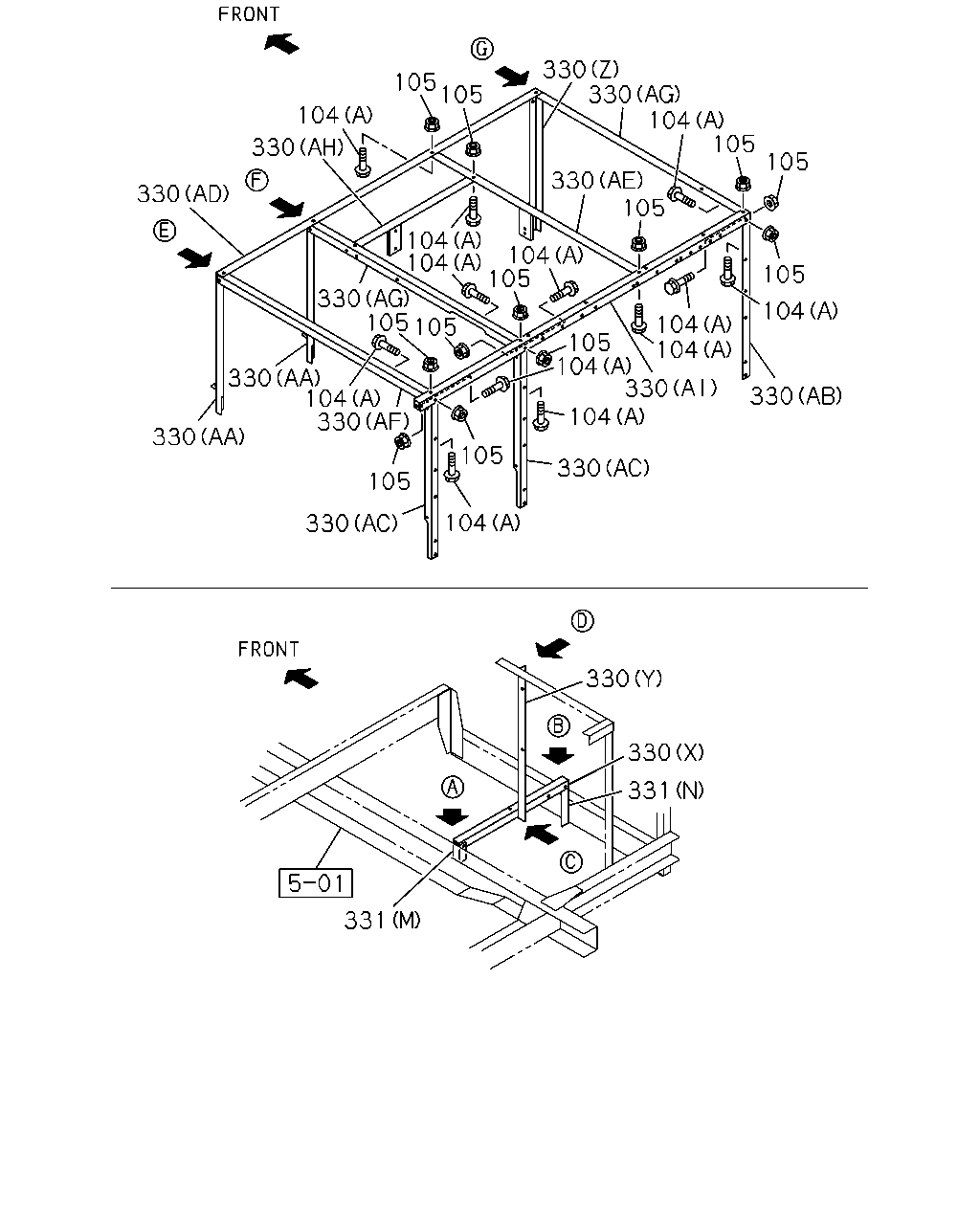

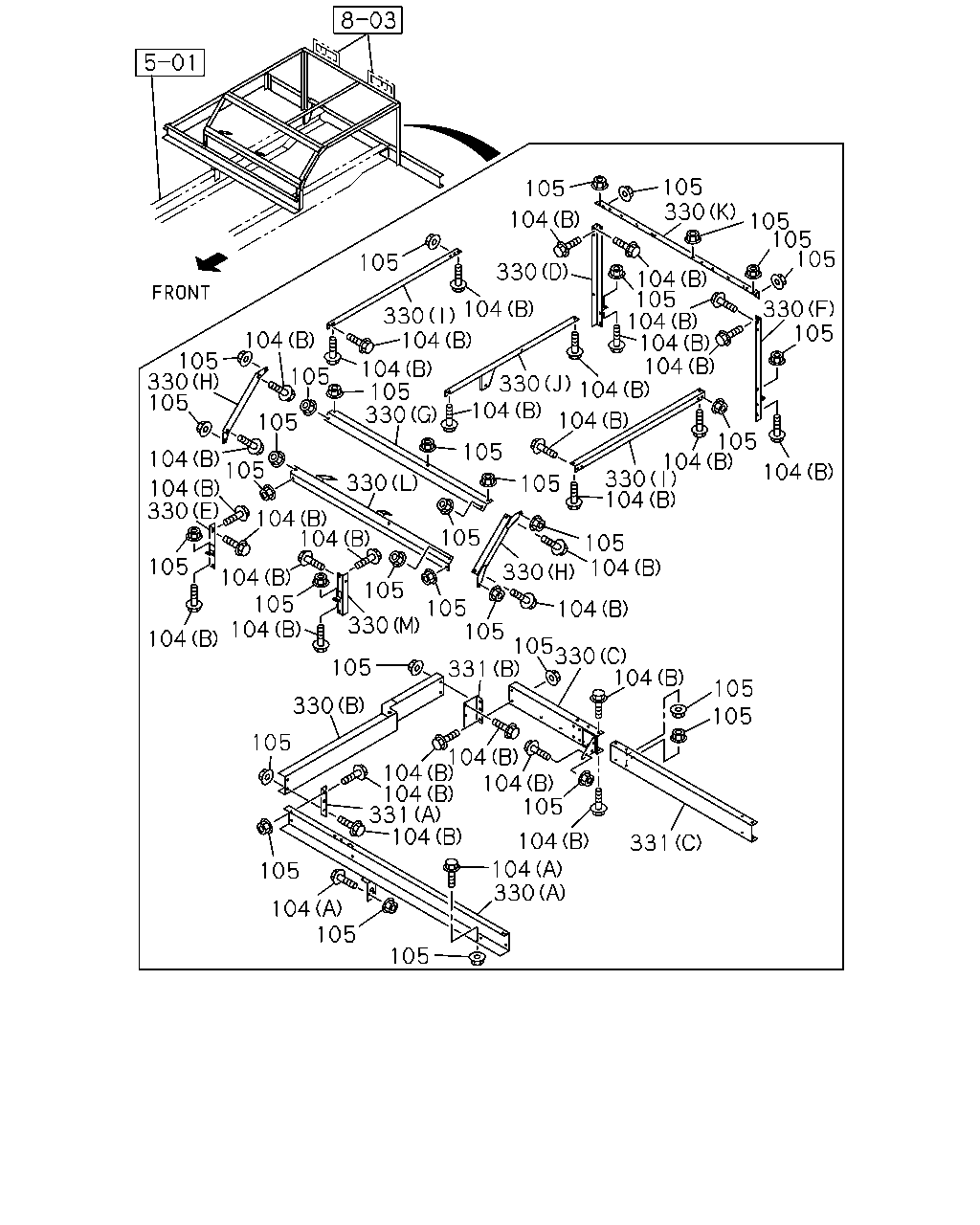

105 104 330 105 104 104 104 105 104 331 105 330 330 105 330 104 104 104 331 104 331 330 105 105 105 330 104 331 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT 6HE1-TC ENG(57L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9806-9911
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	06	1	9912-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	66	1	9912-0512
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	66	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9806-9911
104	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	08	1	9912-0512
104	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	08	1	0601-
105	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	58	1	9806-9911
105	NUT; BRKT M10 FLANGE	0-91150-210-0	80	1	9912-0602
105	NUT; BRKT M10 FLANGE	0-91180-210-0	80	1	0603-
105	NUT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M10 FLANGE	0-91150-210-0	30	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9806-9911
330	BRACKET; ENG COVER (W) RR LOWER	8-97531-178-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (G) FRT UPPER	1-65600-504-0	01	1	9806-9911
330	BRACKET; ENG COVER (AA) SIDE UPPER	8-97530-854-2	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (C) RR LOWER	1-65600-505-0	01	1	9806-9911
330	BRACKET; ENG COVER (AB) REAR UPPER SIDE	8-97531-180-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (K) RR UPPER	1-65600-506-0	01	1	9806-9911
330	BRACKET; ENG COVER (Z) UPPER FRONT	8-97530-856-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (I) SIDE UPPER	1-65600-514-0	02	1	9806-9911
330	BRACKET; ENG COVER (AC) REAR UPPER SIDE	8-97531-181-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (J) CENTER UPPER	1-65600-515-0	01	1	9806-9911
330	BRACKET; ENG COVER (AD) FRONT UPPER	8-97530-858-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (L) FRT	1-65600-517-0	01	1	9806-9911
330	BRACKET; ENG COVER (AE) UPPER SIDE	8-97530-860-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (F) SIDE RR	1-65600-495-1	01	1	9806-9911
330	BRACKET; ENG COVER (T) SIDE LOWER	8-97530-840-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (M) SIDE FRT	1-65600-496-0	01	1	9806-9911
330	BRACKET; ENG COVER (U) SIDE LOWER	8-97530-841-4	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (D) SIDE RR	1-65600-494-1	01	1	9806-9911
330	BRACKET; ENG COVER (O) FRONT LOWER	8-97530-839-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (E) SIDE FRT	1-65600-497-0	01	1	9806-9911
330	BRACKET; ENG COVER (V) REAR LOWER	8-97531-177-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9806-9911
330	BRACKET; ENG COVER (AF) UPPER SIDE	8-97530-862-1	01	1	9912-
330	BRACKET; ENG COVER (AH) UPPER FRONT	8-97530-864-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (A) FRONT LOWER	1-65600-525-1	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (P) REAR LOWER	1-65600-527-1	01	1	9806-9911
330	BRACKET; ENG COVER (Y) UPPER CENTER	8-97531-106-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (Q)	1-65600-532-1	01	1	9806-9911
330	BRACKET; ENG COVER (X) UPPER CENTER	8-97531-107-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (R)	1-65600-533-1	01	1	9806-9911
330	BRACKET; ENG COVER (AG) LH & RH UPPER SIDE	8-97531-148-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (S)	1-65600-534-0	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (N) SIDE LOWER	1-65600-526-0	01	1	9806-9911
330	BRACKET; ENG COVER (AI) UPPER REAR	8-97530-865-2	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (C) RR CENTER LOWER	1-65600-493-2	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (H) FRONT LOWER	8-97530-843-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (A) LOWER	1-65600-489-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (J) FRONT LOWER	8-97530-842-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (B) LOWER	1-65600-523-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-656-0	04	1	9912-9912
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-658-0	04	1	9912-0002
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (F)	1-65600-530-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (M) UPPER	8-97531-108-1	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (G)	1-65600-531-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (N) UPPER	8-97531-109-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (D) LOWER	1-65600-528-1	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (I) REAR LOWER	8-97530-845-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (E)	1-65600-529-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-179-0	01	1	9912-0001
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-228-1	01	1	0002-

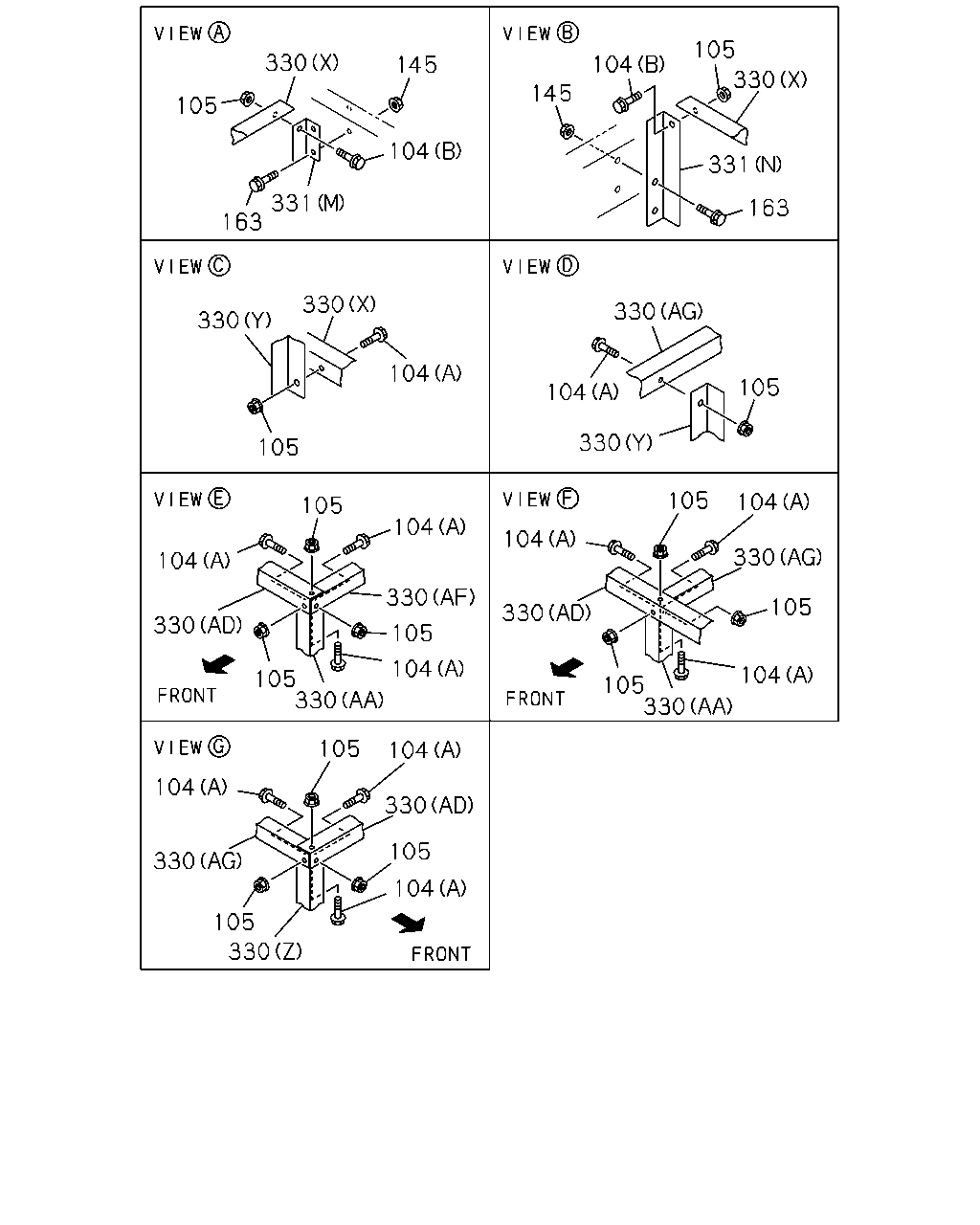

330 330 104 105 105 104 105 330 105 330 105 330 104 105 104 104 330 105 105 105 104 105 104 104 104 330 104 330 330 104 330 330 105 330 105 330 330 330 331 331 104

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT 6HE1-TC ENG(57L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9806-9911
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	06	1	9912-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	66	1	9912-0512
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	66	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9806-9911
104	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	08	1	9912-0512
104	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	08	1	0601-
105	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	58	1	9806-9911
105	NUT; BRKT M10 FLANGE	0-91150-210-0	80	1	9912-0602
105	NUT; BRKT M10 FLANGE	0-91180-210-0	80	1	0603-
105	NUT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M10 FLANGE	0-91150-210-0	30	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9806-9911
330	BRACKET; ENG COVER (W) RR LOWER	8-97531-178-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (G) FRT UPPER	1-65600-504-0	01	1	9806-9911
330	BRACKET; ENG COVER (AA) SIDE UPPER	8-97530-854-2	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (C) RR LOWER	1-65600-505-0	01	1	9806-9911
330	BRACKET; ENG COVER (AB) REAR UPPER SIDE	8-97531-180-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (K) RR UPPER	1-65600-506-0	01	1	9806-9911
330	BRACKET; ENG COVER (Z) UPPER FRONT	8-97530-856-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (I) SIDE UPPER	1-65600-514-0	02	1	9806-9911
330	BRACKET; ENG COVER (AC) REAR UPPER SIDE	8-97531-181-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (J) CENTER UPPER	1-65600-515-0	01	1	9806-9911
330	BRACKET; ENG COVER (AD) FRONT UPPER	8-97530-858-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (L) FRT	1-65600-517-0	01	1	9806-9911
330	BRACKET; ENG COVER (AE) UPPER SIDE	8-97530-860-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (F) SIDE RR	1-65600-495-1	01	1	9806-9911
330	BRACKET; ENG COVER (T) SIDE LOWER	8-97530-840-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (M) SIDE FRT	1-65600-496-0	01	1	9806-9911
330	BRACKET; ENG COVER (U) SIDE LOWER	8-97530-841-4	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (D) SIDE RR	1-65600-494-1	01	1	9806-9911
330	BRACKET; ENG COVER (O) FRONT LOWER	8-97530-839-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (E) SIDE FRT	1-65600-497-0	01	1	9806-9911
330	BRACKET; ENG COVER (V) REAR LOWER	8-97531-177-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9806-9911
330	BRACKET; ENG COVER (AF) UPPER SIDE	8-97530-862-1	01	1	9912-
330	BRACKET; ENG COVER (AH) UPPER FRONT	8-97530-864-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (A) FRONT LOWER	1-65600-525-1	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (P) REAR LOWER	1-65600-527-1	01	1	9806-9911
330	BRACKET; ENG COVER (Y) UPPER CENTER	8-97531-106-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (Q)	1-65600-532-1	01	1	9806-9911
330	BRACKET; ENG COVER (X) UPPER CENTER	8-97531-107-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (R)	1-65600-533-1	01	1	9806-9911
330	BRACKET; ENG COVER (AG) LH & RH UPPER SIDE	8-97531-148-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (S)	1-65600-534-0	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (N) SIDE LOWER	1-65600-526-0	01	1	9806-9911
330	BRACKET; ENG COVER (AI) UPPER REAR	8-97530-865-2	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (C) RR CENTER LOWER	1-65600-493-2	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (H) FRONT LOWER	8-97530-843-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (A) LOWER	1-65600-489-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (J) FRONT LOWER	8-97530-842-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (B) LOWER	1-65600-523-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-656-0	04	1	9912-9912
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-658-0	04	1	9912-0002
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (F)	1-65600-530-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (M) UPPER	8-97531-108-1	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (G)	1-65600-531-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (N) UPPER	8-97531-109-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (D) LOWER	1-65600-528-1	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (I) REAR LOWER	8-97530-845-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (E)	1-65600-529-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-179-0	01	1	9912-0001
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-228-1	01	1	0002-

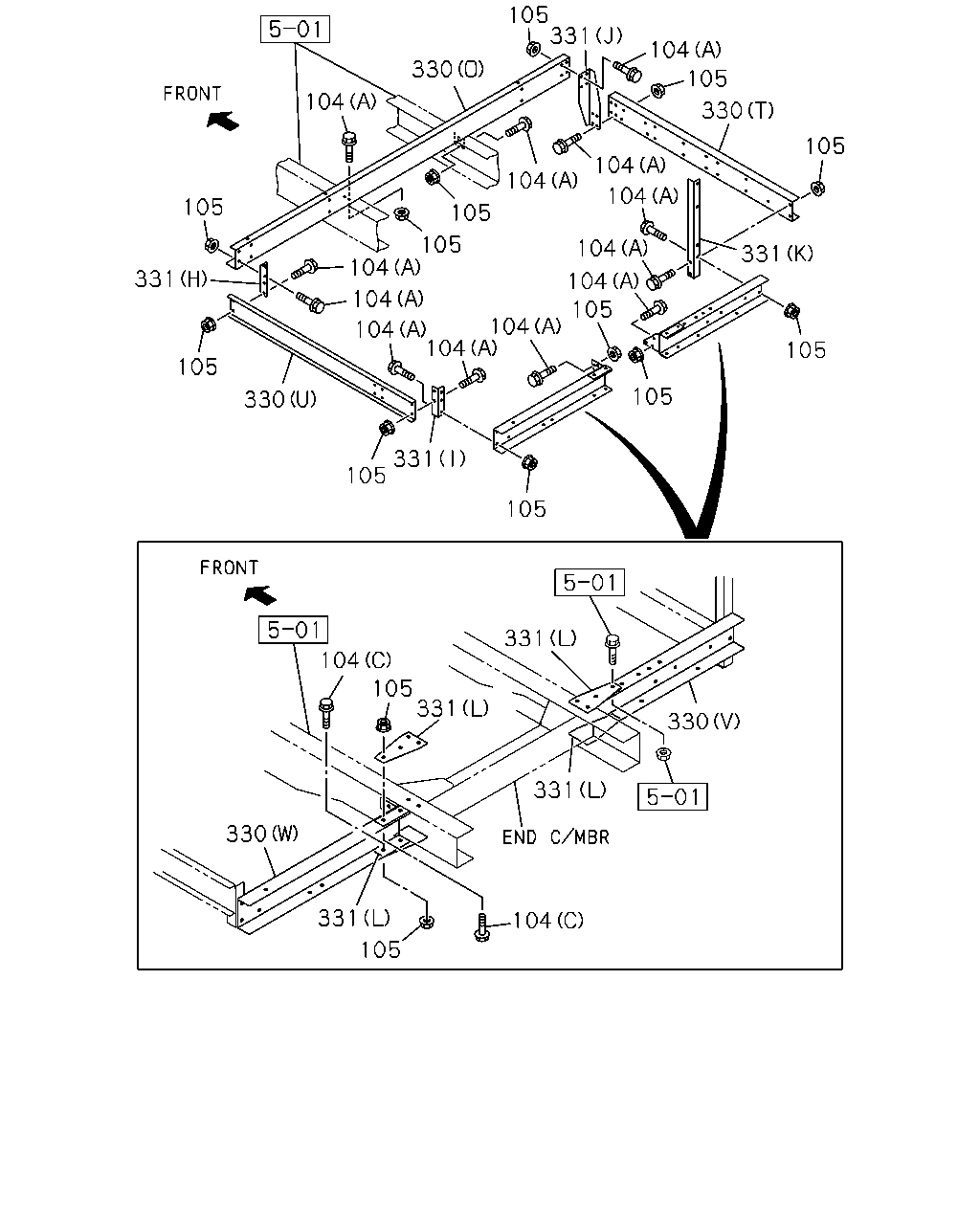

105 330 104 145 330 145 105 104 331 331 163 163 330 330 330 104 105 104 330 105 105 104 105 104 104 330 104 330 105 330 330 105 104 104 105 330 105 330 105 104 104 330 105 330 104 105 330

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT 6HE1-TC ENG(57L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9806-9911
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	06	1	9912-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	66	1	9912-0512
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	66	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9806-9911
104	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	08	1	9912-0512
104	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	08	1	0601-
105	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	58	1	9806-9911
105	NUT; BRKT M10 FLANGE	0-91150-210-0	80	1	9912-0602
105	NUT; BRKT M10 FLANGE	0-91180-210-0	80	1	0603-
105	NUT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M10 FLANGE	0-91150-210-0	30	1	9806-9911
145	NUT; BRKT M10 FLANGE	0-91150-210-0	04	1	9912-0602
145	NUT; BRKT M10 FLANGE	0-91180-210-0	04	1	0603-
163	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	9912-0512
163	BOLT; BRKT M10X30 FLANGE	0-28651-030-0	04	1	0601-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9806-9911
330	BRACKET; ENG COVER (W) RR LOWER	8-97531-178-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (G) FRT UPPER	1-65600-504-0	01	1	9806-9911
330	BRACKET; ENG COVER (AA) SIDE UPPER	8-97530-854-2	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (C) RR LOWER	1-65600-505-0	01	1	9806-9911
330	BRACKET; ENG COVER (AB) REAR UPPER SIDE	8-97531-180-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (K) RR UPPER	1-65600-506-0	01	1	9806-9911
330	BRACKET; ENG COVER (Z) UPPER FRONT	8-97530-856-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (I) SIDE UPPER	1-65600-514-0	02	1	9806-9911
330	BRACKET; ENG COVER (AC) REAR UPPER SIDE	8-97531-181-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (J) CENTER UPPER	1-65600-515-0	01	1	9806-9911
330	BRACKET; ENG COVER (AD) FRONT UPPER	8-97530-858-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (L) FRT	1-65600-517-0	01	1	9806-9911
330	BRACKET; ENG COVER (AE) UPPER SIDE	8-97530-860-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (F) SIDE RR	1-65600-495-1	01	1	9806-9911
330	BRACKET; ENG COVER (T) SIDE LOWER	8-97530-840-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (M) SIDE FRT	1-65600-496-0	01	1	9806-9911
330	BRACKET; ENG COVER (U) SIDE LOWER	8-97530-841-4	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (D) SIDE RR	1-65600-494-1	01	1	9806-9911
330	BRACKET; ENG COVER (O) FRONT LOWER	8-97530-839-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (E) SIDE FRT	1-65600-497-0	01	1	9806-9911
330	BRACKET; ENG COVER (V) REAR LOWER	8-97531-177-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9806-9911
330	BRACKET; ENG COVER (AF) UPPER SIDE	8-97530-862-1	01	1	9912-
330	BRACKET; ENG COVER (AH) UPPER FRONT	8-97530-864-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (A) FRONT LOWER	1-65600-525-1	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (P) REAR LOWER	1-65600-527-1	01	1	9806-9911
330	BRACKET; ENG COVER (Y) UPPER CENTER	8-97531-106-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (Q)	1-65600-532-1	01	1	9806-9911
330	BRACKET; ENG COVER (X) UPPER CENTER	8-97531-107-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (R)	1-65600-533-1	01	1	9806-9911
330	BRACKET; ENG COVER (AG) LH & RH UPPER SIDE	8-97531-148-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (S)	1-65600-534-0	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (N) SIDE LOWER	1-65600-526-0	01	1	9806-9911
330	BRACKET; ENG COVER (AI) UPPER REAR	8-97530-865-2	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (C) RR CENTER LOWER	1-65600-493-2	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (H) FRONT LOWER	8-97530-843-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (A) LOWER	1-65600-489-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (J) FRONT LOWER	8-97530-842-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (B) LOWER	1-65600-523-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-656-0	04	1	9912-9912
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-658-0	04	1	9912-0002
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (F)	1-65600-530-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (M) UPPER	8-97531-108-1	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (G)	1-65600-531-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (N) UPPER	8-97531-109-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (D) LOWER	1-65600-528-1	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (I) REAR LOWER	8-97530-845-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (E)	1-65600-529-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-179-0	01	1	9912-0001
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-228-1	01	1	0002-

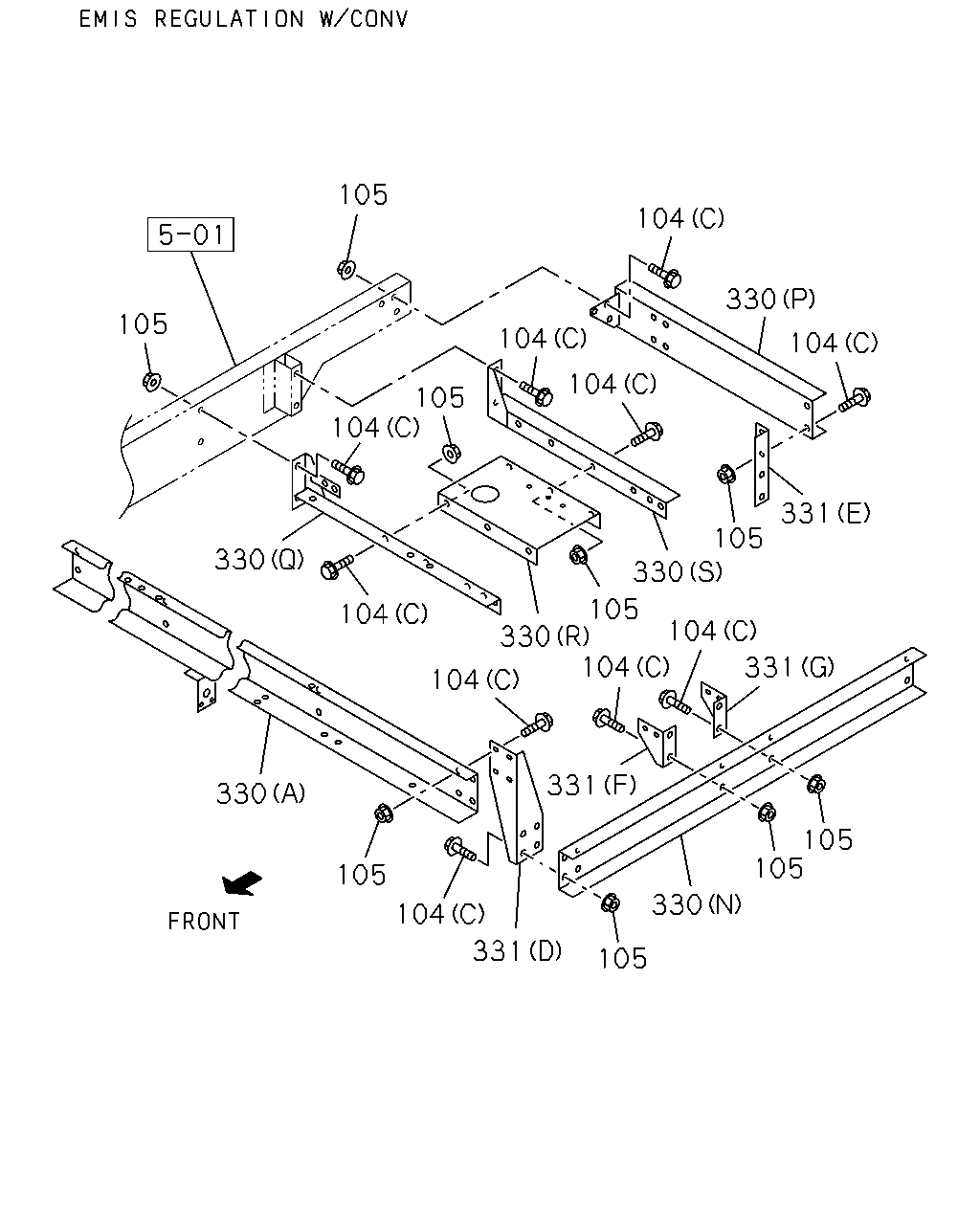

105 331 104 330 105 104 330 105 104 104 104 105 105 105 104 331 104 331 104 105 104 104 104 104 105 105 105 330 331 105 105 331 104 105 331 330 331 330 331 104 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT 6HE1-TC ENG(57L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9806-9911
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	06	1	9912-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	66	1	9912-0512
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	66	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9806-9911
104	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	08	1	9912-0512
104	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	08	1	0601-
105	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	58	1	9806-9911
105	NUT; BRKT M10 FLANGE	0-91150-210-0	80	1	9912-0602
105	NUT; BRKT M10 FLANGE	0-91180-210-0	80	1	0603-
105	NUT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M10 FLANGE	0-91150-210-0	30	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9806-9911
330	BRACKET; ENG COVER (W) RR LOWER	8-97531-178-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (G) FRT UPPER	1-65600-504-0	01	1	9806-9911
330	BRACKET; ENG COVER (AA) SIDE UPPER	8-97530-854-2	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (C) RR LOWER	1-65600-505-0	01	1	9806-9911
330	BRACKET; ENG COVER (AB) REAR UPPER SIDE	8-97531-180-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (K) RR UPPER	1-65600-506-0	01	1	9806-9911
330	BRACKET; ENG COVER (Z) UPPER FRONT	8-97530-856-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (I) SIDE UPPER	1-65600-514-0	02	1	9806-9911
330	BRACKET; ENG COVER (AC) REAR UPPER SIDE	8-97531-181-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (J) CENTER UPPER	1-65600-515-0	01	1	9806-9911
330	BRACKET; ENG COVER (AD) FRONT UPPER	8-97530-858-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (L) FRT	1-65600-517-0	01	1	9806-9911
330	BRACKET; ENG COVER (AE) UPPER SIDE	8-97530-860-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (F) SIDE RR	1-65600-495-1	01	1	9806-9911
330	BRACKET; ENG COVER (T) SIDE LOWER	8-97530-840-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (M) SIDE FRT	1-65600-496-0	01	1	9806-9911
330	BRACKET; ENG COVER (U) SIDE LOWER	8-97530-841-4	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (D) SIDE RR	1-65600-494-1	01	1	9806-9911
330	BRACKET; ENG COVER (O) FRONT LOWER	8-97530-839-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (E) SIDE FRT	1-65600-497-0	01	1	9806-9911
330	BRACKET; ENG COVER (V) REAR LOWER	8-97531-177-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9806-9911
330	BRACKET; ENG COVER (AF) UPPER SIDE	8-97530-862-1	01	1	9912-
330	BRACKET; ENG COVER (AH) UPPER FRONT	8-97530-864-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (A) FRONT LOWER	1-65600-525-1	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (P) REAR LOWER	1-65600-527-1	01	1	9806-9911
330	BRACKET; ENG COVER (Y) UPPER CENTER	8-97531-106-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (Q)	1-65600-532-1	01	1	9806-9911
330	BRACKET; ENG COVER (X) UPPER CENTER	8-97531-107-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (R)	1-65600-533-1	01	1	9806-9911
330	BRACKET; ENG COVER (AG) LH & RH UPPER SIDE	8-97531-148-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (S)	1-65600-534-0	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (N) SIDE LOWER	1-65600-526-0	01	1	9806-9911
330	BRACKET; ENG COVER (AI) UPPER REAR	8-97530-865-2	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (C) RR CENTER LOWER	1-65600-493-2	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (H) FRONT LOWER	8-97530-843-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (A) LOWER	1-65600-489-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (J) FRONT LOWER	8-97530-842-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (B) LOWER	1-65600-523-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-656-0	04	1	9912-9912
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-658-0	04	1	9912-0002
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (F)	1-65600-530-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (M) UPPER	8-97531-108-1	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (G)	1-65600-531-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (N) UPPER	8-97531-109-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (D) LOWER	1-65600-528-1	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (I) REAR LOWER	8-97530-845-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (E)	1-65600-529-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-179-0	01	1	9912-0001
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-228-1	01	1	0002-

104 105 330 104 105 104 104 104 104 105 105 105 105 105 330 330 105 104 330 104 104 105 330 105 104 105 330 105 105 330 104 104 105 104 330 104 105 104 105 104 330 104 330 105 104 104 105 105 104 105 330 104 105 104 105 105 330 105 104 104 105 330 331 104 105 105 105 330 105 104 104 104 104 105 331 104 104 104 330 331 105 104 105 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
104	BOLT; BRKT 6HE1-TC ENG(57L) (B) M10X25 FLANGE	0-28681-025-0	54	1	9806-9911
104	BOLT; BRKT (B) M10X25 FLANGE	0-28681-025-0	06	1	9912-0512
104	BOLT; BRKT (B) M10X25 FLANGE	0-28651-025-0	06	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) (A) M10X30 FLANGE	0-28681-030-0	04	1	9806-9911
104	BOLT; BRKT (A) M10X30 FLANGE	0-28681-030-0	66	1	9912-0512
104	BOLT; BRKT (A) M10X30 FLANGE	0-28651-030-0	66	1	0601-
104	BOLT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (C) M10X30 FLANGE	0-28681-030-0	32	1	9806-9911
104	BOLT; BRKT (C) M10X35 FLANGE	0-28681-035-0	08	1	9912-0512
104	BOLT; BRKT (C) M10X35 FLANGE	0-28651-035-0	08	1	0601-
105	NUT; BRKT 6HE1-TC ENG(57L) M10 FLANGE	0-91150-210-0	58	1	9806-9911
105	NUT; BRKT M10 FLANGE	0-91150-210-0	80	1	9912-0602
105	NUT; BRKT M10 FLANGE	0-91180-210-0	80	1	0603-
105	NUT; BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> M10 FLANGE	0-91150-210-0	30	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (H) FRT SIDE UPPER	1-65600-503-0	02	1	9806-9911
330	BRACKET; ENG COVER (W) RR LOWER	8-97531-178-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (G) FRT UPPER	1-65600-504-0	01	1	9806-9911
330	BRACKET; ENG COVER (AA) SIDE UPPER	8-97530-854-2	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (C) RR LOWER	1-65600-505-0	01	1	9806-9911
330	BRACKET; ENG COVER (AB) REAR UPPER SIDE	8-97531-180-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (K) RR UPPER	1-65600-506-0	01	1	9806-9911
330	BRACKET; ENG COVER (Z) UPPER FRONT	8-97530-856-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (I) SIDE UPPER	1-65600-514-0	02	1	9806-9911
330	BRACKET; ENG COVER (AC) REAR UPPER SIDE	8-97531-181-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (J) CENTER UPPER	1-65600-515-0	01	1	9806-9911
330	BRACKET; ENG COVER (AD) FRONT UPPER	8-97530-858-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (L) FRT	1-65600-517-0	01	1	9806-9911
330	BRACKET; ENG COVER (AE) UPPER SIDE	8-97530-860-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (F) SIDE RR	1-65600-495-1	01	1	9806-9911
330	BRACKET; ENG COVER (T) SIDE LOWER	8-97530-840-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (M) SIDE FRT	1-65600-496-0	01	1	9806-9911
330	BRACKET; ENG COVER (U) SIDE LOWER	8-97530-841-4	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (D) SIDE RR	1-65600-494-1	01	1	9806-9911
330	BRACKET; ENG COVER (O) FRONT LOWER	8-97530-839-2	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (E) SIDE FRT	1-65600-497-0	01	1	9806-9911
330	BRACKET; ENG COVER (V) REAR LOWER	8-97531-177-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (B) SIDE LOWER	1-65600-524-0	01	1	9806-9911
330	BRACKET; ENG COVER (AF) UPPER SIDE	8-97530-862-1	01	1	9912-
330	BRACKET; ENG COVER (AH) UPPER FRONT	8-97530-864-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) (A) FRONT LOWER	1-65600-525-1	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (P) REAR LOWER	1-65600-527-1	01	1	9806-9911
330	BRACKET; ENG COVER (Y) UPPER CENTER	8-97531-106-0	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (Q)	1-65600-532-1	01	1	9806-9911
330	BRACKET; ENG COVER (X) UPPER CENTER	8-97531-107-1	01	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (R)	1-65600-533-1	01	1	9806-9911
330	BRACKET; ENG COVER (AG) LH & RH UPPER SIDE	8-97531-148-1	02	1	9912-
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (S)	1-65600-534-0	01	1	9806-9911
330	BRACKET; ENG COVER 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (N) SIDE LOWER	1-65600-526-0	01	1	9806-9911
330	BRACKET; ENG COVER (AI) UPPER REAR	8-97530-865-2	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (C) RR CENTER LOWER	1-65600-493-2	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (H) FRONT LOWER	8-97530-843-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (A) LOWER	1-65600-489-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (J) FRONT LOWER	8-97530-842-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) (B) LOWER	1-65600-523-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-656-0	04	1	9912-9912
331	BRACKET; ENG COVER BRKT (L) REAR	1-65600-658-0	04	1	9912-0002
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (F)	1-65600-530-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (M) UPPER	8-97531-108-1	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (G)	1-65600-531-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (N) UPPER	8-97531-109-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (D) LOWER	1-65600-528-1	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (I) REAR LOWER	8-97530-845-0	01	1	9912-
331	BRACKET; ENG COVER BRKT 6HE1-TC ENG(57L) EMIS REGULATION W/CONV<TCA> (E)	1-65600-529-0	01	1	9806-9911
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-179-0	01	1	9912-0001
331	BRACKET; ENG COVER BRKT (K) REAR LOWER	8-97531-228-1	01	1	0002-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
