0-28 — VENTILATION SYSTEM (#68877) — 64 parça

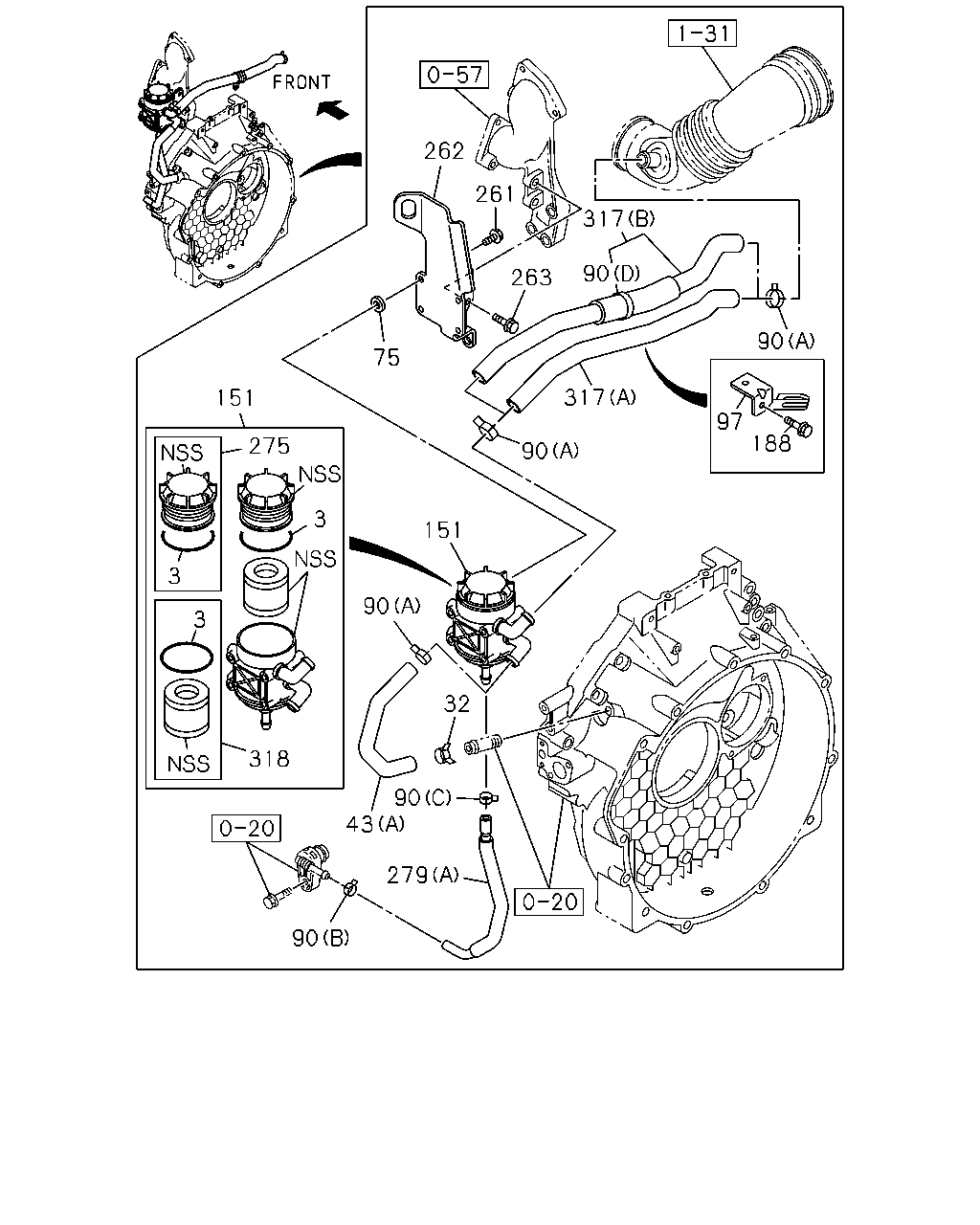

çizim 40306
262 261 317 263 317 75 90 90 97 188 151 90 32 90 43 279 90 318 3 3 3 275 151 90
BalonParca AdiParca NoAdetTipApplied Date
3 GASKET; BODY TO CAP 8-97385-921-0 01 1 0908-1006
3 GASKET; BODY TO CAP
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97385-921-0 01 1 1007-
32 CLIP; VENT HOSE
ID=21 		8-94242-034-0 01 1 0908-1006
32 CLIP; VENT HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=21 		8-94242-034-0 01 1 1007-
43 HOSE; PCV
EURO2 SPECIFICATION<NT2> (C) 		8-97149-012-3 01 1 1007-
43 HOSE; PCV
EURO2 SPECIFICATION<NT2> (B) 		8-98012-831-0 01 1 1007-1308
43 HOSE; PCV
EURO2 SPECIFICATION<NT2> (B) 		8-98249-509-0 01 1 1309-
43 HOSE; PCV
(A) 		8-98057-033-0 01 1 0908-1006
43 HOSE; PCV
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98057-033-0 01 1 1007-
75 WASHER
ID=9 OD=18 T=5 		9-14149-173-0 04 1 0908-1006
75 WASHER
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> ID=9 OD=18 T=5 		9-14149-173-0 04 1 1007-
90 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> (E) ID=11 		8-94238-570-0 01 1 1007-
90 CLIP; RUBBER HOSE
(D) L=212 		8-94107-652-0 01 1 1007-1007
90 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) L=212 		8-94107-652-0 01 1 1007-
90 CLIP; RUBBER HOSE
(A) ID=28 		1-09707-124-0 03 1 0908-1006
90 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=28 		1-09707-124-0 03 1 1007-
90 CLIP; RUBBER HOSE
(C) ID=13 		8-94238-571-0 01 1 0908-1006
90 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=13 		8-94238-571-0 01 1 1007-
90 CLIP; RUBBER HOSE
(B) ID=11 		8-94238-925-0 01 1 0908-1007
90 CLIP; RUBBER HOSE
(B) ID=11.5 		8-97138-011-0 01 1 1008-
97 BRACKET; HOSE 8-98093-946-2 01 1 1007-1007
97 BRACKET; HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98093-946-3 01 1 1007-
151 SEPARATOR; OIL,PCV 8-97324-682-1 01 1 0908-1006
151 SEPARATOR; OIL,PCV
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97324-682-1 01 1 1007-
188 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 01 1 1007-1007
188 BOLT; BRKT
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X12 FLANGE 		0-28050-812-0 01 1 1007-
261 BOLT; SEPARETOR
M8X30 FLANGE 		0-28650-830-0 04 1 0908-1006
261 BOLT; SEPARETOR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M8X30 FLANGE 		0-28650-830-0 04 1 1007-
262 BRACKET; OIL SEPARETOR 8-98036-498-0 01 1 0908-1006
262 BRACKET; OIL SEPARETOR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98036-498-0 01 1 1007-1501
262 BRACKET; OIL SEPARETOR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98296-130-0 01 1 1502-
263 BOLT; BRKT,OIL SEPARETOR
M12X30 FLANGE 		0-28151-230-0 03 1 0908-1006
263 BOLT; BRKT,OIL SEPARETOR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> M12X30 FLANGE 		0-28151-230-0 03 1 1007-
275 CAP; PCV 8-97389-360-0 01 1 0908-1006
275 CAP; PCV
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-97389-360-0 01 1 1007-
279 HOSE; RUBBER,OIL DRAIN
EURO2 SPECIFICATION<NT2> (B) 		8-98075-714-0 01 1 1007-
279 HOSE; RUBBER,OIL DRAIN
(A) 		8-97386-653-1 01 1 0908-1006
279 HOSE; RUBBER,OIL DRAIN
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-97386-653-1 01 1 1007-
317 HOSE; RUBBER,OIL SEPARATOR
EURO5 SPECIFICATION<NT5> (A) 		8-98057-032-1 02 1 1005-1006
317 HOSE; RUBBER,OIL SEPARATOR
(A) 		8-98057-032-1 01 1 0908-1004
317 HOSE; RUBBER,OIL SEPARATOR
EURO4 SPECIFICATION<NT4> (A) 		8-98057-032-1 01 1 1005-1006
317 HOSE; RUBBER,OIL SEPARATOR
(B) 		8-98095-931-0 01 1 1007-1007
317 HOSE; RUBBER,OIL SEPARATOR
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (B) 		8-98095-931-1 01 1 1007-
318 ELEMENT KIT; PCV 8-98002-346-0 01 1 0908-1006
318 ELEMENT KIT; PCV
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> 		8-98002-346-0 01 1 1007-

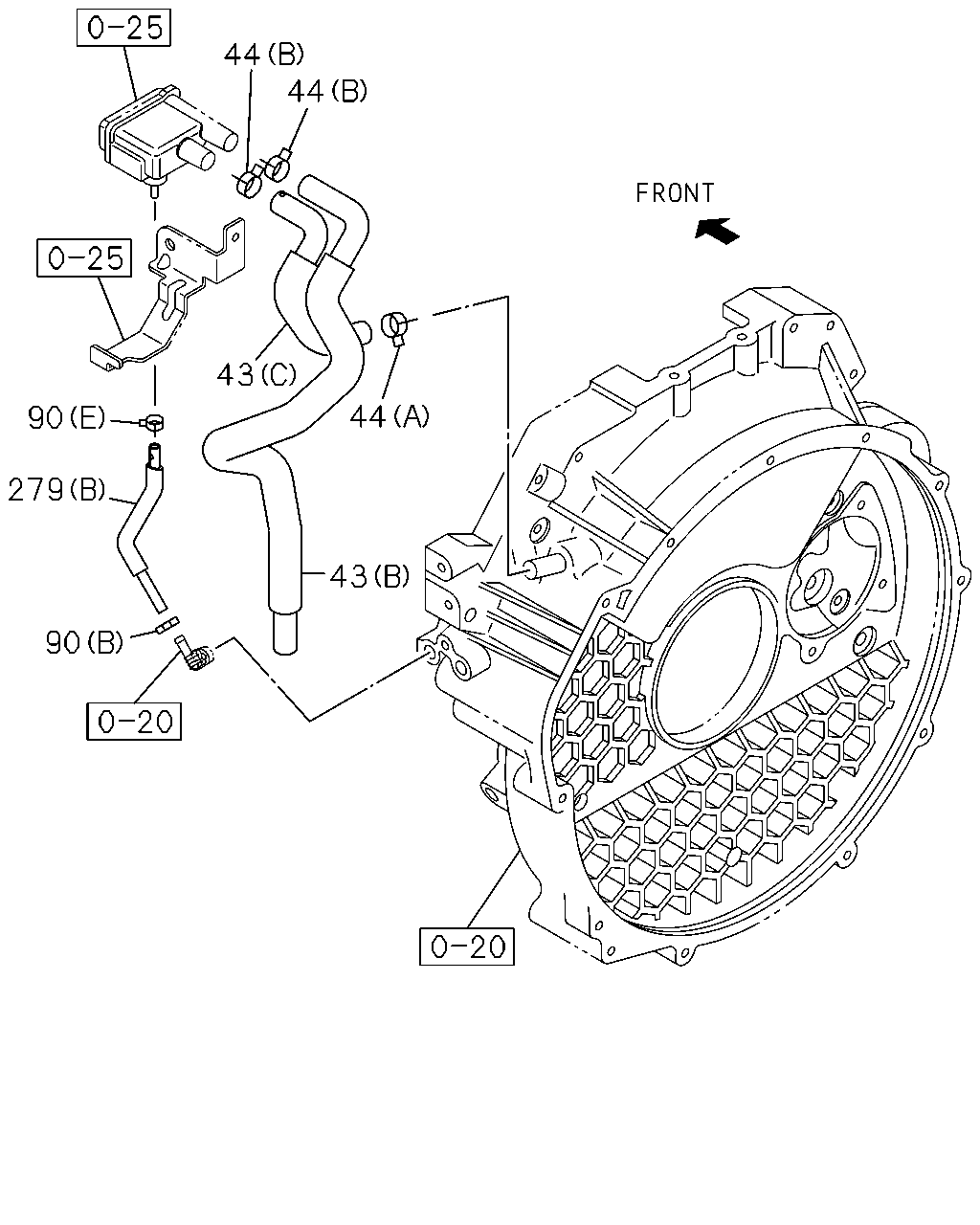

çizim 40817
44 44 43 44 90 279 43 90
BalonParca AdiParca NoAdetTipApplied Date
43 HOSE; PCV
EURO2 SPECIFICATION<NT2> (C) 		8-97149-012-3 01 1 1007-
43 HOSE; PCV
EURO2 SPECIFICATION<NT2> (B) 		8-98012-831-0 01 1 1007-1308
43 HOSE; PCV
EURO2 SPECIFICATION<NT2> (B) 		8-98249-509-0 01 1 1309-
43 HOSE; PCV
(A) 		8-98057-033-0 01 1 0908-1006
43 HOSE; PCV
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-98057-033-0 01 1 1007-
44 CLIP; HOSE,PCV
EURO2 SPECIFICATION<NT2> (A) ID=21 		8-94242-034-0 01 1 1007-
44 CLIP; HOSE,PCV
EURO2 SPECIFICATION<NT2> (B) ID=22.7 		8-94466-382-0 02 1 1007-
90 CLIP; RUBBER HOSE
EURO2 SPECIFICATION<NT2> (E) ID=11 		8-94238-570-0 01 1 1007-
90 CLIP; RUBBER HOSE
(D) L=212 		8-94107-652-0 01 1 1007-1007
90 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (D) L=212 		8-94107-652-0 01 1 1007-
90 CLIP; RUBBER HOSE
(A) ID=28 		1-09707-124-0 03 1 0908-1006
90 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) ID=28 		1-09707-124-0 03 1 1007-
90 CLIP; RUBBER HOSE
(C) ID=13 		8-94238-571-0 01 1 0908-1006
90 CLIP; RUBBER HOSE
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (C) ID=13 		8-94238-571-0 01 1 1007-
90 CLIP; RUBBER HOSE
(B) ID=11 		8-94238-925-0 01 1 0908-1007
90 CLIP; RUBBER HOSE
(B) ID=11.5 		8-97138-011-0 01 1 1008-
279 HOSE; RUBBER,OIL DRAIN
EURO2 SPECIFICATION<NT2> (B) 		8-98075-714-0 01 1 1007-
279 HOSE; RUBBER,OIL DRAIN
(A) 		8-97386-653-1 01 1 0908-1006
279 HOSE; RUBBER,OIL DRAIN
EURO4 SPECIFICATION<NT4>,EURO5 SPECIFICATION<NT5> (A) 		8-97386-653-1 01 1 1007-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
