0-25 — INLET MANIFOLD (#68875) — 135 parça

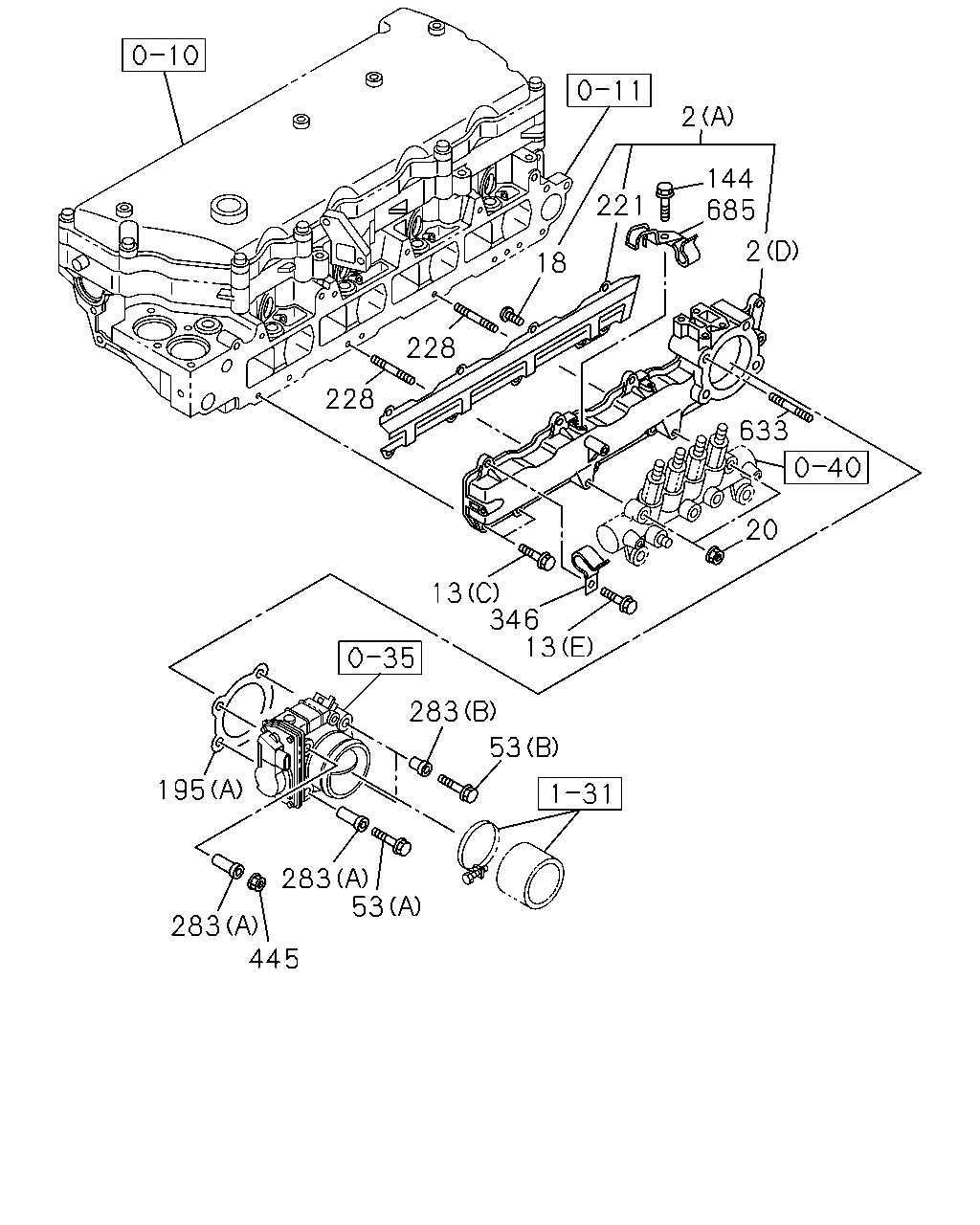

20 13 346 13 283 53 53 283 195 283 445 18 228 228 221 144 2 685 2 633

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-97387-039-0	01	1	0908-1006
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D)	8-97387-039-0	01	1	1007-
2	COVER; INL EURO5 SPECIFICATION<NT5> (B)	8-98085-730-1	01	1	1001-
2	COVER; INL EURO5 SPECIFICATION<NT5> (C)	8-98115-667-1	01	1	1001-
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	0908-1006
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1007-1409
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1410-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28050-825-0	02	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28050-830-0	02	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (D) M8X60 FLANGE	0-28050-860-0	05	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (B) M8X120 FLANGE	0-28055-812-0	03	1	1001-
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28050-830-0	09	1	0908-1006
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28050-830-0	09	1	1007-
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> (E) M8X80 FLANGE	0-28050-880-0	01	1	0908-1006
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M8X80 FLANGE	0-28050-880-0	01	1	1007-
18	SCREW; PLATE,INL CVR EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	0908-1006
18	SCREW; PLATE,INL CVR EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	1007-1409
18	SCREW; PLATE,INL CVR EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	1410-
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0908-
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	1007-
53	BOLT; INL PIPE EURO5 SPECIFICATION<NT5> (A) M8X70 FLANGE	0-28050-870-0	02	1	1001-
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE	0-28050-870-0	01	1	0908-
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-1006
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28650-830-0	02	1	1007-
144	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	0908-1006
144	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1007-
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B)	8-98032-612-0	01	1	1001-
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=88	8-97387-009-0	01	1	0908-
221	PLATE; INL COVER EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	0908-1006
221	PLATE; INL COVER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	1007-1409
221	PLATE; INL COVER EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	1410-
228	STUD; INL COVER EURO5 SPECIFICATION<NT5> M8X126 L=137	8-97378-069-0	02	1	1001-
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X117 L=128	8-97111-477-0	02	1	0908-1006
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X117 L=128	8-97111-477-0	02	1	1007-
283	RUBBER EURO5 SPECIFICATION<NT5> (C) L=58	8-97387-995-1	04	1	1001-
283	RUBBER EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	0908-
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	0908-
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0908-
445	NUT; THROTTLE BODY TO MANIF EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1001-
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0908-1006
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1007-
633	STUD; THROTTLE BODY EURO5 SPECIFICATION<NT5> M8X71 L=83	9-09830-212-0	02	1	1001-
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	01	1	0908-1006
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	01	1	1007-
685	BRACKET; HARNESS EURO4 SPECIFICATION<NT4>	8-97331-921-1	01	1	0908-1006
685	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97331-921-1	01	1	1007-

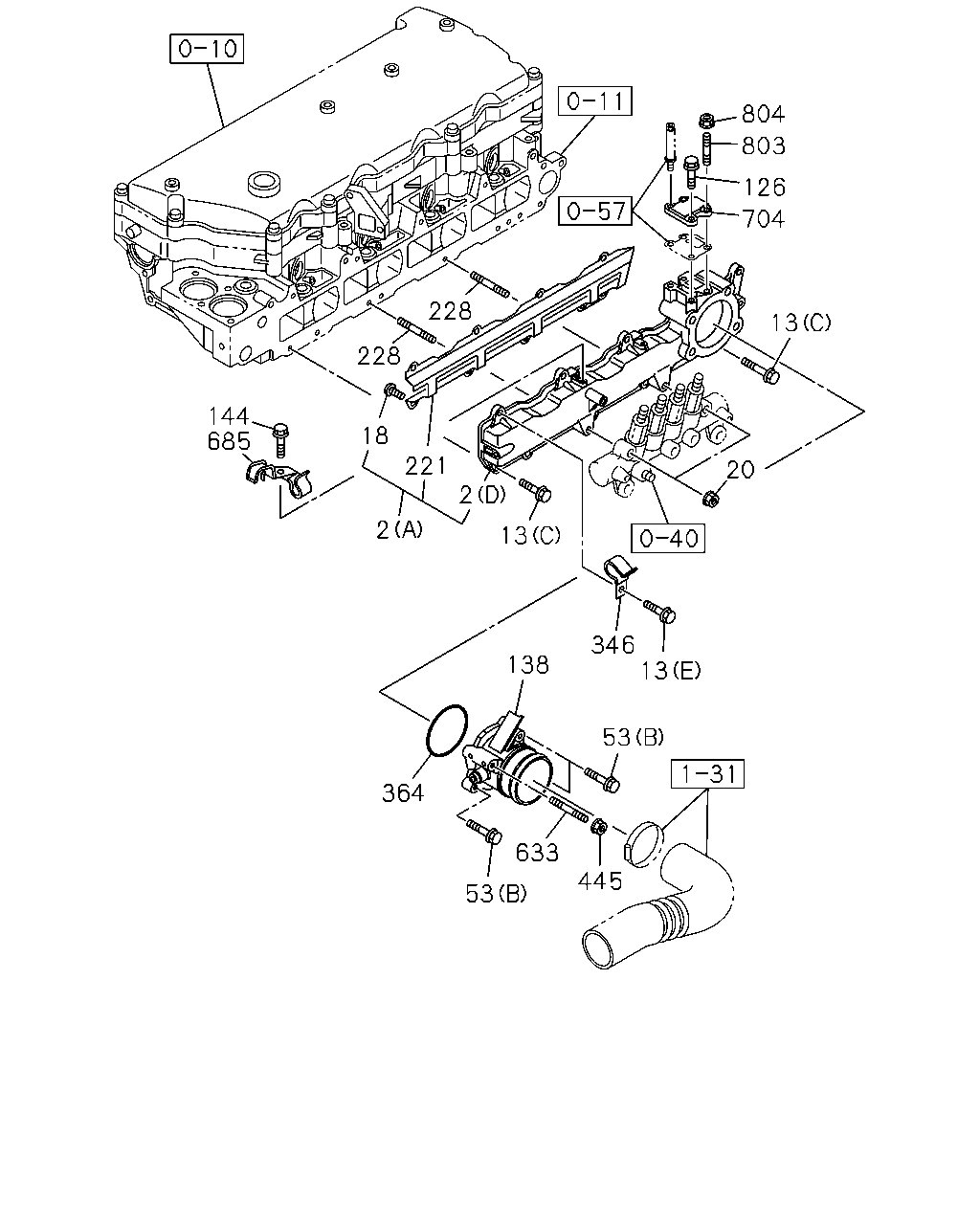

704 126 803 804 13 20 13 346 53 445 633 53 364 138 13 2 221 2 18 144 685 228 228

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-97387-039-0	01	1	0908-1006
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D)	8-97387-039-0	01	1	1007-
2	COVER; INL EURO5 SPECIFICATION<NT5> (B)	8-98085-730-1	01	1	1001-
2	COVER; INL EURO5 SPECIFICATION<NT5> (C)	8-98115-667-1	01	1	1001-
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	0908-1006
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1007-1409
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1410-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28050-825-0	02	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28050-830-0	02	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (D) M8X60 FLANGE	0-28050-860-0	05	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (B) M8X120 FLANGE	0-28055-812-0	03	1	1001-
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28050-830-0	09	1	0908-1006
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28050-830-0	09	1	1007-
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> (E) M8X80 FLANGE	0-28050-880-0	01	1	0908-1006
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M8X80 FLANGE	0-28050-880-0	01	1	1007-
18	SCREW; PLATE,INL CVR EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	0908-1006
18	SCREW; PLATE,INL CVR EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	1007-1409
18	SCREW; PLATE,INL CVR EURO4 SPECIFICATION<NT4> M6X10	9-03490-610-0	09	1	1410-
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0908-
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	1007-
53	BOLT; INL PIPE EURO5 SPECIFICATION<NT5> (A) M8X70 FLANGE	0-28050-870-0	02	1	1001-
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE	0-28050-870-0	01	1	0908-
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-1006
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28650-830-0	02	1	1007-
126	BOLT; COVER EURO2 SPECIFICATION<NT2> M8X25 FLANGE	0-28650-825-0	01	1	1007-
138	PIPE; INL EURO2 SPECIFICATION<NT2>	8-98101-477-0	01	1	1007-1212
138	PIPE; INL EURO2 SPECIFICATION<NT2>	8-98217-016-0	01	1	1301-
144	BOLT; BRKT FIX EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	0908-1006
144	BOLT; BRKT FIX EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X12 FLANGE	0-28050-812-0	01	1	1007-
221	PLATE; INL COVER EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	0908-1006
221	PLATE; INL COVER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	1007-1409
221	PLATE; INL COVER EURO4 SPECIFICATION<NT4>	8-97379-202-0	01	1	1410-
228	STUD; INL COVER EURO5 SPECIFICATION<NT5> M8X126 L=137	8-97378-069-0	02	1	1001-
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X117 L=128	8-97111-477-0	02	1	0908-1006
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X117 L=128	8-97111-477-0	02	1	1007-
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0908-
364	GASKET ALSO INCLUDED IN GASKET SET(ENGINE). EURO2 SPECIFICATION<NT2>	8-97363-723-0	01	1	1007-1212
445	NUT; THROTTLE BODY TO MANIF EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1001-
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0908-1006
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1007-
633	STUD; THROTTLE BODY EURO5 SPECIFICATION<NT5> M8X71 L=83	9-09830-212-0	02	1	1001-
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	01	1	0908-1006
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	01	1	1007-
685	BRACKET; HARNESS EURO4 SPECIFICATION<NT4>	8-97331-921-1	01	1	0908-1006
685	BRACKET; HARNESS EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4>	8-97331-921-1	01	1	1007-
704	COVER EURO2 SPECIFICATION<NT2>	8-98062-651-1	01	1	1007-1408
704	COVER EURO2 SPECIFICATION<NT2>	8-98260-138-0	01	1	1409-
803	STUD; COVER EURO2 SPECIFICATION<NT2> M8X20 L=32	0-41010-820-0	02	1	1007-
804	NUT; COVER EURO2 SPECIFICATION<NT2> M8 FLANGE	0-91180-108-0	02	1	1007-

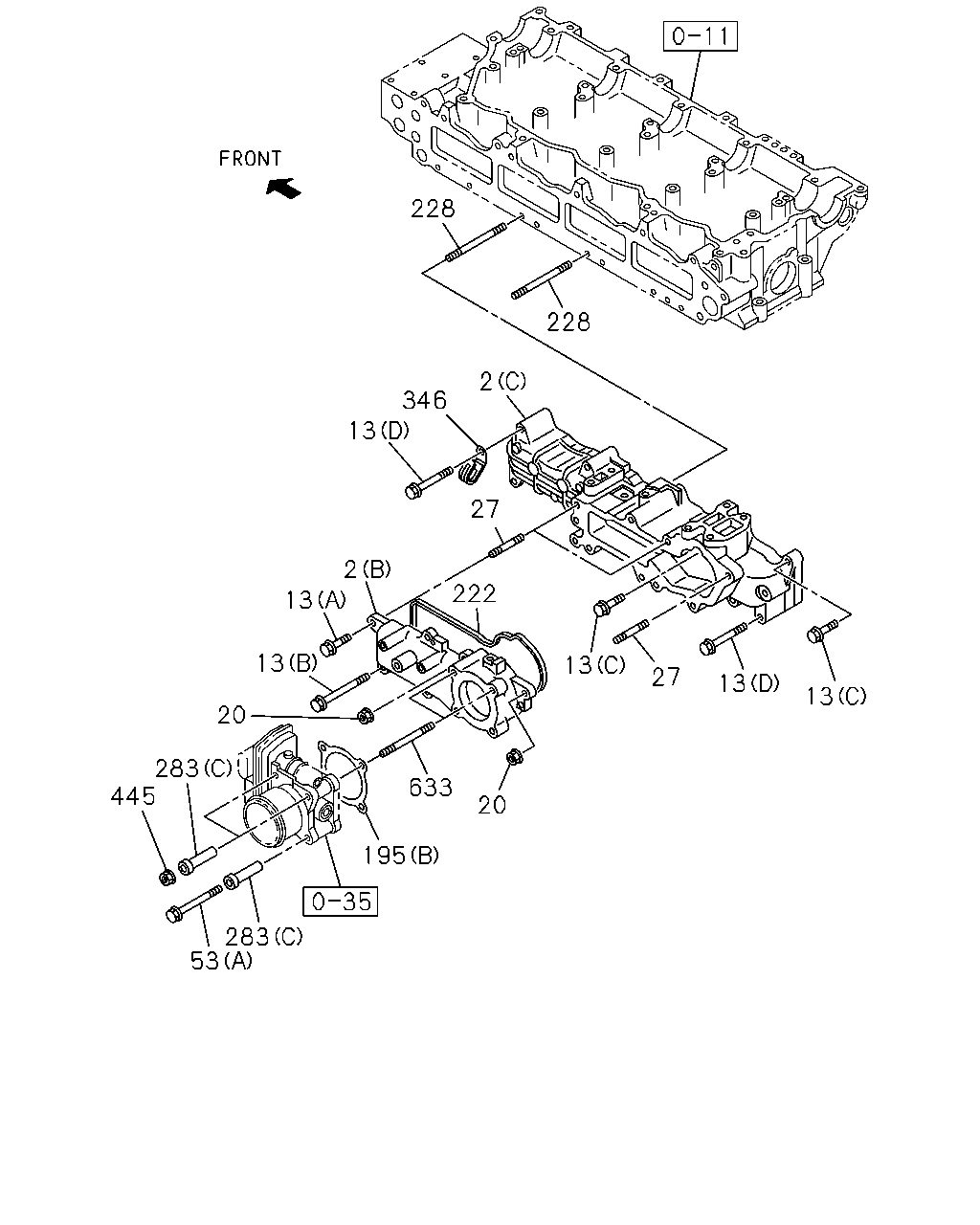

228 228 2 346 13 27 2 222 13 13 13 27 13 13 20 283 445 633 20 195 283 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	COVER; INL EURO4 SPECIFICATION<NT4> (D)	8-97387-039-0	01	1	0908-1006
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (D)	8-97387-039-0	01	1	1007-
2	COVER; INL EURO5 SPECIFICATION<NT5> (B)	8-98085-730-1	01	1	1001-
2	COVER; INL EURO5 SPECIFICATION<NT5> (C)	8-98115-667-1	01	1	1001-
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	0908-1006
2	COVER; INL EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1007-1409
2	COVER; INL EURO4 SPECIFICATION<NT4> (A)	8-97387-038-0	01	1	1410-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (A) M8X25 FLANGE	0-28050-825-0	02	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (C) M8X30 FLANGE	0-28050-830-0	02	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (D) M8X60 FLANGE	0-28050-860-0	05	1	1001-
13	BOLT; INL MANIF EURO5 SPECIFICATION<NT5> (B) M8X120 FLANGE	0-28055-812-0	03	1	1001-
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28050-830-0	09	1	0908-1006
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (C) M8X30 FLANGE	0-28050-830-0	09	1	1007-
13	BOLT; INL MANIF EURO4 SPECIFICATION<NT4> (E) M8X80 FLANGE	0-28050-880-0	01	1	0908-1006
13	BOLT; INL MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (E) M8X80 FLANGE	0-28050-880-0	01	1	1007-
20	NUT; INL MANIF M8 FLANGE	0-91180-108-0	02	1	0908-
27	STUD; INL MANIF EURO5 SPECIFICATION<NT5> M8X25 L=37	0-41010-825-0	02	1	1001-
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2> (B) M8X30 FLANGE	0-28650-830-0	01	1	1007-
53	BOLT; INL PIPE EURO5 SPECIFICATION<NT5> (A) M8X70 FLANGE	0-28050-870-0	02	1	1001-
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (A) M8X70 FLANGE	0-28050-870-0	01	1	0908-
53	BOLT; INL PIPE EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-1006
53	BOLT; INL PIPE EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> (B) M8X30 FLANGE	0-28650-830-0	02	1	1007-
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO5 SPECIFICATION<NT5> (B)	8-98032-612-0	01	1	1001-
195	GASKET; THROTTLE BODY INJECTOR ALSO INCLUDED IN GASKET SET(ENGINE). EURO4 SPECIFICATION<NT4> (A) ID=88	8-97387-009-0	01	1	0908-
222	GASKET; INL COVER ALSO INCLUDED IN GASKET SET(ENG. & HEAD) EURO5 SPECIFICATION<NT5>	8-98032-611-0	01	1	1001-
228	STUD; INL COVER EURO5 SPECIFICATION<NT5> M8X126 L=137	8-97378-069-0	02	1	1001-
228	STUD; INL COVER EURO4 SPECIFICATION<NT4> M8X117 L=128	8-97111-477-0	02	1	0908-1006
228	STUD; INL COVER EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X117 L=128	8-97111-477-0	02	1	1007-
283	RUBBER EURO5 SPECIFICATION<NT5> (C) L=58	8-97387-995-1	04	1	1001-
283	RUBBER EURO4 SPECIFICATION<NT4> (B) L=18	8-97219-650-0	02	1	0908-
283	RUBBER EURO4 SPECIFICATION<NT4> (A) L=58	8-97387-995-1	02	1	0908-
346	CLIP; ENG HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0908-
445	NUT; THROTTLE BODY TO MANIF EURO5 SPECIFICATION<NT5> M8 FLANGE	0-91180-108-0	02	1	1001-
445	NUT; THROTTLE BODY TO MANIF EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	0908-1006
445	NUT; THROTTLE BODY TO MANIF EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8 FLANGE	0-91180-108-0	01	1	1007-
633	STUD; THROTTLE BODY EURO5 SPECIFICATION<NT5> M8X71 L=83	9-09830-212-0	02	1	1001-
633	STUD; THROTTLE BODY EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	01	1	0908-1006
633	STUD; THROTTLE BODY EURO2 SPECIFICATION<NT2>,EURO4 SPECIFICATION<NT4> M8X71 L=83	9-09830-212-0	01	1	1007-

203 208

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	203	TANK; CATCH,PRESSURE CONT VLV EURO2 SPECIFICATION<NT2>	8-97088-685-1	01	1	1007-
	208	BRACKET; CATCH TANK,OIL EURO2 SPECIFICATION<NT2>	8-98075-767-0	01	1	1007-
