0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

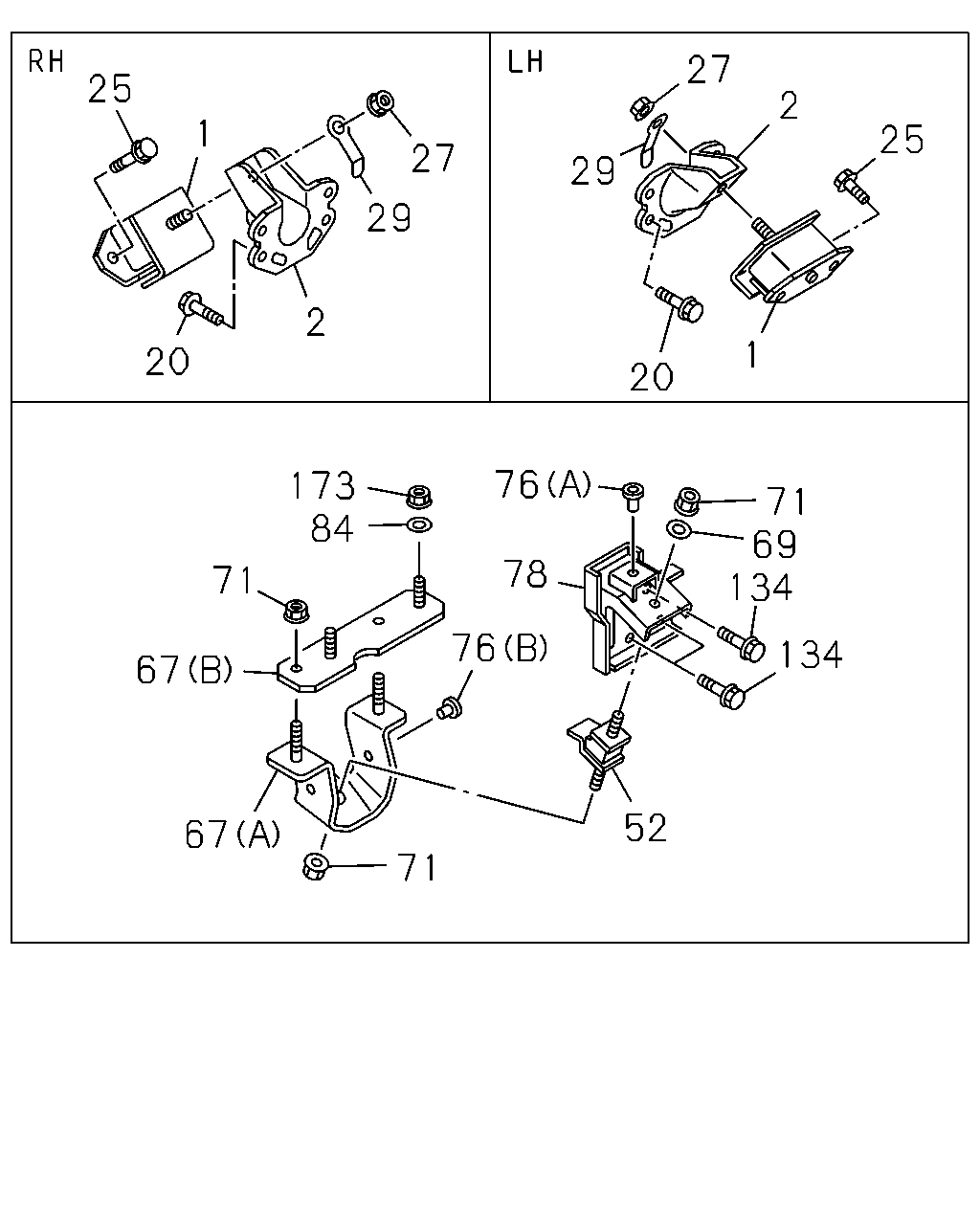

0-22 — ENGINE MOUNTING
(#68874) — 23 parça
27
25
2
1
25
27
29
29
2
1
20
20
76
173
84
71
69
134
78
71
76
134
67
52
67
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-184-0
02
1
0908-
2
FOOT; ENG
8-97376-076-1
02
1
0908-
20
BOLT; ENG FOOT
M10X30 FLANGE
0-28161-030-0
08
1
0908-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
0908-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
0908-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
0908-
52
RUBBER; CUSHION,ENG MTG,RR
8-97039-277-0
02
1
0908-
67
BRACKET; SUPPORT,ENG MTG,RR
(A)
8-98013-942-0
02
1
0908-
67
BRACKET; SUPPORT,ENG MTG,RR
(B)
8-98051-917-0
01
1
0908-
67
BRACKET; SUPPORT,ENG MTG,RR
(B)
8-98051-918-0
01
1
0908-
69
WASHER; PL,SUPPORT RUBBER TO BRKT
ID=10.5 OD=22 T=4
1-09503-045-0
02
1
0908-
71
NUT; SUPPORT RUBBER TO BRKT
M10 FLANGE
0-91180-110-0
08
1
0908-
76
STOPPER; ENG MTG RUBBER
(A)
8-94111-904-0
02
1
0908-
76
STOPPER; ENG MTG RUBBER
(B)
8-97039-947-1
04
1
0908-
78
BRACKET; ENG MTG,RR
8-98127-067-0
01
1
0908-1302
78
BRACKET; ENG MTG,RR
8-98229-167-0
01
1
1303-
78
BRACKET; ENG MTG,RR
8-98127-068-1
01
1
0908-1302
78
BRACKET; ENG MTG,RR
8-98229-175-0
01
1
1303-
84
WASHER; PL,ENG MTG RR TO FRAME
ID=10.5 OD=32
0-91614-810-0
04
1
0908-1009
84
WASHER; PL,ENG MTG RR TO FRAME
EXC. AUTOMATIC TRANSMISSION<MX1> ID=10.5 OD=32
0-91614-810-0
04
1
1010-
134
BOLT; SUPPORT BRKT
M14X35 FLANGE
0-28751-435-0
08
1
0908-
173
NUT; ENG MTG RR TO FRAME
M10 FLANGE
0-91180-210-0
04
1
0908-1009
173
NUT; ENG MTG RR TO FRAME
EXC. AUTOMATIC TRANSMISSION<MX1> M10 FLANGE
0-91180-210-0
04
1
1010-
