Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#68856) — 484 parça

1 1 1 1 178 178 178 178 596 596 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER EURO2 SPECIFICATION(NT2) (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	0909-1410
1	SLEEVE; RUBBER EURO2 SPECIFICATION(NT2) (B) ID=17 OD=21 L=40	1-09337-012-0	01	1	1411-
1	SLEEVE; RUBBER EURO2 SPECIFICATION(NT2) (C) ID=14 OD=18 L=60	1-09337-030-0	02	1	0909-1410
1	SLEEVE; RUBBER EURO2 SPECIFICATION(NT2) (C) ID=14 OD=18 L=60	1-09337-030-0	02	1	1411-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	02	1	0908-
1	SLEEVE; RUBBER (B) ID=17 OD=21 L=40	1-09337-012-0	03	1	0908-0908
1	SLEEVE; RUBBER EURO5 SPECIFICATION(NT5) (B) ID=17 OD=21 L=40	1-09337-012-0	03	1	0909-
1	SLEEVE; RUBBER (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0908-0908
1	SLEEVE; RUBBER EURO5 SPECIFICATION(NT5) (C) ID=14 OD=18 L=60	1-09337-030-0	01	1	0909-
1	SLEEVE; RUBBER (D) ID=6 L=30	5-09360-352-0	01	1	0908-0908
1	SLEEVE; RUBBER EURO5 SPECIFICATION(NT5) (D) ID=6 L=30	5-09360-352-0	01	1	0909-
178	GROMMET; HARNESS EURO2 SPECIFICATION(NT2) (D) ID=28 OD=35 T=17	9-09956-256-2	01	1	0909-
178	GROMMET; HARNESS (B) ID=15 OD=20 T=17.5	1-09332-130-0	02	1	0908-
178	GROMMET; HARNESS (C) ID=24 OD=30 T=12	9-09956-093-1	01	1	0908-
178	GROMMET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) ID=24 OD=30 T=17	9-09956-092-1	02	1	0908-
503	CONNECTOR EXC. BRAKE REGULATION HONG KONG<TCZ>	1-82690-666-0	01	1	0908-0908
503	CONNECTOR EURO5 SPECIFICATION(NT5) EXC. BRAKE REGULATION HONG KONG<TCZ>	1-82690-666-0	01	1	0909-
596	GROMMET (A) ID=32 OD=40 T=18	1-09891-003-0	01	1	0908-0908
596	GROMMET EURO5 SPECIFICATION(NT5) (A) ID=32 OD=40 T=18	1-09891-003-0	01	1	0909-
596	GROMMET (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	0908-0908
596	GROMMET EURO5 SPECIFICATION(NT5) (B) ID=28 OD=35 T=17	9-09956-256-2	01	1	0909-

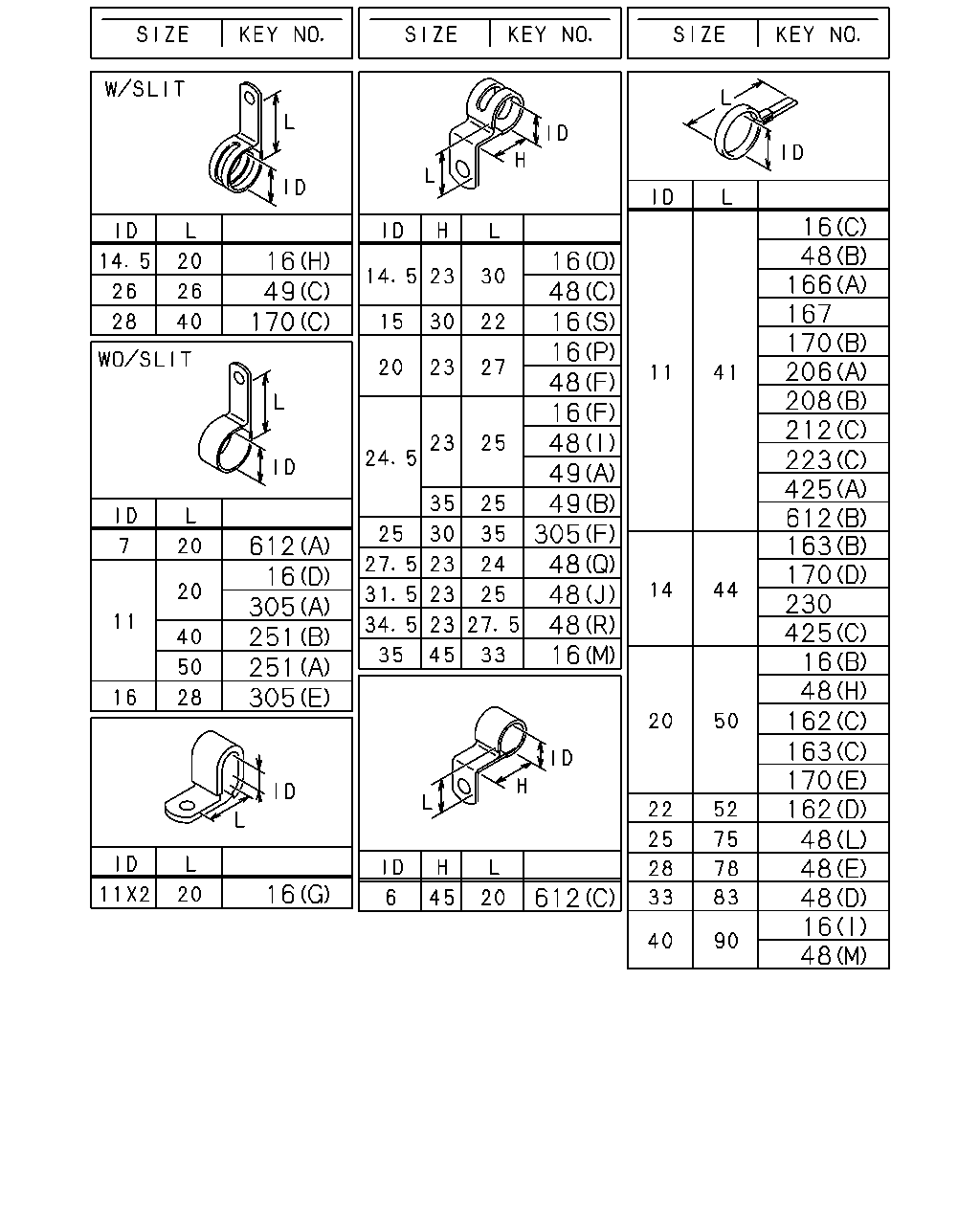

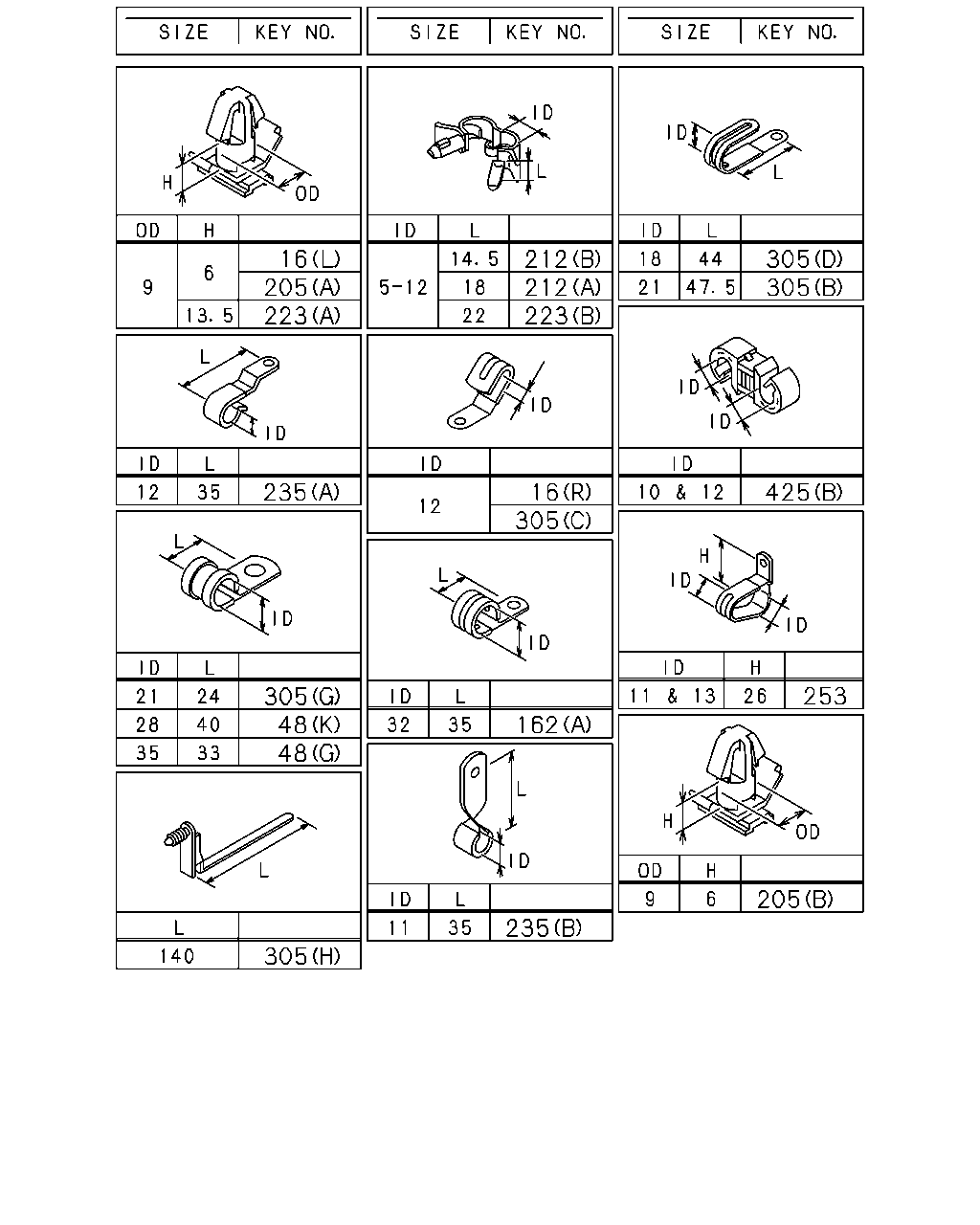

16 205 223 212 212 223 305 305 235 425 16 305 253 305 48 48 162 205 235 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (C) ID=11 L=41	1-09700-403-0	04	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (O) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (S) ID=15 L=22 H=30	1-09701-215-1	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (Q) L=350	1-09707-183-0	02	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (E) L=382	1-09707-196-0	01	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (H) ID=14.5 L=20	1-09701-012-0	02	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (L) OD=9 H=6	1-09709-178-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	0908-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0908-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	0908-
16	CLIP; HARNESS (I) ID=40 L=90	1-09701-290-0	04	1	0908-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0908-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0908-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20	0-95235-035-0	04	1	0908-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	02	1	0908-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	05	1	0909-
16	CLIP; HARNESS (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
16	CLIP; HARNESS (J) L=180	1-09707-162-1	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (J) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS MZW6P M/T(RSZ) (O) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0908-
16	CLIP; HARNESS MZW6P M/T(RSZ) (R) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0908-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (M) ID=35 H=45 L=33	1-09701-047-0	03	1	0908-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (N) L=500	1-09707-082-1	02	1	0908-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (F) ID=20 H=23 L=27	1-09700-861-0	03	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (L) ID=25 L=75	1-09701-275-0	04	1	0909-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	03	1	0908-0908
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (L) ID=25 L=75	1-09701-275-0	03	1	0909-
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0908-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	04	1	0908-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0908-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-
48	CLIP; FRAME HARNESS (Q) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0908-
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	06	1	0908-
48	CLIP; FRAME HARNESS (G) ID=35 L=33	1-09700-945-0	03	1	0908-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0908-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	01	1	0908-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0908-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0908-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	0908-
48	CLIP; FRAME HARNESS (O) L=350	1-09707-183-0	01	1	0908-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	0908-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	04	1	0908-0908
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (F) ID=20 H=23 L=27	1-09700-861-0	04	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (D) ID=33 L=83	1-09701-291-0	19	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (D) ID=33 L=83	1-09701-291-0	01	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (P) L=500	1-09707-082-1	01	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (D) ID=33 L=83	1-09701-291-0	21	1	0908-
162	CLIP; SW HARNESS (A) ID=32 L=35	1-09701-244-0	01	1	0908-
162	CLIP; SW HARNESS (B) L=300	1-09707-001-1	02	1	0908-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	03	1	0908-
162	CLIP; SW HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	0908-
205	CLIP; BACK LAMP HARNESS MLD6Q M/T(X5J) (A) OD=9 H=6	1-09709-178-0	01	1	0909-
205	CLIP; BACK LAMP HARNESS MZW6P M/T(RSZ) (B) OD=9 H=6	8-97368-793-0	02	1	0908-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0908-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0908-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (C) ID=11 L=41	1-09700-403-0	01	1	0908-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (D) L=140	5-09707-031-1	01	1	0908-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	0908-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=13.5	1-09709-180-0	01	1	0908-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	0908-
235	CLIP; HARNESS,SPD SENSOR,SSPS MLD6Q M/T(X5J) (A) ID=12 L=35	5-09700-206-0	01	1	0909-
235	CLIP; HARNESS,SPD SENSOR,SSPS MZW6P M/T(RSZ) (B) ID=11 L=35	9-09917-036-1	01	1	0908-
253	CLIP; CABLE FIX ID=11 & 13 H=26 L=48	1-09701-270-0	06	1	0908-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0909-1410
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	1411-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	0909-1410
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	1411-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	0909-1410
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	1411-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	0908-
305	CLIP; ENG HARNESS (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0909-
305	CLIP; ENG HARNESS (E) ID=16 L=28	0-95235-556-0	03	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (E) ID=16 L=28	0-95235-556-0	03	1	0909-
305	CLIP; ENG HARNESS (B) ID=21 L=47.5	8-94178-108-0	01	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (B) ID=21 L=47.5	8-94178-108-0	01	1	0909-
305	CLIP; ENG HARNESS (H) L=140	8-97122-360-0	01	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (H) L=140	8-97122-360-0	01	1	0909-
305	CLIP; ENG HARNESS (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0909-
305	CLIP; ENG HARNESS (D) ID=18 L=44	8-97367-985-1	04	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (D) ID=18 L=44	8-97367-985-1	04	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=41	1-09700-403-0	01	1	0908-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) ID=10 & 12	1-09709-278-1	02	1	0908-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14 L=44	9-09917-427-0	02	1	0908-

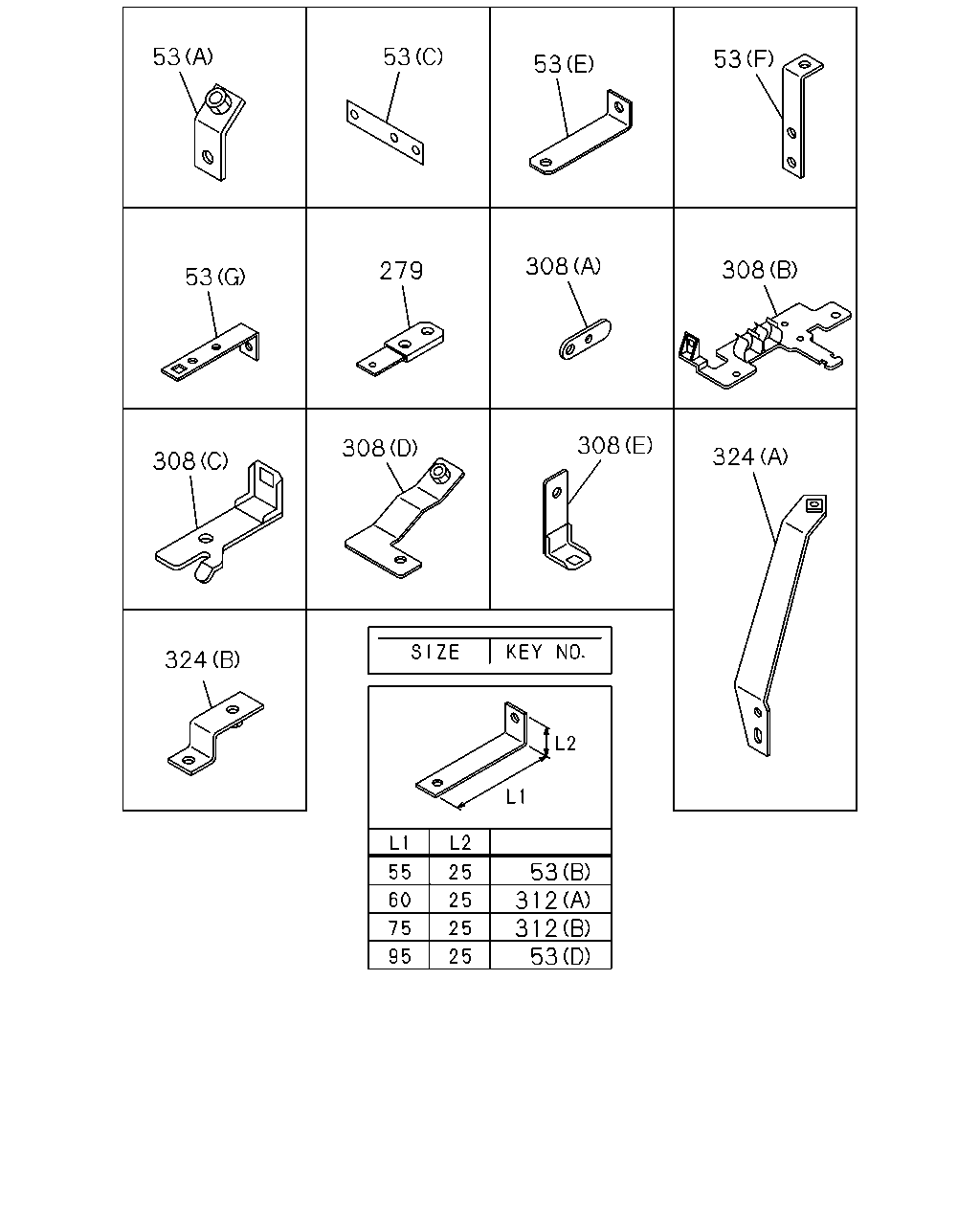

53 53 53 53 308 308 279 53 308 308 324 308 324 53 312 312 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	BRACKET; HARNESS (E) L=145	1-47475-655-0	03	1	0908-
53	BRACKET; HARNESS (D) L=95	1-82699-085-0	01	1	0908-
53	BRACKET; HARNESS (G) L=120	1-82699-963-0	02	1	0908-
53	BRACKET; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98014-419-0	01	1	0908-
53	BRACKET; HARNESS (B) L=55	1-47476-177-0	01	1	0908-0908
53	BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (B) L=55	1-47476-177-0	01	1	0909-
53	BRACKET; HARNESS (C)	1-47479-118-0	01	1	0908-0908
53	BRACKET; HARNESS EURO5 SPECIFICATION(NT5) (C)	1-47479-118-0	01	1	0909-
53	BRACKET; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (F) L=90	1-47477-755-1	01	1	0908-0908
53	BRACKET; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (F) L=90	1-47477-755-1	01	1	0909-
53	BRACKET; HARNESS EURO2 SPECIFICATION(NT2) (F) L=90	1-47477-755-1	01	1	0909-
279	STAY; HARNESS	1-82699-873-0	02	1	0908-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION(NT2) (D)	8-98032-178-0	01	1	0909-1410
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION(NT2) (D)	8-98032-178-0	01	1	1411-
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION(NT2) (E)	8-98075-824-0	01	1	0909-1410
308	BRACKET; CLIP,ENG HARNESS EURO2 SPECIFICATION(NT2) (E)	8-98075-824-0	01	1	1411-
308	BRACKET; CLIP,ENG HARNESS (B)	8-97612-280-1	01	1	0908-
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	01	1	0908-0908
308	BRACKET; CLIP,ENG HARNESS EURO5 SPECIFICATION(NT5) (A)	8-97601-310-0	01	1	0909-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98021-291-2	01	1	0908-0908
308	BRACKET; CLIP,ENG HARNESS EURO5 SPECIFICATION(NT5) (C)	8-98021-291-2	01	1	0909-
312	BRACKET; CLIP HARNESS MLD6Q M/T(X5J) (A) L=60	1-47475-455-0	01	1	0909-
312	BRACKET; CLIP HARNESS MLD6Q M/T(X5J) (B) L=75	1-47478-323-0	01	1	0909-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (C) L=40	1-47478-410-0	01	1	0908-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (D) L=82 B=20	1-47478-420-0	01	1	0908-1404
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (D) L=82 B=20	8-98259-390-0	01	1	1405-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (E)	1-47479-630-1	01	1	0908-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> (B)	1-47476-393-0	02	1	0908-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98044-309-0	01	1	0908-
324	BRACKET; CLIP ANTILOCK BRAKE SYSTEM<BFA> (A)	8-98044-308-0	01	1	0908-

16 48 49 165 166 171 194 208 212 251 14 16 102 206 218 264 14 162 16 48 102 170 16 48 163 14 16 48 194 264 489 171 489 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	17	1	0908-0908
14	CLIP; BAND,HARNESS EURO5 SPECIFICATION(NT5) (C) L=250	5-09707-030-1	17	1	0909-1205
14	CLIP; BAND,HARNESS EURO5 SPECIFICATION(NT5) (C) L=250	8-98216-430-0	17	1	1206-
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	01	1	0908-0908
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2) (C) L=250	5-09707-030-1	12	1	0909-1205
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2) (C) L=250	8-98216-430-0	12	1	1206-1410
14	CLIP; BAND,HARNESS EURO2 SPECIFICATION(NT2) (C) L=250	8-98216-430-0	12	1	1411-
14	CLIP; BAND,HARNESS (B) L=180	1-09707-162-1	01	1	0909-1207
14	CLIP; BAND,HARNESS (B) L=180	8-98216-427-0	01	1	1208-
14	CLIP; BAND,HARNESS (C) L=250	5-09707-030-1	01	1	0908-
14	CLIP; BAND,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=250	1-09707-126-0	02	1	0908-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (C) ID=11 L=41	1-09700-403-0	04	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (O) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (S) ID=15 L=22 H=30	1-09701-215-1	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (Q) L=350	1-09707-183-0	02	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (E) L=382	1-09707-196-0	01	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (H) ID=14.5 L=20	1-09701-012-0	02	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (L) OD=9 H=6	1-09709-178-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	0908-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0908-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	0908-
16	CLIP; HARNESS (I) ID=40 L=90	1-09701-290-0	04	1	0908-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0908-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0908-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20	0-95235-035-0	04	1	0908-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	02	1	0908-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	05	1	0909-
16	CLIP; HARNESS (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
16	CLIP; HARNESS (J) L=180	1-09707-162-1	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (J) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS MZW6P M/T(RSZ) (O) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0908-
16	CLIP; HARNESS MZW6P M/T(RSZ) (R) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0908-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (M) ID=35 H=45 L=33	1-09701-047-0	03	1	0908-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (N) L=500	1-09707-082-1	02	1	0908-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (F) ID=20 H=23 L=27	1-09700-861-0	03	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (L) ID=25 L=75	1-09701-275-0	04	1	0909-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	03	1	0908-0908
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (L) ID=25 L=75	1-09701-275-0	03	1	0909-
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0908-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	04	1	0908-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0908-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-
48	CLIP; FRAME HARNESS (Q) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0908-
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	06	1	0908-
48	CLIP; FRAME HARNESS (G) ID=35 L=33	1-09700-945-0	03	1	0908-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0908-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	01	1	0908-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0908-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0908-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	0908-
48	CLIP; FRAME HARNESS (O) L=350	1-09707-183-0	01	1	0908-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	0908-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	04	1	0908-0908
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (F) ID=20 H=23 L=27	1-09700-861-0	04	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (D) ID=33 L=83	1-09701-291-0	19	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (D) ID=33 L=83	1-09701-291-0	01	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (P) L=500	1-09707-082-1	01	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (D) ID=33 L=83	1-09701-291-0	21	1	0908-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (C) ID=26 L=26	1-09701-236-0	01	1	0909-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (D) L=140	5-09707-031-1	01	1	0909-
49	CLIP; GEN HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-
49	CLIP; GEN HARNESS (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0908-
49	CLIP; GEN HARNESS (C) ID=26 L=26	1-09701-236-0	02	1	0908-0908
49	CLIP; GEN HARNESS EURO5 SPECIFICATION(NT5) (C) ID=26 L=26	1-09701-236-0	02	1	0909-
102	CLIP; BAND (B) L=350	1-09707-183-0	02	1	0908-
102	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0908-0908
102	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0908-0908
102	CLIP; BAND MZW6P M/T(RSZ) (A) L=250	5-09707-030-1	01	1	0909-0909
102	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0909-0909
102	CLIP; BAND (A) L=250	5-09707-030-1	01	1	0910-
162	CLIP; SW HARNESS (A) ID=32 L=35	1-09701-244-0	01	1	0908-
162	CLIP; SW HARNESS (B) L=300	1-09707-001-1	02	1	0908-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	03	1	0908-
162	CLIP; SW HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	0908-
163	CLIP; METER HARNESS (A) L=500	1-09707-082-1	02	1	0908-
163	CLIP; METER HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	0908-
163	CLIP; METER HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	0908-
165	CLIP; BAND COMB SW L=140	5-09707-031-1	01	1	0908-
166	CLIP; HARNESS CLU SW (A) ID=11 L=41	1-09700-403-0	04	1	0908-
166	CLIP; HARNESS CLU SW (B) L=140	5-09707-031-1	01	1	0908-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	0908-
170	CLIP; ELEC HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	01	1	0908-
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	0908-
170	CLIP; ELEC HARNESS (C) ID=28 L=40	1-09700-995-1	01	1	0908-
170	CLIP; ELEC HARNESS (D) ID=14 L=44	9-09917-427-0	04	1	0908-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	0908-
171	CLIP; STARTER HARNESS EURO2 SPECIFICATION(NT2) (A) L=152	1-09707-193-0	04	1	0909-
171	CLIP; STARTER HARNESS (B) L=140	5-09707-031-1	05	1	0908-0908
171	CLIP; STARTER HARNESS EURO5 SPECIFICATION(NT5) (B) L=140	5-09707-031-1	05	1	0909-
194	CLIP; BAND EURO2 SPECIFICATION(NT2) (B) L=180	1-09707-162-1	05	1	0909-
194	CLIP; BAND BRAKE REGULATION HONG KONG<TCZ> (A) L=140	5-09707-031-1	02	1	0908-
194	CLIP; BAND (B) L=180	1-09707-162-1	06	1	0908-0908
194	CLIP; BAND EURO5 SPECIFICATION(NT5) (B) L=180	1-09707-162-1	06	1	0909-
194	CLIP; BAND DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) L=140	5-09707-031-1	01	1	0908-
194	CLIP; BAND EXC. BRAKE REGULATION HONG KONG<TCZ> (A) L=140	5-09707-031-1	01	1	0908-
206	CLIP; FUEL TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0908-
206	CLIP; FUEL TANK HARNESS (B) L=250	5-09707-030-1	02	1	0908-
208	CLIP; HARNESS,MAG VLV EURO2 SPECIFICATION(NT2) BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=41	1-09700-403-0	02	1	0909-
208	CLIP; HARNESS,MAG VLV (A) L=140	5-09707-031-1	01	1	0908-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0908-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0908-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (C) ID=11 L=41	1-09700-403-0	01	1	0908-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (D) L=140	5-09707-031-1	01	1	0908-
218	CLIP; BAND,RR COMB L=250	5-09707-030-1	02	1	0908-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	0908-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	0908-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	0908-
264	CLIP; HARNESS,HEADLAMP (A) L=180	1-09707-162-1	02	1	0908-
264	CLIP; HARNESS,HEADLAMP (B) L=250	5-09707-030-1	02	1	0908-
489	CLIP; HARNESS,OIL PRESS SW EURO2 SPECIFICATION(NT2) (A) L=202	1-09707-194-0	02	1	0909-
489	CLIP; HARNESS,OIL PRESS SW (B) L=180	1-09707-162-1	01	1	0908-0908
489	CLIP; HARNESS,OIL PRESS SW EURO5 SPECIFICATION(NT5) (B) L=180	1-09707-162-1	01	1	0909-

312 312 334 312 375 375 334 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
312	BRACKET; CLIP HARNESS MLD6Q M/T(X5J) (A) L=60	1-47475-455-0	01	1	0909-
312	BRACKET; CLIP HARNESS MLD6Q M/T(X5J) (B) L=75	1-47478-323-0	01	1	0909-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (C) L=40	1-47478-410-0	01	1	0908-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (D) L=82 B=20	1-47478-420-0	01	1	0908-1404
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (D) L=82 B=20	8-98259-390-0	01	1	1405-
312	BRACKET; CLIP HARNESS MZW6P M/T(RSZ) (E)	1-47479-630-1	01	1	0908-
334	BRACKET (A)	1-82698-495-2	02	1	0908-
334	BRACKET ANTILOCK BRAKE SYSTEM<BFA> (B) L=110	1-82699-589-0	01	1	0908-
375	BRACKET; AC GEN HARNESS CLIP (A)	1-47475-702-0	01	1	0908-
375	BRACKET; AC GEN HARNESS CLIP (B)	8-98056-647-0	01	1	0908-0908
375	BRACKET; AC GEN HARNESS CLIP EURO5 SPECIFICATION(NT5) (B)	8-98056-647-0	01	1	0909-
542	TUBE; DISTANCE,FUEL	8-97377-804-0	01	1	0908-

16 48 166 167 170 206 208 212 223 425 612 163 170 230 425 16 48 162 163 170 162 48 48 48 16 48 16 49 170 16 48 16 16 48 16 48 49 49 305 48 48 48 16 612 16 305 251 251 305 16 612

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (C) ID=11 L=41	1-09700-403-0	04	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (O) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (P) ID=20 H=23 L=27	1-09700-861-0	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (S) ID=15 L=22 H=30	1-09701-215-1	01	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (Q) L=350	1-09707-183-0	02	1	0909-
16	CLIP; HARNESS EURO2 SPECIFICATION(NT2) (E) L=382	1-09707-196-0	01	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (H) ID=14.5 L=20	1-09701-012-0	02	1	0909-
16	CLIP; HARNESS MLD6Q M/T(X5J) (L) OD=9 H=6	1-09709-178-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	01	1	0909-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	03	1	0908-
16	CLIP; HARNESS (K) L=250	5-09707-030-1	05	1	0908-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	02	1	0908-
16	CLIP; HARNESS (I) ID=40 L=90	1-09701-290-0	04	1	0908-
16	CLIP; HARNESS (A) L=140	5-09707-031-1	02	1	0908-
16	CLIP; HARNESS (B) ID=20 L=50	9-09917-430-0	07	1	0908-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) ID=11 L=20	0-95235-035-0	04	1	0908-
16	CLIP; HARNESS ANTILOCK BRAKE SYSTEM<BFA> (G) ID=11X2 L=20	1-09700-871-0	02	1	0908-
16	CLIP; HARNESS (C) ID=11 L=41	1-09700-403-0	05	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (C) ID=11 L=41	1-09700-403-0	05	1	0909-
16	CLIP; HARNESS (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (F) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0909-
16	CLIP; HARNESS (J) L=180	1-09707-162-1	01	1	0908-0908
16	CLIP; HARNESS EURO5 SPECIFICATION(NT5) (J) L=180	1-09707-162-1	01	1	0909-
16	CLIP; HARNESS MZW6P M/T(RSZ) (O) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0908-
16	CLIP; HARNESS MZW6P M/T(RSZ) (R) ID=12 B=14 ID=8.5	5-09700-350-0	01	1	0908-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (M) ID=35 H=45 L=33	1-09701-047-0	03	1	0908-
16	CLIP; HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (N) L=500	1-09707-082-1	02	1	0908-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (C) ID=14.5 H=23 L=30	1-09700-859-0	01	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (F) ID=20 H=23 L=27	1-09700-861-0	03	1	0909-
48	CLIP; FRAME HARNESS EURO2 SPECIFICATION(NT2) (L) ID=25 L=75	1-09701-275-0	04	1	0909-
48	CLIP; FRAME HARNESS (L) ID=25 L=75	1-09701-275-0	03	1	0908-0908
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (L) ID=25 L=75	1-09701-275-0	03	1	0909-
48	CLIP; FRAME HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14.5 H=23 L=30	1-09700-859-0	02	1	0908-
48	CLIP; FRAME HARNESS (E) ID=28 L=78	1-09700-858-0	04	1	0908-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) ID=20 H=23 L=27	1-09700-861-0	01	1	0908-
48	CLIP; FRAME HARNESS ANTILOCK BRAKE SYSTEM<BFA> (I) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-
48	CLIP; FRAME HARNESS (Q) ID=27.5 H=23 L=24	1-09700-863-0	02	1	0908-
48	CLIP; FRAME HARNESS (R) ID=34.5 H=23 L=27.5	1-09700-905-0	06	1	0908-
48	CLIP; FRAME HARNESS (G) ID=35 L=33	1-09700-945-0	03	1	0908-
48	CLIP; FRAME HARNESS (J) ID=31.5 H=23 L=25	1-09701-017-0	02	1	0908-
48	CLIP; FRAME HARNESS (K) ID=28 L=40	1-09701-261-0	01	1	0908-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0908-
48	CLIP; FRAME HARNESS (M) ID=40 L=90	1-09701-290-0	04	1	0908-
48	CLIP; FRAME HARNESS (N) L=180	1-09707-162-1	01	1	0908-
48	CLIP; FRAME HARNESS (O) L=350	1-09707-183-0	01	1	0908-
48	CLIP; FRAME HARNESS (H) ID=20 L=50	9-09917-430-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (H) ID=20 L=50	9-09917-430-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (B) ID=11 L=41	1-09700-403-0	01	1	0908-
48	CLIP; FRAME HARNESS ELECTRIC SWITCH BOX ENGINE ROOM<TEK> (A) L=140	5-09707-031-1	01	1	0908-
48	CLIP; FRAME HARNESS (F) ID=20 H=23 L=27	1-09700-861-0	04	1	0908-0908
48	CLIP; FRAME HARNESS EURO5 SPECIFICATION(NT5) (F) ID=20 H=23 L=27	1-09700-861-0	04	1	0909-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) (D) ID=33 L=83	1-09701-291-0	19	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (D) ID=33 L=83	1-09701-291-0	01	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (P) L=500	1-09707-082-1	01	1	0908-
48	CLIP; FRAME HARNESS WHEEL BASE 5700MM(57W) (D) ID=33 L=83	1-09701-291-0	21	1	0908-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (C) ID=26 L=26	1-09701-236-0	01	1	0909-
49	CLIP; GEN HARNESS EURO2 SPECIFICATION(NT2) (D) L=140	5-09707-031-1	01	1	0909-
49	CLIP; GEN HARNESS (A) ID=24.5 H=23 L=25	1-09700-862-0	01	1	0908-
49	CLIP; GEN HARNESS (B) ID=24.5 H=35 L=25	1-09700-990-0	01	1	0908-
49	CLIP; GEN HARNESS (C) ID=26 L=26	1-09701-236-0	02	1	0908-0908
49	CLIP; GEN HARNESS EURO5 SPECIFICATION(NT5) (C) ID=26 L=26	1-09701-236-0	02	1	0909-
162	CLIP; SW HARNESS (A) ID=32 L=35	1-09701-244-0	01	1	0908-
162	CLIP; SW HARNESS (B) L=300	1-09707-001-1	02	1	0908-
162	CLIP; SW HARNESS (C) ID=20 L=50	9-09917-430-0	03	1	0908-
162	CLIP; SW HARNESS (D) ID=22 L=52	9-09917-431-0	01	1	0908-
163	CLIP; METER HARNESS (A) L=500	1-09707-082-1	02	1	0908-
163	CLIP; METER HARNESS (B) ID=14 L=44	9-09917-427-0	01	1	0908-
163	CLIP; METER HARNESS (C) ID=20 L=50	9-09917-430-0	01	1	0908-
166	CLIP; HARNESS CLU SW (A) ID=11 L=41	1-09700-403-0	04	1	0908-
166	CLIP; HARNESS CLU SW (B) L=140	5-09707-031-1	01	1	0908-
167	CLIP; HARNESS ACCEL & STOP ID=11 L=41	1-09700-403-0	02	1	0908-
170	CLIP; ELEC HARNESS ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	03	1	0908-
170	CLIP; ELEC HARNESS EXC. ANTILOCK BRAKE SYSTEM<BFA> (A) L=350	1-09707-183-0	01	1	0908-
170	CLIP; ELEC HARNESS (B) ID=11 L=41	1-09700-403-0	02	1	0908-
170	CLIP; ELEC HARNESS (C) ID=28 L=40	1-09700-995-1	01	1	0908-
170	CLIP; ELEC HARNESS (D) ID=14 L=44	9-09917-427-0	04	1	0908-
170	CLIP; ELEC HARNESS (E) ID=20 L=50	9-09917-430-0	02	1	0908-
206	CLIP; FUEL TANK HARNESS (A) ID=11 L=41	1-09700-403-0	02	1	0908-
206	CLIP; FUEL TANK HARNESS (B) L=250	5-09707-030-1	02	1	0908-
208	CLIP; HARNESS,MAG VLV EURO2 SPECIFICATION(NT2) BRAKE SYSTEM RETARDER<RE2> (B) ID=11 L=41	1-09700-403-0	02	1	0909-
208	CLIP; HARNESS,MAG VLV (A) L=140	5-09707-031-1	01	1	0908-
212	CLIP; HORN HARNESS (A) ID=5-12 L=18	1-09709-287-0	01	1	0908-
212	CLIP; HORN HARNESS (B) ID=5-12 L=14.5	1-09987-221-0	02	1	0908-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (C) ID=11 L=41	1-09700-403-0	01	1	0908-
212	CLIP; HORN HARNESS EXC. AIR HORN(WB8) (D) L=140	5-09707-031-1	01	1	0908-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=41	1-09700-403-0	04	1	0908-
223	CLIP; AIR TANK HARNESS (A) OD=9 H=13.5	1-09709-180-0	01	1	0908-
223	CLIP; AIR TANK HARNESS (B) ID=5-12 L=22	1-09709-288-0	01	1	0908-
230	CLIP; C/MBR HARNESS ANTILOCK BRAKE SYSTEM<BFA> ID=14 L=44	9-09917-427-0	04	1	0908-
251	CLIP; WATER LEVEL HARNESS (B) ID=11 L=40	0-95235-075-0	01	1	0908-
251	CLIP; WATER LEVEL HARNESS (A) ID=11 L=50	0-95235-085-0	02	1	0908-
251	CLIP; WATER LEVEL HARNESS (C) L=140	5-09707-031-1	01	1	0908-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	0909-1410
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (F) ID=25 H=30 L=35	1-09700-875-0	01	1	1411-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	0909-1410
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (D) ID=18 L=44	8-97367-985-1	02	1	1411-
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	0909-1410
305	CLIP; ENG HARNESS EURO2 SPECIFICATION(NT2) (G) ID=21 L=24	8-98019-191-0	03	1	1411-
305	CLIP; ENG HARNESS (A) T=1.2 ID=11 L=20	0-95235-036-0	01	1	0908-
305	CLIP; ENG HARNESS (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (A) T=0.8 ID=11 L=20	0-95235-035-0	02	1	0909-
305	CLIP; ENG HARNESS (E) ID=16 L=28	0-95235-556-0	03	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (E) ID=16 L=28	0-95235-556-0	03	1	0909-
305	CLIP; ENG HARNESS (B) ID=21 L=47.5	8-94178-108-0	01	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (B) ID=21 L=47.5	8-94178-108-0	01	1	0909-
305	CLIP; ENG HARNESS (H) L=140	8-97122-360-0	01	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (H) L=140	8-97122-360-0	01	1	0909-
305	CLIP; ENG HARNESS (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (C) ID=12 VINYL CHLORIDE	8-97367-984-1	01	1	0909-
305	CLIP; ENG HARNESS (D) ID=18 L=44	8-97367-985-1	04	1	0908-0908
305	CLIP; ENG HARNESS EURO5 SPECIFICATION(NT5) (D) ID=18 L=44	8-97367-985-1	04	1	0909-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (A) ID=11 L=41	1-09700-403-0	01	1	0908-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (B) ID=10 & 12	1-09709-278-1	02	1	0908-
425	CLIP; MODULATOR ANTILOCK BRAKE SYSTEM<BFA> (C) ID=14 L=44	9-09917-427-0	02	1	0908-
612	CLIP; HARNESS DPD (A) ID=7 L=20	0-95234-635-0	01	1	0908-0908
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (A) ID=7 L=20	0-95234-635-0	01	1	0909-
612	CLIP; HARNESS DPD (B) ID=11 L=41	1-09700-403-0	04	1	0908-0908
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (B) ID=11 L=41	1-09700-403-0	04	1	0909-
612	CLIP; HARNESS DPD (C) ID=6 H=45 L=20	1-09700-824-0	01	1	0908-0908
612	CLIP; HARNESS DPD EURO5 SPECIFICATION(NT5) (C) ID=6 H=45 L=20	1-09700-824-0	01	1	0909-

242 38 139 38 304 38 242 304 313 304 313 38 38 169 313 326 371 38 139 150 242 313 38 313 38 313 38 242 38 173 219 47 219 294 297 340 515 525 552 38 173 55 423

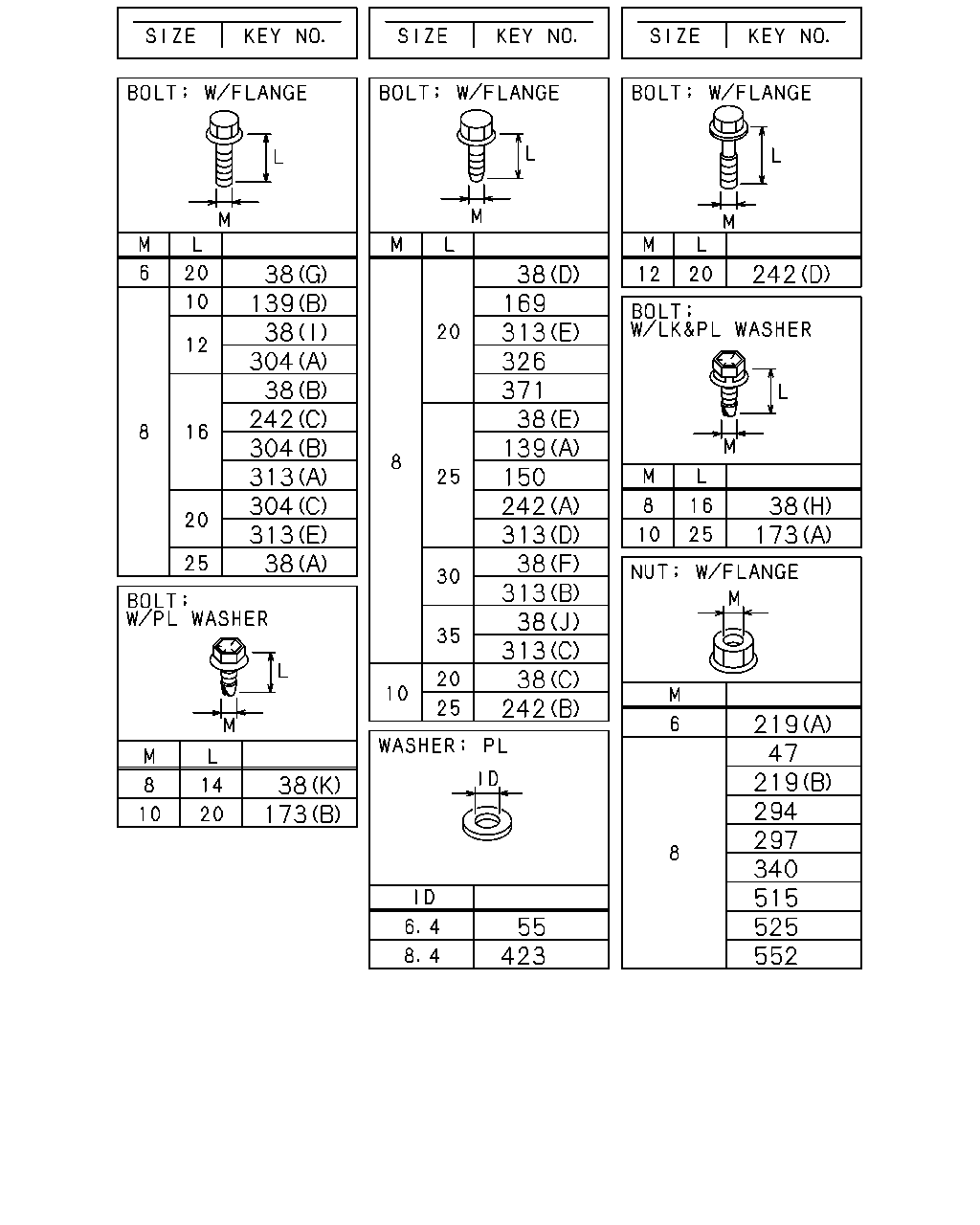

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (J) M8X35 FLANGE	0-28650-835-0	01	1	0908-0908
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	03	1	0909-
38	BOLT; CLIP,HARNESS EURO5 SPECIFICATION(NT5) (J) M8X35 FLANGE	0-28650-835-0	01	1	0909-
38	BOLT; CLIP,HARNESS MLD6Q M/T(X5J) (C) M10X20 FLANGE	0-28751-020-0	01	1	0909-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (D) M8X20 FLANGE	0-28650-820-0	06	1	0908-
38	BOLT; CLIP,HARNESS (I) M8X12 FLANGE	0-28050-812-0	01	1	0908-
38	BOLT; CLIP,HARNESS (B) M8X16 FLANGE	0-28050-816-0	02	1	0908-
38	BOLT; CLIP,HARNESS (A) M8X25 FLANGE	0-28050-825-0	03	1	0908-
38	BOLT; CLIP,HARNESS (G) M6X20 FLANGE	0-28650-620-0	02	1	0908-
38	BOLT; CLIP,HARNESS (D) M8X20 FLANGE	0-28650-820-0	01	1	0908-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	03	1	0908-
38	BOLT; CLIP,HARNESS (E) M8X25 FLANGE	0-28650-825-0	16	1	0908-
38	BOLT; CLIP,HARNESS (F) M8X30 FLANGE	0-28650-830-0	06	1	0908-
38	BOLT; CLIP,HARNESS (H) M8X16 W/LK&PL WASHER	8-97087-055-0	02	1	0908-1201
38	BOLT; CLIP,HARNESS (K) M8X14 W/PL WASHER	8-98164-837-0	02	1	1202-
38	BOLT; CLIP,HARNESS ANTILOCK BRAKE SYSTEM<BFA> (F) M8X30 FLANGE	0-28650-830-0	01	1	0908-
38	BOLT; CLIP,HARNESS MZW6P M/T(RSZ) (D) M8X20 FLANGE	0-28650-820-0	03	1	0908-0908
38	BOLT; CLIP,HARNESS EURO2 SPECIFICATION(NT2) (E) M8X25 FLANGE	0-28650-825-0	01	1	0909-
47	NUT; GEN TERMINAL EURO2 SPECIFICATION(NT2) M8 FLANGE	0-91180-108-0	02	1	0909-
47	NUT; GEN TERMINAL M8 FLANGE	0-91180-108-0	03	1	0908-0908
47	NUT; GEN TERMINAL EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	03	1	0909-
55	WASHER; PL,CLIP ID=6.4	0-91610-606-0	02	1	0908-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	05	1	0908-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (A) M8X25 FLANGE	0-28650-825-0	06	1	0908-
139	BOLT; BRKT ANTILOCK BRAKE SYSTEM<BFA> (B) M8X10 FLANGE	0-28050-810-0	01	1	0908-
139	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	0908-0908
139	BOLT; BRKT EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE	0-28650-825-0	01	1	0909-
150	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	02	1	0908-0908
150	BOLT; CLIP EURO5 SPECIFICATION(NT5) M8X25 FLANGE	0-28650-825-0	02	1	0909-
169	BOLT; ELEC HARNESS M8X20 FLANGE	0-28650-820-0	01	1	0908-
173	BOLT; STARTER EARTH (A) M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	0908-1201
173	BOLT; STARTER EARTH (B) M10X20 W/PL WASHER	8-98164-838-0	01	1	1202-
219	NUT (B) M8 FLANGE	0-91180-108-0	21	1	0908-
219	NUT (A) M6 FLANGE	0-91180-106-0	02	1	0908-
219	NUT (B) M8 FLANGE	0-91180-108-0	03	1	0908-
219	NUT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (B) M8 FLANGE	0-91180-108-0	03	1	0908-
219	NUT MZW6P M/T(RSZ) (B) M8 FLANGE	0-91180-108-0	03	1	0908-
219	NUT (B) M8 FLANGE	0-91180-108-0	06	1	0908-
219	NUT ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE	0-91180-108-0	01	1	0908-0908
219	NUT ANTILOCK BRAKE SYSTEM<BFA> (B) M8 FLANGE	0-91180-108-0	01	1	0909-
219	NUT EURO2 SPECIFICATION(NT2) (B) M8 FLANGE	0-91180-108-0	01	1	0909-
219	NUT MLD6Q M/T(X5J) (B) M8 FLANGE	0-91180-108-0	01	1	0909-
242	BOLT; BRKT,HARNESS (C) M8X16 FLANGE	0-28050-816-0	01	1	0908-
242	BOLT; BRKT,HARNESS (D) M12X20 FLANGE	0-28151-220-0	01	1	0908-0908
242	BOLT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) (D) M12X20 FLANGE	0-28151-220-0	01	1	0909-
242	BOLT; BRKT,HARNESS (A) M8X25 FLANGE	0-28650-825-0	01	1	0908-0908
242	BOLT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) (A) M8X25 FLANGE	0-28650-825-0	01	1	0909-
242	BOLT; BRKT,HARNESS (B) M10X25 FLANGE	0-28651-025-0	01	1	0908-0908
242	BOLT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) (B) M10X25 FLANGE	0-28651-025-0	01	1	0909-
294	NUT M8 FLANGE	0-91180-108-0	01	1	0908-0908
294	NUT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> M8 FLANGE	0-91180-108-0	01	1	0908-0908
294	NUT M8 FLANGE	0-91180-108-0	01	1	0909-
294	NUT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> M8 FLANGE	0-91180-108-0	01	1	0909-
294	NUT EURO2 SPECIFICATION(NT2) M8 FLANGE	0-91180-108-0	01	1	0909-
294	NUT ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE	0-91180-108-0	06	1	0908-
297	NUT; HARNESS ELEC PANEL M8 FLANGE	0-91180-108-0	01	1	0908-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION(NT2) (A) M8X12 FLANGE	0-28050-812-0	05	1	0909-1410
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION(NT2) (A) M8X12 FLANGE	0-28050-812-0	05	1	1411-
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION(NT2) (C) M8X20 FLANGE	0-28050-820-0	01	1	0909-1410
304	BOLT; ENG HARNESS CLIP EURO2 SPECIFICATION(NT2) (C) M8X20 FLANGE	0-28050-820-0	01	1	1411-
304	BOLT; ENG HARNESS CLIP (B) M8X16 FLANGE	0-28050-816-0	03	1	0908-
304	BOLT; ENG HARNESS CLIP (A) M8X12 FLANGE	0-28050-812-0	04	1	0908-0908
304	BOLT; ENG HARNESS CLIP EURO5 SPECIFICATION(NT5) (A) M8X12 FLANGE	0-28050-812-0	04	1	0909-
313	BOLT; BRKT EURO2 SPECIFICATION(NT2) (C) M8X35 FLANGE	0-28650-835-0	01	1	0909-
313	BOLT; BRKT MZW6P M/T(RSZ) (E) M8X20 FLANGE	0-28650-820-0	01	1	0908-0908
313	BOLT; BRKT (E) M8X20 FLANGE	0-28650-820-0	01	1	0909-
313	BOLT; BRKT MZW6P M/T(RSZ) (A) M8X16 FLANGE	0-28050-816-0	01	1	0908-
313	BOLT; BRKT MZW6P M/T(RSZ) (B) M8X30 FLANGE	0-28650-830-0	01	1	0908-
313	BOLT; BRKT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (D) M8X25 FLANGE	0-28650-825-0	01	1	0908-0908
313	BOLT; BRKT WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> (D) M8X25 FLANGE	0-28650-825-0	01	1	0909-
313	BOLT; BRKT EURO2 SPECIFICATION(NT2) (D) M8X25 FLANGE	0-28650-825-0	01	1	0909-
326	BOLT; HARNESS 4TH C/MBR WHEEL BASE 5000MM(50W) SUPER HIGH DECKER BUS<C3Q> M8X20 FLANGE	0-28650-820-0	03	1	0908-
340	NUT; HARNESS CAB TO FRAME M8 FLANGE	0-91180-108-0	01	1	0908-
371	BOLT; GEN HARNESS EURO2 SPECIFICATION(NT2) M8X20 FLANGE	0-28650-820-0	03	1	0909-
371	BOLT; GEN HARNESS M8X20 FLANGE	0-28650-820-0	04	1	0908-0908
371	BOLT; GEN HARNESS EURO5 SPECIFICATION(NT5) M8X20 FLANGE	0-28650-820-0	04	1	0909-
423	WASHER; HARNESS,EARTH ID=8.4	1-09503-264-0	02	1	0908-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	05	1	0908-
515	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	0908-0908
515	NUT; BRKT EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	01	1	0909-
525	NUT; CLIP EURO2 SPECIFICATION(NT2) M8 FLANGE	0-91180-108-0	01	1	0909-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0908-0908
525	NUT; CLIP EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	02	1	0909-
552	NUT; BRKT,HARNESS M8 FLANGE	0-91180-108-0	01	1	0908-0908
552	NUT; BRKT,HARNESS EURO5 SPECIFICATION(NT5) M8 FLANGE	0-91180-108-0	01	1	0909-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
