Sayfa 5-01 - Isuzu EPC

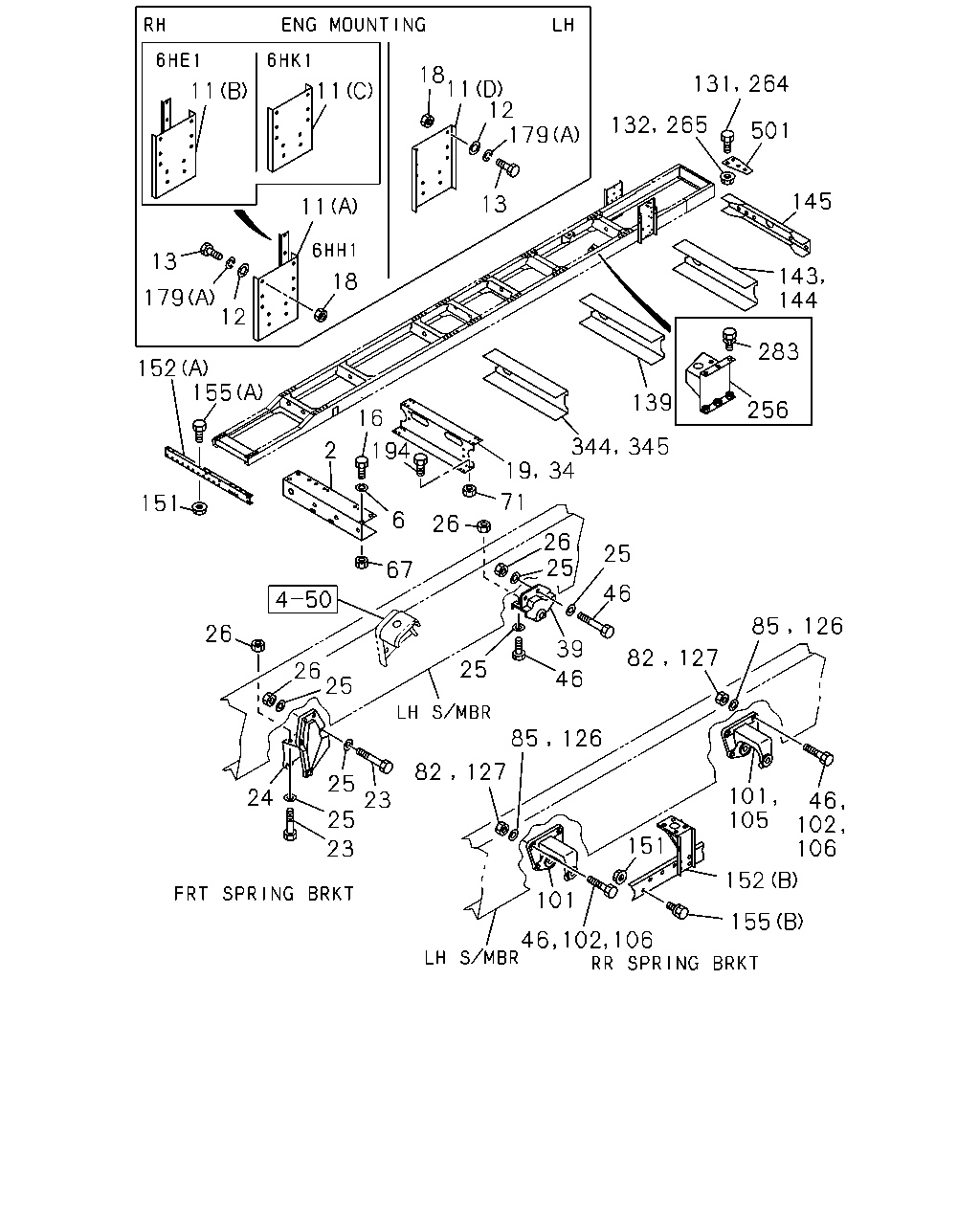

5-01 — FRAME AND OTHER PARTS (#6884) — 377 parça

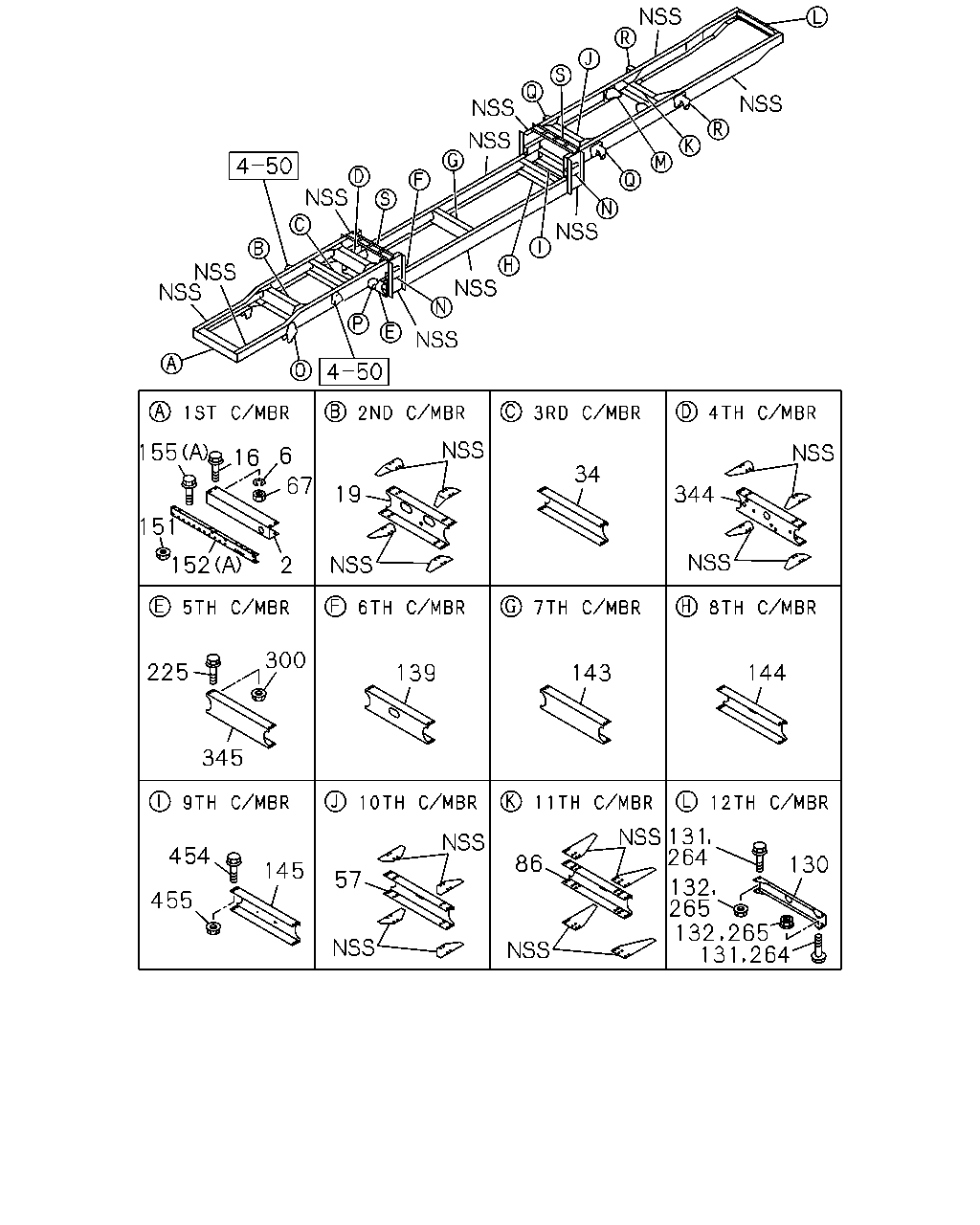

155 6 16 34 67 19 344 151 152 2 300 225 139 143 144 345 264 454 86 130 145 57 132 265 455 131 132 265 264 131

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53171-838-9	01	1	9806-9911	●	●	●
2	MEMBER; CROSS,1ST	8-97530-902-0	01	1	9912-	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	9-09150-614-0	02	1	9806-9911	●	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	9-09150-614-0	02	1	9912-0603	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0604-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20801-430-0	02	1	9806-9911	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20801-430-0	02	1	9912-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53181-627-3	01	1	9806-9911	●	●	●
19	MEMBER; CROSS,2ND	8-97530-898-4	01	1	9912-	●	●
34	MEMBER; CROSS,3RD EXC. CTR SPLIT FRAME<TLW>	1-53181-731-4	01	1	9806-9911	●	●	●
34	MEMBER; CROSS,3RD	8-97530-899-2	01	1	9912-	●	●
34	MEMBER; CROSS,3RD CTR SPLIT FRAME<TLW>	1-53181-733-5	01	1	9806-9911		●
57	MEMBER; CROSS,RR SUSP FRT CTR SPLIT FRAME<TLW>	1-53181-735-6	01	1	9806-9911		●
67	NUT; C/MBR M14	9-99110-414-0	02	1	9806-9911	●	●	●
67	NUT; C/MBR M14	9-99110-414-0	02	1	9912-0512	●	●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0601-	●	●
86	MEMBER; CROSS,RR SUSP RR 6HE1-TC ENG(57L) CTR SPLIT FRAME<TLW>	1-53181-777-3	01	1	9806-9911		●
86	MEMBER; CROSS,RR SUSP RR 6HH1-S ENG(65L) CTR SPLIT FRAME<TLW>	1-53181-735-6	01	1	9806-9911		●
130	MEMBER; CROSS,END CTR SPLIT FRAME<TLW>	1-53181-720-1	01	1	9806-9911		●
131	BOLT; END C/MBR M12X35 FLANGE	0-28681-235-0	08	1	9806-9911	●	●	●
131	BOLT; END C/MBR M12X40 FLANGE	0-28681-240-0	08	1	9912-0512	●	●
131	BOLT; END C/MBR M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-212-0	08	1	9806-9911	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-212-0	08	1	9912-0602	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0603-	●	●
139	MEMBER; CROSS,6TH	1-53181-734-4	01	1	9806-9911	●
139	MEMBER; CROSS,6TH	8-97530-904-2	01	1	9912-	●
139	MEMBER; CROSS,6TH CTR SPLIT FRAME<TLW>	1-53181-804-2	01	1	9806-9911		●
139	MEMBER; CROSS,6TH	8-97530-903-2	01	1	9912-		●
139	MEMBER; CROSS,6TH EXC. CTR SPLIT FRAME<TLW>	1-53181-733-5	01	1	9806-9911		●
139	MEMBER; CROSS,6TH	1-53181-733-5	01	1	9806-9911			●
143	MEMBER; CROSS,7TH 6HE1-TC ENG(57L)	1-53181-777-3	01	1	9806-9911	●
143	MEMBER; CROSS,7TH	8-97530-905-2	01	1	9912-	●
143	MEMBER; CROSS,7TH 6HH1-S ENG(65L)	1-53181-735-6	01	1	9806-9911	●
143	MEMBER; CROSS,7TH CTR SPLIT FRAME<TLW>	1-53181-732-5	01	1	9806-9911		●
143	MEMBER; CROSS,7TH	8-97530-904-2	01	1	9912-		●
143	MEMBER; CROSS,7TH EXC. CTR SPLIT FRAME<TLW>	1-53181-734-4	01	1	9806-9911		●
143	MEMBER; CROSS,7TH	1-53181-734-4	01	1	9806-9911			●
144	MEMBER; CROSS,8TH	1-53181-720-1	01	1	9806-9911	●
144	MEMBER; CROSS,8TH	8-97530-182-1	01	1	9912-	●
144	MEMBER; CROSS,8TH CTR SPLIT FRAME<TLW>	1-53181-805-2	01	1	9806-9911		●
144	MEMBER; CROSS,8TH	8-97530-905-2	01	1	9912-		●
144	MEMBER; CROSS,8TH 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW>	1-53181-777-3	01	1	9806-9911		●
144	MEMBER; CROSS,8TH 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW>	1-53181-735-6	01	1	9806-9911		●
144	MEMBER; CROSS,8TH	1-53181-735-6	01	1	9806-9911			●
145	MEMBER; CROSS,9TH CTR SPLIT FRAME<TLW>	1-53181-806-3	01	1	9806-9911		●
145	MEMBER; CROSS,9TH	8-97530-182-1	01	1	9912-		●
145	MEMBER; CROSS,9TH EXC. CTR SPLIT FRAME<TLW>	1-53181-720-1	01	1	9806-9911		●
145	MEMBER; CROSS,9TH	1-53181-720-1	01	1	9806-9911			●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	06	1	9806-9911	●	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	06	1	9912-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
152	OUTRIGGER A/T<X9D> (B)	8-97530-876-0	01	1	9912-	●	●
152	OUTRIGGER (B)	1-53456-259-1	01	1	9806-9911	●	●	●
152	OUTRIGGER ISUZU M/T<X9A> (B)	8-97530-039-0	01	1	9912-	●	●
152	OUTRIGGER (A) FRONT	1-53456-261-2	01	1	9806-9911	●	●	●
152	OUTRIGGER (A) FRONT	1-53456-261-2	01	1	9912-	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28681-235-0	02	1	9806-9911	●	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28681-235-0	02	1	9912-0512	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28691-235-0	04	1	9806-9911	●	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28691-235-0	04	1	9912-0512	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28661-235-0	04	1	0601-	●	●
225	BOLT; 5TH C/MBR CTR SPLIT FRAME<TLW> M10X30 FLANGE	0-28681-030-0	06	1	9806-9911		●
264	BOLT; FRT C/MBR 6HE1-TC ENG(57L) M12X35 FLANGE	0-28681-235-0	08	1	9806-9910	●	●	●
264	BOLT; FRT C/MBR M12X35 FLANGE	0-28681-235-0	08	1	9911-9911	●	●
265	NUT; FRT C/MBR 6HE1-TC ENG(57L) M12 FLANGE	0-91150-212-0	08	1	9806-9910	●	●	●
265	NUT; FRT C/MBR M12 FLANGE	0-91150-212-0	08	1	9911-9911	●	●
300	NUT; 5TH C/MBR CTR SPLIT FRAME<TLW> M10 FLANGE	0-91150-210-0	06	1	9806-9911		●
344	MEMBER; CROSS,4TH EXC. CTR SPLIT FRAME<TLW>	1-53181-732-5	01	1	9806-9911	●	●	●
344	MEMBER; CROSS,4TH	8-97530-901-2	01	1	9912-	●	●
344	MEMBER; CROSS,4TH CTR SPLIT FRAME<TLW>	1-53181-731-4	01	1	9806-9911		●
345	MEMBER; CROSS,5TH	1-53181-733-5	01	1	9806-9911	●
345	MEMBER; CROSS,5TH	8-97530-903-2	01	1	9912-	●
345	MEMBER; CROSS,5TH	1-53181-732-5	01	1	9806-9911		●	●
345	MEMBER; CROSS,5TH	8-97530-901-2	01	1	9912-		●
454	BOLT; 9TH C/MBR CTR SPLIT FRAME<TLW> M10X30 FLANGE	0-28681-030-0	06	1	9806-9911		●
455	NUT; 9TH C/MBR CTR SPLIT FRAME<TLW> M10 FLANGE	0-91150-210-0	06	1	9806-9911		●

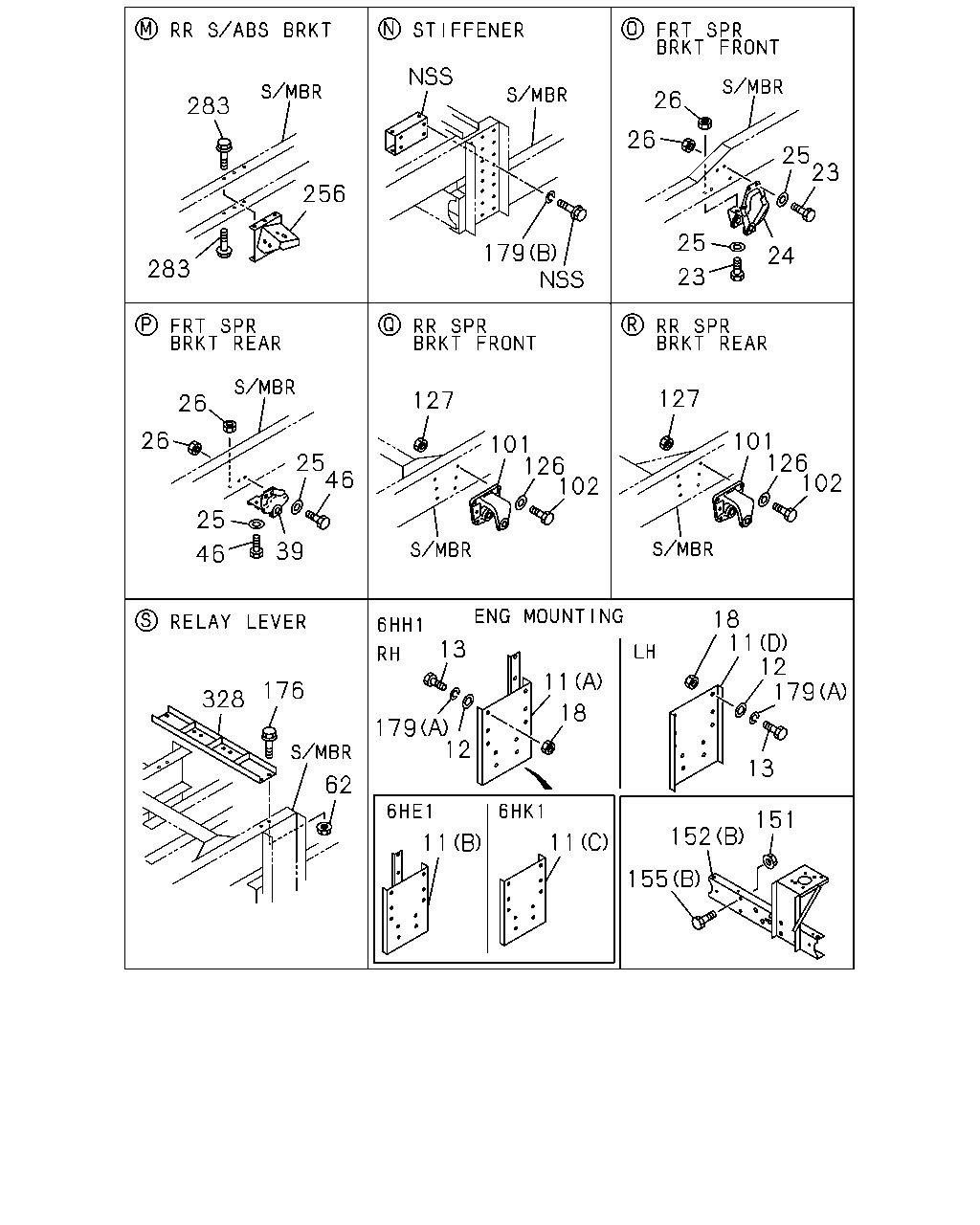

26 283 26 25 23 256 25 179 24 283 23 127 127 26 26 101 126 102 101 126 102 25 46 25 39 46 18 11 12 179 13 11 176 328 18 179 12 13 62 151 152 11 11 155

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
11	BRACKET; ENG MTG (D)	1-53221-188-0	01	1	9806-9911	●	●	●
11	BRACKET; ENG MTG (D)	8-97530-038-1	01	1	9912-	●	●
11	BRACKET; ENG MTG 6HE1-TC ENG(57L) (B)	1-53221-197-1	01	1	9806-9911	●	●	●
11	BRACKET; ENG MTG (C)	1-53221-220-1	01	1	9912-	●	●
11	BRACKET; ENG MTG 6HH1-S ENG(65L) (A)	1-53221-187-1	01	1	9806-9911	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	9806-9911	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	9912-	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	12	1	9806-9911	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	12	1	9912-0512	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0601-	●	●
18	NUT; BRKT,ENG MTG M14	9-99110-514-0	12	1	9806-9911	●	●	●
18	NUT; BRKT,ENG MTG M14	9-99110-514-0	12	1	9912-0512	●	●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	12	1	0601-	●	●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	9806-9911	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9806-9911	●	●
23	BOLT; BRKT,SPR M14X40	9-92061-440-0	08	1	9806-9911			●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9912-	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9806-9911			●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	9912-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-179-0	01	1	9806-9911	●	●	●
24	BRACKET; FRT SPR,FRT	8-97530-003-0	01	1	9912-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-178-0	01	1	9806-9911	●	●	●
24	BRACKET; FRT SPR,FRT	8-97530-002-0	01	1	9912-	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9806-9911	●	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9912-	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9806-9911	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9912-	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9806-9911	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9912-0512	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	16	1	0601-	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9806-9911	●	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9912-0512	●	●
26	NUT; BRKT,SPR M16	0-91110-516-0	04	1	0601-	●	●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9806-9911	●	●	●
39	BRACKET; FRT SPR,RR	8-97530-005-2	01	1	9912-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9806-9911	●	●	●
39	BRACKET; FRT SPR,RR	8-97530-004-2	01	1	9912-	●	●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X50	9-92061-650-0	02	1	0002-0512		●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X50	0-20951-650-0	02	1	0601-		●
46	BOLT; BRKT FIX M14X50	9-91066-450-0	02	1	0002-0512	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X50	9-91066-450-0	02	1	0002-0512		●
46	BOLT; BRKT FIX M14X50	0-10956-450-0	02	1	0601-	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X50	0-10956-450-0	02	1	0601-		●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	9806-9911	●	●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	9-91066-660-0	12	1	9912-0001		●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	9-91066-660-0	10	1	0002-0512		●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	0-10956-660-0	10	1	0601-		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	12	1	9912-0001	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X55	9-91066-455-0	12	1	9912-0001		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	10	1	0002-	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X55	9-91066-455-0	10	1	0002-		●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	9806-9911			●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	9912-	●	●
62	NUT; MBR CTR SPLIT FRAME<TLW> M10 FLANGE	0-91150-210-0	08	1	9806-9911		●
101	BRACKET; RR SPR,FRT	1-53354-067-0	02	1	9806-9911	●	●
101	BRACKET; RR SPR,FRT	8-97530-218-0	01	1	9912-	●
101	BRACKET; RR SPR,FRT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D>	8-97530-218-0	01	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-068-0	02	1	9806-9911	●	●
101	BRACKET; RR SPR,FRT	8-97530-219-0	01	1	9912-	●
101	BRACKET; RR SPR,FRT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D>	8-97530-219-0	01	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-078-0	02	1	9806-9911			●
101	BRACKET; RR SPR,FRT BUS BODY FRAME TYPE HVY DUTY<B2D>	1-53354-078-0	01	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-077-0	02	1	9806-9911			●
101	BRACKET; RR SPR,FRT BUS BODY FRAME TYPE HVY DUTY<B2D>	1-53354-077-0	01	1	9912-		●
102	BOLT; BRKT,RR SPR M14X55	9-91066-455-0	24	1	9806-9911	●	●
102	BOLT; BRKT,RR SPR M16X60	9-91066-660-0	24	1	9806-9911			●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9806-9911	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9912-	●
126	WASHER; PL,BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> ID=15	9-09651-069-0	24	1	9912-		●
126	WASHER; PL,BRKT ID=16.2	1-09503-223-0	48	1	9806-9911			●
126	WASHER; PL,BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> ID=16.2	1-09503-223-0	24	1	9912-		●
127	NUT; BRKT M14	9-99110-514-0	24	1	9806-9911	●	●
127	NUT; BRKT M14	9-99110-514-0	12	1	9912-0512	●
127	NUT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14	9-99110-514-0	12	1	9912-0512		●
127	NUT; BRKT M14	0-91110-514-0	12	1	0601-	●
127	NUT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14	0-91110-514-0	12	1	0601-		●
127	NUT; BRKT M16	9-99110-516-0	24	1	9806-9911			●
127	NUT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16	9-99110-516-0	12	1	9912-0512		●
127	NUT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16	0-91110-516-0	12	1	0601-		●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	06	1	9806-9911	●	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	06	1	9912-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
152	OUTRIGGER A/T<X9D> (B)	8-97530-876-0	01	1	9912-	●	●
152	OUTRIGGER (B)	1-53456-259-1	01	1	9806-9911	●	●	●
152	OUTRIGGER ISUZU M/T<X9A> (B)	8-97530-039-0	01	1	9912-	●	●
152	OUTRIGGER (A) FRONT	1-53456-261-2	01	1	9806-9911	●	●	●
152	OUTRIGGER (A) FRONT	1-53456-261-2	01	1	9912-	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28681-235-0	02	1	9806-9911	●	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28681-235-0	02	1	9912-0512	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28691-235-0	04	1	9806-9911	●	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28691-235-0	04	1	9912-0512	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28661-235-0	04	1	0601-	●	●
176	BOLT; C/MBR,ENG MTG CTR SPLIT FRAME<TLW> M10X35 FLANGE	0-28681-035-0	08	1	9806-9911		●
179	WASHER; LK (A) ID=14.2	9-09150-614-0	12	1	9806-9911	●	●	●
179	WASHER; LK (A) ID=14.2	9-09150-614-0	12	1	9912-0603	●	●
179	WASHER; LK (A) ID=14.2	0-91510-614-0	12	1	0604-	●	●
179	WASHER; LK CTR SPLIT FRAME<TLW> (B) ID=14.2	9-09150-814-0	16	1	9806-9911		●
256	BRACKET; S/ABS	1-51681-480-2	01	1	9806-9911	●	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	9912-	●	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	9806-9911	●	●	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	9912-	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28681-235-0	12	1	9806-9911	●	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28681-235-0	12	1	9912-0512	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●
328	BRACKET; RELAY LEVER CTR SPLIT FRAME<TLW>	1-33657-680-0	02	1	9806-9911		●

18 11 12 179 11 11 501 145 13 11 13 143 144 18 179 12 283 152 155 139 194 256 16 34 2 19 71 151 6 26 26 25 25 67 46 85 126 26 39 127 82 25 26 25 46 85 126 82 127 2 23 25 101 105 24 46 102 106 151 23 152 101 155 131 264 132 265 344 345 46 102 106

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	1-53171-838-9	01	1	9806-9911	●	●	●
2	MEMBER; CROSS,1ST	8-97530-902-0	01	1	9912-	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	9-09150-614-0	02	1	9806-9911	●	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	9-09150-614-0	02	1	9912-0603	●	●
6	WASHER; LK,1ST C/MBR ID=14.2	0-91510-614-0	02	1	0604-	●	●
11	BRACKET; ENG MTG (D)	1-53221-188-0	01	1	9806-9911	●	●	●
11	BRACKET; ENG MTG (D)	8-97530-038-1	01	1	9912-	●	●
11	BRACKET; ENG MTG 6HE1-TC ENG(57L) (B)	1-53221-197-1	01	1	9806-9911	●	●	●
11	BRACKET; ENG MTG (C)	1-53221-220-1	01	1	9912-	●	●
11	BRACKET; ENG MTG 6HH1-S ENG(65L) (A)	1-53221-187-1	01	1	9806-9911	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	9806-9911	●	●	●
12	WASHER; PL,BRKT,ENG MTG ID=15	9-09651-069-0	12	1	9912-	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	12	1	9806-9911	●	●	●
13	BOLT; BRKT,ENG MTG M14X40	9-92061-440-0	12	1	9912-0512	●	●
13	BOLT; BRKT,ENG MTG M14X40	0-20951-440-0	12	1	0601-	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20801-430-0	02	1	9806-9911	●	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20801-430-0	02	1	9912-0512	●	●
16	BOLT; 1ST C/MBR TO S/MBR M14X30	0-20851-430-0	02	1	0601-	●	●
18	NUT; BRKT,ENG MTG M14	9-99110-514-0	12	1	9806-9911	●	●	●
18	NUT; BRKT,ENG MTG M14	9-99110-514-0	12	1	9912-0512	●	●
18	NUT; BRKT,ENG MTG M14	0-91110-514-0	12	1	0601-	●	●
19	MEMBER; CROSS,2ND	1-53181-627-3	01	1	9806-9911	●	●	●
19	MEMBER; CROSS,2ND	8-97530-898-4	01	1	9912-	●	●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	9806-9911	●	●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9806-9911	●	●
23	BOLT; BRKT,SPR M14X40	9-92061-440-0	08	1	9806-9911			●
23	BOLT; BRKT,SPR M14X45	9-92061-445-0	08	1	9912-	●	●
23	BOLT; BRKT,SPR M16X50	9-92061-650-0	04	1	9806-9911			●
23	BOLT; BRKT,SPR M16X55	9-91066-655-0	04	1	9912-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-179-0	01	1	9806-9911	●	●	●
24	BRACKET; FRT SPR,FRT	8-97530-003-0	01	1	9912-	●	●
24	BRACKET; FRT SPR,FRT	1-53351-178-0	01	1	9806-9911	●	●	●
24	BRACKET; FRT SPR,FRT	8-97530-002-0	01	1	9912-	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9806-9911	●	●	●
25	WASHER; PL,BRKT ID=16.2	1-09503-223-0	08	1	9912-	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9806-9911	●	●	●
25	WASHER; PL,BRKT ID=15	9-09651-069-0	32	1	9912-	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9806-9911	●	●	●
26	NUT; BRKT,SPR M14	9-99110-514-0	16	1	9912-0512	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	16	1	0601-	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9806-9911	●	●	●
26	NUT; BRKT,SPR M16	9-99110-516-0	04	1	9912-0512	●	●
26	NUT; BRKT,SPR M16	0-91110-516-0	04	1	0601-	●	●
34	MEMBER; CROSS,3RD EXC. CTR SPLIT FRAME<TLW>	1-53181-731-4	01	1	9806-9911	●	●	●
34	MEMBER; CROSS,3RD	8-97530-899-2	01	1	9912-	●	●
34	MEMBER; CROSS,3RD CTR SPLIT FRAME<TLW>	1-53181-733-5	01	1	9806-9911		●
39	BRACKET; FRT SPR,RR	1-53352-153-0	01	1	9806-9911	●	●	●
39	BRACKET; FRT SPR,RR	8-97530-005-2	01	1	9912-	●	●
39	BRACKET; FRT SPR,RR	1-53352-152-0	01	1	9806-9911	●	●	●
39	BRACKET; FRT SPR,RR	8-97530-004-2	01	1	9912-	●	●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X50	9-92061-650-0	02	1	0002-0512		●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X50	0-20951-650-0	02	1	0601-		●
46	BOLT; BRKT FIX M14X50	9-91066-450-0	02	1	0002-0512	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X50	9-91066-450-0	02	1	0002-0512		●
46	BOLT; BRKT FIX M14X50	0-10956-450-0	02	1	0601-	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X50	0-10956-450-0	02	1	0601-		●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	9806-9911	●	●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	9-91066-660-0	12	1	9912-0001		●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	9-91066-660-0	10	1	0002-0512		●
46	BOLT; BRKT FIX BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	0-10956-660-0	10	1	0601-		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	12	1	9912-0001	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X55	9-91066-455-0	12	1	9912-0001		●
46	BOLT; BRKT FIX M14X55	9-91066-455-0	10	1	0002-	●
46	BOLT; BRKT FIX EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X55	9-91066-455-0	10	1	0002-		●
46	BOLT; BRKT FIX M14X40	9-92061-440-0	08	1	9806-9911			●
46	BOLT; BRKT FIX M14X45	9-92061-445-0	08	1	9912-	●	●
67	NUT; C/MBR M14	9-99110-414-0	02	1	9806-9911	●	●	●
67	NUT; C/MBR M14	9-99110-414-0	02	1	9912-0512	●	●
67	NUT; C/MBR M14	0-91110-514-0	02	1	0601-	●	●
71	NUT; 2ND C/MBR M14 FLANGE	0-91150-214-0	02	1	0307-	●	●
82	NUT; BRKT M14	9-99110-514-0	12	1	9912-0512	●
82	NUT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14	9-99110-514-0	12	1	9912-0512		●
82	NUT; BRKT M14	0-91110-514-0	12	1	0601-	●
82	NUT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14	0-91110-514-0	12	1	0601-		●
82	NUT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16	9-99110-516-0	12	1	9912-0512		●
82	NUT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16	0-91110-516-0	12	1	0601-		●
85	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9912-	●
85	WASHER; PL,BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> ID=15	9-09651-069-0	24	1	9912-		●
85	WASHER; PL,BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> ID=16.2	1-09503-223-0	24	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-067-0	02	1	9806-9911	●	●
101	BRACKET; RR SPR,FRT	8-97530-218-0	01	1	9912-	●
101	BRACKET; RR SPR,FRT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D>	8-97530-218-0	01	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-068-0	02	1	9806-9911	●	●
101	BRACKET; RR SPR,FRT	8-97530-219-0	01	1	9912-	●
101	BRACKET; RR SPR,FRT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D>	8-97530-219-0	01	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-078-0	02	1	9806-9911			●
101	BRACKET; RR SPR,FRT BUS BODY FRAME TYPE HVY DUTY<B2D>	1-53354-078-0	01	1	9912-		●
101	BRACKET; RR SPR,FRT	1-53354-077-0	02	1	9806-9911			●
101	BRACKET; RR SPR,FRT BUS BODY FRAME TYPE HVY DUTY<B2D>	1-53354-077-0	01	1	9912-		●
102	BOLT; BRKT,RR SPR M14X55	9-91066-455-0	24	1	9806-9911	●	●
102	BOLT; BRKT,RR SPR M16X60	9-91066-660-0	24	1	9806-9911			●
105	BRACKET; RR SPR,RR	8-97530-218-0	01	1	9912-	●
105	BRACKET; RR SPR,RR EXC. BUS BODY FRAME TYPE HVY DUTY<B2D>	8-97530-218-0	01	1	9912-		●
105	BRACKET; RR SPR,RR	8-97530-219-0	01	1	9912-	●
105	BRACKET; RR SPR,RR EXC. BUS BODY FRAME TYPE HVY DUTY<B2D>	8-97530-219-0	01	1	9912-		●
105	BRACKET; RR SPR,RR BUS BODY FRAME TYPE HVY DUTY<B2D>	1-53354-078-0	01	1	9912-		●
105	BRACKET; RR SPR,RR BUS BODY FRAME TYPE HVY DUTY<B2D>	1-53354-077-0	01	1	9912-		●
106	BOLT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16X50	9-92061-650-0	02	1	0002-0512		●
106	BOLT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16X50	0-20951-650-0	02	1	0601-		●
106	BOLT; BRKT M14X50	9-91066-450-0	02	1	0002-0512	●
106	BOLT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X50	9-91066-450-0	02	1	0002-0512		●
106	BOLT; BRKT M14X50	0-10956-450-0	02	1	0601-	●
106	BOLT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X50	0-10956-450-0	02	1	0601-		●
106	BOLT; BRKT M14X55	9-91066-455-0	12	1	9912-0001	●
106	BOLT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X55	9-91066-455-0	12	1	9912-0001		●
106	BOLT; BRKT M14X55	9-91066-455-0	10	1	0002-	●
106	BOLT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14X55	9-91066-455-0	10	1	0002-		●
106	BOLT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	9-91066-660-0	12	1	9912-0001		●
106	BOLT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	9-91066-660-0	10	1	0002-0512		●
106	BOLT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16X60	0-10956-660-0	10	1	0601-		●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	48	1	9806-9911	●	●
126	WASHER; PL,BRKT ID=15	9-09651-069-0	24	1	9912-	●
126	WASHER; PL,BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> ID=15	9-09651-069-0	24	1	9912-		●
126	WASHER; PL,BRKT ID=16.2	1-09503-223-0	48	1	9806-9911			●
126	WASHER; PL,BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> ID=16.2	1-09503-223-0	24	1	9912-		●
127	NUT; BRKT M14	9-99110-514-0	24	1	9806-9911	●	●
127	NUT; BRKT M14	9-99110-514-0	12	1	9912-0512	●
127	NUT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14	9-99110-514-0	12	1	9912-0512		●
127	NUT; BRKT M14	0-91110-514-0	12	1	0601-	●
127	NUT; BRKT EXC. BUS BODY FRAME TYPE HVY DUTY<B2D> M14	0-91110-514-0	12	1	0601-		●
127	NUT; BRKT M16	9-99110-516-0	24	1	9806-9911			●
127	NUT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16	9-99110-516-0	12	1	9912-0512		●
127	NUT; BRKT BUS BODY FRAME TYPE HVY DUTY<B2D> M16	0-91110-516-0	12	1	0601-		●
131	BOLT; END C/MBR M12X35 FLANGE	0-28681-235-0	08	1	9806-9911	●	●	●
131	BOLT; END C/MBR M12X40 FLANGE	0-28681-240-0	08	1	9912-0512	●	●
131	BOLT; END C/MBR M12X40 FLANGE	0-28651-240-0	08	1	0601-	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-212-0	08	1	9806-9911	●	●	●
132	NUT; END C/MBR M12 FLANGE	0-91150-212-0	08	1	9912-0602	●	●
132	NUT; END C/MBR M12 FLANGE	0-91180-212-0	08	1	0603-	●	●
139	MEMBER; CROSS,6TH	1-53181-734-4	01	1	9806-9911	●
139	MEMBER; CROSS,6TH	8-97530-904-2	01	1	9912-	●
139	MEMBER; CROSS,6TH CTR SPLIT FRAME<TLW>	1-53181-804-2	01	1	9806-9911		●
139	MEMBER; CROSS,6TH	8-97530-903-2	01	1	9912-		●
139	MEMBER; CROSS,6TH EXC. CTR SPLIT FRAME<TLW>	1-53181-733-5	01	1	9806-9911		●
139	MEMBER; CROSS,6TH	1-53181-733-5	01	1	9806-9911			●
143	MEMBER; CROSS,7TH 6HE1-TC ENG(57L)	1-53181-777-3	01	1	9806-9911	●
143	MEMBER; CROSS,7TH	8-97530-905-2	01	1	9912-	●
143	MEMBER; CROSS,7TH 6HH1-S ENG(65L)	1-53181-735-6	01	1	9806-9911	●
143	MEMBER; CROSS,7TH CTR SPLIT FRAME<TLW>	1-53181-732-5	01	1	9806-9911		●
143	MEMBER; CROSS,7TH	8-97530-904-2	01	1	9912-		●
143	MEMBER; CROSS,7TH EXC. CTR SPLIT FRAME<TLW>	1-53181-734-4	01	1	9806-9911		●
143	MEMBER; CROSS,7TH	1-53181-734-4	01	1	9806-9911			●
144	MEMBER; CROSS,8TH	1-53181-720-1	01	1	9806-9911	●
144	MEMBER; CROSS,8TH	8-97530-182-1	01	1	9912-	●
144	MEMBER; CROSS,8TH CTR SPLIT FRAME<TLW>	1-53181-805-2	01	1	9806-9911		●
144	MEMBER; CROSS,8TH	8-97530-905-2	01	1	9912-		●
144	MEMBER; CROSS,8TH 6HE1-TC ENG(57L) EXC. CTR SPLIT FRAME<TLW>	1-53181-777-3	01	1	9806-9911		●
144	MEMBER; CROSS,8TH 6HH1-S ENG(65L) EXC. CTR SPLIT FRAME<TLW>	1-53181-735-6	01	1	9806-9911		●
144	MEMBER; CROSS,8TH	1-53181-735-6	01	1	9806-9911			●
145	MEMBER; CROSS,9TH CTR SPLIT FRAME<TLW>	1-53181-806-3	01	1	9806-9911		●
145	MEMBER; CROSS,9TH	8-97530-182-1	01	1	9912-		●
145	MEMBER; CROSS,9TH EXC. CTR SPLIT FRAME<TLW>	1-53181-720-1	01	1	9806-9911		●
145	MEMBER; CROSS,9TH	1-53181-720-1	01	1	9806-9911			●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	06	1	9806-9911	●	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91150-212-0	06	1	9912-0602	●	●
151	NUT; OUTRIGGER M12 FLANGE	0-91180-212-0	06	1	0603-	●	●
152	OUTRIGGER A/T<X9D> (B)	8-97530-876-0	01	1	9912-	●	●
152	OUTRIGGER (B)	1-53456-259-1	01	1	9806-9911	●	●	●
152	OUTRIGGER ISUZU M/T<X9A> (B)	8-97530-039-0	01	1	9912-	●	●
152	OUTRIGGER (A) FRONT	1-53456-261-2	01	1	9806-9911	●	●	●
152	OUTRIGGER (A) FRONT	1-53456-261-2	01	1	9912-	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28681-235-0	02	1	9806-9911	●	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28681-235-0	02	1	9912-0512	●	●
155	BOLT; OUTRIGGER (A) FRONT M12X35 FLANGE	0-28651-235-0	02	1	0601-	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28691-235-0	04	1	9806-9911	●	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28691-235-0	04	1	9912-0512	●	●
155	BOLT; OUTRIGGER (B) M12X35 FLANGE	0-28661-235-0	04	1	0601-	●	●
179	WASHER; LK (A) ID=14.2	9-09150-614-0	12	1	9806-9911	●	●	●
179	WASHER; LK (A) ID=14.2	9-09150-614-0	12	1	9912-0603	●	●
179	WASHER; LK (A) ID=14.2	0-91510-614-0	12	1	0604-	●	●
179	WASHER; LK CTR SPLIT FRAME<TLW> (B) ID=14.2	9-09150-814-0	16	1	9806-9911		●
194	BOLT; 2ND C/MBR M14X35 FLANGE	0-28681-435-0	02	1	0307-0512	●	●
194	BOLT; 2ND C/MBR M14X35 FLANGE	0-28651-435-0	02	1	0601-	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	9806-9911	●	●	●
256	BRACKET; S/ABS	1-51681-480-2	01	1	9912-	●	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	9806-9911	●	●	●
256	BRACKET; S/ABS	1-51681-479-1	01	1	9912-	●	●
264	BOLT; FRT C/MBR 6HE1-TC ENG(57L) M12X35 FLANGE	0-28681-235-0	08	1	9806-9910	●	●	●
264	BOLT; FRT C/MBR M12X35 FLANGE	0-28681-235-0	08	1	9911-9911	●	●
265	NUT; FRT C/MBR 6HE1-TC ENG(57L) M12 FLANGE	0-91150-212-0	08	1	9806-9910	●	●	●
265	NUT; FRT C/MBR M12 FLANGE	0-91150-212-0	08	1	9911-9911	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28681-235-0	12	1	9806-9911	●	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28681-235-0	12	1	9912-0512	●	●
283	BOLT; BRKT,S/ABS M12X35 FLANGE	0-28651-235-0	12	1	0601-	●	●
344	MEMBER; CROSS,4TH EXC. CTR SPLIT FRAME<TLW>	1-53181-732-5	01	1	9806-9911	●	●	●
344	MEMBER; CROSS,4TH	8-97530-901-2	01	1	9912-	●	●
344	MEMBER; CROSS,4TH CTR SPLIT FRAME<TLW>	1-53181-731-4	01	1	9806-9911		●
345	MEMBER; CROSS,5TH	1-53181-733-5	01	1	9806-9911	●
345	MEMBER; CROSS,5TH	8-97530-903-2	01	1	9912-	●
345	MEMBER; CROSS,5TH	1-53181-732-5	01	1	9806-9911		●	●
345	MEMBER; CROSS,5TH	8-97530-901-2	01	1	9912-		●
501	PLATE; END	1-65600-658-0	04	1	0003-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
