Isuzu WW
▶
BUSES
▶
LT
▶
11207 - LT134(RHD) EURO2/5
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-61 - SHOCK ABSORBER; REAR SUSPENSION
▶

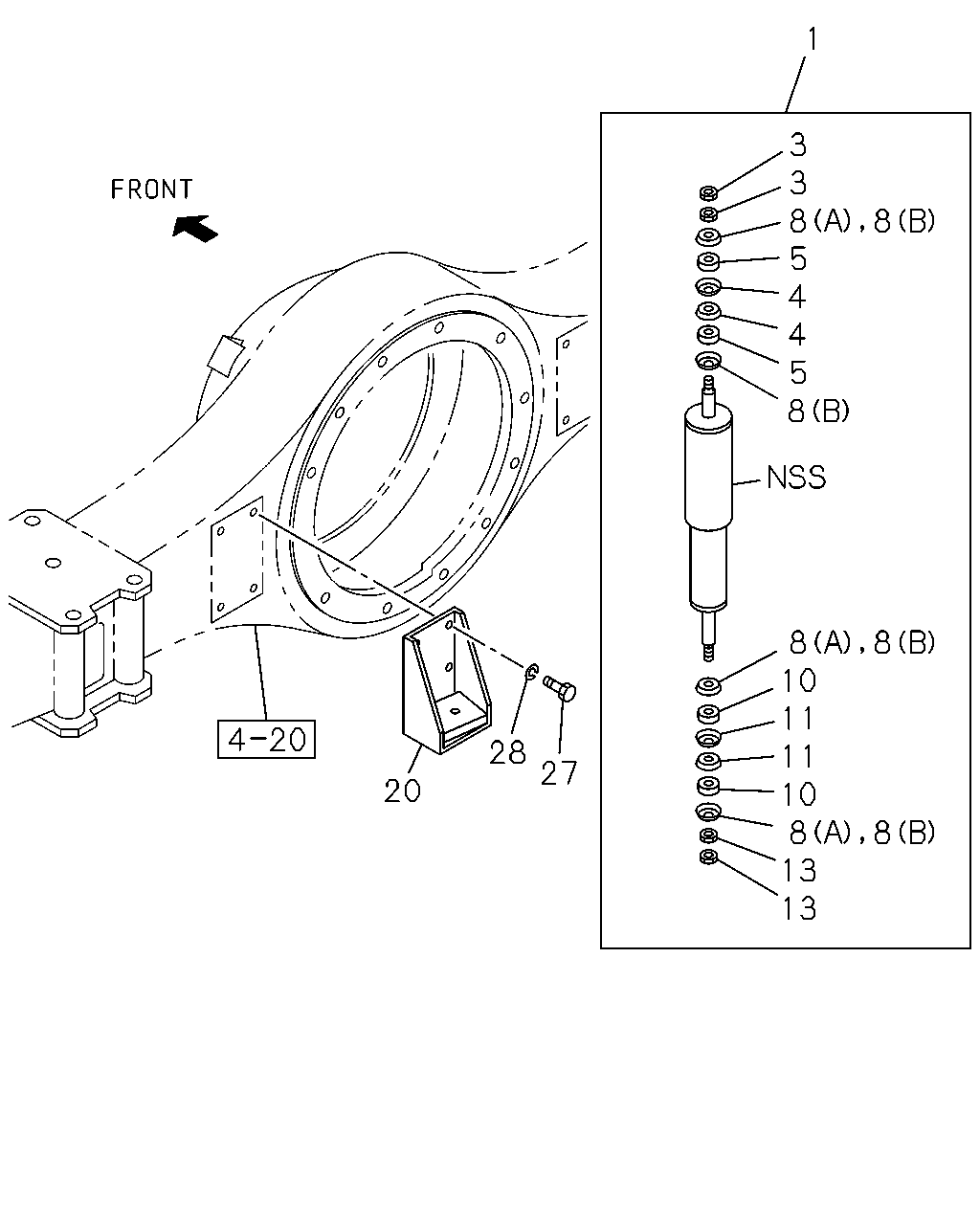

4-61 — SHOCK ABSORBER; REAR SUSPENSION
(#68837) — 24 parça
1
3
3
8
5
4
4
5
8
8
8
10
11
11
10
8
13
13
8
28
27
20
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ABSORBER ASM; SHOCK,RR
MULTI LEAF SUSP RR<SAS>
1-51630-195-2
02
1
0909-
1
ABSORBER ASM; SHOCK,RR
8-98073-532-0
02
1
0908-0908
1
ABSORBER ASM; SHOCK,RR
TAPER LEAF SUSP RR<SAT>
8-98073-532-0
02
1
0909-
3
NUT; S/ABS
M14
9-99111-414-0
04
1
0908-
4
WASHER; CENTER,S/ABS
MULTI LEAF SUSP RR<SAS> ID=20.8
9-51631-041-0
04
1
0909-
4
WASHER; CENTER,S/ABS
ID=24
1-51631-067-0
04
1
0908-0908
4
WASHER; CENTER,S/ABS
TAPER LEAF SUSP RR<SAT> ID=24
1-51631-067-0
04
1
0909-
5
BUSHING; RUBBER,S/ABS,UPR
MULTI LEAF SUSP RR<SAS>
9-51631-039-0
04
1
0909-
5
BUSHING; RUBBER,S/ABS,UPR
ID=16 T=25
1-51631-069-0
04
1
0908-0908
5
BUSHING; RUBBER,S/ABS,UPR
TAPER LEAF SUSP RR<SAT> ID=16 T=25
1-51631-069-0
04
1
0909-
8
WASHER; S/ABS
MULTI LEAF SUSP RR<SAS> (A) ID=16.5
9-51631-040-0
06
1
0909-
8
WASHER; S/ABS
(B) ID=16.5
1-51631-068-0
08
1
0908-0908
8
WASHER; S/ABS
TAPER LEAF SUSP RR<SAT> (B) ID=16.5
1-51631-068-0
08
1
0909-
10
BUSHING; RUBBER,S/ABS
MULTI LEAF SUSP RR<SAS>
9-51631-039-0
04
1
0909-
10
BUSHING; RUBBER,S/ABS
ID=16 T=25
1-51631-069-0
04
1
0908-0908
10
BUSHING; RUBBER,S/ABS
TAPER LEAF SUSP RR<SAT> ID=16 T=25
1-51631-069-0
04
1
0909-
11
WASHER; CENTER,LWR,RR S/ABS
MULTI LEAF SUSP RR<SAS> ID=20.8
9-51631-041-0
04
1
0909-
11
WASHER; CENTER,LWR,RR S/ABS
ID=24
1-51631-067-0
04
1
0908-0908
11
WASHER; CENTER,LWR,RR S/ABS
TAPER LEAF SUSP RR<SAT> ID=24
1-51631-067-0
04
1
0909-
13
NUT; LWR,RR S/ABS
M14
9-99111-414-0
04
1
0908-
20
BRACKET; LWR,S/ABS
1-42129-113-0
01
1
0908-
20
BRACKET; LWR,S/ABS
1-42129-114-0
01
1
0908-
27
BOLT; ABSORBER BRKT
M14X25
0-20801-425-0
08
1
0908-
28
WASHER; LK,ABSORBER BRKT
ID=14.2
0-91510-614-0
08
1
0908-
