Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#68830) — 246 parça

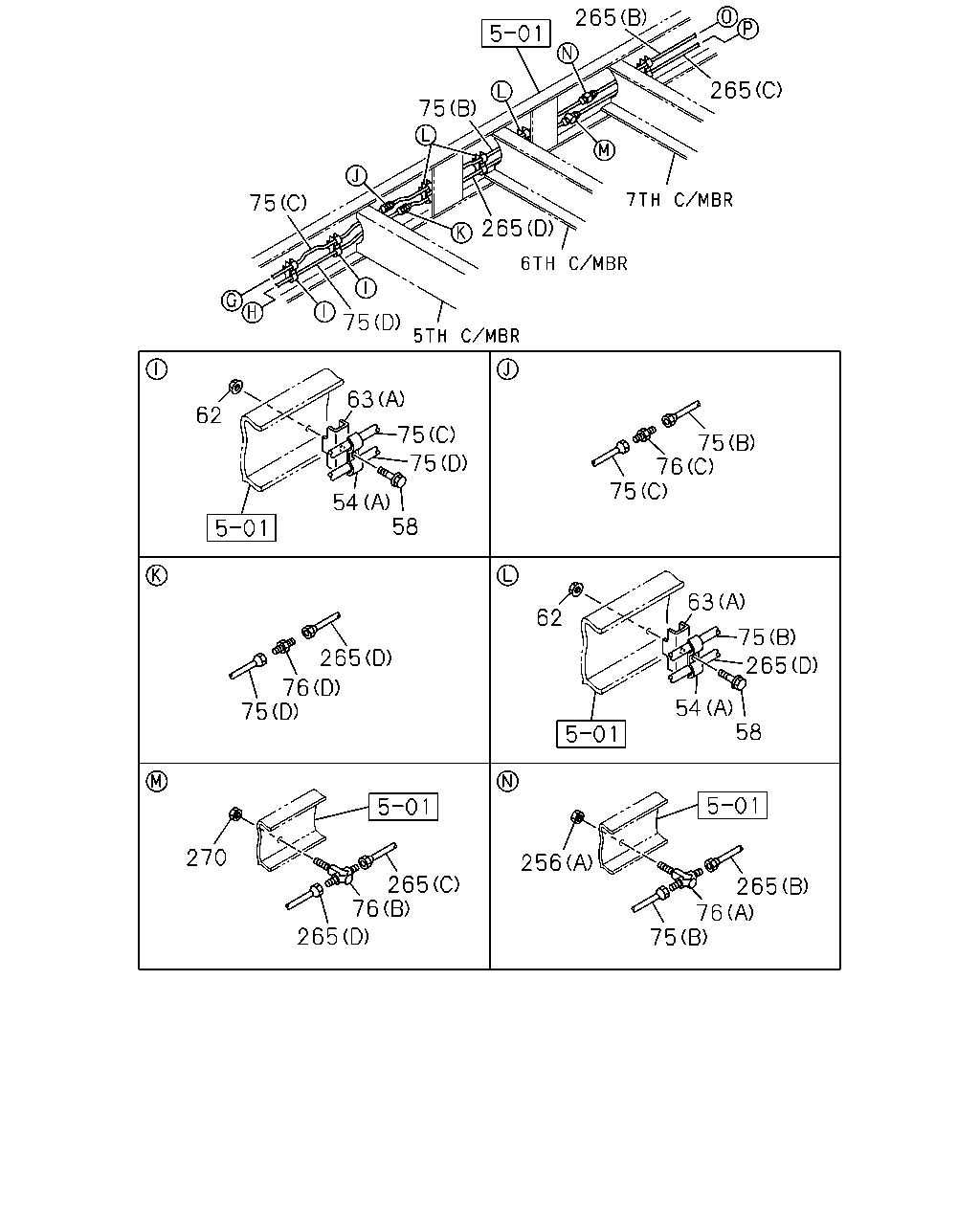

265 265 75 75 265 75 63 62 75 75 75 76 75 54 58 63 62 75 265 265 76 75 54 58 270 256 265 76 265 265 76 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0908-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0908-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0908-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0908-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0908-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0908-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0908-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0908-
62	NUT; CLIP FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0908-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0908-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0908-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0908-
63	BRACKET; CLIP,P/S WHEEL BASE 5000MM(50W) (A)	1-47475-427-1	01	1	0908-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	03	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906	1-21117-873-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (C) L=1522	1-21115-401-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (D) L=1602	1-21115-408-0	01	1	0908-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0908-1410
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0908-1410
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0908-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0908-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0908-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0908-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0908-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0908-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (E) L=1579	8-98057-083-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (C) L=2456	8-98057-086-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0908-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0908-

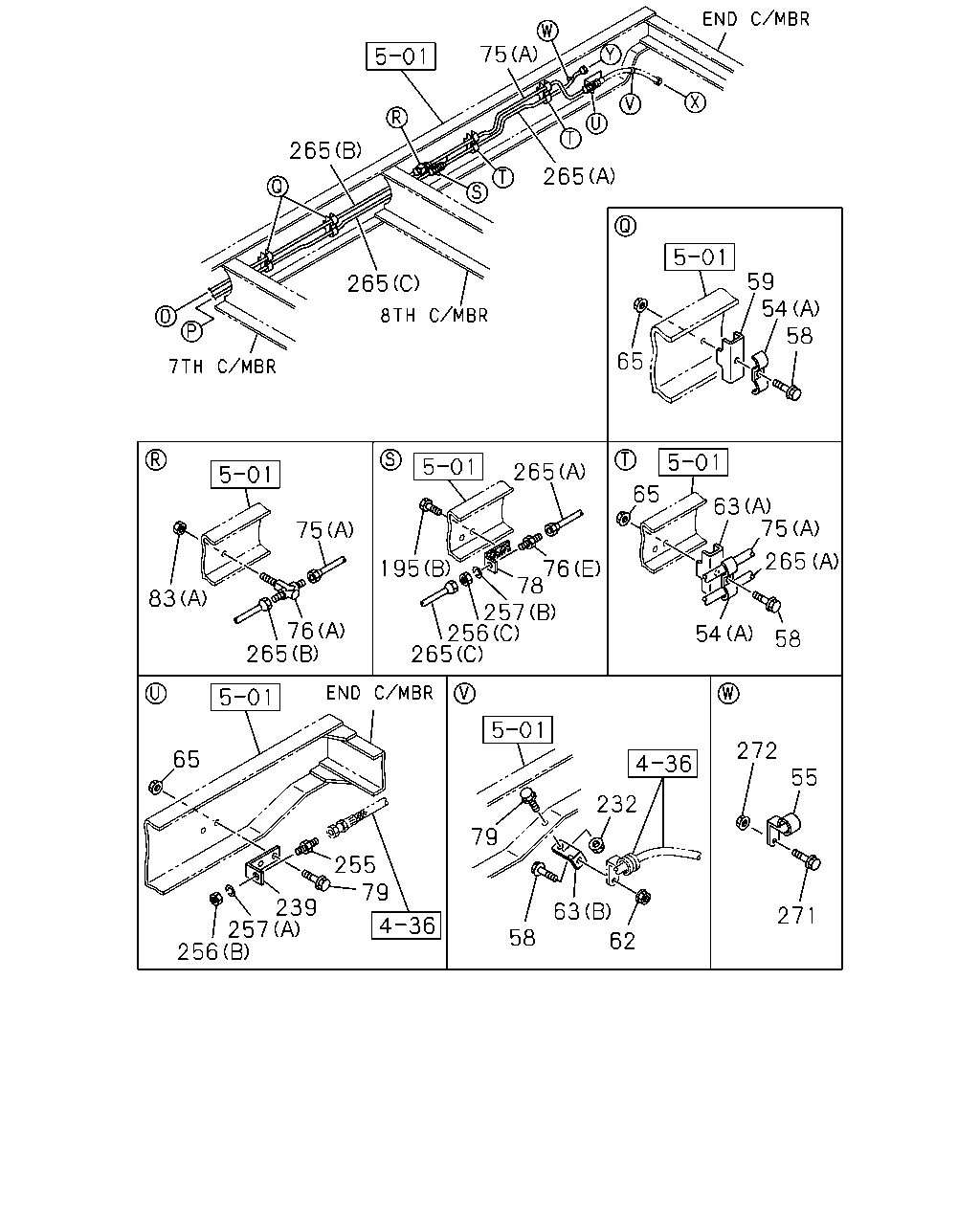

75 265 265 59 54 58 265 65 265 65 63 75 75 265 195 76 78 257 256 265 83 76 265 54 58 272 65 55 232 79 255 79 239 257 256 63 271 58 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0908-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0908-
55	CLIP; P/S RUBBER HOSE ID=15 H=24 L=20	1-09700-606-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0908-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0908-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0908-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0908-
59	BRACKET; CLIP,OIL PIPE	1-47475-427-1	02	1	0908-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0908-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0908-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0908-
62	NUT; CLIP FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0908-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0908-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0908-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0908-
63	BRACKET; CLIP,P/S WHEEL BASE 5000MM(50W) (A)	1-47475-427-1	01	1	0908-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	03	1	0908-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	03	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906	1-21117-873-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (C) L=1522	1-21115-401-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (D) L=1602	1-21115-408-0	01	1	0908-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0908-1410
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0908-1410
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0908-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0908-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0908-
78	BRACKET; UNION	1-47476-729-1	01	1	0908-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	03	1	0908-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0908-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0908-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0908-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0908-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-
239	BRACKET; FLEX HOSE	1-47478-324-0	01	1	0908-
255	UNION; FLEX HOSE	1-09650-045-1	01	1	0908-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0908-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0908-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0908-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0908-
257	WASHER; LK,UNION (A) ID=20.2	0-91510-520-0	01	1	0908-
257	WASHER; LK,UNION (B) ID=22.5	0-91510-522-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (E) L=1579	8-98057-083-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (C) L=2456	8-98057-086-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0908-
271	BOLT; P/S OIL PIPE FIX M8X25 FLANGE	0-28650-825-0	01	1	0908-
272	NUT; P/S OIL PIPE FIX M8 FLANGE	0-91180-108-0	01	1	0908-

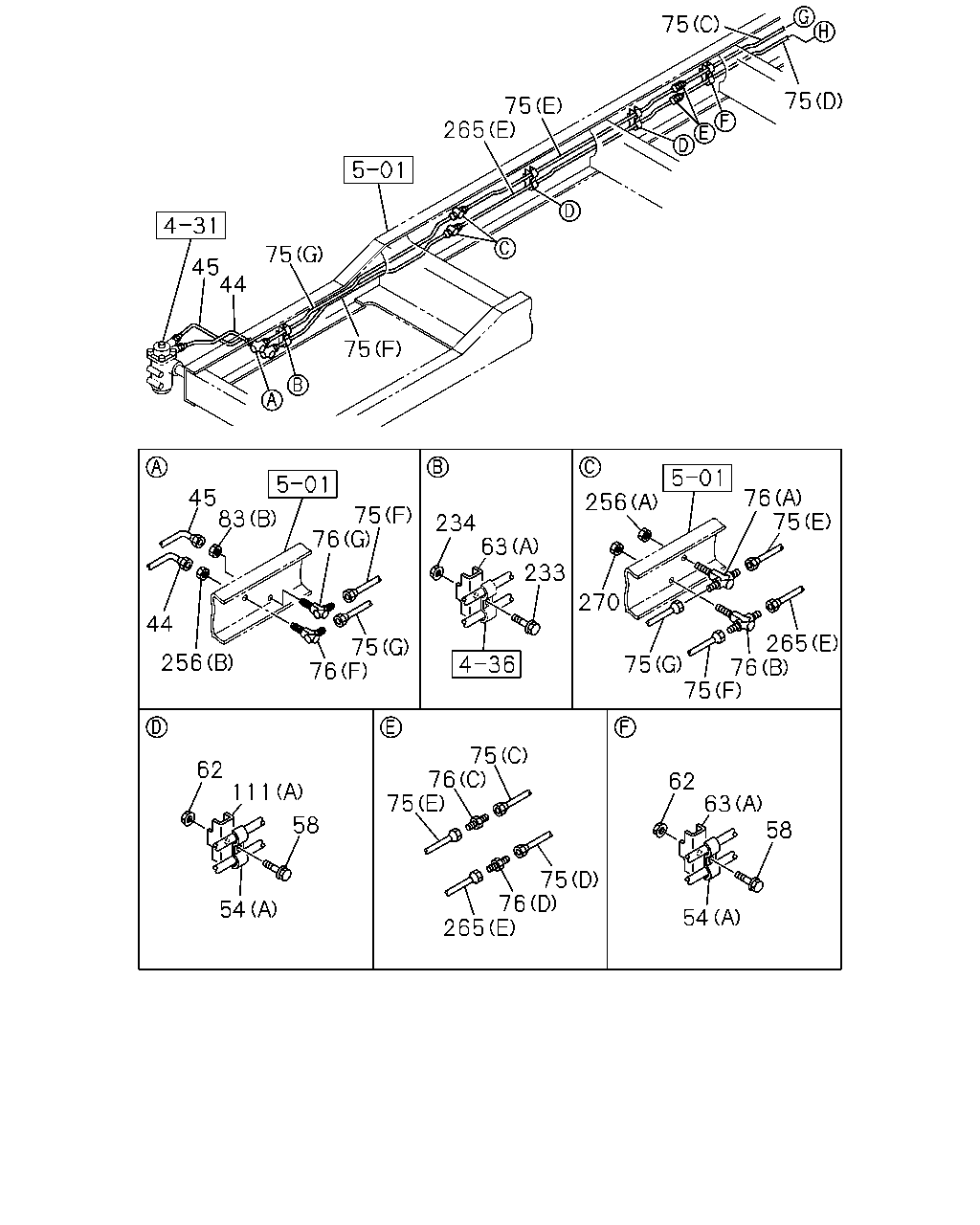

75 75 75 265 75 45 44 75 45 83 76 75 256 75 76 234 63 233 270 44 265 76 75 75 76 256 75 75 76 75 62 62 111 63 58 58 75 76 265 54 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	PIPE; OIL,P/S UNIT TO NIPPLE	1-21117-869-0	01	1	0908-
45	PIPE; OIL,P/S UNIT TO UNION	1-21117-871-0	01	1	0908-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0908-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0908-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0908-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0908-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0908-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	03	1	0908-
62	NUT; CLIP FIX WHEEL BASE 5700MM(57W) M8 FLANGE	0-91180-108-0	03	1	0908-
62	NUT; CLIP FIX M8 FLANGE	0-91180-108-0	04	1	0908-
62	NUT; CLIP FIX WHEEL BASE 5000MM(50W) M8 FLANGE	0-91180-108-0	01	1	0908-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	02	1	0908-
63	BRACKET; CLIP,P/S (A)	1-47475-427-1	04	1	0908-
63	BRACKET; CLIP,P/S (B)	1-82699-199-0	01	1	0908-
63	BRACKET; CLIP,P/S WHEEL BASE 5000MM(50W) (A)	1-47475-427-1	01	1	0908-
63	BRACKET; CLIP,P/S WHEEL BASE 5700MM(57W) (A)	1-47475-427-1	03	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (F) L=906	1-21117-873-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (G) L=1112 SERVICED BY L=1200	1-49115-487-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (A) L=1246 SERVICED BY L=1300	1-49115-488-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (E) L=1506 SERVICED BY L=1600	1-49115-490-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION (B) L=1827 SERVICED BY L=2000	1-49115-492-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (C) L=820	1-21117-877-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5000MM(50W) (D) L=900	1-21117-878-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (C) L=1522	1-21115-401-0	01	1	0908-
75	PIPE; OIL,P/S,UNION TO UNION WHEEL BASE 5700MM(57W) (D) L=1602	1-21115-408-0	01	1	0908-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0908-1410
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0908-1410
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0908-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0908-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0908-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0908-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0908-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0908-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0908-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	0908-
233	BOLT; PIPE CLIP,P/S M8X40 FLANGE	0-28650-840-0	01	1	0908-
234	NUT; PIPE CLIP,P/S M8 FLANGE	0-91180-108-0	01	1	0908-
256	NUT; UNION (A) M14	0-91111-514-0	02	1	0908-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0908-
256	NUT; UNION (B) M20	0-91111-520-0	01	1	0908-
256	NUT; UNION (C) M22	0-91111-522-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (B) L=2072 SERVICED BY L=2250	1-49115-493-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (E) L=1579	8-98057-083-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (D) L=1428	8-98057-084-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (C) L=2456	8-98057-086-0	01	1	0908-
265	PIPE; OIL,UNION TO UNION (A) L=1337	8-98057-087-0	01	1	0908-
270	NUT; UNION TO OIL PIPE M14	0-91111-514-0	02	1	0908-

1 58 54 155 130 68 34 37 37 37 31 157 37 41 268 64 232 83 76 280 68 341 111 41 61 166 2 26 192 3 1 1 5 25 19 12 19 67 195 15

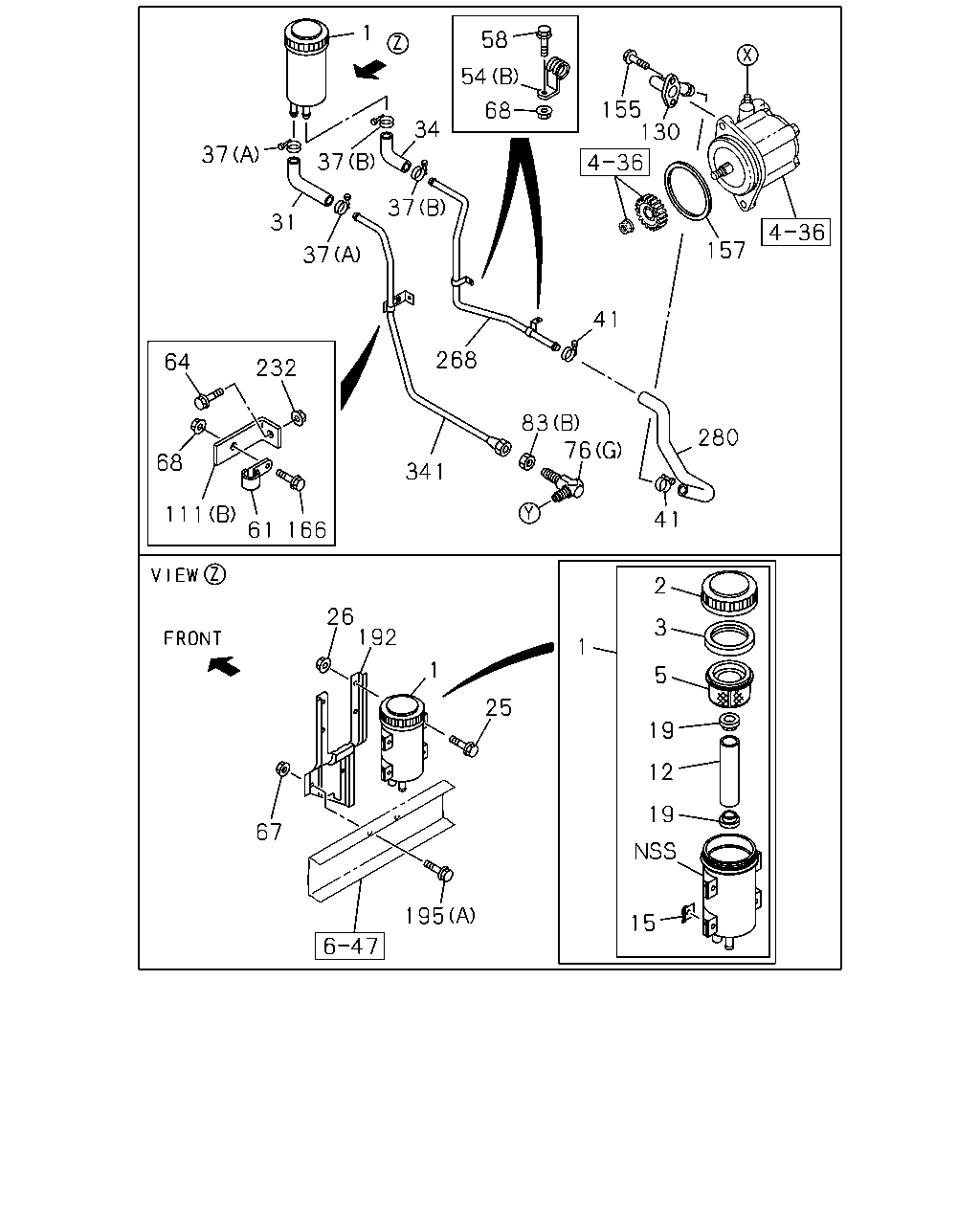

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	1-21210-237-2	01	1	0908-1006
1	TANK ASM; OIL,P/S	8-98166-927-0	01	1	1007-
2	CAP; OIL TANK,P/S	1-21241-004-4	01	1	0908-1006
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1007-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	0908-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	0908-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-004-1	01	1	0908-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	04	1	0908-
19	SEAT; OIL TANK	1-21249-004-0	02	1	0908-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	0908-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	04	1	0908-
31	HOSE; P/S OIL TANK,INL	1-21115-101-0	01	1	0908-
34	HOSE; P/S OIL TANK,OUTLET	1-21116-093-1	01	1	0908-
37	CLIP; HOSE,P/S (A) ID=32	1-09704-085-0	02	1	0908-
37	CLIP; HOSE,P/S (B) ID=36	1-09704-094-0	02	1	0908-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	0908-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5700MM(57W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	03	1	0908-
54	CLIP; OIL PIPE (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	06	1	0908-
54	CLIP; OIL PIPE (B) ID=21 L=30 H=40	1-09700-991-1	02	1	0908-
54	CLIP; OIL PIPE WHEEL BASE 5000MM(50W) (A) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	01	1	0908-
58	BOLT; CLIP M8X45 FLANGE	0-28050-845-0	02	1	0908-
58	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	02	1	0908-
58	BOLT; CLIP M8X40 FLANGE	0-28650-840-0	04	1	0908-
58	BOLT; CLIP WHEEL BASE 5000MM(50W) M8X40 FLANGE	0-28650-840-0	01	1	0908-
58	BOLT; CLIP WHEEL BASE 5700MM(57W) M8X40 FLANGE	0-28650-840-0	03	1	0908-
61	CLIP; OIL PIPE ID=16 L=20	0-95235-535-0	01	1	0908-
64	BOLT; CLIP BRKT M8X25 FLANGE	0-28650-825-0	01	1	0908-
67	NUT; BRKT M10 FLANGE	0-91180-210-0	03	1	0908-
68	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	03	1	0908-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	02	1	0908-1410
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (C) M20 STRAIGHT	0-92123-012-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	02	1	0908-1410
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (D) M22 L=51	0-92123-015-0	01	1	1411-
76	UNION; OIL PIPE (E) M22	0-92123-315-0	01	1	0908-
76	UNION; OIL PIPE (F) M20	0-92135-212-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (G) M22X2 ELBOW	0-92135-215-0	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	01	1	0908-
76	UNION; OIL PIPE (A) M20 2WAY	1-09654-138-1	02	1	0908-
76	UNION; OIL PIPE (B) M22 2WAY	1-09654-212-1	02	1	0908-
83	NUT; UNION,OIL PIPE (A) M14	0-91111-514-0	01	1	0908-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0908-
83	NUT; UNION,OIL PIPE (B) M22	0-91111-522-0	01	1	0908-
111	BRACKET; OIL PIPE (A)	1-47475-427-1	02	1	0908-
111	BRACKET; OIL PIPE (B) L=76	1-47475-588-0	01	1	0908-
130	ADAPTER; P/S PUMP	8-94390-583-0	01	1	0908-
155	BOLT; CONNECTOR M8X16 FLANGE	0-28050-816-0	02	1	0908-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4	1-09623-467-0	01	1	0908-
166	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	01	1	0908-
192	BRACKET; P/S OIL TANK	1-21219-093-2	01	1	0908-
195	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	0908-
195	BOLT; BRKT (A) M10X25 FLANGE	0-28651-025-0	03	1	0908-
232	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0908-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE L=509	8-98057-088-0	01	1	0908-
280	HOSE; P/S OIL PUMP,INL	1-21117-881-0	01	1	0908-
341	PIPE; OIL,UNION TO OIL TANK	1-21117-875-0	01	1	0908-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
