◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 10794 - LT(TAIWAN) ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#6883) — 119 parça

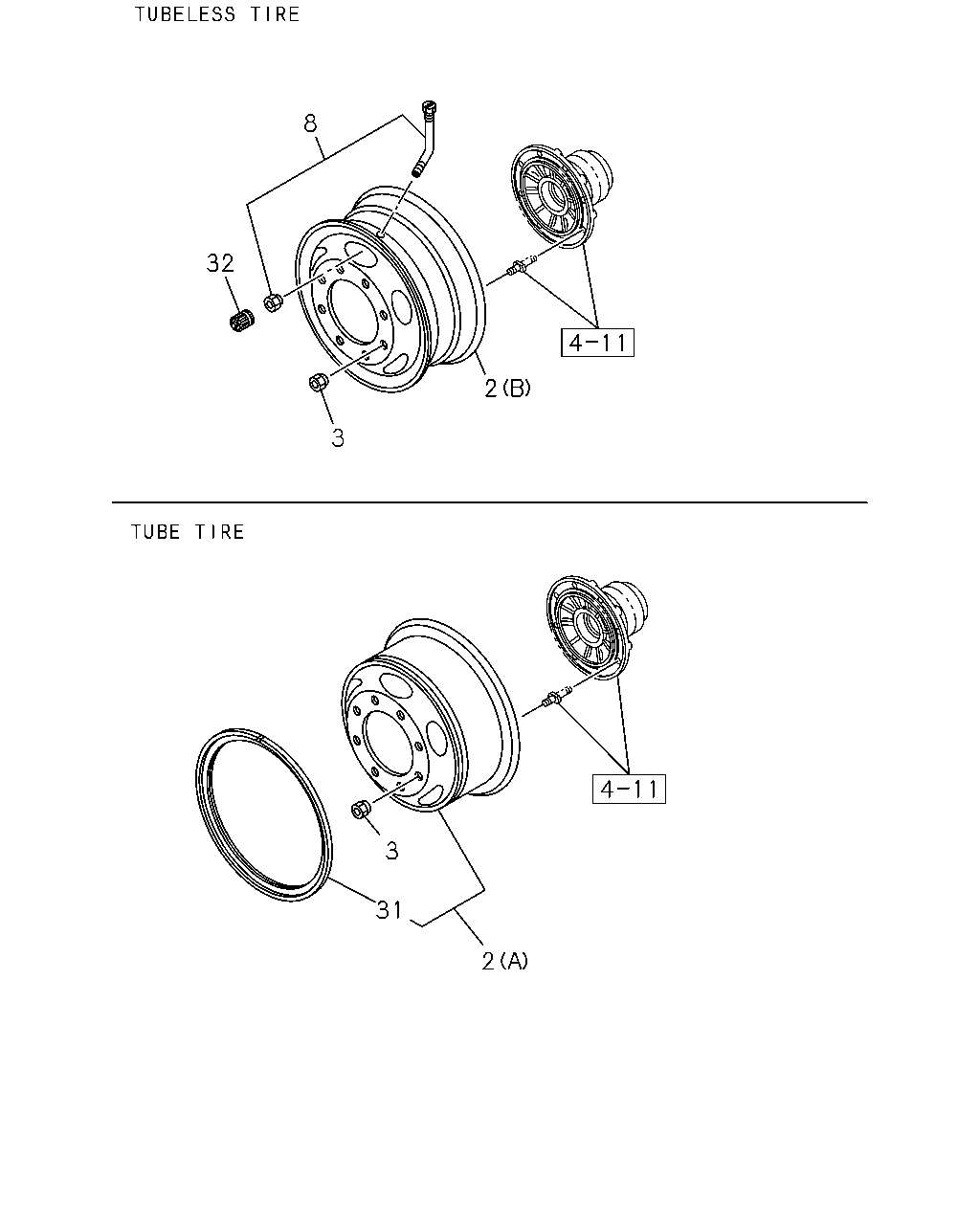

çizim 26432
8 32 2 3 3 31 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		8-97530-230-0 01 1 0001-0001
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		8-97530-230-0 01 1 0001-0207
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) SPARE TIRE & DISC WHL RR(R46) EXC. DISC WHL 8STUD 22.5X8.25 165-13<QM6> (A) BLACK,SPARE 		8-97530-230-0 01 1 0001-0207
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		8-97530-230-0 01 1 0208-
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) SPARE TIRE & DISC WHL RR(R46) EXC. WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK,SPARE 		8-97530-230-0 01 1 0208-
2 WHEEL; DISC
DISC WHL 10STUD 20X7.00T<Q58> (A) BLACK 		1-42350-447-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 20X7.00T<Q58> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-447-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 20X7.50V<Q64> (A) BLACK 		1-42350-448-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 20X7.50V<Q64> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-448-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X7.50 162-12<Q87> (B) WHITE 		1-42350-539-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X7.50 162-12<Q87> SPARE TIRE & DISC WHL RR(R46) (B) WHITE,SPARE 		1-42350-539-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X8.25 165-13<QM8> (B) WHITE 		1-42350-468-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X8.25 165-13<QM8> SPARE TIRE & DISC WHL RR(R46) (B) WHITE,SPARE 		1-42350-468-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.00T 162-12<Q54> (A) BLACK 		1-42350-478-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.00T 162-12<Q54> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-478-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.50V 165-13<Q62> (A) BLACK 		1-42350-420-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.50V 165-13<Q62> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-420-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 22.5X7.50 162-12<QM2> (B) BLACK 		1-42350-429-2 06 1 9806-9911
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) (A) BLACK 		8-97530-230-0 06 1 9912-9912
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) (A) BLACK 		8-97530-230-0 06 1 0001-0207
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) EXC. DISC WHL 8STUD 22.5X8.25 165-13<QM6> (A) BLACK 		8-97530-230-0 06 1 0001-0207
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) (A) BLACK 		8-97530-230-0 06 1 0208-
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) EXC. WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK 		8-97530-230-0 06 1 0208-
2 WHEEL; DISC
DISC WHL 8STUD 22.5X7.50 162-12<QM2> SPARE TIRE & DISC WHL RR(R46) (B) BLACK 		1-42350-429-2 01 1 9806-9911
2 WHEEL; DISC
EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 10STUD 20X7.00T<Q58>,DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD 20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> (A) BLACK,SPARE 		1-42350-268-2 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 22.5X8.25 165-13<QM6> (B) BLACK 		1-42350-492-0 06 1 9806-0207
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) BLACK 		1-42350-597-0 06 1 0208-0304
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK 		1-42350-657-0 06 1 0305-0311
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK 		1-42350-667-0 06 1 0312-
2 WHEEL; DISC
DISC WHL 8STUD 22.5X8.25 165-13<QM6> SPARE TIRE & DISC WHL RR(R46) (B) BLACK,SPARE 		1-42350-492-0 01 1 9806-9911
2 WHEEL; DISC
SPARE TIRE & DISC WHL RR(R46) EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 10STUD 20X7.00T<Q58>,DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD 20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> (A) BLACK,SPARE 		1-42350-268-2 01 1 9806-9911
3 NUT; WHEEL,FRT AXLE
INTERNATIONAL STD ISO<B3V> M22 		1-42333-043-0 20 1 9806-9911
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STD ISO<B3V> M24 LH THREAD 		1-42334-022-0 08 1 9806-9911
3 NUT; WHEEL,FRT AXLE
M24 LH THREAD 		1-42334-022-3 08 1 9912-
3 NUT; WHEEL,FRT AXLE
EXC. INTERNATIONAL STD ISO<B3V> M24 		1-42333-022-0 08 1 9806-9911
3 NUT; WHEEL,FRT AXLE
M24 		1-42333-022-3 08 1 9912-
8 VALVE; TIRE
DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 16 5-13<QM8>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> 		1-42370-020-3 06 1 9806-9911
8 VALVE; TIRE
DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 16 5-13<QM8>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> SPARE TIRE & DISC WHL RR(R46) 		1-42370-020-3 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 10STUD 20X7.50V<Q64> 		1-42355-014-0 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 10STUD 20X7.50V<Q64> SPARE TIRE & DISC WHL RR(R46) 		1-42355-014-0 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.00T 162-12<Q54> 		1-42355-003-1 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.00T 162-12<Q54> SPARE TIRE & DISC WHL RR(R46) 		1-42355-003-1 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.50V 165-13<Q62> 		1-42355-004-1 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.50V 165-13<Q62> SPARE TIRE & DISC WHL RR(R46) 		1-42355-004-1 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> 		1-42355-012-1 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHL RR(R46) EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> 		1-42355-012-1 01 1 9806-9911
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 06 1 0001-0001
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T),TIRE 295/80R22.5-152/149JRIB(55P) EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 04 1 0001-0407
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T) EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 04 1 0408-
32 CAP; VALVE
SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 07 1 9806-9911
32 CAP; VALVE 1-42374-001-0 06 1 9912-9912
32 CAP; VALVE
SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 07 1 0001-0001
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T),TIRE 295/80R22.5-152/149JRIB(55P) SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 05 1 0001-0407
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T) SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 05 1 0408-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 06 1 9806-9911

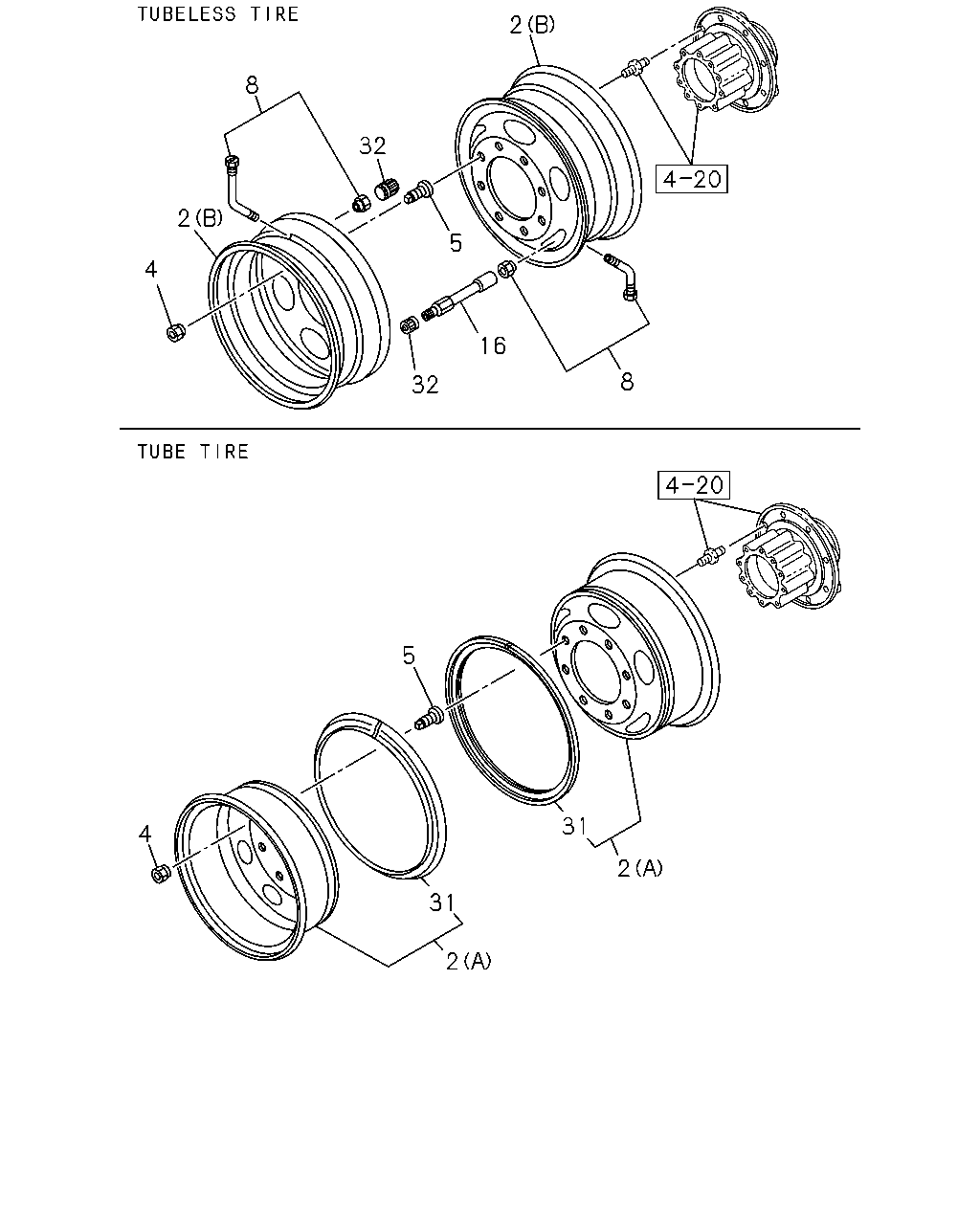

çizim 26436
2 8 32 2 5 4 16 8 32 5 31 4 2 31 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		8-97530-230-0 01 1 0001-0001
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		8-97530-230-0 01 1 0001-0207
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) SPARE TIRE & DISC WHL RR(R46) EXC. DISC WHL 8STUD 22.5X8.25 165-13<QM6> (A) BLACK,SPARE 		8-97530-230-0 01 1 0001-0207
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		8-97530-230-0 01 1 0208-
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) SPARE TIRE & DISC WHL RR(R46) EXC. WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK,SPARE 		8-97530-230-0 01 1 0208-
2 WHEEL; DISC
DISC WHL 10STUD 20X7.00T<Q58> (A) BLACK 		1-42350-447-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 20X7.00T<Q58> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-447-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 20X7.50V<Q64> (A) BLACK 		1-42350-448-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 20X7.50V<Q64> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-448-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X7.50 162-12<Q87> (B) WHITE 		1-42350-539-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X7.50 162-12<Q87> SPARE TIRE & DISC WHL RR(R46) (B) WHITE,SPARE 		1-42350-539-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X8.25 165-13<QM8> (B) WHITE 		1-42350-468-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 10STUD 22.5X8.25 165-13<QM8> SPARE TIRE & DISC WHL RR(R46) (B) WHITE,SPARE 		1-42350-468-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.00T 162-12<Q54> (A) BLACK 		1-42350-478-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.00T 162-12<Q54> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-478-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.50V 165-13<Q62> (A) BLACK 		1-42350-420-0 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 20X7.50V 165-13<Q62> SPARE TIRE & DISC WHL RR(R46) (A) BLACK,SPARE 		1-42350-420-0 01 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 22.5X7.50 162-12<QM2> (B) BLACK 		1-42350-429-2 06 1 9806-9911
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) (A) BLACK 		8-97530-230-0 06 1 9912-9912
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) (A) BLACK 		8-97530-230-0 06 1 0001-0207
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) EXC. DISC WHL 8STUD 22.5X8.25 165-13<QM6> (A) BLACK 		8-97530-230-0 06 1 0001-0207
2 WHEEL; DISC
TIRE 9.00-20-14 RIB(10T) (A) BLACK 		8-97530-230-0 06 1 0208-
2 WHEEL; DISC
TIRE 10.00-20-14 RIB(30T) EXC. WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK 		8-97530-230-0 06 1 0208-
2 WHEEL; DISC
DISC WHL 8STUD 22.5X7.50 162-12<QM2> SPARE TIRE & DISC WHL RR(R46) (B) BLACK 		1-42350-429-2 01 1 9806-9911
2 WHEEL; DISC
EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 10STUD 20X7.00T<Q58>,DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD 20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> (A) BLACK,SPARE 		1-42350-268-2 06 1 9806-9911
2 WHEEL; DISC
DISC WHL 8STUD 22.5X8.25 165-13<QM6> (B) BLACK 		1-42350-492-0 06 1 9806-0207
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (B) BLACK 		1-42350-597-0 06 1 0208-0304
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK 		1-42350-657-0 06 1 0305-0311
2 WHEEL; DISC
WHEEL 8STUD 8.25X22.5 165-13TC<SKV> (A) BLACK 		1-42350-667-0 06 1 0312-
2 WHEEL; DISC
DISC WHL 8STUD 22.5X8.25 165-13<QM6> SPARE TIRE & DISC WHL RR(R46) (B) BLACK,SPARE 		1-42350-492-0 01 1 9806-9911
2 WHEEL; DISC
SPARE TIRE & DISC WHL RR(R46) EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 10STUD 20X7.00T<Q58>,DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD 20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> (A) BLACK,SPARE 		1-42350-268-2 01 1 9806-9911
4 NUT; WHEEL,RR AXLE
INTERNATIONAL STD ISO<B3V> M22 		1-42333-043-0 20 1 9806-9911
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STD ISO<B3V> M30 LH THREAD 		1-42334-023-0 08 1 9806-9911
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		1-42334-023-0 08 1 9912-0610
4 NUT; WHEEL,RR AXLE
M30 LH THREAD 		8-97359-810-0 08 1 0611-
4 NUT; WHEEL,RR AXLE
EXC. INTERNATIONAL STD ISO<B3V> M30 		1-42333-023-0 08 1 9806-9911
4 NUT; WHEEL,RR AXLE
M30 		1-42333-023-0 08 1 9912-0610
4 NUT; WHEEL,RR AXLE
M30 RH THREAD 		8-97359-809-0 08 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
EXC. INTERNATIONAL STD ISO<B3V> OUTER M30,INNER M20 LH THREAD 		1-42336-005-0 08 1 9806-9911
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		1-42336-005-1 08 1 9912-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 LH THREAD 		8-97359-806-0 08 1 0611-
5 NUT; WHEEL,INNER,RR AXLE
EXC. INTERNATIONAL STD ISO<B3V> OUTER M30,INNER M20 RH THREAD 		1-42335-005-0 08 1 9806-9911
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		1-42335-005-1 08 1 9912-0610
5 NUT; WHEEL,INNER,RR AXLE
OUTER M30,INNER M20 RH THREAD 		8-97359-805-0 08 1 0611-
8 VALVE; TIRE
DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 16 5-13<QM8>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> 		1-42370-020-3 06 1 9806-9911
8 VALVE; TIRE
DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 16 5-13<QM8>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> SPARE TIRE & DISC WHL RR(R46) 		1-42370-020-3 01 1 9806-9911
16 HOLDER; TIRE VALVE,DISC WHEEL
L=170 		1-42370-024-0 02 1 9806-
31 RING; SIDE,DISC WHEEL
DISC WHL 10STUD 20X7.50V<Q64> 		1-42355-014-0 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 10STUD 20X7.50V<Q64> SPARE TIRE & DISC WHL RR(R46) 		1-42355-014-0 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.00T 162-12<Q54> 		1-42355-003-1 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.00T 162-12<Q54> SPARE TIRE & DISC WHL RR(R46) 		1-42355-003-1 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.50V 165-13<Q62> 		1-42355-004-1 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
DISC WHL 8STUD 20X7.50V 165-13<Q62> SPARE TIRE & DISC WHL RR(R46) 		1-42355-004-1 01 1 9806-9911
31 RING; SIDE,DISC WHEEL
EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> 		1-42355-012-1 06 1 9806-9911
31 RING; SIDE,DISC WHEEL
SPARE TIRE & DISC WHL RR(R46) EXC. DISC WHL 8STUD 22.5X7.50 162-12<QM2>,DISC WHL 8STUD 22.5X8.25 165-13<QM6>,DISC WHL 10STUD 22.5X8.25 165-13<QM8>,DISC WHL 8STUD 20X7.00T 162-12<Q54>, DISC WHL 8STUD 20X7.50V 165-13<Q62>,DISC WHL 10STUD20X7.50V<Q64>,DISC WHL 10STUD 22.5X7.50 162-12<Q87> 		1-42355-012-1 01 1 9806-9911
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 06 1 0001-0001
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T),TIRE 295/80R22.5-152/149JRIB(55P) EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 04 1 0001-0407
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T) EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 04 1 0408-
32 CAP; VALVE
SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 07 1 9806-9911
32 CAP; VALVE 1-42374-001-0 06 1 9912-9912
32 CAP; VALVE
SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 07 1 0001-0001
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T),TIRE 295/80R22.5-152/149JRIB(55P) SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 05 1 0001-0407
32 CAP; VALVE
TIRE 10.00-20-14 RIB(30T) SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 05 1 0408-
32 CAP; VALVE
EXC. SPARE TIRE & DISC WHL RR(R46) 		1-42374-001-0 06 1 9806-9911
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
