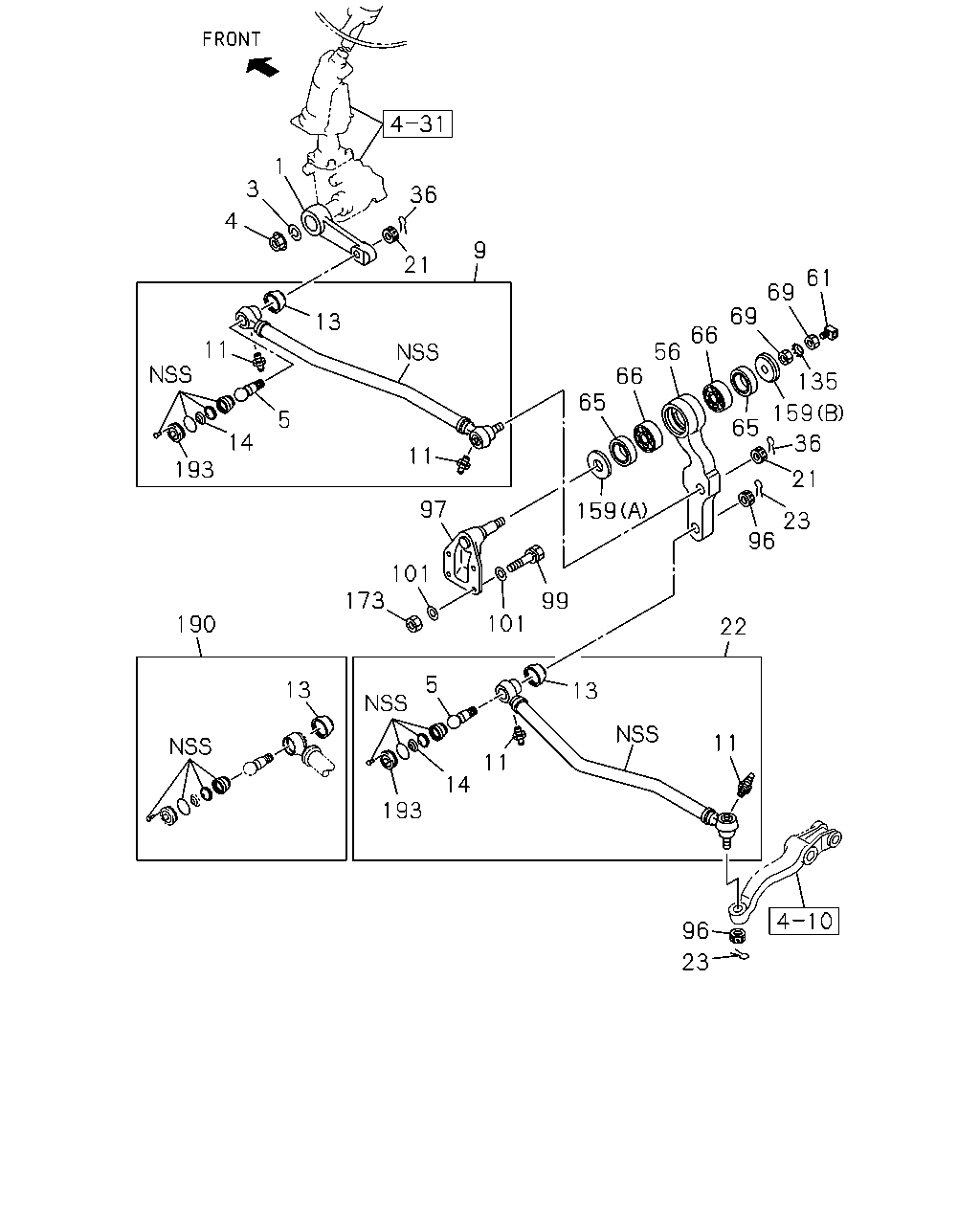

4-33 — STEERING LINKAGE
(#68829) — 27 parça
1
3
36
4
9
21
61
69
69
13
66
11
56
66
135
65
159
5
65
14
36
11
193
21
97
159
23
96
101
173
99
101
190
22
5
13
13
11
11
14
193
96
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-511-0
01
1
0908-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0908-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0908-
5
BALL; JOINT,DRAG LINK
1-44361-105-1
04
1
0908-
9
LINK; DRAG
8-98098-094-2
01
1
0908-
11
NIPPLE; GREASE,DRAG LINK
1-43159-132-0
04
1
0908-
13
BOOT; DRAG LINK
1-43159-131-0
04
1
0908-
14
SPRING; COIL,DRAG LINK
1-43159-129-0
04
1
0908-
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0908-
22
LINK; DRAG,2ND
8-98098-095-1
01
1
0908-
23
PIN; SPLIT DRAG LINK 3RD
OD=4.6 L=35
0-81125-035-0
02
1
0908-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0908-
56
ARM; LINK,FRT,W/JOINT BALL
1-44345-174-0
01
1
0908-
61
NIPPLE; PIN LINK ARM
PT1/8 ELBOW
0-90301-610-0
01
1
0908-
65
SEAL; DUST,LINK ARM
9-44349-040-1
02
1
0908-
66
BEARING; LINK ARM
9-00030-207-0
02
1
0908-
69
NUT; LINK ARM
M24
9-09840-264-0
02
1
0908-
96
NUT; LINK ARM
M24
1-09442-032-0
02
1
0908-
97
BRACKET; LINK ARM
1-44348-078-1
01
1
0908-
99
BOLT; BRKT
M14X50
0-20951-450-0
04
1
0908-
101
WASHER; PL,BRKT
ID=14.2
1-09503-050-0
08
1
0908-
135
WASHER; LK,PIN SET,LINK ARM
9-09853-842-0
01
1
0908-
159
WASHER; LINK ARM
(B) ID=24 T=8
9-44349-039-0
01
1
0908-
159
WASHER; LINK ARM
(A) ID=35 T=9
9-44349-046-0
01
1
0908-
173
NUT; BRKT,LINK ASM
M14
0-91110-514-0
04
1
0908-
190
REPAIR KIT; DRAG LINK
1-85574-089-0
04
1
0908-
193
PLUG; END,DRAG LINK
1-43159-130-0
04
1
0908-
