4-25 — REAR FINAL DRIVE (#68826) — 77 parça

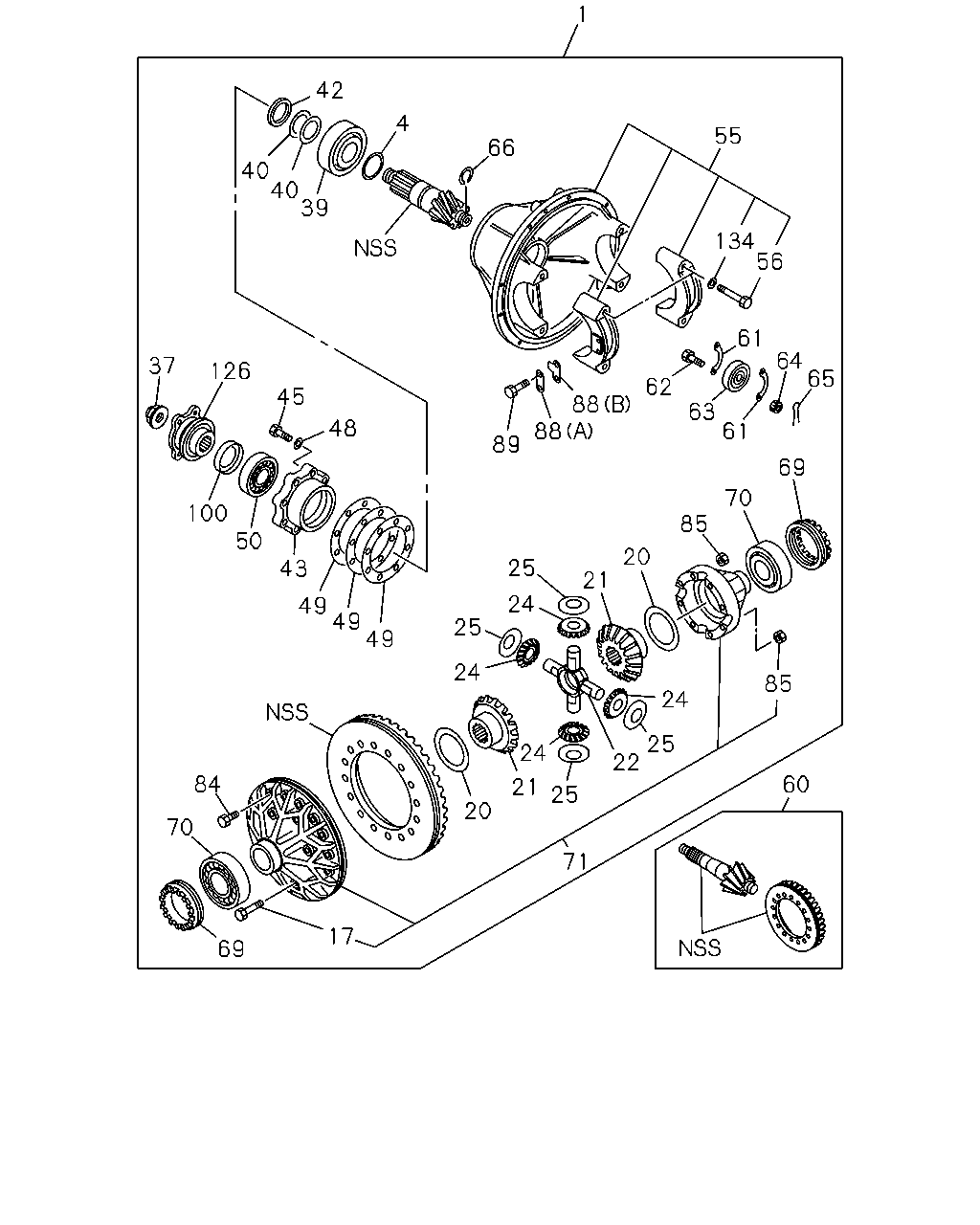

çizim 188284
1 42 4 55 66 40 40 39 134 56 61 64 65 37 126 62 45 88 88 63 61 48 89 69 70 100 50 85 20 25 43 21 24 49 49 49 25 24 85 24 25 22 24 84 60 21 25 20 70 71 17 69
BalonParca AdiParca NoAdetTipApplied Date A B
1 DRIVE ASM; FINAL,RR
39/7 		1-41001-276-0 01 1 0908- ●
1 DRIVE ASM; FINAL,RR
41/7 		1-41001-310-0 01 1 0908- ●
4 GASKET; FLANGE,FINAL PINION
ID=42 		9-09921-116-0 01 1 0908- ● ●
17 BOLT; DIFF CAGE SETTING
M14X95 FLANGE 		1-09044-007-0 12 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.75 		1-41562-139-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.80 		1-41562-140-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.85 		1-41562-141-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.90 		1-41562-142-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=2.95 		1-41562-143-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.00 		1-41562-144-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.05 		1-41562-145-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.10 		1-41562-146-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.15 		1-41562-147-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.20 		1-41562-148-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.25 		1-41562-149-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.30 		1-41562-150-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.35 		1-41562-151-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.40 		1-41562-152-0 AR 1 0908- ● ●
20 WASHER; THRUST,SIDE GEAR
T=3.45 		1-41562-153-0 AR 1 0908- ● ●
21 GEAR; SIDE,DIFF
Z=16 		1-41561-160-0 02 1 0908- ● ●
22 SPIDER; DIFF PINION 1-41521-061-0 01 1 0908- ● ●
24 GEAR; PINION,DIFF
Z=10 		1-41551-051-0 04 1 0908- ● ●
25 WASHER; THRUST,PINION 1-41552-012-0 04 1 0908- ● ●
37 NUT; DRIVING PINION
M36 FLANGE 		1-09449-067-0 01 1 0908- ● ●
39 BEARING; FINAL PINION
JTEKT 		1-09812-218-0 01 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.50 		1-41229-256-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.51 		1-41229-257-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.52 		1-41229-258-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.53 		1-41229-259-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.54 		1-41229-260-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.55 		1-41229-261-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.56 		1-41229-262-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.57 		1-41229-263-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.58 		1-41229-264-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.59 		1-41229-265-0 AR 1 0908- ● ●
40 SHIM; FINAL PINION
T=3.60 		1-41229-266-0 AR 1 0908- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.40 		1-41229-267-0 AR 1 0908- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.60 		1-41229-268-0 AR 1 0908- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=7.80 		1-41229-269-0 AR 1 0908- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.00 		1-41229-270-0 AR 1 0908- ● ●
42 COLLAR; DIST,COLLAPSIBLE
T=8.20 		1-41229-271-0 AR 1 0908- ● ●
43 CAGE; FINAL PINION 1-41151-028-1 01 1 0908- ● ●
45 BOLT; FINAL PINION CAGE
M14X50 		0-16806-450-0 08 1 0908- ● ●
48 WASHER; LK,FINAL PINION
ID=14.2 		0-91510-514-0 08 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
T=0.30 		1-41154-063-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
T=0.40 		1-41154-064-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
T=1.00 		9-41154-013-0 AR 1 0908- ● ●
49 SHIM; FINAL PINION CAGE
T=0.50 		9-41154-014-0 AR 1 0908- ● ●
50 BEARING; FINAL PINION
NSK 		1-09812-041-2 01 1 0908- ● ●
50 BEARING; FINAL PINION
JTEKT 		1-09812-042-1 01 1 0908- ● ●
55 CARRIER; DIFF 1-41110-052-0 01 1 0908- ● ●
56 BOLT; BRG CAP
M18X107 		1-09050-002-1 04 1 0908- ● ●
60 GEAR SET; FINAL DRIVE,RR
39/7 		1-41210-280-3 01 1 0908- ●
60 GEAR SET; FINAL DRIVE,RR
41/7 		1-41210-278-3 01 1 0908- ●
61 RETAINER; PILOT BRG,PINION
T=2.3 		1-41227-006-0 02 1 0908- ● ●
62 BOLT; RET
M8X36 W/PIN HOLE 		1-09042-035-0 02 1 0908- ● ●
63 BEARING; PINION PILOT
JTEKT 		1-09810-229-2 01 1 0908- ● ●
63 BEARING; PINION PILOT
NSK 		1-09810-230-1 01 1 0908- ● ●
64 NUT; RET
M8 SLOTTED 		0-91117-508-0 02 1 0908- ● ●
65 PIN; SPLIT,RET 0-81122-012-0 02 1 0908- ● ●
66 RING; SNAP,PILOT BRG
OD=42 		9-09950-179-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=24 		1-41121-005-0 01 1 0908- ● ●
69 NUT; ADJ,DIFF CAGE
M143 H=29 		1-41121-006-0 01 1 0908- ● ●
70 BEARING; DIFF CAGE
NACHI ID=80 OD=140 T=35.3 		1-09812-144-0 02 1 0908-0911 ● ●
70 BEARING; DIFF CAGE
NACHI 		1-09812-151-0 02 1 0912- ● ●
70 BEARING; DIFF CAGE
JTEKT ID=80 OD=140 T=35.3 		1-09812-145-0 02 1 0908-0911 ● ●
70 BEARING; DIFF CAGE
NSK ID=80 OD=140 T=35.3 		1-09812-146-0 02 1 0908-1002 ● ●
70 BEARING; DIFF CAGE
NSK 		1-09812-150-0 02 1 1003- ● ●
71 CAGE ASM; DIFF,FINAL DRIVE 1-41510-127-0 01 1 0908- ● ●
84 BOLT; FINAL DRIVE GEAR
M16X37.5 FLANGE 		1-09020-167-0 16 1 0908- ● ●
85 NUT; DIFF CAGE SETTING
M14 		1-09400-077-1 12 1 0908- ● ●
88 PLATE; LK,ADJ NUT
(B) T=2.3 		1-41124-002-0 02 1 0908- ● ●
88 PLATE; LK,ADJ NUT
(A) T=1.0 		9-41124-005-0 02 1 0908- ● ●
89 BOLT; LK PLATE
M8X16 		0-20850-816-0 04 1 0908- ● ●
100 SEAL; OIL,FINAL PINION
NOK 		1-09625-017-0 01 1 0908- ● ●
126 COUPLING; DRIVING PINION 1-37245-388-0 01 1 0908- ● ●
134 WASHER; LK,BRG CAP
ID=18.2 		0-91510-518-0 04 1 0908- ● ●
