◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-01 - PROPELLER SHAFT ▶
4-01 — PROPELLER SHAFT (#68822) — 25 parça

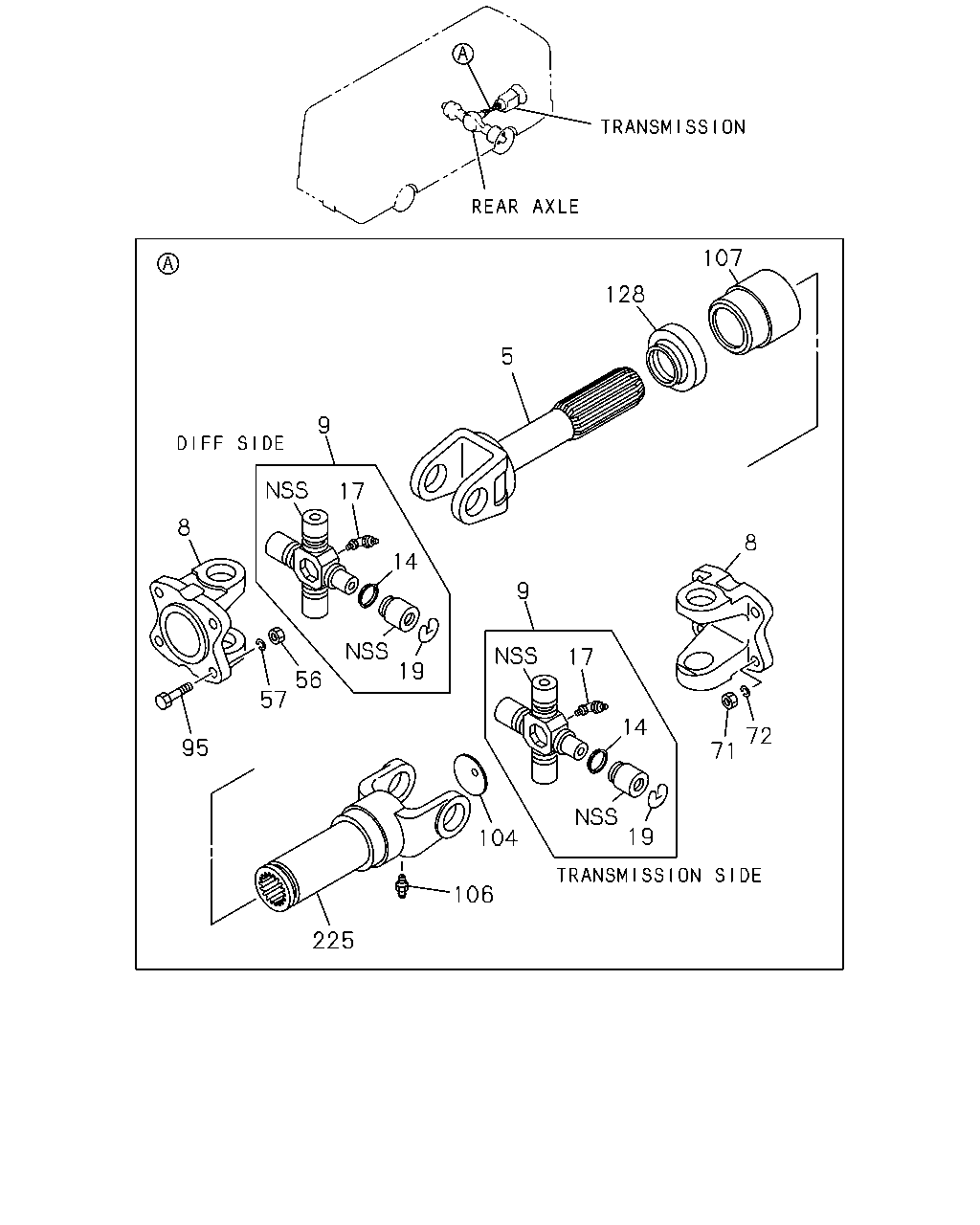

çizim 122693
107 128 5 9 17 8 8 14 9 17 19 56 57 14 72 95 71 19 104 106 225
BalonParca AdiParca NoAdetTipApplied Date A B
5 YOKE; STUB,PROP SHAFT
MLD6Q M/T(X5J) L=387 		1-37171-086-1 01 1 0909- ● ●
5 YOKE; STUB,PROP SHAFT
MZW6P M/T(RSZ) L=271 		1-37171-126-1 01 1 0908- ● ●
8 YOKE; FLANGE,PROP SHAFT 1-37211-056-3 02 1 0908- ● ●
9 JOURNAL ASM; PROP SHAFT
MLD6Q M/T(X5J) 		1-37300-102-1 AR 1 0909-1505 ● ●
9 JOURNAL ASM; PROP SHAFT
MZW6P M/T(RSZ) 		8-98048-925-0 AR 1 0908-1505 ● ●
9 JOURNAL ASM; PROP SHAFT 8-98048-925-1 AR 1 1506- ● ●
14 COVER; DUST,SPIDER
MLD6Q M/T(X5J) 		1-37319-012-0 08 1 0909-1505 ● ●
14 COVER; DUST,SPIDER
MZW6P M/T(RSZ) 		8-98020-800-0 08 1 0908-1505 ● ●
14 COVER; DUST,SPIDER 8-98020-800-0 08 1 1506- ● ●
17 NIPPLE; GREASE,PROP SHAFT
PT1/8 ELBOW 		0-90301-610-0 02 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=1.95 BLUE 		1-09587-086-0 08 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.00 WHITE 		1-09587-087-2 08 1 0908- ● ●
19 RING; SNAP,JOURNAL,PROP SHAFT,1ST
OD=45.5 T=2.05 YELLOW 		1-09587-088-1 08 1 0908- ● ●
56 NUT; YOKE
M14 		0-91110-514-0 04 1 0908- ● ●
57 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0908- ● ●
71 NUT; YOKE
M14 		0-91110-514-0 04 1 0908- ● ●
72 WASHER; LK,YOKE
ID=14.2 		0-91510-614-0 04 1 0908- ● ●
95 BOLT; YOKE,FINAL
M14X37 		1-09000-121-0 04 1 0908- ● ●
104 PLUG; SLEEVE YOKE 1-09600-064-0 01 1 0908- ● ●
106 NIPPLE; GREASE,YOKE,PROP SHAFT
PT1/8 STRAIGHT 		0-90301-410-0 01 1 0908- ● ●
107 COVER; RET,SLEEVE
MLD6Q M/T(X5J) 		1-37249-060-1 01 1 0909- ● ●
128 SEAL; SLEEVE
MLD6Q M/T(X5J) 		1-37247-024-0 01 1 0909- ● ●
128 SEAL; SLEEVE
MZW6P M/T(RSZ) 		1-37247-002-1 01 1 0908- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MLD6Q M/T(X5J) L=271 		1-37241-099-2 01 1 0909- ● ●
225 YOKE; SLEEVE,PROP SHAFT
MZW6P M/T(RSZ) L=204 		8-98103-204-0 01 1 0908- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
