◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶
3-78 — FIXING PARTS; AIR PIPING (#68821) — 90 parça

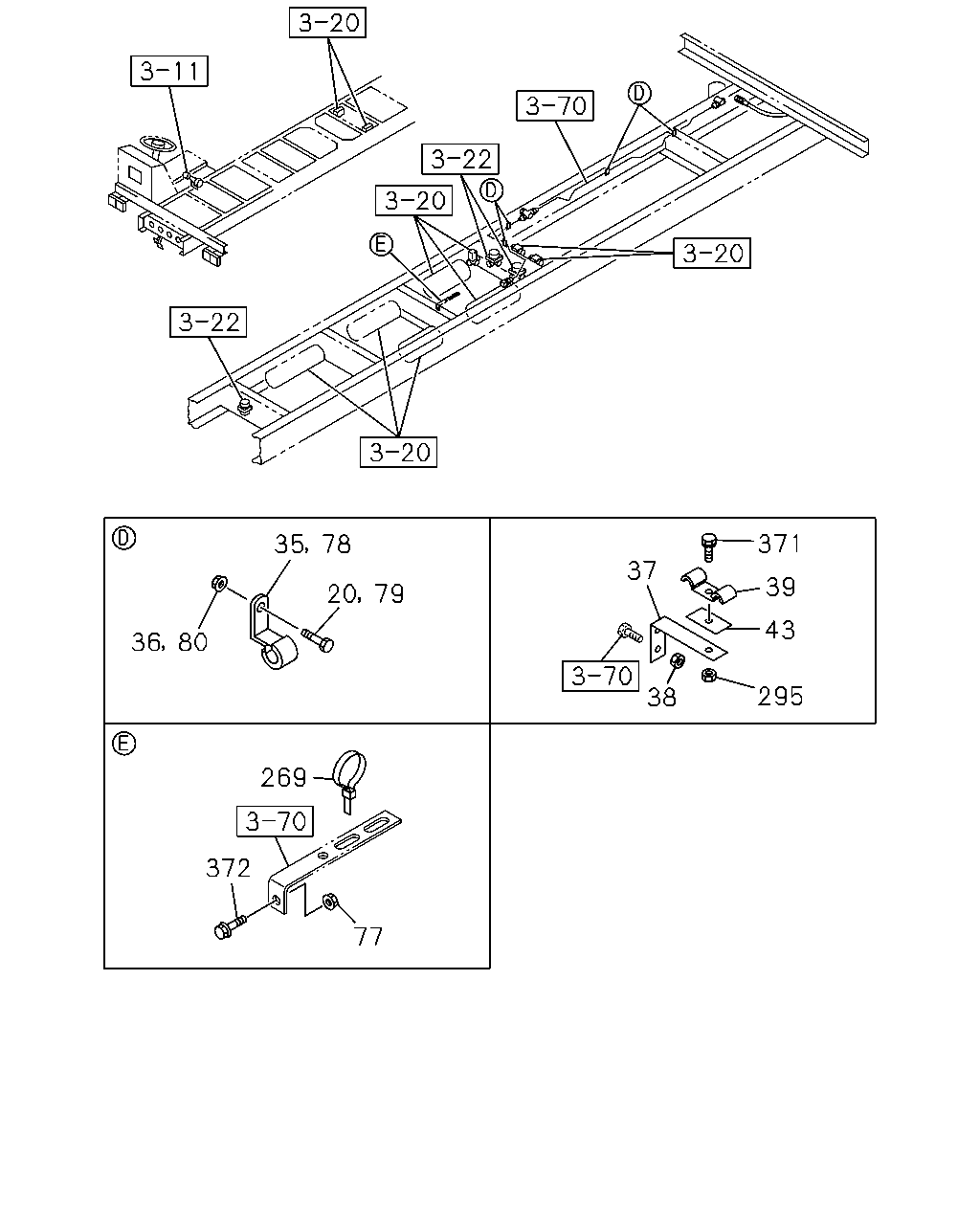

çizim 121748
371 35 78 37 39 20 79 43 36 80 295 38 269 372 77
BalonParca AdiParca NoAdetTipApplied Date
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0908-0908
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0908-0908
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0909-
20 BOLT; CLIP
EURO5 SPECIFICATION(NT5) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
35 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0908-
36 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-
37 BRACKET; PIPE CLIP 1-47475-105-2 01 1 0908-
38 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908-
39 CLIP; AIR PIPE
ID=16 & 16 L=21.5 & 21.5 		1-09700-674-0 02 1 0908-
43 PLATE; CLIP,AIR PIPE
L=50 		1-47475-299-2 01 1 0908-
77 NUT; CLIP BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908-
78 CLIP; AIR PIPE
ID=15 H=24 L=20 		1-09700-606-0 02 1 0908-
79 BOLT; PIPE CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0908-
80 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0908-
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 09 1 0908-
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0908-
269 CLIP; BAND,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 01 1 0908-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 14 1 0908-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 16 1 0908-
295 NUT; CLIP,AIR PIPE
M8 FLANGE 		0-91180-108-0 02 1 0908-
371 BOLT; CLIP,AIR PIPE
M8X20 FLANGE 		0-28650-820-0 02 1 0908-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0908-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0908-

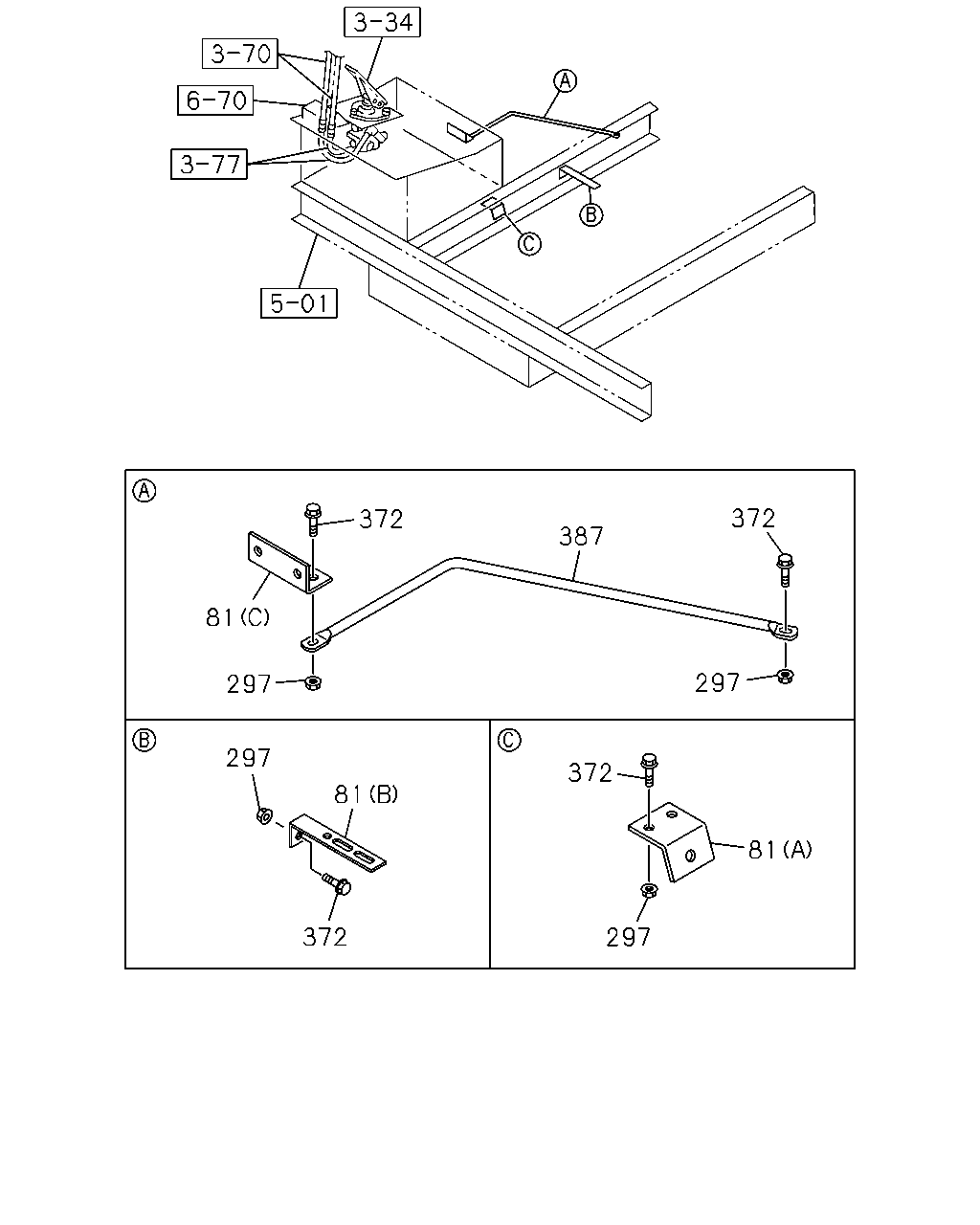

çizim 122265
372 372 387 81 297 297 297 372 81 81 372 297
BalonParca AdiParca NoAdetTipApplied Date
81 BRACKET; CLIP
(B) L=150 H=30 		1-47477-629-2 01 1 0908-
81 BRACKET; CLIP
(A) 		8-97614-149-0 01 1 0908-
81 BRACKET; CLIP
(C) 		8-98053-702-0 01 1 0908-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0908-
297 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0908-
297 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0908-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0908-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0908-
387 STAY 1-47471-433-0 01 1 0908-

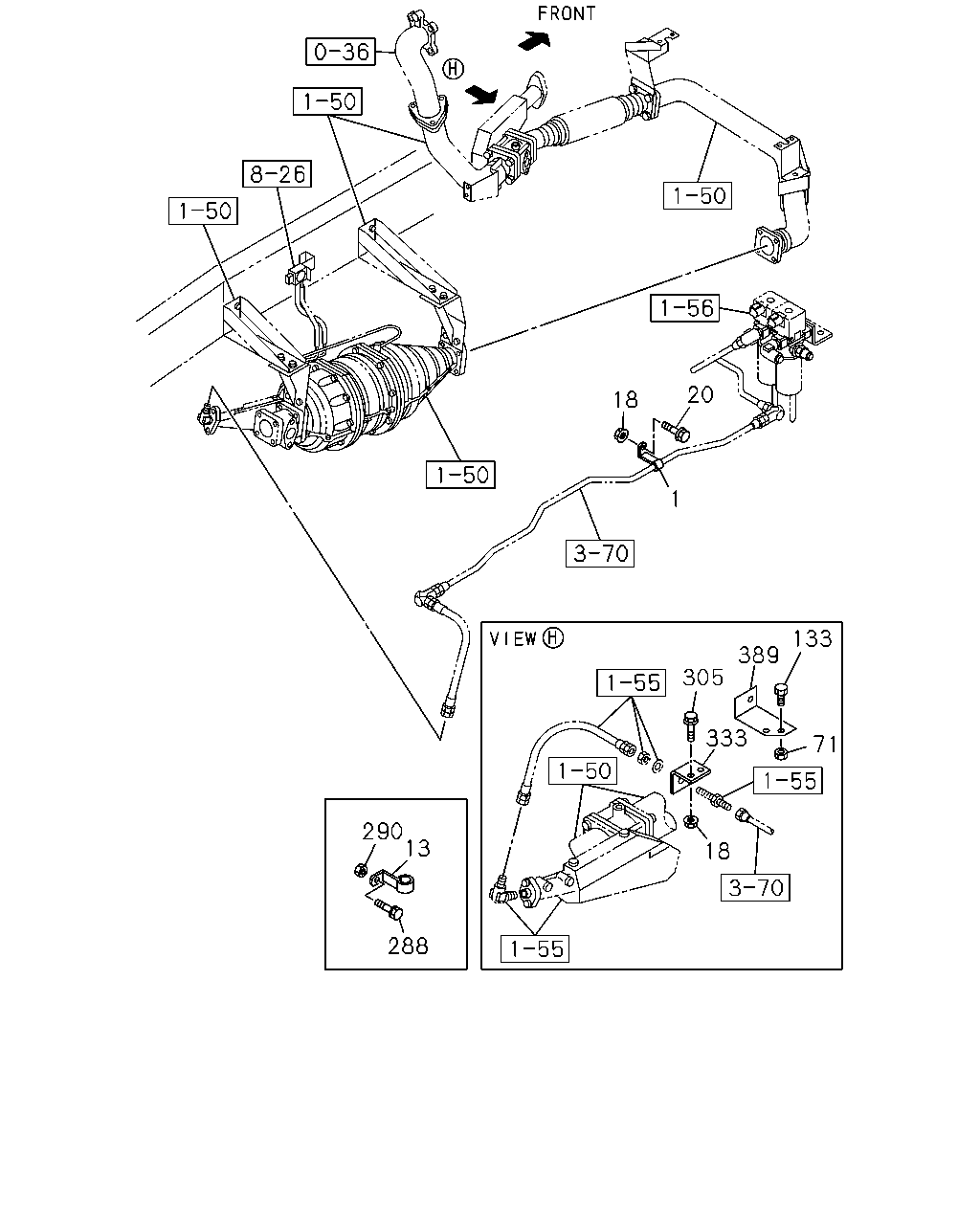

çizim 122449
20 18 1 133 389 305 333 71 290 13 18 288
BalonParca AdiParca NoAdetTipApplied Date
1 CLIP; AIR PIPE
ID=6 H=20 L=20 		1-09700-603-0 02 1 0908-0908
1 CLIP; AIR PIPE
EURO5 SPECIFICATION(NT5) ID=6 H=20 L=20 		1-09700-603-0 02 1 0909-
13 CLIP; AIR PIPE
EURO2 SPECIFICATION(NT2) ID=6 H=20 L=20 		1-09700-603-0 02 1 0909-
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0908
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-0908
18 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0909-
18 NUT; CLIP
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 02 1 0909-
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0908-0908
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0908-0908
20 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 02 1 0909-
20 BOLT; CLIP
EURO5 SPECIFICATION(NT5) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
71 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 0908-0908
71 NUT; BRKT
EURO5 SPECIFICATION(NT5) M8 FLANGE 		0-91180-108-0 02 1 0909-
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 02 1 0908-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0908-0908
133 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0909-
288 BOLT; CLIP,AIR PIPE
EURO2 SPECIFICATION(NT2) M8X25 FLANGE 		0-28650-825-0 02 1 0909-
290 NUT; CLIP,AIR PIPE
EURO2 SPECIFICATION(NT2) M8 FLANGE 		0-91180-108-0 02 1 0909-
305 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908-
333 BRACKET; BRK AIR PIPE 8-98057-110-0 01 1 0908-
389 BRACKET; UNION 1-47475-721-0 01 1 0908-0908
389 BRACKET; UNION
EURO5 SPECIFICATION(NT5) 		1-47475-721-0 01 1 0909-

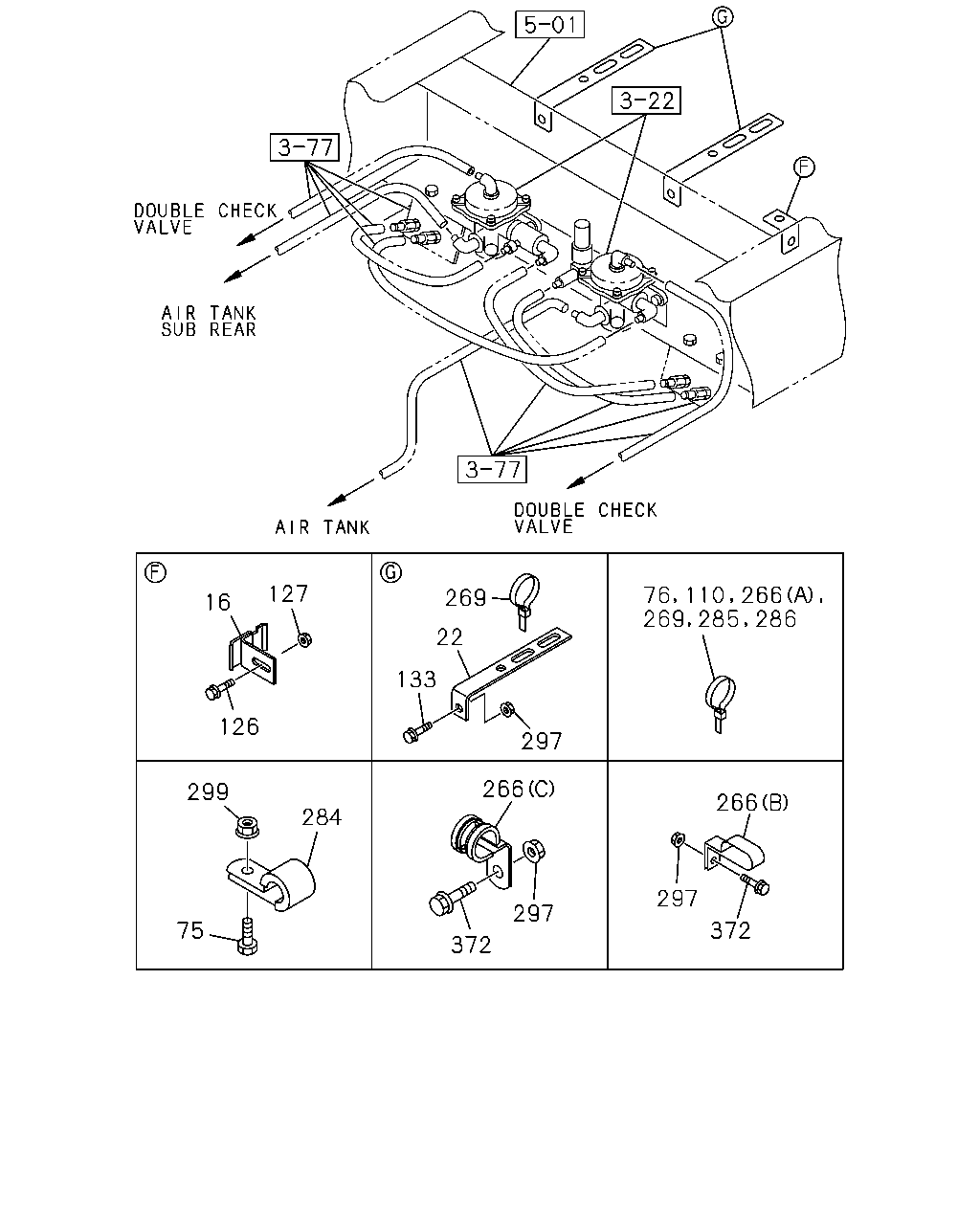

çizim 122884
127 269 16 22 133 126 297 266 299 266 284 297 297 372 75 372 76 110 266 286 285 269
BalonParca AdiParca NoAdetTipApplied Date
16 BRACKET; PIPE CLIP
ANTILOCK BRAKE SYSTEM<BFA> 		1-47479-693-0 01 1 0908-
22 BRACKET; CLIP
ANTILOCK BRAKE SYSTEM<BFA> L=225 		1-47477-646-3 02 1 0908-
75 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0908-
76 CLIP; NYLON TUBE
L=350 		1-09707-183-0 21 1 0908-
76 CLIP; NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 02 1 0908-
76 CLIP; NYLON TUBE
AIR HORN(WB8) L=350 		1-09707-183-0 02 1 0908-
110 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 02 1 0908-
110 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=250 		1-09707-126-0 03 1 0908-
110 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 03 1 0908-
110 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 04 1 0908-
126 BOLT; CLIP BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 01 1 0908-
127 NUT; CLIP BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 01 1 0908-
133 BOLT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8X25 FLANGE 		0-28650-825-0 02 1 0908-
133 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0908-0908
133 BOLT; BRKT
EURO5 SPECIFICATION(NT5) M8X30 FLANGE 		0-28650-830-0 02 1 0909-
266 CLIP; NYLON TUBE
(B) ID=19 L=60 		0-95235-896-0 01 1 0908-
266 CLIP; NYLON TUBE
(C) ID=39 H=28 L=32 		1-09701-263-0 01 1 0908-
266 CLIP; NYLON TUBE
(A) L=350 		1-09707-183-0 08 1 0908-
269 CLIP; BAND,NYLON TUBE
ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 09 1 0908-
269 CLIP; BAND,NYLON TUBE
EXC. ANTILOCK BRAKE SYSTEM<BFA> L=350 		1-09707-183-0 03 1 0908-
269 CLIP; BAND,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> L=350 		1-09707-183-0 01 1 0908-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5000MM(50W) L=350 		1-09707-183-0 14 1 0908-
269 CLIP; BAND,NYLON TUBE
WHEEL BASE 5700MM(57W) L=350 		1-09707-183-0 16 1 0908-
284 CLIP; FLEX HOSE
ID=14.5 L=20 		1-09701-012-0 04 1 0908-
285 CLIP; BAND
L=140 		5-09707-031-1 01 1 0908-
286 CLIP; NYLON TUBE
L=350 		1-09707-183-0 04 1 0908-0908
286 CLIP; NYLON TUBE
EURO5 SPECIFICATION(NT5) L=350 		1-09707-183-0 04 1 0909-
297 NUT; BRKT
M8 FLANGE 		0-91180-108-0 09 1 0908-
297 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0908-
297 NUT; BRKT
ANTILOCK BRAKE SYSTEM<BFA> M8 FLANGE 		0-91180-108-0 02 1 0908-
299 NUT; CLIP
M8 FLANGE 		0-91180-108-0 02 1 0908-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908-
372 BOLT; CLIP BRKT
M8X25 FLANGE 		0-28650-825-0 09 1 0908-
372 BOLT; CLIP BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0908-
