3-70 — BRAKE PIPING; AIR,AIR MASTER (#68818) — 159 parça

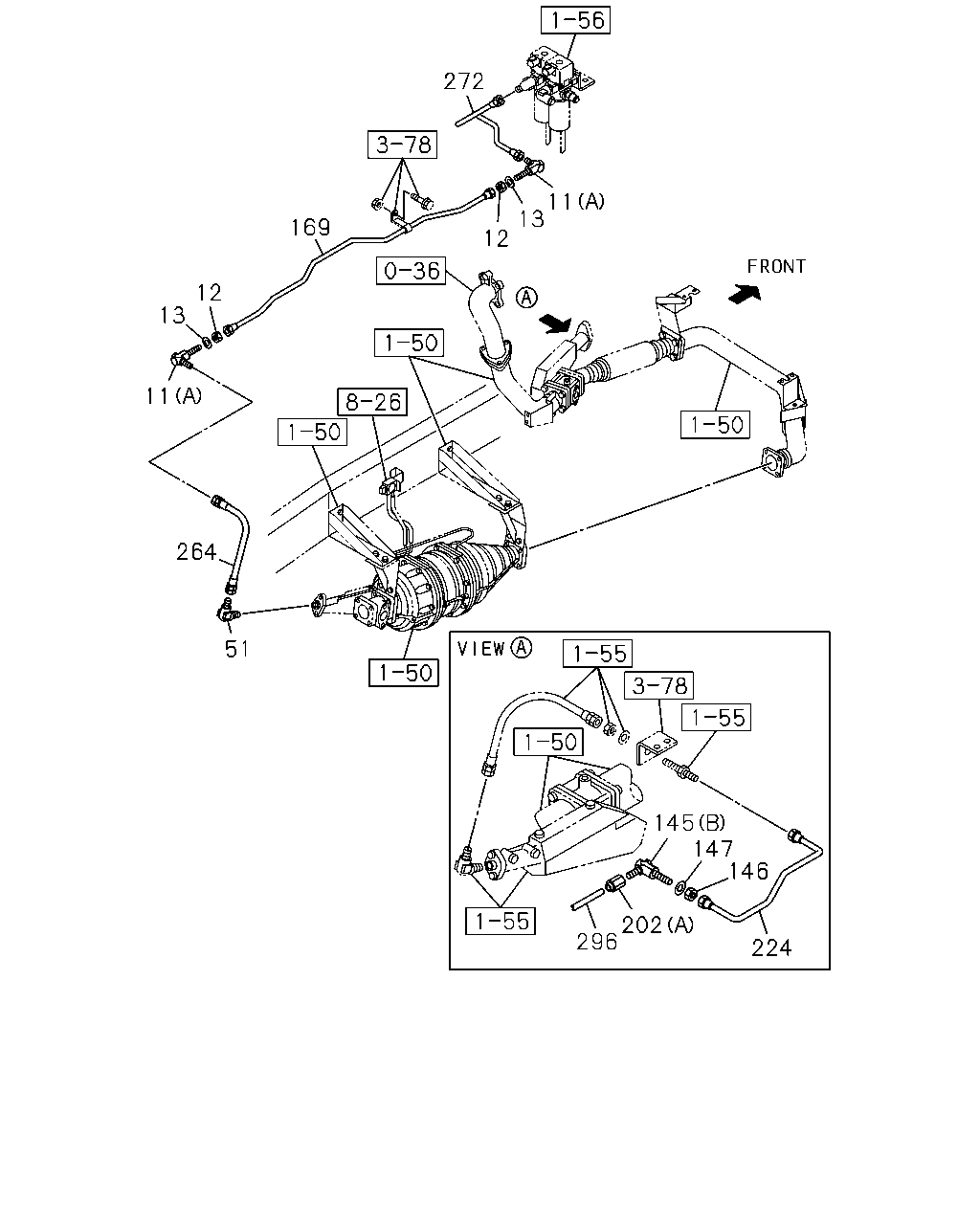

çizim 121290
272 11 13 169 12 12 13 11 264 51 145 147 146 202 296 224
BalonParca AdiParca NoAdetTipApplied Date
11 UNION; AIR PIPE
(B) M22 		0-92123-315-0 01 1 0908-
11 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 02 1 0908-0908
11 UNION; AIR PIPE
EURO5 SPECIFICATION(NT5) (A) M12 ELBOW 		0-92125-206-0 02 1 0909-
12 NUT; UNION
M22 		0-91111-522-0 02 1 0908-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0908-0908
12 NUT; UNION
EURO5 SPECIFICATION(NT5) M12 		9-09840-280-0 02 1 0909-
13 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 02 1 0908-0908
13 WASHER; LK,UNION
EURO5 SPECIFICATION(NT5) ID=12.2 		0-91510-512-0 02 1 0909-
51 UNION
M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0908-0908
51 UNION
EURO5 SPECIFICATION(NT5) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0909-
145 UNION; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0908-
145 UNION; NYLON TUBE
(B) M12 ELBOW 		0-92125-206-0 01 1 0908-0908
145 UNION; NYLON TUBE
EURO5 SPECIFICATION(NT5) (B) M12 ELBOW 		0-92125-206-0 01 1 0909-
146 NUT; UNION
M12 		9-09840-280-0 01 1 0908-0908
146 NUT; UNION
EURO5 SPECIFICATION(NT5) M12 		9-09840-280-0 01 1 0909-
147 WASHER; LK,UNION
ID=12.2 		0-91510-512-0 01 1 0908-0908
147 WASHER; LK,UNION
EURO5 SPECIFICATION(NT5) ID=12.2 		0-91510-512-0 01 1 0909-
169 PIPE; AIR,UNION TO FLEX HOSE
L=1169 SERVICED BY L=1200 		1-47428-816-0 01 1 0908-0908
169 PIPE; AIR,UNION TO FLEX HOSE
EURO5 SPECIFICATION(NT5) L=1169 SERVICED BY L=1200 		1-47428-816-0 01 1 0909-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0908-0908
202 ADAPTER
EURO5 SPECIFICATION(NT5) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0909-
202 ADAPTER
MZW6P M/T(RSZ) (B) 		1-09656-734-0 01 1 0908-
224 PIPE; AIR,UNION TO FLEX HOSE
EURO2 SPECIFICATION(NT2) L=823 SERVICED BY L=900 		1-47428-813-0 01 1 0909-
224 PIPE; AIR,UNION TO FLEX HOSE
L=406 		8-98055-824-0 01 1 0908-0908
224 PIPE; AIR,UNION TO FLEX HOSE
EURO5 SPECIFICATION(NT5) L=406 		8-98055-824-0 01 1 0909-
264 HOSE; FLEX
L=250 		1-09363-618-0 01 1 0908-0908
264 HOSE; FLEX
EURO5 SPECIFICATION(NT5) L=250 		1-09363-618-0 01 1 0909-
272 PIPE; AIR,MAG VLV TO UNION
L=345 		8-98055-823-0 01 1 0908-0908
272 PIPE; AIR,MAG VLV TO UNION
EURO5 SPECIFICATION(NT5) L=345 		8-98055-823-0 01 1 0909-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0908-

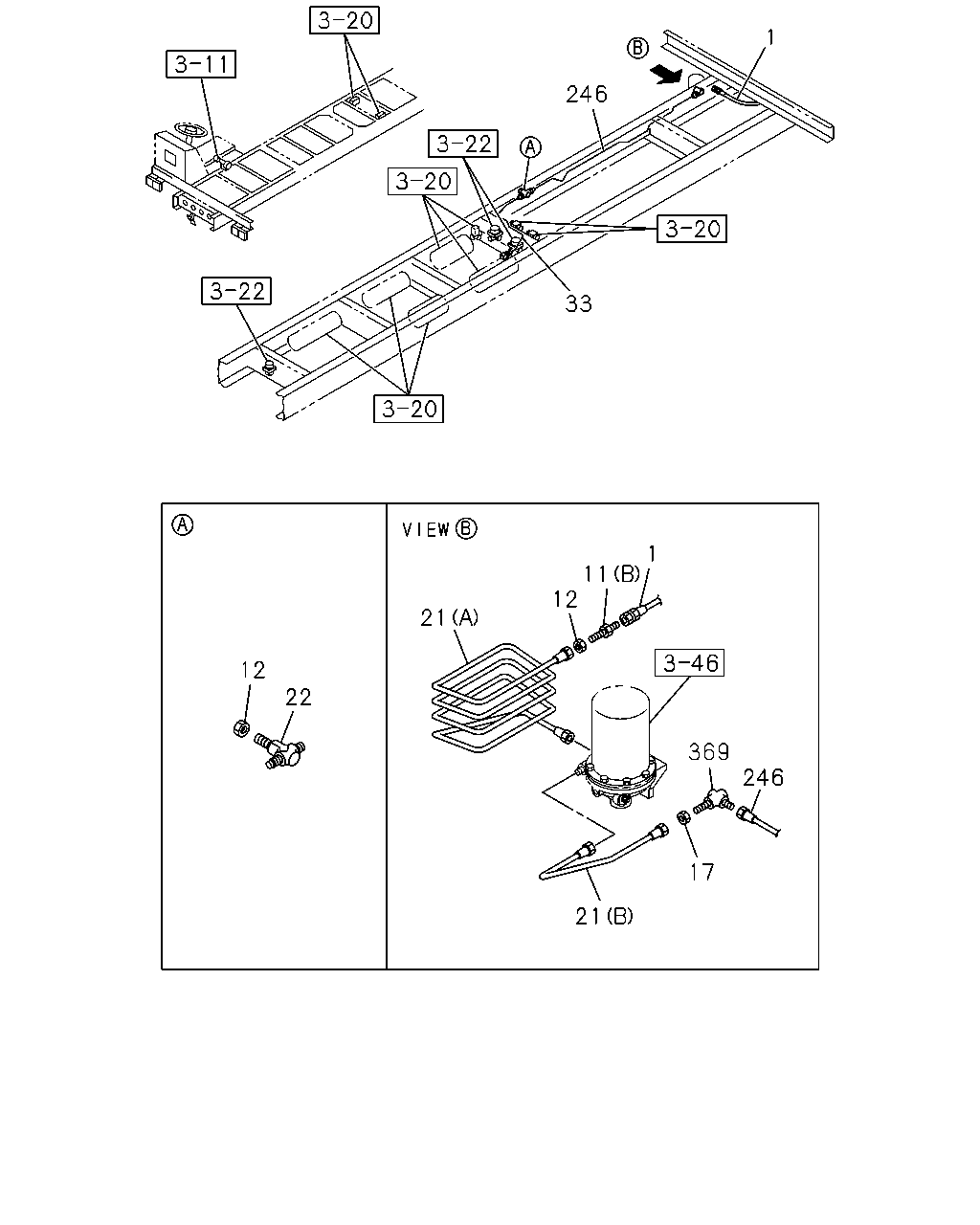

çizim 121389
1 246 33 1 11 12 21 12 22 369 246 17 21
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK 1-09363-871-0 01 1 0908-
11 UNION; AIR PIPE
(B) M22 		0-92123-315-0 01 1 0908-
11 UNION; AIR PIPE
(A) M12 ELBOW 		0-92125-206-0 02 1 0908-0908
11 UNION; AIR PIPE
EURO5 SPECIFICATION(NT5) (A) M12 ELBOW 		0-92125-206-0 02 1 0909-
12 NUT; UNION
M22 		0-91111-522-0 02 1 0908-
12 NUT; UNION
M12 		9-09840-280-0 02 1 0908-0908
12 NUT; UNION
EURO5 SPECIFICATION(NT5) M12 		9-09840-280-0 02 1 0909-
17 NUT; UNION
M14 		0-91111-514-0 01 1 0908-
21 PIPE; AIR,UNION TO AIR DRYER
(B) 		8-98105-794-0 01 1 0908-
21 PIPE; AIR,UNION TO AIR DRYER
(A) 		8-98112-687-0 01 1 0908-
22 NIPPLE; AIR PIPE
M22 2WAY 		1-09654-212-1 01 1 0908-
33 PIPE; AIR,UNION TO AIR TANK
L=1297 		1-49124-939-0 01 1 0908-
246 PIPE; AIR,UNION TO UNION
L=1488 		8-98105-792-0 01 1 0908-
369 UNION; AIR PIPE
M22X2 ELBOW 		0-92135-215-0 01 1 0908-

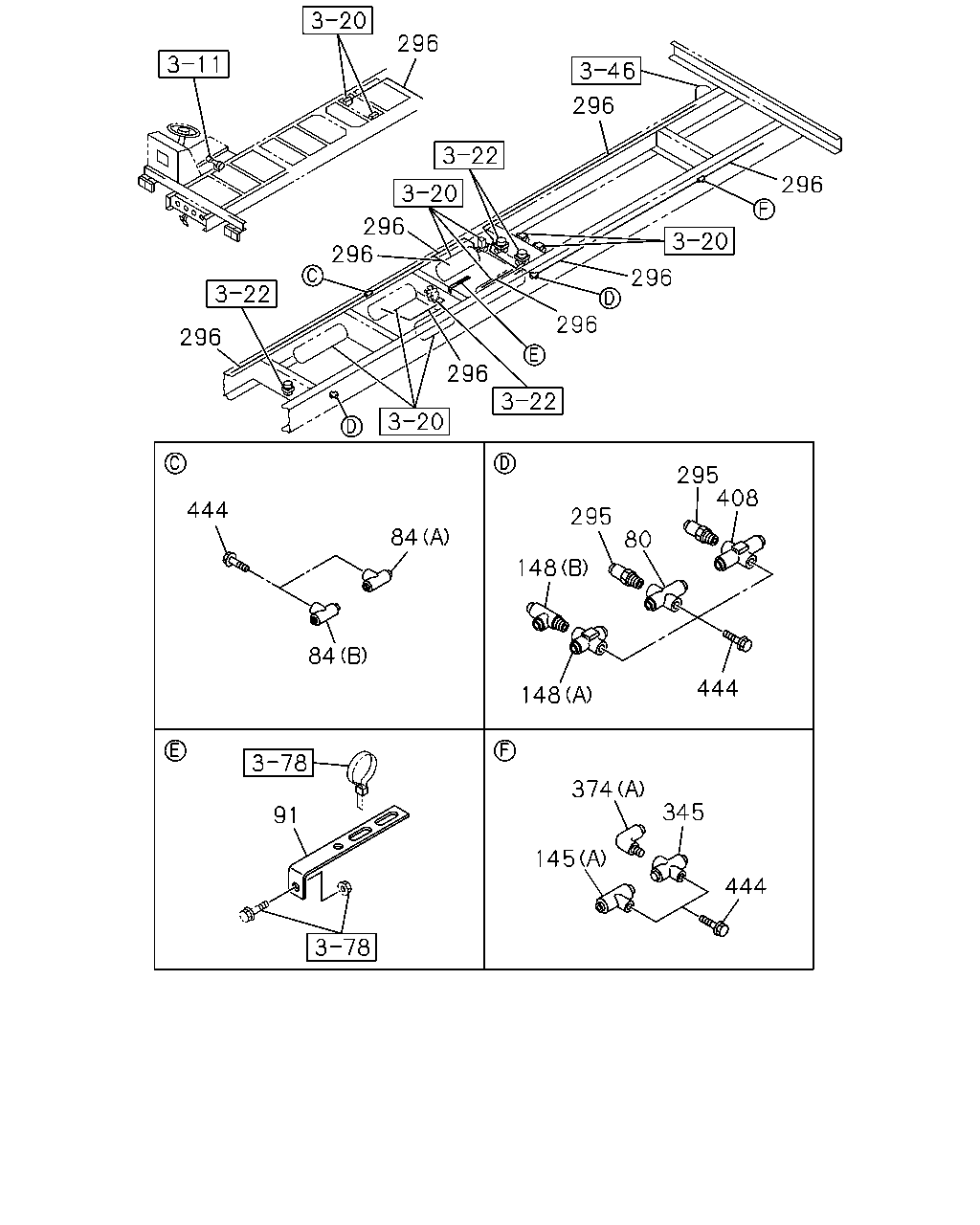

çizim 121461
296 296 296 296 296 296 296 296 296 295 408 444 295 84 80 148 84 444 148 374 345 91 145 444
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0908-0908
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0908-0908
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0909-
80 UNION; 3 WAY
MZW6P M/T(RSZ) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0909-
84 UNION; NYLON TUBE
(A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0908-
84 UNION; NYLON TUBE
(B) DIN8X2 & M8 2WAY 		1-09661-133-0 02 1 0908-
91 BRACKET; TUBE CLIP
L=100 H=30 		1-47477-645-2 02 1 0908-
145 UNION; NYLON TUBE
EXC. BRAKE SYSTEM RETARDER<RE2> (A) DIN7.5X2 & M8 2WAY 		1-09661-128-0 01 1 0908-
145 UNION; NYLON TUBE
(B) M12 ELBOW 		0-92125-206-0 01 1 0908-0908
145 UNION; NYLON TUBE
EURO5 SPECIFICATION(NT5) (B) M12 ELBOW 		0-92125-206-0 01 1 0909-
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (A) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0908-
148 CONNECTOR; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> AIR HORN(WB8) (B) M12 & M8 & RC3/8 3WAY 		1-09661-207-0 01 1 0908-
295 CONNECTOR; NYLON TUBE
DIN12 & R3/8 STRAIGHT 		1-09660-965-0 01 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0908-
345 UNION; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0908-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0908-
374 CONNECTOR
MZW6P M/T(RSZ) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0908-
408 UNION; 3 WAY,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> EXC. AIR HORN(WB8) DIN12X2 & R3/8 3WAY 		1-09661-131-0 01 1 0908-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 1506-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
çizim 121697
137 128 141 401 296 434 32
BalonParca AdiParca NoAdetTipApplied Date
32 SLEEVE; RUBBER,AIR PIPE
ID=17 OD=21 L=40 		1-09337-012-0 01 1 0908-
128 NUT; PIPE UNION
M10 FLANGE 		0-91180-210-0 02 1 0908-
137 HOSE; FLEX,AIR PRESSURE GAGE
L=810 		0-57210-810-0 02 1 0908-
141 UNION; FLEX HOSE
M10 & M12 STRAIGHT 		1-09650-270-1 02 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0908-
401 CONNECTOR; FLEX HOSE
DIN8 & M12 STRAIGHT 		1-09660-873-0 02 1 0908-
434 CLIP
(C) ID=25 H=60 L=35 		1-09701-103-0 01 1 0908-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0908-
434 CLIP
(A) L=350 		1-09707-183-0 07 1 0908-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (B) 		1-09700-098-0 01 1 0908-1111
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (B) ID=9 		1-09700-839-1 01 1 1112-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 04 1 0908-

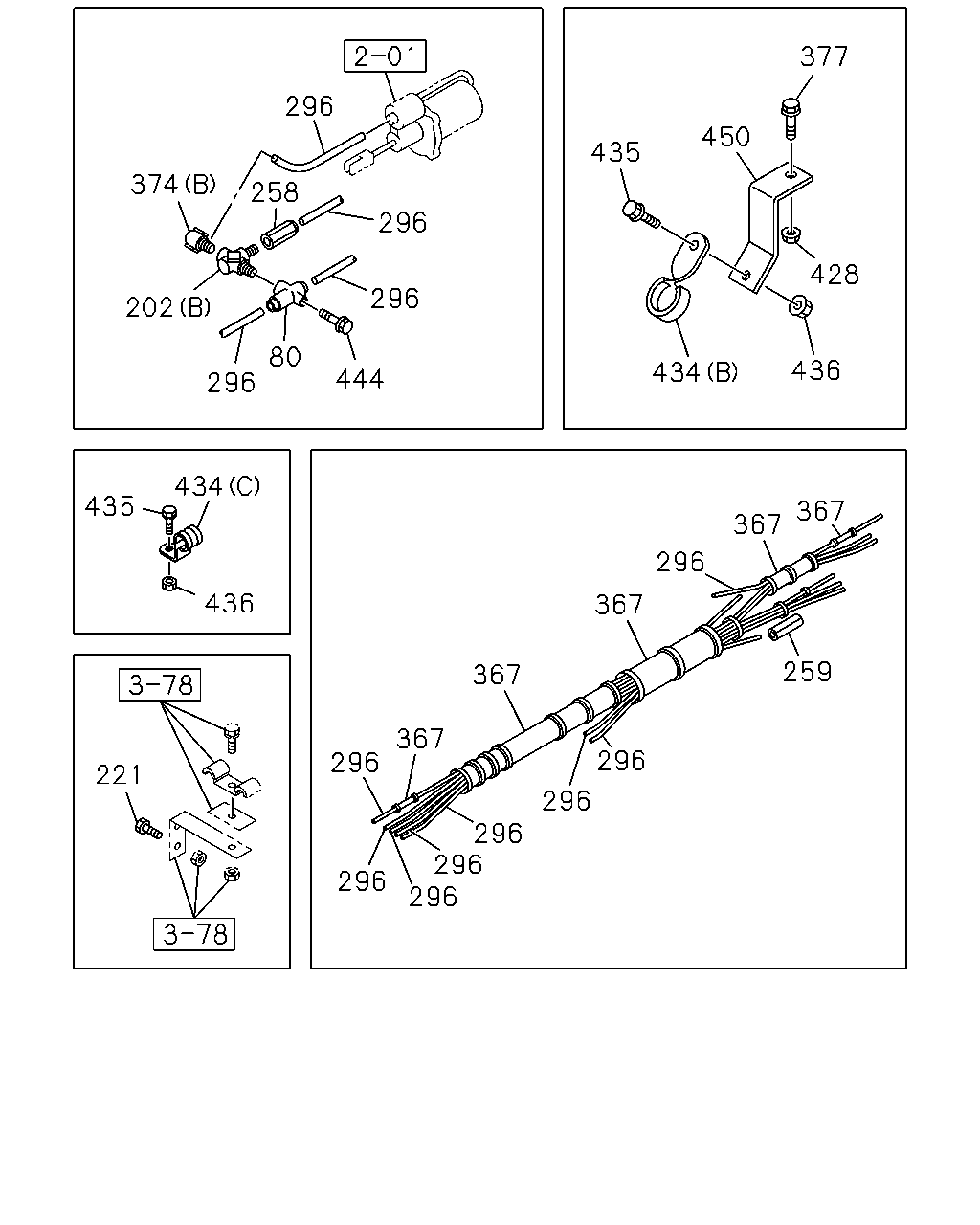

çizim 188367
377 296 450 435 374 258 296 428 296 202 80 436 434 444 296 434 435 367 367 296 436 367 259 367 367 296 296 221 296 296 296 296 296
BalonParca AdiParca NoAdetTipApplied Date
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0908-0908
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0908-0908
80 UNION; 3 WAY
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0909-
80 UNION; 3 WAY
MZW6P M/T(RSZ) DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0909-
202 ADAPTER
(A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0908-0908
202 ADAPTER
EURO5 SPECIFICATION(NT5) (A) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0909-
202 ADAPTER
MZW6P M/T(RSZ) (B) 		1-09656-734-0 01 1 0908-
221 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 02 1 0908-
258 CONNECTOR; NYLON TUBE
MZW6P M/T(RSZ) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 0908-
259 SLEEVE; RUBBER,NYLON TUBE
ID=17 OD=21 L=40 		1-09337-012-0 06 1 0908-
259 SLEEVE; RUBBER,NYLON TUBE
DOOR CONTROL AIR W/SUB AIR TANK<SGW> ID=17 OD=21 L=40 		1-09337-012-0 01 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87411-006-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87411-007-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87411-008-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=8 		1-87411-009-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=4000 OD=12 		1-87411-012-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=6000 OD=12 		1-87411-013-0 AR 1 0908-
296 TUBE; NYLON
SERVICED BY L=8000 OD=12 		1-87411-014-0 AR 1 0908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87411-022-0 AR 1 0908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=15 		1-87411-025-0 AR 1 0908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=19 		1-87411-027-0 AR 1 0908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=25 		1-87411-031-0 AR 1 0908-
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=32 		1-87411-035-0 AR 1 0908-
374 CONNECTOR
BRAKE SYSTEM RETARDER<RE2> (A) DIN8 & R3/8 ELBOW 		1-09660-957-0 01 1 0908-
374 CONNECTOR
MZW6P M/T(RSZ) (B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0908-
377 BOLT; BRKT FIX
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8X25 FLANGE 		0-28650-825-0 01 1 0908-
428 NUT; BRKT
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0908-
434 CLIP
(C) ID=25 H=60 L=35 		1-09701-103-0 01 1 0908-
434 CLIP
(A) L=350 		1-09707-183-0 01 1 0908-
434 CLIP
(A) L=350 		1-09707-183-0 07 1 0908-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (B) 		1-09700-098-0 01 1 0908-1111
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (B) ID=9 		1-09700-839-1 01 1 1112-
434 CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> (A) L=350 		1-09707-183-0 04 1 0908-
435 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0908-
435 BOLT; CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8X30 FLANGE 		0-28650-830-0 01 1 0908-
436 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0908-
436 NUT; CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0908-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 04 1 1506-
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0908-0908
444 BOLT; UNION
M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 0909-1505
444 BOLT; UNION
EURO5 SPECIFICATION(NT5) M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
444 BOLT; UNION
AIR HORN(WB8) EXC. DOOR CONTROL AIR W/SUB AIR TANK<SGW> M8X20 FLANGE 		0-28050-820-0 01 1 1506-
450 BRACKET; CLIP
MZW6P M/T(RSZ) BRAKE SYSTEM RETARDER<RE2> 		1-47477-626-0 01 1 0908-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
