4-61 — SHOCK ABSORBER; REAR SUSPENSION (#6881) — 27 parça

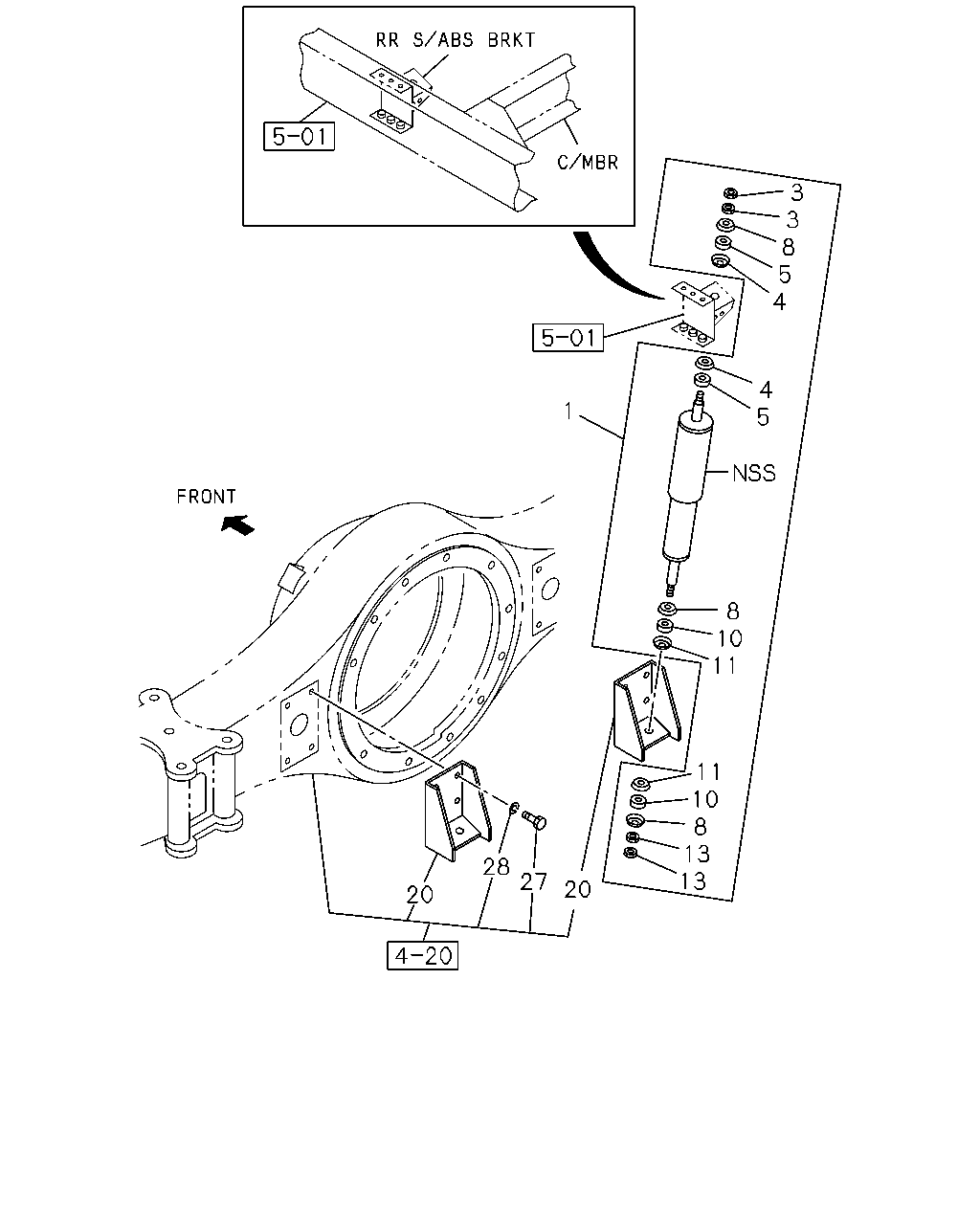

çizim 26720
3 3 8 5 4 4 5 1 8 10 11 11 10 8 13 13 28 27 20 20
BalonParca AdiParca NoAdetTipApplied Date
1 ABSORBER ASM; SHOCK,RR 1-51630-195-2 02 1 9806-9911
1 ABSORBER ASM; SHOCK,RR 8-97530-047-0 02 1 9912-0505
1 ABSORBER ASM; SHOCK,RR 1-51630-195-2 02 1 0506-
3 NUT; S/ABS
M14 		9-99111-414-0 04 1 9806-
4 WASHER; CENTER,S/ABS
ID=20.8 		9-51631-041-0 04 1 9806-
5 BUSHING; RUBBER,S/ABS,UPR 9-51631-039-0 04 1 9806-
8 WASHER; S/ABS
ID=16.5 		9-51631-040-0 06 1 9806-
10 BUSHING; RUBBER,S/ABS 9-51631-039-0 04 1 9806-
11 WASHER; CENTER,LWR,RR S/ABS
ID=20.8 		9-51631-041-0 04 1 9806-
13 NUT; LWR,RR S/ABS
M14 		9-99111-414-0 04 1 9806-
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-42129-081-1 01 1 9806-9911
20 BRACKET; LWR,S/ABS
BRK SYSTEM AIR OVER HYD DUAL CIRC(Z05) 		1-42129-082-1 01 1 9806-9911
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HVY DUTY VAR1<J55> 		1-42129-113-0 01 1 9806-9911
20 BRACKET; LWR,S/ABS
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-42129-113-0 01 1 9912-
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) RR AXLE R105A<BBJ> BRK SYSTEM HVY DUTY VAR1<J55> 		1-42129-114-0 01 1 9806-9911
20 BRACKET; LWR,S/ABS
FINAL GEAR 41/7 15.5" HYP(W3S) RR AXLE R105A<BBJ> EXC. P60 PROP SHF<C2M> 		1-42129-114-0 01 1 9912-
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HVY DUTY VAR1<J55> 		1-42129-095-0 01 1 9806-9911
20 BRACKET; LWR,S/ABS
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-42129-095-0 01 1 9912-0504
20 BRACKET; LWR,S/ABS
FINAL GEAR 41/7 15.5" HYP(W3S) EXC. RR AXLE R105A<BBJ> 		1-42129-095-0 01 1 0505-
20 BRACKET; LWR,S/ABS
FINAL GEAR 39/7 15.5" HYP(W3K) 		1-42129-095-0 01 1 0505-
20 BRACKET; LWR,S/ABS
BRK SYSTEM FULL AIR DUAL CIRC(Z06) EXC. RR AXLE R105A<BBJ>,BRK SYSTEM HVY DUTY VAR1<J55> 		1-42129-096-0 01 1 9806-9911
20 BRACKET; LWR,S/ABS
FINAL GEAR 39/7 15.5" HYP(W3K) EXC. RR AXLE R105A<BBJ> 		1-42129-096-0 01 1 9912-0504
20 BRACKET; LWR,S/ABS
FINAL GEAR 41/7 15.5" HYP(W3S) EXC. RR AXLE R105A<BBJ> 		1-42129-096-0 01 1 0505-
20 BRACKET; LWR,S/ABS
FINAL GEAR 39/7 15.5" HYP(W3K) 		1-42129-096-0 01 1 0505-
27 BOLT; ABSORBER BRKT
M14X25 		0-20801-425-0 08 1 9806-
28 WASHER; LK,ABSORBER BRKT
ID=14.2 		9-09150-614-0 08 1 9806-0603
28 WASHER; LK,ABSORBER BRKT
ID=14.2 		0-91510-614-0 08 1 0604-
