◀ 🏠 ▶ Isuzu WW ▶ BUSES ▶ LT ▶ 11207 - LT134(RHD) EURO2/5 ▶ 3 - Brakes, Brake System ▶ 3-08 - PARKING BRAKE ▶
3-08 — PARKING BRAKE (#68809) — 95 parça

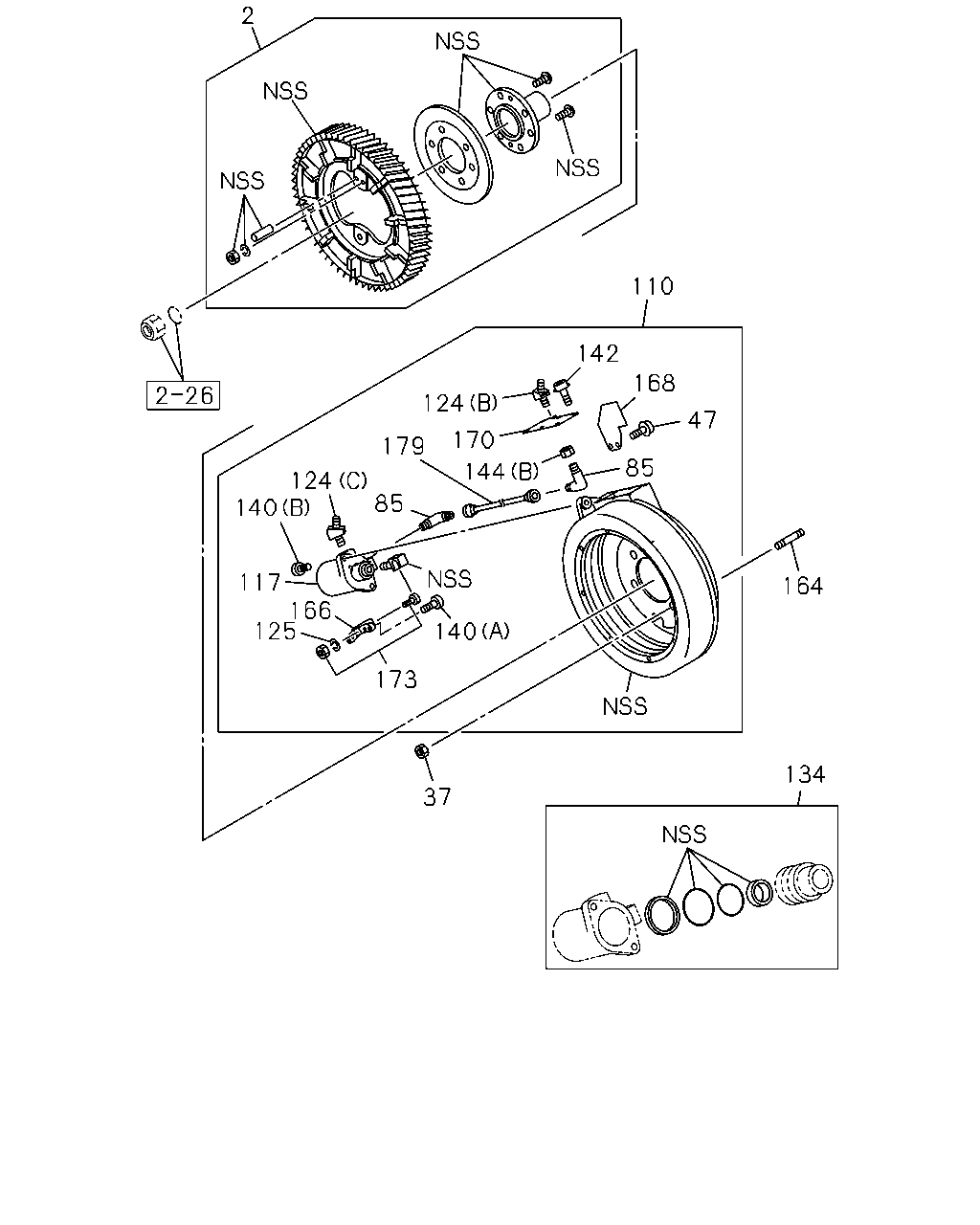

çizim 115158
2 110 142 168 124 47 170 179 85 144 124 140 85 117 164 166 125 140 173 134 37
BalonParca AdiParca NoAdetTipApplied Date A B
2 DRUM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-365-1 01 1 0908-1006 ●
2 DRUM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		8-98155-754-0 01 1 1007- ●
37 NUT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M14 FLANGE 		8-97365-444-0 04 1 0908- ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0908-0908 ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0909- ● ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0908-0908 ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0909- ● ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-483-4 01 1 0909- ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		8-98042-119-1 01 1 0908- ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0908-0908 ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0909- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0909- ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0908-0908 ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0909- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0908- ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-606-0 01 1 1007- ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0908-0908 ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0909-1006 ● ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 1007- ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0908-0908 ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0909- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0908-0908 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0909- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0908-0908 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0909- ● ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0908-0908 ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0909- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M14 FLANGE 		8-97365-444-0 04 1 0909- ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0908-0908 ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0909- ● ●
164 STUD; RETARDER
BRAKE SYSTEM RETARDER<RE2> M14X22 W/DRY-ROCK 		8-98019-447-0 04 1 0908- ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0908-0908 ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0909- ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0908-0908 ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0909- ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0908-0908 ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0909- ● ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0908-0908 ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0909- ● ●
179 TUBE; NYLON
BRAKE SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 0908- ●

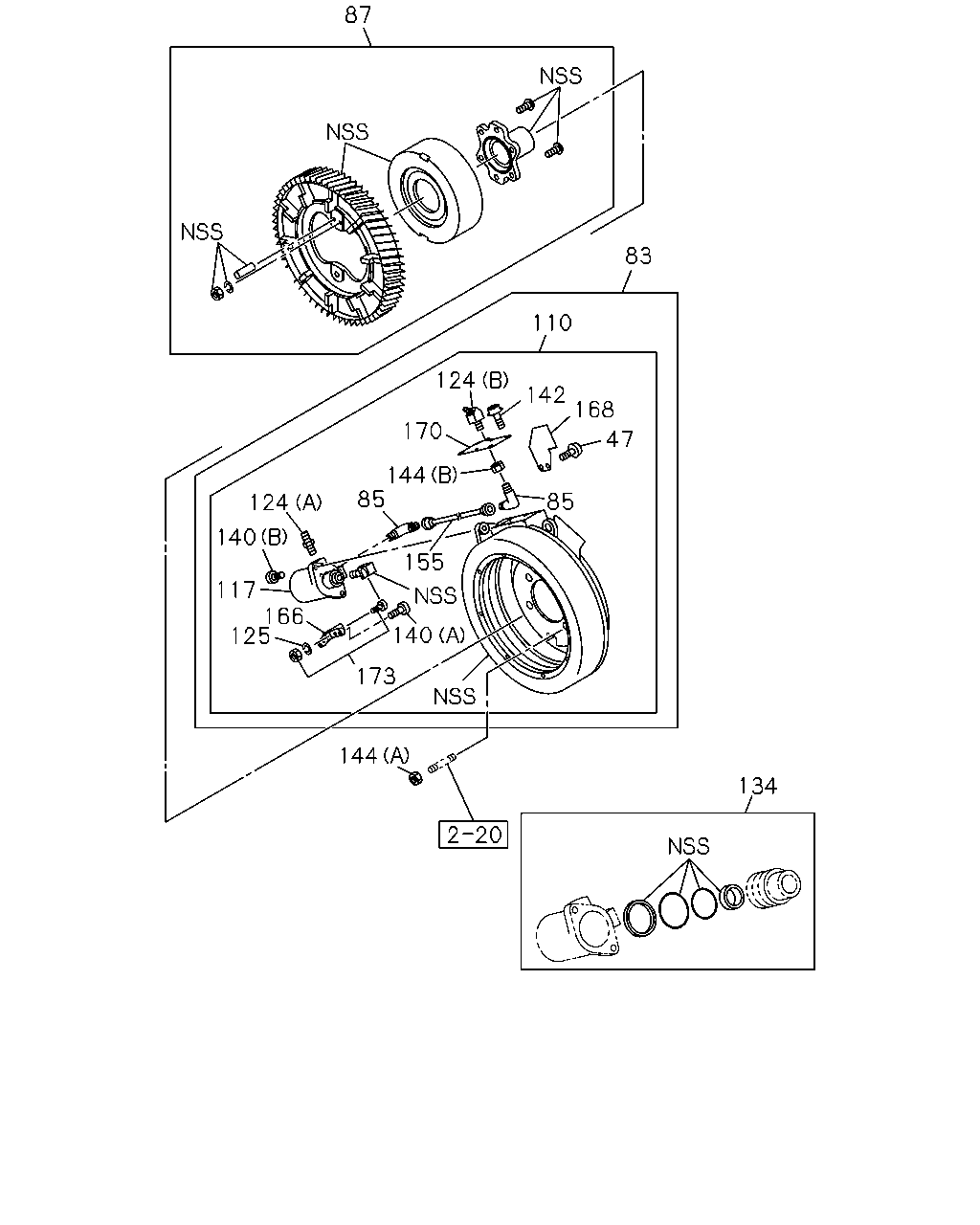

çizim 115216
87 83 110 124 142 168 170 47 144 85 85 124 140 155 117 166 125 140 173 144 134
BalonParca AdiParca NoAdetTipApplied Date A B
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0908-0908 ●
47 BOLT; SUPPORT PLATE
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 02 1 0909- ● ●
83 RETARDER ASM; PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-482-4 01 1 0909- ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0908-0908 ●
85 CONNECTOR; RETARDER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-224-0 02 1 0909- ● ●
87 DRUM; RETARDER,PARKING BRK
BRAKE SYSTEM RETARDER<RE2> 		1-48610-365-1 01 1 0909- ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		1-48610-483-4 01 1 0909- ●
110 BRAKE ASM; PARKING
BRAKE SYSTEM RETARDER<RE2> 		8-98042-119-1 01 1 0908- ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0908-0908 ●
117 CYLINDER ASM; AIR
BRAKE SYSTEM RETARDER<RE2> 		1-48629-220-0 01 1 0909- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0909- ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0908-0908 ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-243-0 01 1 0909- ● ●
124 CONNECTOR; FLEX HOSE
BRAKE SYSTEM RETARDER<RE2> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0908- ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-606-0 01 1 1007- ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0908-0908 ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 0909-1006 ● ●
125 WASHER; LK
BRAKE SYSTEM RETARDER<RE2> ID=6.1 		0-91510-506-0 01 1 1007- ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0908-0908 ●
134 REPAIR KIT; AIR CYL
BRAKE SYSTEM RETARDER<RE2> 		1-48629-230-0 01 1 0909- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0908-0908 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-170-0 02 1 0909- ● ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0908-0908 ●
140 BOLT
BRAKE SYSTEM RETARDER<RE2> (A) 		1-48629-182-0 04 1 0909- ● ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0908-0908 ●
142 SCREW
BRAKE SYSTEM RETARDER<RE2> M6X14 HEX SOCKET 		1-48629-145-0 06 1 0909- ● ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (A) M14 FLANGE 		8-97365-444-0 04 1 0909- ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0908-0908 ●
144 NUT
BRAKE SYSTEM RETARDER<RE2> (B) 		1-48629-244-0 01 1 0909- ● ●
155 TUBE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-225-0 01 1 0909- ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0908-0908 ●
166 ATTACHMENT; YOKE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-181-0 01 1 0909- ● ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0908-0908 ●
168 PROTECTOR; HEAT
BRAKE SYSTEM RETARDER<RE2> 		1-48629-222-0 01 1 0909- ● ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0908-0908 ●
170 COVER; CASE
BRAKE SYSTEM RETARDER<RE2> 		1-48629-219-0 01 1 0909- ● ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0908-0908 ●
173 FOLLOWER
BRAKE SYSTEM RETARDER<RE2> 		1-48629-159-0 01 1 0909- ● ●

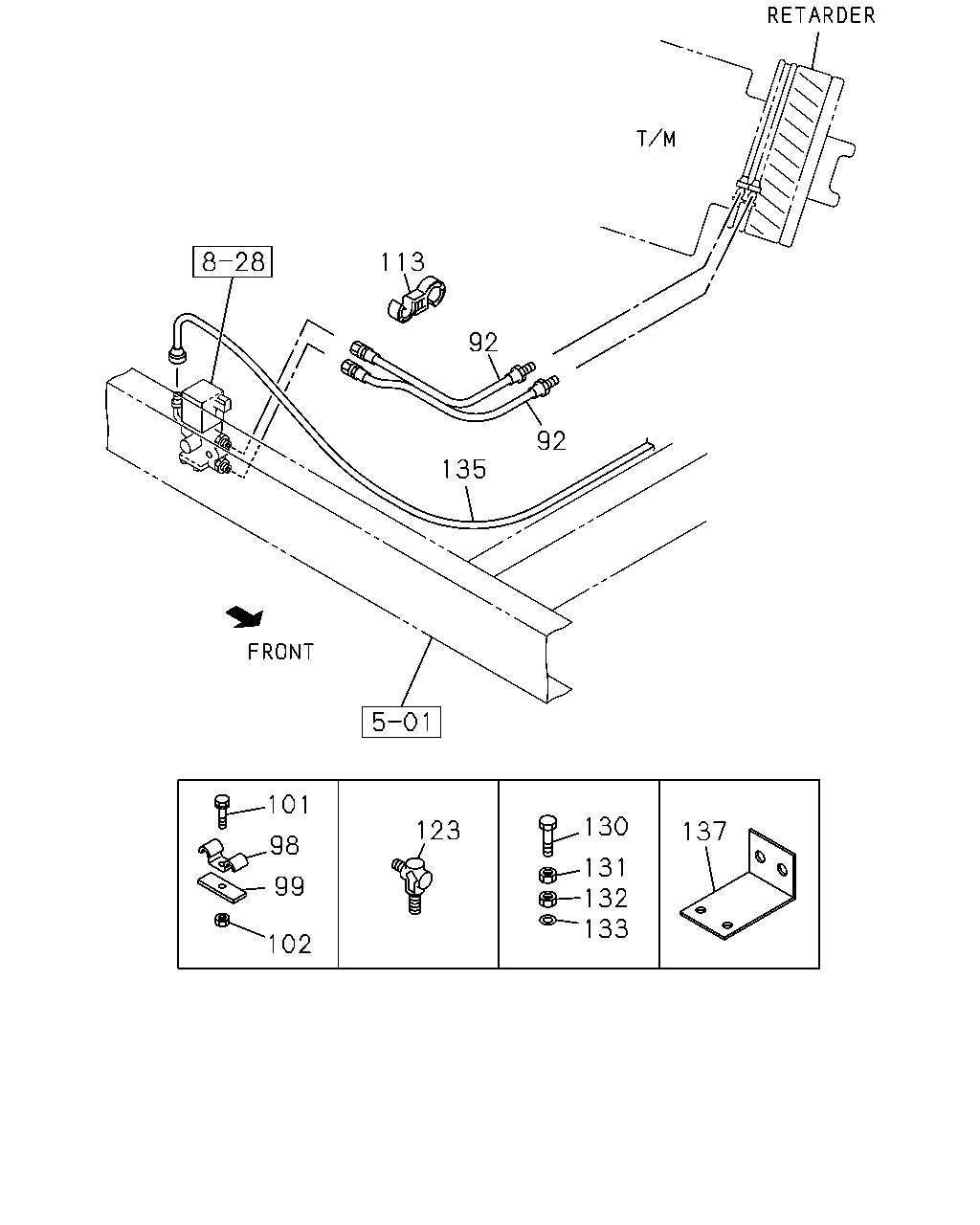

çizim 188357
113 92 92 135 101 130 123 137 98 131 132 133 99 102
BalonParca AdiParca NoAdetTipApplied Date A B
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=350 		1-09363-877-0 02 1 0909- ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=220 		1-09363-645-0 02 1 0908-1111 ●
92 HOSE; FLEX,RETARDER
BRAKE SYSTEM RETARDER<RE2> L=250 		1-09363-618-0 02 1 1112- ●
98 CLIP; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> ID=7 & 7 L=17.5 & 17.5 		1-09700-745-0 01 1 0909- ●
99 BRACKET; CLIP
BRAKE SYSTEM RETARDER<RE2> L=50 		1-47475-299-2 01 1 0909- ●
101 BOLT; CLIP
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0909- ●
102 NUT; CLIP,AIR PIPE
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 01 1 0909- ●
113 CLIP; HOSE
BRAKE SYSTEM RETARDER<RE2> ID=10 & 10 		1-09709-277-1 01 1 0908- ● ●
123 UNION
BRAKE SYSTEM RETARDER<RE2> M12 ELBOW 		0-92125-206-0 02 1 0909- ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X35 FLANGE 		0-28050-835-0 02 1 0909- ●
130 BOLT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8X20 FLANGE 		0-28650-820-0 01 1 0909- ●
131 NUT; BRKT
BRAKE SYSTEM RETARDER<RE2> M8 FLANGE 		0-91180-108-0 03 1 0909- ●
132 NUT; UNION
BRAKE SYSTEM RETARDER<RE2> M12 		9-09840-280-0 02 1 0909- ●
133 WASHER; UNION
BRAKE SYSTEM RETARDER<RE2> ID=12.2 		0-91510-512-0 02 1 0909- ●
135 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM RETARDER<RE2> L=437 		1-49124-933-0 01 1 0909- ●
135 PIPE; AIR,MAG VLV TO UNION
BRAKE SYSTEM RETARDER<RE2> L=510 SERVICED BY L=550 		1-47428-808-0 01 1 0909- ●
137 BRACKET; AIR PIPE
BRAKE SYSTEM RETARDER<RE2> 		1-47471-226-0 01 1 0909- ●
