3-05 — REAR WHEEL BRAKE (#68808) — 155 parça

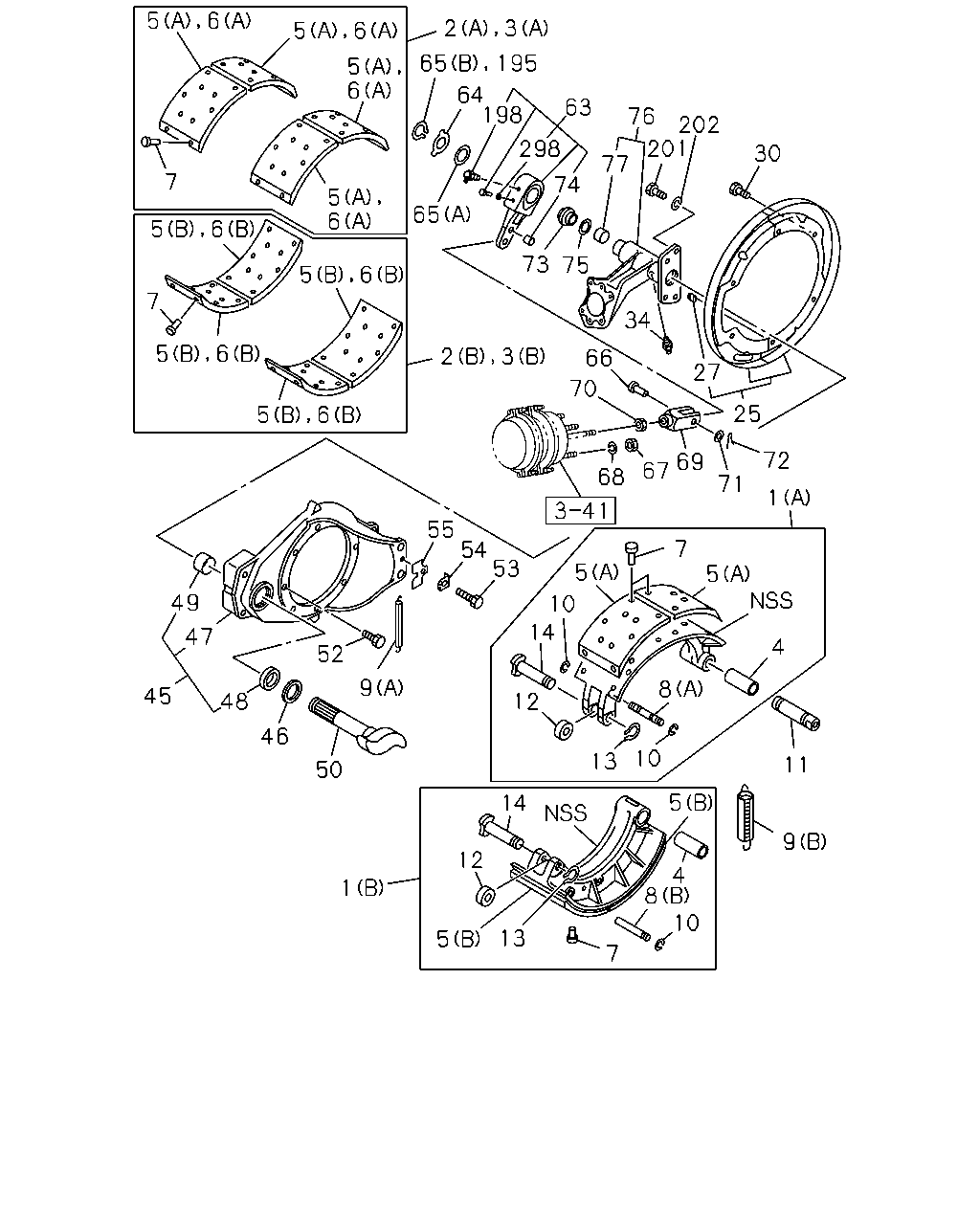

5 6 2 3 5 6 65 195 5 6 64 198 63 76 202 201 298 30 77 7 74 5 6 65 73 75 7 34 66 27 70 25 72 69 67 68 71 1 55 54 53 7 5 5 49 10 14 47 4 52 9 8 45 48 12 46 10 13 11 50 5 14 9 12 4 8 10 1 13 5 7 2 3 6 5 5 6 6 5 6 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR (B) TRAILING	1-47120-337-0	01	1	0908-
1	SHOE; BRK,RR (B) TRAILING	1-47120-339-0	01	1	0908-
1	SHOE; BRK,RR (A) LEADING	1-47170-476-0	01	1	0908-
1	SHOE; BRK,RR (A) LEADING	1-47170-477-0	01	1	0908-
2	LINING SET; RR BRK,STANDARD (B)	1-88310-315-1	01	1	0908-
2	LINING SET; RR BRK,STANDARD (A)	1-88311-361-0	01	1	0908-
3	LINING SET; RR BRK,OVER SIZE (B)	1-88310-316-1	01	1	0908-
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-362-0	01	1	0908-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0908-
5	LINING; RR BRK SHOE,STANDARD (B) T=16	1-47125-436-0	04	1	0908-
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-751-0	04	1	0908-
6	LINING; RR BRK SHOE,OVER SIZE (B) T=17	1-47125-438-0	04	1	0908-
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-752-0	04	1	0908-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0908-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-021-0	04	1	0908-1209
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-029-0	04	1	0908-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	0908-1209
9	SPRING; RETURN,BRK SHOE (A)	8-98219-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-196-0	02	1	0908-1209
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0908-1209
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0908-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0908-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0908-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0908-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0908-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0908-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0908-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	0-90301-410-0	02	1	0908-
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM<BFA>	1-47137-538-0	01	1	0908-
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM<BFA>	1-47137-539-0	01	1	0908-
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-138-1	01	1	0908-1410
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-138-1	01	1	1411-
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-139-1	01	1	0908-1410
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-139-1	01	1	1411-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0908-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTILOCK BRAKE SYSTEM<BFA>	1-47137-540-0	01	1	0908-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTILOCK BRAKE SYSTEM<BFA>	1-47137-541-0	01	1	0908-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0908-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0908-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	0908-1410
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	1411-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	0908-1410
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	1411-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0908-1209
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0908-1209
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0908-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0908-
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-075-0	01	1	0908-1410
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-075-0	01	1	1411-
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-076-0	01	1	0908-1410
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-076-0	01	1	1411-
63	ADJUSTER ASM; SLACK,RR BRK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-045-0	01	1	0908-
63	ADJUSTER ASM; SLACK,RR BRK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-046-0	01	1	0908-
64	PLATE; STOPPER,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47149-054-0	02	1	0908-
64	PLATE; STOPPER,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47149-022-0	02	1	0908-
65	SPACER; SLACK ADJ,BRK ANTILOCK BRAKE SYSTEM<BFA> (C)	1-47143-011-0	02	1	0908-
65	SPACER; SLACK ADJ,BRK EXC. ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47143-004-0	02	1	0908-
65	SPACER; SLACK ADJ,BRK EXC. ANTILOCK BRAKE SYSTEM<BFA> (B)	9-09180-038-0	01	1	0908-
66	PIN; JAW JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-09744-088-0	02	1	0908-
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0908-
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0908-
69	JOINT; JAW EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-09768-060-1	02	1	0908-
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0908-
71	WASHER; PL,JAW JOINT EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=17 OD=32	9-09160-616-0	02	1	0908-
72	PIN; SPLIT EXC. ANTILOCK BRAKE SYSTEM<BFA> OD=3.7 L=28	0-81124-028-0	02	1	0908-
73	COLLAR; FELT RING,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47143-010-0	02	1	0908-
73	COLLAR; FELT RING,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47143-016-0	02	1	0908-
74	BUSHING; SLACK ADJ EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-09330-041-0	02	1	0908-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0908-1410
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	1411-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0908-1410
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	1411-
77	BUSHING	1-47146-003-1	02	1	0908-
195	RING; SNAP,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	9-09180-038-0	02	1	0908-
195	RING; SNAP,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	9-09180-038-0	01	1	0908-
198	NIPPLE; GREASE,SLACK ADJ EXC. ANTILOCK BRAKE SYSTEM<BFA> PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	02	1	0908-
201	BOLT; BRKT,POWER CHAMBER M14X35	0-20851-435-0	08	1	0908-
202	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	0908-
298	GASKET EXC. ANTILOCK BRAKE SYSTEM<BFA> ID=23.3	9-09561-223-0	02	1	0908-

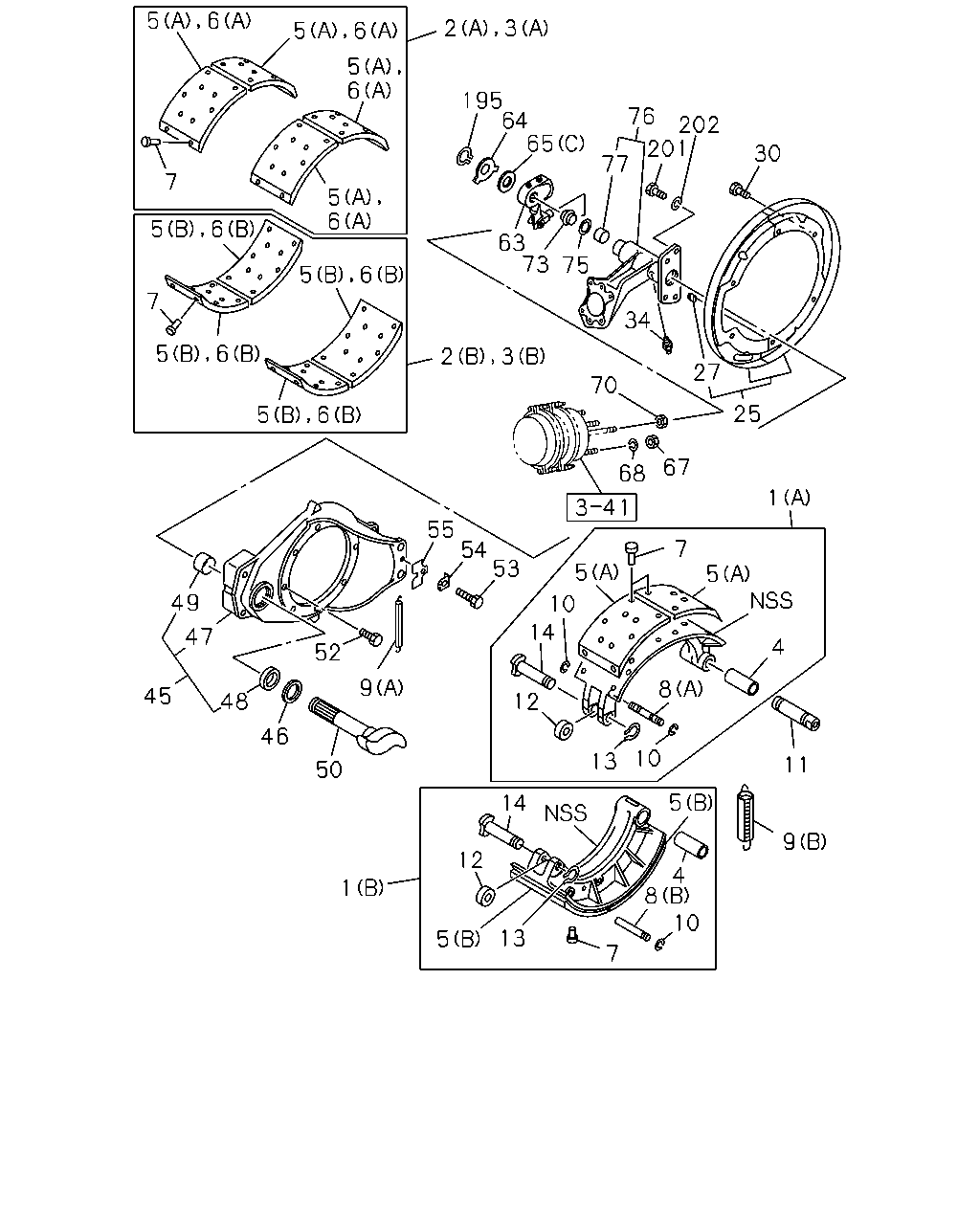

5 6 2 3 5 6 5 6 195 64 65 76 202 201 30 77 7 5 6 63 73 75 7 34 27 70 25 67 68 1 55 54 53 7 5 5 49 10 14 47 4 52 9 8 45 48 12 46 10 13 11 50 5 14 9 12 4 8 10 1 13 5 7 5 6 5 6 5 6 5 6 2 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR (B) TRAILING	1-47120-337-0	01	1	0908-
1	SHOE; BRK,RR (B) TRAILING	1-47120-339-0	01	1	0908-
1	SHOE; BRK,RR (A) LEADING	1-47170-476-0	01	1	0908-
1	SHOE; BRK,RR (A) LEADING	1-47170-477-0	01	1	0908-
2	LINING SET; RR BRK,STANDARD (B)	1-88310-315-1	01	1	0908-
2	LINING SET; RR BRK,STANDARD (A)	1-88311-361-0	01	1	0908-
3	LINING SET; RR BRK,OVER SIZE (B)	1-88310-316-1	01	1	0908-
3	LINING SET; RR BRK,OVER SIZE (A)	1-88311-362-0	01	1	0908-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	0908-
5	LINING; RR BRK SHOE,STANDARD (B) T=16	1-47125-436-0	04	1	0908-
5	LINING; RR BRK SHOE,STANDARD (A)	1-47126-751-0	04	1	0908-
6	LINING; RR BRK SHOE,OVER SIZE (B) T=17	1-47125-438-0	04	1	0908-
6	LINING; RR BRK SHOE,OVER SIZE (A)	1-47126-752-0	04	1	0908-
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	0908-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-021-0	04	1	0908-1209
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-029-0	04	1	0908-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-175-0	02	1	0908-1209
9	SPRING; RETURN,BRK SHOE (A)	8-98219-175-0	02	1	1210-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-196-0	02	1	0908-1209
10	RING; SNAP,SPR PIN ID=10	0-91805-510-0	08	1	0908-1209
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	0908-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	0908-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	0908-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	0908-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	0908-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	0908-
30	BOLT; DRUM COVER M10X12	1-47159-187-0	12	1	0908-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	0-90301-410-0	02	1	0908-
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM<BFA>	1-47137-538-0	01	1	0908-
45	BRACKET; ANCHOR PIN,W/BUSHING ANTILOCK BRAKE SYSTEM<BFA>	1-47137-539-0	01	1	0908-
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-138-1	01	1	0908-1410
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-138-1	01	1	1411-
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-139-1	01	1	0908-1410
45	BRACKET; ANCHOR PIN,W/BUSHING EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47137-139-1	01	1	1411-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	0908-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTILOCK BRAKE SYSTEM<BFA>	1-47137-540-0	01	1	0908-
47	BRACKET; ANCHOR PIN,RR WHEEL BRK ANTILOCK BRAKE SYSTEM<BFA>	1-47137-541-0	01	1	0908-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	0908-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	0908-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	0908-1410
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	1411-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	0908-1410
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	1411-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	0908-1209
53	BOLT; LOCK PLATE M10X16	0-20851-016-0	02	1	0908-1209
53	BOLT; LOCK PLATE M10X16	1-47139-173-0	02	1	1210-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	0908-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	0908-
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-075-0	01	1	0908-1410
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-075-0	01	1	1411-
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-076-0	01	1	0908-1410
63	ADJUSTER ASM; SLACK,RR BRK ANTILOCK BRAKE SYSTEM<BFA>	1-48270-076-0	01	1	1411-
63	ADJUSTER ASM; SLACK,RR BRK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-045-0	01	1	0908-
63	ADJUSTER ASM; SLACK,RR BRK EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-48270-046-0	01	1	0908-
64	PLATE; STOPPER,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47149-054-0	02	1	0908-
64	PLATE; STOPPER,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47149-022-0	02	1	0908-
65	SPACER; SLACK ADJ,BRK ANTILOCK BRAKE SYSTEM<BFA> (C)	1-47143-011-0	02	1	0908-
65	SPACER; SLACK ADJ,BRK EXC. ANTILOCK BRAKE SYSTEM<BFA> (A)	1-47143-004-0	02	1	0908-
65	SPACER; SLACK ADJ,BRK EXC. ANTILOCK BRAKE SYSTEM<BFA> (B)	9-09180-038-0	01	1	0908-
67	NUT; POWER CHAMBER FIX M16	0-91110-516-0	08	1	0908-
68	WASHER; LK,CHAMBER ID=16.2	0-91510-816-0	08	1	0908-
70	NUT; LK,JAW JOINT M16	0-91111-516-0	02	1	0908-
73	COLLAR; FELT RING,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	1-47143-010-0	02	1	0908-
73	COLLAR; FELT RING,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	1-47143-016-0	02	1	0908-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	0908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	0908-1410
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-248-0	01	1	1411-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	0908-1410
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-249-0	01	1	1411-
77	BUSHING	1-47146-003-1	02	1	0908-
195	RING; SNAP,CM/SHF ANTILOCK BRAKE SYSTEM<BFA>	9-09180-038-0	02	1	0908-
195	RING; SNAP,CM/SHF EXC. ANTILOCK BRAKE SYSTEM<BFA>	9-09180-038-0	01	1	0908-
201	BOLT; BRKT,POWER CHAMBER M14X35	0-20851-435-0	08	1	0908-
202	WASHER; LK,BRKT ID=14.2	0-91510-514-0	08	1	0908-
